Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

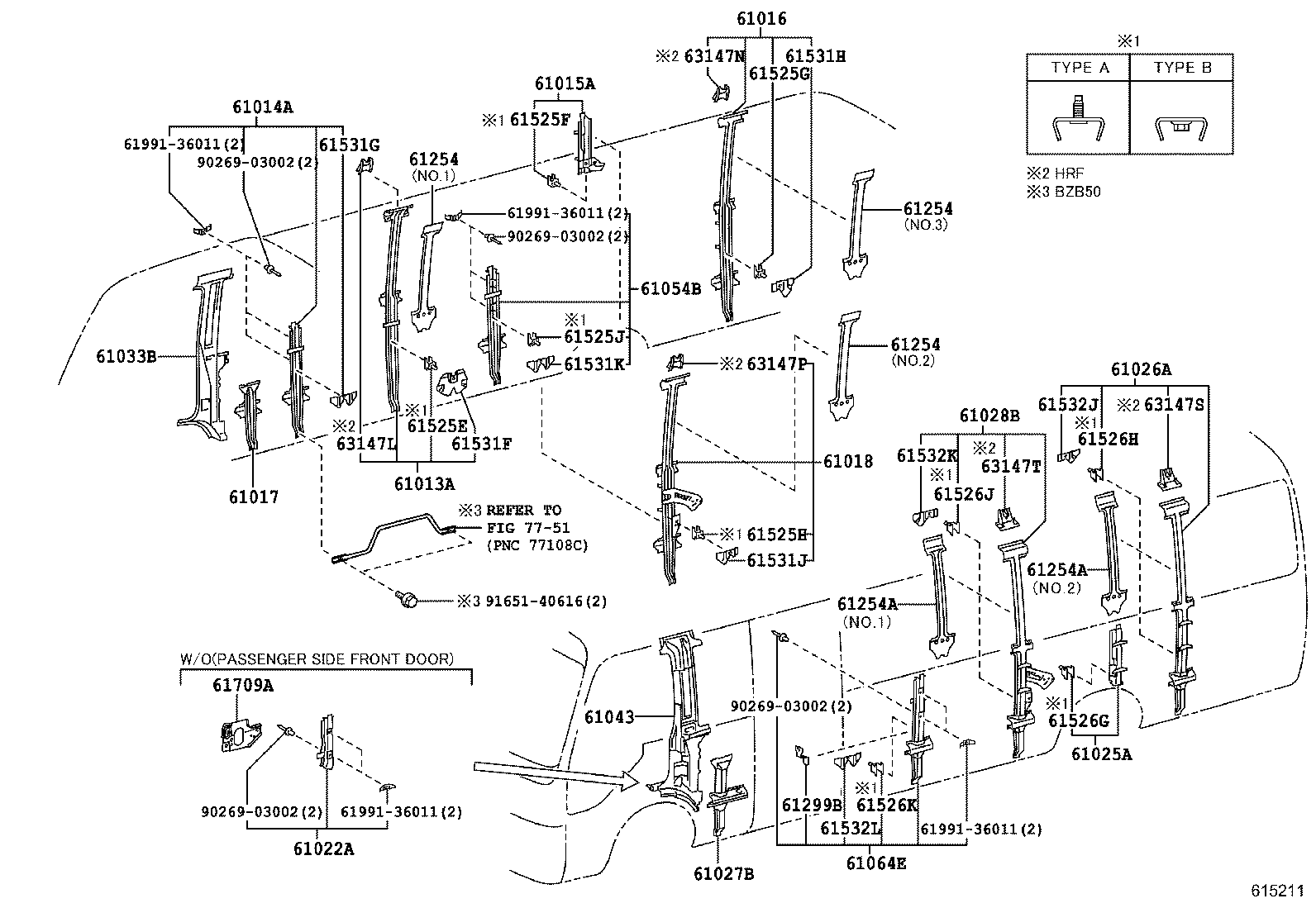

Exploded illustration 615211 61013A — PILLAR SUB-ASSY, NO.3 RH (44 parts) 61014A — PILLAR SUB-ASSY, NO.4 RH (17 parts) 61054B — PILLAR SUB-ASSY, NO.12 RH (16 parts) 61016 — PILLAR SUB-ASSY, NO.6 RH (48 parts) 61017 — PILLAR SUB-ASSY, NO.7 RH (31 parts) 61027B — PILLAR SUB-ASSY, NO.7, LH (30 parts) 61018 — PILLAR SUB-ASSY, NO.8 RH (41 parts) 61022A — PILLAR SUB-ASSY, NO.2 LH (20 parts) 61026A — PILLAR SUB-ASSY, NO.6 LH (45 parts) 61025A — PILLAR SUB-ASSY, NO.5 LH (54 parts) 61064E — PILLAR SUB-ASSY, NO.12 LH (18 parts) 61299B — BRACKET, INNER PILLAR BLOWER, LH (1 parts) 61526K — BRACKET, SEAT ANCHOR, LH (4 parts) 61532L — GUSSET, SEAT ANCHOR, LH (1 parts) 61028B — PILLAR SUB-ASSY, NO.8 LH (43 parts) 61254A — PILLAR, NO.3 INNER, LH (49 parts) 61254A — PILLAR, NO.3 INNER, LH (49 parts) 61033B — PILLAR SUB-ASSY, NO.2 INNER, RH (44 parts) 61043 — PILLAR SUB-ASSY, NO.2 INNER, LH (40 parts) 61709A — REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, LH (8 parts) 61525E — BRACKET, SEAT ANCHOR, RH (3 parts) 61526J — BRACKET, SEAT ANCHOR, LH (4 parts) 61532K — GUSSET, SEAT ANCHOR, LH (1 parts) 61532J — GUSSET, SEAT ANCHOR, LH (1 parts) 63147S — BRACKET, ROOF PANEL REINFORCEMENT (1 parts) 63147T — BRACKET, ROOF PANEL REINFORCEMENT (1 parts) 61531F — GUSSET, SEAT ANCHOR, RH (1 parts) 61531G — GUSSET, SEAT ANCHOR, RH (3 parts) 63147L — BRACKET, ROOF PANEL REINFORCEMENT (1 parts) 61254 — PILLAR, NO.3 INNER, RH (47 parts) 61254 — PILLAR, NO.3 INNER, RH (47 parts) 61254 — PILLAR, NO.3 INNER, RH (47 parts) 61015A — PILLAR SUB-ASSY, NO.5 RH (54 parts) 6199136011 — not listed in this catalogue 6199136011 — not listed in this catalogue 9026903002 — not listed in this catalogue 9026903002 — not listed in this catalogue 9026903002 — not listed in this catalogue 6199136011 — not listed in this catalogue 6199136011 — not listed in this catalogue 9026903002 — not listed in this catalogue 61525J — BRACKET, SEAT ANCHOR, RH (4 parts) 61525G — BRACKET, SEAT ANCHOR, RH (4 parts) 61526H — BRACKET, SEAT ANCHOR, LH (4 parts) 63147N — BRACKET, ROOF PANEL REINFORCEMENT (1 parts) 61531H — GUSSET, SEAT ANCHOR, RH (2 parts) 61525H — BRACKET, SEAT ANCHOR, RH (4 parts) 63147P — BRACKET, ROOF PANEL REINFORCEMENT (1 parts) 61531J — GUSSET, SEAT ANCHOR, RH (1 parts) 61531K — GUSSET, SEAT ANCHOR, RH (1 parts) 7751 — not listed in this catalogue 9165140616 — not listed in this catalogue 61525F — BRACKET, SEAT ANCHOR, RH (4 parts) 61526G — BRACKET, SEAT ANCHOR, LH (5 parts)
615211 · 44 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
702 parts on this figure
Part number Description Fitment Price
61013A — Pillar Sub-assy, NO.3 RH
61013-36010 Pillar Sub-assy, NO.3 RH
1993-01 → 1993-12 ended
BB4#,HZB50 RHD HRF DSL —
61013-36010 Pillar Sub-assy, NO.3 RH
1993-12 → 1999-07 ended
BB50,HZB50 RHD HRF CBU —
61013-36020 Pillar Sub-assy, NO.3 RH
1993-01 → 1993-12 ended
BB42,HZB50 RHD SRF —
61013-36020 Pillar Sub-assy, NO.3 RH
1993-12 → 1999-07 ended
HZB50 RHD SRF —
61013-36040 note Pillar Sub-assy, NO.3 RH
1993-01 → 1999-07 ended
BB42 RHD SRF —
61013-36050 Pillar Sub-assy, NO.3 RH
1993-12 → 1999-07 ended
BB4# RHD HRF —
61013-36060 Pillar Sub-assy, NO.3 RH
1993-12 → 1999-07 ended
BB42 RHD SRF —
61013-36010 Pillar Sub-assy, NO.3 RH
1999-07 → 2001-08 ended
HZB50 RHD WOC GEN;BB50,HZB50 +3 —
61013-36010 Pillar Sub-assy, NO.3 RH
1999-07 → 2002-11 ended
HZB50 ARL —
61013-36010 Pillar Sub-assy, NO.3 RH
1999-07 → 2004-08 ended
BB50 RHD CBU TDEFI;HZB50 +6 —
61013-36020 Pillar Sub-assy, NO.3 RH
1999-07 → 2001-08 ended
HZB50 RHD SRF —
61013-36040 note Pillar Sub-assy, NO.3 RH
1999-07 → 2004-08 ended
BB42 RHD SRF —
61013-36050 Pillar Sub-assy, NO.3 RH
1999-07 → 2001-08 ended
BB43;BB42 RHD HRF WOC —
61013-36050 Pillar Sub-assy, NO.3 RH
1999-07 → 2004-08 ended
BB42 RHD WC —
61013-36060 Pillar Sub-assy, NO.3 RH
1999-07 → 2004-08 ended
BB42 RHD SRF —
61013-36090 Pillar Sub-assy, NO.3 RH
2001-04 → 2004-08 ended
BB59 —
61013-36090 Pillar Sub-assy, NO.3 RH
2001-04 → 2001-08 ended
BB50 EX IV —
61013-36100 note Pillar Sub-assy, NO.3 RH
2003-11 → 2004-08 ended
BB59 —
61013-36110 Pillar Sub-assy, NO.3 RH
2001-08 → 2004-08 ended
BZB40,50 —
61013-36010 Pillar Sub-assy, NO.3 RH
2004-08 → 2006-08 ended
BB50 RHD CBU —
61013-36010 Pillar Sub-assy, NO.3 RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61013-36010 Pillar Sub-assy, NO.3 RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61013-36010 Pillar Sub-assy, NO.3 RH
2004-08 → 2015-01 ended
HZB50,XZB50 RHD (20S,21S,30S) WC —
61013-36040 note Pillar Sub-assy, NO.3 RH
2011-08 → 2015-01 ended
BB42 RHD SRF WC —
61013-36040 note Pillar Sub-assy, NO.3 RH
2004-08 → 2015-01 ended
BB42 RHD WOC —
61013-36050 Pillar Sub-assy, NO.3 RH
2004-08 → 2015-01 ended
BB42,XZB40 RHD HRF —
61013-36060 Pillar Sub-assy, NO.3 RH
2004-08 → 2015-01 ended
BB42 RHD SRF —
61013-36090 note Pillar Sub-assy, NO.3 RH
2004-08 → 2006-08 ended
BB59 —
61013-36090 note Pillar Sub-assy, NO.3 RH
2004-08 → 2015-01 ended
XZB59 —
61013-36100 note Pillar Sub-assy, NO.3 RH
2004-08 → 2015-01 ended
XZB59 —
61013-36100 note Pillar Sub-assy, NO.3 RH
2004-08 → 2006-08 ended
BB59 —
61013-36110 Pillar Sub-assy, NO.3 RH
2004-08 → 2006-08 ended
BZB50 EX —
61013-36110 Pillar Sub-assy, NO.3 RH
2004-08 → 2015-01 ended
BZB40,50 STD —
61013-36140 Pillar Sub-assy, NO.3 RH
2015-01 → —
XZB50 ARL —
61013-36140 note Pillar Sub-assy, NO.3 RH
2015-01 → —
XZB50 EX —
61013-36160 note Pillar Sub-assy, NO.3 RH
2015-01 → —
XZB59 —
61013-36171 Pillar Sub-assy, NO.3 RH
2015-01 → —
BZB40 —
61013-36181 Pillar Sub-assy, NO.3 RH
2015-01 → —
HZB50,XZB50 RHD GEN —
61013-36201 note Pillar Sub-assy, NO.3 RH
2015-01 → —
BB42 RHD —
61013-36211 Pillar Sub-assy, NO.3 RH
2015-01 → —
XZB40 17S —
61013-36221 Pillar Sub-assy, NO.3 RH
2015-01 → —
BB42 RHD —
61013-36250 note Pillar Sub-assy, NO.3 RH
2015-01 → —
XZB59 —
61013-36260 Pillar Sub-assy, NO.3 RH
2015-01 → —
BZB50 —
61013-36260 note Pillar Sub-assy, NO.3 RH
2015-01 → —
BZB40 —
61014A — Pillar Sub-assy, NO.4 RH
61014-36040 Pillar Sub-assy, NO.4 RH
1993-01 → 1993-12 ended
BB4#,HZB50 RHD DSL —
61014-36040 Pillar Sub-assy, NO.4 RH
1993-12 → 1995-05 ended
BB4#,HZB50 RHD (17S,19S,22S,26S) —
61014-36040 Pillar Sub-assy, NO.4 RH
1995-05 → 1999-07 ended
BB4#,50 RHD CBU;HZB50 RHD +2 —
61014-36040 Pillar Sub-assy, NO.4 RH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61014-36040 Pillar Sub-assy, NO.4 RH
1999-07 → 2002-11 ended
HZB50 ARL —
61014-36040 Pillar Sub-assy, NO.4 RH
1999-07 → 2004-08 ended
BB42 N RHD 5F +11 —
61014-36070 Pillar Sub-assy, NO.4 RH
2001-08 → 2004-08 ended
BZB40,50 —
61014-36040 Pillar Sub-assy, NO.4 RH
2004-08 → 2015-01 ended
BB42,HZB50,XZB40,59 RHD;XZB50 RHD (20S,21S) +1 —
61014-36040 Pillar Sub-assy, NO.4 RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61014-36040 Pillar Sub-assy, NO.4 RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61014-36040 Pillar Sub-assy, NO.4 RH
2004-08 → 2006-08 ended
BB50,59 RHD (ARL,GEN) —
61014-36070 Pillar Sub-assy, NO.4 RH
2004-08 → 2006-08 ended
BZB50 EX —
61014-36070 Pillar Sub-assy, NO.4 RH
2004-08 → 2015-01 ended
BZB40,50 STD —
61014-36090 Pillar Sub-assy, NO.4 RH
2015-01 → —
BB42,HZB50,XZB40,50 RHD GEN —
61014-36100 Pillar Sub-assy, NO.4 RH
2015-01 → —
BZB40,50 —
61014-36110 Pillar Sub-assy, NO.4 RH
2015-01 → —
XZB59;XZB50 ARL —
61014-36110 note Pillar Sub-assy, NO.4 RH
2015-01 → —
XZB50 EX —
61015A — Pillar Sub-assy, NO.5 RH
61015-36010 Pillar Sub-assy, NO.5 RH
1993-01 → 1999-07 ended
BB42,43,RZB40 HRF —
61015-36020 Pillar Sub-assy, NO.5 RH
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 (GCC,GEN,SCO) CBU —
61015-36030 Pillar Sub-assy, NO.5 RH
1993-01 → 1999-07 ended
HZB50 ARL —
61015-36040 Pillar Sub-assy, NO.5 RH
1993-01 → 1999-07 ended
BB42,RZB40 SRF —
61015-36050 Pillar Sub-assy, NO.5 RH
1993-01 → 1999-07 ended
BB40 —
61015-36070 note Pillar Sub-assy, NO.5 RH
1994-08 → 1999-07 ended
BB42,RZB40 SRF —
61015-36070 note Pillar Sub-assy, NO.5 RH
1993-01 → 1994-08 ended
BB42,RZB40 SRF GEN —
61015-36011 Pillar Sub-assy, NO.5 RH
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB4#,RZB40 +2 —
61015-36011 Pillar Sub-assy, NO.5 RH
1999-07 → 2002-11 ended
RZB40 CHI —
61015-36011 Pillar Sub-assy, NO.5 RH
1999-07 → 2004-08 ended
BB42 LHD HRF WOC;BB42,RZB40 +4 —
61015-36021 Pillar Sub-assy, NO.5 RH
1999-07 → 2001-08 ended
BB50 EX;BB50 STD CBU;BB58,HZB50,RZB50 +1 —
61015-36022 Pillar Sub-assy, NO.5 RH
2001-08 → 2002-11 ended
BB50,RZB50 CHI —
61015-36022 Pillar Sub-assy, NO.5 RH
2001-08 → 2004-08 ended
BB58,59,HZB50,RZB50 GCC,GEN;BB50,BZB50 (19S,20S,21S,30S) GEN —
61015-36031 Pillar Sub-assy, NO.5 RH
1999-07 → 2001-08 ended
HZB50 ARL —
61015-36032 Pillar Sub-assy, NO.5 RH
2001-08 → 2002-11 ended
HZB50 ARL —
61015-36032 Pillar Sub-assy, NO.5 RH
2001-08 → 2004-08 ended
BB50 ARL —
61015-36041 Pillar Sub-assy, NO.5 RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC —
61015-36041 Pillar Sub-assy, NO.5 RH
1999-07 → 2004-08 ended
BB42,RZB40 SRF GEN;BB42,RZB40 SRF +2 —
61015-36071 note Pillar Sub-assy, NO.5 RH
1999-07 → 2004-08 ended
BB42,RZB40 SRF GEN;BB42,RZB40 SRF +2 —
61015-36071 note Pillar Sub-assy, NO.5 RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC —
61015-36090 Pillar Sub-assy, NO.5 RH
2001-08 → 2004-08 ended
BZB40 —
61015-36110 Pillar Sub-assy, NO.5 RH
2003-02 → 2004-08 ended
BB50,BZB50 17S —
61015-36011 Pillar Sub-assy, NO.5 RH
2004-08 → 2007-08 ended
RZB40 HRF GEN —
61015-36011 Pillar Sub-assy, NO.5 RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61015-36011 Pillar Sub-assy, NO.5 RH
2004-08 → 2015-01 ended
TRB40 HRF;BB42 RHD HRF —
61015-36011 Pillar Sub-assy, NO.5 RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61015-36022 Pillar Sub-assy, NO.5 RH
2004-08 → 2007-08 ended
RZB50 —
61015-36022 Pillar Sub-assy, NO.5 RH
2004-08 → 2015-01 ended
XZB59;BB50,HZB50,TRB50,XZB50 (20S,30S) (DCR,DSL,EFI,TD) —
61015-36022 Pillar Sub-assy, NO.5 RH
2004-08 → 2006-08 ended
BB58,59;BB50,BZB50 (19S,20S,21S) GEN —
61015-36022 Pillar Sub-assy, NO.5 RH
2004-08 → 2011-08 ended
XZB50 TAIW —
61015-36032 Pillar Sub-assy, NO.5 RH
2004-08 → 2006-08 ended
BB50 ARL —
61015-36032 Pillar Sub-assy, NO.5 RH
2004-08 → 2007-08 ended
XZB50 ARL —
61015-36041 Pillar Sub-assy, NO.5 RH
2004-08 → 2007-08 ended
RZB40 SRF —
61015-36041 Pillar Sub-assy, NO.5 RH
2004-08 → 2015-01 ended
BB42,TRB40 SRF —
61015-36071 note Pillar Sub-assy, NO.5 RH
2004-08 → 2015-01 ended
BB42 WOC;TRB40 SRF GEN;BB42 +4 —
61015-36071 note Pillar Sub-assy, NO.5 RH
2011-08 → 2015-01 ended
BB42 RHD SRF WC —
61015-36071 note Pillar Sub-assy, NO.5 RH
2004-08 → 2011-08 ended
BB42,TRB40 GCC —
61015-36071 note Pillar Sub-assy, NO.5 RH
2004-08 → 2007-08 ended
RZB40 SRF —
61015-36090 Pillar Sub-assy, NO.5 RH
2004-08 → 2015-01 ended
BZB40,XZB40 —
61015-36100 Pillar Sub-assy, NO.5 RH
2011-08 → 2015-01 ended
XZB50 TAIW —
61015-36110 Pillar Sub-assy, NO.5 RH
2004-08 → 2007-08 ended
BZB50,XZB50 STD GEN —
61015-36110 Pillar Sub-assy, NO.5 RH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
61015-36111 Pillar Sub-assy, NO.5 RH
2007-08 → 2008-03 ended
XZB50 STD GEN —
61015-36111 Pillar Sub-assy, NO.5 RH
2007-08 → 2015-01 ended
BZB50 —
61015-36120 Pillar Sub-assy, NO.5 RH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
61015-36120 Pillar Sub-assy, NO.5 RH
2007-08 → 2015-01 ended
XZB50 WC ARL —
61015-36161 Pillar Sub-assy, NO.5 RH
2015-01 → —
HZB50,TRB50,XZB50 (20S,21S,30S) (GCC,GEN,TAIW) —
61015-36170 Pillar Sub-assy, NO.5 RH
2015-01 → —
XZB59;BZB50,XZB50 RHD (DX,STD) —
61015-36170 note Pillar Sub-assy, NO.5 RH
2015-01 → —
XZB50 EX —
61015-36181 Pillar Sub-assy, NO.5 RH
2015-01 → —
HZB50,TRB50,XZB50 26S —
61015-36191 Pillar Sub-assy, NO.5 RH
2015-01 → —
BZB40,TRB40,XZB40 HRF —
61015-36201 Pillar Sub-assy, NO.5 RH
2015-01 → —
BB42,TRB40,XZB40 SRF —
61015-36211 note Pillar Sub-assy, NO.5 RH
2015-01 → —
BB42,TRB40,XZB40 SRF GEN —
61015-36220 note Pillar Sub-assy, NO.5 RH
2015-01 → —
BZB40 —
61016 — Pillar Sub-assy, NO.6 RH
61016-36010 Pillar Sub-assy, NO.6 RH
1993-01 → 1995-01 ended
BB42,RZB40 —
61016-36010 Pillar Sub-assy, NO.6 RH
1995-01 → 1999-07 ended
RZB40;BB42 SRF;BB42 LHD HRF —
61016-36020 Pillar Sub-assy, NO.6 RH
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 HRF (GCC,GEN,SCO) CBU —
61016-36040 Pillar Sub-assy, NO.6 RH
1993-01 → 1999-07 ended
HZB50 ARL —
61016-36050 Pillar Sub-assy, NO.6 RH
1993-01 → 1999-07 ended
HZB50,RZB50 SRF —
61016-36060 Pillar Sub-assy, NO.6 RH
1993-01 → 1999-07 ended
BB40 —
61016-36090 note Pillar Sub-assy, NO.6 RH
1993-01 → 1999-07 ended
HZB50,RZB50 SRF —
61016-36011 Pillar Sub-assy, NO.6 RH
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
61016-36011 Pillar Sub-assy, NO.6 RH
1999-07 → 2002-11 ended
RZB40 CHI —
61016-36011 Pillar Sub-assy, NO.6 RH
1999-07 → 2004-08 ended
BB42 C;RZB40 WC (17S,26S) +13 —
61016-36021 Pillar Sub-assy, NO.6 RH
1999-07 → 2001-08 ended
BB50 EX GEN;BB50 CBU +7 —
61016-36021 Pillar Sub-assy, NO.6 RH
1999-07 → 2002-11 ended
BB50,RZB50 CHI —
61016-36021 Pillar Sub-assy, NO.6 RH
1999-07 → 2004-08 ended
HZB50 0,BZB50 LHD (21S,30S) +12 —
61016-36040 Pillar Sub-assy, NO.6 RH
1999-07 → 2002-11 ended
HZB50 ARL —
61016-36040 Pillar Sub-assy, NO.6 RH
1999-07 → 2004-08 ended
BB50,BZB50 RHD (DX,STD) CBU —
61016-36051 Pillar Sub-assy, NO.6 RH
1999-07 → 2004-08 ended
HZB50,RZB50 LHD SRF —
61016-36051 Pillar Sub-assy, NO.6 RH
1999-07 → 2001-08 ended
HZB50 RHD SRF —
61016-36060 Pillar Sub-assy, NO.6 RH
2001-08 → 2004-08 ended
BZB40 —
61016-36091 note Pillar Sub-assy, NO.6 RH
1999-07 → 2001-08 ended
HZB50 RHD SRF —
61016-36091 note Pillar Sub-assy, NO.6 RH
1999-07 → 2004-08 ended
HZB50,RZB50 LHD SRF —
61016-36011 Pillar Sub-assy, NO.6 RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61016-36011 Pillar Sub-assy, NO.6 RH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC —
61016-36011 Pillar Sub-assy, NO.6 RH
2004-08 → 2015-01 ended
TRB40;BB42 RHD;BB42 LHD SRF —
61016-36011 Pillar Sub-assy, NO.6 RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61016-36021 Pillar Sub-assy, NO.6 RH
2004-08 → 2006-08 ended
BB58,59;BB50,BZB50 (19S,20S,21S) GEN —
61016-36021 Pillar Sub-assy, NO.6 RH
2004-08 → 2015-01 ended
XZB59;BB50,HZB50,TRB50,XZB50 HRF (20S,30S) (DCR,DSL,EFI,TD) —
61016-36021 Pillar Sub-assy, NO.6 RH
2004-08 → 2007-08 ended
RZB50 HRF —
61016-36021 Pillar Sub-assy, NO.6 RH
2004-08 → 2011-08 ended
XZB50 TAIW —
61016-36040 Pillar Sub-assy, NO.6 RH
2004-08 → 2015-01 ended
BZB50 STD —
61016-36040 Pillar Sub-assy, NO.6 RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61016-36040 Pillar Sub-assy, NO.6 RH
2004-08 → 2007-08 ended
XZB50 ARL —
61016-36040 Pillar Sub-assy, NO.6 RH
2004-08 → 2006-08 ended
BB50 RHD (DX,STD) CBU —
61016-36051 Pillar Sub-assy, NO.6 RH
2004-08 → 2007-08 ended
RZB50 SRF —
61016-36051 Pillar Sub-assy, NO.6 RH
2004-08 → 2015-01 ended
HZB50,TRB50 SRF —
61016-36060 Pillar Sub-assy, NO.6 RH
2004-08 → 2007-08 ended
BZB40 —
61016-36091 note Pillar Sub-assy, NO.6 RH
2004-08 → 2015-01 ended
HZB50 SRF GEN —
61016-36091 note Pillar Sub-assy, NO.6 RH
2004-08 → 2007-08 ended
RZB50 SRF —
61016-36091 note Pillar Sub-assy, NO.6 RH
2004-08 → 2011-08 ended
HZB50,TRB50 SRF GCC —
61016-36100 Pillar Sub-assy, NO.6 RH
2007-08 → 2015-01 ended
BZB40,XZB40 —
61016-36110 Pillar Sub-assy, NO.6 RH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
61016-36110 Pillar Sub-assy, NO.6 RH
2007-08 → 2015-01 ended
XZB50 WC ARL —
61016-36120 Pillar Sub-assy, NO.6 RH
2011-08 → 2015-01 ended
XZB50 TAIW —
61016-36160 Pillar Sub-assy, NO.6 RH
2015-01 → —
BZB50,HZB50,TRB50,XZB5# HRF —
61016-36170 Pillar Sub-assy, NO.6 RH
2015-01 → —
HZB50,TRB50 SRF —
61016-36180 note Pillar Sub-assy, NO.6 RH
2015-01 → —
HZB50 SRF GEN —
61016-36190 Pillar Sub-assy, NO.6 RH
2015-01 → —
BB42,TRB40,XZB40 26S —
61016-36190 note Pillar Sub-assy, NO.6 RH
2015-01 → —
BZB40 —
61016-36201 Pillar Sub-assy, NO.6 RH
2015-01 → —
BZB40,XZB40 17S —
61017 — Pillar Sub-assy, NO.7 RH
61017-36010 note Pillar Sub-assy, NO.7 RH
1995-05 → 1999-07 ended
BB40,HZB50 ARL —
61017-36010 Pillar Sub-assy, NO.7 RH
1993-01 → 1995-01 ended
BB42 RHD SRF —
61017-36011 Pillar Sub-assy, NO.7 RH
1995-01 → 1999-07 ended
BB42,43,50,HZB50 RHD (GEN,SCO) —
61017-36050 Pillar Sub-assy, NO.7 RH
1993-01 → 1995-01 ended
BB42,HZB50,RZB40,50 LHD CBU —
61017-36051 Pillar Sub-assy, NO.7 RH
1995-01 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD CBU —
61017-36070 Pillar Sub-assy, NO.7 RH
1997-05 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61017-36011 Pillar Sub-assy, NO.7 RH
1999-07 → 2004-08 ended
BB42 N RHD 5F +11 —
61017-36011 Pillar Sub-assy, NO.7 RH
1999-07 → 2002-11 ended
HZB50 ARL —
61017-36011 Pillar Sub-assy, NO.7 RH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61017-36070 Pillar Sub-assy, NO.7 RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61017-36070 Pillar Sub-assy, NO.7 RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61017-36070 Pillar Sub-assy, NO.7 RH
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
61017-36100 Pillar Sub-assy, NO.7 RH
2001-08 → 2004-08 ended
BZB40,50 —
61017-36011 Pillar Sub-assy, NO.7 RH
2004-08 → 2006-08 ended
BB50,59 RHD (ARL,GEN) —
61017-36011 Pillar Sub-assy, NO.7 RH
2004-08 → 2015-01 ended
BB42,HZB50 RHD —
61017-36011 Pillar Sub-assy, NO.7 RH
2004-08 → 2007-08 ended
XZB5# ARL,GEN —
61017-36070 Pillar Sub-assy, NO.7 RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61017-36070 Pillar Sub-assy, NO.7 RH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61017-36070 Pillar Sub-assy, NO.7 RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61017-36070 Pillar Sub-assy, NO.7 RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61017-36070 Pillar Sub-assy, NO.7 RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61017-36100 Pillar Sub-assy, NO.7 RH
2004-08 → 2007-08 ended
BZB40,50 STD —
61017-36100 Pillar Sub-assy, NO.7 RH
2004-08 → 2006-08 ended
BZB50 EX —
61017-36130 Pillar Sub-assy, NO.7 RH
2007-08 → 2008-03 ended
XZB50 STD GEN —
61017-36130 Pillar Sub-assy, NO.7 RH
2007-08 → 2015-01 ended
XZB40,59;XZB50 RHD (20S,21S) WC —
61017-36130 Pillar Sub-assy, NO.7 RH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
61017-36140 Pillar Sub-assy, NO.7 RH
2007-08 → 2015-01 ended
BZB40,50 —
61017-36150 Pillar Sub-assy, NO.7 RH
2015-01 → —
BB42,HZB50 RHD —
61017-36160 Pillar Sub-assy, NO.7 RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61017-36170 Pillar Sub-assy, NO.7 RH
2015-01 → —
XZB40,5# RHD —
61017-36180 Pillar Sub-assy, NO.7 RH
2015-01 → —
BZB40,50 —
61018 — Pillar Sub-assy, NO.8 RH
61018-36010 Pillar Sub-assy, NO.8 RH
1993-01 → 1994-08 ended
BB42;RZB40 SRF;RZB40 HRF STD +1 —
61018-36010 Pillar Sub-assy, NO.8 RH
1994-08 → 1995-05 ended
BB42,RZB40 —
61018-36010 Pillar Sub-assy, NO.8 RH
1995-05 → 1999-07 ended
BB4#,RZB40 —
61018-36020 Pillar Sub-assy, NO.8 RH
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 HRF CBU —
61018-36030 Pillar Sub-assy, NO.8 RH
1993-01 → 1999-07 ended
HZB50,RZB50 SRF —
61018-36060 note Pillar Sub-assy, NO.8 RH
1993-01 → 1999-07 ended
HZB50,RZB50 SRF —
61018-36070 Pillar Sub-assy, NO.8 RH
1993-01 → 1995-05 ended
BB40 —
61018-36011 Pillar Sub-assy, NO.8 RH
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
61018-36011 Pillar Sub-assy, NO.8 RH
1999-07 → 2002-11 ended
RZB40 CHI —
61018-36011 Pillar Sub-assy, NO.8 RH
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
61018-36021 Pillar Sub-assy, NO.8 RH
1999-07 → 2001-08 ended
BB50 EX GEN;BB50 CBU +7 —
61018-36021 Pillar Sub-assy, NO.8 RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
61018-36021 Pillar Sub-assy, NO.8 RH
1999-07 → 2004-08 ended
HZB50 0 LHD (17S,21S,30S) +12 —
61018-36031 Pillar Sub-assy, NO.8 RH
1999-07 → 2004-08 ended
HZB50,RZB50 LHD SRF —
61018-36031 Pillar Sub-assy, NO.8 RH
1999-07 → 2001-08 ended
HZB50 RHD SRF —
61018-36061 note Pillar Sub-assy, NO.8 RH
1999-07 → 2001-08 ended
HZB50 RHD SRF —
61018-36061 note Pillar Sub-assy, NO.8 RH
1999-07 → 2004-08 ended
HZB50,RZB50 LHD SRF —
61018-36011 Pillar Sub-assy, NO.8 RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61018-36011 Pillar Sub-assy, NO.8 RH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
61018-36011 Pillar Sub-assy, NO.8 RH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC —
61018-36011 Pillar Sub-assy, NO.8 RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61018-36021 Pillar Sub-assy, NO.8 RH
2004-08 → 2007-08 ended
RZB50,XZB50 HRF (21S,30S) (ARL,GCC,GEN) —
61018-36021 Pillar Sub-assy, NO.8 RH
2004-08 → 2015-01 ended
XZB5# EX;BB50,BZB50,HZB50,TRB50 HRF STD +1 —
61018-36021 Pillar Sub-assy, NO.8 RH
2004-08 → 2011-08 ended
XZB50 TAIW —
61018-36021 Pillar Sub-assy, NO.8 RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61018-36021 Pillar Sub-assy, NO.8 RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61018-36031 Pillar Sub-assy, NO.8 RH
2004-08 → 2007-08 ended
RZB50 SRF —
61018-36031 Pillar Sub-assy, NO.8 RH
2004-08 → 2015-01 ended
HZB50,TRB50 SRF —
61018-36061 note Pillar Sub-assy, NO.8 RH
2004-08 → 2007-08 ended
RZB50 SRF —
61018-36061 note Pillar Sub-assy, NO.8 RH
2004-08 → 2011-08 ended
HZB50,TRB50 SRF GCC —
61018-36061 note Pillar Sub-assy, NO.8 RH
2004-08 → 2015-01 ended
HZB50 SRF GEN —
61018-36090 Pillar Sub-assy, NO.8 RH
2007-08 → 2015-01 ended
XZB50 WC ARL —
61018-36090 Pillar Sub-assy, NO.8 RH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
61018-36100 Pillar Sub-assy, NO.8 RH
2011-08 → 2015-01 ended
XZB50 TAIW —
61018-36131 Pillar Sub-assy, NO.8 RH
2015-01 → —
HZB50,TRB50,XZB50 HRF (GCC,GEN,TAIW) —
61018-36141 Pillar Sub-assy, NO.8 RH
2015-01 → —
HZB50,TRB50 SRF —
61018-36151 note Pillar Sub-assy, NO.8 RH
2015-01 → —
HZB50 SRF GEN —
61018-36160 Pillar Sub-assy, NO.8 RH
2015-01 → —
XZB59;BZB50,XZB50 RHD (DX,STD) —
61018-36160 note Pillar Sub-assy, NO.8 RH
2015-01 → —
XZB50 EX —
61018-36181 Pillar Sub-assy, NO.8 RH
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
61018-36190 note Pillar Sub-assy, NO.8 RH
2015-01 → —
BZB40 —
61022A — Pillar Sub-assy, NO.2 LH
61022-36010 Pillar Sub-assy, NO.2 LH
1993-01 → 1997-05 ended
HZB50 SCO;BB42,HZB50 RHD STD +1 —
61022-36011 Pillar Sub-assy, NO.2 LH
1997-05 → 1999-07 ended
BB42,43,50 RHD CBU;HZB50 RHD +2 —
61022-36020 note Pillar Sub-assy, NO.2 LH
1993-01 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
61022-36020 Pillar Sub-assy, NO.2 LH
1993-01 → 1999-07 ended
BB40,HZB50 RHD (19S,20S,22S) (ARL,GEN) +1 —
61022-36011 Pillar Sub-assy, NO.2 LH
1999-07 → 2001-08 ended
HZB50 4FC;HZB50 RHD SRF;BB43,50 +6 —
61022-36011 Pillar Sub-assy, NO.2 LH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61022-36020 Pillar Sub-assy, NO.2 LH
1999-07 → 2001-08 ended
HZB50 RHD EX —
61022-36020 note Pillar Sub-assy, NO.2 LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB42,HZB50 RHD +3 —
61022-36020 Pillar Sub-assy, NO.2 LH
1999-07 → 2002-11 ended
HZB50 ARL —
61022-36020 note Pillar Sub-assy, NO.2 LH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB42,HZB50 RHD +5 —
61022-36011 Pillar Sub-assy, NO.2 LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61022-36011 Pillar Sub-assy, NO.2 LH
2004-08 → 2015-01 ended
XZB59;BZB40,50,XZB40 STD;XZB50 RHD (20S,21S) +1 —
61022-36011 Pillar Sub-assy, NO.2 LH
2004-08 → 2011-08 ended
HZB50 RHD —
61022-36011 Pillar Sub-assy, NO.2 LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61022-36011 Pillar Sub-assy, NO.2 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61022-36011 Pillar Sub-assy, NO.2 LH
2004-08 → 2007-08 ended
BB42 RHD —
61022-36020 note Pillar Sub-assy, NO.2 LH
2004-08 → 2007-08 ended
HZB50 RHD —
61022-36020 note Pillar Sub-assy, NO.2 LH
2004-08 → 2015-01 ended
BB42 RHD —
61022-36020 note Pillar Sub-assy, NO.2 LH
2011-08 → 2015-01 ended
HZB50 RHD —
61022-36030 Pillar Sub-assy, NO.2 LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61025A — Pillar Sub-assy, NO.5 LH
61025-36010 note Pillar Sub-assy, NO.5 LH
1996-09 → 1997-03 ended
BB42 LHD WOC GEN —
61025-36010 Pillar Sub-assy, NO.5 LH
1993-01 → 1999-07 ended
BB42,43,RZB40 HRF —
61025-36020 Pillar Sub-assy, NO.5 LH
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 (GCC,GEN,SCO) CBU —
61025-36030 Pillar Sub-assy, NO.5 LH
1993-01 → 1999-07 ended
HZB50 ARL —
61025-36040 Pillar Sub-assy, NO.5 LH
1993-01 → 1999-07 ended
BB42,RZB40 SRF —
61025-36050 Pillar Sub-assy, NO.5 LH
1993-01 → 1999-07 ended
BB40 —
61025-36070 note Pillar Sub-assy, NO.5 LH
1993-01 → 1999-07 ended
BB42,RZB40 SRF —
61025-36011 Pillar Sub-assy, NO.5 LH
1999-07 → 2004-08 ended
BB42 LHD HRF WOC;BB42,RZB40 +4 —
61025-36011 Pillar Sub-assy, NO.5 LH
1999-07 → 2002-11 ended
RZB40 CHI —
61025-36011 Pillar Sub-assy, NO.5 LH
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB4#,RZB40 +2 —
61025-36021 Pillar Sub-assy, NO.5 LH
1999-07 → 2001-08 ended
BB50 EX;BB50 STD CBU;BB58,HZB50,RZB50 +1 —
61025-36022 Pillar Sub-assy, NO.5 LH
2001-08 → 2002-11 ended
BB50,RZB50 CHI —
61025-36022 Pillar Sub-assy, NO.5 LH
2001-08 → 2004-08 ended
BB58,59,HZB50,RZB50 GCC,GEN;BB50,BZB50 (19S,20S,21S,30S) GEN —
61025-36031 Pillar Sub-assy, NO.5 LH
1999-07 → 2001-08 ended
HZB50 ARL —
61025-36032 Pillar Sub-assy, NO.5 LH
2001-08 → 2004-08 ended
BB50 ARL —
61025-36032 Pillar Sub-assy, NO.5 LH
2001-08 → 2002-11 ended
HZB50 ARL —
61025-36041 Pillar Sub-assy, NO.5 LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC —
61025-36041 Pillar Sub-assy, NO.5 LH
1999-07 → 2004-08 ended
BB42,RZB40 SRF GEN;BB42,RZB40 SRF +2 —
61025-36071 note Pillar Sub-assy, NO.5 LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC —
61025-36071 note Pillar Sub-assy, NO.5 LH
1999-07 → 2004-08 ended
BB42,RZB40 SRF GEN;BB42,RZB40 SRF +2 —
61025-36090 Pillar Sub-assy, NO.5 LH
2001-08 → 2004-08 ended
BZB40 —
61025-36110 Pillar Sub-assy, NO.5 LH
2003-02 → 2004-08 ended
BB50,BZB50 17S —
61025-36011 Pillar Sub-assy, NO.5 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61025-36011 Pillar Sub-assy, NO.5 LH
2004-08 → 2015-01 ended
TRB40 HRF;BB42 RHD HRF —
61025-36011 Pillar Sub-assy, NO.5 LH
2004-08 → 2007-08 ended
RZB40 HRF GEN —
61025-36011 Pillar Sub-assy, NO.5 LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61025-36022 Pillar Sub-assy, NO.5 LH
2004-08 → 2011-08 ended
XZB50 TAIW —
61025-36022 Pillar Sub-assy, NO.5 LH
2004-08 → 2015-01 ended
XZB59;BB50,HZB50,TRB50,XZB50 (20S,30S) (DCR,DSL,EFI,TD) —
61025-36022 Pillar Sub-assy, NO.5 LH
2004-08 → 2007-08 ended
RZB50 —
61025-36022 Pillar Sub-assy, NO.5 LH
2004-08 → 2006-08 ended
BB58,59;BB50,BZB50 (19S,20S,21S) GEN —
61025-36032 Pillar Sub-assy, NO.5 LH
2004-08 → 2007-08 ended
XZB50 ARL —
61025-36032 Pillar Sub-assy, NO.5 LH
2004-08 → 2006-08 ended
BB50 ARL —
61025-36041 Pillar Sub-assy, NO.5 LH
2004-08 → 2007-08 ended
RZB40 SRF —
61025-36041 Pillar Sub-assy, NO.5 LH
2004-08 → 2015-01 ended
BB42,TRB40 SRF —
61025-36071 note Pillar Sub-assy, NO.5 LH
2004-08 → 2007-08 ended
RZB40 SRF —
61025-36071 note Pillar Sub-assy, NO.5 LH
2004-08 → 2015-01 ended
BB42,TRB40 SRF GEN —
61025-36071 note Pillar Sub-assy, NO.5 LH
2004-08 → 2011-08 ended
BB42,TRB40 GCC —
61025-36090 Pillar Sub-assy, NO.5 LH
2004-08 → 2015-01 ended
BZB40,XZB40 —
61025-36100 Pillar Sub-assy, NO.5 LH
2011-08 → 2015-01 ended
XZB50 TAIW —
61025-36110 Pillar Sub-assy, NO.5 LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
61025-36110 Pillar Sub-assy, NO.5 LH
2004-08 → 2007-08 ended
BZB50,XZB50 STD GEN —
61025-36111 Pillar Sub-assy, NO.5 LH
2007-08 → 2008-03 ended
XZB50 STD GEN —
61025-36111 Pillar Sub-assy, NO.5 LH
2007-08 → 2015-01 ended
BZB50 —
61025-36120 Pillar Sub-assy, NO.5 LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
61025-36120 Pillar Sub-assy, NO.5 LH
2007-08 → 2015-01 ended
XZB50 WC ARL —
61025-36161 Pillar Sub-assy, NO.5 LH
2015-01 → —
HZB50,TRB50,XZB50 (20S,21S,30S) (GCC,GEN,TAIW) —
61025-36170 Pillar Sub-assy, NO.5 LH
2015-01 → —
BZB50,XZB59 —
61025-36170 note Pillar Sub-assy, NO.5 LH
2015-01 → —
XZB50 EX —
61025-36181 Pillar Sub-assy, NO.5 LH
2015-01 → —
HZB50,TRB50,XZB50 26S —
61025-36191 Pillar Sub-assy, NO.5 LH
2015-01 → —
BZB40,TRB40,XZB40 HRF —
61025-36201 Pillar Sub-assy, NO.5 LH
2015-01 → —
BB42,TRB40,XZB40 SRF —
61025-36211 note Pillar Sub-assy, NO.5 LH
2015-01 → —
BB42,TRB40,XZB40 SRF GEN —
61025-36220 note Pillar Sub-assy, NO.5 LH
2015-01 → —
BZB40 —
61025-36250 Pillar Sub-assy, NO.5 LH
2015-01 → —
XZB50 ARL —
61026A — Pillar Sub-assy, NO.6 LH
61026-36010 Pillar Sub-assy, NO.6 LH
1993-01 → 1999-07 ended
BB42,43,RZB40 —
61026-36020 Pillar Sub-assy, NO.6 LH
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 HRF (GCC,GEN,SCO) CBU —
61026-36040 Pillar Sub-assy, NO.6 LH
1993-01 → 1999-07 ended
HZB50 ARL —
61026-36050 Pillar Sub-assy, NO.6 LH
1993-01 → 1999-07 ended
HZB50,RZB50 SRF —
61026-36060 Pillar Sub-assy, NO.6 LH
1993-01 → 1999-07 ended
BB40 —
61026-36090 note Pillar Sub-assy, NO.6 LH
1993-01 → 1999-07 ended
HZB50,RZB50 SRF —
61026-36011 Pillar Sub-assy, NO.6 LH
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
61026-36011 Pillar Sub-assy, NO.6 LH
1999-07 → 2004-08 ended
BB42 C;RZB40 WC (17S,26S) +13 —
61026-36011 Pillar Sub-assy, NO.6 LH
1999-07 → 2002-11 ended
RZB40 CHI —
61026-36021 Pillar Sub-assy, NO.6 LH
1999-07 → 2004-08 ended
HZB50 0,BZB50 LHD (21S,30S) +12 —
61026-36021 Pillar Sub-assy, NO.6 LH
1999-07 → 2002-11 ended
BB50,RZB50 CHI —
61026-36021 Pillar Sub-assy, NO.6 LH
1999-07 → 2001-08 ended
BB50 EX GEN;BB50 CBU +7 —
61026-36040 Pillar Sub-assy, NO.6 LH
1999-07 → 2002-11 ended
HZB50 ARL —
61026-36040 Pillar Sub-assy, NO.6 LH
1999-07 → 2004-08 ended
BB50,BZB50 RHD (DX,STD) CBU —
61026-36051 Pillar Sub-assy, NO.6 LH
1999-07 → 2001-08 ended
HZB50 RHD SRF —
61026-36051 Pillar Sub-assy, NO.6 LH
1999-07 → 2004-08 ended
HZB50,RZB50 LHD SRF —
61026-36060 Pillar Sub-assy, NO.6 LH
2001-08 → 2004-08 ended
BZB40 —
61026-36091 note Pillar Sub-assy, NO.6 LH
1999-07 → 2001-08 ended
HZB50 RHD SRF —
61026-36091 note Pillar Sub-assy, NO.6 LH
1999-07 → 2004-08 ended
HZB50,RZB50 LHD SRF —
61026-36011 Pillar Sub-assy, NO.6 LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61026-36011 Pillar Sub-assy, NO.6 LH
2004-08 → 2015-01 ended
TRB40;BB42 RHD;BB42 LHD SRF —
61026-36011 Pillar Sub-assy, NO.6 LH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC —
61026-36011 Pillar Sub-assy, NO.6 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61026-36021 Pillar Sub-assy, NO.6 LH
2004-08 → 2006-08 ended
BB58,59;BB50,BZB50 (19S,20S,21S) GEN —
61026-36021 Pillar Sub-assy, NO.6 LH
2004-08 → 2007-08 ended
RZB50 HRF —
61026-36021 Pillar Sub-assy, NO.6 LH
2004-08 → 2015-01 ended
XZB59;BB50,HZB50,TRB50,XZB50 HRF (20S,30S) (DCR,DSL,EFI,TD) —
61026-36021 Pillar Sub-assy, NO.6 LH
2004-08 → 2011-08 ended
XZB50 TAIW —
61026-36040 Pillar Sub-assy, NO.6 LH
2004-08 → 2015-01 ended
BZB50 STD;XZB50 WC ARL —
61026-36040 Pillar Sub-assy, NO.6 LH
2004-08 → 2006-08 ended
BB50 RHD (DX,STD) CBU —
61026-36040 Pillar Sub-assy, NO.6 LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61026-36040 Pillar Sub-assy, NO.6 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61026-36051 Pillar Sub-assy, NO.6 LH
2004-08 → 2007-08 ended
RZB50 SRF —
61026-36051 Pillar Sub-assy, NO.6 LH
2004-08 → 2015-01 ended
HZB50,TRB50 SRF —
61026-36060 Pillar Sub-assy, NO.6 LH
2004-08 → 2007-08 ended
BZB40 —
61026-36091 note Pillar Sub-assy, NO.6 LH
2004-08 → 2011-08 ended
HZB50,TRB50 SRF GCC —
61026-36091 note Pillar Sub-assy, NO.6 LH
2004-08 → 2007-08 ended
RZB50 SRF —
61026-36091 note Pillar Sub-assy, NO.6 LH
2004-08 → 2015-01 ended
HZB50 SRF GEN —
61026-36100 Pillar Sub-assy, NO.6 LH
2007-08 → 2015-01 ended
BZB40,XZB40 —
61026-36110 Pillar Sub-assy, NO.6 LH
2011-08 → 2015-01 ended
XZB50 TAIW —
61026-36160 Pillar Sub-assy, NO.6 LH
2015-01 → —
BZB50,HZB50,TRB50,XZB5# HRF —
61026-36180 Pillar Sub-assy, NO.6 LH
2015-01 → —
HZB50,TRB50 SRF —
61026-36190 note Pillar Sub-assy, NO.6 LH
2015-01 → —
HZB50 SRF GEN —
61026-36200 Pillar Sub-assy, NO.6 LH
2015-01 → —
BB42,TRB40,XZB40 26S —
61026-36200 note Pillar Sub-assy, NO.6 LH
2015-01 → —
BZB40 —
61026-36211 Pillar Sub-assy, NO.6 LH
2015-01 → —
BZB40,XZB40 17S —
61027B — Pillar Sub-assy, NO.7, LH
61027-36010 Pillar Sub-assy, NO.7, LH
1995-01 → 1995-05 ended
BB40,HZB50 ARL —
61027-36010 note Pillar Sub-assy, NO.7, LH
1995-05 → 1999-07 ended
BB40,HZB50 ARL —
61027-36010 Pillar Sub-assy, NO.7, LH
1993-01 → 1995-01 ended
BB4#,HZB50 RHD DSL —
61027-36011 Pillar Sub-assy, NO.7, LH
1995-01 → 1995-05 ended
BB42,HZB50 RHD (GEN,SCO) —
61027-36011 Pillar Sub-assy, NO.7, LH
1995-05 → 1997-05 ended
BB4#,HZB50 RHD DSL —
61027-36020 Pillar Sub-assy, NO.7, LH
1993-01 → 1995-01 ended
BB42,RZB40 LHD HRF —
61027-36021 Pillar Sub-assy, NO.7, LH
1995-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61027-36050 Pillar Sub-assy, NO.7, LH
1997-05 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61027-36021 Pillar Sub-assy, NO.7, LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,5#,RZB40 (19S,22S,23S) +1 —
61027-36021 Pillar Sub-assy, NO.7, LH
1999-07 → 2004-08 ended
BB42 BB50,HZB50,RZB50 WC LHD +12 —
61027-36050 Pillar Sub-assy, NO.7, LH
1999-07 → 2002-11 ended
HZB50 ARL —
61027-36050 Pillar Sub-assy, NO.7, LH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61027-36050 Pillar Sub-assy, NO.7, LH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61027-36070 Pillar Sub-assy, NO.7, LH
2000-08 → 2002-11 ended
BB50,RZB40,50 CHI —
61027-36070 Pillar Sub-assy, NO.7, LH
2000-08 → 2004-08 ended
BB50 GEN 6F TDEFI —
61027-36070 Pillar Sub-assy, NO.7, LH
2001-08 → 2004-08 ended
BB58 —
61027-36021 Pillar Sub-assy, NO.7, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61027-36021 Pillar Sub-assy, NO.7, LH
2004-08 → 2015-01 ended
BB42 LHD SRF GEN;BB50,HZB50,TRB40,50 +3 —
61027-36021 Pillar Sub-assy, NO.7, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;BB42,HZB50 GCC;RZB40 SRF +1 —
61027-36021 Pillar Sub-assy, NO.7, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61027-36050 Pillar Sub-assy, NO.7, LH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
61027-36050 Pillar Sub-assy, NO.7, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61027-36050 Pillar Sub-assy, NO.7, LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61027-36050 Pillar Sub-assy, NO.7, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61027-36070 Pillar Sub-assy, NO.7, LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61027-36070 Pillar Sub-assy, NO.7, LH
2004-08 → 2015-01 ended
TRB40,50,XZB50 GCC,TAIW —
61027-36070 Pillar Sub-assy, NO.7, LH
2007-08 → 2015-01 ended
BB42,HZB50 GCC —
61027-36080 Pillar Sub-assy, NO.7, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD GEN —
61027-36110 Pillar Sub-assy, NO.7, LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61027-36120 Pillar Sub-assy, NO.7, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB50 GCC,TAIW —
61028B — Pillar Sub-assy, NO.8 LH
61028-36010 Pillar Sub-assy, NO.8 LH
1995-05 → 1999-07 ended
BB4#,RZB40 —
61028-36010 Pillar Sub-assy, NO.8 LH
1993-01 → 1995-05 ended
BB42,RZB40 —
61028-36020 Pillar Sub-assy, NO.8 LH
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 HRF CBU —
61028-36030 Pillar Sub-assy, NO.8 LH
1993-01 → 1999-07 ended
HZB50,RZB50 SRF —
61028-36060 note Pillar Sub-assy, NO.8 LH
1993-01 → 1999-07 ended
HZB50,RZB50 SRF —
61028-36070 Pillar Sub-assy, NO.8 LH
1993-01 → 1995-05 ended
BB40 —
61028-36011 Pillar Sub-assy, NO.8 LH
1999-07 → 2002-11 ended
RZB40 CHI —
61028-36011 Pillar Sub-assy, NO.8 LH
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
61028-36011 Pillar Sub-assy, NO.8 LH
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
61028-36021 Pillar Sub-assy, NO.8 LH
1999-07 → 2001-08 ended
BB50 EX GEN;BB50 CBU +7 —
61028-36021 Pillar Sub-assy, NO.8 LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
61028-36021 Pillar Sub-assy, NO.8 LH
1999-07 → 2004-08 ended
HZB50 0 LHD (17S,21S,30S) +12 —
61028-36031 Pillar Sub-assy, NO.8 LH
1999-07 → 2001-08 ended
HZB50 RHD SRF —
61028-36031 Pillar Sub-assy, NO.8 LH
1999-07 → 2004-08 ended
HZB50,RZB50 LHD SRF —
61028-36061 note Pillar Sub-assy, NO.8 LH
1999-07 → 2001-08 ended
HZB50 RHD SRF —
61028-36061 note Pillar Sub-assy, NO.8 LH
1999-07 → 2004-08 ended
HZB50,RZB50 LHD SRF —
61028-36011 Pillar Sub-assy, NO.8 LH
2004-08 → 2007-08 ended
RZB40 SRF GCC;BB42,RZB40 LHD +1 —
61028-36011 note Pillar Sub-assy, NO.8 LH
2004-08 → 2011-08 ended
BB42,TRB40 GCC —
61028-36011 Pillar Sub-assy, NO.8 LH
2004-08 → 2011-08 ended
BB42,BZB40,XZB40 RHD —
61028-36011 Pillar Sub-assy, NO.8 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61028-36021 Pillar Sub-assy, NO.8 LH
2004-08 → 2007-08 ended
RZB50,XZB50 HRF (21S,30S) (ARL,GCC,GEN) —
61028-36021 Pillar Sub-assy, NO.8 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61028-36021 Pillar Sub-assy, NO.8 LH
2004-08 → 2015-01 ended
XZB5# EX;BB50,BZB50,HZB50,TRB50 HRF STD +1 —
61028-36021 Pillar Sub-assy, NO.8 LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61028-36021 Pillar Sub-assy, NO.8 LH
2004-08 → 2011-08 ended
XZB50 TAIW —
61028-36031 Pillar Sub-assy, NO.8 LH
2004-08 → 2007-08 ended
RZB50 SRF —
61028-36031 Pillar Sub-assy, NO.8 LH
2004-08 → 2015-01 ended
HZB50,TRB50 SRF —
61028-36061 note Pillar Sub-assy, NO.8 LH
2004-08 → 2011-08 ended
HZB50,TRB50 SRF GCC —
61028-36061 note Pillar Sub-assy, NO.8 LH
2004-08 → 2007-08 ended
RZB50 SRF —
61028-36061 note Pillar Sub-assy, NO.8 LH
2004-08 → 2015-01 ended
HZB50 SRF GEN —
61028-36100 Pillar Sub-assy, NO.8 LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
61028-36100 Pillar Sub-assy, NO.8 LH
2007-08 → 2015-01 ended
XZB50 WC ARL —
61028-36110 Pillar Sub-assy, NO.8 LH
2011-08 → 2015-01 ended
XZB50 TAIW —
61028-36140 Pillar Sub-assy, NO.8 LH
2007-08 → 2011-08 ended
BB42 LHD HRF —
61028-36140 Pillar Sub-assy, NO.8 LH
2007-08 → 2015-01 ended
TRB40;BB42 SRF WC;BB42 LHD +1 —
61028-36140 Pillar Sub-assy, NO.8 LH
2011-08 → 2015-01 ended
BB42 RHD WOC;BB42,BZB40,XZB40 HRF —
61028-36151 Pillar Sub-assy, NO.8 LH
2015-01 → —
HZB50,TRB50,XZB50 HRF (GCC,GEN,TAIW) —
61028-36161 Pillar Sub-assy, NO.8 LH
2015-01 → —
HZB50,TRB50 SRF —
61028-36171 note Pillar Sub-assy, NO.8 LH
2015-01 → —
HZB50 SRF GEN —
61028-36180 Pillar Sub-assy, NO.8 LH
2015-01 → —
XZB59;BZB50,XZB50 RHD (DX,STD) —
61028-36180 note Pillar Sub-assy, NO.8 LH
2015-01 → —
XZB50 EX —
61028-36201 Pillar Sub-assy, NO.8 LH
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
61028-36210 note Pillar Sub-assy, NO.8 LH
2015-01 → —
BZB40 —
61033B — Pillar Sub-assy, NO.2 Inner, RH
61033-36010 Pillar Sub-assy, NO.2 Inner, RH
1993-01 → 1999-07 ended
BB42,HZB50 RHD SRF —
61033-36020 note Pillar Sub-assy, NO.2 Inner, RH
1993-01 → 1999-07 ended
BB42,HZB50 RHD SRF —
61033-36060 Pillar Sub-assy, NO.2 Inner, RH
1993-01 → 1999-07 ended
BB42,HZB50 RHD HRF STD +2 —
61033-36070 Pillar Sub-assy, NO.2 Inner, RH
1993-01 → 1999-07 ended
BB40,HZB50 STD WOC ARL —
61033-36070 note Pillar Sub-assy, NO.2 Inner, RH
1993-01 → 1999-07 ended
BB42,HZB50 RHD HRF STD +2 —
61033-36080 Pillar Sub-assy, NO.2 Inner, RH
1997-05 → 1999-07 ended
BB40,42,50,HZB50 RHD HRF WC +2 —
61033-36080 Pillar Sub-assy, NO.2 Inner, RH
1993-01 → 1997-05 ended
BB4#,HZB50 RHD HRF (19S,20S,22S,26S,30S) +1 —
61033-36090 Pillar Sub-assy, NO.2 Inner, RH
1993-01 → 1999-07 ended
BB42,43 17S —
61033-36100 Pillar Sub-assy, NO.2 Inner, RH
1997-05 → 1999-07 ended
HZB50 4FC —
61033-36011 Pillar Sub-assy, NO.2 Inner, RH
1999-07 → 2001-08 ended
HZB50 RHD SRF —
61033-36011 Pillar Sub-assy, NO.2 Inner, RH
1999-07 → 2004-08 ended
BB42 RHD SRF —
61033-36021 note Pillar Sub-assy, NO.2 Inner, RH
1999-07 → 2001-08 ended
HZB50 RHD SRF —
61033-36021 note Pillar Sub-assy, NO.2 Inner, RH
1999-07 → 2004-08 ended
BB42 RHD SRF —
61033-36061 Pillar Sub-assy, NO.2 Inner, RH
1999-07 → 2001-08 ended
BB42,HZB50 RHD HRF WOC +1 —
61033-36071 Pillar Sub-assy, NO.2 Inner, RH
2002-11 → 2004-08 ended
BB50 WOC CBU TDEFI —
61033-36071 note Pillar Sub-assy, NO.2 Inner, RH
1999-07 → 2002-11 ended
HZB50 WOC ARL —
61033-36071 note Pillar Sub-assy, NO.2 Inner, RH
1999-07 → 2001-08 ended
BB42,HZB50 RHD HRF WOC +1 —
61033-36081 Pillar Sub-assy, NO.2 Inner, RH
2001-04 → 2001-08 ended
BB50 EX IV —
61033-36081 note Pillar Sub-assy, NO.2 Inner, RH
1999-07 → 2002-11 ended
HZB50 WC ARL —
61033-36081 note Pillar Sub-assy, NO.2 Inner, RH
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX CBU —
61033-36081 note Pillar Sub-assy, NO.2 Inner, RH
1999-07 → 2004-08 ended
BB42,HZB50 RHD HRF STD +3 —
61033-36081 Pillar Sub-assy, NO.2 Inner, RH
2001-04 → 2004-08 ended
BB59,BZB50 EX;BB50 (20S,21S) WC +1 —
61033-36091 note Pillar Sub-assy, NO.2 Inner, RH
1999-07 → 2001-08 ended
BB43 —
61033-36091 Pillar Sub-assy, NO.2 Inner, RH
2001-08 → 2004-08 ended
BB50,BZB40,50 17S —
61033-36101 Pillar Sub-assy, NO.2 Inner, RH
1999-07 → 2001-08 ended
HZB50 4FC —
61033-36011 Pillar Sub-assy, NO.2 Inner, RH
2004-08 → 2006-04 ended
BB42 RHD WOC —
61033-36012 Pillar Sub-assy, NO.2 Inner, RH
2006-04 → 2007-08 ended
BB42 RHD WOC —
61033-36021 note Pillar Sub-assy, NO.2 Inner, RH
2004-08 → 2006-04 ended
BB42 RHD WOC —
61033-36022 note Pillar Sub-assy, NO.2 Inner, RH
2006-04 → 2015-01 ended
BB42 RHD WOC —
61033-36042 Pillar Sub-assy, NO.2 Inner, RH
2011-08 → 2015-01 ended
BB42 RHD SRF WC —
61033-36071 note Pillar Sub-assy, NO.2 Inner, RH
2004-08 → 2006-04 ended
BB50 WOC CBU TDEFI —
61033-36072 note Pillar Sub-assy, NO.2 Inner, RH
2006-04 → 2006-08 ended
BB50 WOC CBU TDEFI —
61033-36072 note Pillar Sub-assy, NO.2 Inner, RH
2006-04 → 2009-08 ended
XZB50 WOC CBU —
61033-36081 note Pillar Sub-assy, NO.2 Inner, RH
2004-08 → 2006-04 ended
BB59,BZB50 EX;BB42,50,HZB50 RHD (20S,21S,26S,30S) +1 —
61033-36082 note Pillar Sub-assy, NO.2 Inner, RH
2006-04 → 2006-08 ended
BB59,BZB50 EX;BB50 (20S,21S) WC —
61033-36082 Pillar Sub-assy, NO.2 Inner, RH
2006-04 → 2015-01 ended
XZB50 RHD (20S,21S) WC;BB42,HZB50,XZB59 +2 —
61033-36091 Pillar Sub-assy, NO.2 Inner, RH
2004-08 → 2006-04 ended
BB50,BZB40,50 17S —
61033-36092 Pillar Sub-assy, NO.2 Inner, RH
2006-04 → 2006-08 ended
BB50 STD 5F TDEFI —
61033-36092 Pillar Sub-assy, NO.2 Inner, RH
2006-04 → 2008-03 ended
XZB50 STD GEN —
61033-36092 Pillar Sub-assy, NO.2 Inner, RH
2006-04 → 2015-01 ended
BZB40,50,XZB40 STD —
61033-36022 Pillar Sub-assy, NO.2 Inner, RH
2015-01 → —
BB42 RHD WOC —
61033-36042 Pillar Sub-assy, NO.2 Inner, RH
2015-01 → —
BB42 RHD WC —
61033-36082 Pillar Sub-assy, NO.2 Inner, RH
2015-01 → —
BZB50,HZB50,XZB5# RHD —
61033-36092 Pillar Sub-assy, NO.2 Inner, RH
2015-01 → —
BZB40,XZB40 17S —
61043 — Pillar Sub-assy, NO.2 Inner, LH
61043-36030 Pillar Sub-assy, NO.2 Inner, LH
1993-01 → 1997-05 ended
RZB50 SRF GEN;BB42,HZB50,RZB40 LHD +3 —
61043-36031 Pillar Sub-assy, NO.2 Inner, LH
1997-05 → 1999-07 ended
RZB50 SRF GEN;BB42,HZB50,RZB40 LHD +3 —
61043-36040 Pillar Sub-assy, NO.2 Inner, LH
1993-01 → 1997-05 ended
BB42,RZB40 STD WOC GCC —
61043-36040 note Pillar Sub-assy, NO.2 Inner, LH
1993-01 → 1997-05 ended
RZB50 SRF GEN;BB42,HZB50,RZB40 LHD +3 —
61043-36041 Pillar Sub-assy, NO.2 Inner, LH
1997-05 → 1999-07 ended
BB42,RZB40 STD WOC GCC —
61043-36041 note Pillar Sub-assy, NO.2 Inner, LH
1997-05 → 1999-07 ended
RZB50 SRF GEN;BB42,HZB50,RZB40 LHD +3 —
61043-36050 Pillar Sub-assy, NO.2 Inner, LH
1993-01 → 1997-05 ended
RZB50 SRF GCC;BB42,HZB50,RZB40 LHD +2 —
61043-36051 Pillar Sub-assy, NO.2 Inner, LH
1997-05 → 1999-07 ended
RZB50 SRF GCC;BB42,HZB50,RZB40 LHD +2 —
61043-36060 Pillar Sub-assy, NO.2 Inner, LH
1993-01 → 1997-05 ended
HZB50 30S GEN 4FC;HZB50 +4 —
61043-36061 note Pillar Sub-assy, NO.2 Inner, LH
1996-09 → 1997-03 ended
BB42 LHD WOC GEN —
61043-36061 Pillar Sub-assy, NO.2 Inner, LH
1997-05 → 1999-07 ended
HZB50 LHD HRF WOC —
61043-36070 Pillar Sub-assy, NO.2 Inner, LH
1993-01 → 1997-05 ended
HZB50 GCC 4FC;BB42,HZB50,RZB40,50 LHD +4 —
61043-36071 Pillar Sub-assy, NO.2 Inner, LH
1997-05 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD HRF WC +1 —
61043-36080 note Pillar Sub-assy, NO.2 Inner, LH
1993-01 → 1997-05 ended
HZB50 30S GEN 4FC;HZB50 +4 —
61043-36081 note Pillar Sub-assy, NO.2 Inner, LH
1997-05 → 1999-07 ended
HZB50 LHD HRF WOC —
61043-36032 Pillar Sub-assy, NO.2 Inner, LH
1999-07 → 2004-08 ended
BB42,HZB50,RZB40 LHD SRF WOC +1 —
61043-36042 note Pillar Sub-assy, NO.2 Inner, LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC —
61043-36042 note Pillar Sub-assy, NO.2 Inner, LH
1999-07 → 2004-08 ended
BB42,HZB50,RZB40 LHD SRF WOC +1 —
61043-36052 Pillar Sub-assy, NO.2 Inner, LH
1999-07 → 2004-08 ended
BB42,HZB50,RZB40,50 LHD SRF WC —
61043-36062 Pillar Sub-assy, NO.2 Inner, LH
1999-07 → 2004-08 ended
BB42,50,HZB50 LHD HRF WOC +1 —
61043-36072 Pillar Sub-assy, NO.2 Inner, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61043-36072 Pillar Sub-assy, NO.2 Inner, LH
1999-07 → 2001-08 ended
BB42,50,RZB40 (19S,22S) GEN —
61043-36072 Pillar Sub-assy, NO.2 Inner, LH
1999-07 → 2004-08 ended
BB50 C GEN (GCC,GEN) +6 —
61043-36082 note Pillar Sub-assy, NO.2 Inner, LH
1999-07 → 2004-08 ended
BB42,50,HZB50 LHD HRF WOC +1 —
61043-36032 Pillar Sub-assy, NO.2 Inner, LH
2004-08 → 2007-08 ended
BB42,HZB50,RZB40 LHD SRF WOC —
61043-36042 note Pillar Sub-assy, NO.2 Inner, LH
2004-08 → 2007-08 ended
RZB40 WOC —
61043-36042 note Pillar Sub-assy, NO.2 Inner, LH
2004-08 → 2015-01 ended
BB42,HZB50,TRB40 LHD SRF WOC —
61043-36052 Pillar Sub-assy, NO.2 Inner, LH
2004-08 → 2007-08 ended
RZB40,50 SRF WC —
61043-36052 Pillar Sub-assy, NO.2 Inner, LH
2004-08 → 2015-01 ended
BB42,HZB50,TRB40,50 LHD SRF WC —
61043-36062 Pillar Sub-assy, NO.2 Inner, LH
2004-08 → 2007-08 ended
BB50,HZB50 HRF WOC 5F —
61043-36072 Pillar Sub-assy, NO.2 Inner, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61043-36072 Pillar Sub-assy, NO.2 Inner, LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61043-36072 Pillar Sub-assy, NO.2 Inner, LH
2004-08 → 2007-08 ended
RZB50 HRF;RZB40 HRF GEN —
61043-36072 Pillar Sub-assy, NO.2 Inner, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61043-36072 Pillar Sub-assy, NO.2 Inner, LH
2004-08 → 2015-01 ended
BB50,HZB50,TRB40,50,XZB50 LHD HRF WC +2 —
61043-36082 note Pillar Sub-assy, NO.2 Inner, LH
2004-08 → 2015-01 ended
BB50,HZB50 HRF WOC 5F —
61043-36042 Pillar Sub-assy, NO.2 Inner, LH
2015-01 → —
BB42,HZB50,TRB40,XZB40 LHD SRF WOC —
61043-36052 Pillar Sub-assy, NO.2 Inner, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40 LHD SRF WC —
61043-36072 Pillar Sub-assy, NO.2 Inner, LH
2015-01 → —
HZB50,TRB40,50,XZB50 LHD HRF WC —
61043-36082 Pillar Sub-assy, NO.2 Inner, LH
2015-01 → —
HZB50,XZB50 HRF WOC —
61054B — Pillar Sub-assy, NO.12 RH
61014-36040 note Pillar Sub-assy, NO.12 RH
1993-01 → 1993-12 ended
HZB50,RZB50 20S,30S —
61051-36020 note Pillar Sub-assy, NO.12 RH
1993-01 → 1993-12 ended
HZB50 ARL —
61054-36010 note Pillar Sub-assy, NO.12 RH
1993-12 → 1995-05 ended
HZB50,RZB50 20S,30S —
61054-36010 note Pillar Sub-assy, NO.12 RH
1995-05 → 1999-07 ended
BB5#,HZB50,RZB50 CBU —
61054-36020 note Pillar Sub-assy, NO.12 RH
1993-12 → 1995-05 ended
HZB50 ARL —
61054-36010 note Pillar Sub-assy, NO.12 RH
1999-07 → 2004-08 ended
HZB50 20S) LHD TDEFI;BB58,59,BZB50,RZB50 +13 —
61054-36010 note Pillar Sub-assy, NO.12 RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
61054-36010 note Pillar Sub-assy, NO.12 RH
1999-07 → 2001-08 ended
BB50 22S) EX GEN +10 —
61054-36010 note Pillar Sub-assy, NO.12 RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61054-36010 note Pillar Sub-assy, NO.12 RH
2004-08 → 2007-08 ended
RZB50 —
61054-36010 note Pillar Sub-assy, NO.12 RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61054-36010 note Pillar Sub-assy, NO.12 RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61054-36010 note Pillar Sub-assy, NO.12 RH
2004-08 → 2015-01 ended
XZB59;XZB50 (20S,21S) WC;BB50,BZB50,HZB50,TRB50 STD +1 —
61054-36051 Pillar Sub-assy, NO.12 RH
2015-01 → —
HZB50,TRB50,XZB50 GCC,GEN,TAIW —
61054-36060 Pillar Sub-assy, NO.12 RH
2015-01 → —
XZB59;BZB50,XZB50 RHD (DX,STD) —
61054-36060 note Pillar Sub-assy, NO.12 RH
2015-01 → —
XZB50 EX —
61064E — Pillar Sub-assy, NO.12 LH
61014-36040 note Pillar Sub-assy, NO.12 LH
1993-01 → 1993-12 ended
HZB50,RZB50 20S,30S —
61051-36020 note Pillar Sub-assy, NO.12 LH
1993-01 → 1993-12 ended
HZB50 ARL —
61064-36010 note Pillar Sub-assy, NO.12 LH
1993-12 → 1995-05 ended
HZB50,RZB50 20S,30S —
61064-36010 note Pillar Sub-assy, NO.12 LH
1995-05 → 1999-07 ended
BB5#,HZB50,RZB50 CBU —
61064-36020 note Pillar Sub-assy, NO.12 LH
1993-12 → 1995-05 ended
HZB50 ARL —
61064-36010 note Pillar Sub-assy, NO.12 LH
1999-07 → 2001-08 ended
BB50 22S) EX GEN +10 —
61064-36010 note Pillar Sub-assy, NO.12 LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
61064-36010 note Pillar Sub-assy, NO.12 LH
1999-07 → 2004-08 ended
HZB50 20S) LHD TDEFI;BB58,59,BZB50,RZB50 +13 —
61064-36010 note Pillar Sub-assy, NO.12 LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61064-36010 note Pillar Sub-assy, NO.12 LH
2004-08 → 2007-08 ended
RZB50 —
61064-36010 note Pillar Sub-assy, NO.12 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61064-36010 note Pillar Sub-assy, NO.12 LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61064-36010 note Pillar Sub-assy, NO.12 LH
2004-08 → 2011-08 ended
XZB59;BZB50,HZB50 RHD STD;XZB50 RHD +2 —
61064-36010 note Pillar Sub-assy, NO.12 LH
2004-08 → 2015-01 ended
BB50,HZB50,TRB50,XZB50 LHD CBU 5F —
61064-36060 Pillar Sub-assy, NO.12 LH
2011-08 → 2015-01 ended
BZB50,HZB50,XZB5# RHD (ARL,GEN) —
61064-36071 Pillar Sub-assy, NO.12 LH
2015-01 → —
HZB50,TRB50,XZB50 GCC,GEN,TAIW —
61064-36080 Pillar Sub-assy, NO.12 LH
2015-01 → —
XZB59;BZB50,XZB50 RHD (DX,STD) —
61064-36080 note Pillar Sub-assy, NO.12 LH
2015-01 → —
XZB50 EX —
61254 — Pillar, NO.3 Inner, RH
61036-36010 Pillar, NO.3 Inner, RH
1993-01 → 1999-07 ended
HZB50 LHD SRF;BB42,RZB40,50 SRF —
61036-36010 Pillar, NO.3 Inner, RH
1993-01 → 1999-07 ended
HZB50 RHD SRF —
61036-36030 Pillar, NO.3 Inner, RH
1997-05 → 1999-07 ended
HZB50 4FC —
61254-36030 note Pillar, NO.3 Inner, RH
1996-09 → 1997-03 ended
BB42 LHD WOC GEN —
61254-36030 Pillar, NO.3 Inner, RH
1993-01 → 1997-05 ended
HZB50 RHD HRF DSL —
61254-36030 Pillar, NO.3 Inner, RH
1993-01 → 1999-07 ended
HZB50 LHD HRF DSL;BB4#,5#,RZB40,50 +2 —
61254-36030 Pillar, NO.3 Inner, RH
1997-05 → 1999-07 ended
BB50,HZB50 RHD HRF CBU +1 —
61036-36010 Pillar, NO.3 Inner, RH
1999-07 → 2001-08 ended
HZB50 RHD SRF —
61036-36010 Pillar, NO.3 Inner, RH
1999-07 → 2004-08 ended
BB42 RHD SRF;HZB50,RZB50 LHD +1 —
61036-36010 Pillar, NO.3 Inner, RH
1999-07 → 2004-08 ended
BB42,RZB40 SRF WC GCC;BB42,RZB40 +3 —
61036-36010 Pillar, NO.3 Inner, RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC —
61036-36030 Pillar, NO.3 Inner, RH
1999-07 → 2001-08 ended
HZB50 4FC —
61036-36050 note Pillar, NO.3 Inner, RH
2001-08 → 2004-08 ended
BB42 RHD WOC —
61254-36030 Pillar, NO.3 Inner, RH
1999-07 → 2001-08 ended
BB43,50 17S,19S;BB42 RHD HRF +1 —
61254-36030 Pillar, NO.3 Inner, RH
2003-11 → 2004-08 ended
BB59 —
61254-36030 Pillar, NO.3 Inner, RH
1999-07 → 2004-08 ended
BB50,BZB50 RHD CBU (LPG,TDEFI);HZB50 +6 —
61254-36030 Pillar, NO.3 Inner, RH
1999-07 → 2004-08 ended
BB42 D RHD HRF +10 —
61254-36030 Pillar, NO.3 Inner, RH
1999-07 → 2004-08 ended
BB42,RZB40 LHD HRF (17S,26S) +1 —
61254-36030 Pillar, NO.3 Inner, RH
1999-07 → 2002-11 ended
HZB50 ARL —
61254-36030 Pillar, NO.3 Inner, RH
1999-07 → 2002-11 ended
BB50,RZB50 CHI —
61254-36030 Pillar, NO.3 Inner, RH
1999-07 → 2002-11 ended
RZB40 CHI —
61254-36030 Pillar, NO.3 Inner, RH
1999-07 → 2001-08 ended
HZB50 RHD WOC GEN;BB50,HZB50 +3 —
61254-36030 Pillar, NO.3 Inner, RH
1999-07 → 2001-08 ended
BB42,RZB40 22S GEN —
61036-36010 Pillar, NO.3 Inner, RH
2004-08 → 2007-08 ended
RZB40 SRF —
61036-36010 Pillar, NO.3 Inner, RH
2004-08 → 2007-08 ended
RZB50 SRF —
61036-36010 Pillar, NO.3 Inner, RH
2004-08 → 2015-01 ended
BB42 RHD SRF;HZB50,TRB50 SRF —
61036-36010 Pillar, NO.3 Inner, RH
2004-08 → 2015-01 ended
BB42,TRB40 LHD SRF —
61036-36050 note Pillar, NO.3 Inner, RH
2011-08 → 2015-01 ended
BB42 RHD SRF WC —
61036-36050 note Pillar, NO.3 Inner, RH
2004-08 → 2015-01 ended
BB42 RHD WOC —
61254-36030 Pillar, NO.3 Inner, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61254-36030 Pillar, NO.3 Inner, RH
2004-08 → 2015-01 ended
BZB50,HZB50 RHD STD;XZB50 RHD +2 —
61254-36030 Pillar, NO.3 Inner, RH
2004-08 → 2015-01 ended
BB42 ,LPG,TD) RHD HRF;HZB50,XZB50 +5 —
61254-36030 Pillar, NO.3 Inner, RH
2004-08 → 2015-01 ended
TRB40 HRF —
61254-36030 Pillar, NO.3 Inner, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61254-36030 Pillar, NO.3 Inner, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61254-36030 Pillar, NO.3 Inner, RH
2004-08 → 2007-08 ended
RZB50 HRF —
61254-36030 Pillar, NO.3 Inner, RH
2004-08 → 2007-08 ended
RZB40 HRF GEN —
61254-36030 Pillar, NO.3 Inner, RH
2004-08 → 2006-08 ended
BZB50 EX;BB50 RHD CBU —
61254-36030 Pillar, NO.3 Inner, RH
2004-08 → 2006-08 ended
BB58,59;BB50 GEN 6F —
61254-36030 Pillar, NO.3 Inner, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61036-36010 Pillar, NO.3 Inner, RH
2015-01 → —
BB42,TRB40,XZB40 LHD SRF —
61036-36010 note Pillar, NO.3 Inner, RH
2015-01 → —
BB42 RHD;HZB50,TRB50 SRF —
61036-36050 note Pillar, NO.3 Inner, RH
2015-01 → —
BB42 RHD —
61254-36030 Pillar, NO.3 Inner, RH
2015-01 → —
TRB40 HRF —
61254-36030 note Pillar, NO.3 Inner, RH
2015-01 → —
BZB50,HZB50,XZB50 RHD —
61254-36030 note Pillar, NO.3 Inner, RH
2015-01 → —
XZB59;HZB50 LHD HRF;BZB40,TRB50,XZB40,50 HRF +2 —
61254-36030 note Pillar, NO.3 Inner, RH
2015-01 → —
XZB59 —
61254A — Pillar, NO.3 Inner, LH
61036-36010 Pillar, NO.3 Inner, LH
1993-01 → 1999-07 ended
BB42 RHD SRF —
61036-36010 Pillar, NO.3 Inner, LH
1993-01 → 1999-07 ended
HZB50 RHD SRF;BB42,RZB40 LHD +1 —
61036-36010 Pillar, NO.3 Inner, LH
1993-01 → 1999-07 ended
HZB50,RZB50 LHD SRF —
61036-36030 Pillar, NO.3 Inner, LH
1997-05 → 1999-07 ended
HZB50 4FC —
61254-36030 note Pillar, NO.3 Inner, LH
1996-09 → 1997-03 ended
BB42 LHD WOC GEN —
61254-36030 Pillar, NO.3 Inner, LH
1997-05 → 1999-07 ended
BB42,RZB40 LHD HRF;BB50,HZB50 RHD +3 —
61254-36030 Pillar, NO.3 Inner, LH
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 LHD HRF CBU —
61254-36030 Pillar, NO.3 Inner, LH
1993-01 → 1999-07 ended
BB4# RHD HRF —
61254-36030 Pillar, NO.3 Inner, LH
1993-01 → 1997-05 ended
BB42,RZB40 LHD HRF;HZB50 RHD +2 —
61036-36010 Pillar, NO.3 Inner, LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB42,RZB40 WOC +1 —
61036-36010 Pillar, NO.3 Inner, LH
1999-07 → 2004-08 ended
HZB50,RZB50 LHD SRF —
61036-36010 Pillar, NO.3 Inner, LH
1999-07 → 2004-08 ended
BB42,RZB40 SRF WC GCC;BB42,RZB40 +3 —
61036-36010 Pillar, NO.3 Inner, LH
1999-07 → 2004-08 ended
BB42 RHD SRF —
61036-36030 Pillar, NO.3 Inner, LH
1999-07 → 2001-08 ended
HZB50 4FC —
61036-36050 note Pillar, NO.3 Inner, LH
2001-08 → 2004-08 ended
BB42 RHD WOC —
61254-36030 Pillar, NO.3 Inner, LH
1999-07 → 2002-11 ended
BB50,RZB50 CHI —
61254-36030 Pillar, NO.3 Inner, LH
1999-07 → 2001-08 ended
BB50 CBU 6F —
61254-36030 Pillar, NO.3 Inner, LH
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX;BB42,RZB40 22S +4 —
61254-36030 Pillar, NO.3 Inner, LH
1999-07 → 2001-08 ended
BB43;BB42 RHD HRF WOC —
61254-36030 Pillar, NO.3 Inner, LH
1999-07 → 2004-08 ended
BB42,BZB40 RHD WC —
61254-36030 Pillar, NO.3 Inner, LH
1999-07 → 2004-08 ended
HZB50 59,BZB50 RHD RHD +11 —
61254-36030 Pillar, NO.3 Inner, LH
1999-07 → 2004-08 ended
BB50 GEN 6F TDEFI;BB50,58,HZB50,RZB50 +4 —
61254-36030 Pillar, NO.3 Inner, LH
1999-07 → 2002-11 ended
HZB50,RZB40 ARL,CHI —
61036-36010 Pillar, NO.3 Inner, LH
2004-08 → 2015-01 ended
BB42 RHD SRF —
61036-36010 Pillar, NO.3 Inner, LH
2004-08 → 2015-01 ended
BB42,TRB40 LHD SRF —
61036-36010 Pillar, NO.3 Inner, LH
2004-08 → 2015-01 ended
HZB50,TRB50 SRF —
61036-36010 Pillar, NO.3 Inner, LH
2004-08 → 2007-08 ended
RZB50 SRF —
61036-36010 Pillar, NO.3 Inner, LH
2004-08 → 2007-08 ended
RZB40 SRF —
61036-36050 note Pillar, NO.3 Inner, LH
2004-08 → 2015-01 ended
BB42 RHD WOC —
61036-36050 note Pillar, NO.3 Inner, LH
2011-08 → 2015-01 ended
BB42 RHD SRF WC —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2015-01 ended
TRB40,XZB59 HRF;BZB50,HZB50 RHD STD;XZB50 +3 —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2015-01 ended
BB42,BZB40,XZB40 RHD HRF —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2015-01 ended
BB50,HZB50,TRB50,XZB50 LHD HRF CBU +1 —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2007-08 ended
RZB50 HRF —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61254-36030 Pillar, NO.3 Inner, LH
2004-08 → 2007-08 ended
RZB40 HRF GEN —
61036-36010 Pillar, NO.3 Inner, LH
2015-01 → —
BB42 RHD —
61036-36010 note Pillar, NO.3 Inner, LH
2015-01 → —
BB42,TRB40,XZB40 LHD SRF —
61036-36010 note Pillar, NO.3 Inner, LH
2015-01 → —
HZB50,TRB50 SRF —
61036-36050 note Pillar, NO.3 Inner, LH
2015-01 → —
BB42 RHD —
61254-36030 note Pillar, NO.3 Inner, LH
2015-01 → —
XZB59 —
61254-36030 Pillar, NO.3 Inner, LH
2015-01 → —
BZB40,XZB40 17S —
61254-36030 note Pillar, NO.3 Inner, LH
2015-01 → —
TRB40 HRF;BZB50,HZB50,XZB5# RHD —
61254-36030 note Pillar, NO.3 Inner, LH
2015-01 → —
HZB50,TRB50,XZB50 LHD HRF —
61299B — Bracket, Inner Pillar Blower, LH
61299-36010 Bracket, Inner Pillar Blower, LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61525E — Bracket, Seat Anchor, RH
61525-36350 note Bracket, Seat Anchor, RH
2015-01 → —
BB42,BZB40,HZB50,XZB40,50 RHD GEN —
61525-36360 Bracket, Seat Anchor, RH
2015-01 → —
XZB59 —
61525-36360 note Bracket, Seat Anchor, RH
2015-01 → —
BZB40,50,XZB5# RHD —
61525F — Bracket, Seat Anchor, RH
61525-36180 Bracket, Seat Anchor, RH
2015-01 → —
BB42,TRB40,XZB40 LHD;HZB50,TRB50,XZB50 LHD (21S,30S) —
61525-36180 Bracket, Seat Anchor, RH
2015-01 → —
XZB59 —
61525-36180 note Bracket, Seat Anchor, RH
2015-01 → —
BB42,BZB40,HZB50,XZB40,50 RHD GEN —
61525-36190 note Bracket, Seat Anchor, RH
2015-01 → —
BZB40,50,XZB50 RHD —
61525G — Bracket, Seat Anchor, RH
61525-36150 Bracket, Seat Anchor, RH
2015-01 → —
XZB59 —
61525-36150 Bracket, Seat Anchor, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61525-36150 note Bracket, Seat Anchor, RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB50 RHD —
61525-36170 note Bracket, Seat Anchor, RH
2015-01 → —
BZB40,XZB40 17S —
61525H — Bracket, Seat Anchor, RH
61525-36140 note Bracket, Seat Anchor, RH
2015-01 → —
BB42,BZB40,HZB50,XZB40,50 RHD GEN —
61525-36140 Bracket, Seat Anchor, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61525-36140 Bracket, Seat Anchor, RH
2015-01 → —
XZB59 —
61525-36150 note Bracket, Seat Anchor, RH
2015-01 → —
BZB40,50,XZB50 RHD —
61525J — Bracket, Seat Anchor, RH
61525-36140 note Bracket, Seat Anchor, RH
2015-01 → —
HZB50,XZB50 RHD GEN —
61525-36140 Bracket, Seat Anchor, RH
2015-01 → —
HZB50,TRB50,XZB50 LHD —
61525-36150 Bracket, Seat Anchor, RH
2015-01 → —
XZB59 —
61525-36150 note Bracket, Seat Anchor, RH
2015-01 → —
BZB50,XZB50 RHD —
61526G — Bracket, Seat Anchor, LH
61526-36190 note Bracket, Seat Anchor, LH
2015-01 → —
BB42,BZB40,HZB50,XZB40,50 RHD GEN —
61526-36190 Bracket, Seat Anchor, LH
2015-01 → —
BB42,TRB40,XZB40 LHD;HZB50,TRB50,XZB50 LHD (21S,30S) —
61526-36200 note Bracket, Seat Anchor, LH
2015-01 → —
XZB50 EX —
61526-36200 note Bracket, Seat Anchor, LH
2015-01 → —
BZB50,XZB50 RHD (DX,STD) —
61526-36200 Bracket, Seat Anchor, LH
2015-01 → —
XZB59 —
61526H — Bracket, Seat Anchor, LH
61525-36070 note Bracket, Seat Anchor, LH
2015-01 → —
BZB40,XZB40 17S —
61525-36150 Bracket, Seat Anchor, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61525-36150 note Bracket, Seat Anchor, LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB50 RHD —
61525-36150 Bracket, Seat Anchor, LH
2015-01 → —
XZB59 —
61526J — Bracket, Seat Anchor, LH
61525-36140 Bracket, Seat Anchor, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61525-36140 note Bracket, Seat Anchor, LH
2015-01 → —
BB42,BZB40,HZB50,XZB40,50 RHD GEN —
61525-36150 Bracket, Seat Anchor, LH
2015-01 → —
XZB59 —
61525-36150 note Bracket, Seat Anchor, LH
2015-01 → —
BZB50,XZB50 RHD —
61526K — Bracket, Seat Anchor, LH
61525-36140 Bracket, Seat Anchor, LH
2015-01 → —
HZB50,TRB50,XZB50 LHD —
61525-36140 note Bracket, Seat Anchor, LH
2015-01 → —
HZB50,XZB50 RHD GEN —
61525-36150 Bracket, Seat Anchor, LH
2015-01 → —
XZB59 —
61525-36150 note Bracket, Seat Anchor, LH
2015-01 → —
BZB50,XZB50 RHD —
61531F — Gusset, Seat Anchor, RH
61532-36100 Gusset, Seat Anchor, RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61531G — Gusset, Seat Anchor, RH
61531-36050 Gusset, Seat Anchor, RH
2015-01 → —
XZB59;XZB50 ARL —
61531-36050 note Gusset, Seat Anchor, RH
2015-01 → —
XZB50 EX —
61531-36110 Gusset, Seat Anchor, RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,50 RHD GEN —
61531H — Gusset, Seat Anchor, RH
61531-36100 note Gusset, Seat Anchor, RH
2015-01 → —
BZB40,XZB40 17S —
61532-36070 Gusset, Seat Anchor, RH
2015-01 → —
XZB40 26S;BB42,BZB40,50,HZB50,TRB40,50,XZB5# —
61531J — Gusset, Seat Anchor, RH
61531-36070 Gusset, Seat Anchor, RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61531K — Gusset, Seat Anchor, RH
61531-36060 Gusset, Seat Anchor, RH
2015-01 → —
BZB50,HZB50,TRB50,XZB5# —
61532J — Gusset, Seat Anchor, LH
61531-36090 Gusset, Seat Anchor, LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61532K — Gusset, Seat Anchor, LH
61532-36080 Gusset, Seat Anchor, LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61532L — Gusset, Seat Anchor, LH
61531-36060 Gusset, Seat Anchor, LH
2015-01 → —
BZB50,HZB50,TRB50,XZB5# —
61709A — Reinforcement Sub-assy, Seat Belt Anchor, LH
61709-36010 Reinforcement Sub-assy, Seat Belt Anchor, LH
1993-01 → 1999-07 ended
BB40,42,HZB50 RHD (ARL,GEN) 5F —
61709-36010 Reinforcement Sub-assy, Seat Belt Anchor, LH
1999-07 → 2001-08 ended
HZB50 RHD EX;HZB50 RHD +5 —
61709-36010 Reinforcement Sub-assy, Seat Belt Anchor, LH
1999-07 → 2002-11 ended
HZB50 ARL —
61709-36010 Reinforcement Sub-assy, Seat Belt Anchor, LH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB42,HZB50 RHD +5 —
61709-36010 Reinforcement Sub-assy, Seat Belt Anchor, LH
2004-08 → 2007-08 ended
HZB50 RHD —
61709-36010 Reinforcement Sub-assy, Seat Belt Anchor, LH
2011-08 → 2015-01 ended
HZB50 RHD —
61709-36010 Reinforcement Sub-assy, Seat Belt Anchor, LH
2004-08 → 2015-01 ended
BB42 RHD —
61709-36020 Reinforcement Sub-assy, Seat Belt Anchor, LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
63147L — Bracket, Roof Panel Reinforcement
63147-36011 Bracket, Roof Panel Reinforcement
2015-01 → —
BZB40,50,HZB50,XZB40,5# RHD —
63147N — Bracket, Roof Panel Reinforcement
63147-36011 Bracket, Roof Panel Reinforcement
2015-01 → —
BZB50,HZB50,TRB50,XZB5# HRF —
63147P — Bracket, Roof Panel Reinforcement
63147-36011 Bracket, Roof Panel Reinforcement
2015-01 → —
BZB50,HZB50,TRB50,XZB5# HRF —
63147S — Bracket, Roof Panel Reinforcement
63147-36011 Bracket, Roof Panel Reinforcement
2015-01 → —
BZB50,HZB50,TRB50,XZB5# HRF —
63147T — Bracket, Roof Panel Reinforcement
63147-36011 Bracket, Roof Panel Reinforcement
2015-01 → —
BZB50,HZB50,TRB50,XZB5# HRF —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
