Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

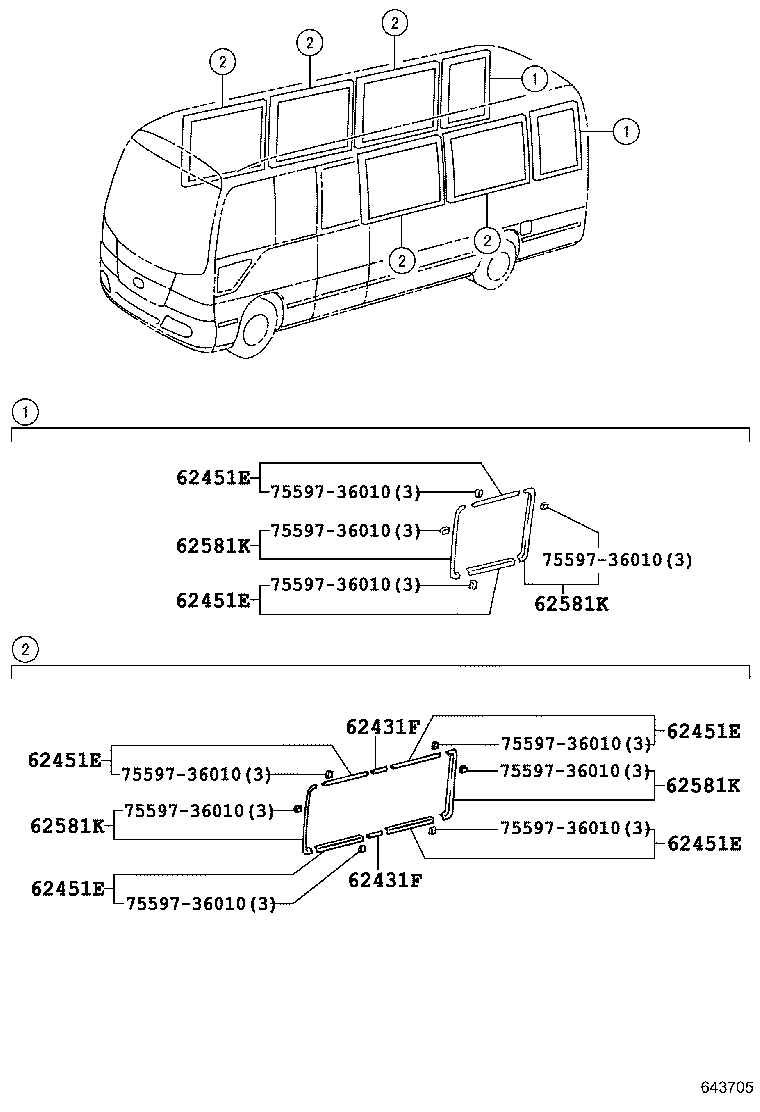

Exploded illustration 643705 62581K — GARNISH, REAR WINDOW SIDE (17 parts) 7559736010 — not listed in this catalogue 62451E — GARNISH, ROOF SIDE RAIL, REAR (23 parts) 62431F — GARNISH, ROOF SIDE RAIL (12 parts) 7559736010 — not listed in this catalogue 62431F — GARNISH, ROOF SIDE RAIL (12 parts) 62451E — GARNISH, ROOF SIDE RAIL, REAR (23 parts) 62451E — GARNISH, ROOF SIDE RAIL, REAR (23 parts) 7559736010 — not listed in this catalogue 62451E — GARNISH, ROOF SIDE RAIL, REAR (23 parts) 7559736010 — not listed in this catalogue 7559736010 — not listed in this catalogue 7559736010 — not listed in this catalogue 62451E — GARNISH, ROOF SIDE RAIL, REAR (23 parts) 7559736010 — not listed in this catalogue 62451E — GARNISH, ROOF SIDE RAIL, REAR (23 parts) 7559736010 — not listed in this catalogue 62581K — GARNISH, REAR WINDOW SIDE (17 parts) 62581K — GARNISH, REAR WINDOW SIDE (17 parts) 7559736010 — not listed in this catalogue 62581K — GARNISH, REAR WINDOW SIDE (17 parts) 7559736010 — not listed in this catalogue
643705 · 12 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
62431F — Garnish, Roof Side Rail
62431-36020-A0 note Garnish, Roof Side Rail
1993-01 → 1995-05 ended
HZB50 SCO —
62431-36020-A1 note Garnish, Roof Side Rail
1995-05 → 1999-07 ended
BB50 EX;HZB50 SCO —
62431-36020-A1 note Garnish, Roof Side Rail
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
62431-36020-A1 note Garnish, Roof Side Rail
2001-04 → 2001-08 ended
BB50 EX IV —
62431-36020-B0 note Garnish, Roof Side Rail
2001-08 → 2004-08 ended
BB50,BZB50 EX GEN —
62431-36020-B0 note Garnish, Roof Side Rail
2001-08 → 2004-08 ended
BB59 —
62431-36020-B0 note Garnish, Roof Side Rail
2004-08 → 2006-08 ended
BB50,BZB50 EX —
62431-36020-B0 note Garnish, Roof Side Rail
2004-08 → 2006-08 ended
BB59 —
62431-36020-B0 note Garnish, Roof Side Rail
2004-08 → 2015-01 ended
XZB50 EX —
62431-36020-B0 note Garnish, Roof Side Rail
2004-08 → 2015-01 ended
XZB59 —
62431-36020-B0 note Garnish, Roof Side Rail
2015-01 → 2016-12 ended
XZB50 EX —
62431-36020-B0 note Garnish, Roof Side Rail
2015-01 → 2016-12 ended
XZB59 —
62451E — Garnish, Roof Side Rail, Rear
62451-36060-A0 note Garnish, Roof Side Rail, Rear
1993-01 → 1993-09 ended
HZB50 ARL,GCC,GEN —
62451-36060-A0 note Garnish, Roof Side Rail, Rear
1993-01 → 1995-05 ended
HZB50 SCO —
62451-36060-A1 note Garnish, Roof Side Rail, Rear
1995-05 → 1999-07 ended
BB50 STD CBU;BB58,HZB50,RZB50 ARL,GCC,GEN —
62451-36060-A1 note Garnish, Roof Side Rail, Rear
1995-05 → 1999-07 ended
BB50 EX;HZB50 SCO —
62451-36060-A1 note Garnish, Roof Side Rail, Rear
1999-07 → 2001-08 ended
BB50 LHD CBU;BB58,HZB50,RZB50 —
62451-36060-A1 note Garnish, Roof Side Rail, Rear
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
62451-36060-A1 note Garnish, Roof Side Rail, Rear
2001-04 → 2001-08 ended
BB50 EX IV —
62451-36060-B0 note Garnish, Roof Side Rail, Rear
2001-08 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
62451-36060-B0 note Garnish, Roof Side Rail, Rear
2001-08 → 2004-08 ended
BB50 (DX,STD) (ARL,GEN);BB58,BZB50,HZB50,RZB50 (17S,20S,23S,30S) +1 —
62451-36060-B0 note Garnish, Roof Side Rail, Rear
2001-08 → 2004-08 ended
BB59 —
62451-36060-B0 note Garnish, Roof Side Rail, Rear
2001-08 → 2004-08 ended
BB50,BZB50 EX GEN —
62451-36060-B0 note Garnish, Roof Side Rail, Rear
2004-08 → 2015-01 ended
XZB50 EX —
62451-36060-B0 note Garnish, Roof Side Rail, Rear
2004-08 → 2015-01 ended
XZB59 —
62451-36060-B0 note Garnish, Roof Side Rail, Rear
2004-08 → 2015-01 ended
XZB50 21S WC;BB50,BZB50,HZB50,TRB50 STD +1 —
62451-36060-B0 note Garnish, Roof Side Rail, Rear
2004-08 → 2007-08 ended
RZB50 —
62451-36060-B0 note Garnish, Roof Side Rail, Rear
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62451-36060-B0 note Garnish, Roof Side Rail, Rear
2004-08 → 2006-08 ended
BB50,BZB50 EX —
62451-36060-B0 note Garnish, Roof Side Rail, Rear
2004-08 → 2006-08 ended
BB59 —
62451-36060-B0 note Garnish, Roof Side Rail, Rear
2004-08 → 2006-08 ended
BB50,58 (DX,STD) CBU TDEFI —
62451-36060-B0 note Garnish, Roof Side Rail, Rear
2004-08 → 2008-03 ended
XZB50 STD GEN —
62451-36060-B0 note Garnish, Roof Side Rail, Rear
2015-01 → 2016-12 ended
BZB50,HZB50,TRB50,XZB50 DX,STD —
62451-36060-B0 note Garnish, Roof Side Rail, Rear
2015-01 → 2016-12 ended
XZB59 —
62451-36060-B0 note Garnish, Roof Side Rail, Rear
2015-01 → 2016-12 ended
XZB50 EX —
62581K — Garnish, Rear Window Side
62581-36010-A0 note Garnish, Rear Window Side
1993-01 → 1993-09 ended
HZB50 ARL,GCC,GEN —
62581-36010-A0 note Garnish, Rear Window Side
1993-01 → 1995-05 ended
HZB50 SCO —
62581-36010-A1 note Garnish, Rear Window Side
1995-05 → 1999-07 ended
BB50 STD CBU;BB58,HZB50,RZB50 ARL,GCC,GEN —
62581-36010-A1 note Garnish, Rear Window Side
1995-05 → 1999-07 ended
BB50 EX;HZB50 SCO —
62581-36010-A1 note Garnish, Rear Window Side
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
62581-36010-A1 note Garnish, Rear Window Side
2001-04 → 2001-08 ended
BB50 EX IV —
62581-36010-A1 note Garnish, Rear Window Side
1999-07 → 2001-08 ended
BB50 LHD CBU;BB58,HZB50,RZB50 —
62581-36010-B0 note Garnish, Rear Window Side
2001-08 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
62581-36010-B0 note Garnish, Rear Window Side
2001-08 → 2004-08 ended
BB50 (DX,STD) (ARL,GEN);BB58,BZB50,HZB50,RZB50 (17S,20S,23S,30S) +1 —
62581-36010-B0 note Garnish, Rear Window Side
2001-08 → 2004-08 ended
BB50,BZB50 EX GEN —
62581-36010-B0 note Garnish, Rear Window Side
2001-08 → 2004-08 ended
BB59 —
62581-36010-B0 note Garnish, Rear Window Side
2004-08 → 2015-01 ended
BB50,58,BZB50,HZB50,RZB50,TRB50,XZB50 (DX,STD) CBU —
62581-36010-B0 note Garnish, Rear Window Side
2004-08 → 2015-01 ended
BB50,BZB50,XZB50 EX —
62581-36010-B0 note Garnish, Rear Window Side
2004-08 → 2015-01 ended
BB59,XZB59 —
62581-36010-B0 note Garnish, Rear Window Side
2015-01 → 2016-12 ended
BZB50,HZB50,TRB50,XZB50 DX,STD —
62581-36010-B0 note Garnish, Rear Window Side
2015-01 → 2016-12 ended
XZB50 EX —
62581-36010-B0 note Garnish, Rear Window Side
2015-01 → 2016-12 ended
XZB59 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
