Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

54 part groups · 10 illustrations

Illustrations

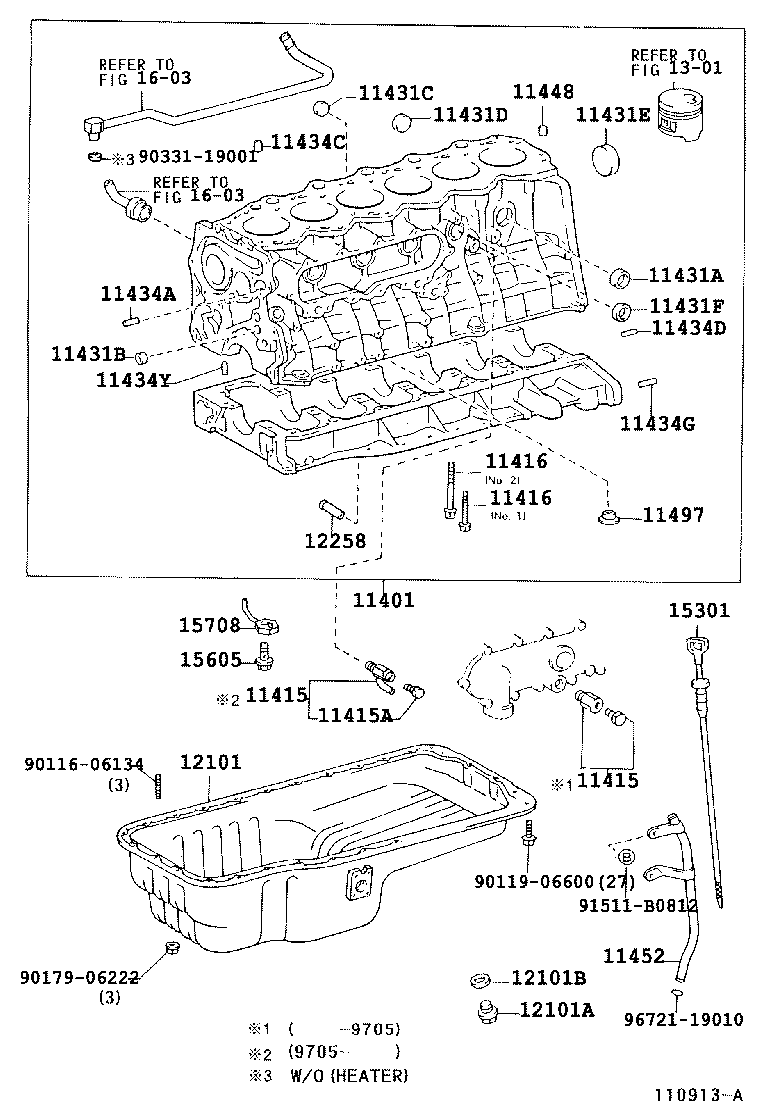

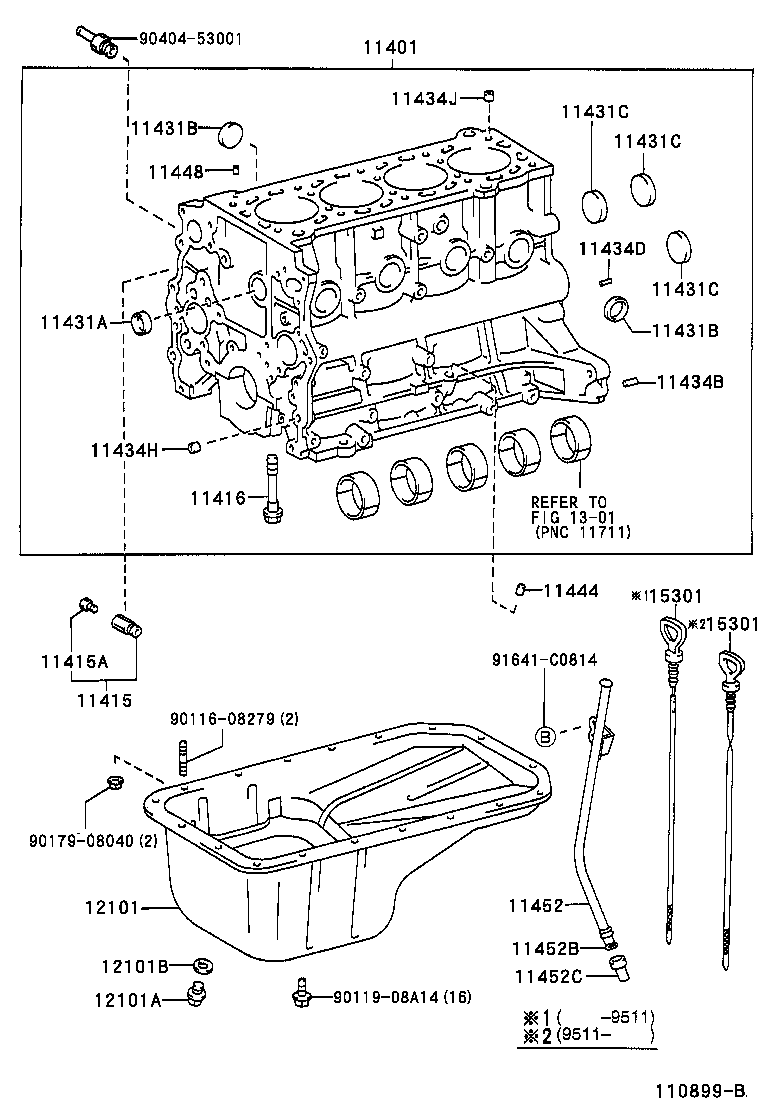

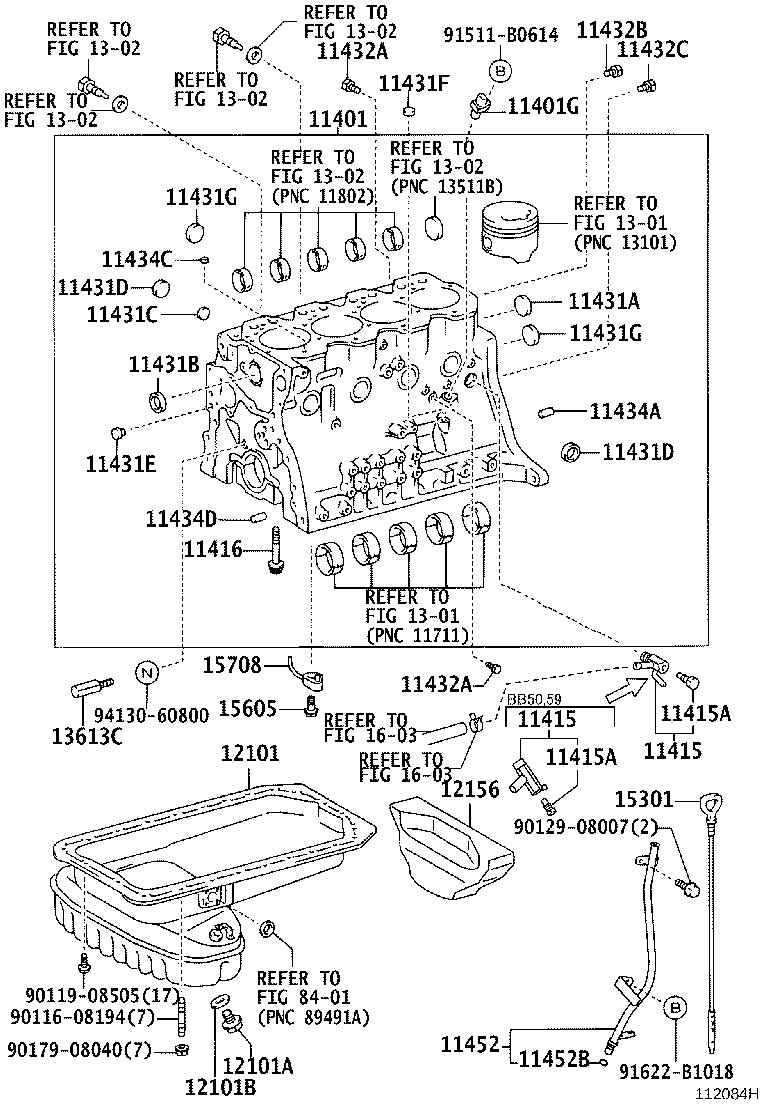

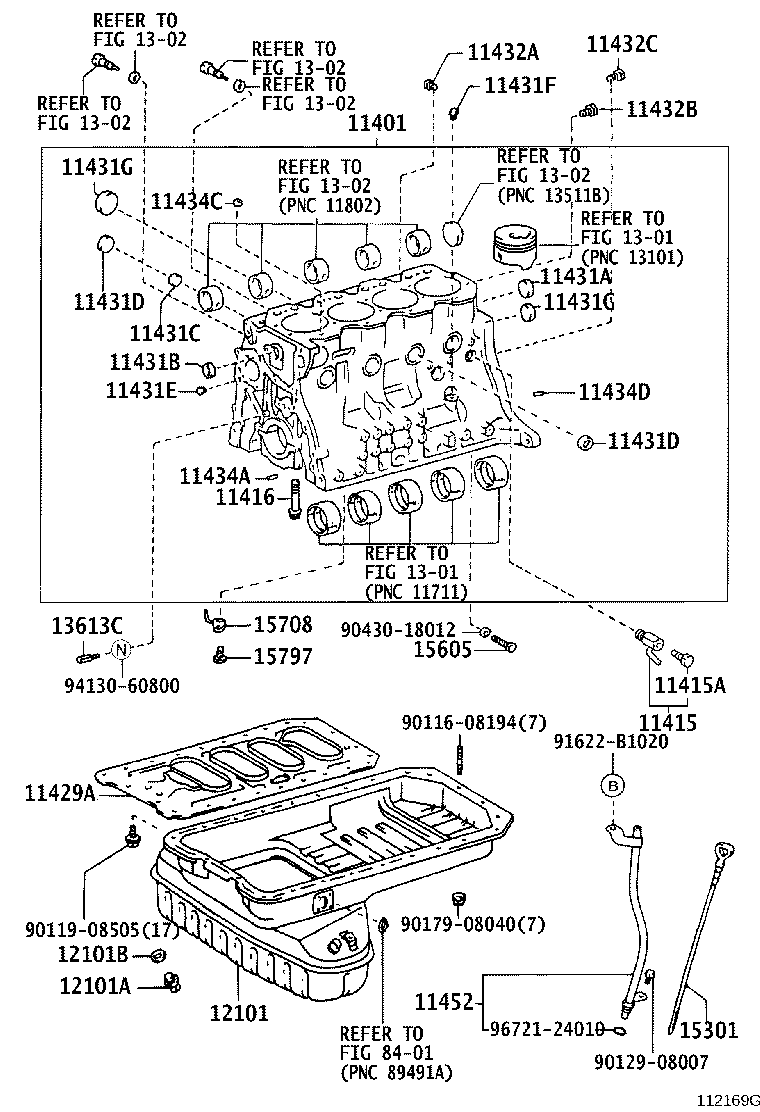

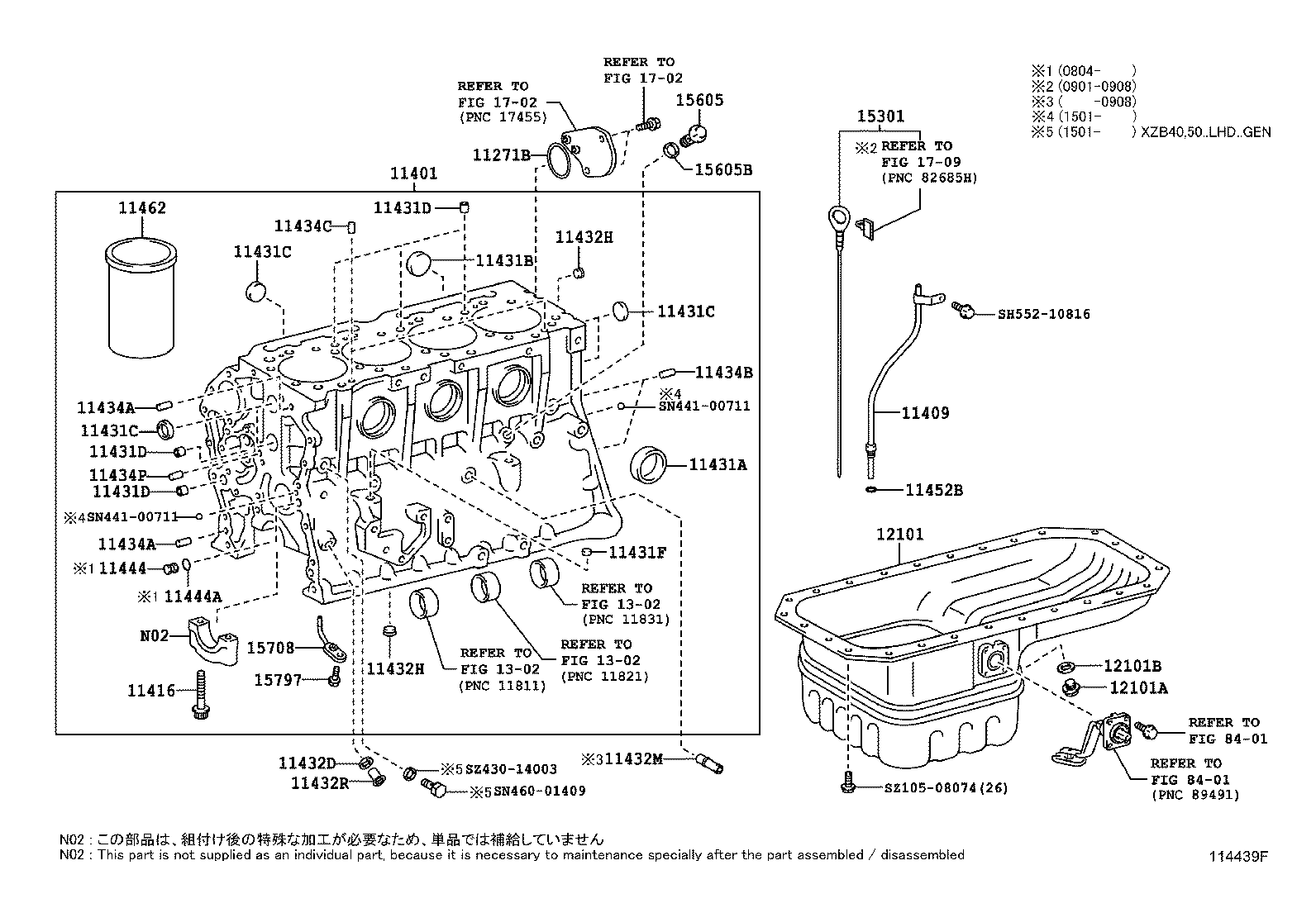

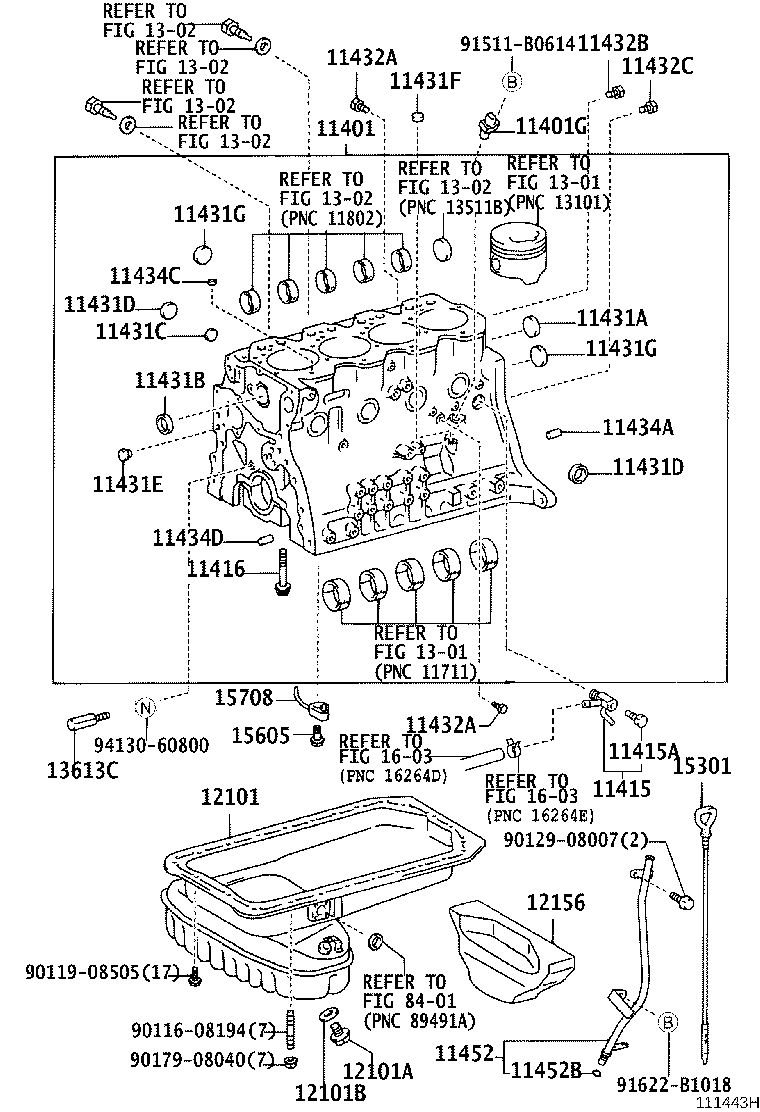

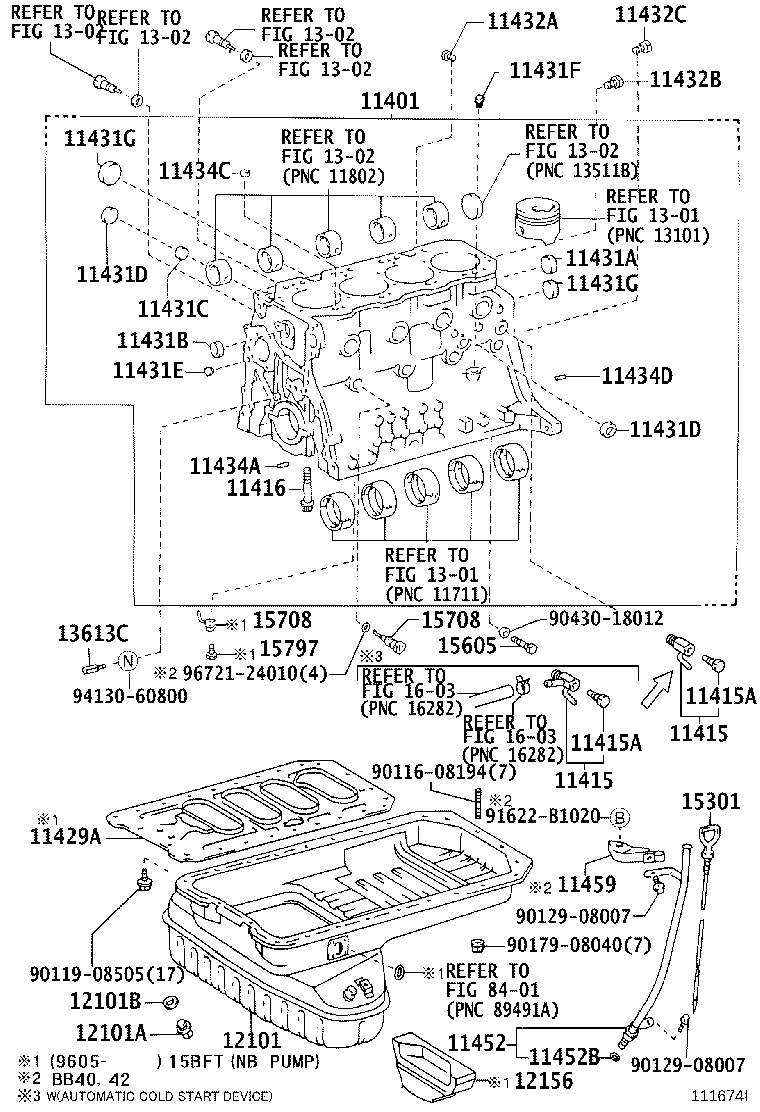

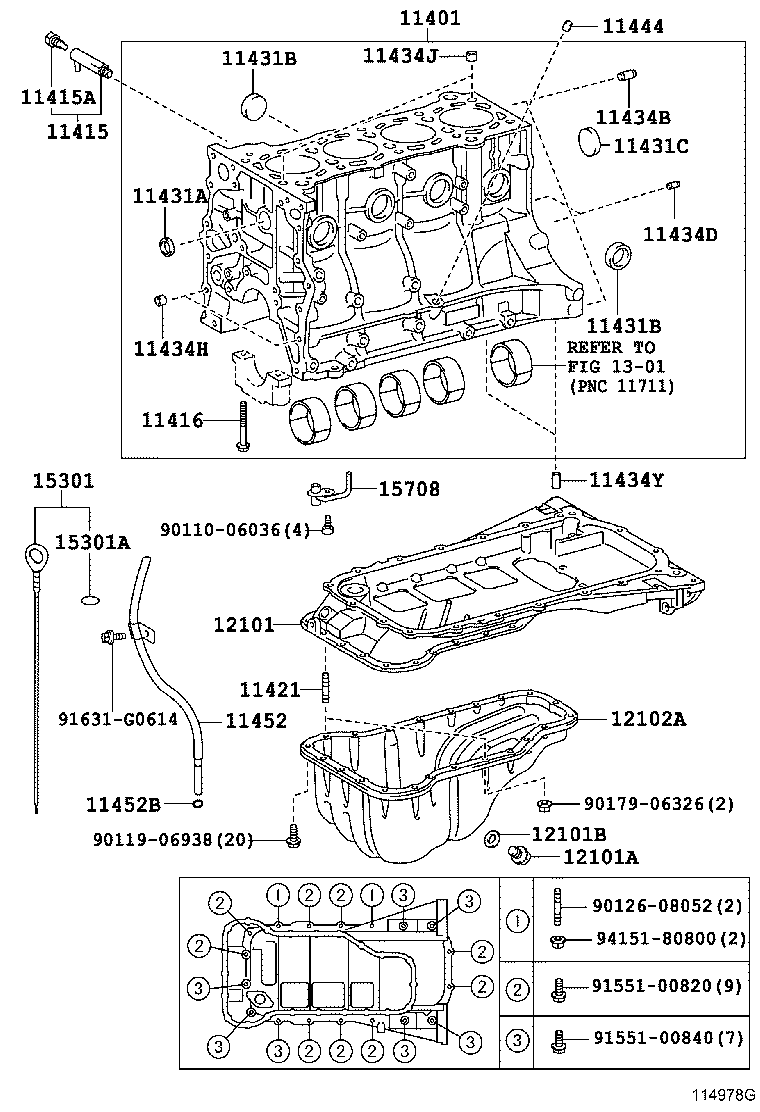

Figure 113378D 113378D 1993-01 → 1995-05 Figure 111674I 111674I 1995-05 → — Figure MAK580 MAK580 1997-05 → — Figure 111443H 111443H 1999-07 → 2001-05 Figure 112084H 112084H 2001-05 → — Figure 112169G 112169G 2001-08 → — Figure 110913A 110913A 1993-01 → — Figure 110899B 110899B 1993-09 → 2007-08 Figure 114978G 114978G 2007-08 → — Figure 114439F 114439F 2006-08 → —

Part groups

PNCDescription
11271B Ring, O(FOR CYLINDER BLOCK REAR PLATE)
11401 Block Sub-assy, Cylinder
11401G Sensor, Crank Position
11409 Guide Sub-assy, Oil Level Gage
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11421 Bolt, Stud(FOR OIL PAN)
11429A Plate, Cylinder Block Stiffening
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11431D Plug, Tight, NO.4(FOR CYLINDER BLOCK)
11431E Plug, Tight, NO.5(FOR CYLINDER BLOCK)
11431F Plug, Tight, NO.6(FOR CYLINDER BLOCK)
11431G Plug, Tight
11432A Plug, W/Head Taper Screw, NO.1
11432B Plug, W/Head Taper Screw, NO.2
11432C Plug, W/Head Taper Screw, NO.3
11432D Gasket, W/Head Taper Screw Plug
11432H Plug, W/Head Taper Screw, NO.5
11432M Union(FOR CYLINDER BLOCK)
11432R Plug, W/Head Straight Screw, NO.1(FOR CYLINDER BLOCK)
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434G Pin, Straight(FOR END PLATE)
11434H Pin, Ring (FOR TIMING BELT COVER SET)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434P Pin, Straight(FOR OIL PUMP SET)
11434Y Pin, Straight(FOR OIL PAN)
11444 Plug, Hole
11444A Ring, O
11448 Orifice, Cylinder Block Oil
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
11452C Union(FOR OIL LEVEL GAGE GUIDE)
11459 Support, Oil Level Gage Guide
11462 Liner, Cylinder
11497 Gasket, Cylinder Block Oil Hole
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12102A Pan Sub-assy, Oil, NO.2
12156 Insulator, Oil Pan
12258 Pipe, Oil Return
13613C Nozzle, Oil
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15605 Valve Sub-assy, Oil Check
15605B Gasket(FOR OIL CHECK VALVE)
15708 Nozzle Sub-assy, Oil, NO.1
15797 Bolt, Oil Nozzle Union
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
