Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

46 part groups · 14 illustrations

Illustrations

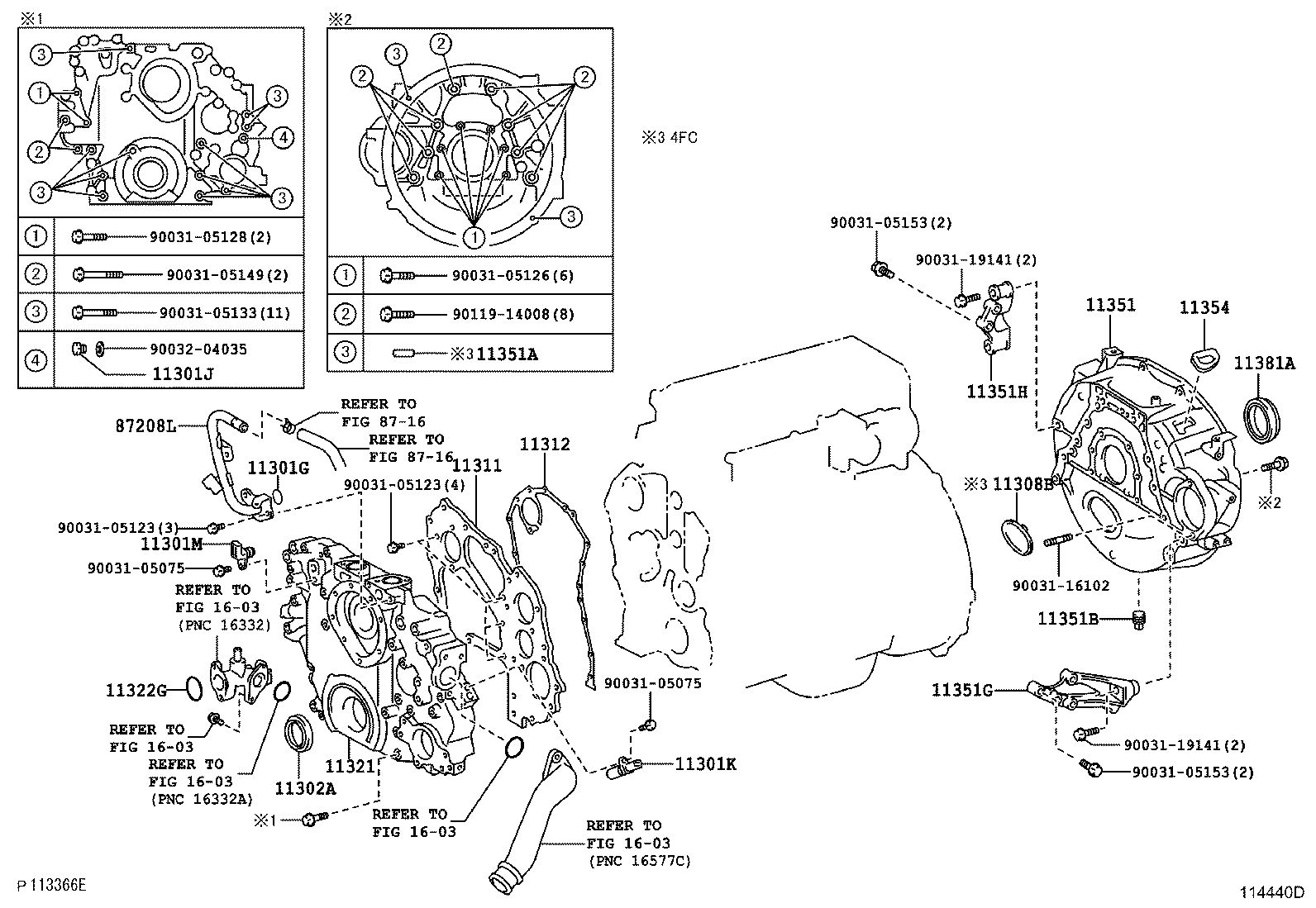

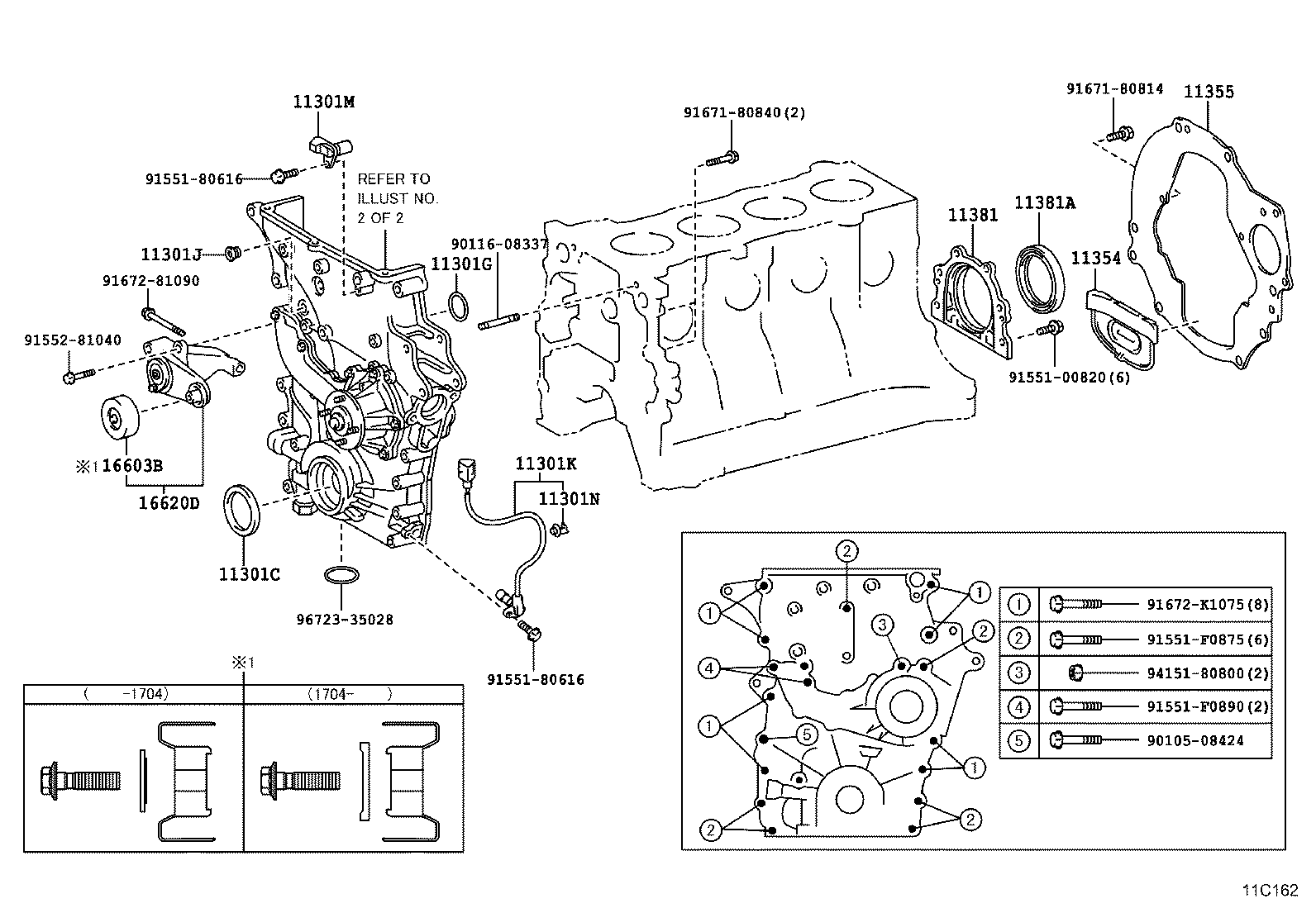

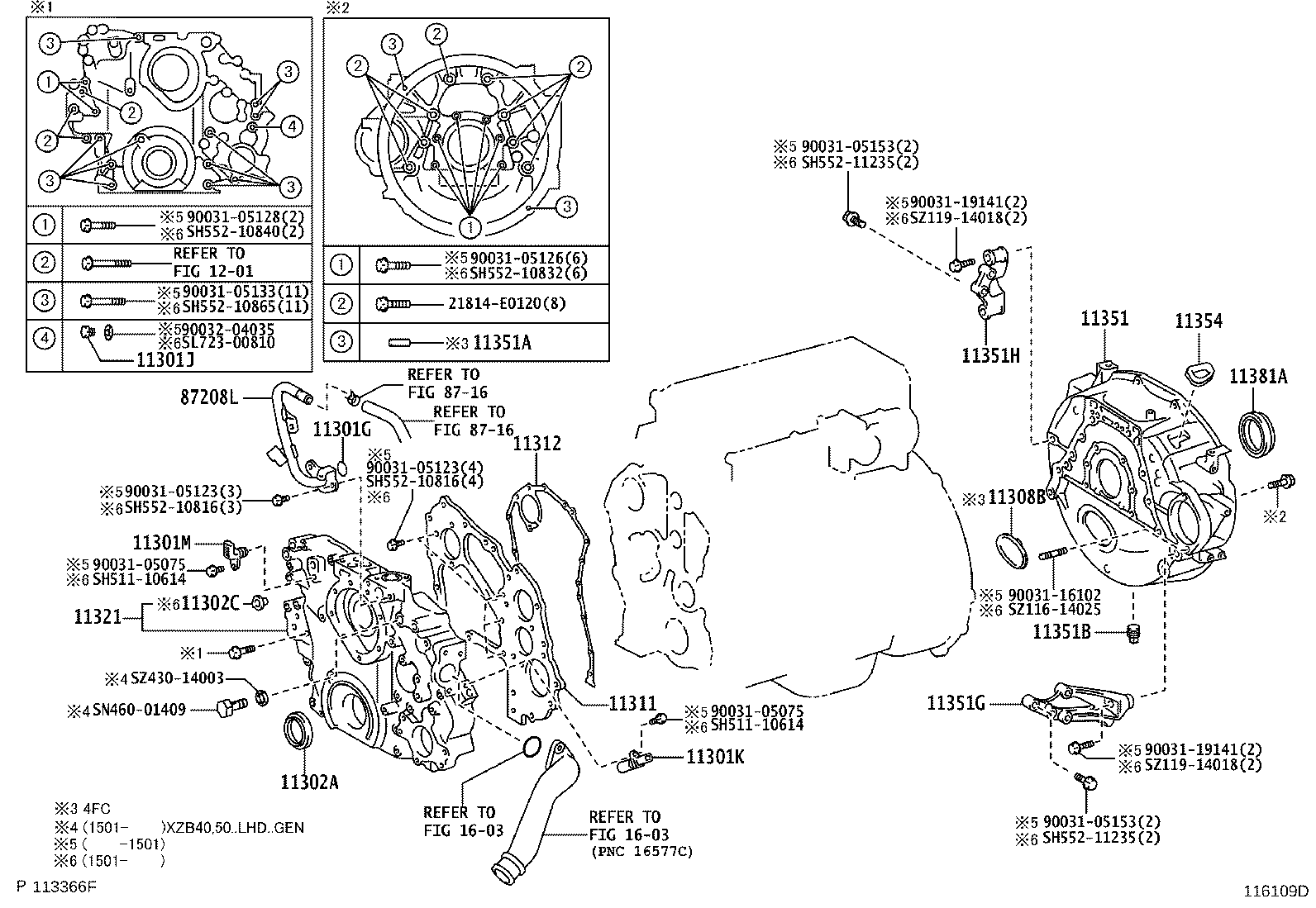

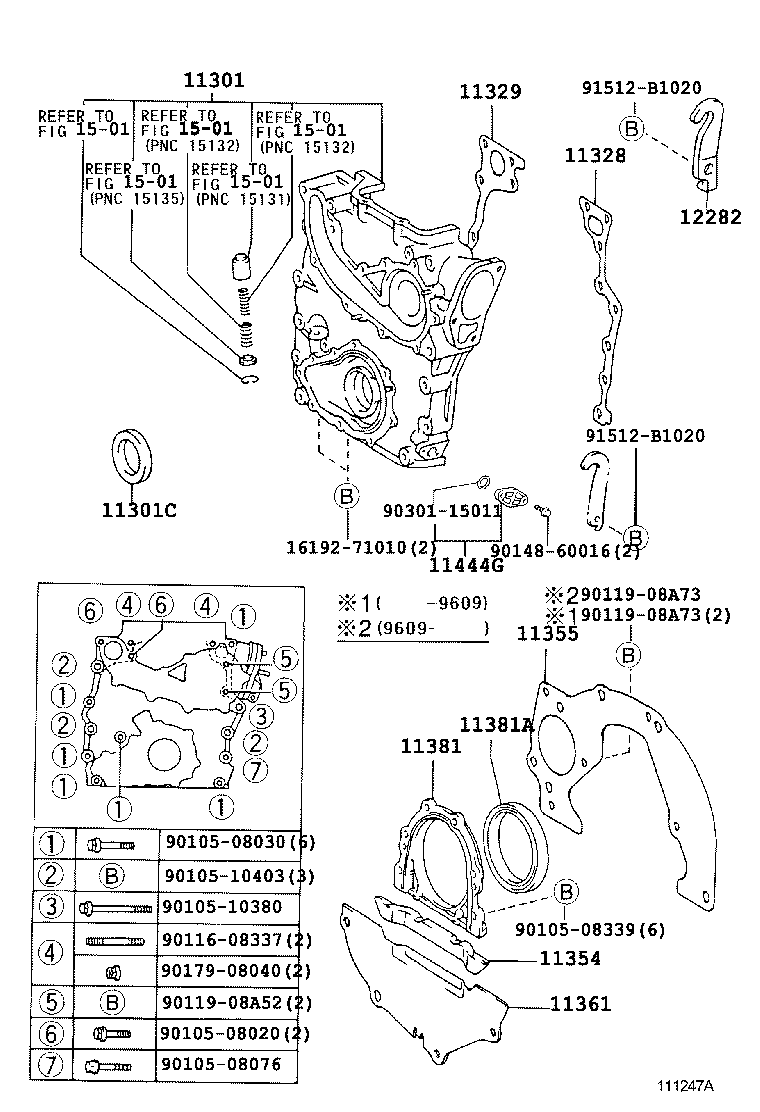

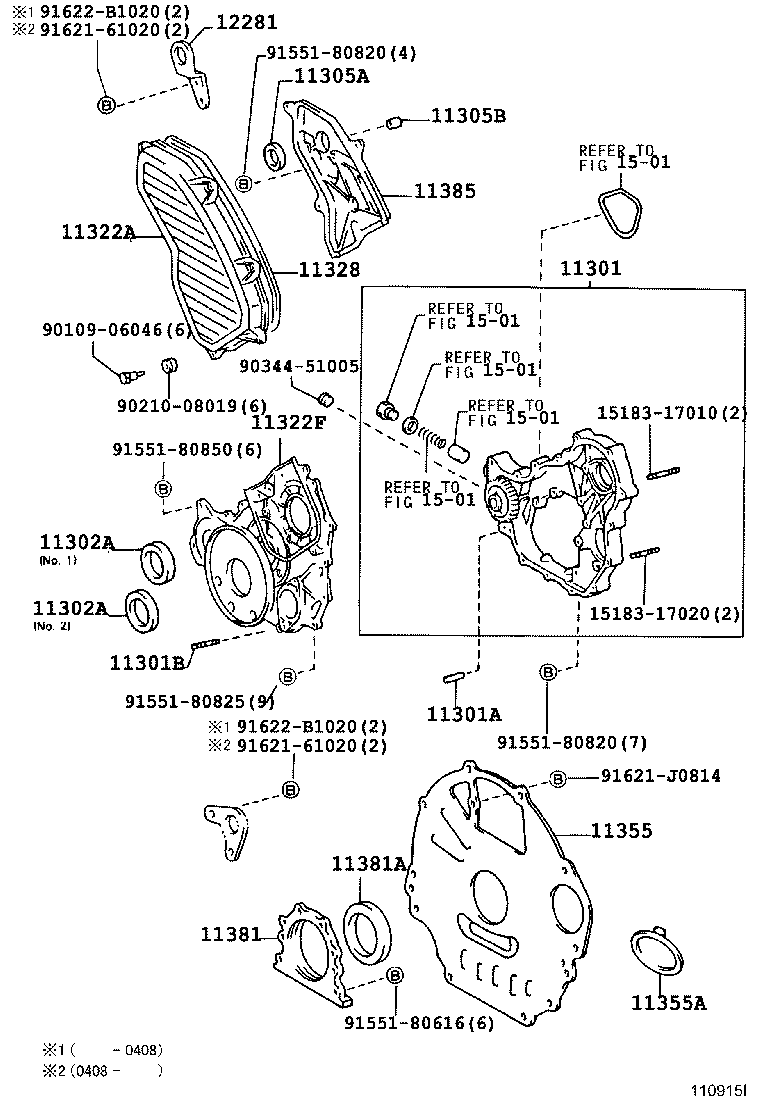

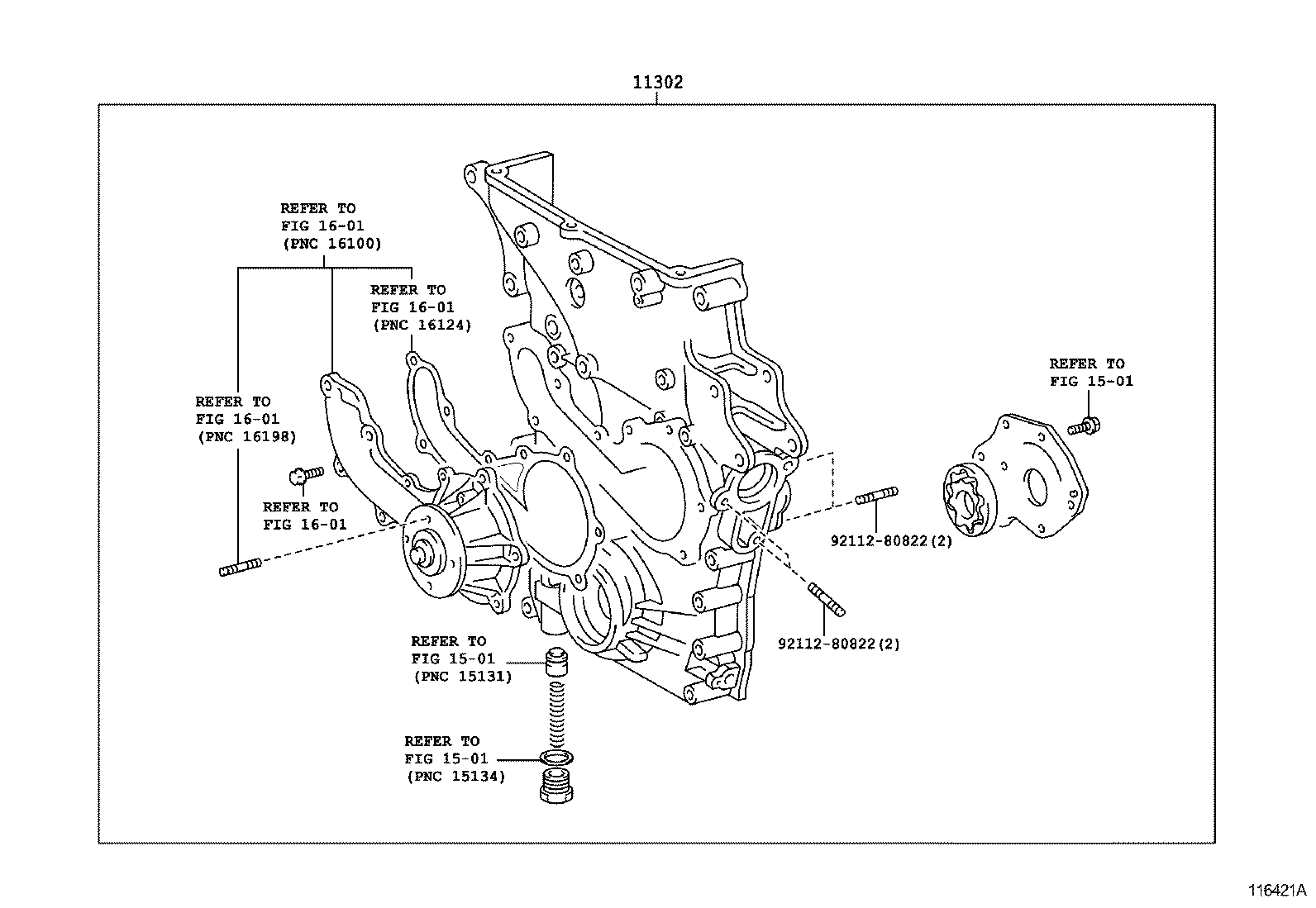

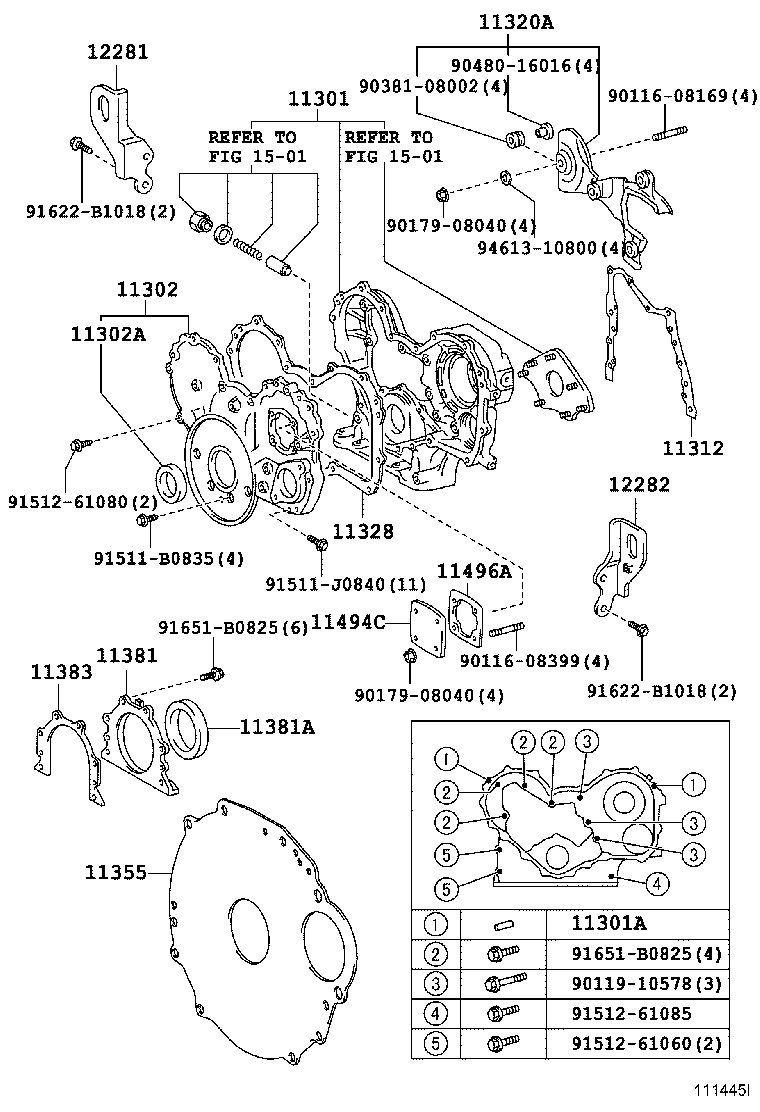

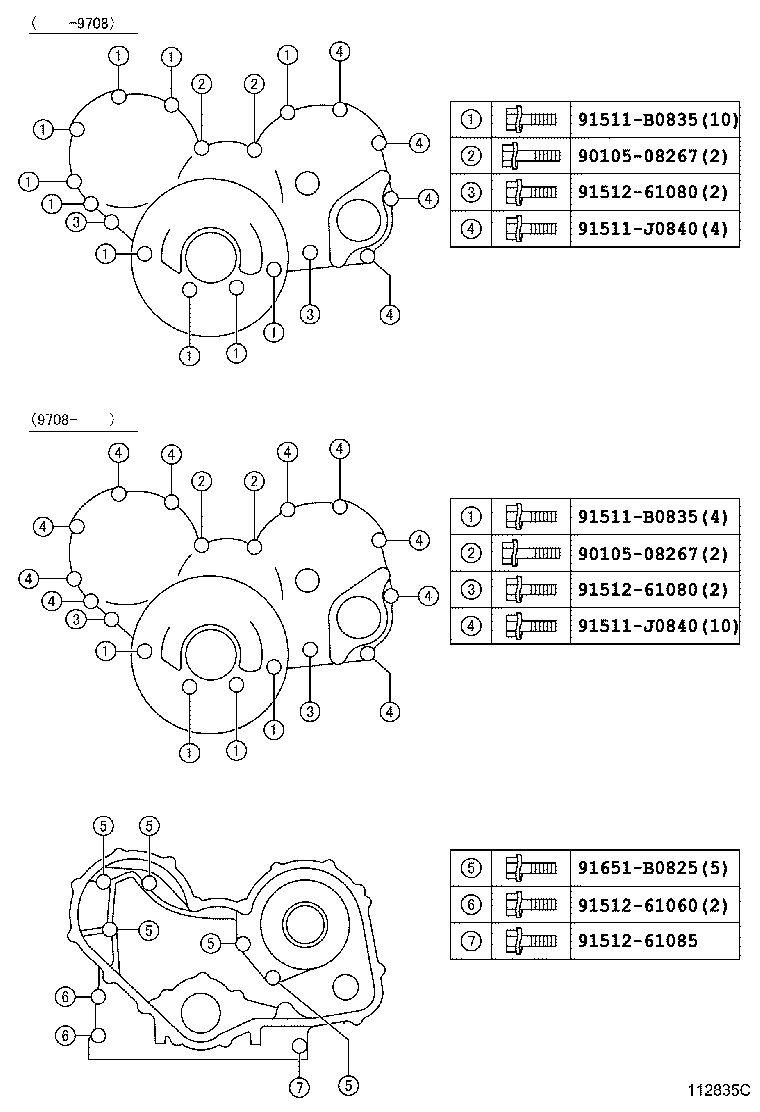

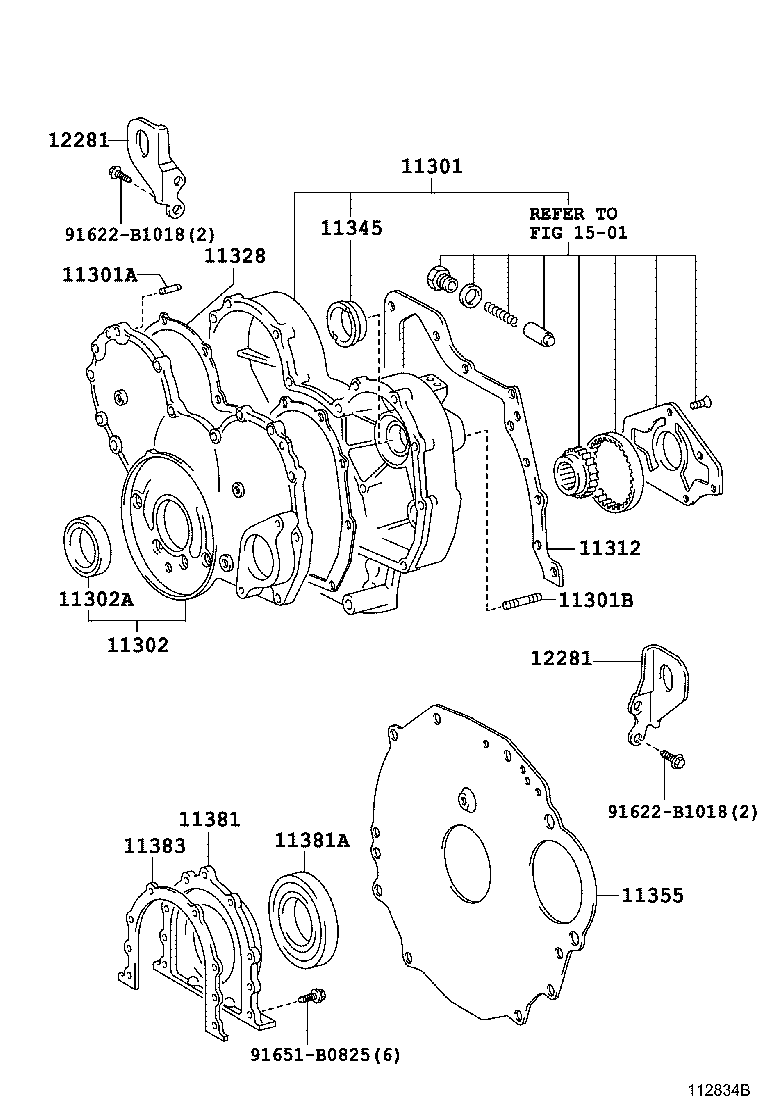

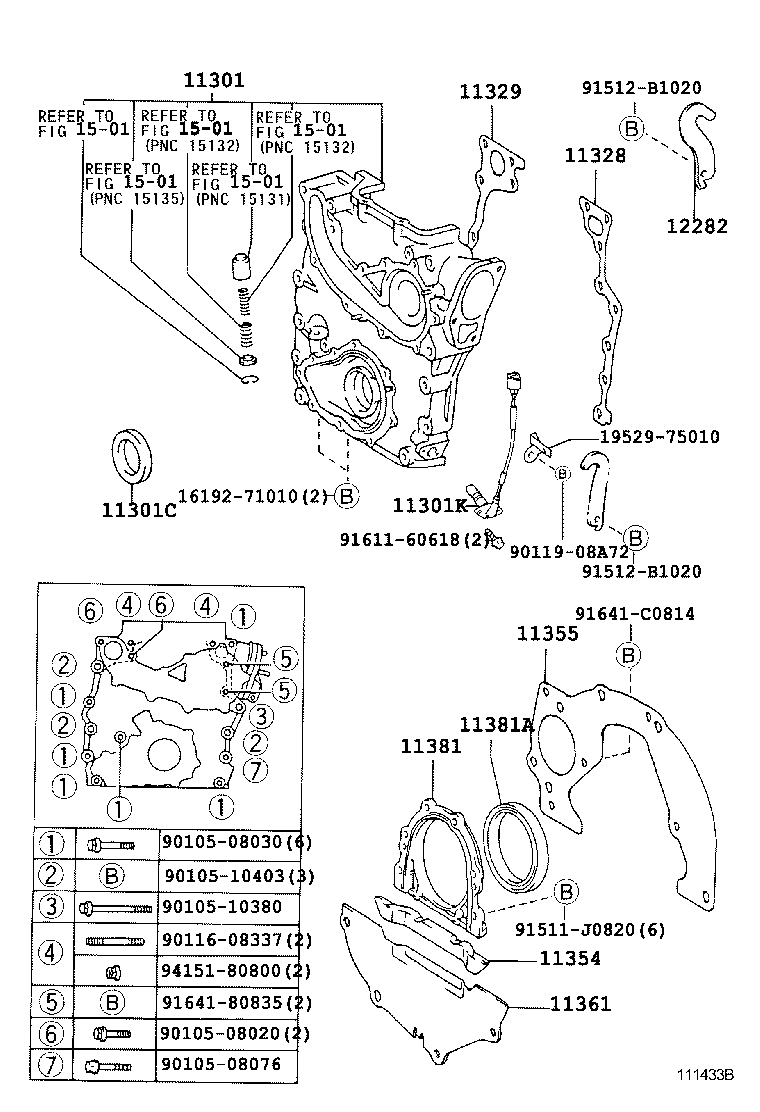

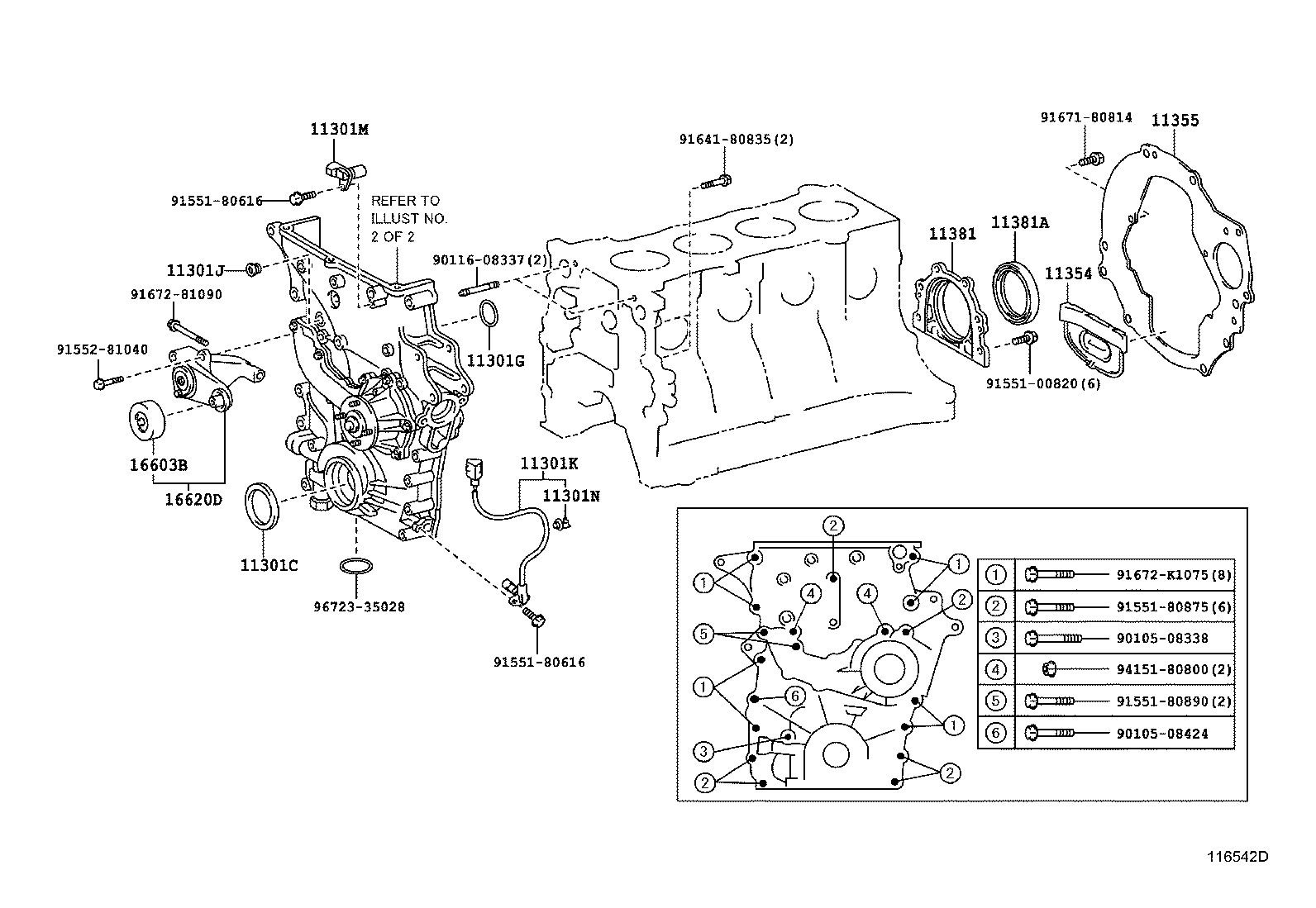

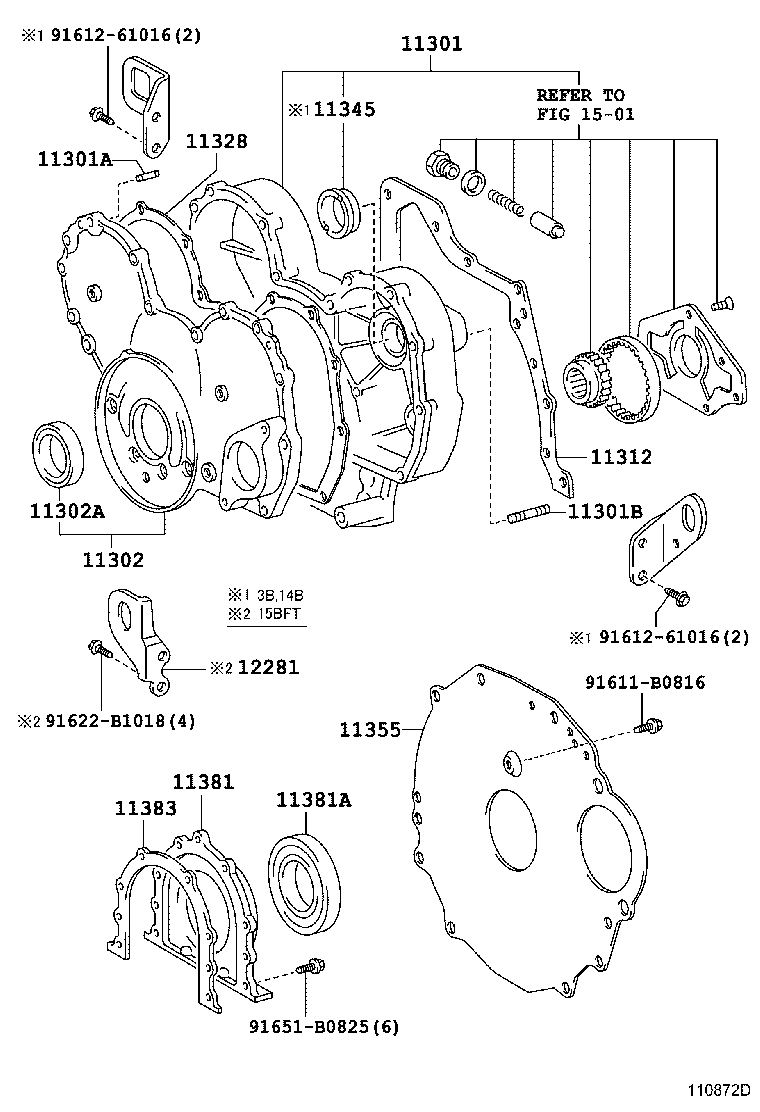

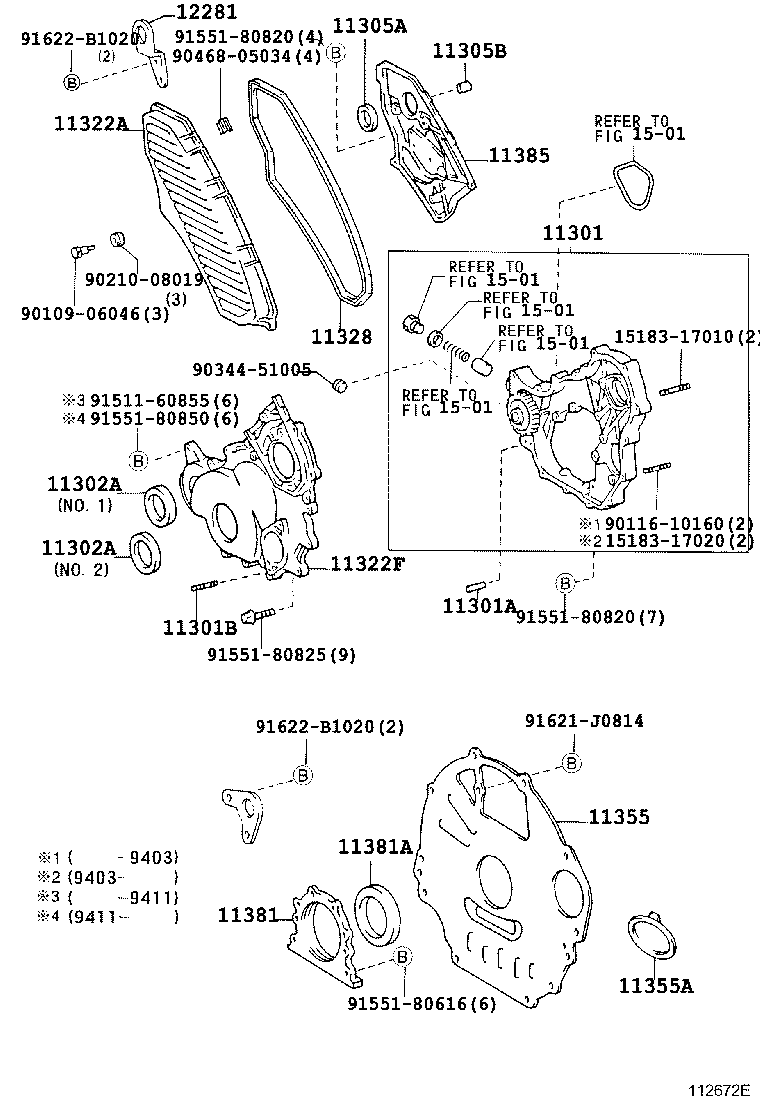

Figure 113481A 113481A 1993-01 → 1995-05 Figure 110872D 110872D 1995-05 → — Figure 112834B 112834B 2001-08 → — Figure 112835C 112835C 1995-05 → — Figure 111445I 111445I 1999-07 → — Figure 112672E 112672E 1993-01 → 1997-05 Figure 110915I 110915I 1997-05 → — Figure 111247A 111247A 1993-09 → 1999-07 Figure 111433B 111433B 1999-07 → — Figure 116542D 116542D 2007-08 → 2014-08 Figure 11C162 11C162 2014-08 → — Figure 116421A 116421A 2007-08 → — Figure 114440D 114440D 2006-08 → 2009-08 Figure 116109D 116109D 2009-08 → —

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301B Bolt,Stud(FOR TIMING GEAR CASE)
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301G Ring, O(FOR TIMING GEAR CASE, UPPER)
11301J Plug, W/Head Straight Screw(FOR TIMING GEAR CASE)
11301K Sensor, Crank Position
11301M Sensor, Cam Position
11301N Clamp
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302C Spacer(FOR TIMING GEAR COVER)
11305A Seal, Oil(FOR OIL SEAL RETAINER, NO.2)
11305B Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
11308B Cover(FOR FLYWHEEL HOUSING)
11311 Plate, Front End
11312 Gasket, Front End Plate
11320A Cover Assy, Timing Gear, NO.2
11321 Case, Timing Gear
11322A Cover, Timing Belt, NO.1
11322F Cover, Timing Gear, NO.2
11322G Ring, O(FOR TIMING GEAR COVER)
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11345 Bearing, Injection Pump Gear Thrust
11351 Housing, Flywheel
11351A Pin, Straight(FOR FLYWHEEL HOUSING)
11351B Plug, Hole(FOR FLYWHEEL HOUSING)
11351G Stay, LH(FOR FLYWHEEL HOUSING)
11351H Stay, RH(FOR FLYWHEEL HOUSING)
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11361 Cover, Flywheel Housing Under
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11385 Retainer, Camshaft Oil Seal
11444G Plug, Hole(FOR TIMING BELT CASE)
11494C Plate, Oil Hole Cover
11496A Gasket, Oil Hole Cover
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
16603B Pulley Sub-assy, Idler
16620D Tensioner Assy, V-ribbed Belt
87208L Pipe Sub-assy, Water
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
