Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe
Discontinued model
Data version 2016-12

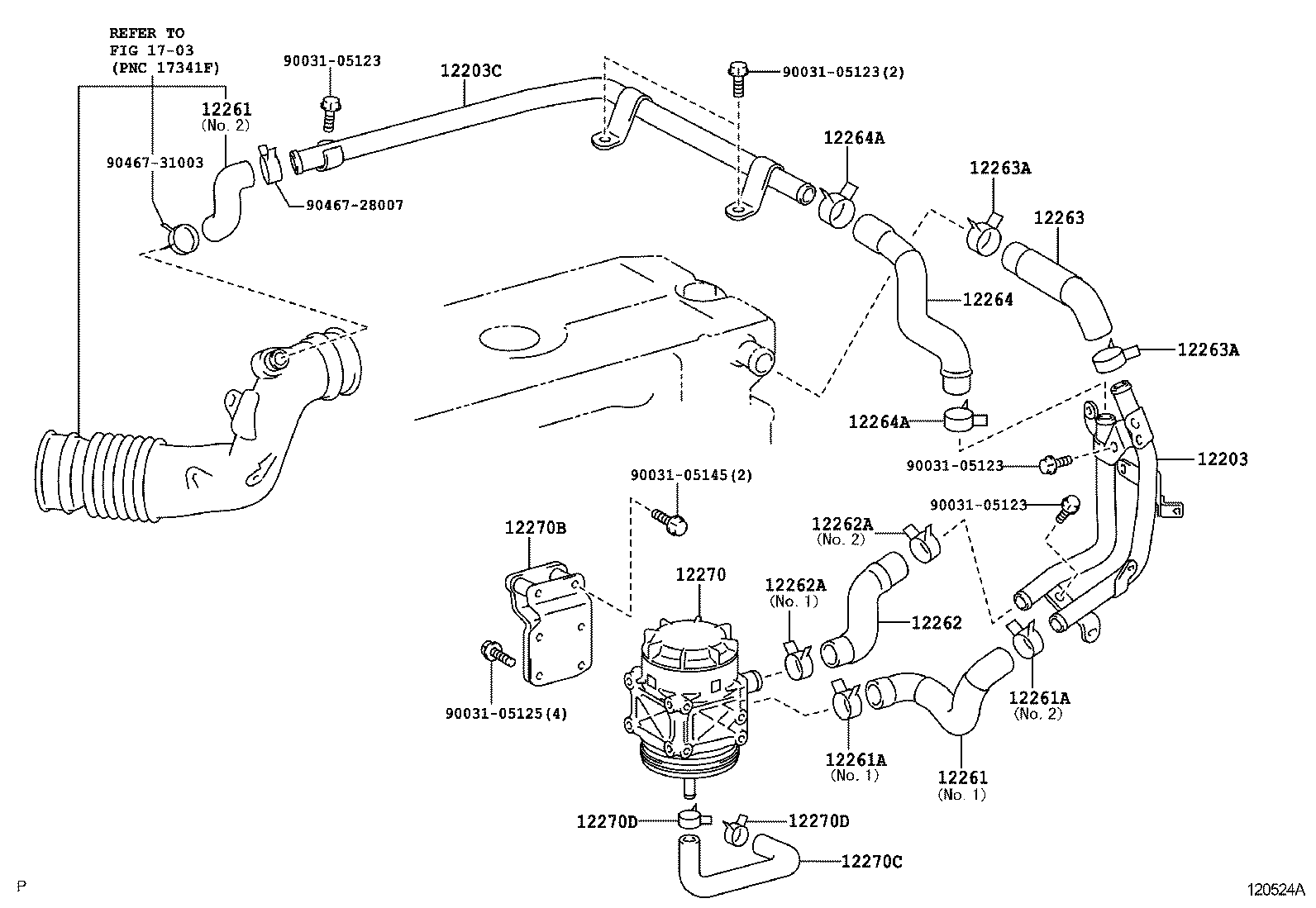

Ventilation Hose
24 part groups · 12 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 12203 | Pipe Sub-assy, Ventilation |
| 12203C | Pipe Sub-assy, Ventilation, NO.2 |
| 12204 | Valve Sub-assy, Ventilation |
| 12204A | Grommet(FOR VENTILATION SYSTEM) |
| 12221 | Tube, Ventilation NO.1 |
| 12229 | Pipe, Ventilation |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12261B | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12263 | Hose, Ventilation, NO.3 |
| 12263A | Clip(FOR VENTILATION HOSE) |
| 12264 | Hose, Ventilation, NO.4 |
| 12264A | Clip(FOR VENTILATION HOSE) |
| 12270 | Separator Assy, Oil |
| 12270B | Bracket(FOR OIL SEPARATOR) |
| 12270C | Hose, Oil(FOR OIL SEPARATOR) |
| 12270D | Clip(FOR OIL SEPARATOR HOSE) |
| 12270G | Cover |
| 16206G | Pipe Sub-assy, Coolant By-pass |
| 16261X | Hose, Water |
| 17061C | Diaphragm Sub-assy |
| 17061D | Spring L |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
