Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

47 part groups · 13 illustrations

Illustrations

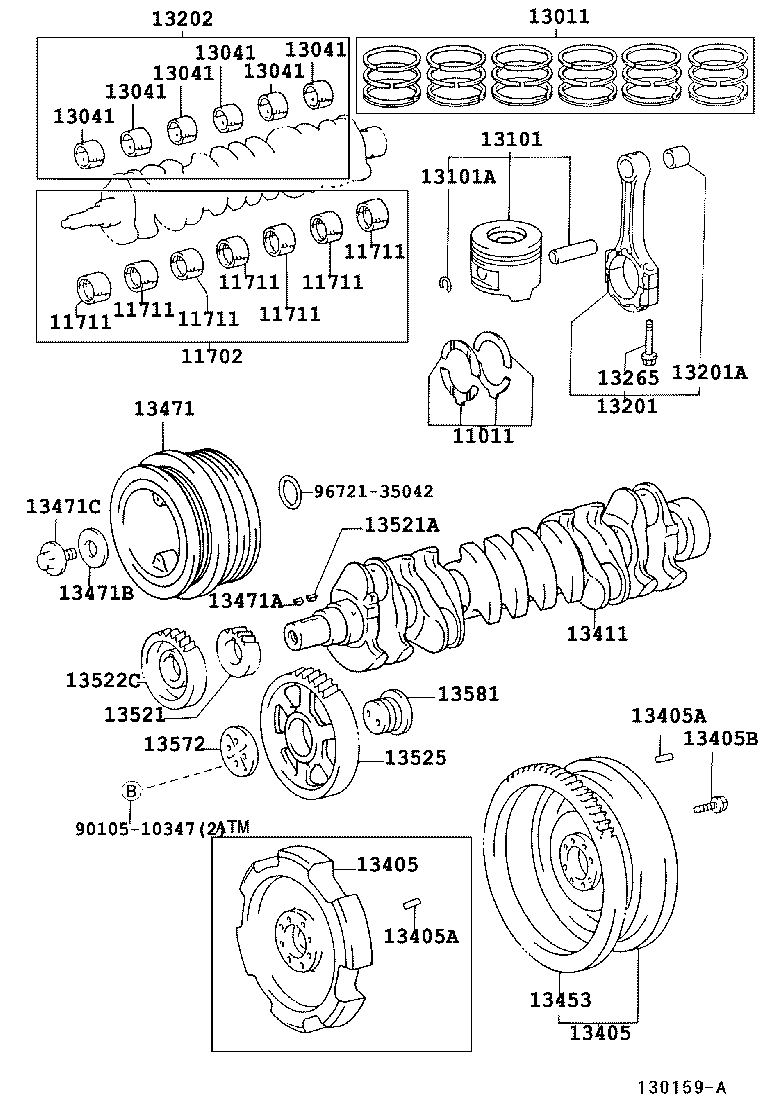

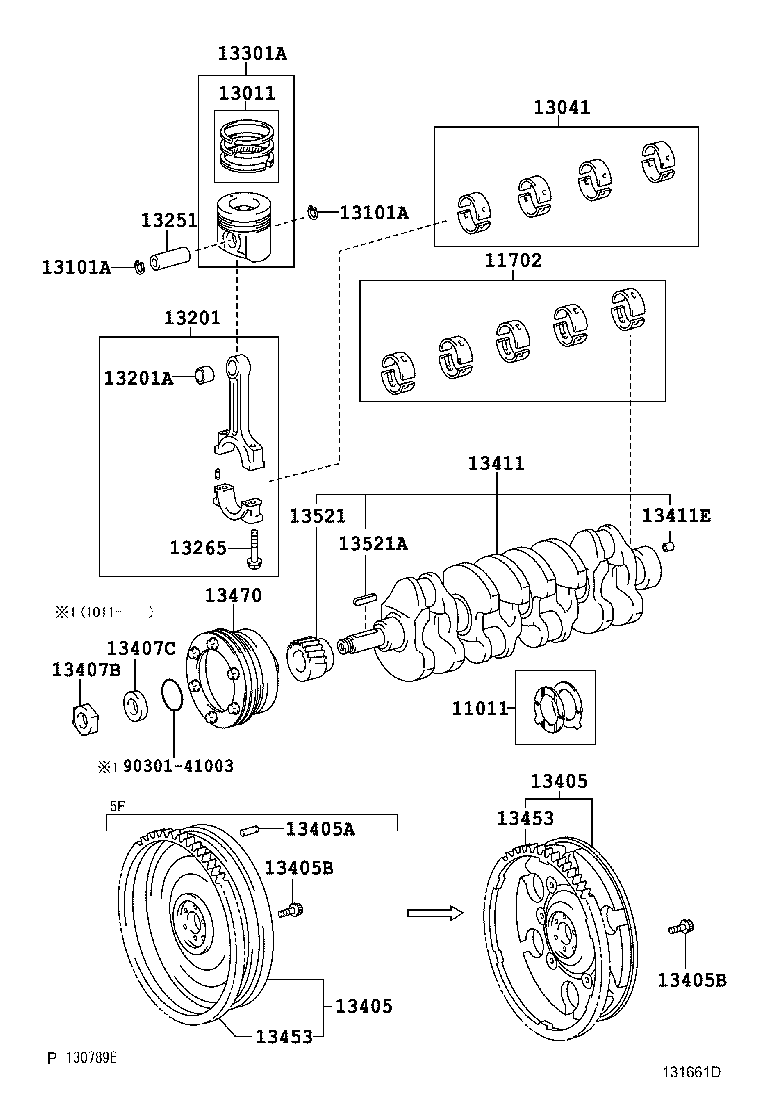

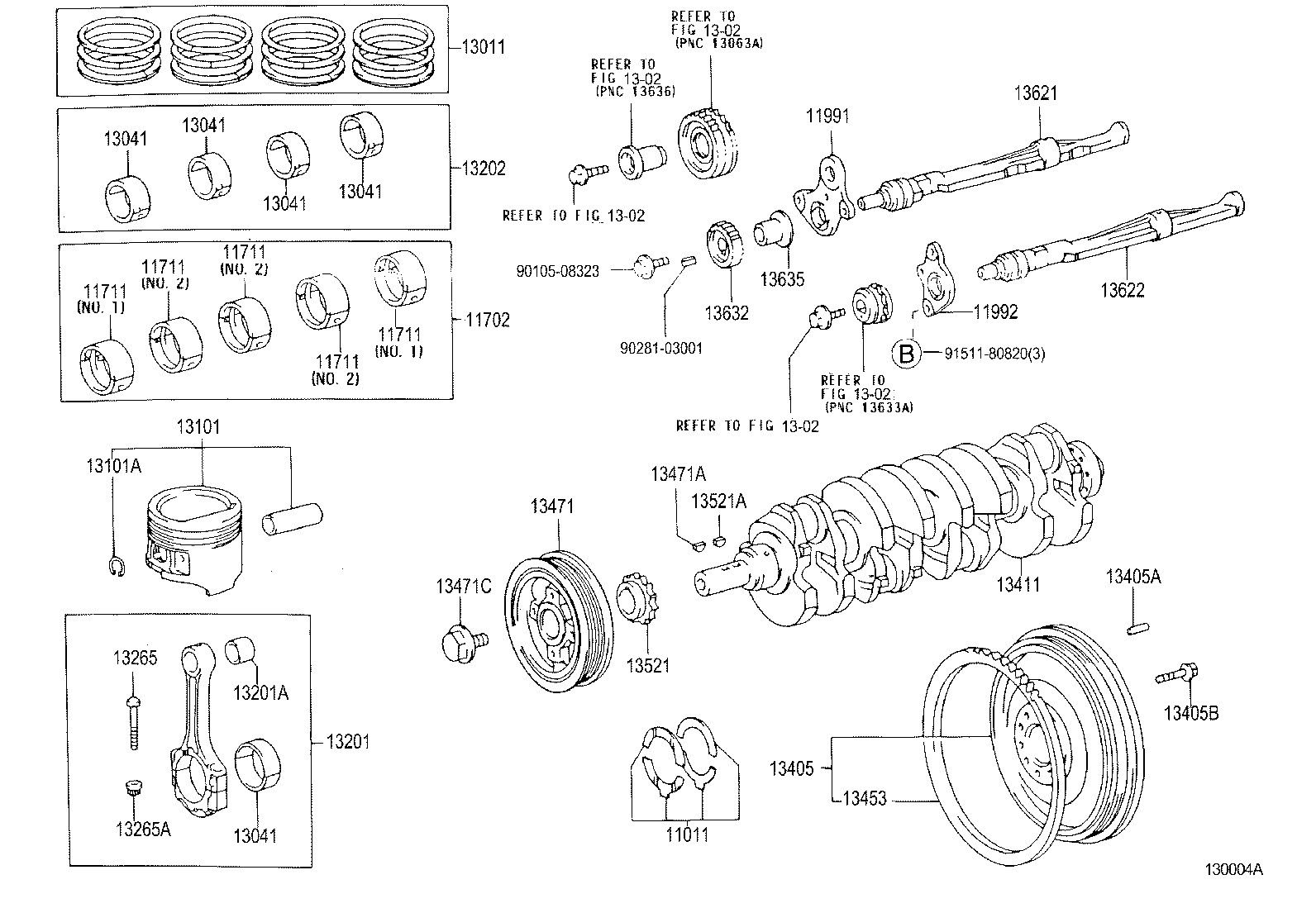

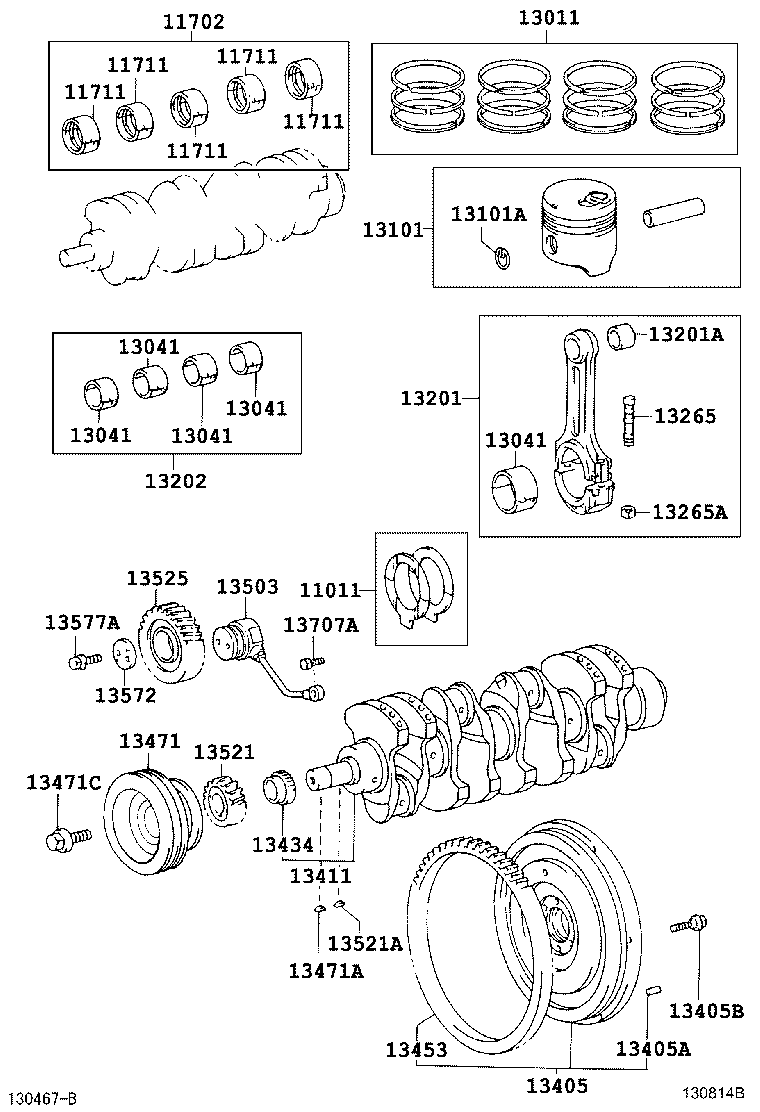

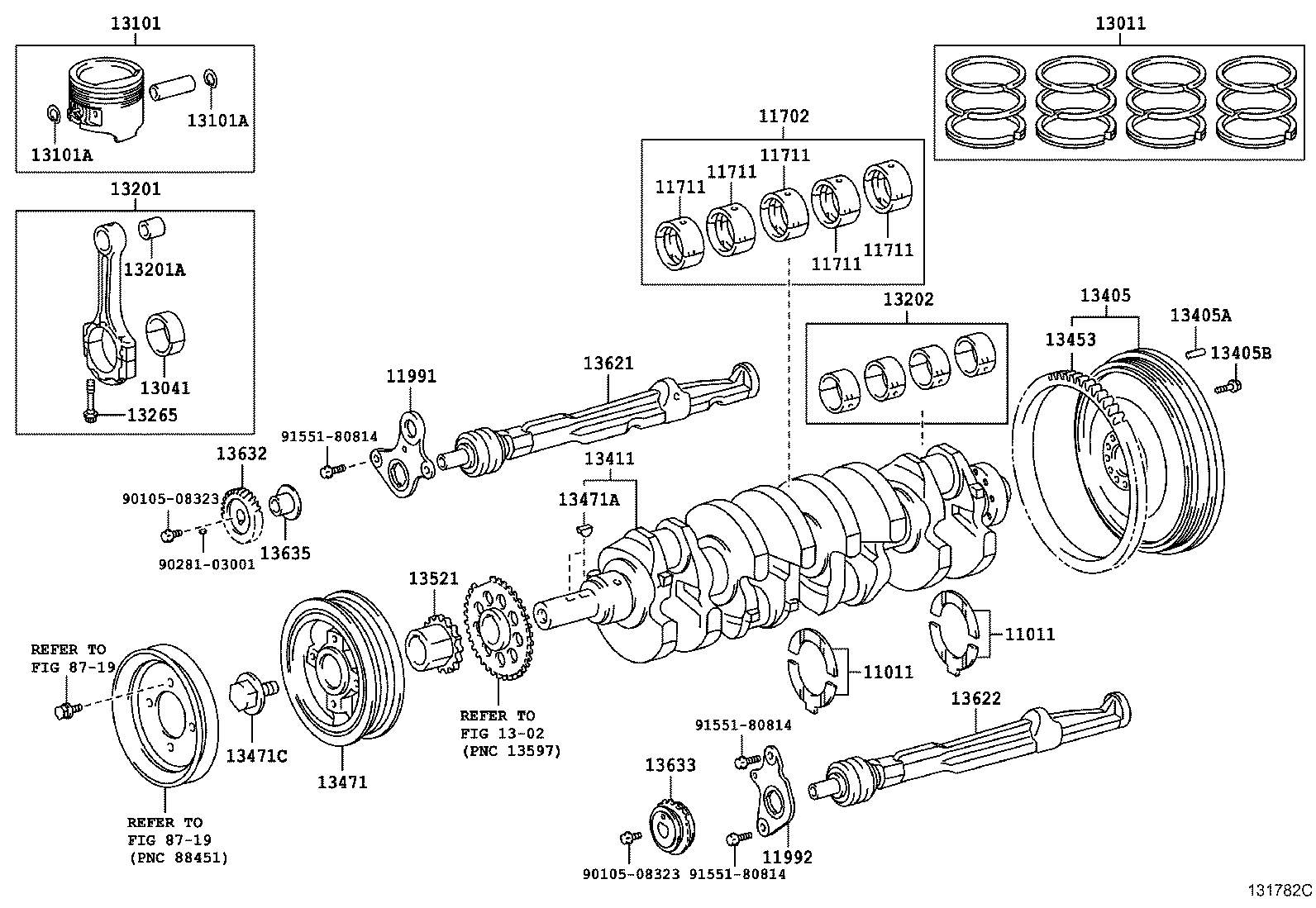

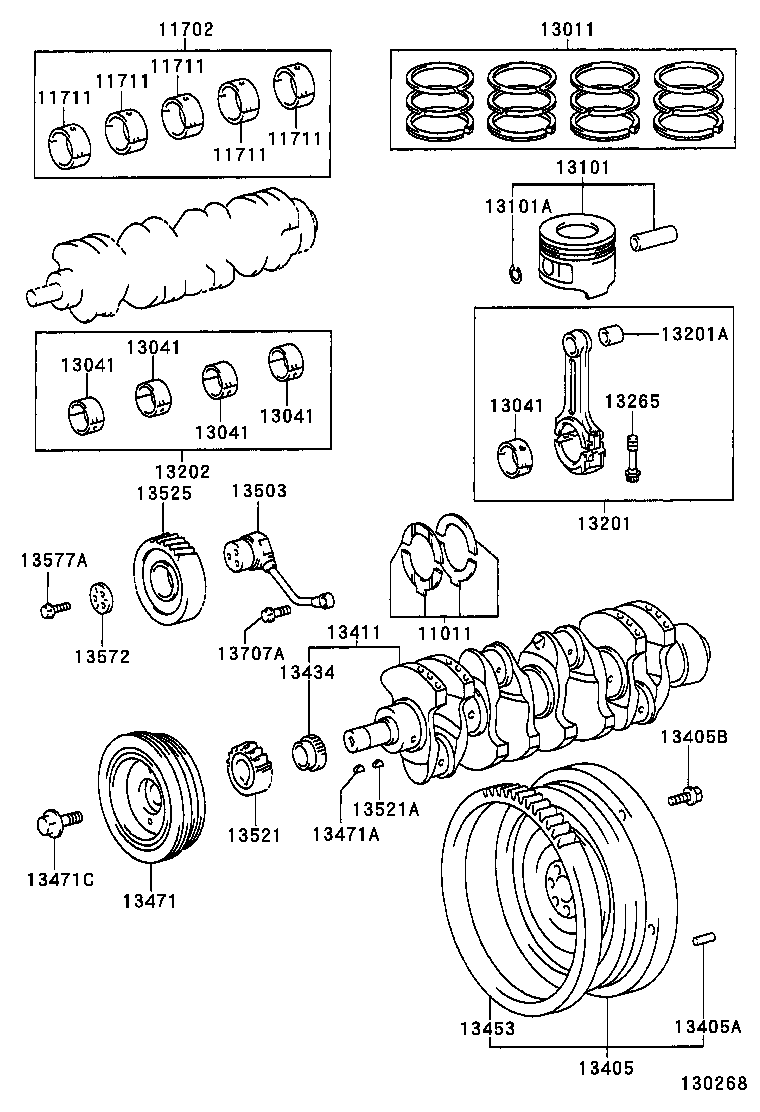

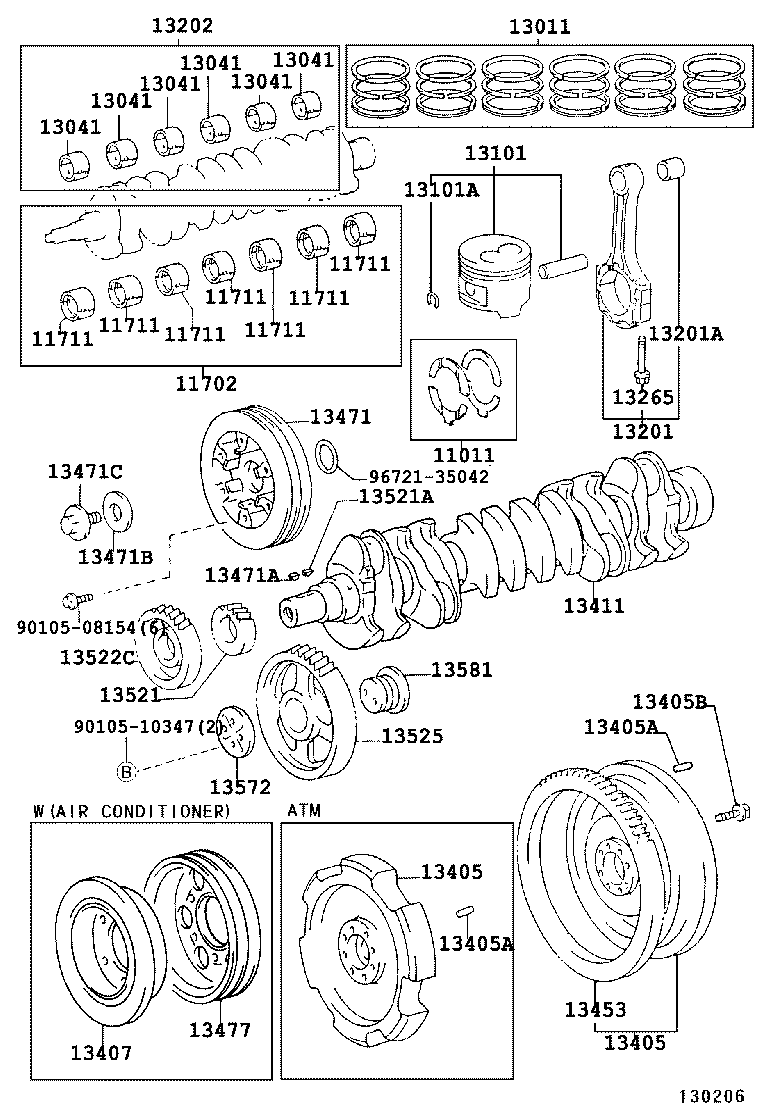

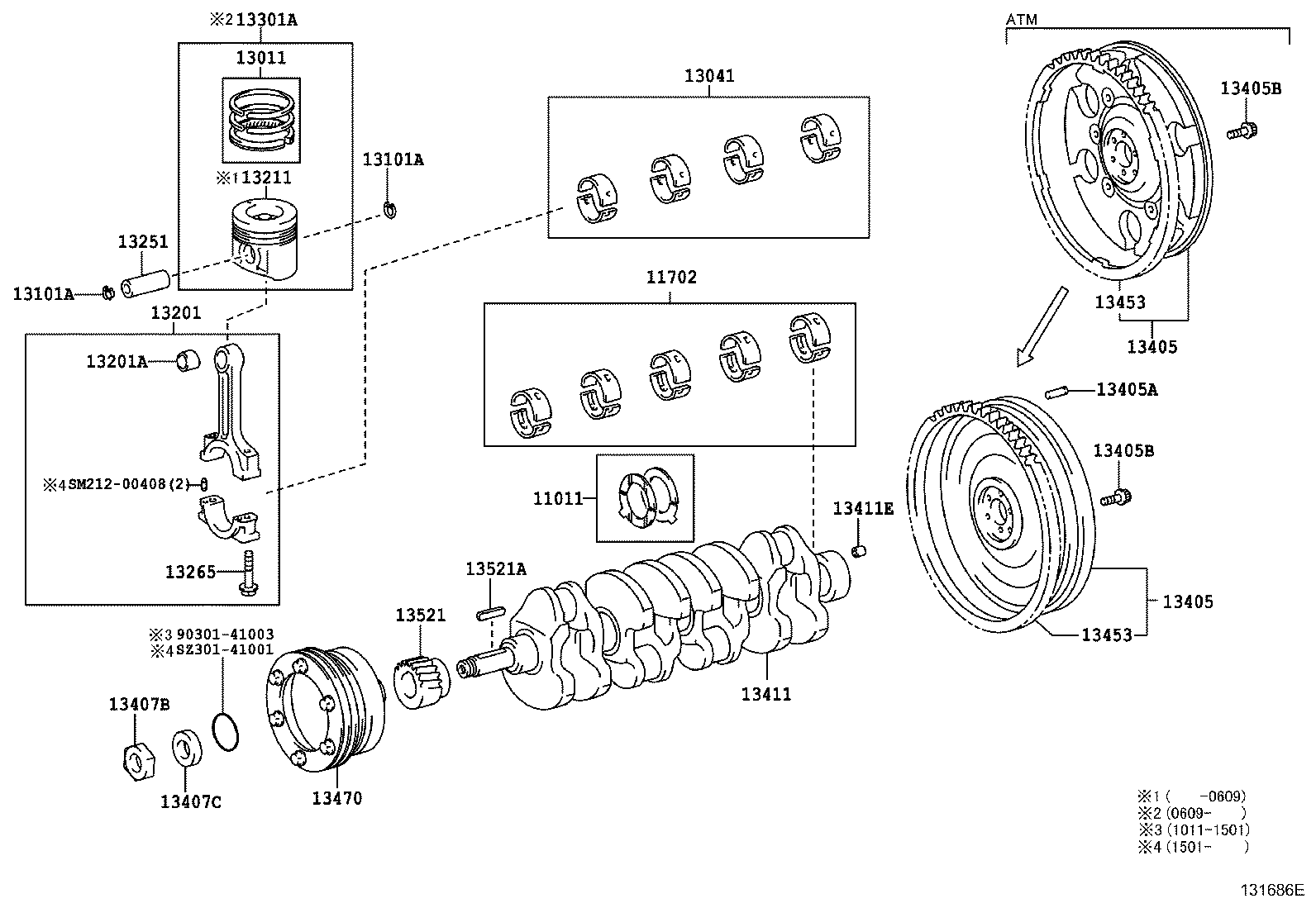

Figure 130407A 130407A 1993-01 → — Figure 130268 130268 1999-07 → — Figure 130814B 130814B 2001-08 → — Figure 130206 130206 1993-01 → 1999-07 Figure 130159A 130159A 1999-07 → — Figure 130004A 130004A 1993-09 → 2007-08 Figure 132200 132200 2007-08 → 2014-09 Figure 131782C 131782C 2014-10 → — Figure 131686E 131686E 2006-08 → 2008-03 Figure 131686E 131686E 2010-08 → 2011-06 Figure 131686E 131686E 2011-06 → — Figure 131661D 131661D 2008-03 → 2010-08 Figure 131661D 131661D 2010-08 → 2011-06

Part groups

PNCDescription
11011 Washer Set, Crankshaft Thrust
11702 Bearing Set, Crankshaft
11711 Bearing, Crankshaft
11991 Washer, Balanceshaft Thrust
11992 Washer, Balanceshaft Thrust, NO.2
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101 Piston Sub-assy, W/Pin
13101A Ring, Hole Snap(FOR PISTON PIN)
13201 Rod Sub-assy, Connecting
13201A Bush(FOR CONNECTING ROD SMALL END)
13202 Bearing Set, Connecting Rod
13211 Piston
13251 Pin, Piston
13265 Bolt, Connecting Rod
13265A Nut, Hexagon(FOR CONNECTING ROD BOLT)
13301A Piston Set, W/Piston Ring
13405 Flywheel Sub-assy
13405A Pin, Straight(FOR FLYWHEEL)
13405B Bolt, Flywheel Setting
13407 Damper Sub-assy, Crankshaft
13407B Nut, Hexagon(FOR CRANKSHAFT DAMPER)
13407C Spacer(FOR CRANKSHAFT DAMPER)
13411 Crankshaft
13411E Collar(FOR CRANKSHAFT)
13434 Spline, Oil Pump Drive
13453 Gear, Flywheel Ring
13470 Pulley Assy, Crankshaft
13471 Pulley, Crankshaft
13471A Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
13471B Washer, Plate(FOR CRANKSHAFT PULLEY SET)
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
13477 Pulley, Crankshaft, NO.2
13503 Shaft Sub-assy, Idle Gear
13521 Gear OR Sprocket, Crankshaft Timing
13521A Key(FOR CRANKSHAFT TIMING GEAR)
13522C Gear, Pump Drive Shaft
13525 Gear, Idle, NO.1
13572 Plate, Idle Gear Thrust
13577A Bolt, Hexagon(FOR IDLE GEAR BOLT LOCK)
13581 Shaft, Idle Gear, NO.1
13621 Balanceshaft, NO.1
13622 Balanceshaft, NO.2
13632 Gear, Balanceshaft Driven, NO.1
13633 Gear, Balanceshaft Driven, NO.2
13635 Spacer, Balanceshaft Thrust
13707A Union(FOR OIL PIPE, NO.1)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
