Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe
Discontinued model
Data version 2016-12

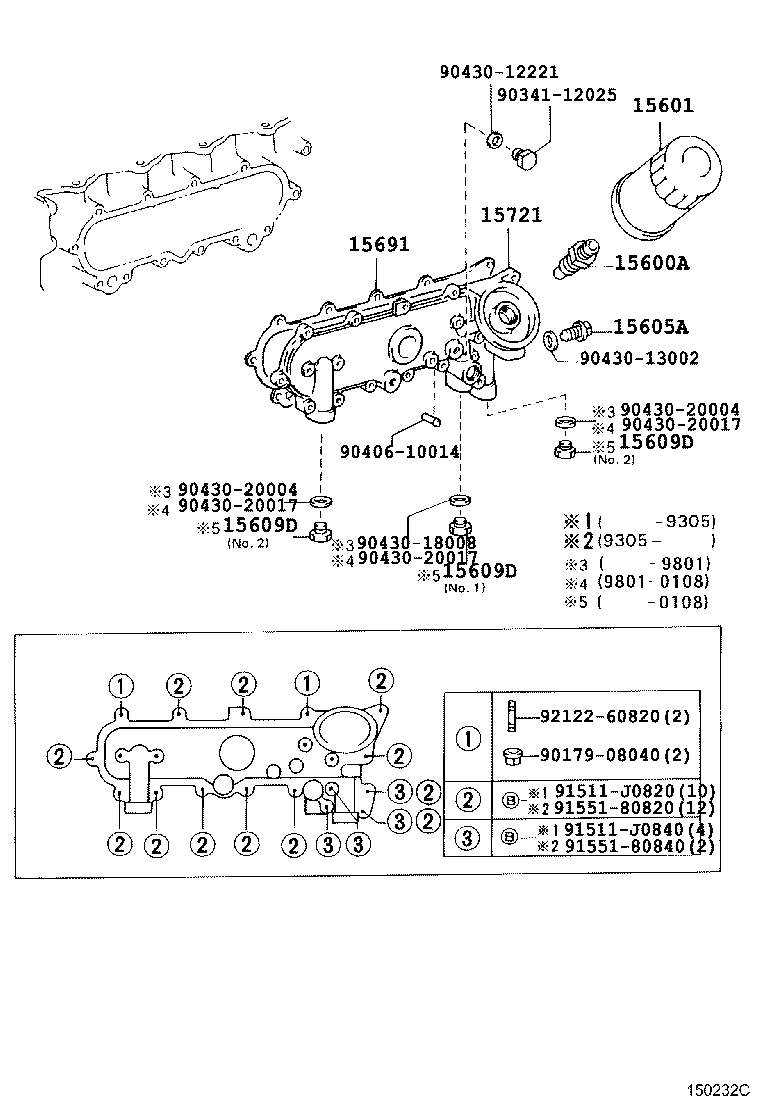

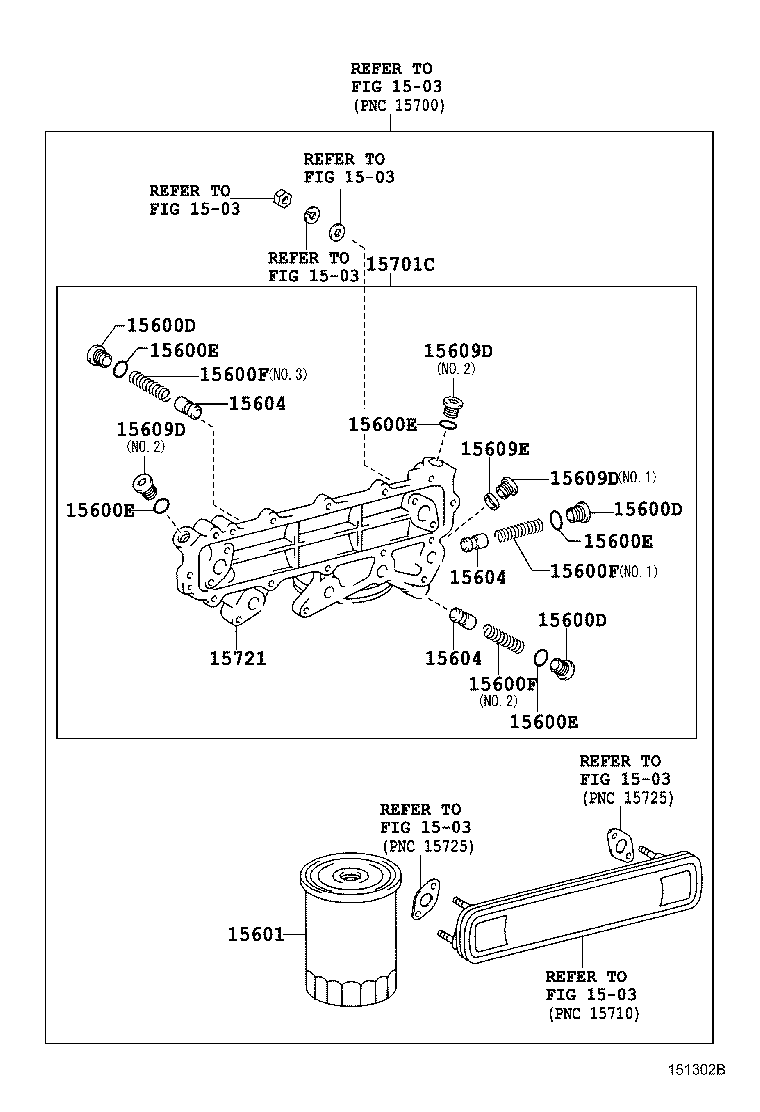

Oil Filter
18 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 15194A | Ring, O |
| 15600A | Union(FOR OIL FILTER) |
| 15600D | Plug(FOR OIL FILTER) |
| 15600E | Washer(FOR OIL FILTER) |
| 15600F | Spring, Compression(FOR OIL FILTER) |
| 15601 | Filter Sub-assy, Oil |
| 15604 | Valve Sub-assy, Oil Safety |
| 15605A | Valve Sub-assy, Oil Check |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15609B | Union(FOR OIL FILTER BRACKET) |
| 15609D | Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) |
| 15609E | Gasket, W/Head Straight Screw Plug |
| 15609H | Ring, O(FOR OIL FILTER BRACKET) |
| 15690B | Valve Assy, Oil Cooler Relief |
| 15691 | Gasket, Oil Filter |
| 15692 | Gasket, Oil Filter Bracket |
| 15701C | Cover Sub-assy, Oil Cooler |
| 15721 | Cover, Oil Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
