Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

13 part groups · 10 illustrations

Illustrations

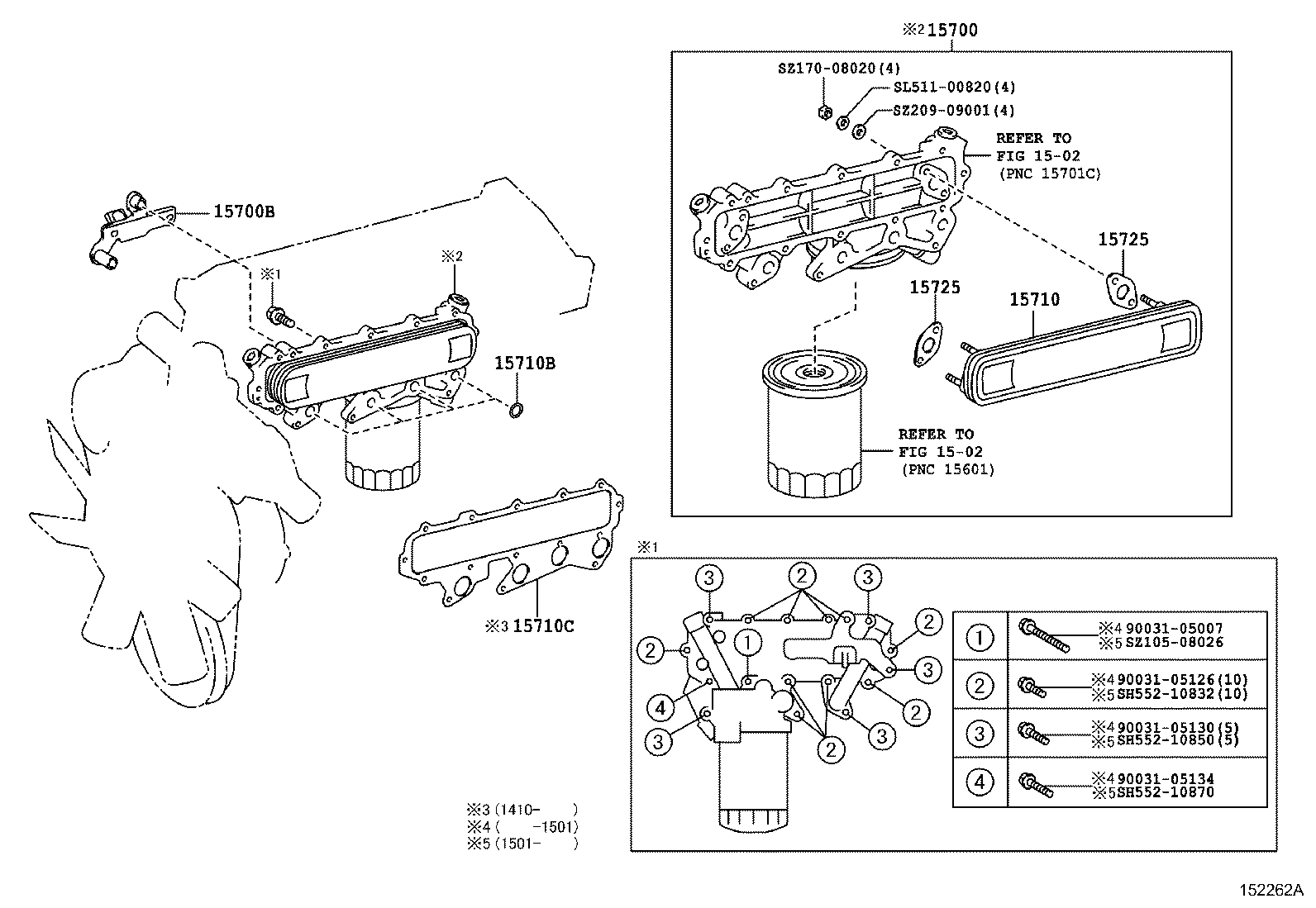

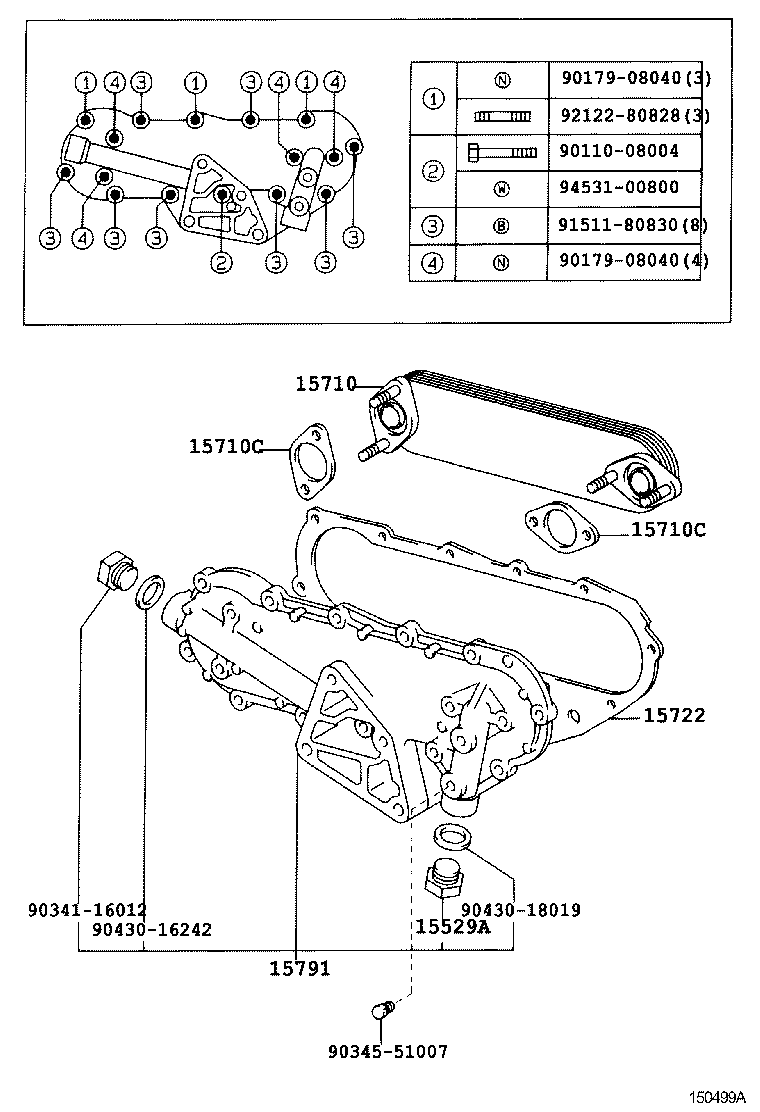

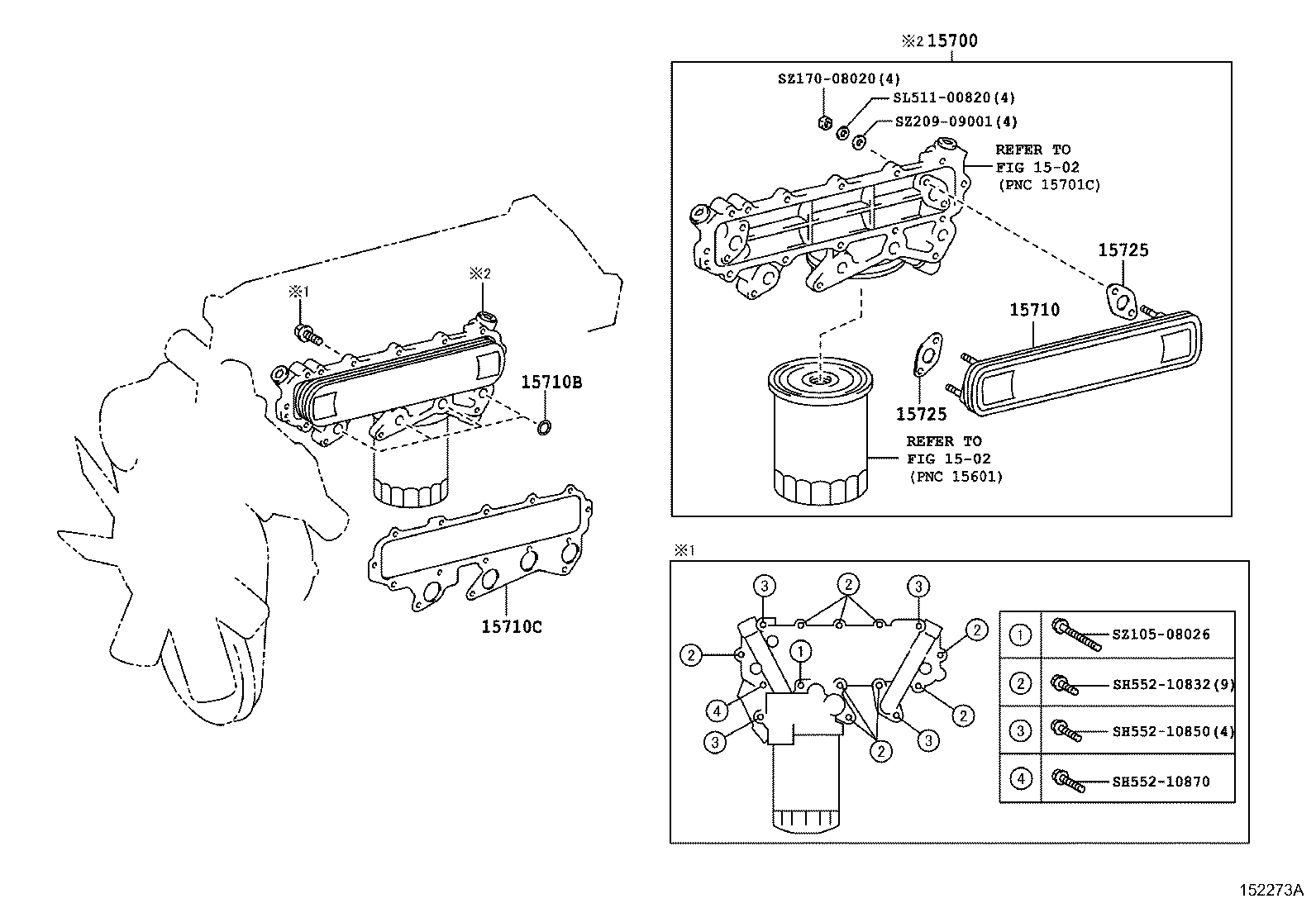

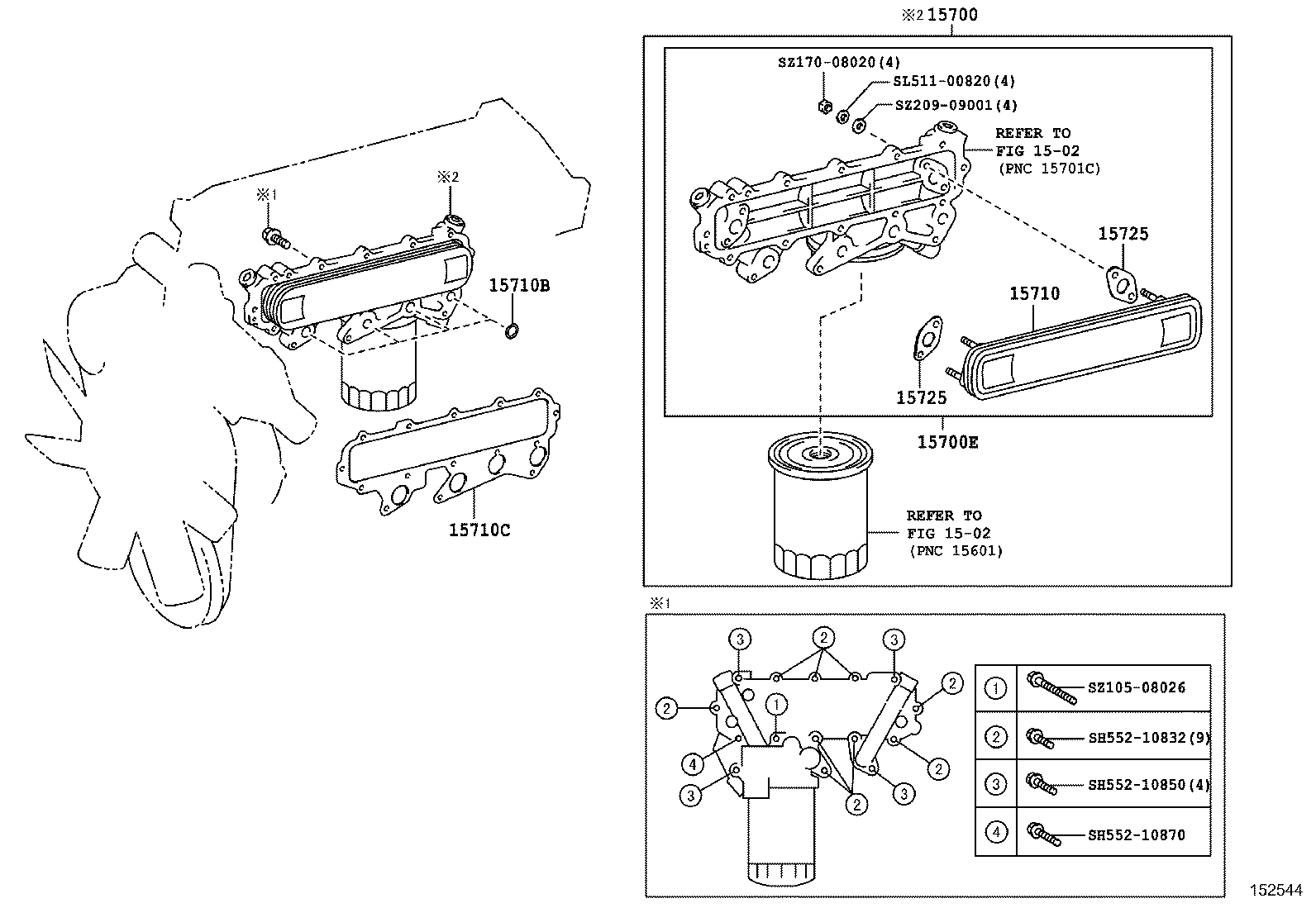

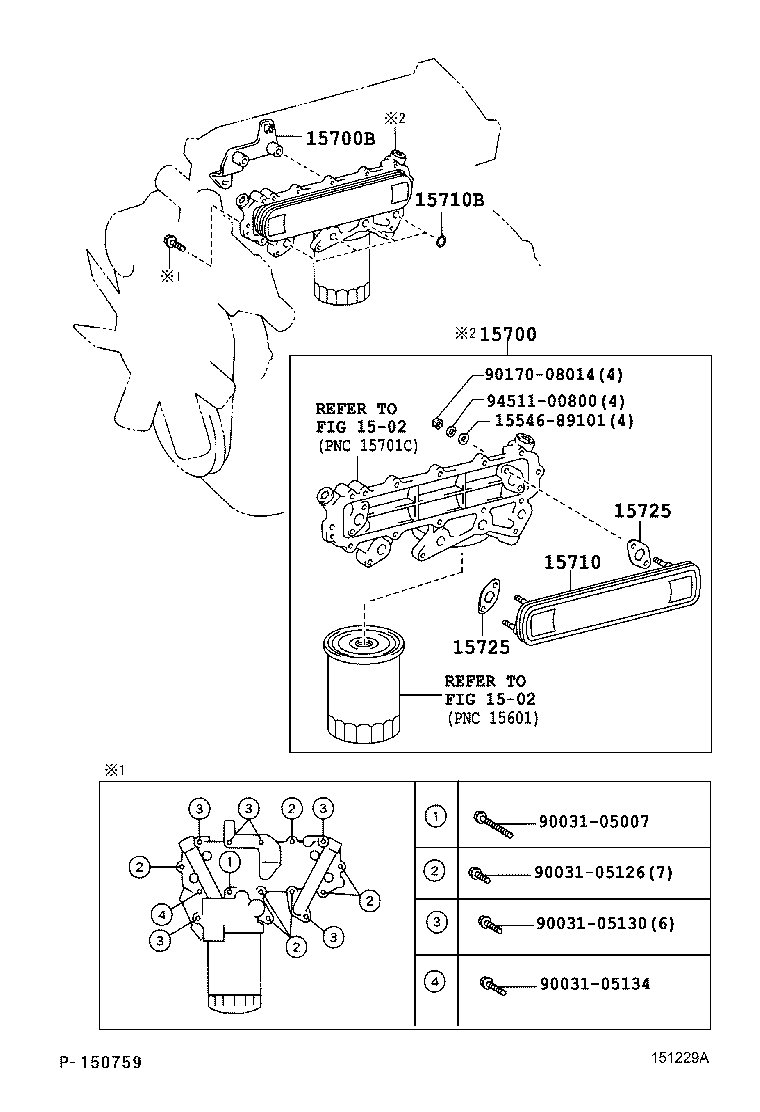

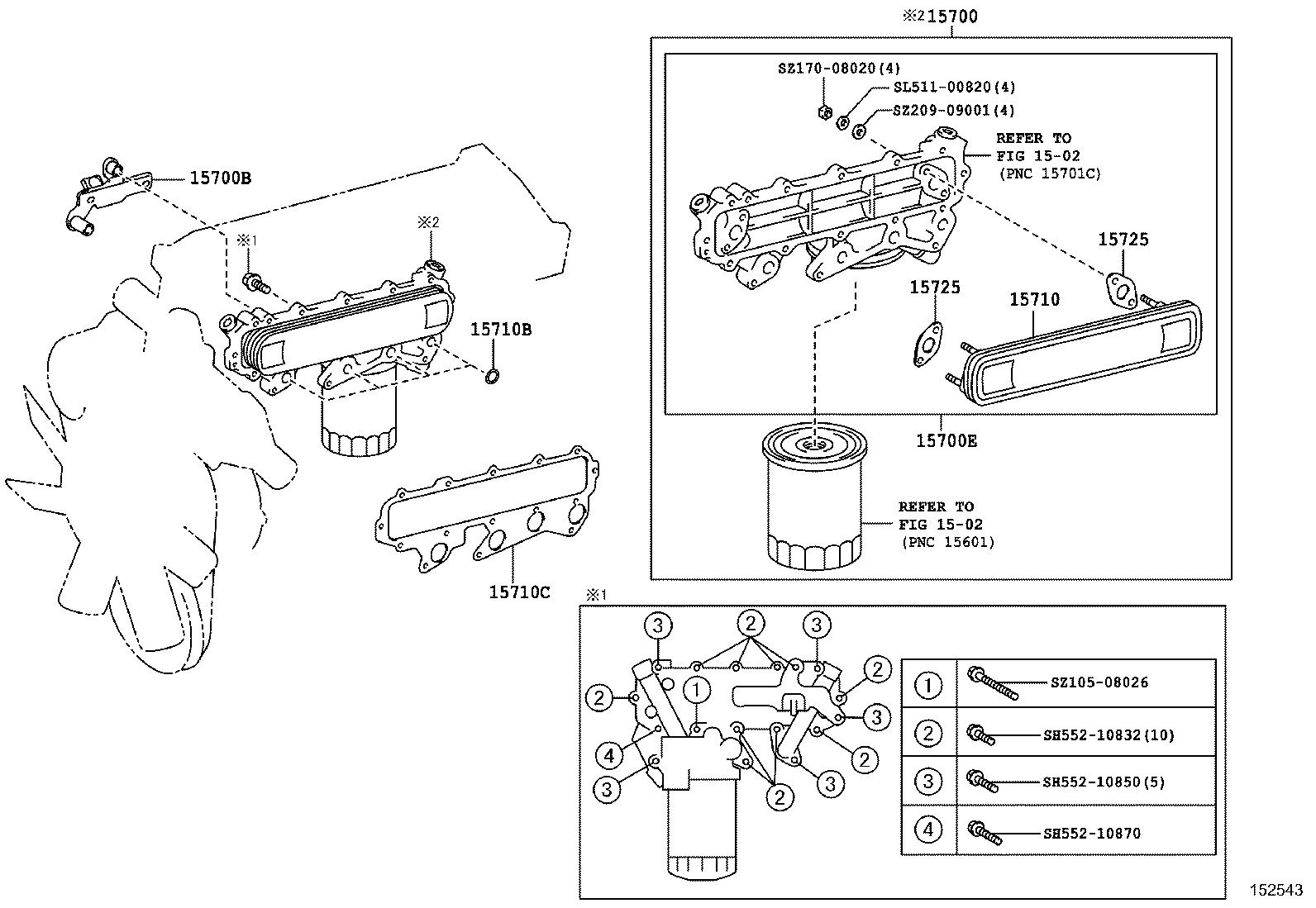

Figure 150222A 150222A 1993-01 → 1995-05 Figure 150499A 150499A 1995-05 → — Figure MAD466B MAD466B 1993-01 → — Figure 150003B 150003B 1993-09 → — Figure 151286 151286 2007-08 → — Figure 151229A 151229A 2006-08 → 2009-08 Figure 152262A 152262A 2009-08 → 2016-05 Figure 152273A 152273A 2015-01 → 2016-05 Figure 152543 152543 2016-05 → — Figure 152544 152544 2016-05 → —

Part groups

PNCDescription
15529A Plug
15690 Valve Assy, Oil Cooler Relief
15695 Bolt, Oil Cooler Union
15700 Cooler Assy, Oil W/Bracket
15700B Bracket(FOR OIL COOLER)
15700E Cooler Sub-assy, Oil, W/O Oil Filter
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15722 Gasket, Oil Cooler
15725 Gasket, Oil Cooler Cover
15785 Gasket, Oil Cooler
15791 Case, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
