Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

12 part groups · 7 illustrations

Illustrations

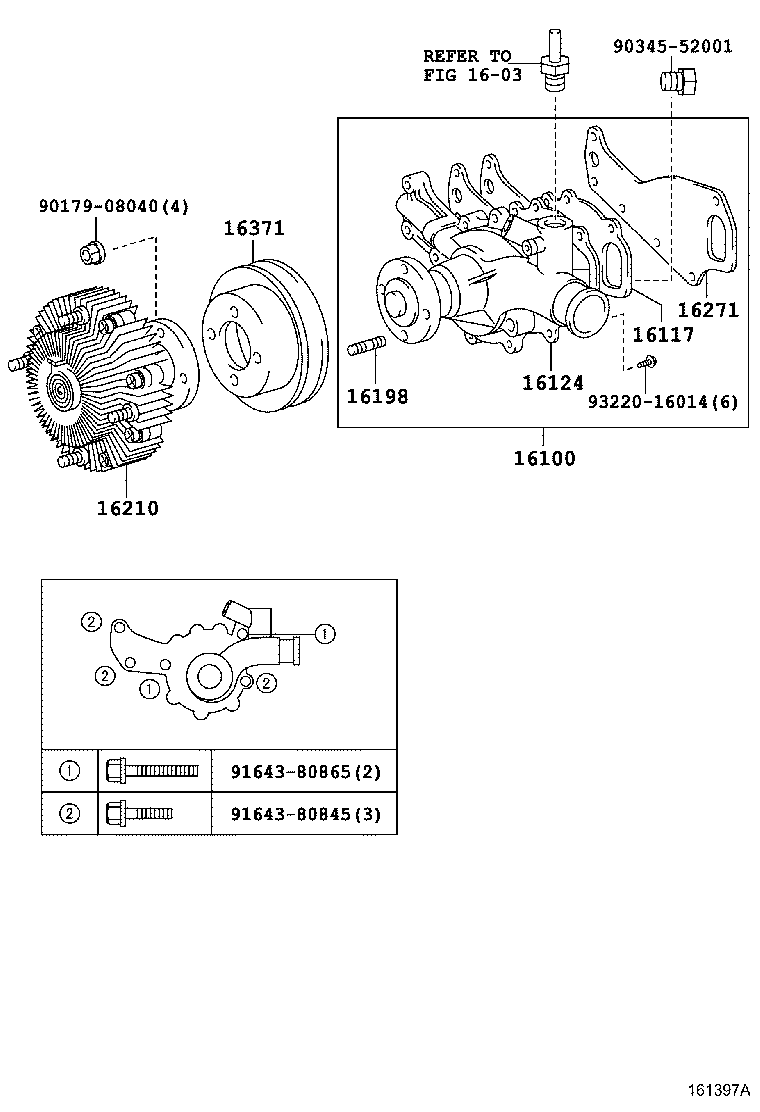

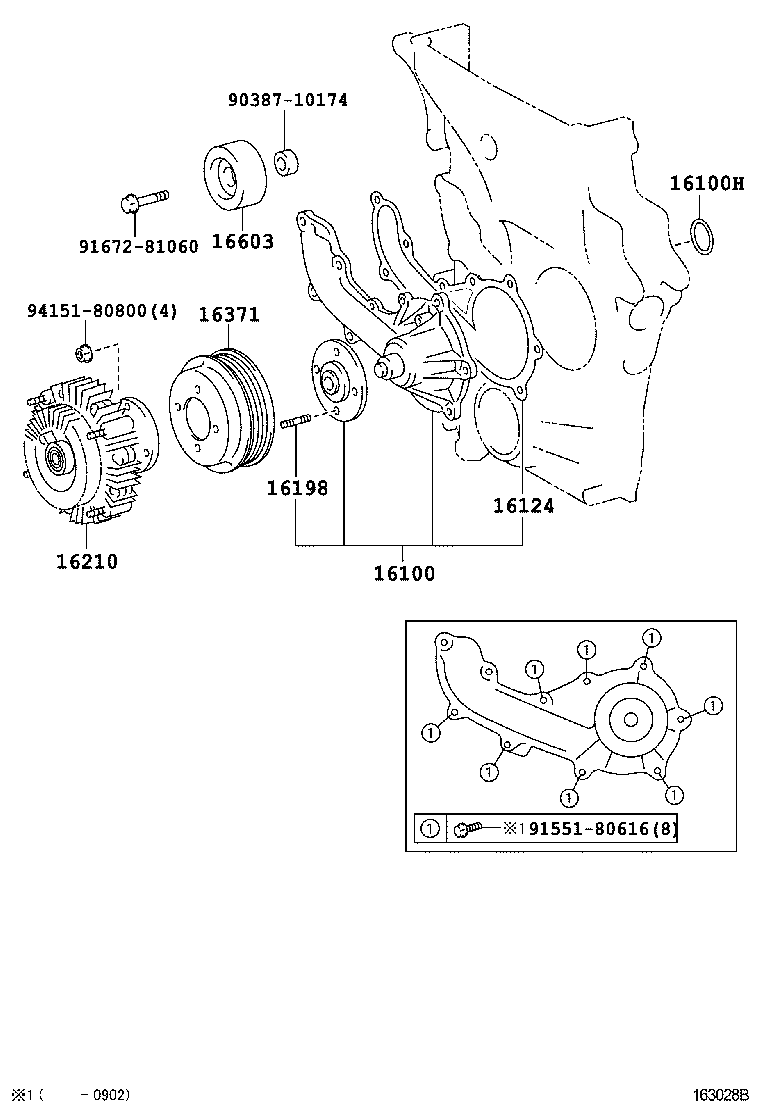

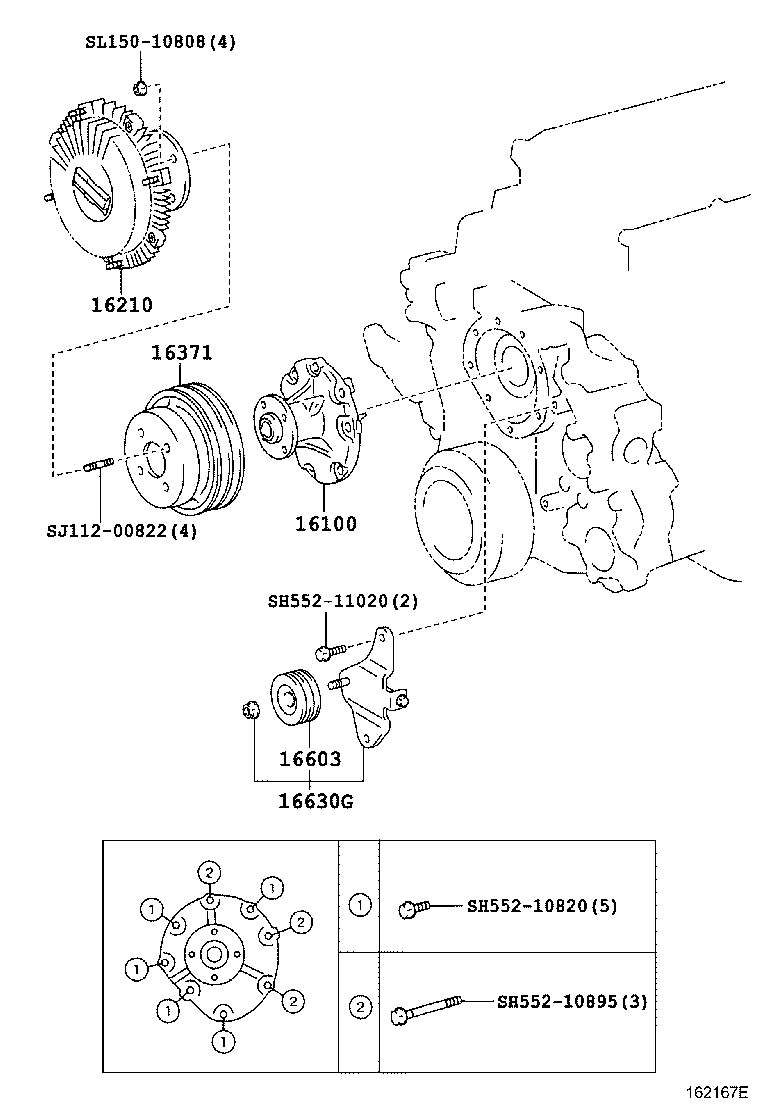

Figure 161317B 161317B 1993-01 → — Figure 161336C 161336C 1999-07 → — Figure 161397A 161397A 2001-08 → — Figure 160617E 160617E 1993-01 → — Figure 161614B 161614B 1993-09 → 2007-08 Figure 163028B 163028B 2007-08 → — Figure 162167E 162167E 2006-08 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100A Plug, Water Pump
16100H Ring, O(FOR WATER PUMP)
16117 Plate, Water Pump
16124 Gasket, Water Pump Cover
16198 Bolt, Stud(FOR WATER PUMP PULLEY SEAT)
16210 Coupling Assy, Fluid
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16271 Gasket, Water Pump
16371 Pulley, Fan
16603 Pulley Sub-assy, Idler, NO.1
16630G Pulley Assy, Idler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
