Radiator & Water Outlet

143 part groups · 24 illustrations

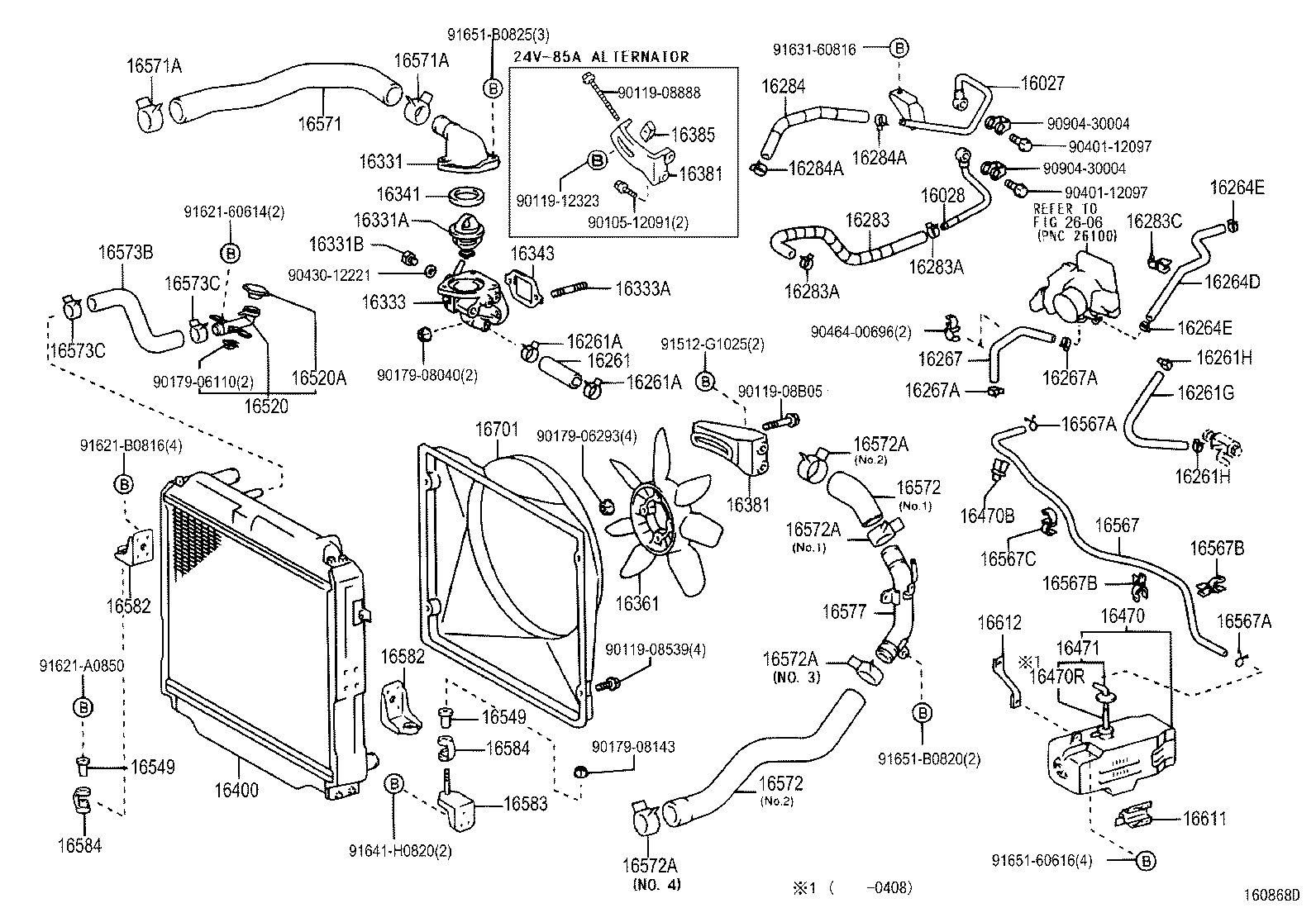

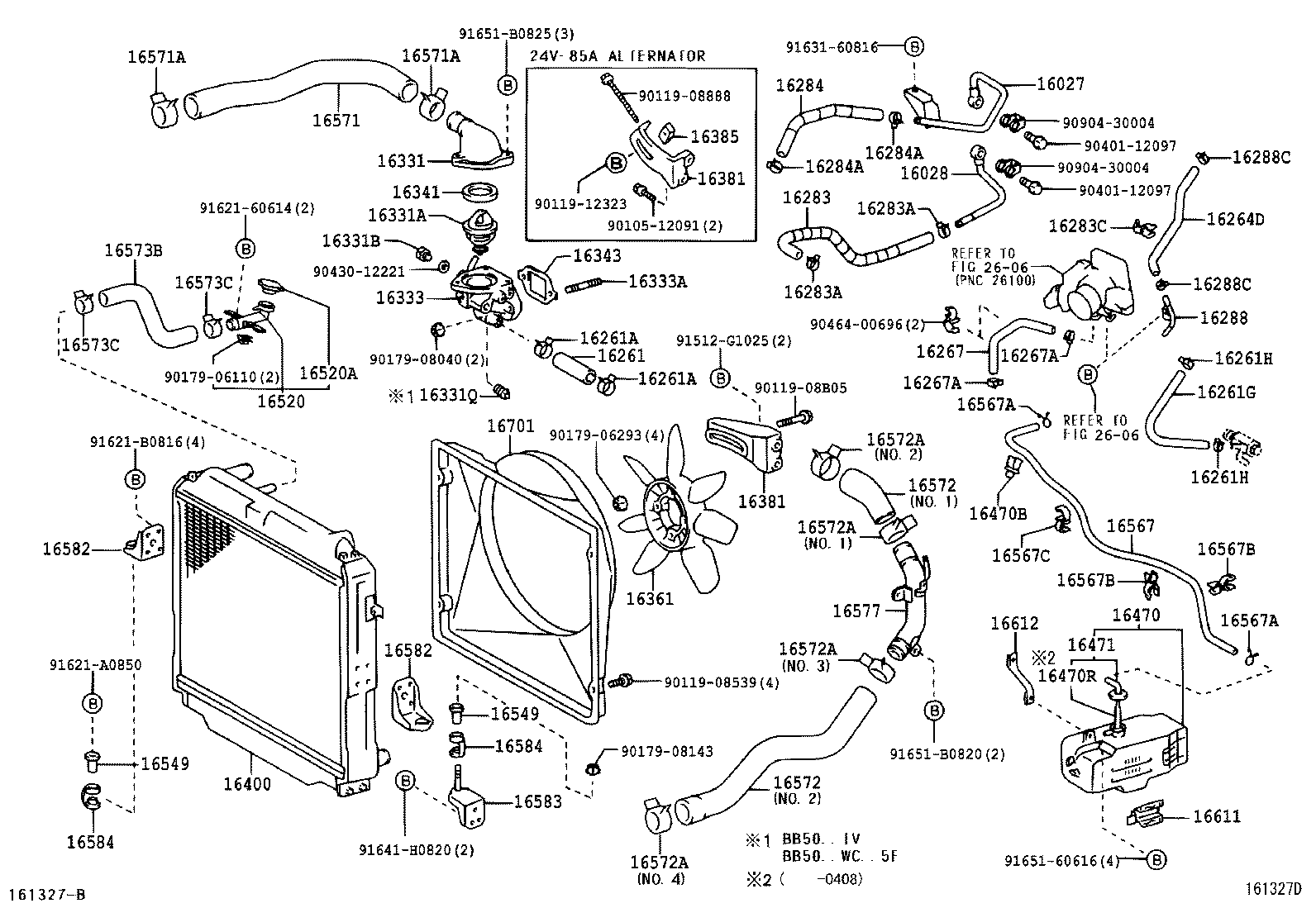

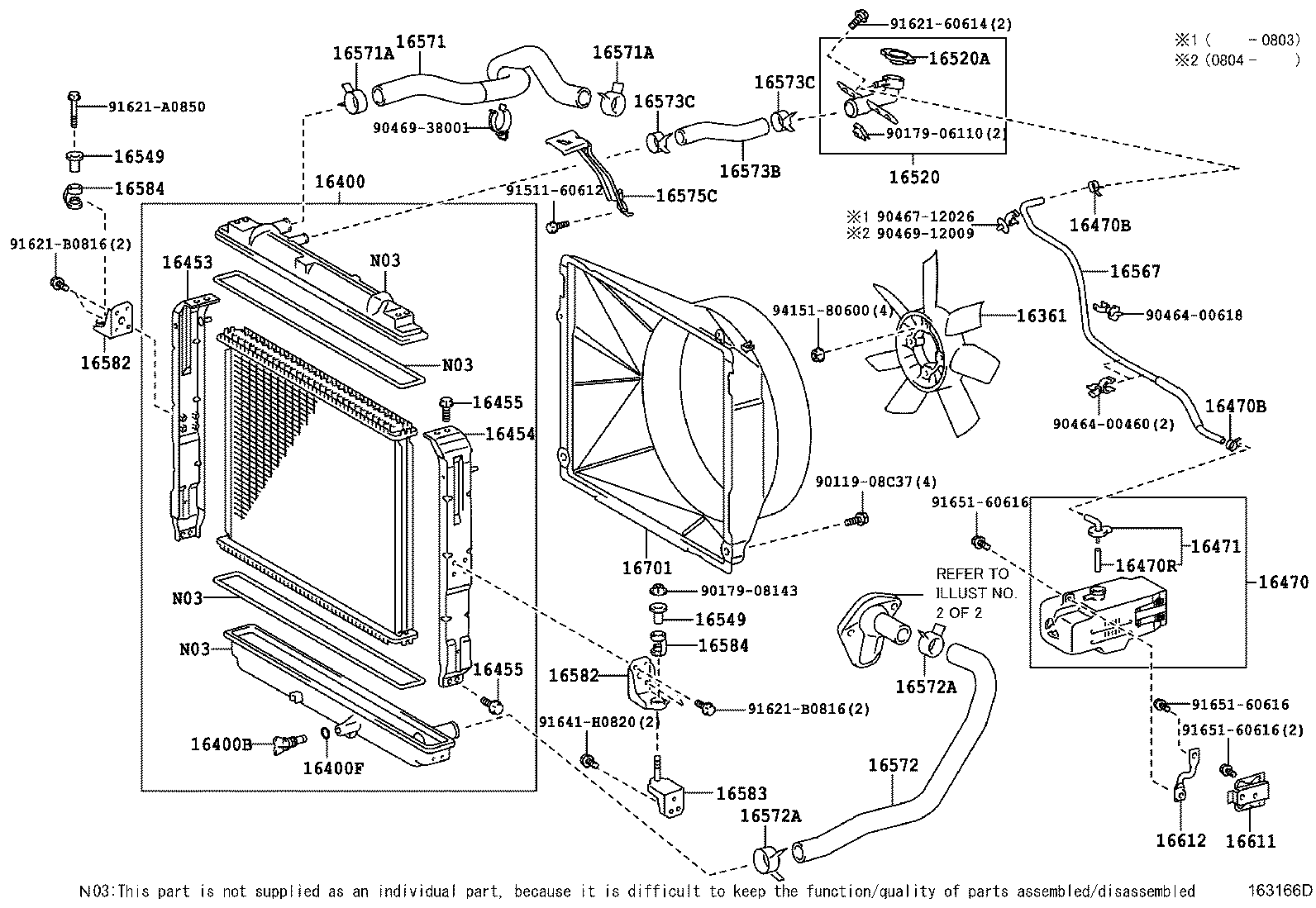

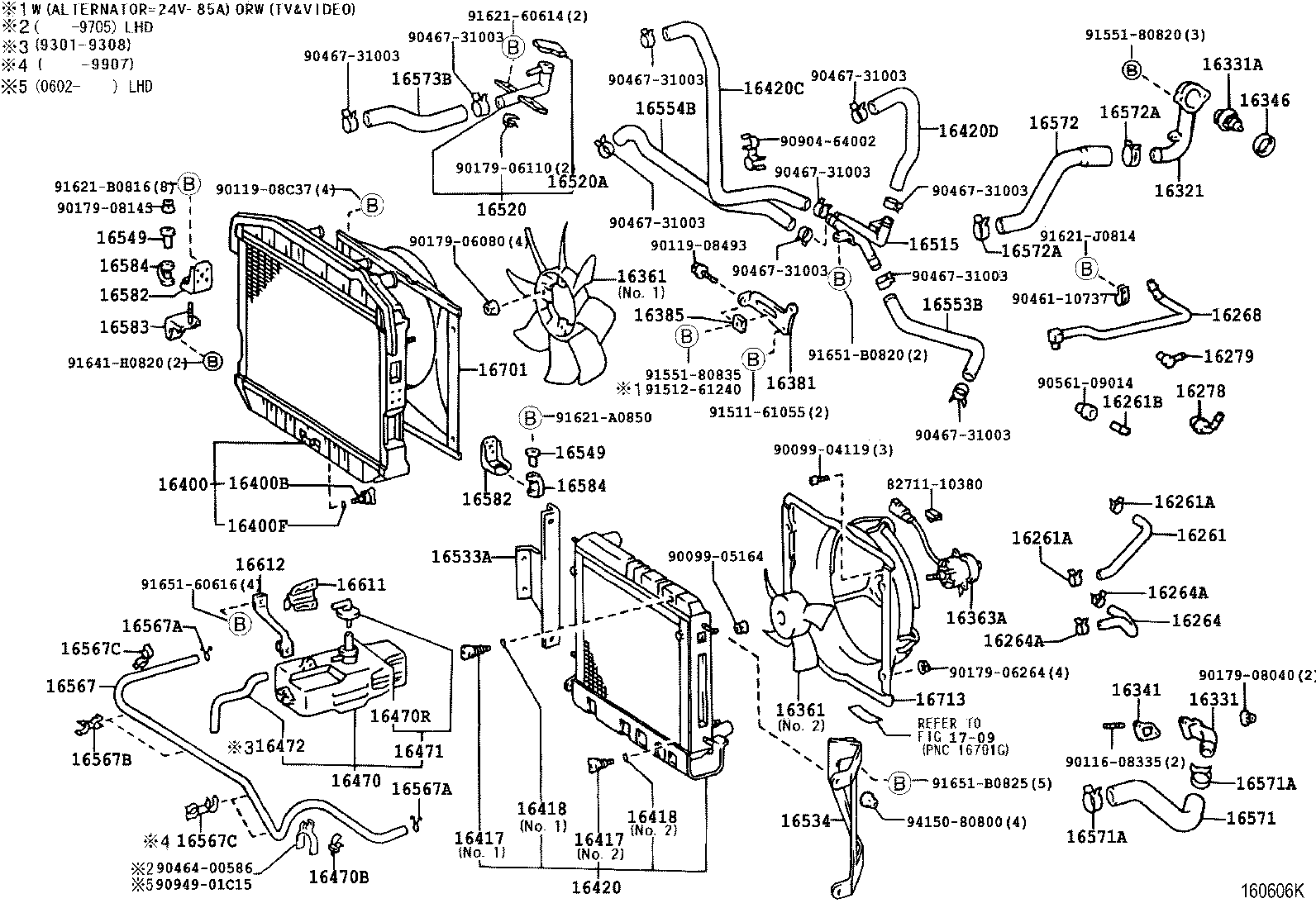

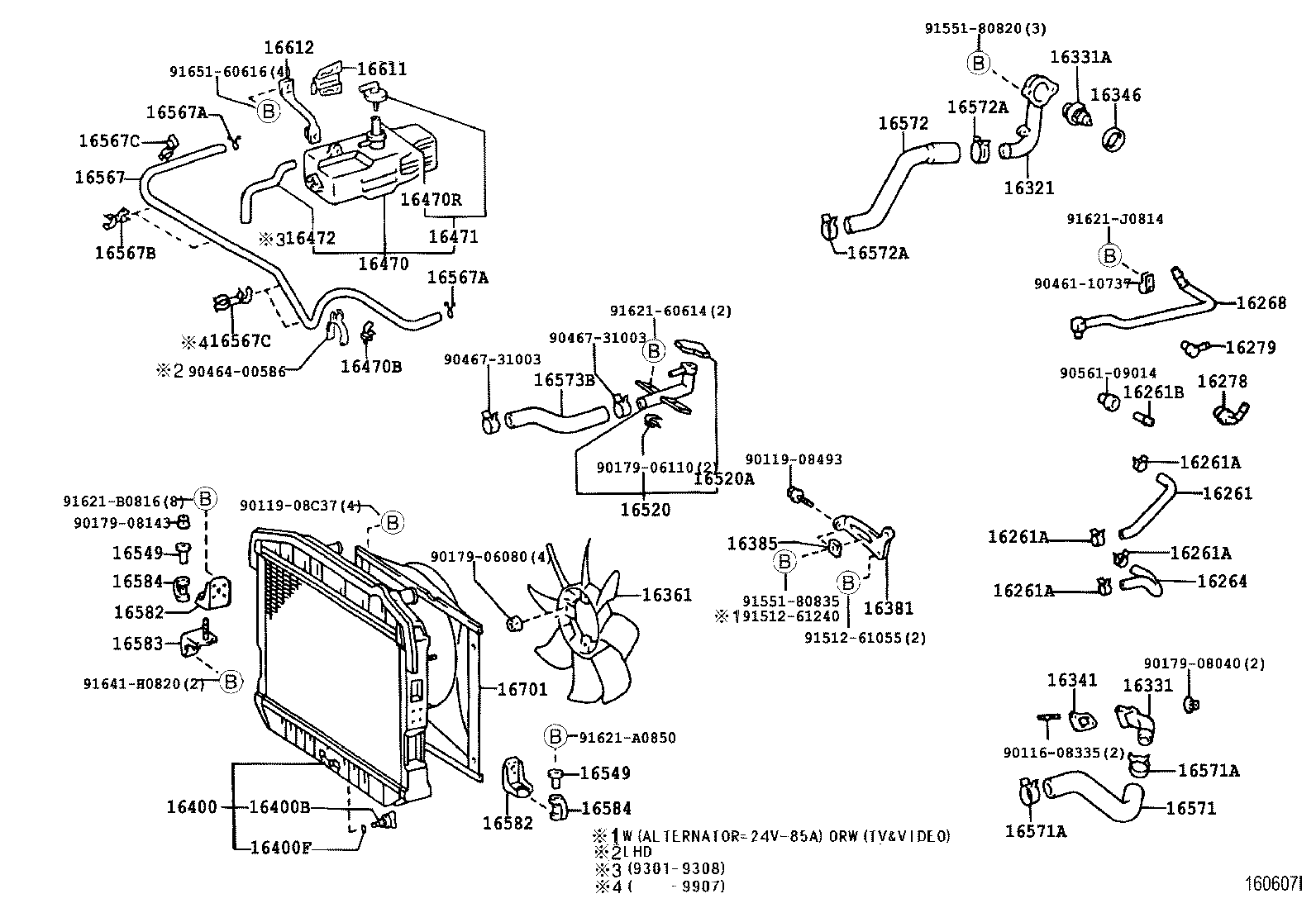

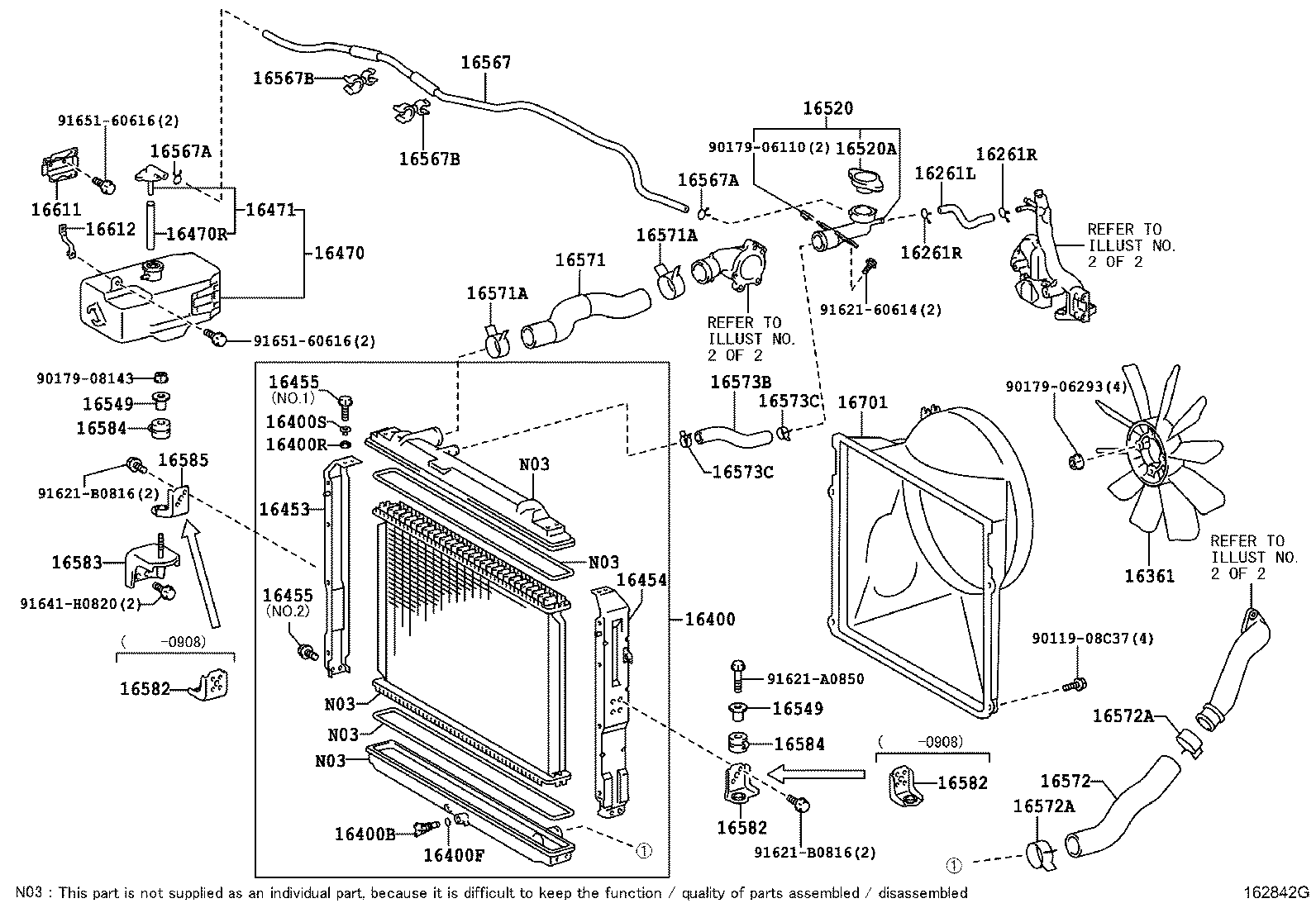

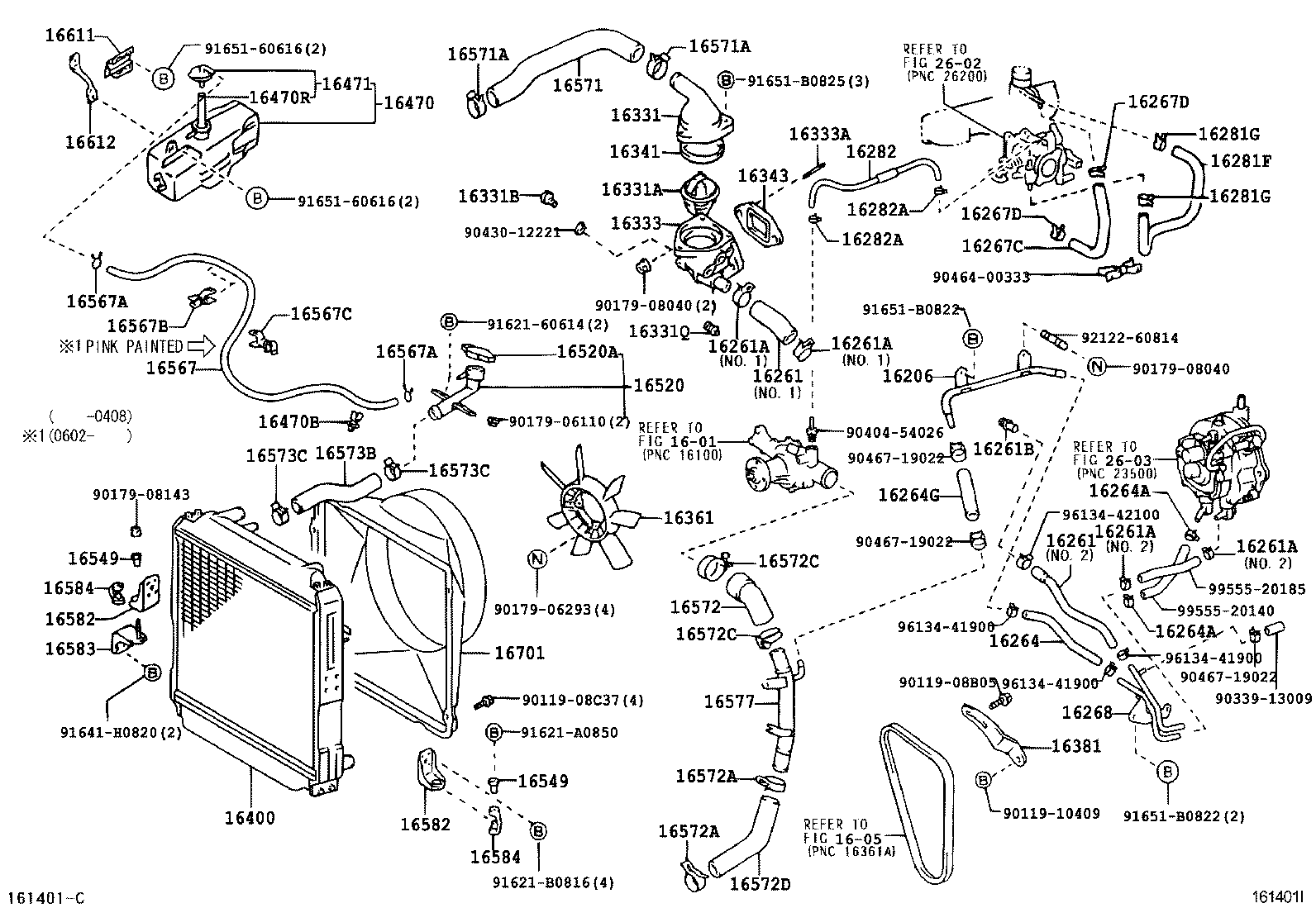

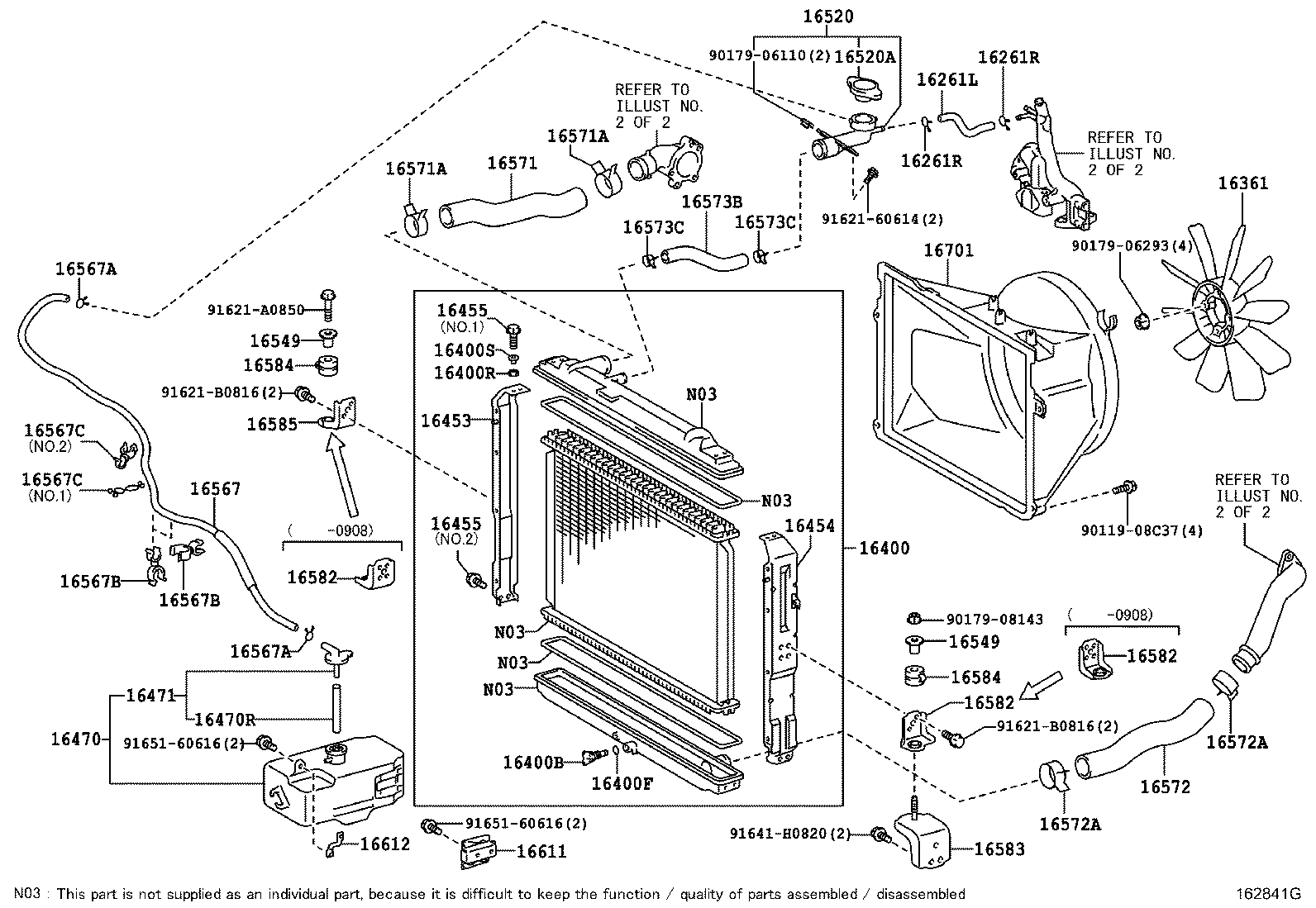

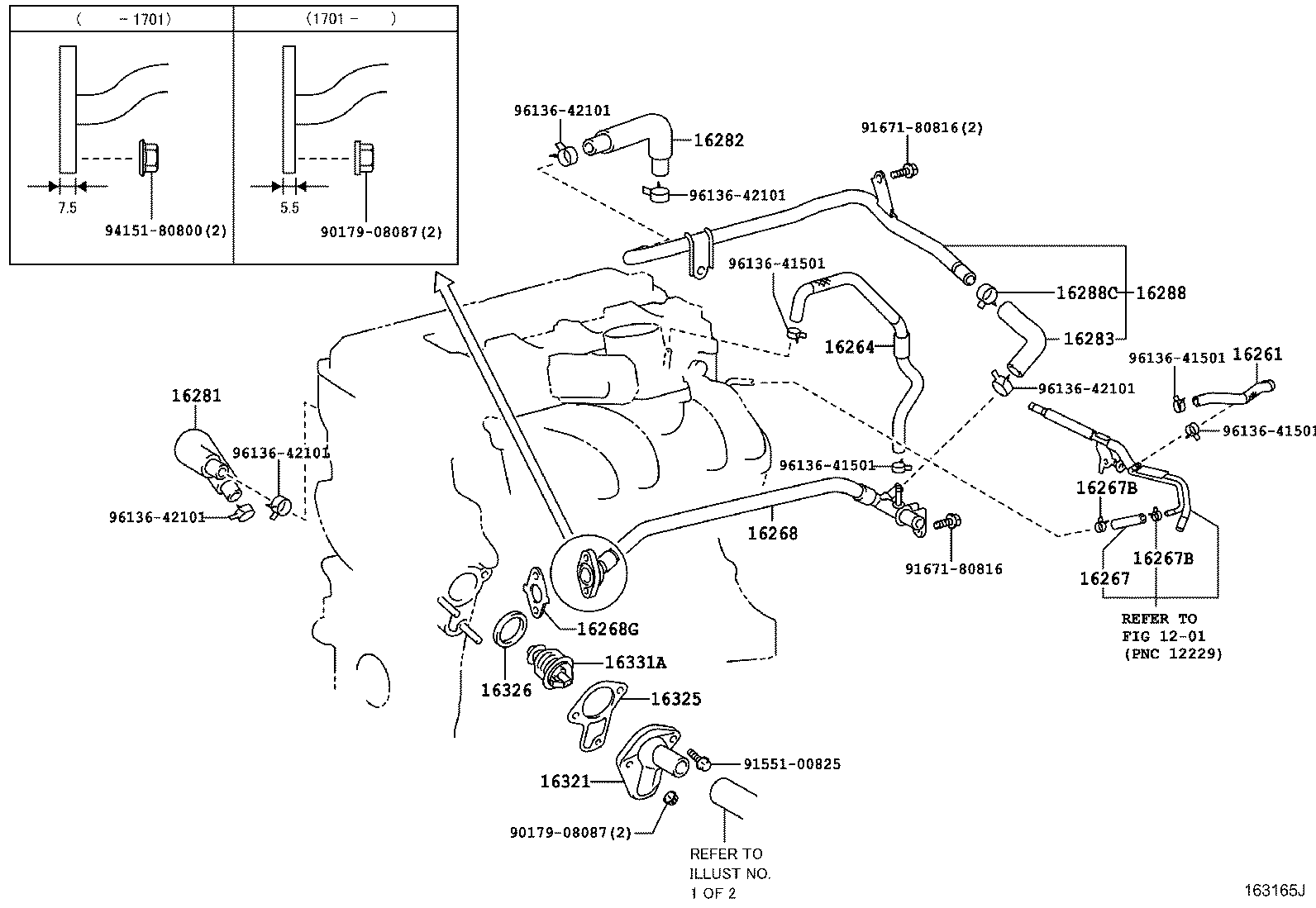

Illustrations

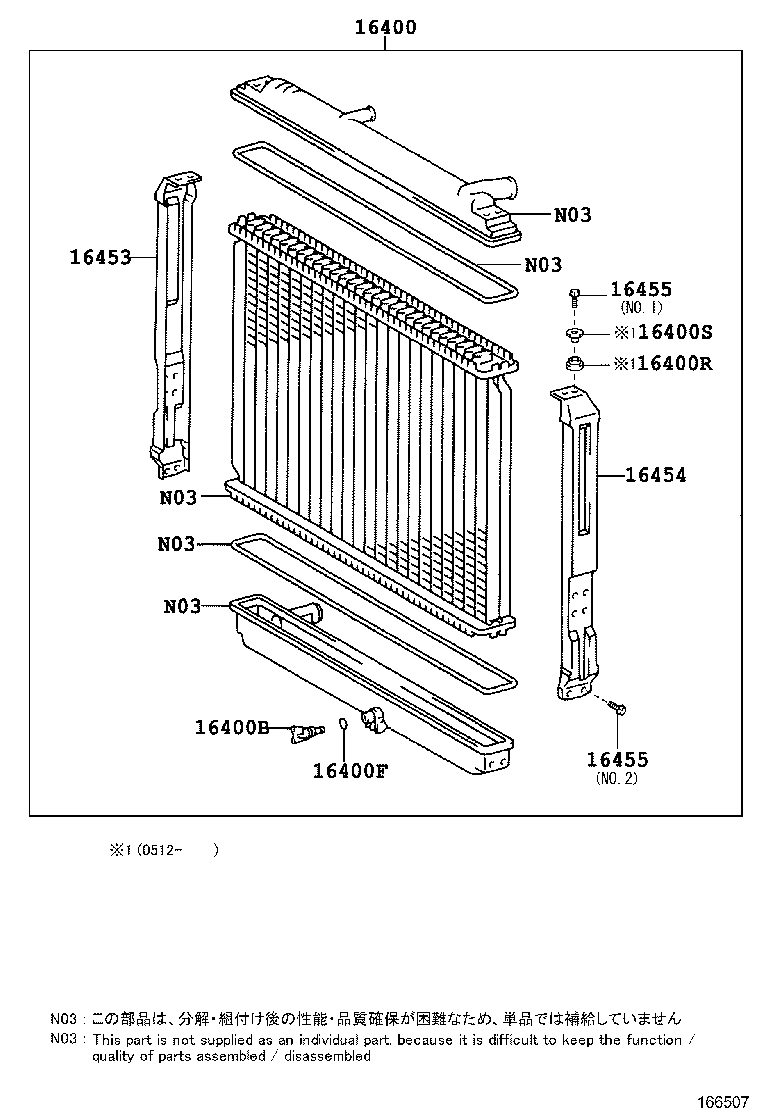

166507 1997-05 → 1999-07

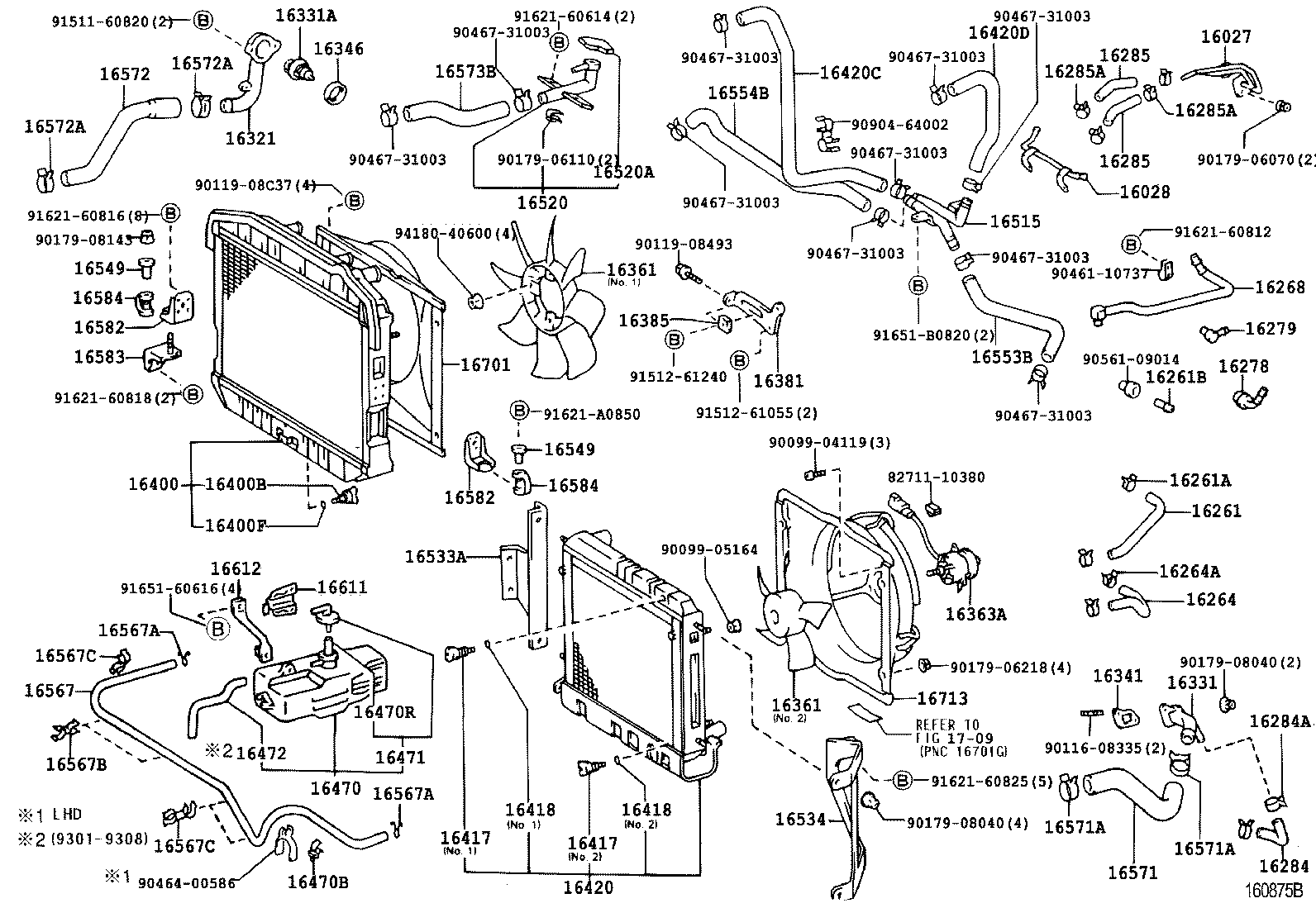

160875B 1993-01 → 1996-05

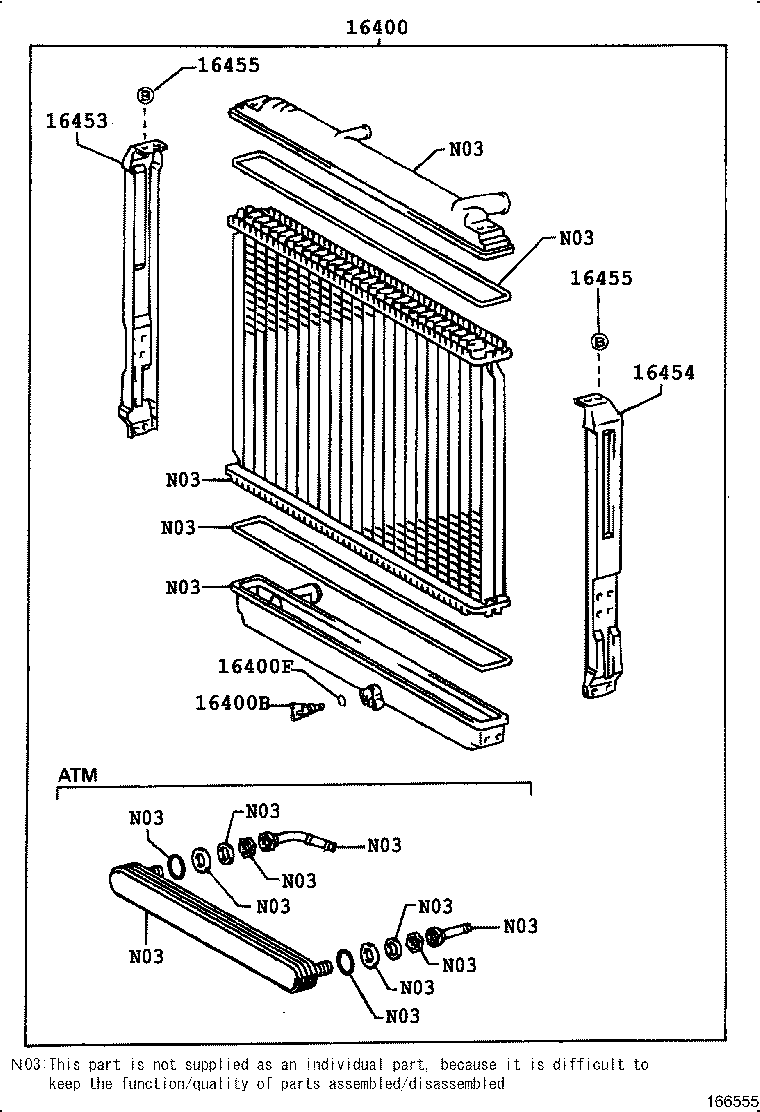

166555 1997-05 → 1999-03

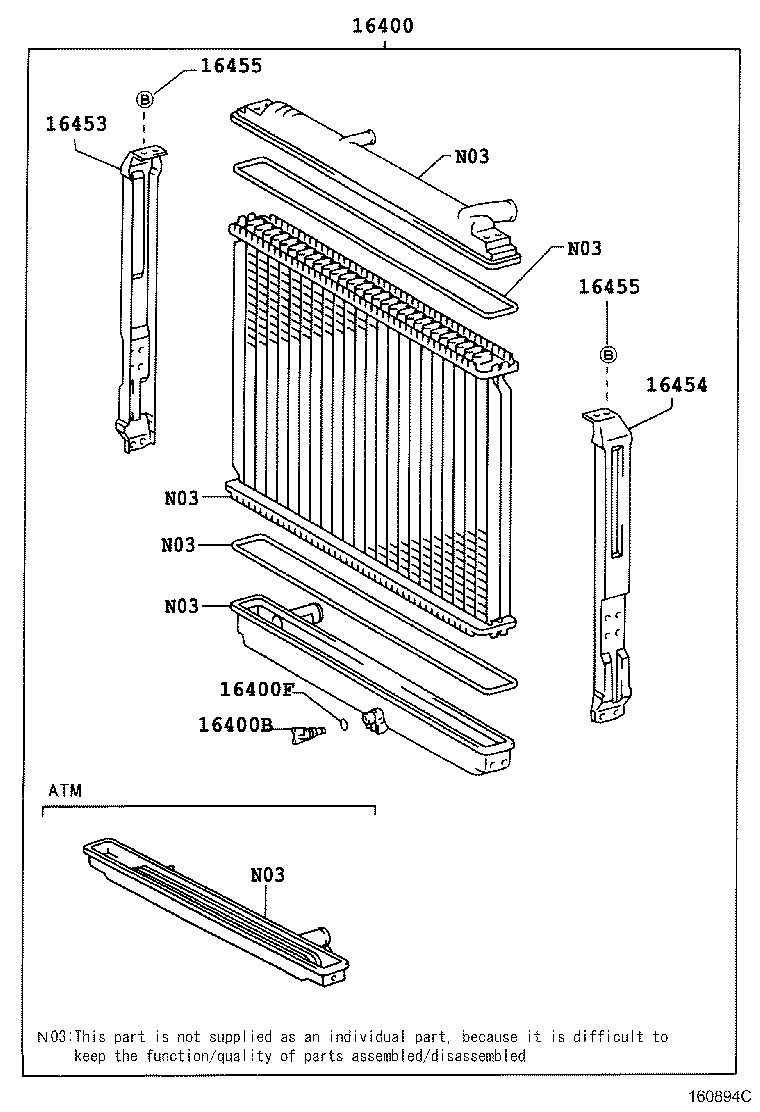

160894C 1999-03 → —

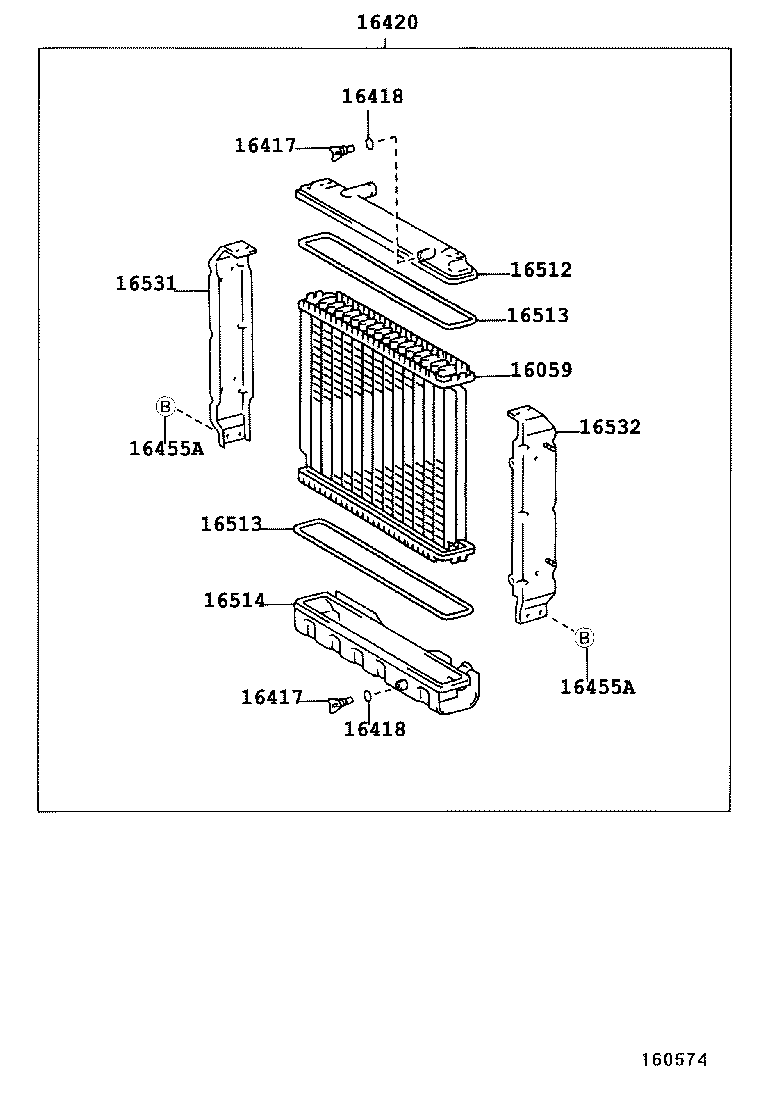

160574 1997-05 → —

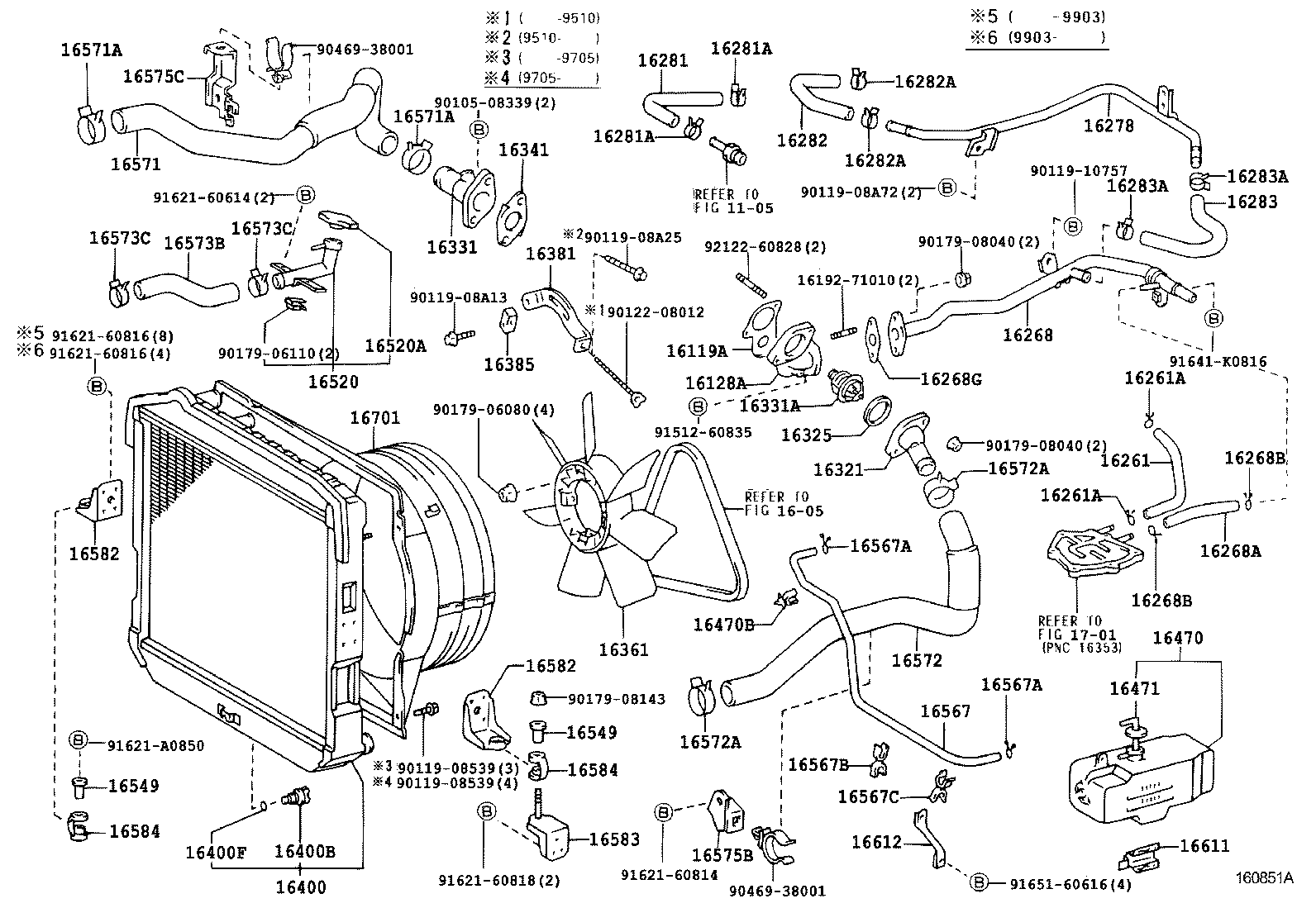

160851A 1993-09 → 1999-07

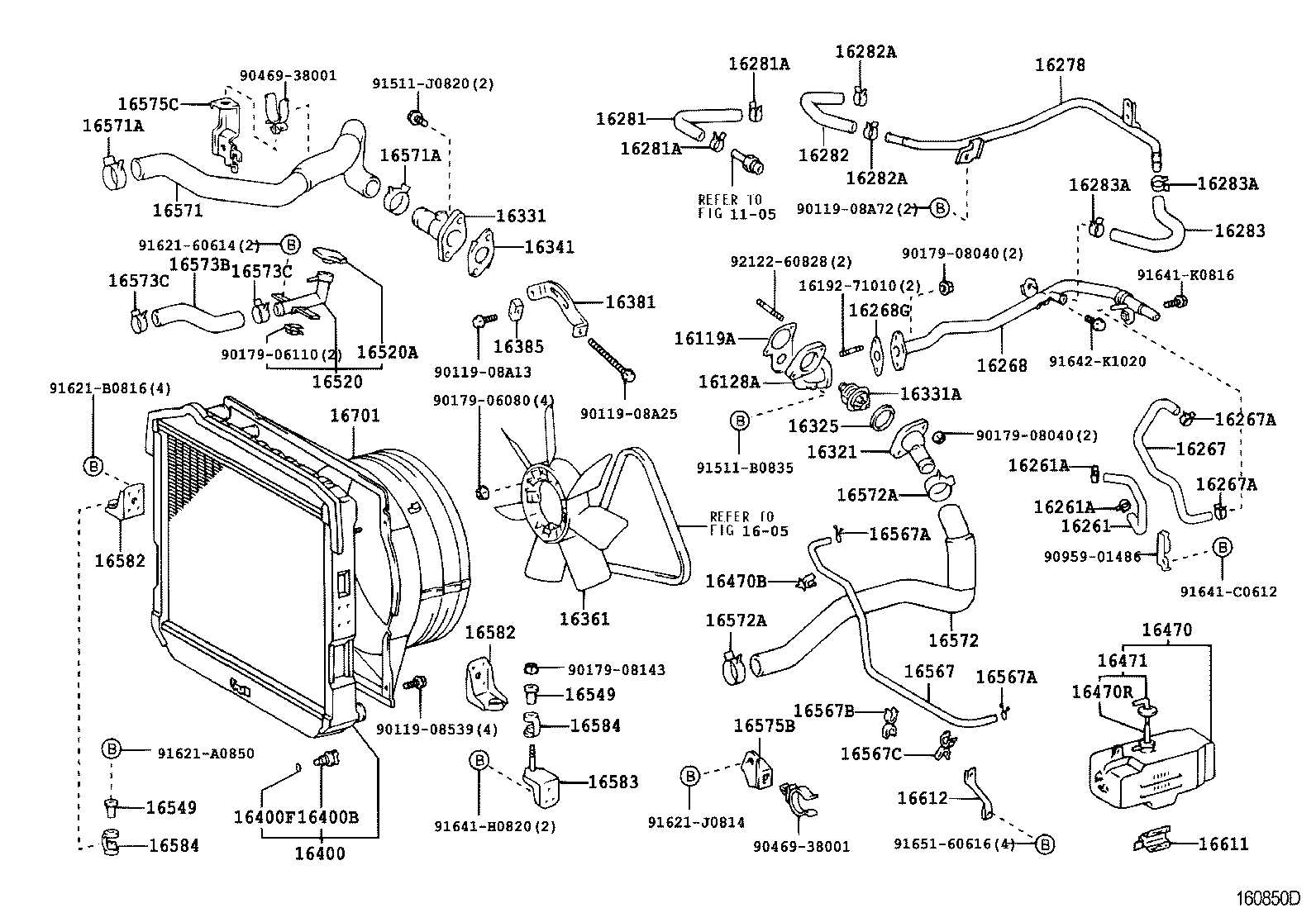

160850D 1999-07 → 2004-08

162333D 2004-08 → 2007-08

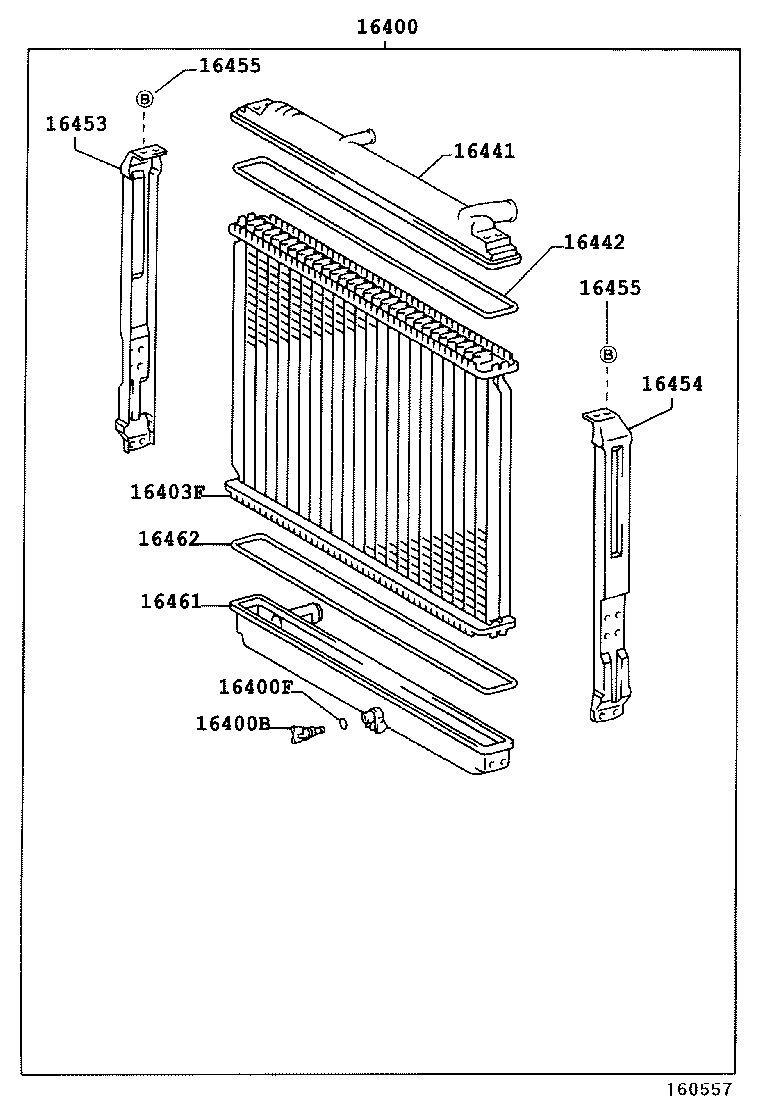

160557 1997-05 → 2007-08

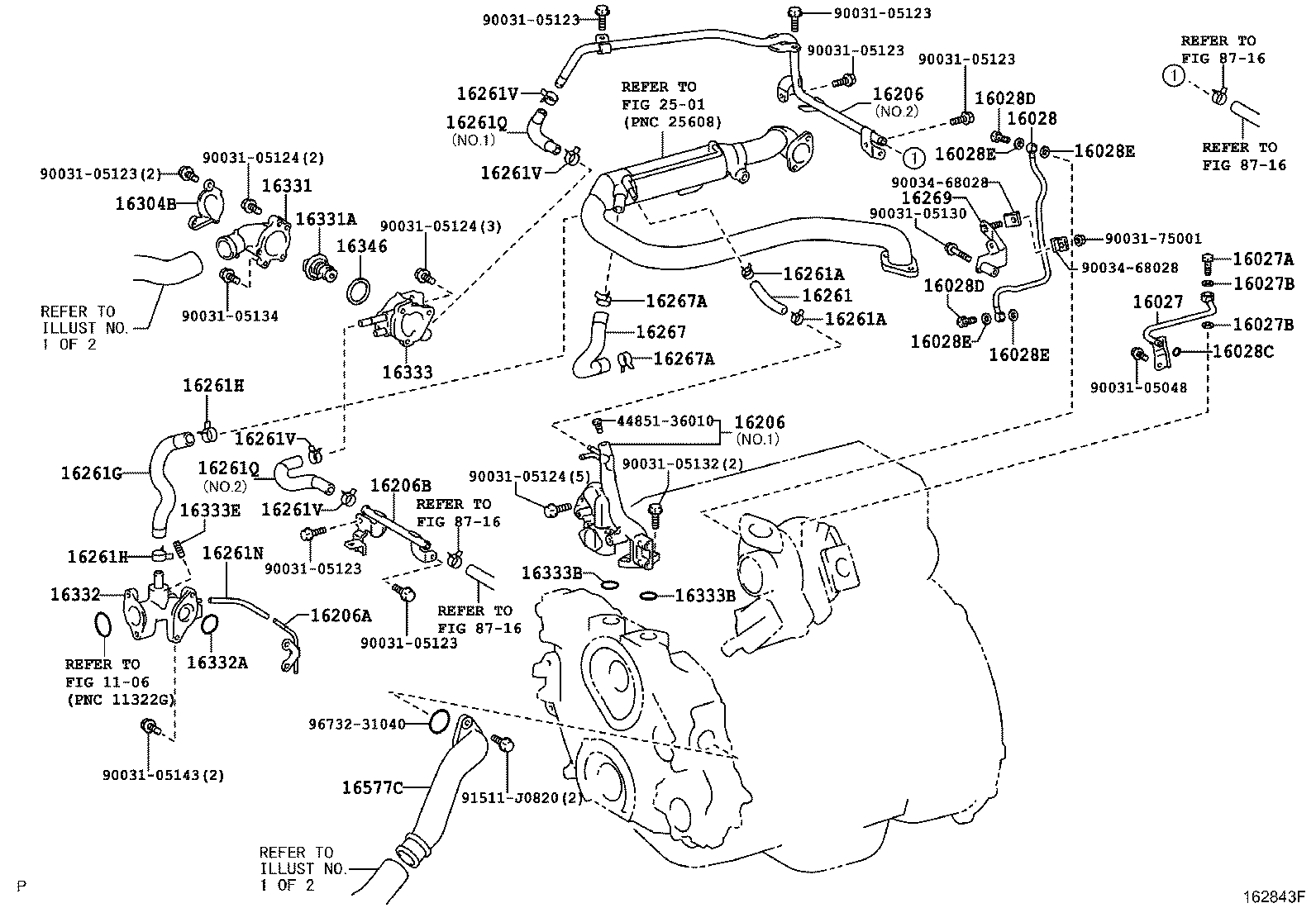

162843F 2006-08 → 2009-08

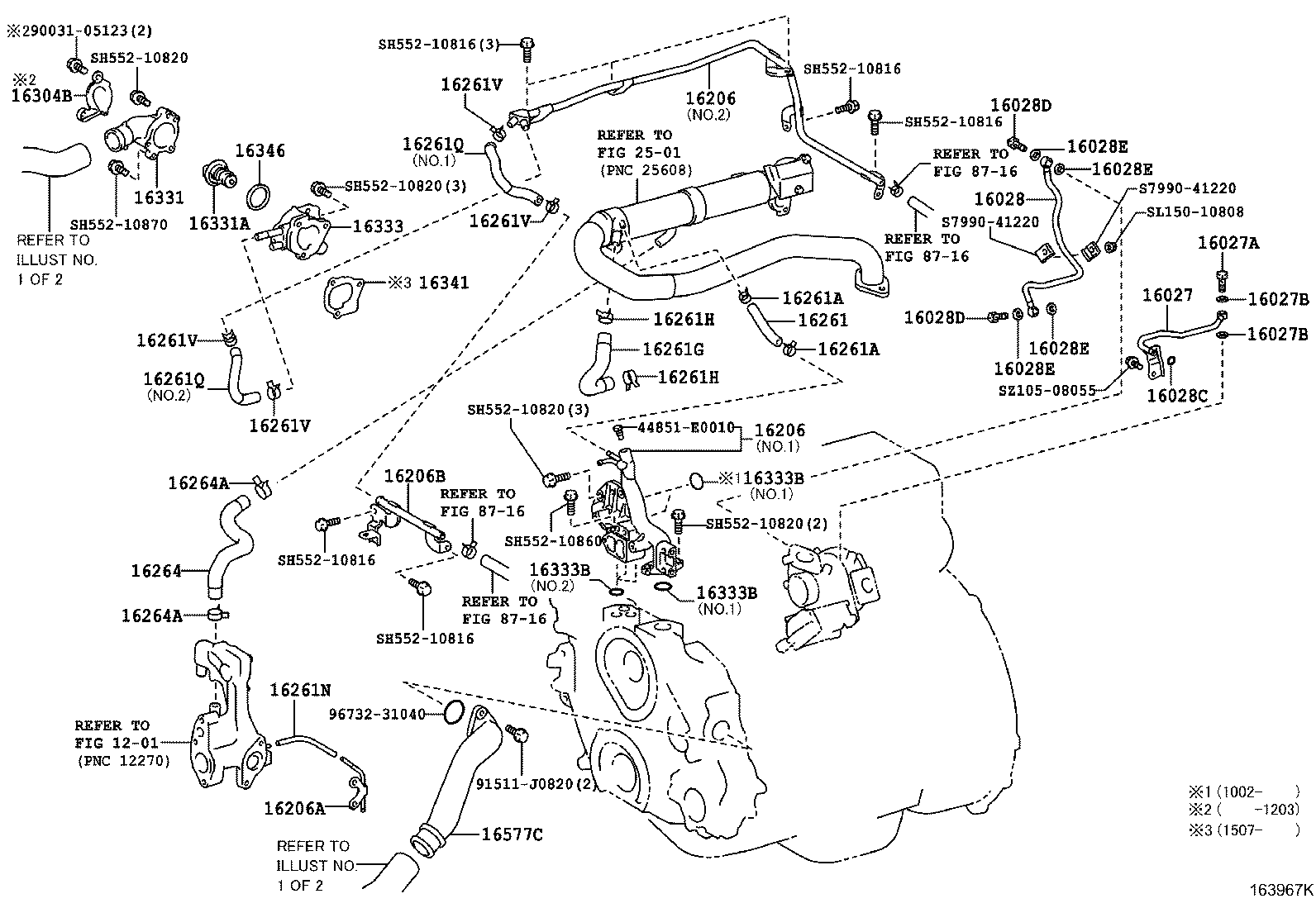

163967K 2009-08 → —

165867E 2015-01 → —

Part groups

PNC	Description

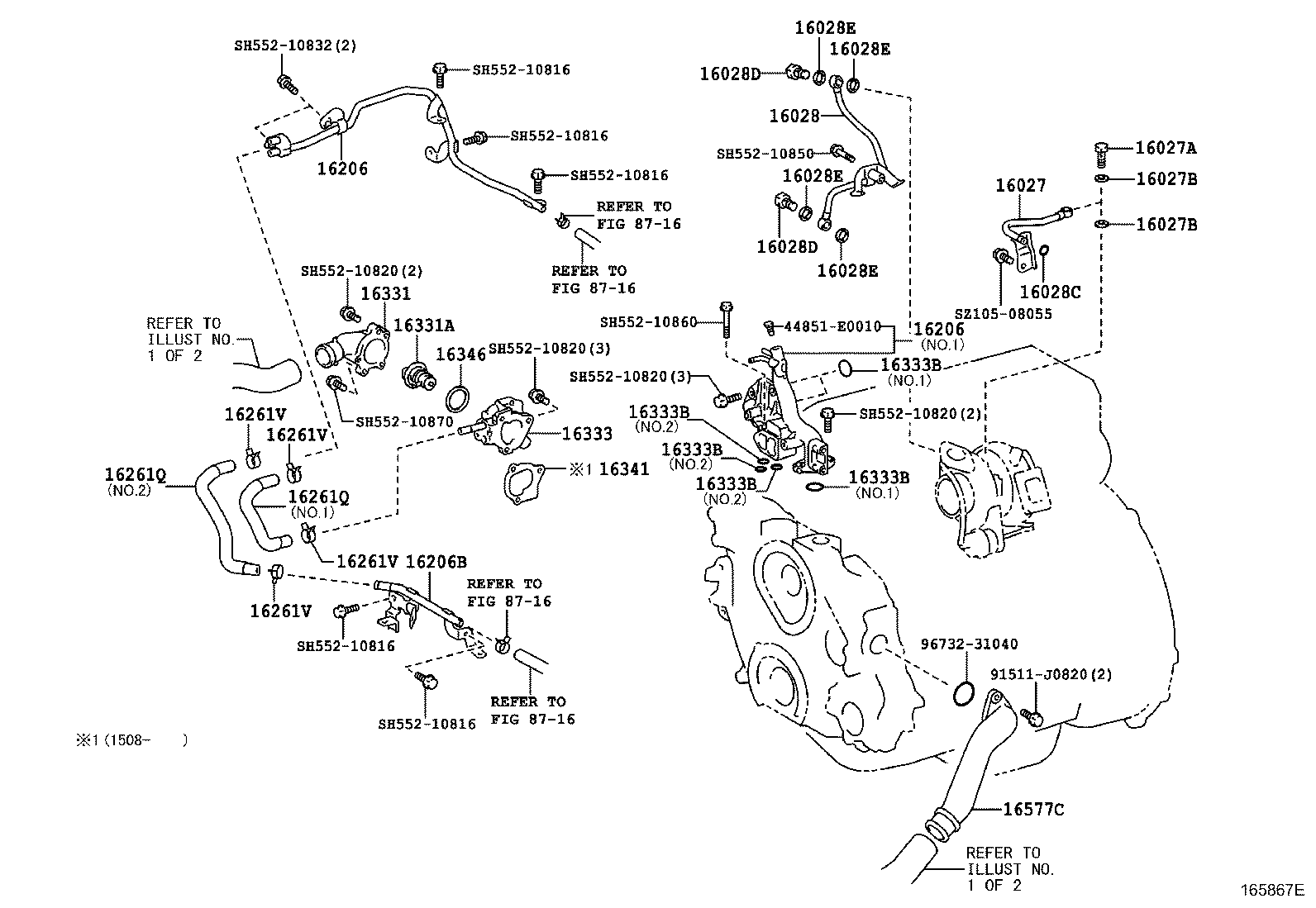

16027	Pipe Sub-assy, Turbo Water, NO.1
16027A	Bolt, Union(FOR TURBO WATER PIPE)
16027B	Gasket(FOR TURBO WATER PIPE)
16028	Pipe Sub-assy, Turbo Water, NO.2
16028C	Ring, O(FOR TURBO WATER PIPE)
16028D	Bolt, Union, NO.1(FOR TURBO WATER PIPE)
16028E	Gasket, NO.1(FOR TURBO WATER PIPE)
16059	Core Sub-assy, Sub Radiator
16119A	Gasket, Thermostat Guide
16128A	Plate, Water Pump Thermostat Guide
16206	Pipe Sub-assy, Water By-pass
16206A	Pipe Sub-assy, Water By-pass, NO.2
16206B	Pipe Sub-assy, Water By-pass, NO.3
16261	Hose, Water By-pass
16261A	Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261B	Union(FOR WATER BY-PASS HOSE)
16261G	Hose, Water By-pass, NO.1
16261H	Clip(FOR WATER BY-PASS HOSE NO.1)
16261L	Hose, Water By-pass
16261N	Hose, Water By-pass, NO.2
16261Q	Hose, Water By-pass
16261R	Clamp OR Clip(FOR WATER BY-PASS HOSE)
16261V	Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16264	Hose, Water By-pass, NO.2
16264A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D	Hose, Water By-pass, NO.2
16264E	Clip(FOR WATER BY-PASS HOSE NO.2)
16264G	Hose, Water By-pass, NO.3
16267	Hose, Water By-pass, NO.3
16267A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B	Clip(FOR WATER BY-PASS HOSE)
16267C	Hose, Water By-pass, NO.4
16267D	Clip(FOR WATER BY-PASS HOSE NO.4)
16268	Pipe, Water By-pass, NO.1
16268A	Hose(FOR WATER BY-PASS PIPE)
16268B	Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE)
16268G	Gasket(FOR WATER BY-PASS PIPE)
16269	Support, Water By-pass Pipe
16278	Pipe, Water By-pass, NO.2
16279	Pipe, Water By-pass, NO.3
16281	Hose, Water By-pass, NO.4
16281A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281F	Hose, Water By-pass, NO.5
16281G	Clip(FOR WATER BY-PASS HOSE NO.5)
16282	Hose, Water By-pass, NO.5
16282A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283	Hose, Water By-pass, NO.6
16283A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16283C	Clamp OR Clip(FOR WATER BY-PASS HOSE)
16283D	Hose, Water By-pass, NO.6
16284	Hose, Turbo Water, NO.1
16284A	Clip(FOR TURBO WATER HOSE NO.1)
16285	Hose, Turbo Water, NO.2
16285A	Clip(FOR TURBO WATER HOSE NO.2)
16288	Pipe, Water By-pass, NO.4
16288C	Clip(FOR WATER BY-PASS PIPE NO.4)
16295	Hose, Water By-pass, NO.7
16295A	Clip(FOR WATER BY-PASS HOSE NO.7)
16304B	Cover Sub-assy, Water Outlet
16321	Inlet, Water
16325	Gasket, Water Inlet Housing, NO.1
16326	Gasket, Water Inlet Housing, NO.2
16331	Outlet, Water
16331A	Thermostat
16331B	Plug(FOR WATER OUTLET)
16331Q	Plug(FOR WATER OUTLET)
16332	Pipe, Water Outlet, NO.1
16332A	Ring, O(FOR WATER OUTLET PIPE)
16333	Housing, Water Outlet
16333A	Bolt, Stud(FOR WATER OUTLET HOUSING)
16333B	Ring, O(FOR WATER OUTLET HOUSING)
16333E	Plug, Drain Cock
16341	Gasket, Water Outlet
16343	Gasket, Water Outlet Housing
16346	Gasket, Thermostat
16347A	Gasket(FOR TURBO WATER PIPE)
16361	Fan
16363A	Motor, Cooling Fan, NO.2
16365	Spacer, Fan
16381	Bar, Fan Belt Adjusting
16385	Slider, Fan Belt Adjusting

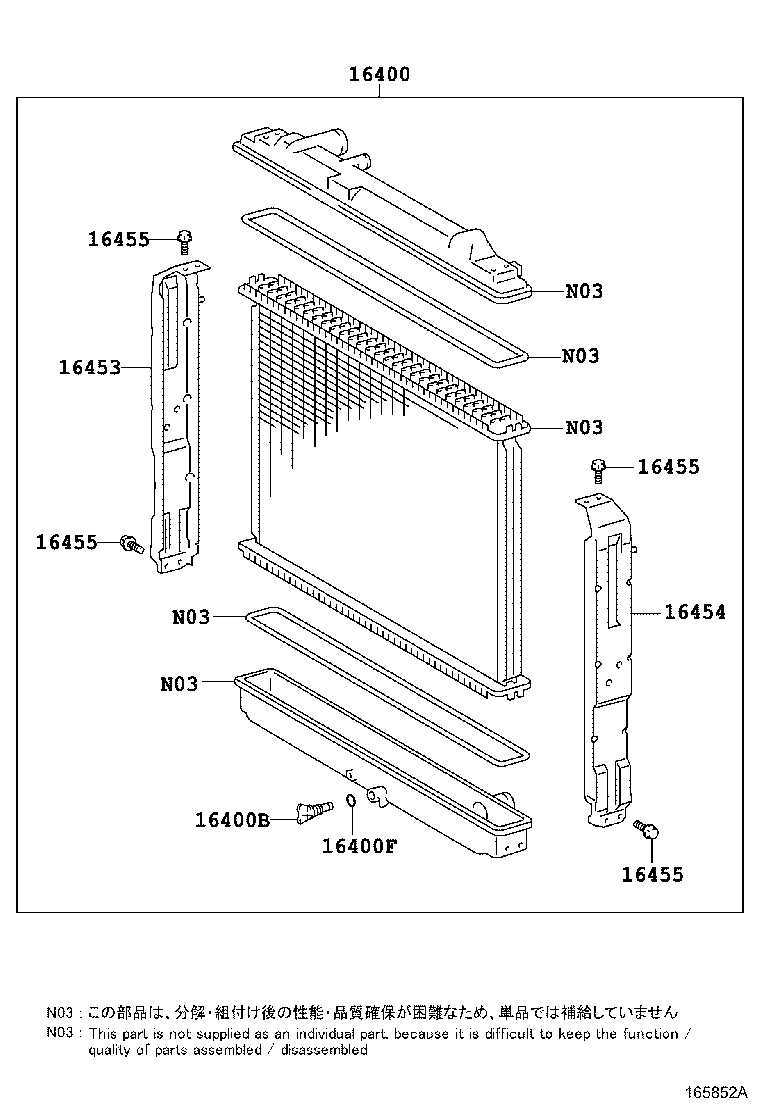

16400	Radiator Assy
16400B	Plug, Radiator Drain Cock
16400F	Packing(FOR RADIATOR DRAIN COCK)
16400R	Bushing(FOR RADIATOR)
16400S	Collar(FOR RADIATOR)
16403F	Core Sub-assy, Radiator
16417	Cock
16418	Packing
16420	Radiator Assy, Sub
16420C	Hose, Sub Radiator, NO.1
16420D	Hose, Sub Radiator, NO.2
16441	Tank, Radiator, Upper
16442	Ring, O(FOR RADIATOR UPPER TANK)
16453	Plate, Radiator Side
16454	Plate, Radiator Side
16455	Bolt, Radiator Side Support Plate
16455A	Bolt, Sub Radiator Side
16461	Tank, Radiator, Lower
16462	Ring, O(FOR RADIATOR LOWER TANK)
16470	Tank Assy, Radiator Reserve
16470B	Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16470R	Hose, NO.2(FOR RADIATOR RESERVE TANK)
16471	Cap Sub-assy, Reserve Tank
16472	Hose, Breather
16512	Tank, Sub Radiator, Upper
16513	Seal, Sub-radiator Tank
16514	Tank, Sub Radiator, Lower
16515	Pipe, Sub Radiator, NO.1
16520	Filler Assy, Water
16520A	Cap Sub-assy, Water Filler
16531	Plate, Sub Radiator Side Support, RH
16532	Plate, Sub Radiator Side Support, LH
16533A	Support, Sub-radiator
16534	Support, Radiator, NO.2
16537	Support, Radiator Pipe, NO.1
16549	Collar, Radiator Support, NO.2
16553B	Hose, Sub Radiator, NO.3
16554B	Hose, Sub Radiator, NO.4
16567	Hose(FOR RADIATOR RESERVE TANK)
16567A	Clip(FOR RADIATOR RESERVE TANK HOSE)
16567B	Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE NO.2)
16567C	Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE NO.3)
16571	Hose, Radiator, Inlet
16571A	Clamp OR Clip, Hose(FOR RADIATOR INLET)
16572	Hose, Radiator, Outlet
16572A	Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572C	Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.2)
16572D	Hose, Radiator, NO.2
16573B	Hose, Radiator, NO.3
16573C	Clamp OR Clip, Radiator Hose, NO.3
16575B	Bracket, Water Hose Clamp, NO.2
16575C	Bracket, Water Hose Clamp, NO.1
16577	Pipe, Radiator, NO.7
16577C	Pipe, Radiator
16582	Bracket, Radiator, NO.1
16583	Bracket, Radiator, NO.2
16584	Insulator, Radiator Mounting
16585	Bracket, Radiator, NO.3
16611	Bracket, Radiator Reserve Tank
16612	Bracket, Radiator Reserve Tank, NO.2
16701	Shroud Sub-assy, Fan
16713	Shroud, Fan, NO.3

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
