Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

51 part groups · 30 illustrations

Illustrations

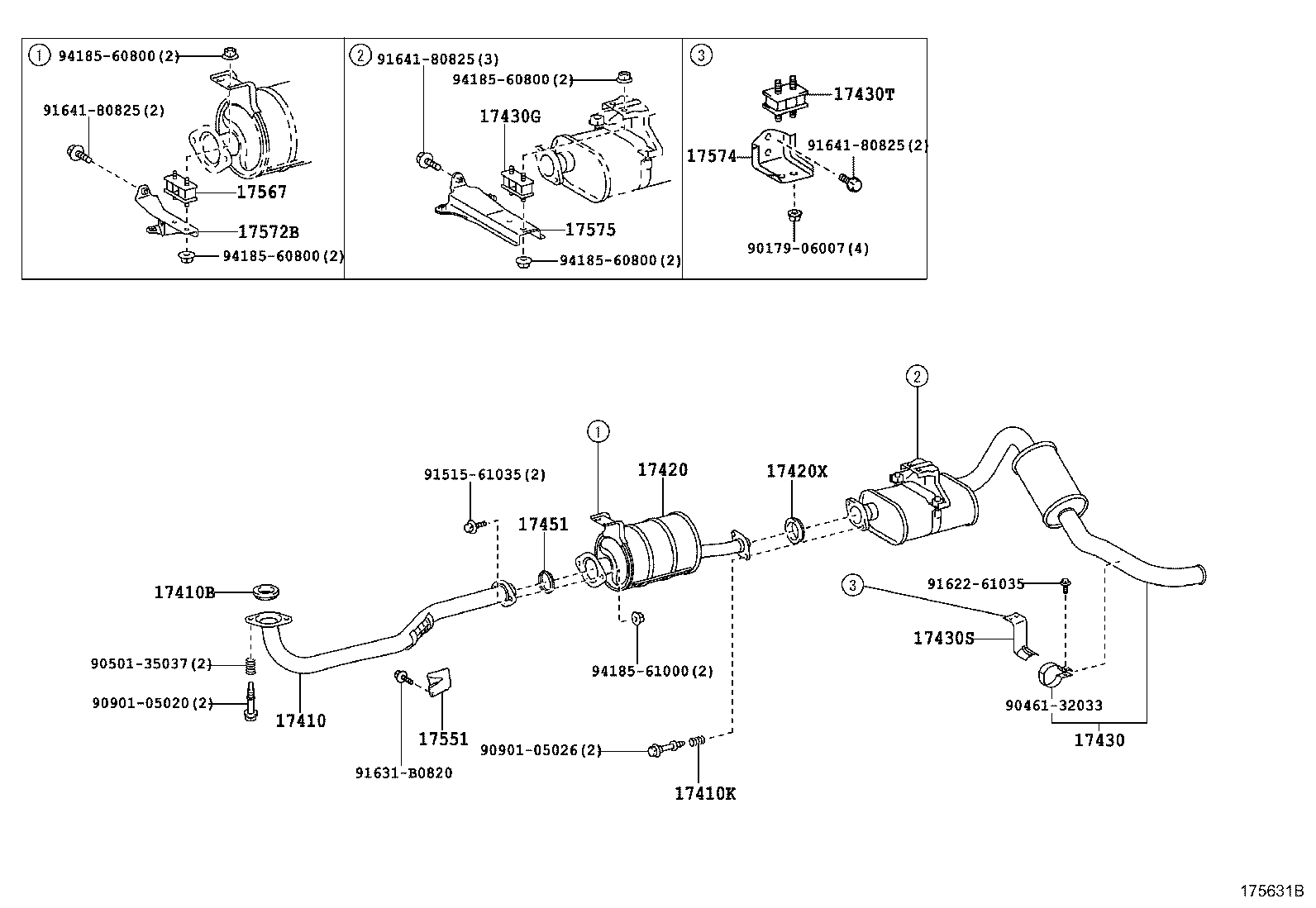

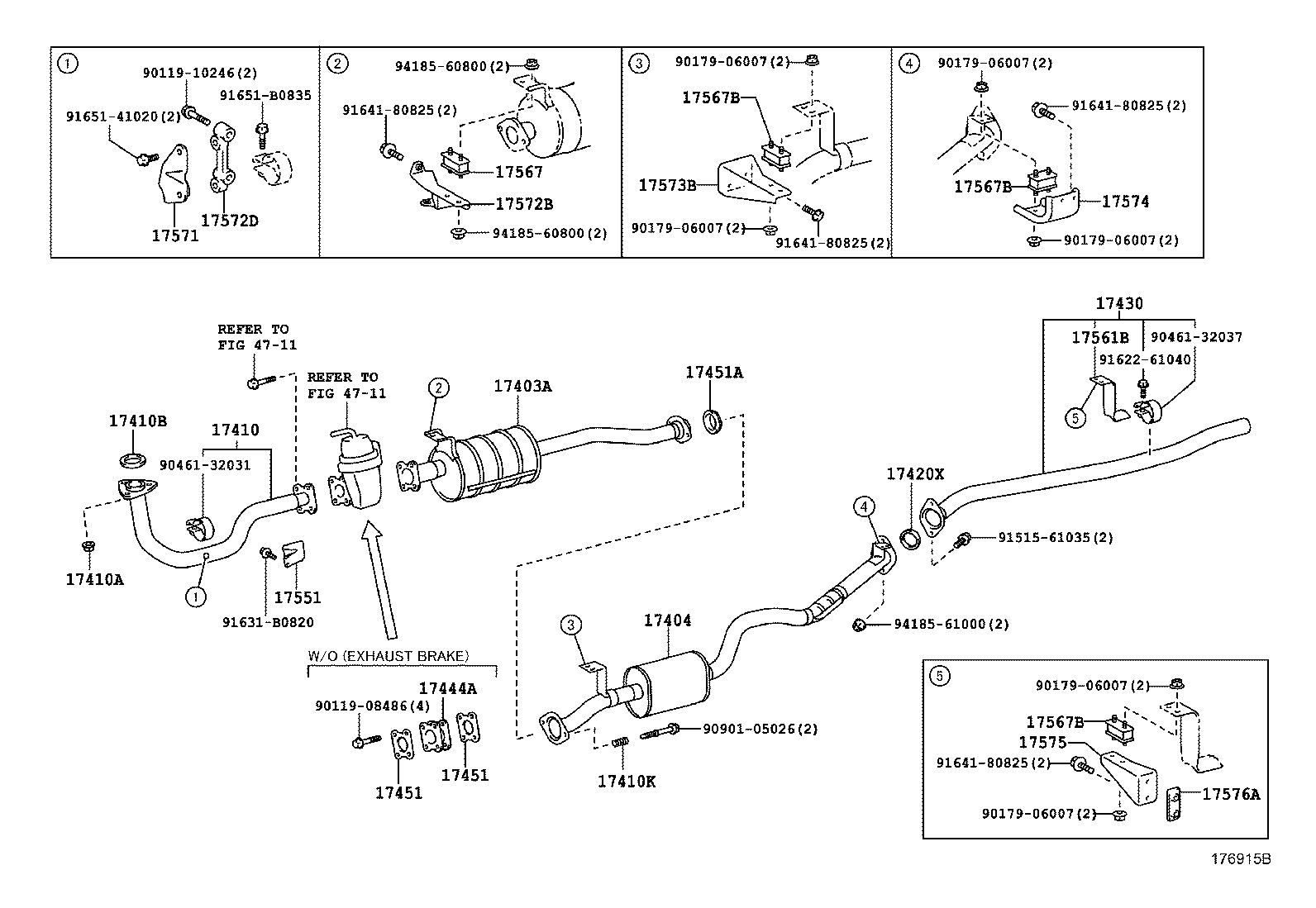

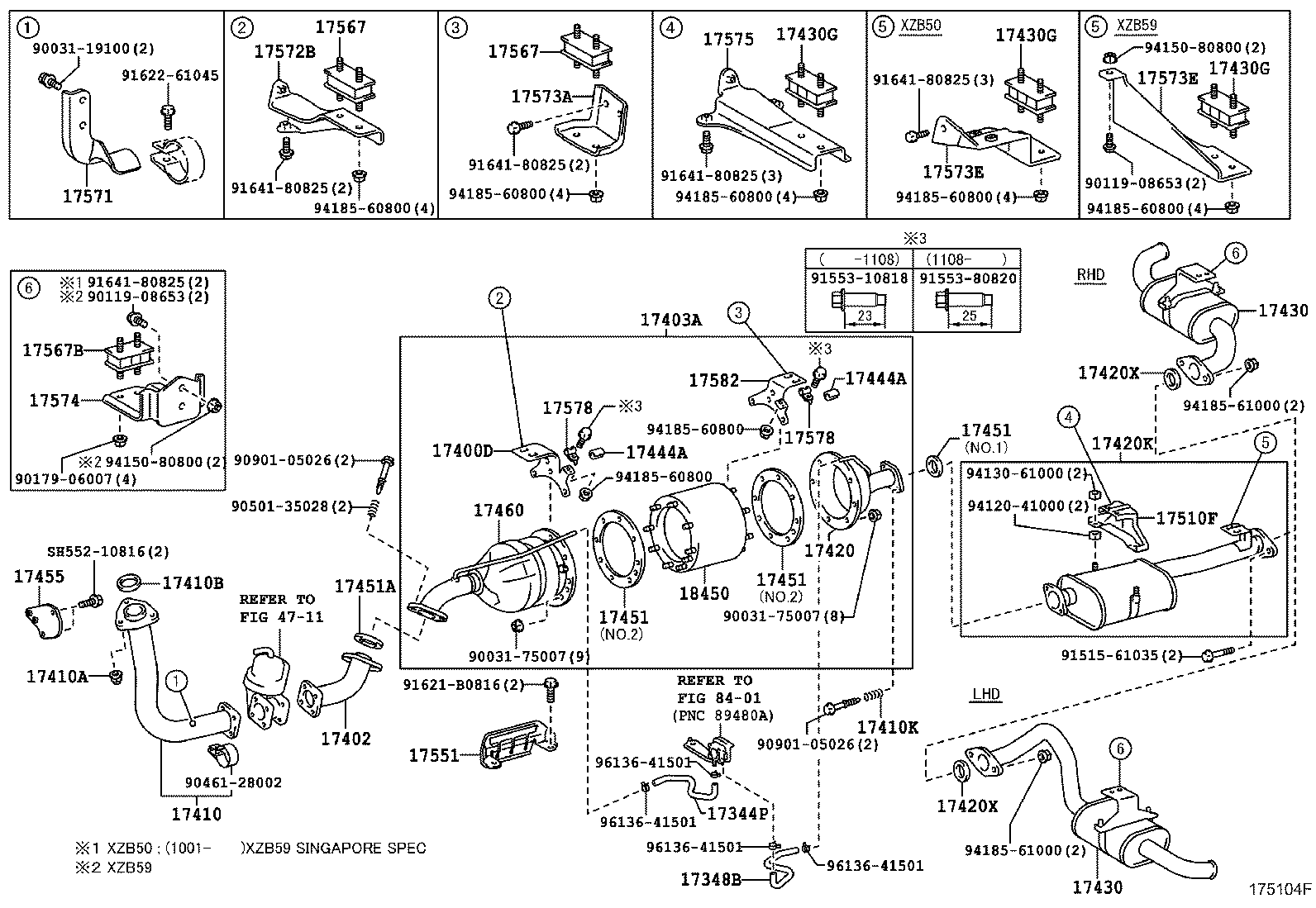

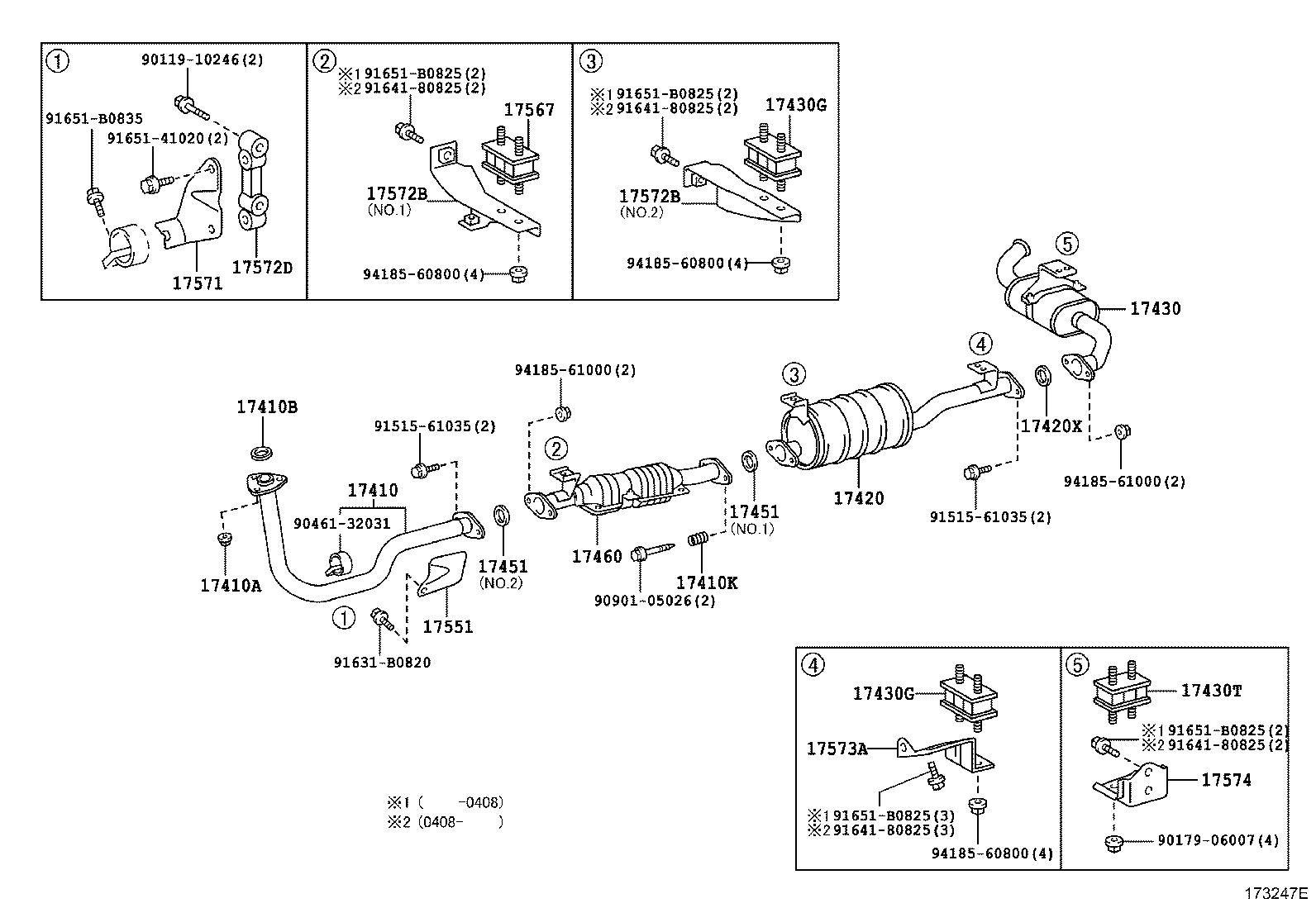

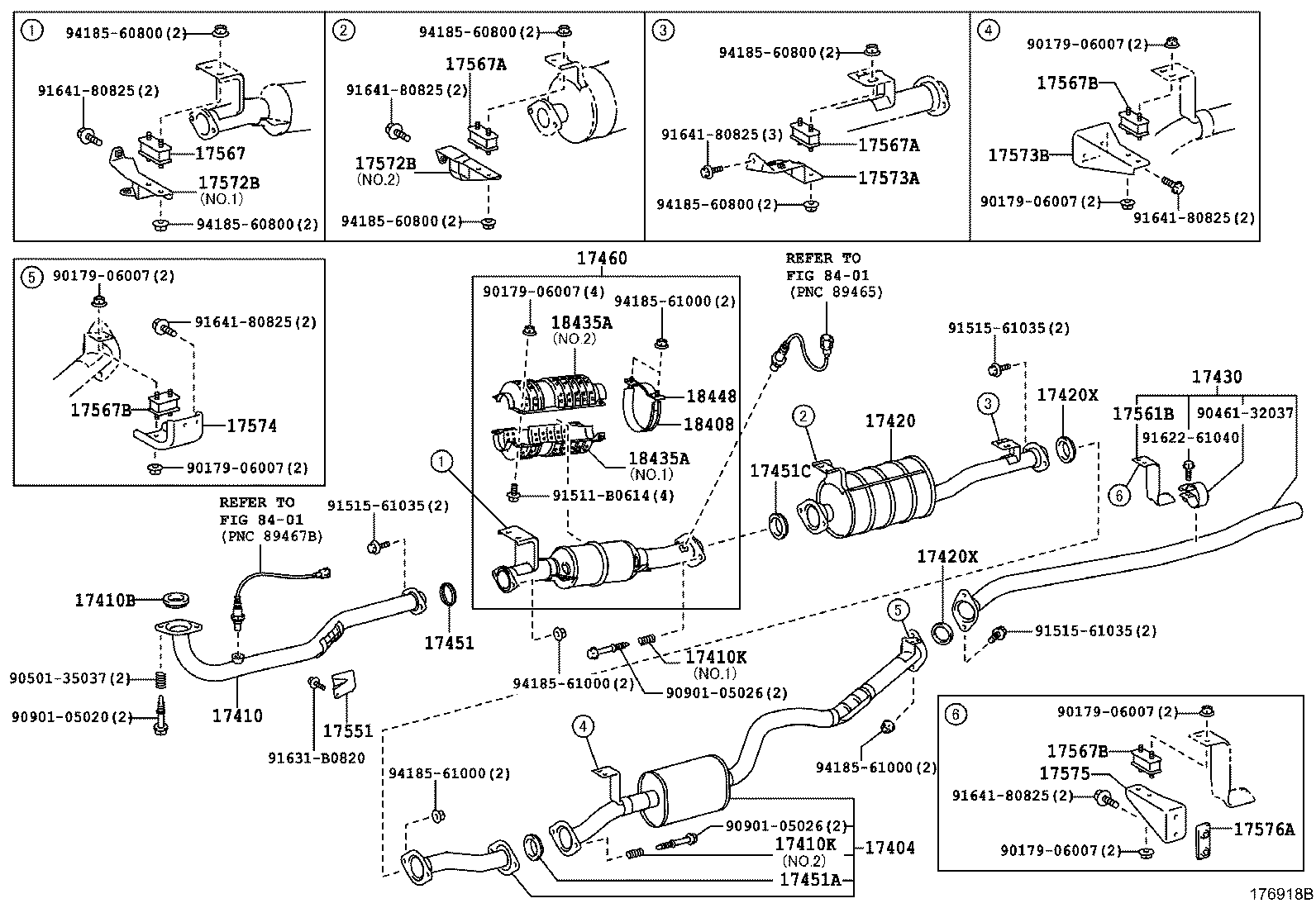

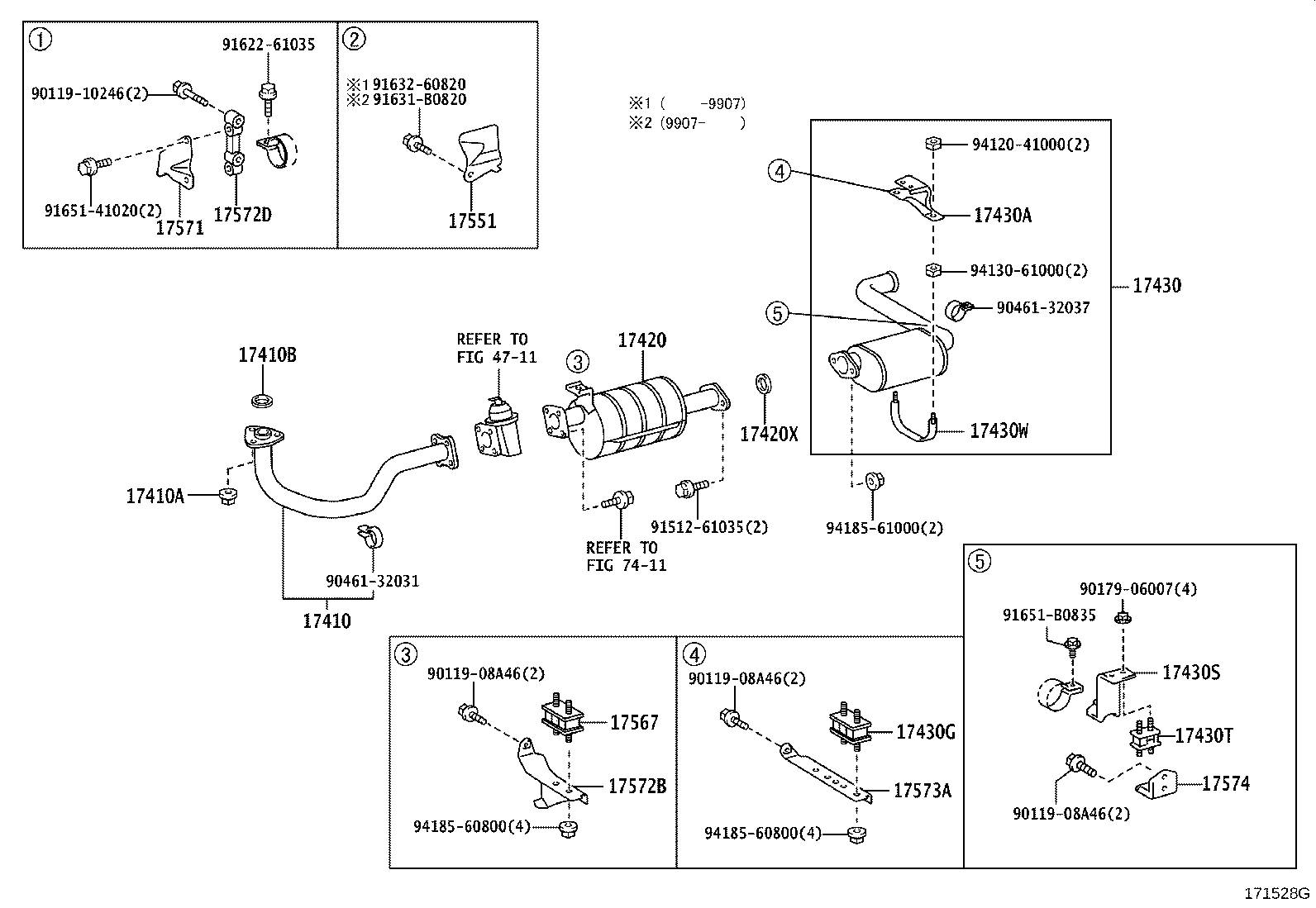

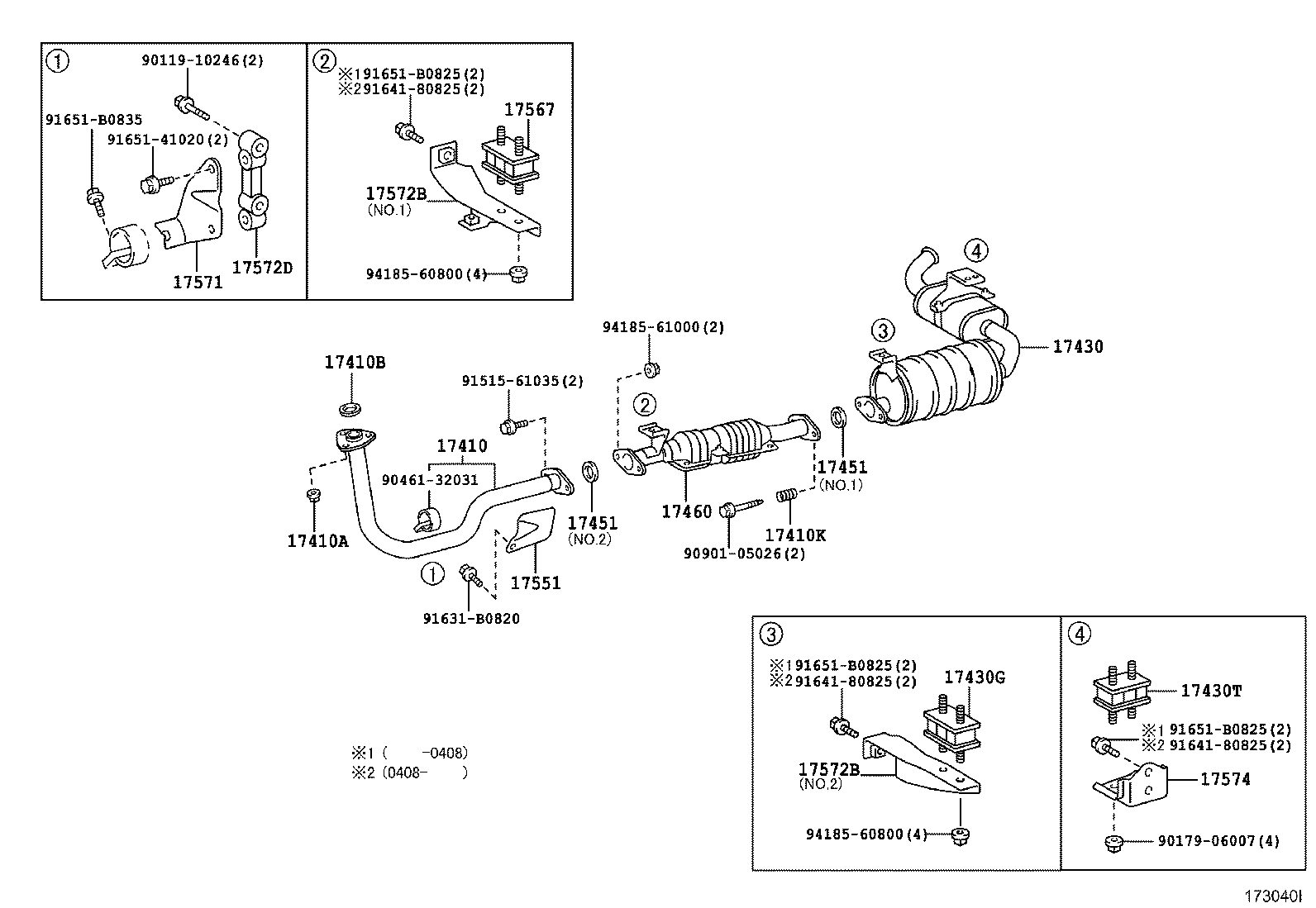

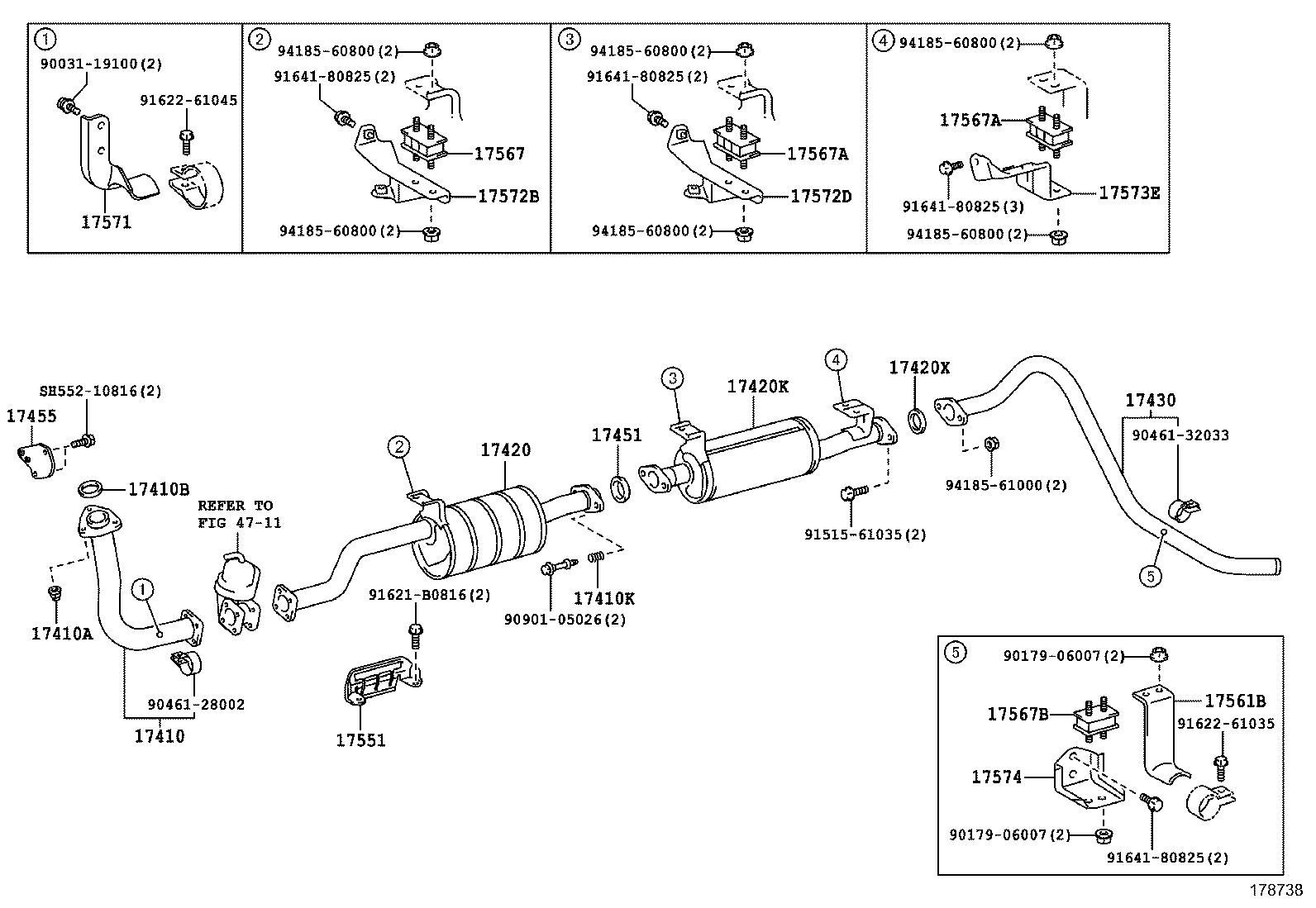

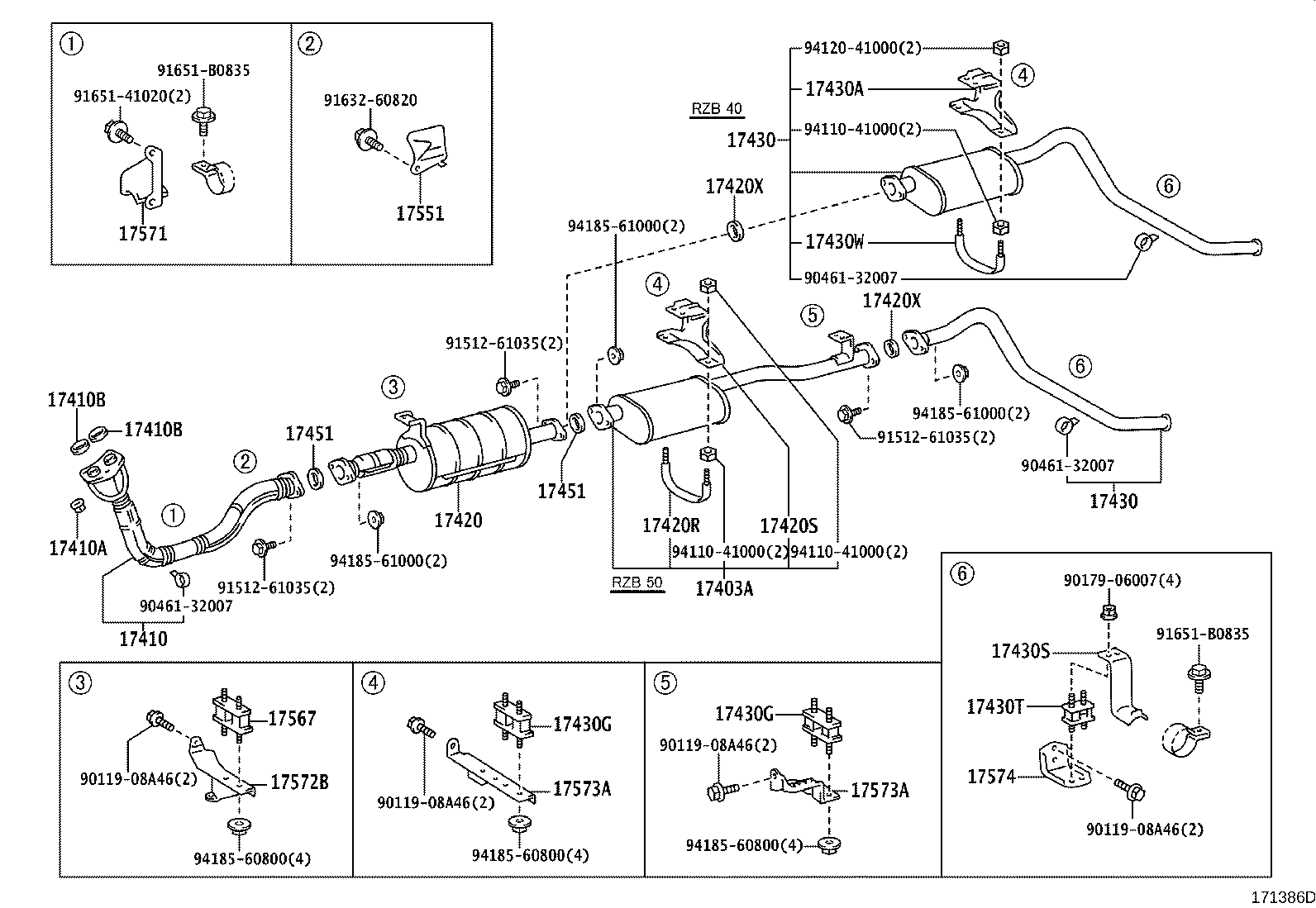

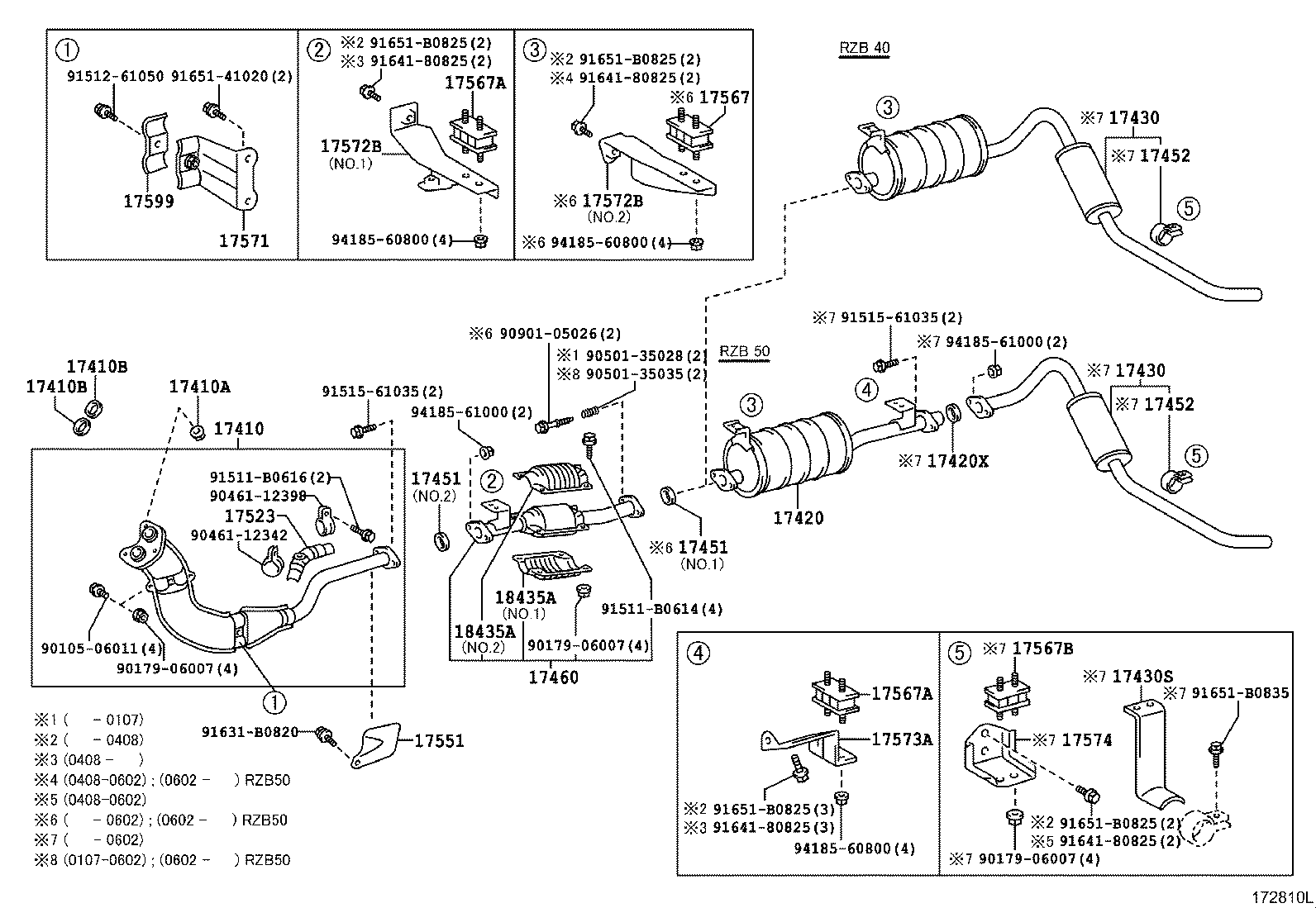

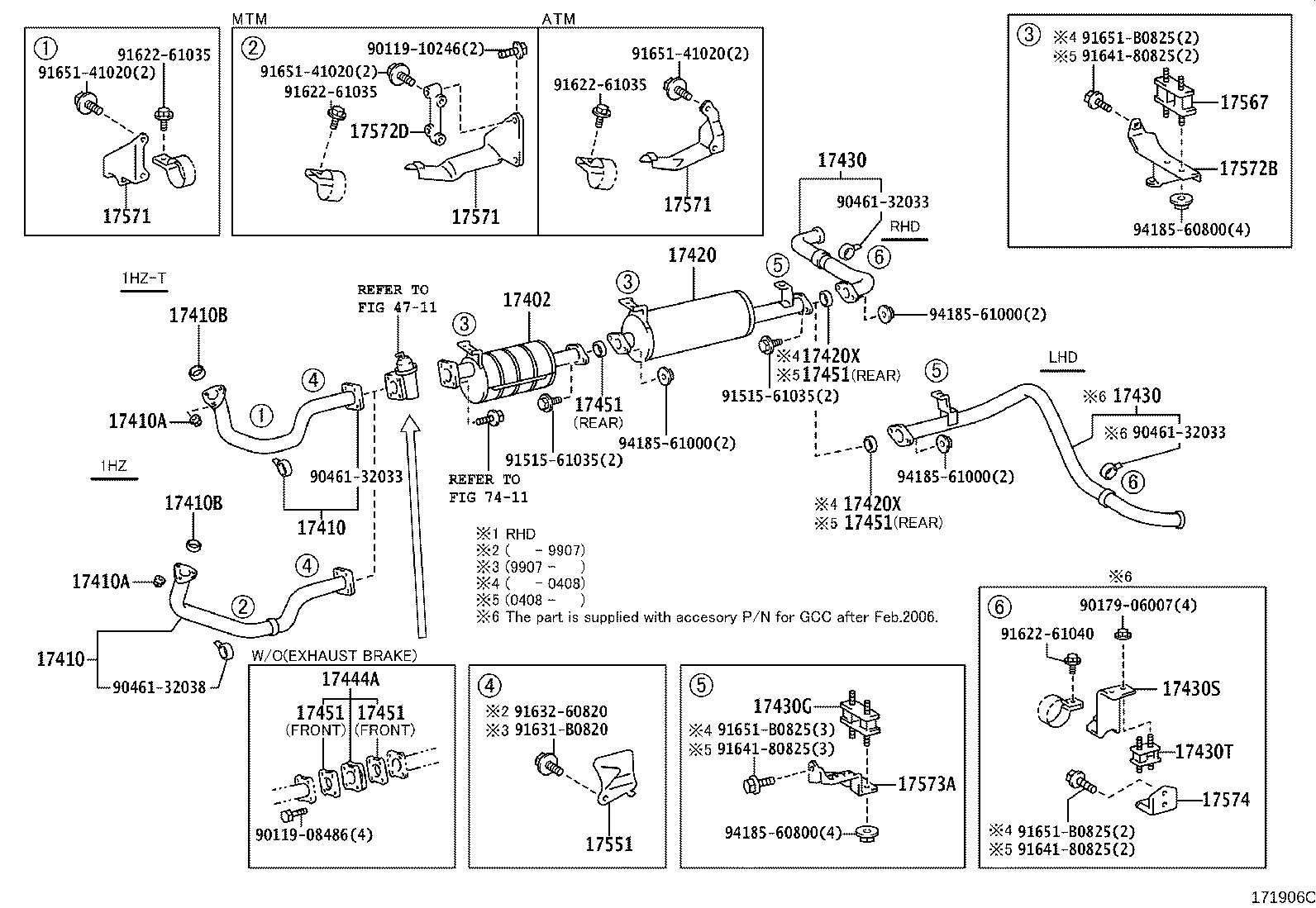

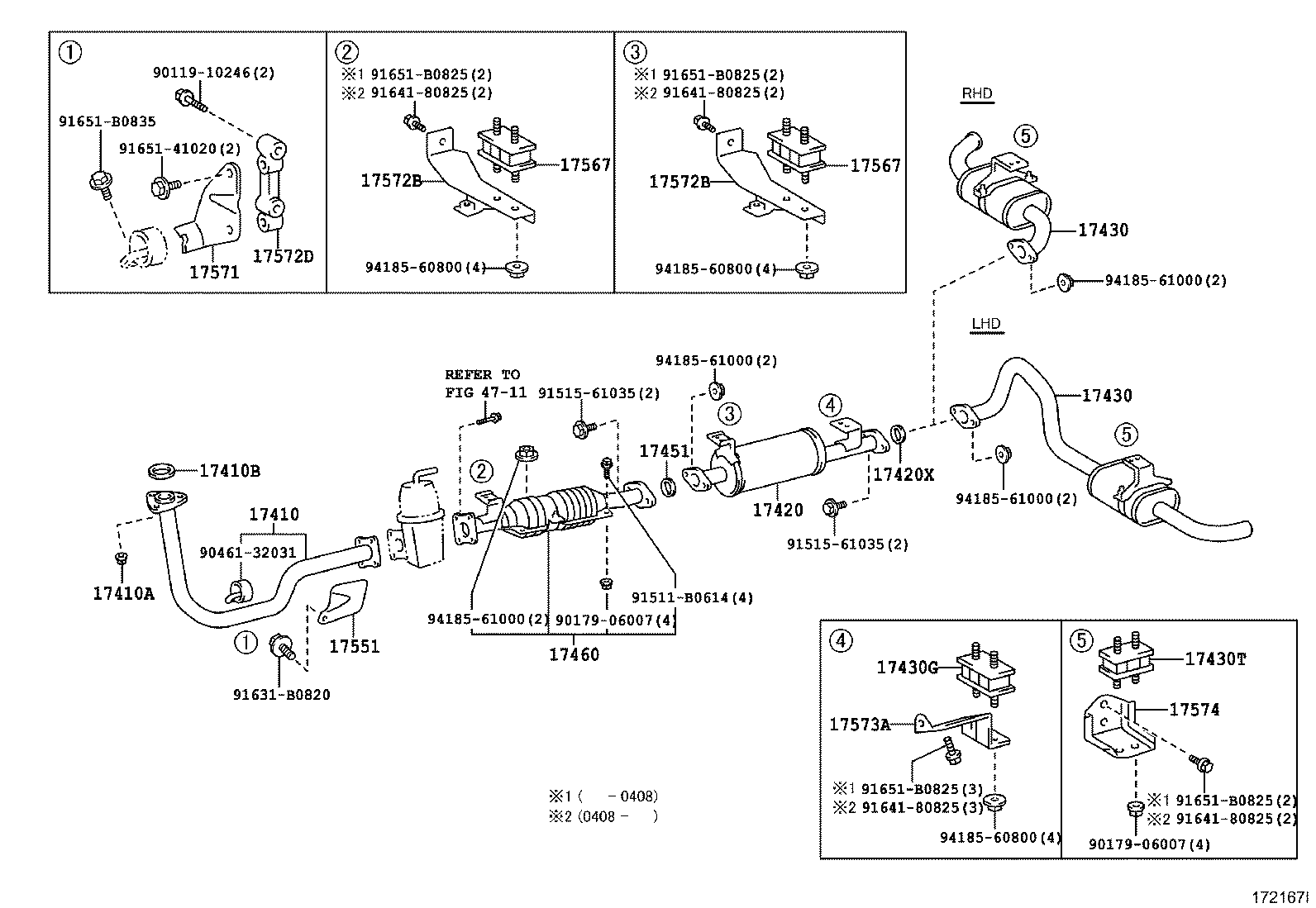

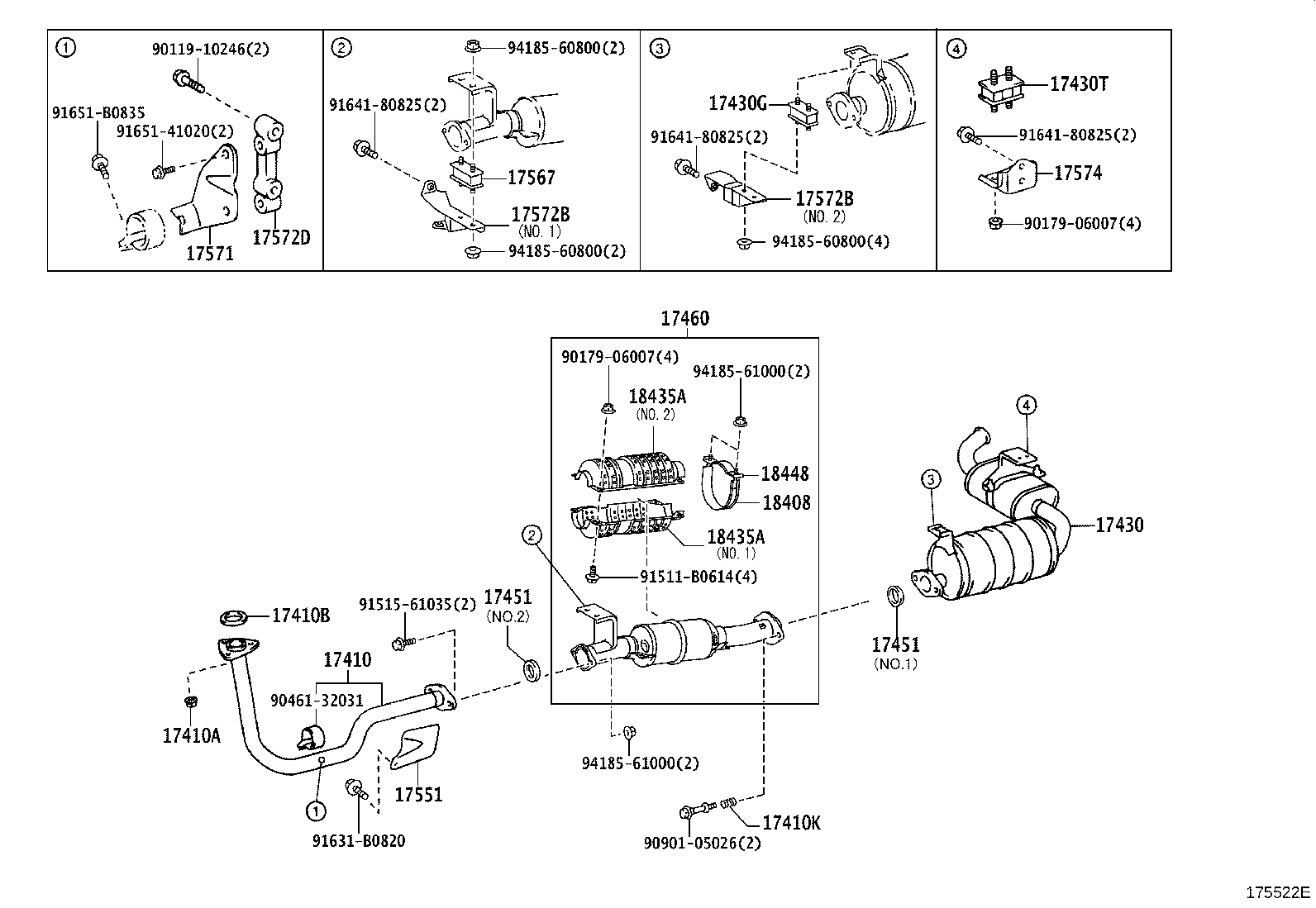

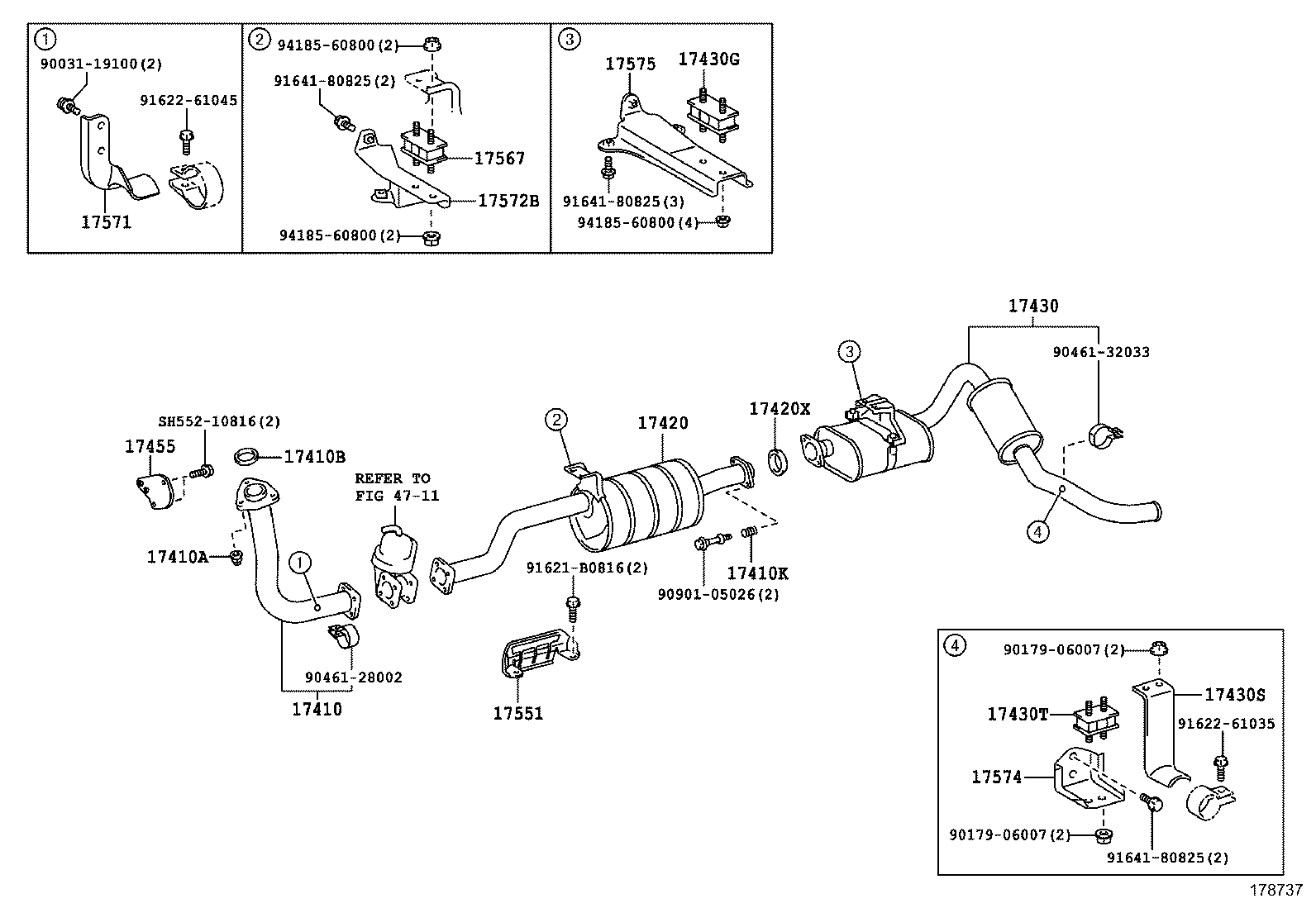

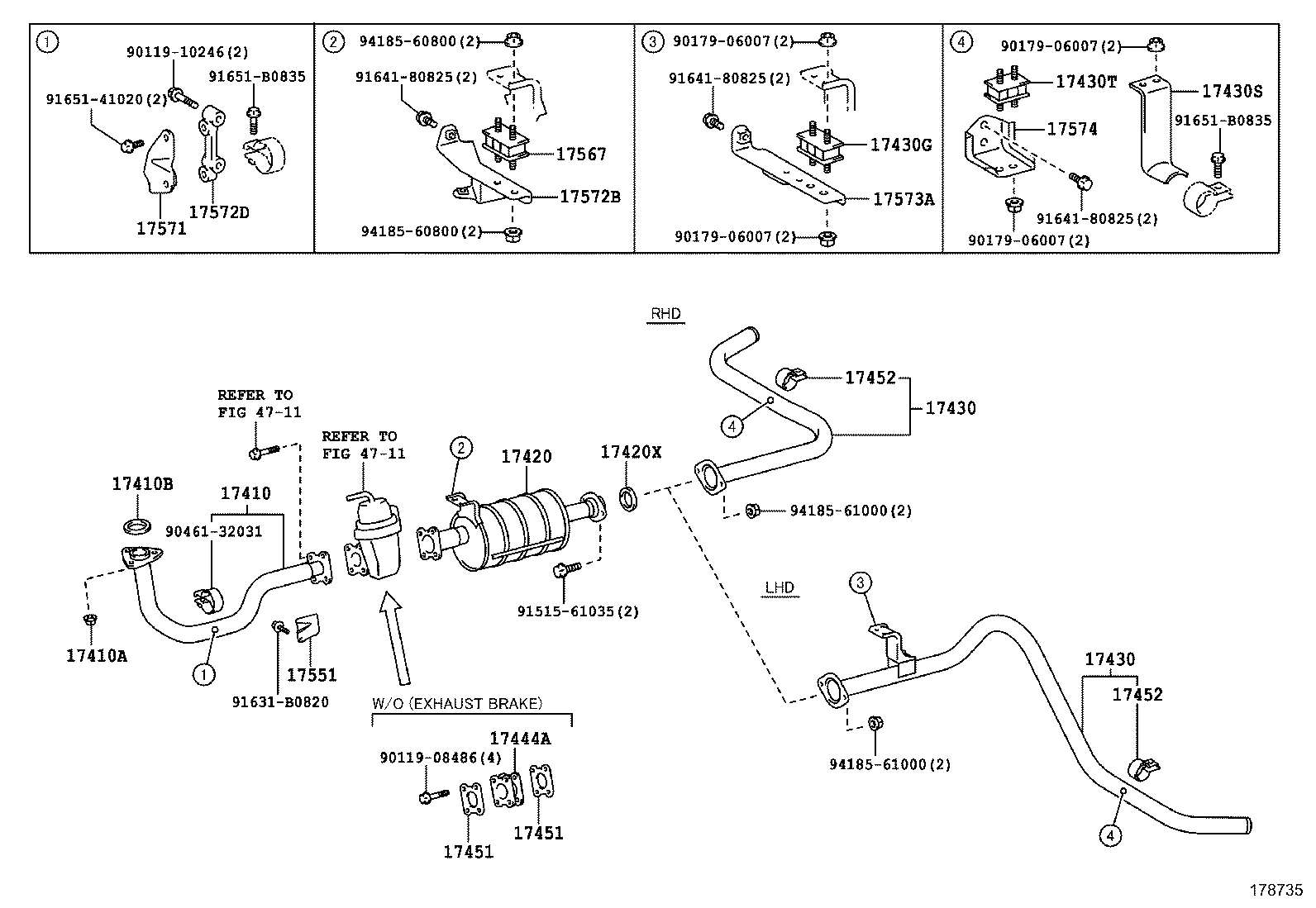

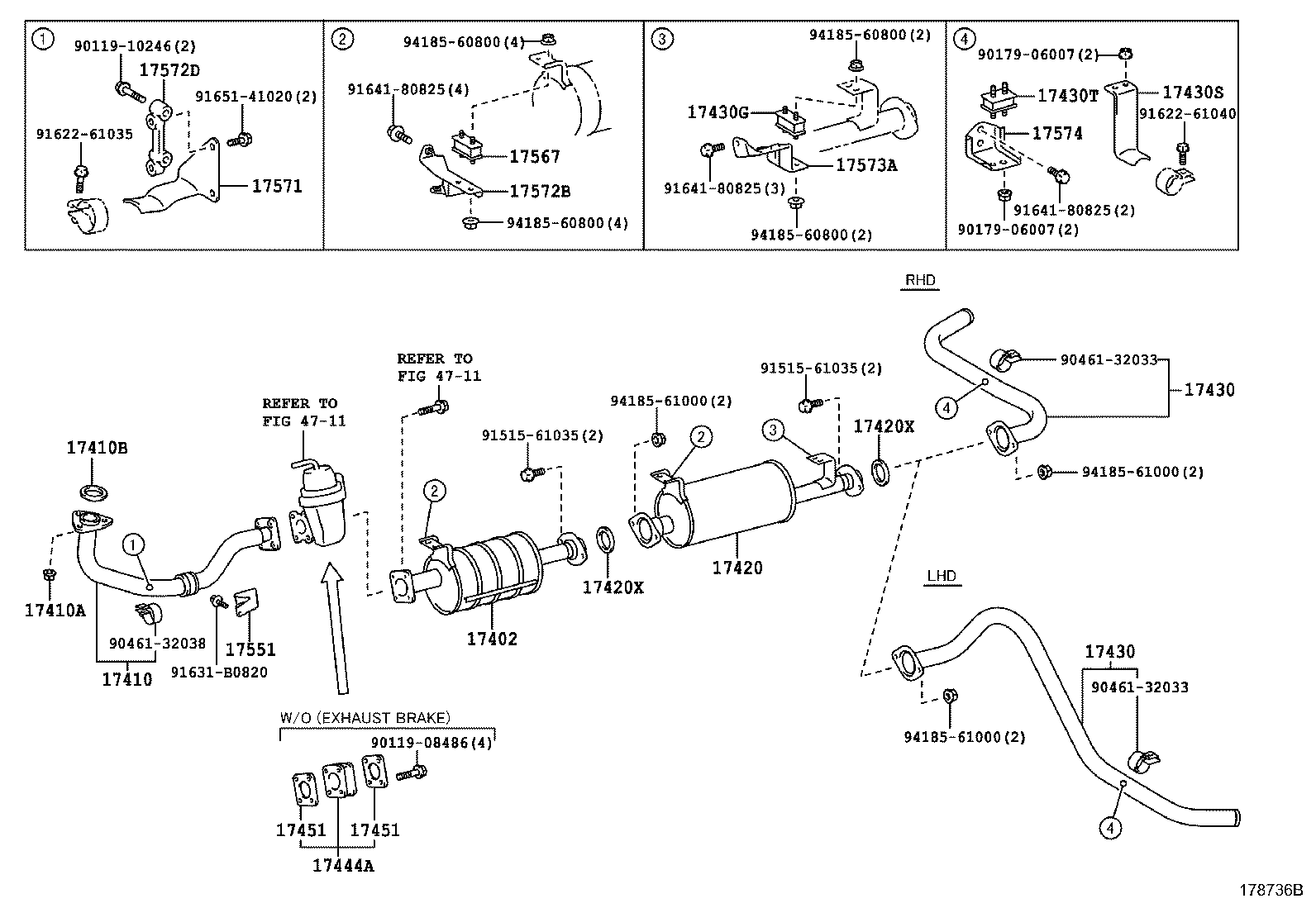

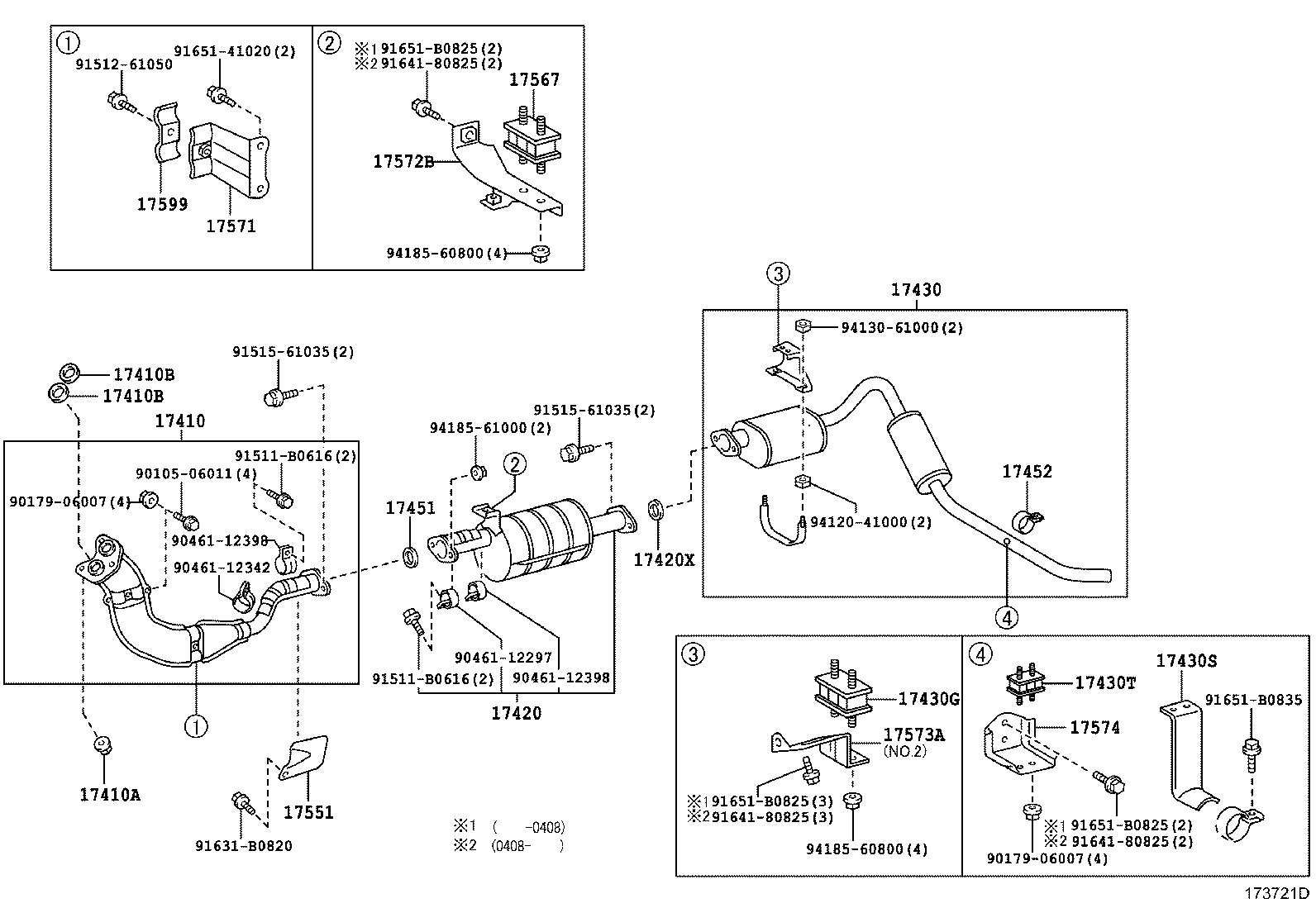

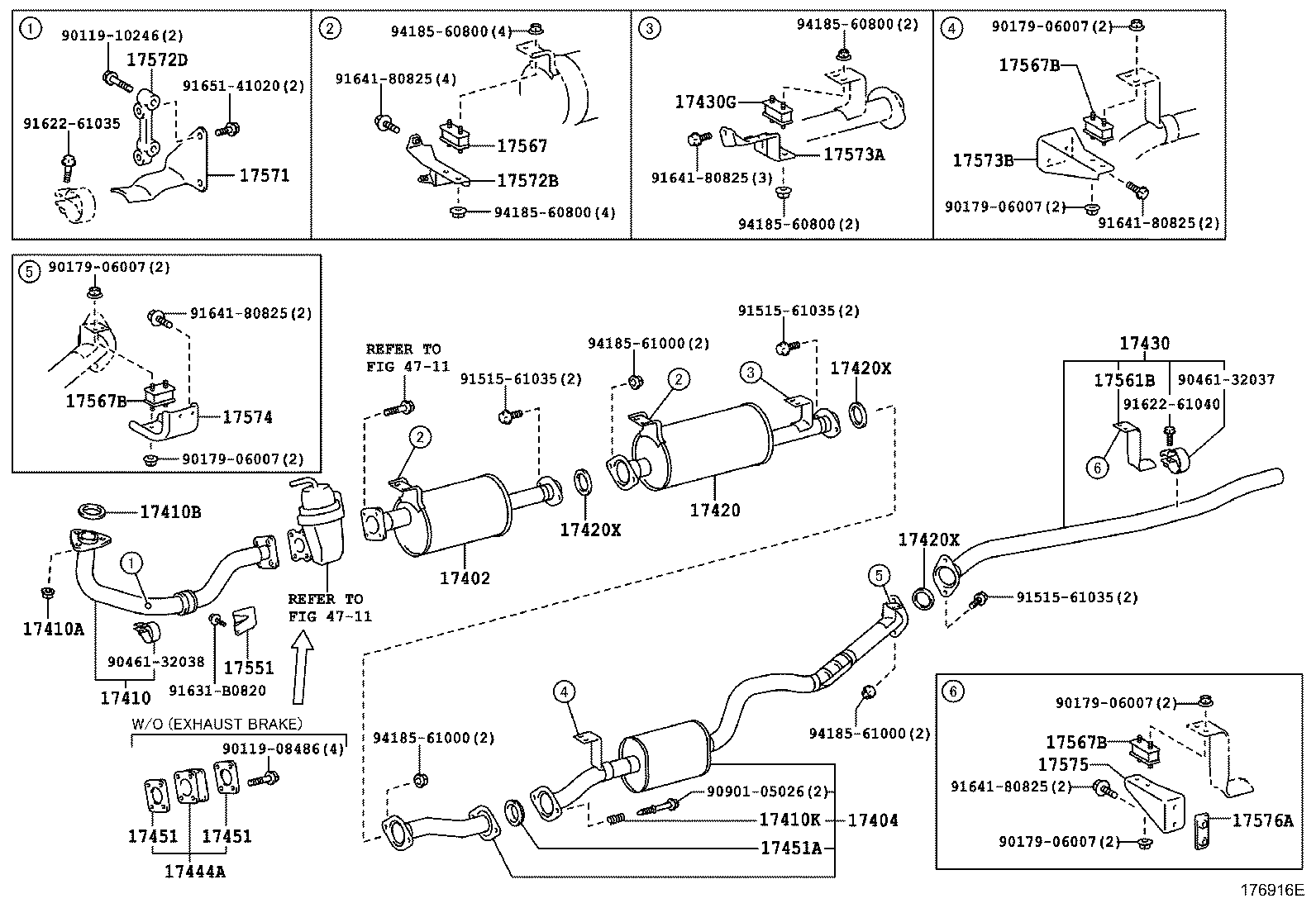

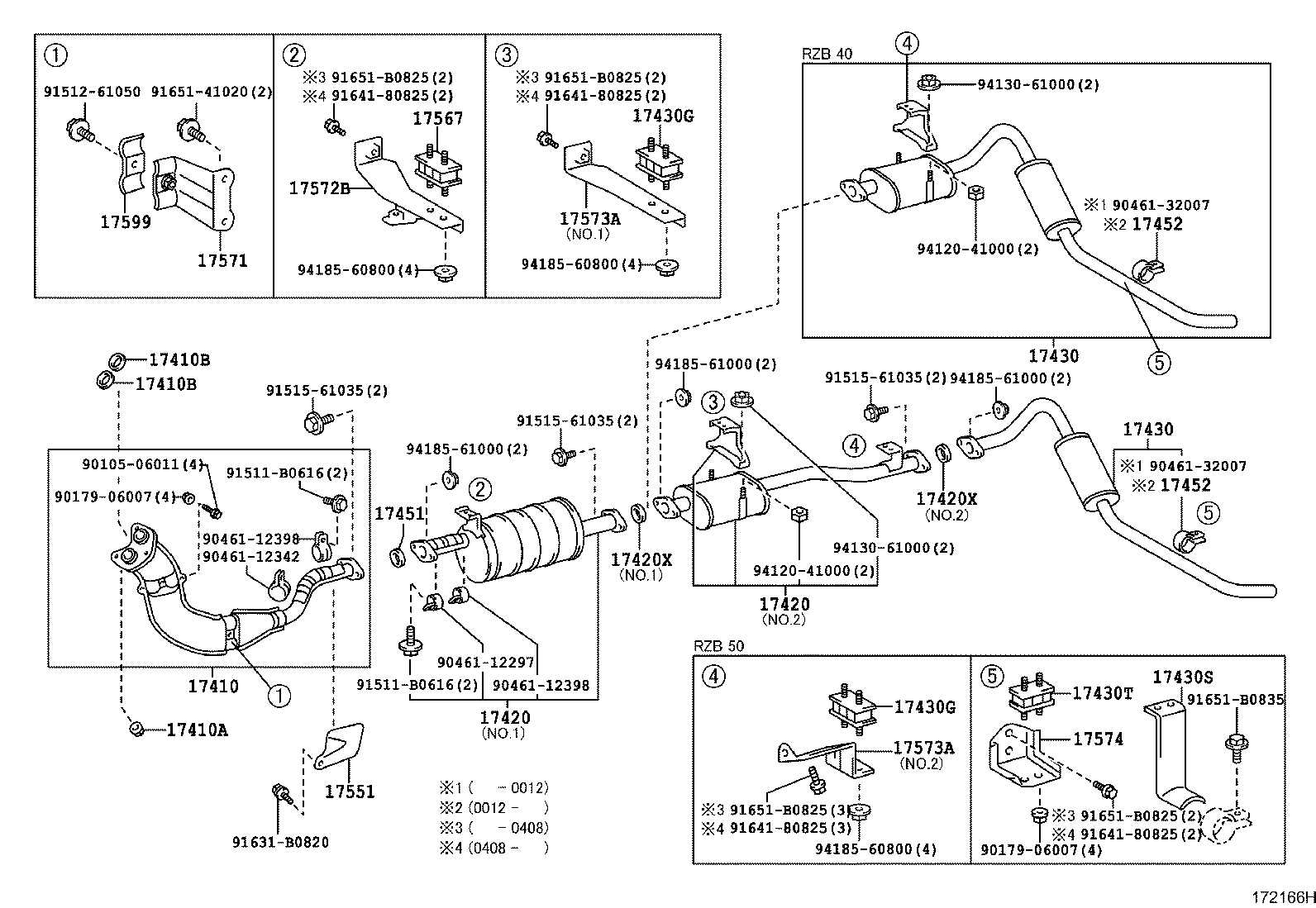

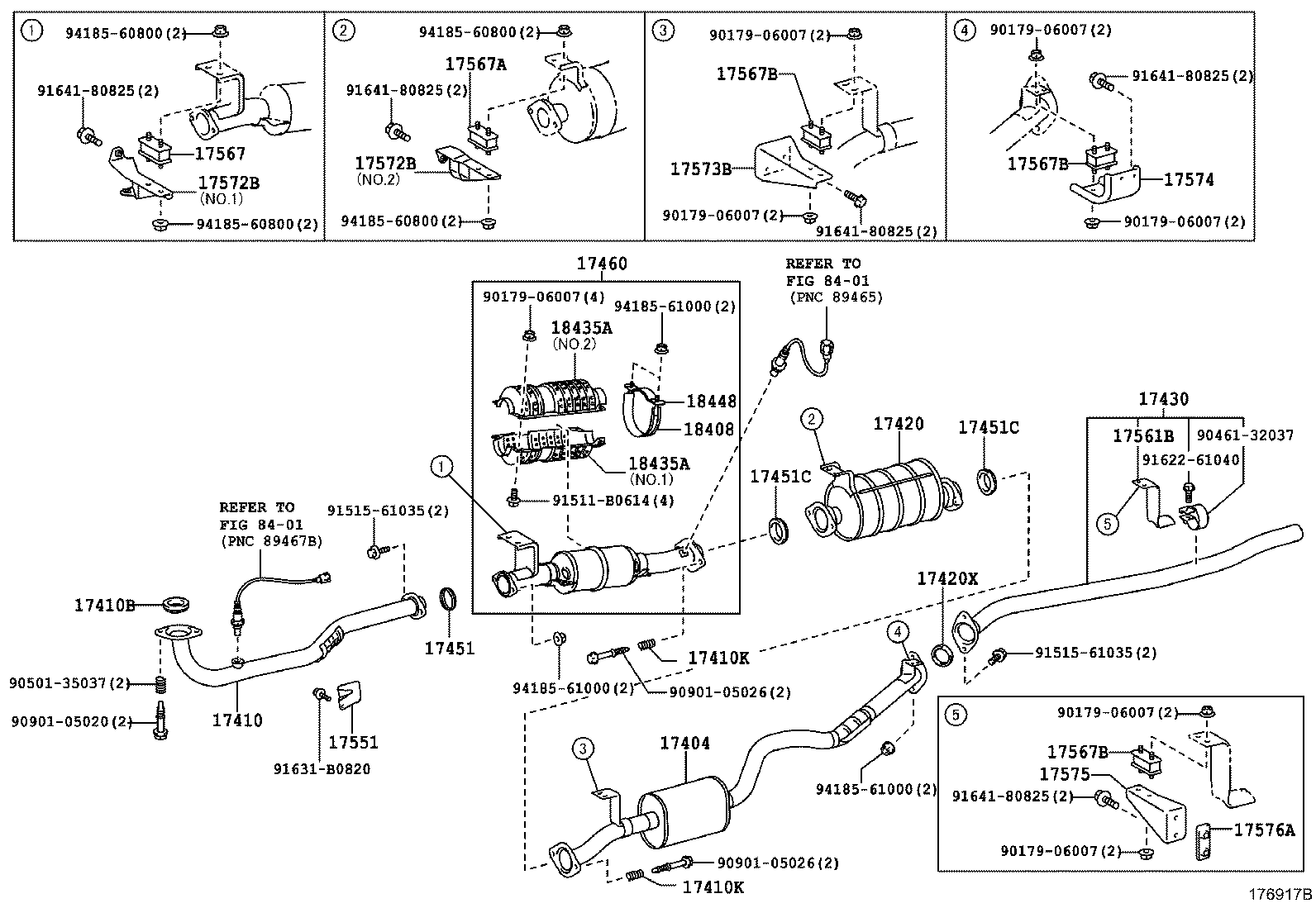

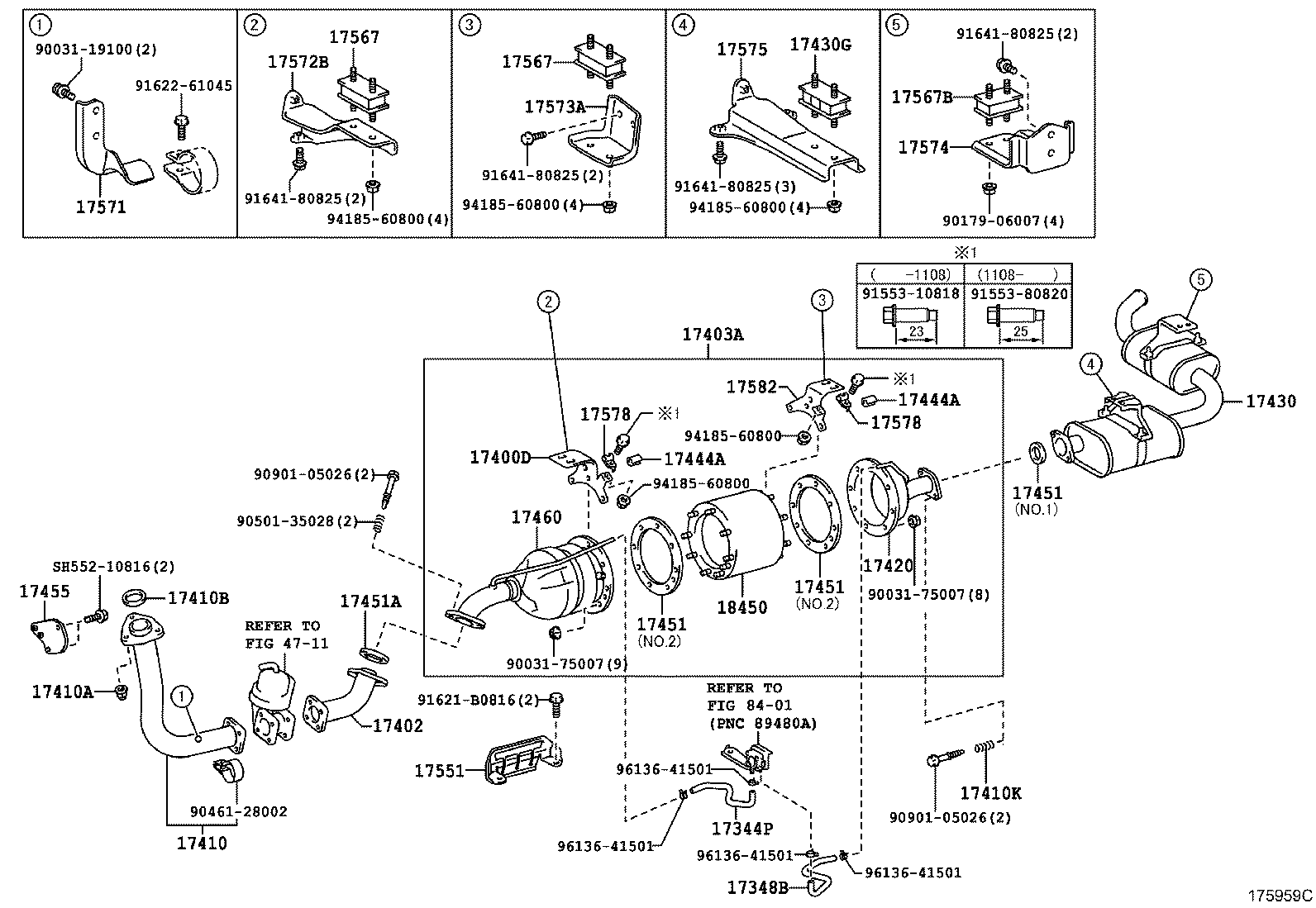

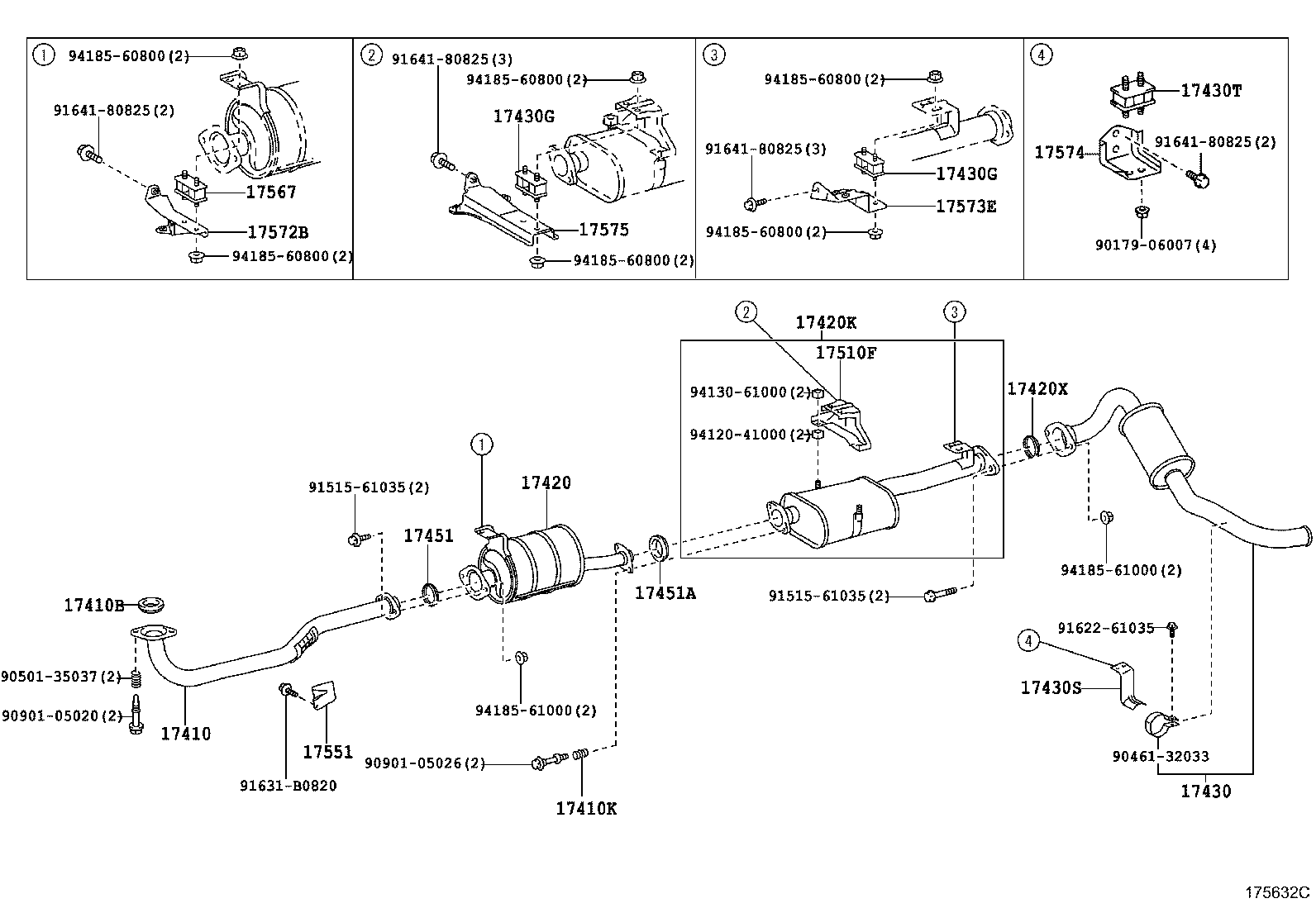

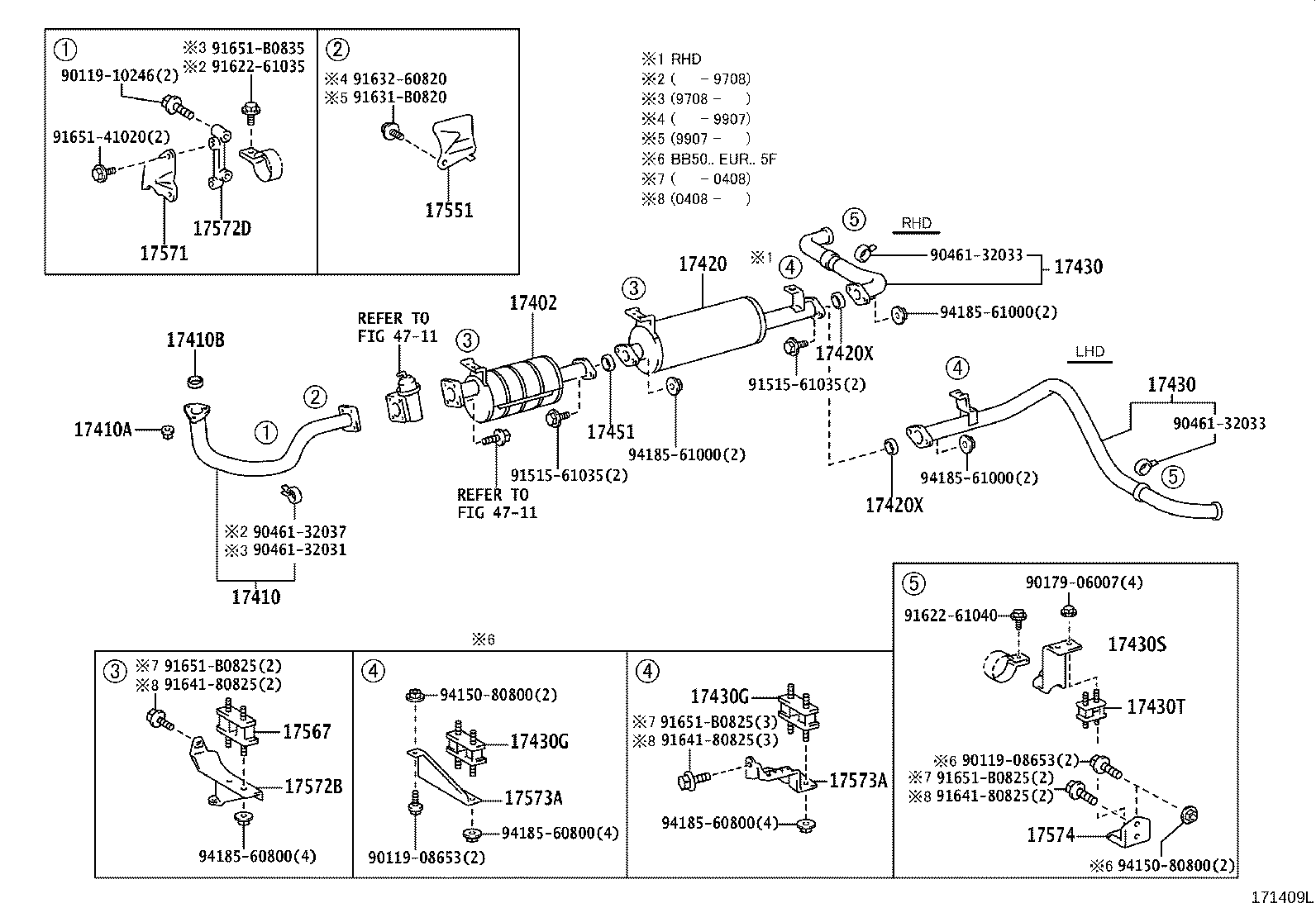

Figure 171408N 171408N 1993-01 → 2006-02 Figure 171408N 171408N 2006-02 → 2015-01 Figure 176915B 176915B 2006-02 → — Figure 171906O 171906O 1993-01 → 2006-02 Figure 171906O 171906O 2006-02 → 2015-01 Figure 176916E 176916E 2006-02 → — Figure 171386D 171386D 1993-08 → 1999-07 Figure 172166H 172166H 1999-07 → 2001-08 Figure 172166H 172166H 2001-08 → 2003-07 Figure 172166H 172166H 2003-07 → 2007-08 Figure 173721D 173721D 2001-08 → 2003-07 Figure 173721D 173721D 2003-07 → 2007-08 Figure 172810L 172810L 2000-12 → 2002-11 Figure 172810L 172810L 2003-07 → 2007-08 Figure 171409L 171409L 1996-05 → 2015-01 Figure 171528G 171528G 1998-02 → 2001-08 Figure 172167I 172167I 1999-07 → 2006-08 Figure 173040I 173040I 2001-08 → 2007-08 Figure 173247E 173247E 2002-11 → 2007-08 Figure 175522E 175522E 2007-08 → — Figure 175104F 175104F 2006-08 → — Figure 176917B 176917B 2007-08 → — Figure 175631B 175631B 2007-08 → — Figure 176918B 176918B 2007-08 → — Figure 175632C 175632C 2007-08 → — Figure 175959C 175959C 2008-03 → — Figure 178735 178735 2015-01 → — Figure 178736B 178736B 2015-01 → — Figure 178737 178737 2015-01 → — Figure 178738 178738 2015-01 → —

Part groups

PNCDescription
17344P Hose, Air, NO.4(FOR EXHAUST PIPE)
17348B Hose, Air, NO.8(FOR EXHAUST PIPE)
17400D Bracket, Catalytic Converter Support
17402 Pipe Sub-assy, Exhaust, Front NO.2
17403A Pipe Sub-assy, Exhaust, Center NO.2
17404 Pipe Sub-assy, Exhaust Forked
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410K Spring, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420K Pipe Assy, Exhaust, Center NO.2
17420R Clamp NO.2, Exhaust Pipe Center, Center
17420S Bracket, Exhaust Pipe Center, Rear
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430W Clamp NO.2, Exhaust Tailpipe (FOR REAR)
17444A Spacer, Exhaust Front Pipe
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17451C Gasket, Exhaust Pipe, NO.3
17452 Clamp, Exhaust Pipe
17455 Bracket, Exhaust Pipe
17460 Converter Assy, Catalytic W/Pipe
17510F Bracket, Muffler, Rear
17523 Protector, Exhaust Pipe, Upper NO.3
17551 Insulator, Exhaust Pipe Heat, NO.1
17561B Support, Exhaust Pipe, NO.1
17567 Cushion, Exhaust Pipe Support
17567A Cushion, Exhaust Pipe Support, NO.2
17567B Cushion, Exhaust Pipe Support, NO.3
17571 Bracket, Exhaust Pipe Support, NO.1
17572B Bracket, Exhaust Pipe Support, NO.2
17572D Bracket, Exhaust Pipe Support, NO.1
17573A Bracket, Exhaust Pipe Support, NO.3
17573B Bracket, Exhaust Pipe Support, NO.5
17573E Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17576A Bracket, Exhaust Pipe Support, NO.6
17578 Clamp, Pipe
17582 Bracket, Catalytic Converter Support, Upper
17599 Holder, Exhaust Pipe Support Stopper
18408 Band Sub-assy, Convertor Protector Support
18435A Protector, Monolithic Converter
18448 Bracket, Converter Protector, Center
18450 Converter Assy, Monolithic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
