Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

48 part groups · 32 illustrations

Illustrations

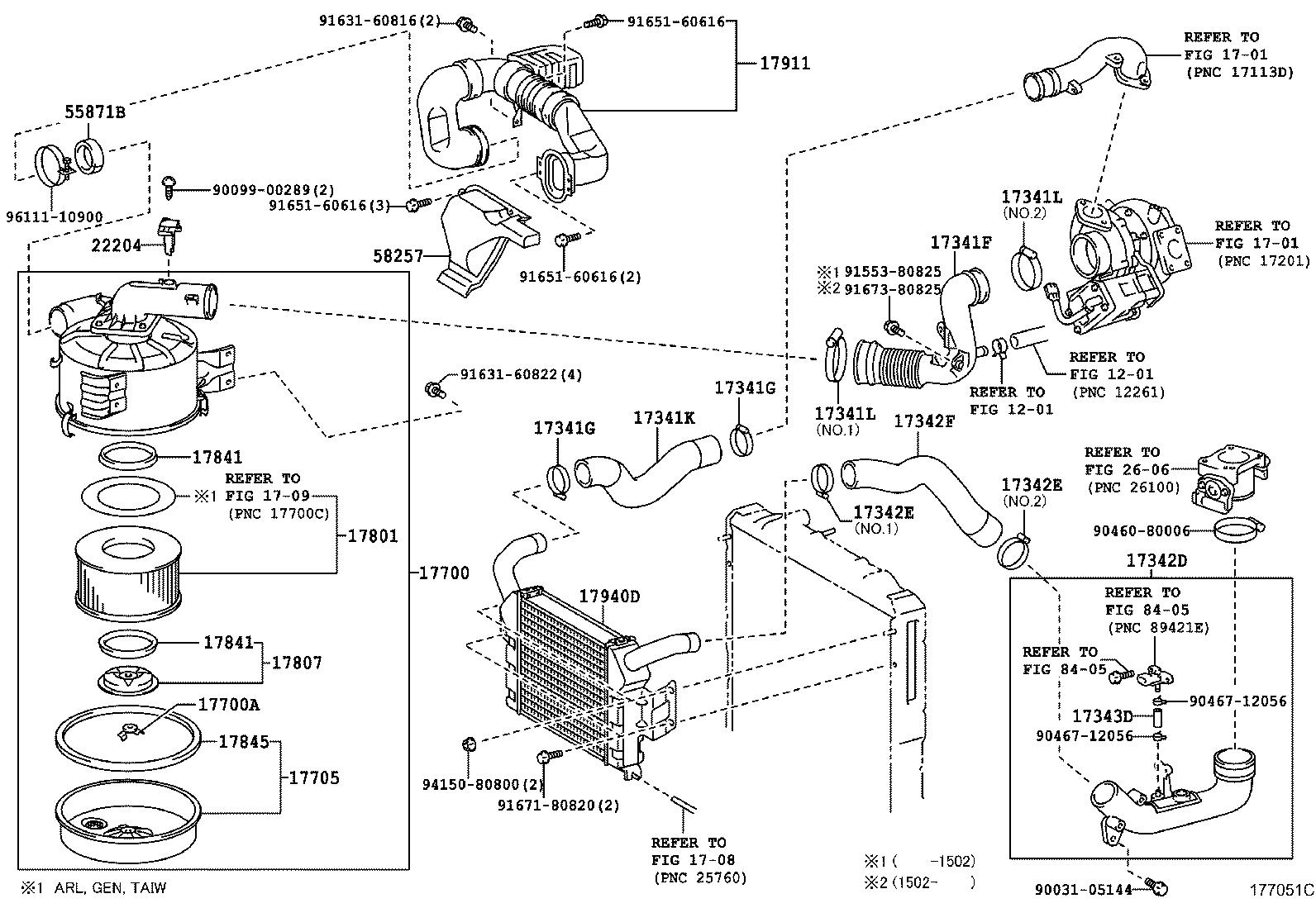

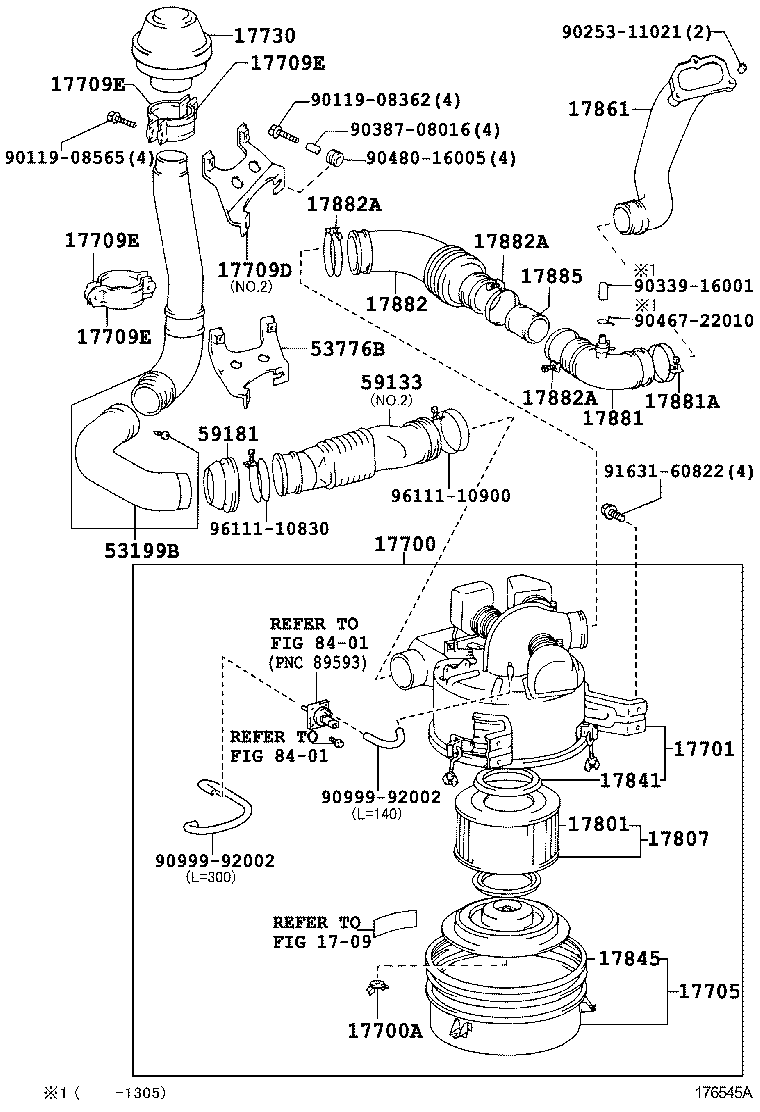

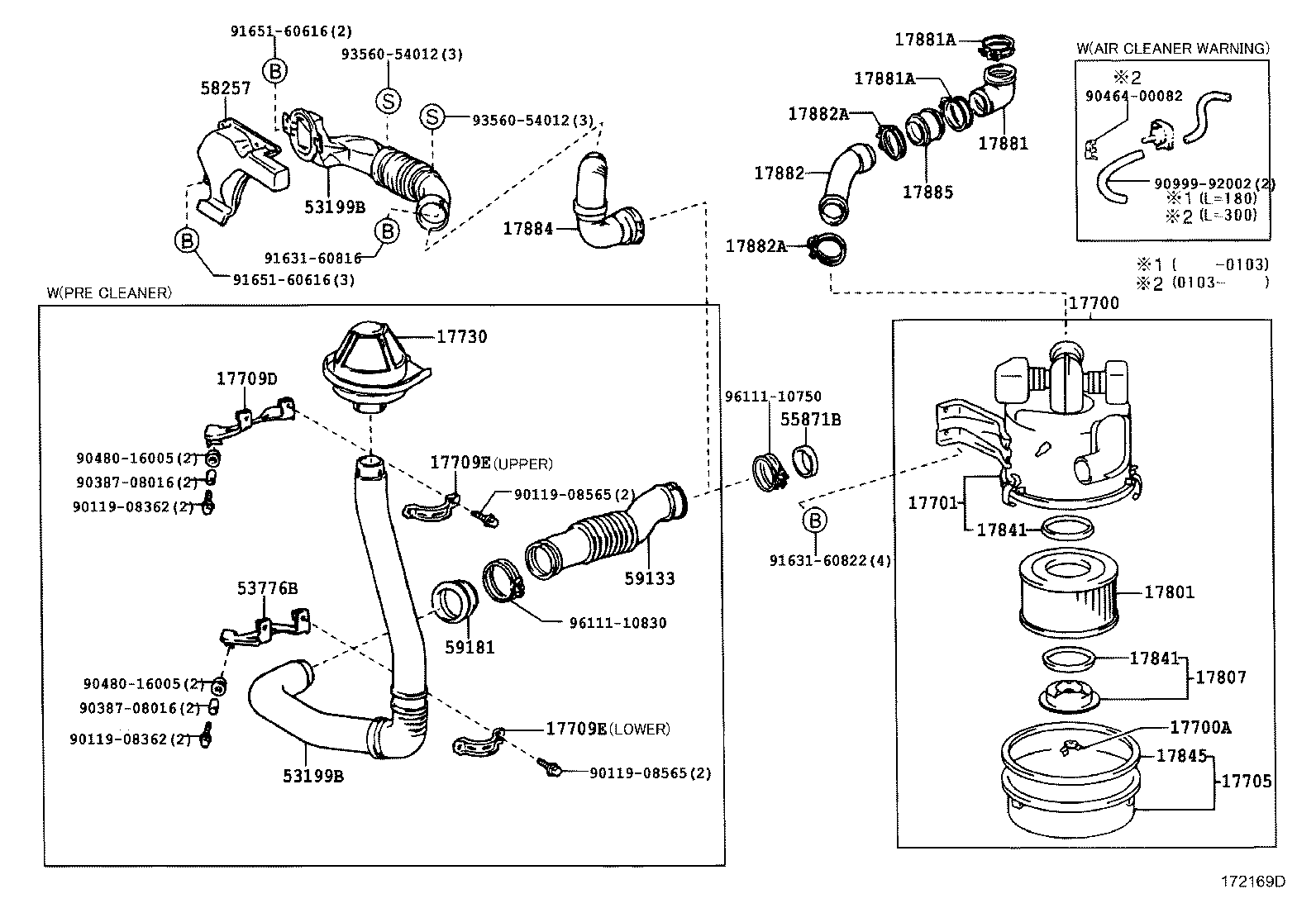

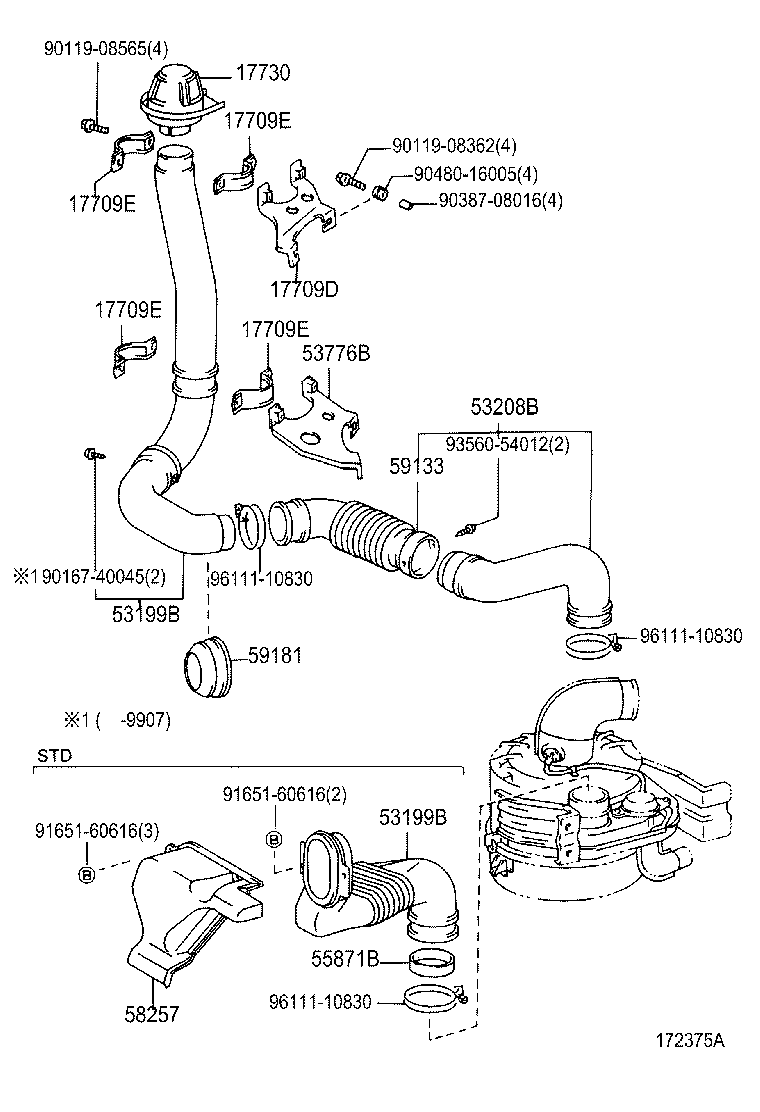

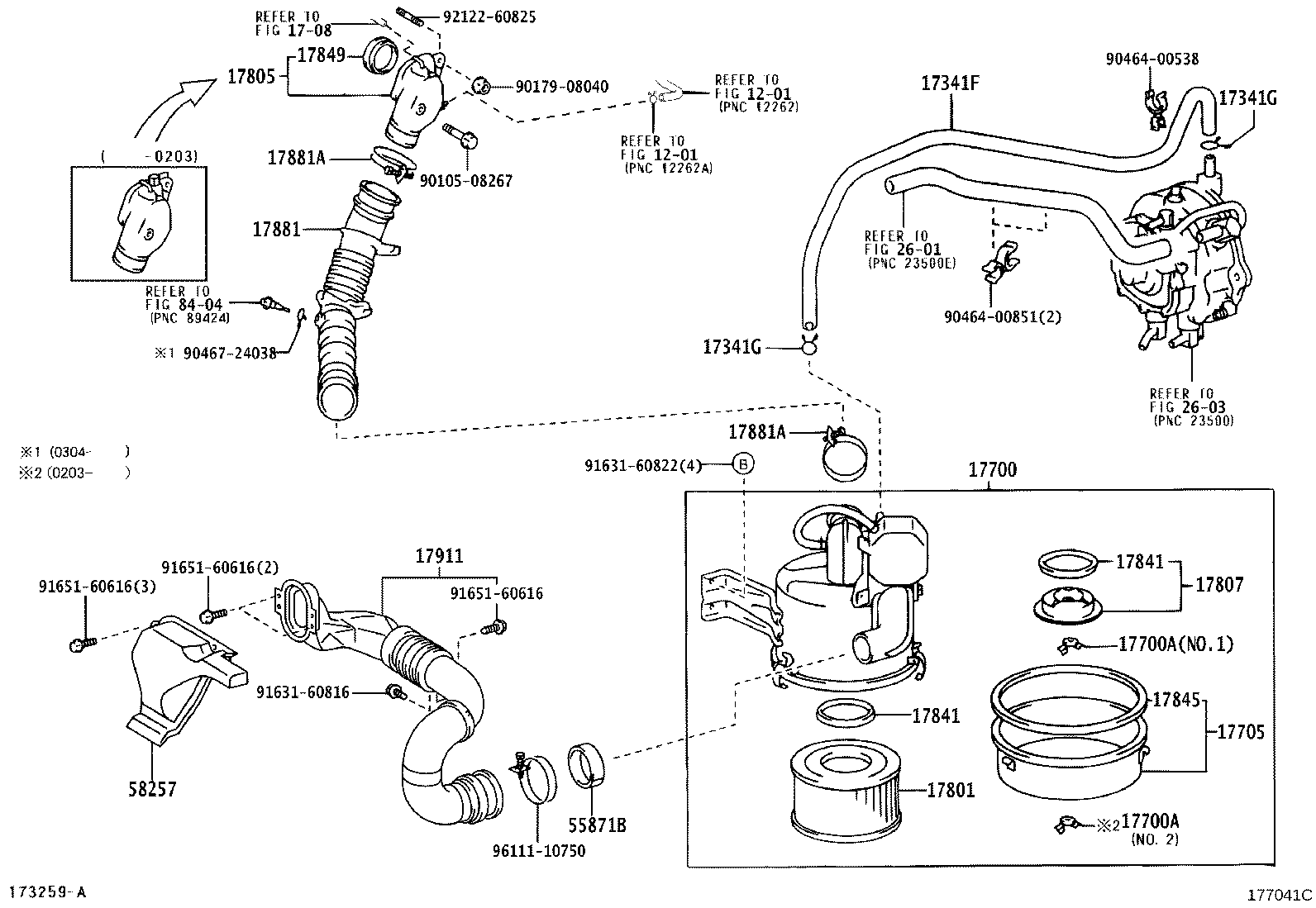

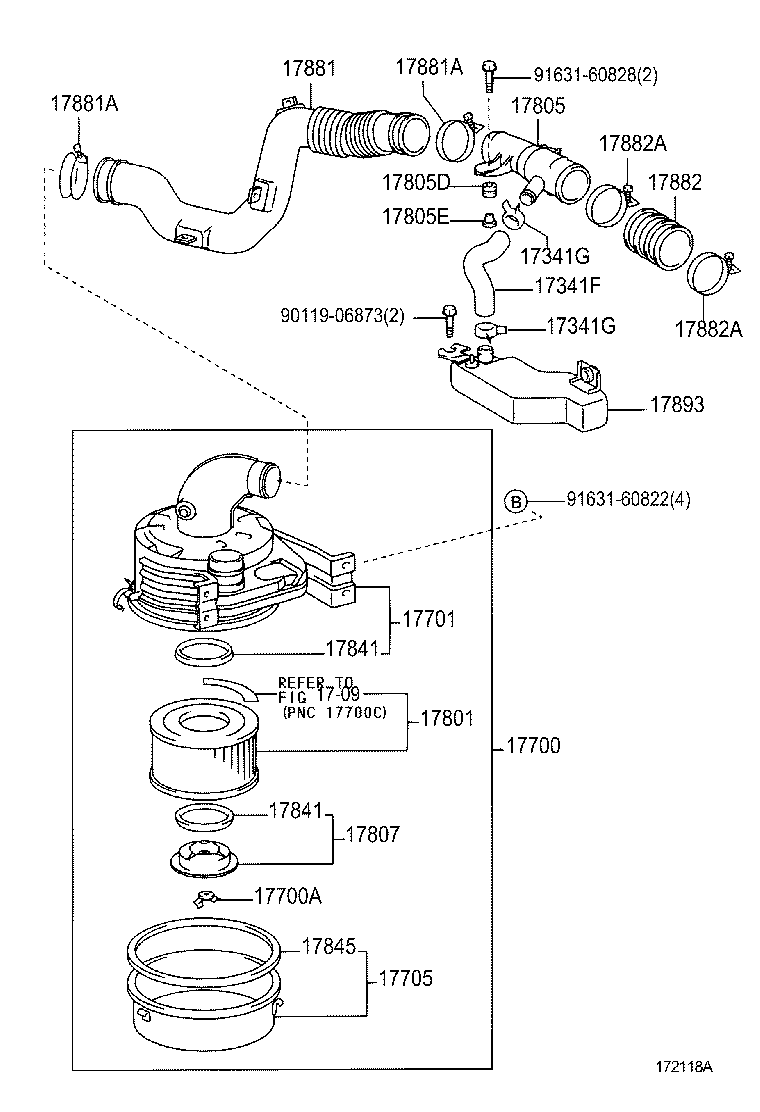

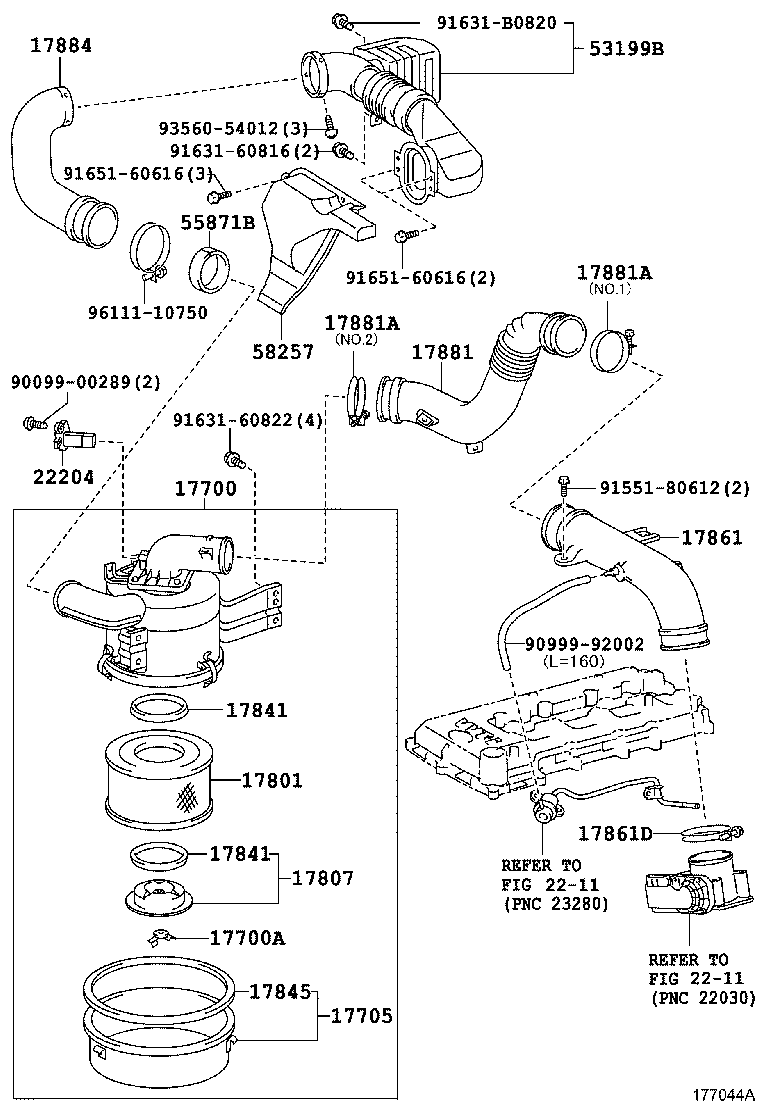

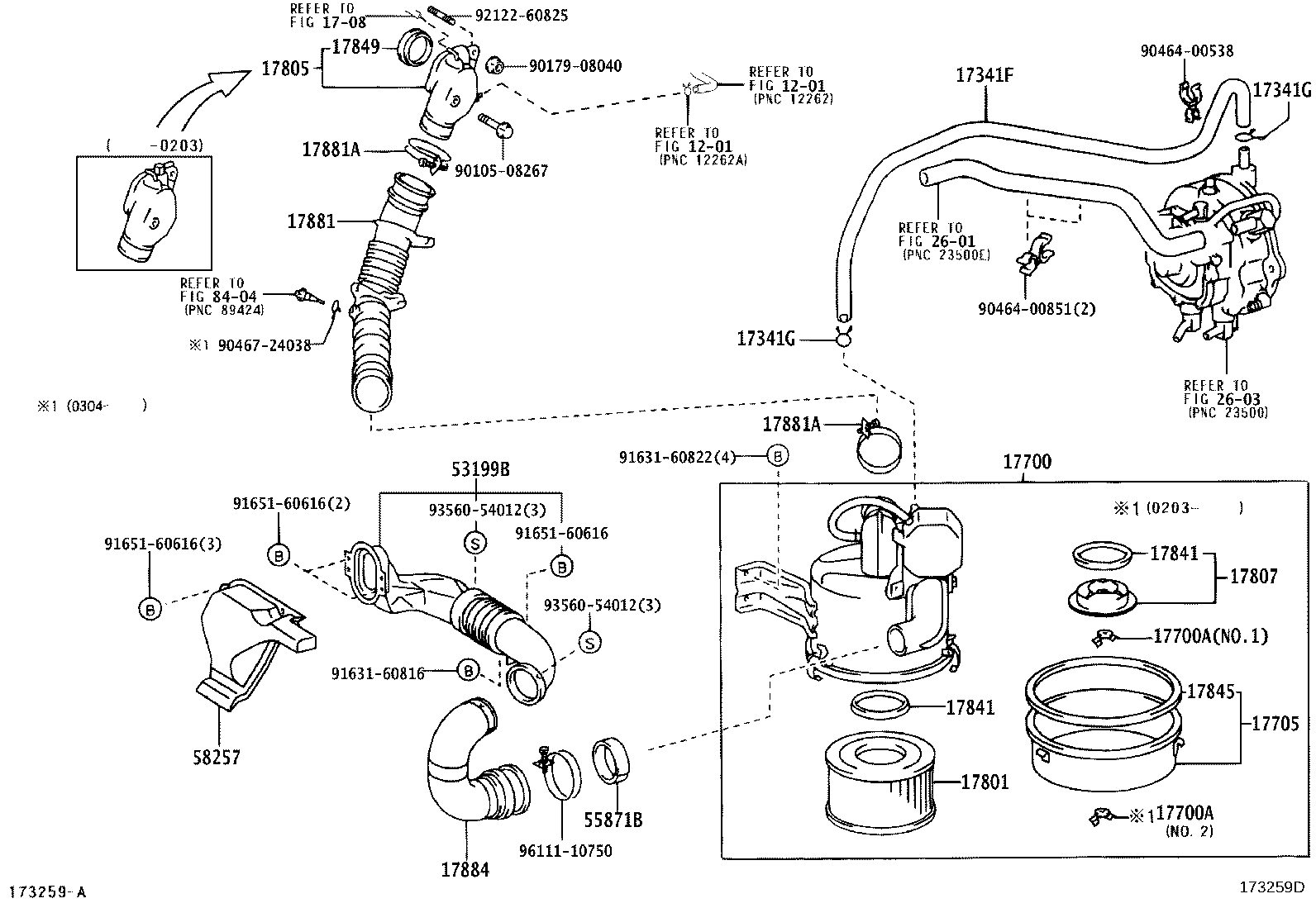

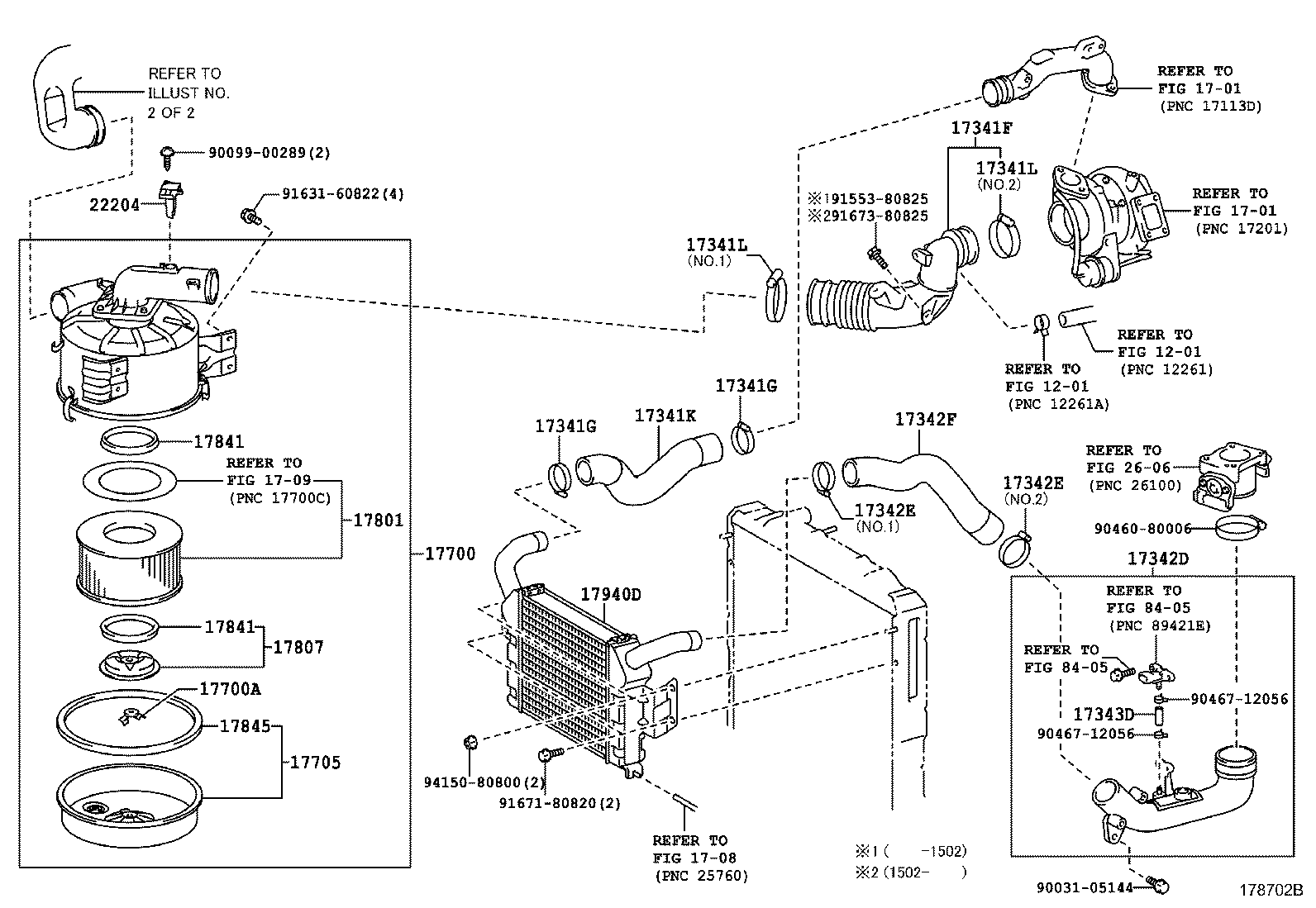

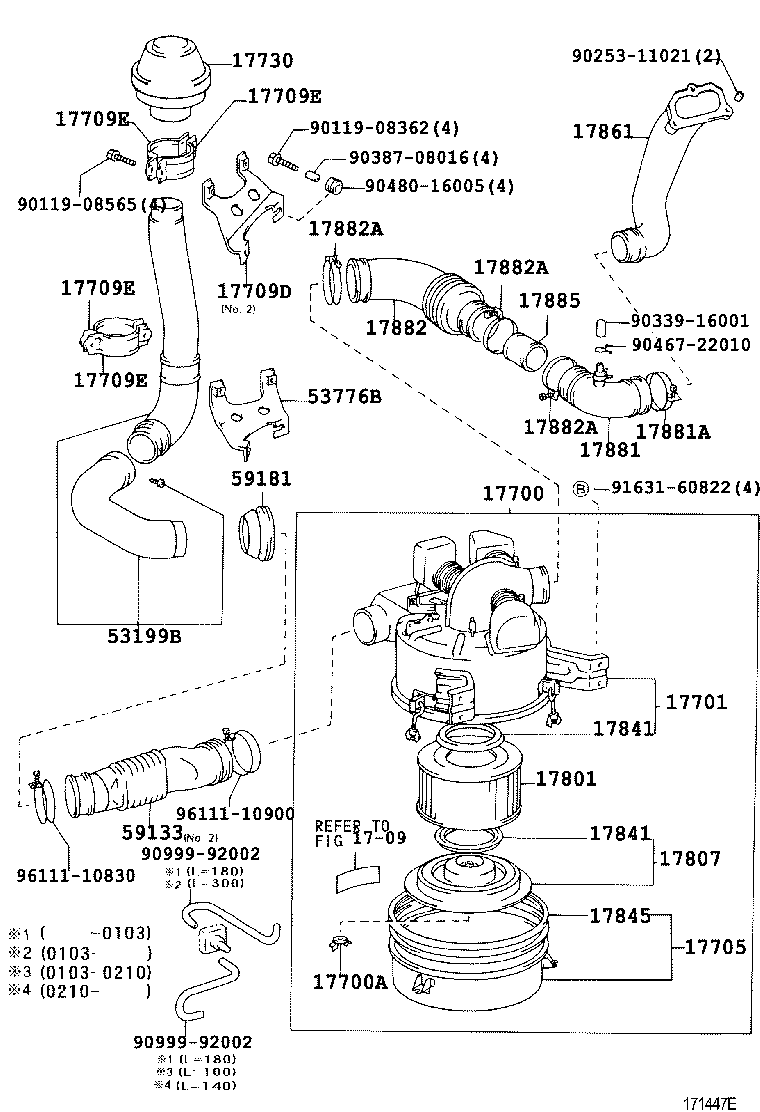

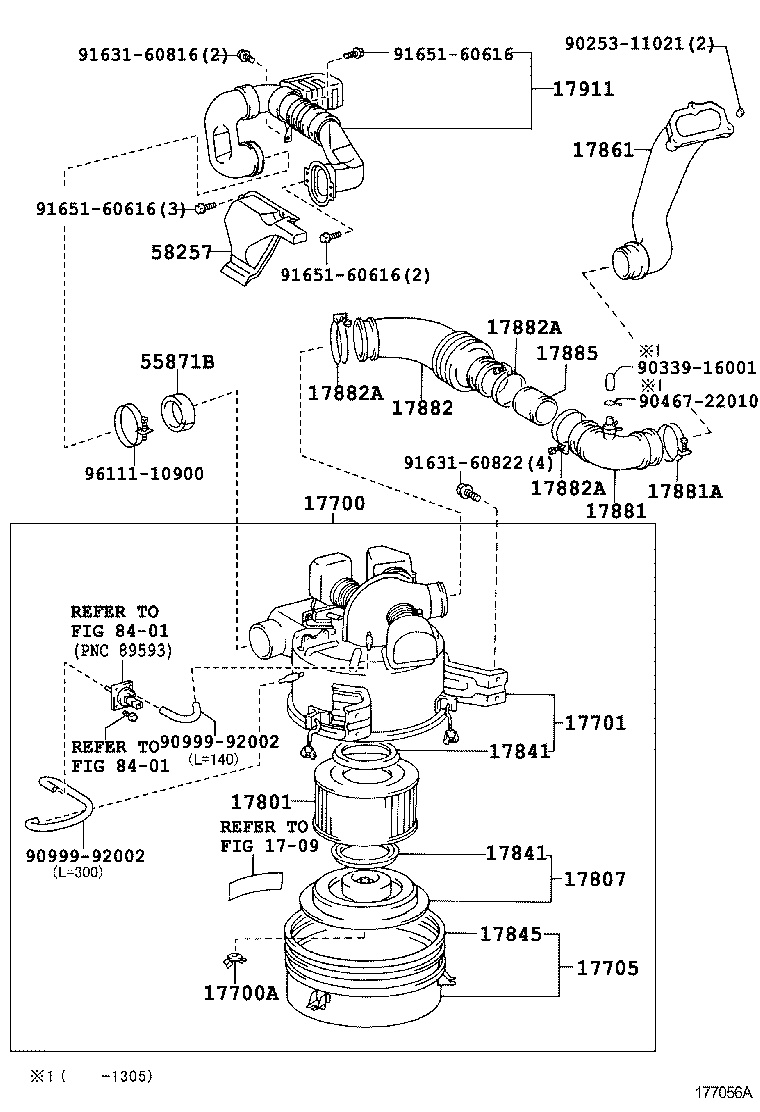

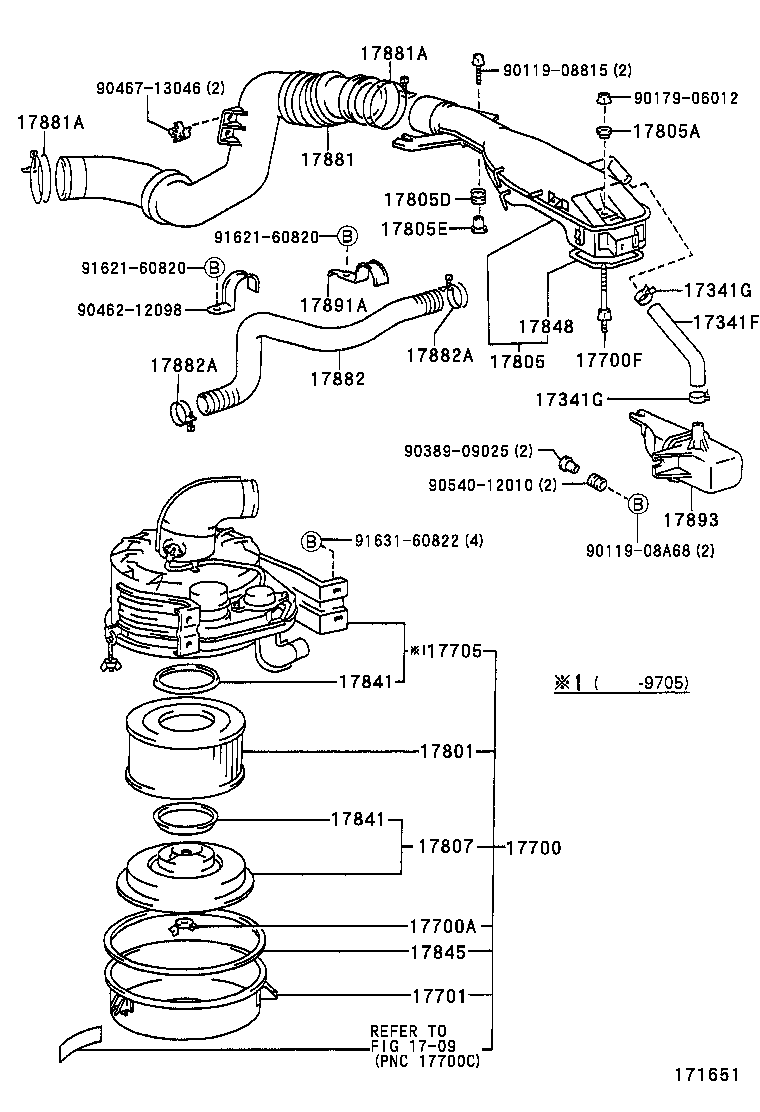

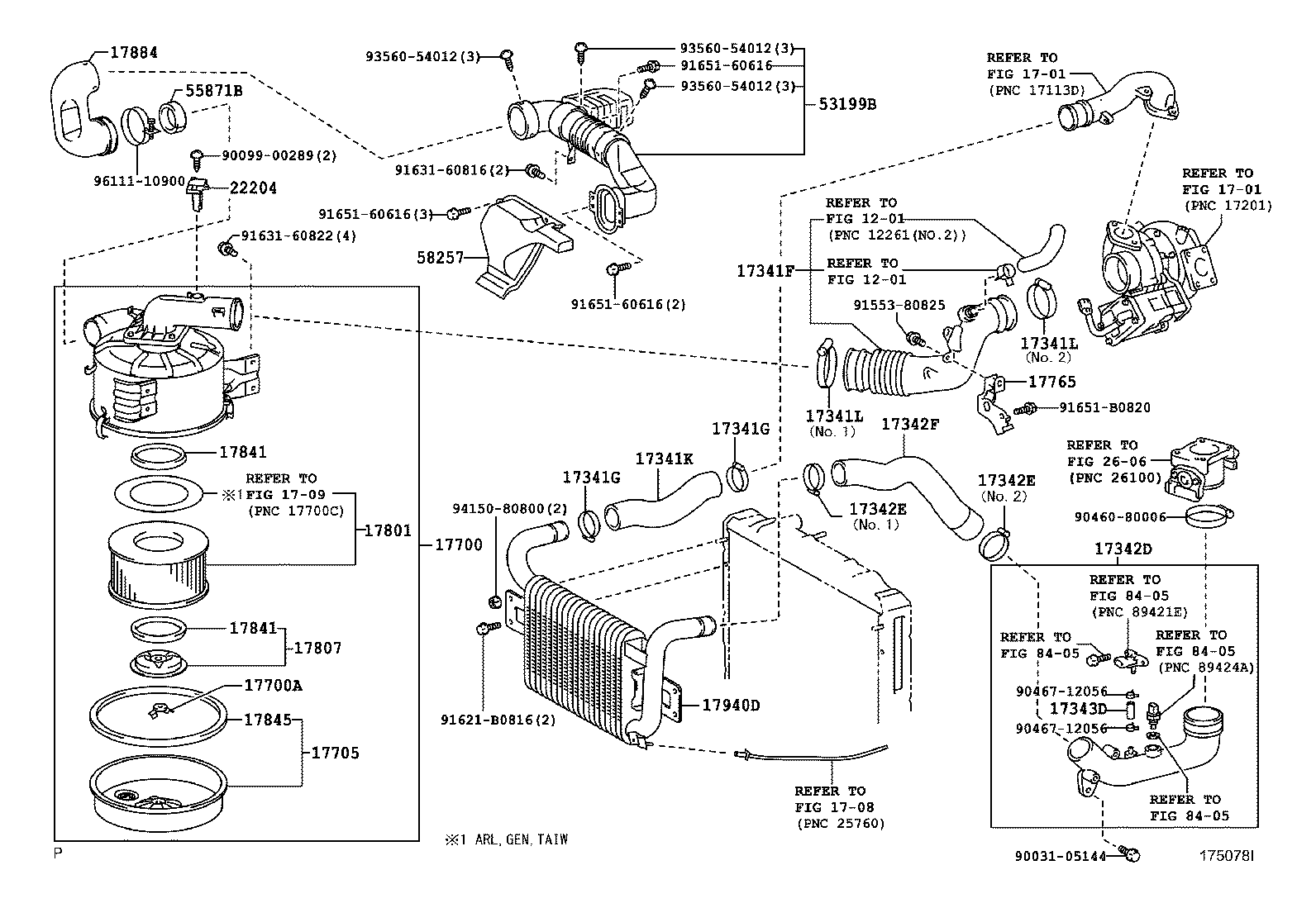

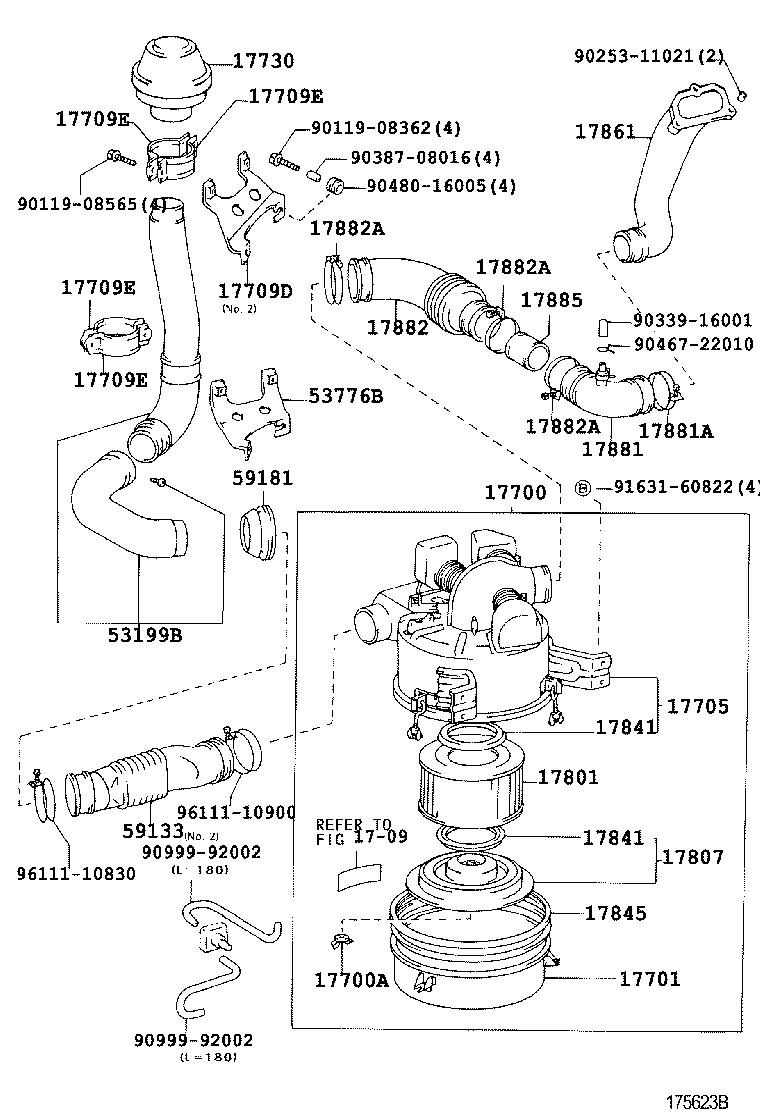

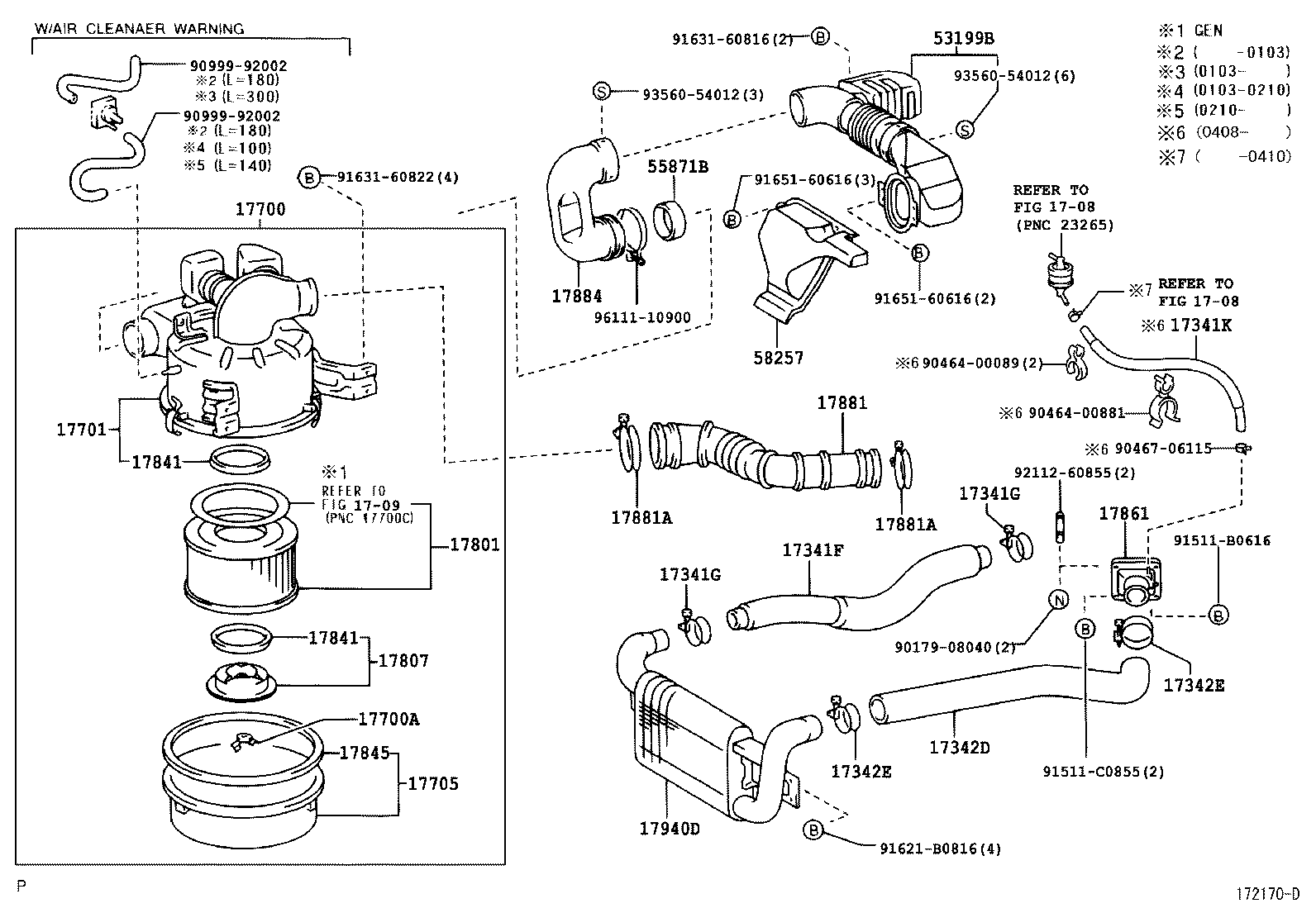

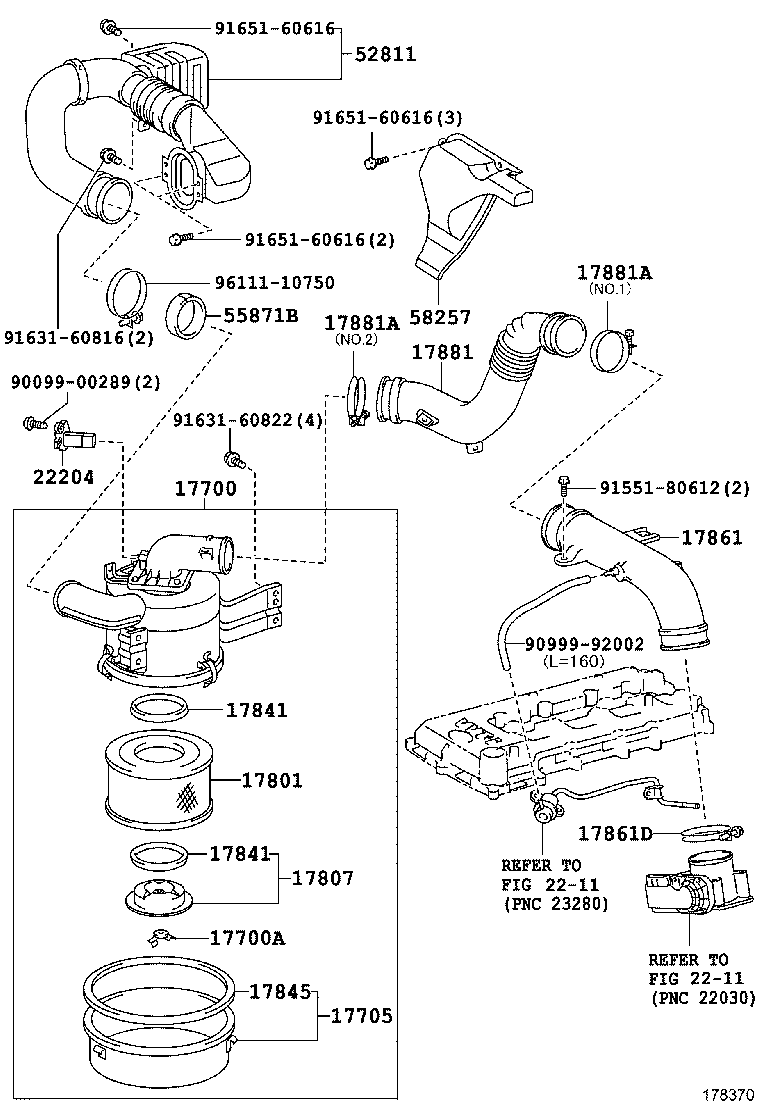

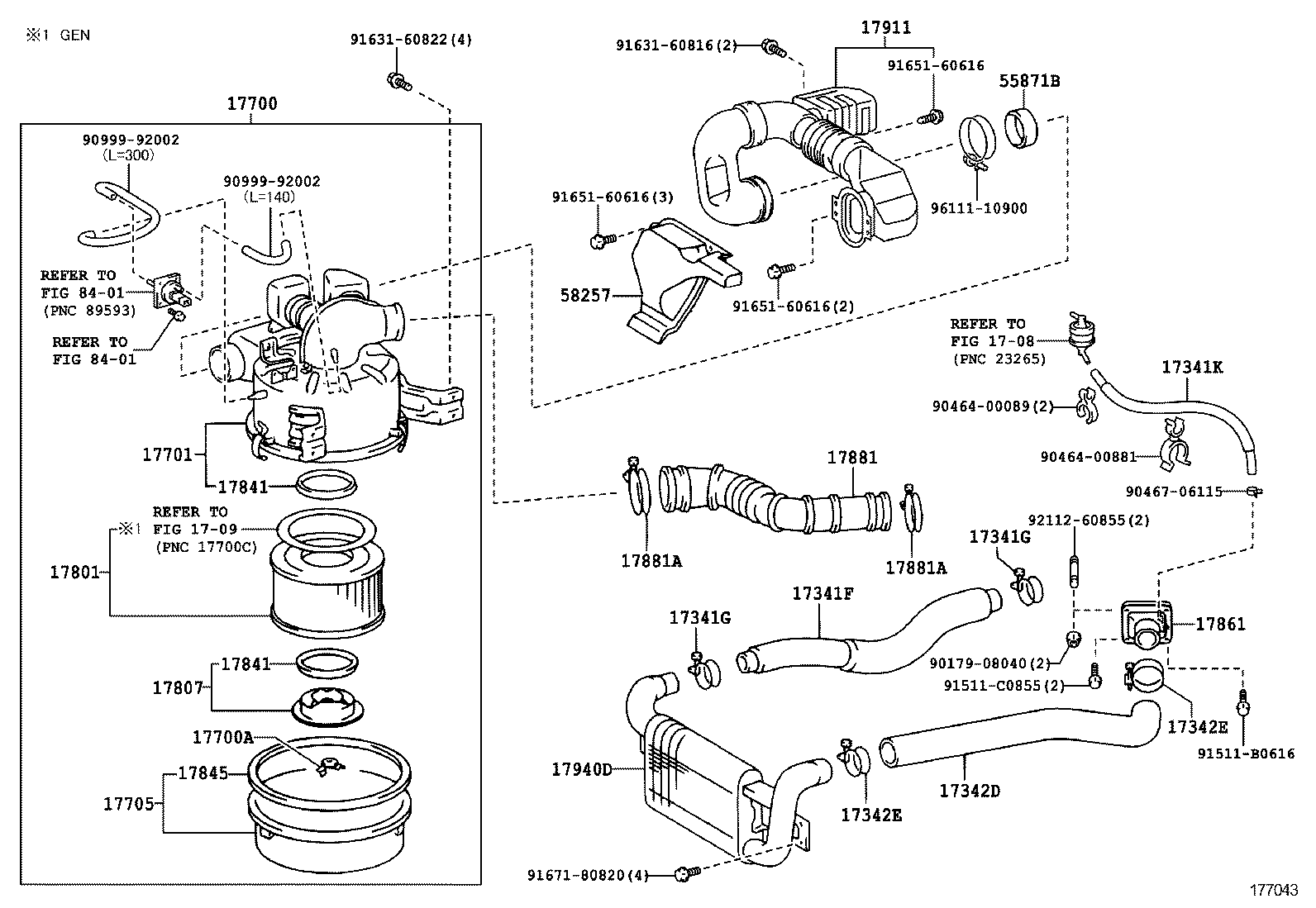

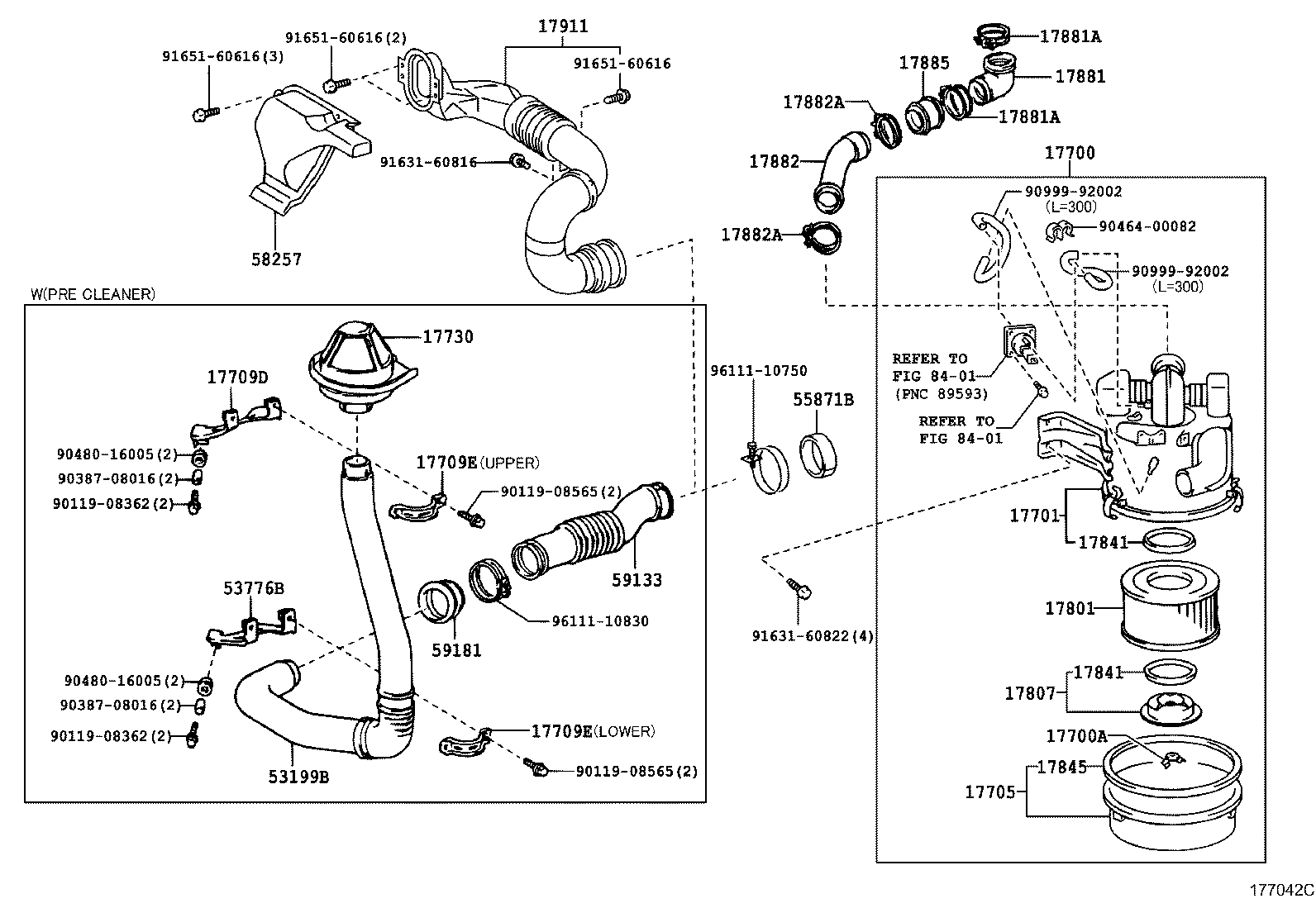

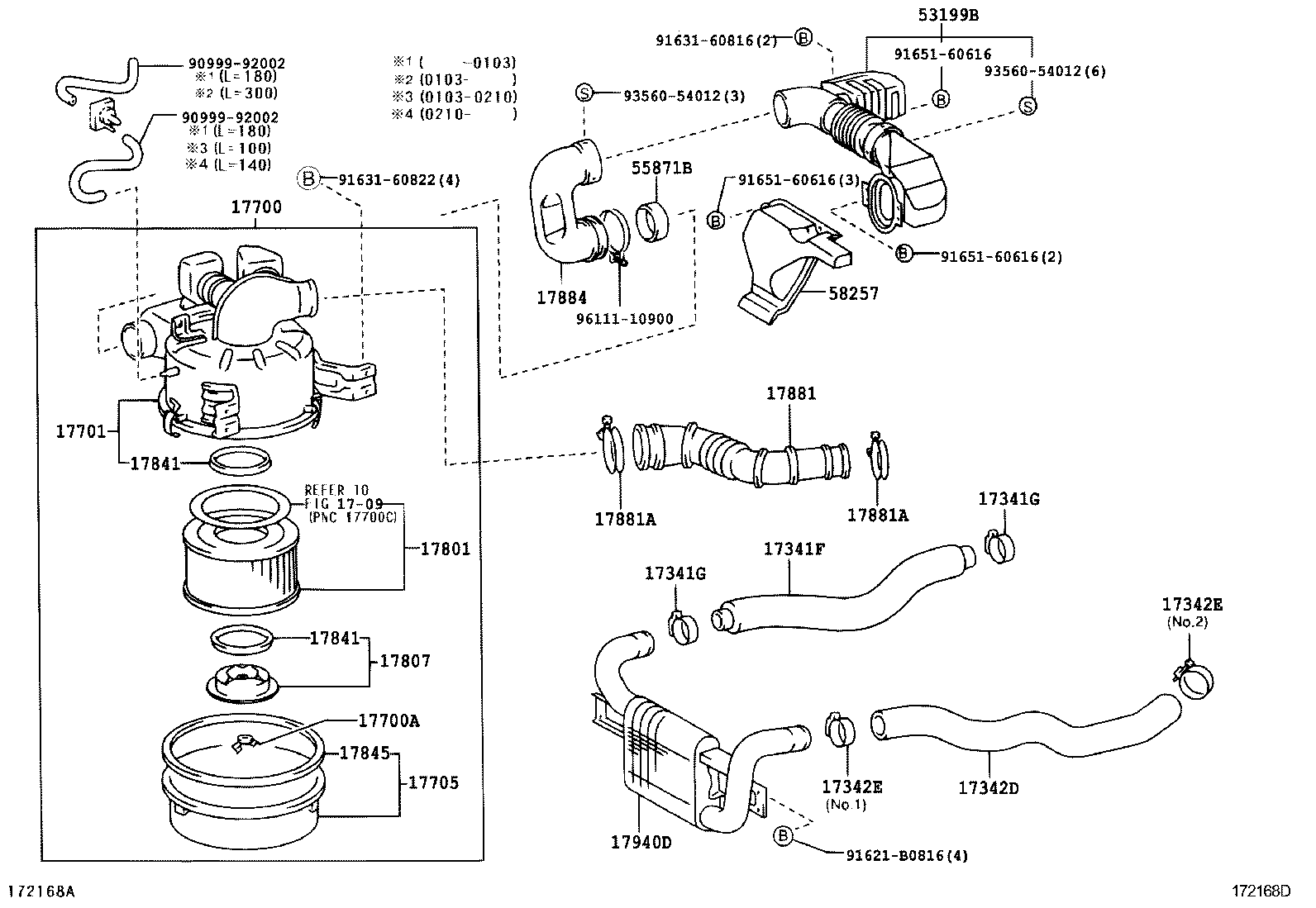

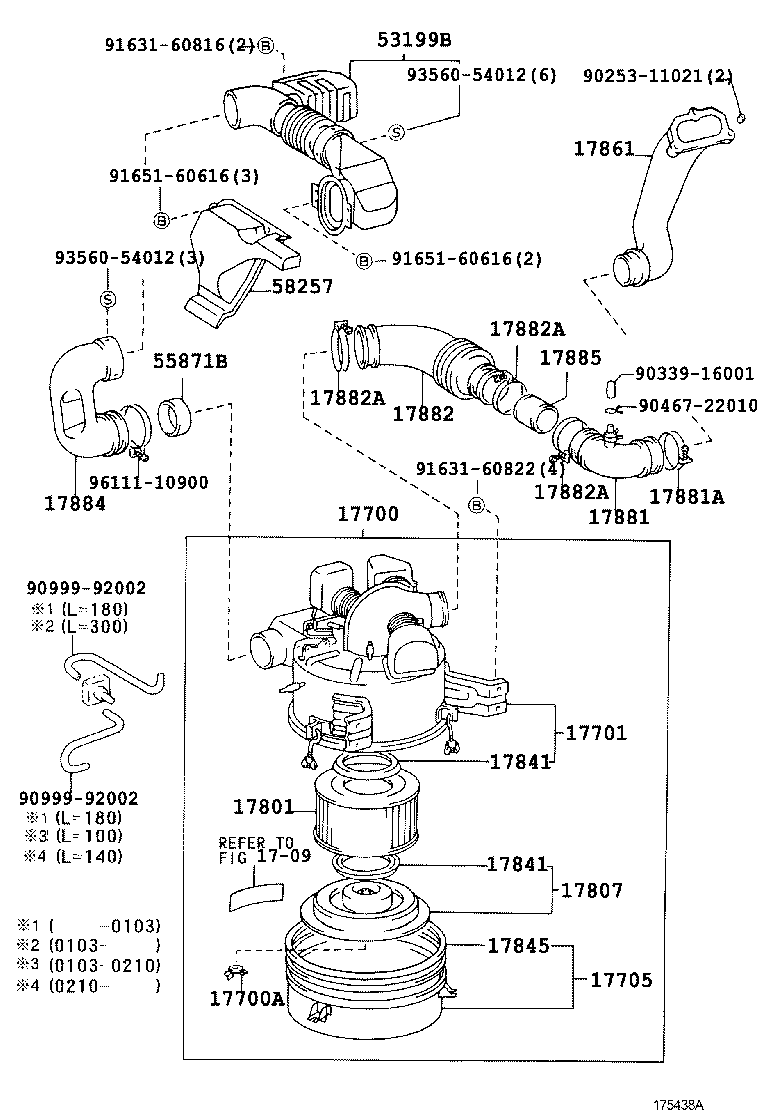

Figure 171393C 171393C 1993-01 → 1999-07 Figure 172169D 172169D 1999-07 → 2009-08 Figure 176502D 176502D 2009-08 → 2011-08 Figure 177042C 177042C 2011-08 → — Figure 171394B 171394B 1996-05 → 1999-07 Figure 172170D 172170D 1999-07 → 2009-08 Figure 176503B 176503B 2009-08 → 2011-08 Figure 177043 177043 2011-08 → — Figure 172171B 172171B 1999-07 → — Figure 172168D 172168D 1999-07 → 2006-08 Figure 173259D 173259D 2001-08 → 2011-08 Figure 177041C 177041C 2011-08 → — Figure 171446F 171446F 1993-01 → 1999-07 Figure 175623B 175623B 1993-01 → 1999-07 Figure 175438A 175438A 1999-07 → 2009-08 Figure 171447E 171447E 1999-07 → 2009-08 Figure 176544 176544 2009-08 → 2011-08 Figure 177056A 177056A 2011-08 → — Figure 176545A 176545A 2009-08 → — Figure 176492 176492 1993-01 → 1996-05 Figure 171651 171651 1993-09 → 1999-07 Figure 172118A 172118A 1999-07 → 2007-08 Figure 172375A 172375A 1993-09 → 2007-08 Figure 177044A 177044A 2007-08 → 2011-08 Figure 178370 178370 2011-08 → — Figure 175613A 175613A 2007-08 → — Figure 175078I 175078I 2006-08 → 2009-08 Figure 176501D 176501D 2009-08 → 2011-08 Figure 176501D 176501D 2011-08 → — Figure 177051C 177051C 2011-08 → — Figure 178702B 178702B 2015-01 → — Figure 178703 178703 2015-01 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17341L Clamp, Hose
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17709D Bracket, Air Cleaner Inlet, NO.1
17709E Bracket, Air Cleaner Inlet, NO.2
17730 Precleaner Assy, Air W/Hose
17765 Stay, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805A Gasket & Washer, Seal
17805D Grommet(FOR INTAKE AIR CONNECTOR)
17805E Collar(FOR INTAKE AIR CONNECTOR)
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17849 Gasket, Intake Air Connector
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17884 Hose, Air Cleaner, NO.4
17885 Pipe, Air Cleaner
17891A Clamp, Air Cleaner Hose
17893 Resonator, Intake Air
17911 Duct, Cool Air Intake, NO.1
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
52811 Duct, Cool Air Intake, NO.1
53199B Duct Sub-assy, Cool Air Intake
53208B Duct Sub-assy, Cool Air Intake, NO.2
53776B Bracket, Cool Air Intake Duct Mount, NO.2
55871B Seal, Air Duct
58257 Plate, Air Cleaner House
59133 Hose, Cool Air Intake, NO.3
59181 Seal, Air Cleaner Inlet Duct, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
