Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

22 part groups · 8 illustrations

Illustrations

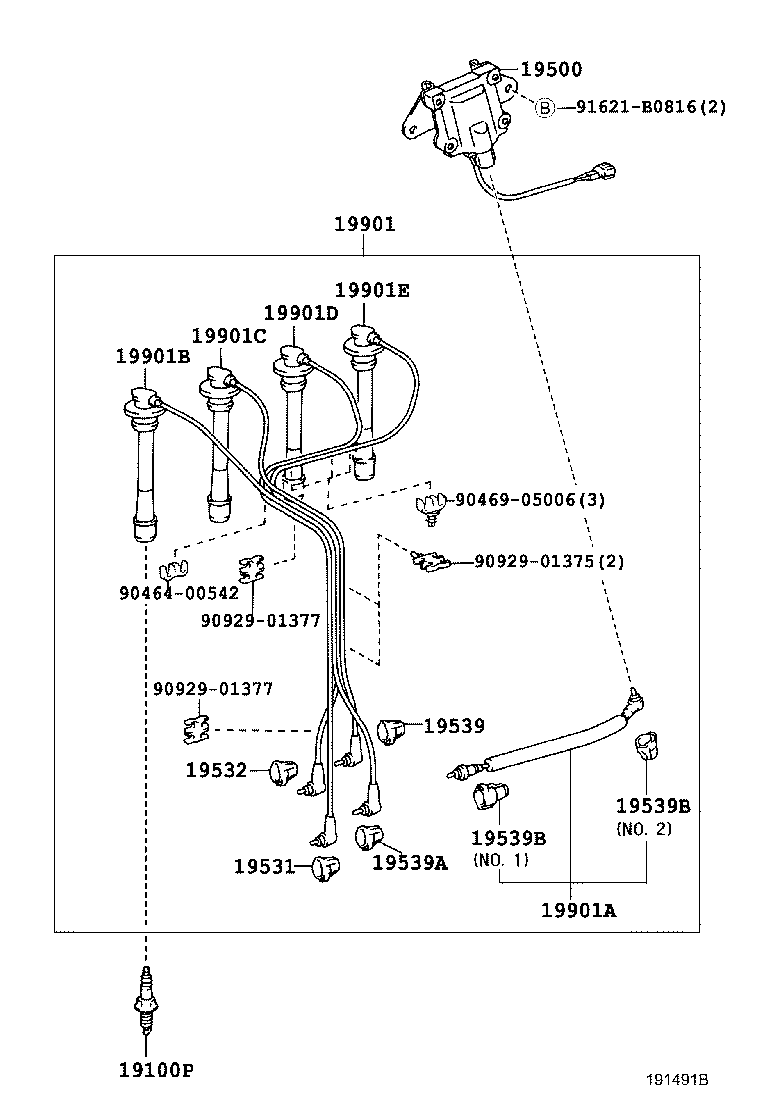

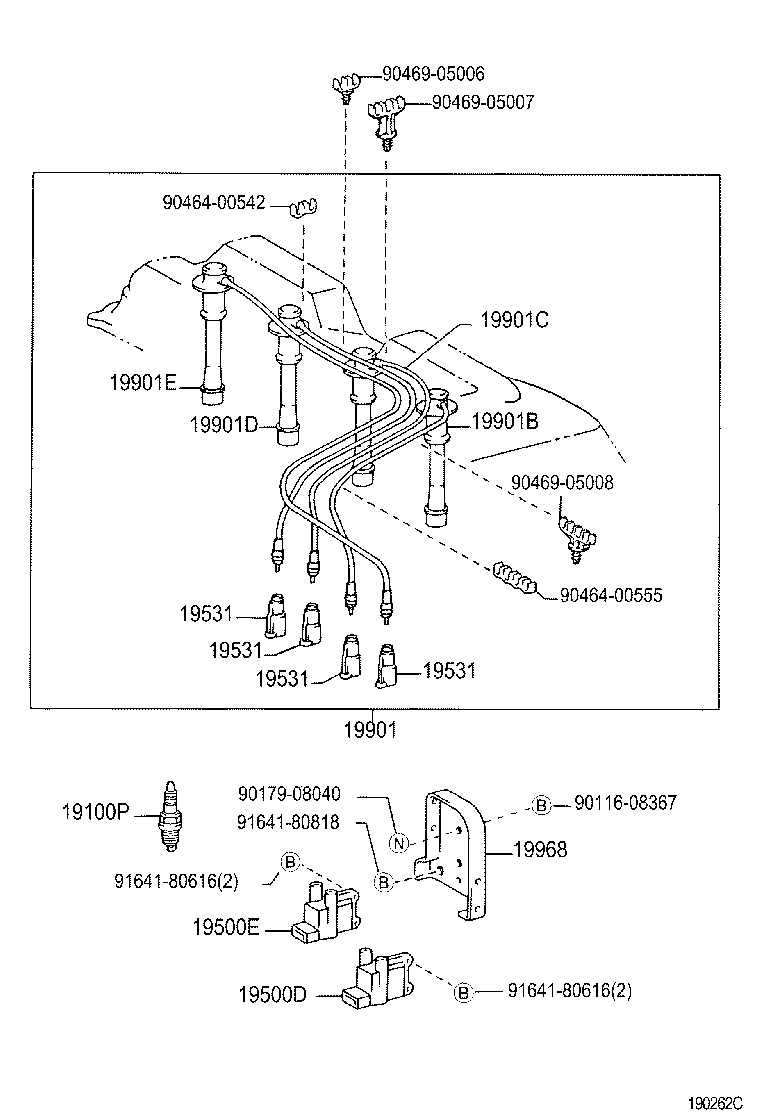

Figure MAG340 MAG340 1993-01 → 1999-07 Figure 191426 191426 1993-01 → — Figure 191427 191427 1999-07 → — Figure 191491B 191491B 2001-08 → — Figure MAF908 MAF908 1993-01 → — Figure 190023A 190023A 1993-09 → 1999-07 Figure 190262C 190262C 1999-07 → — Figure 192761A 192761A 2007-08 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19500D Coil, Ignition, NO.1
19500E Coil, Ignition, NO.2
19531 Holder, Resistive Cord, NO.1
19531A Holder, Resistive Code, NO.3
19532 Holder, Resistive Code, NO.2
19539 Holder, Resistive Code, NO.4
19539A Holder, Resistive Code, NO.5
19539B Holder, Resistive Code, NO.6
19810 Heater Assy, Intake
19829A Gasket, Intake Heater
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19968 Bracket, Ignition Coil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
