Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

40 part groups · 18 illustrations

Illustrations

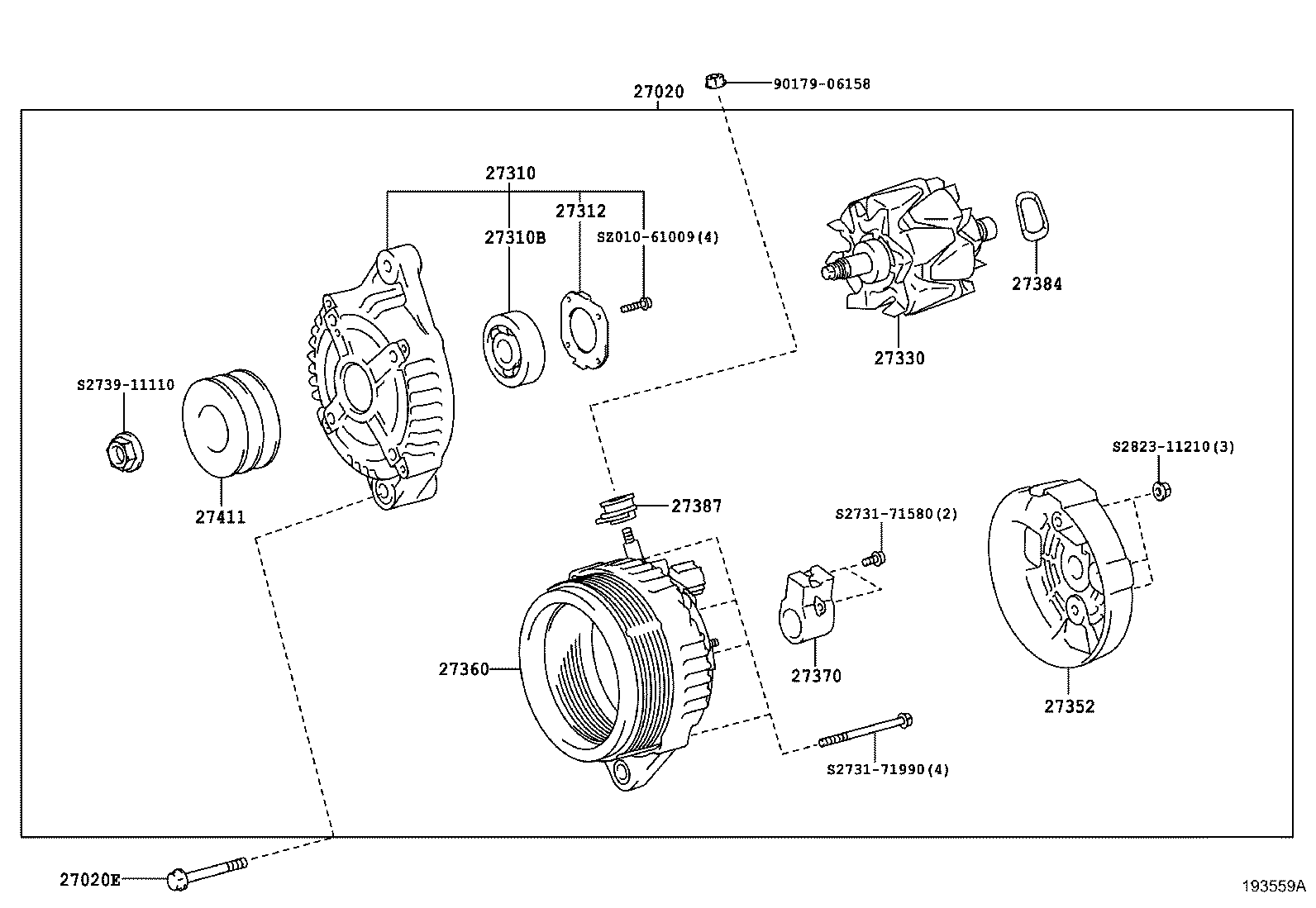

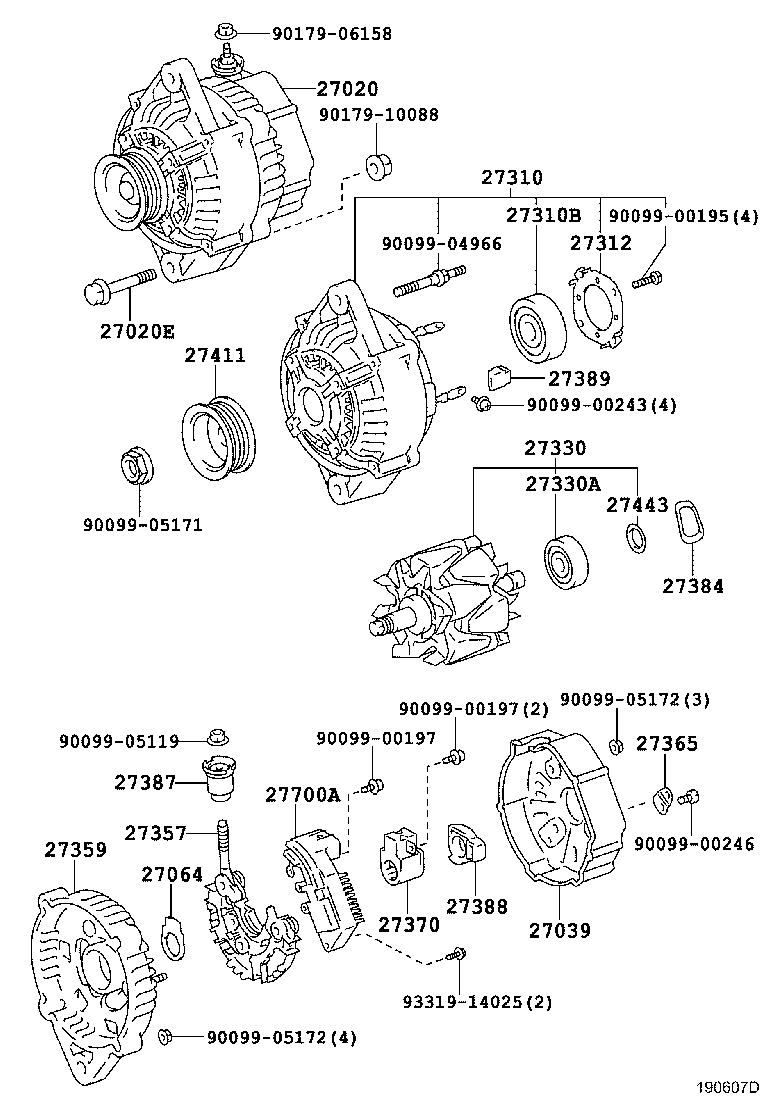

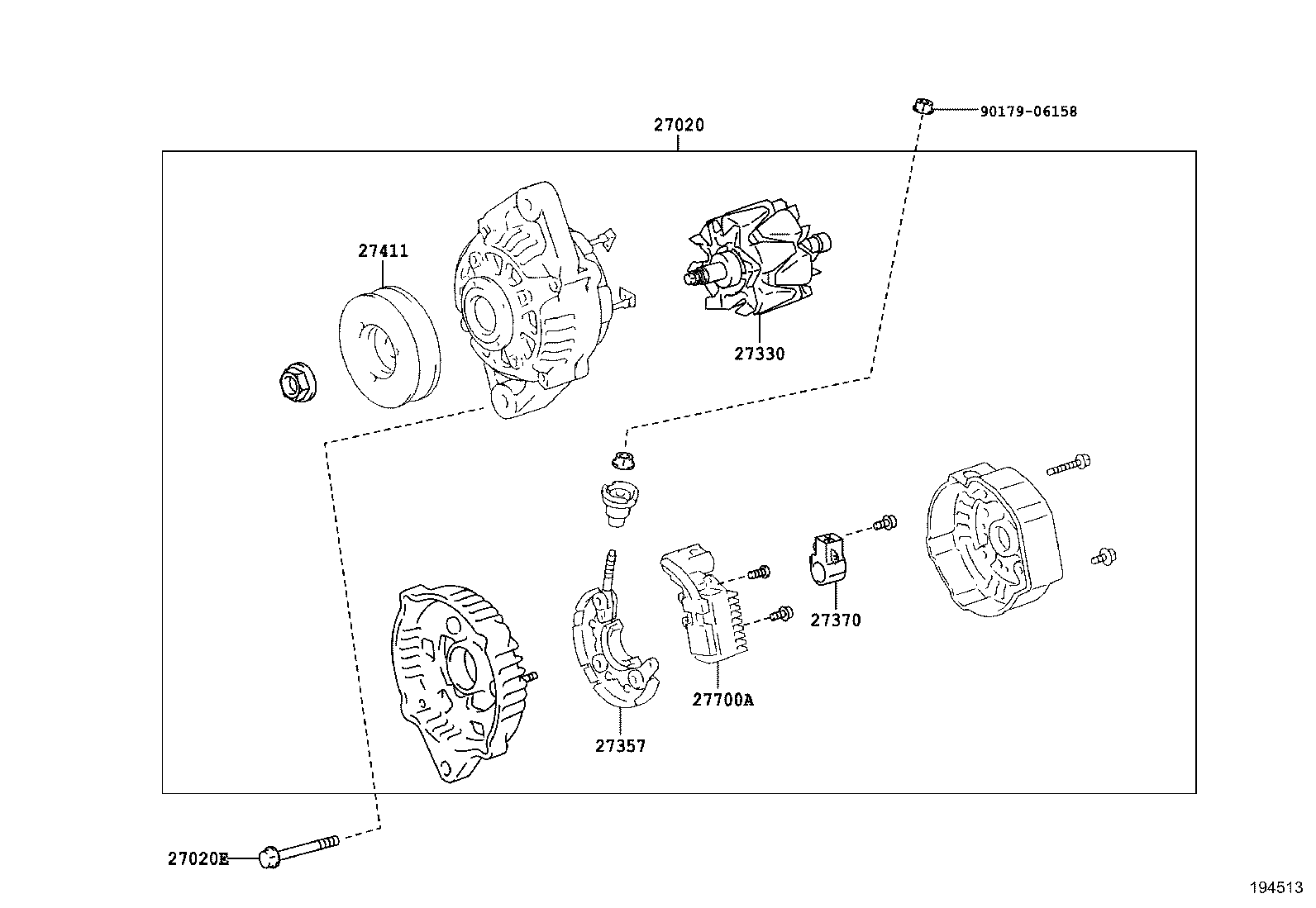

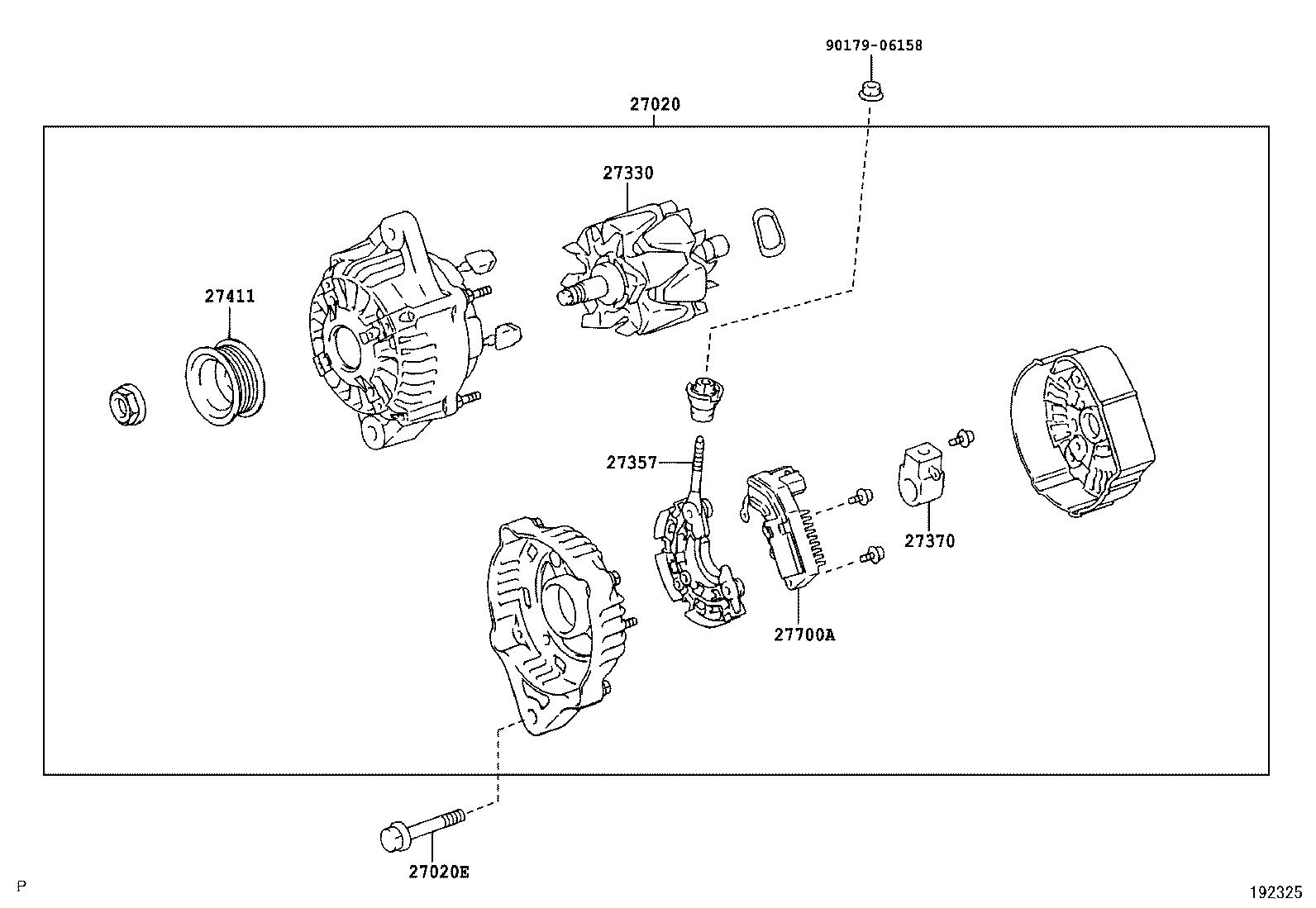

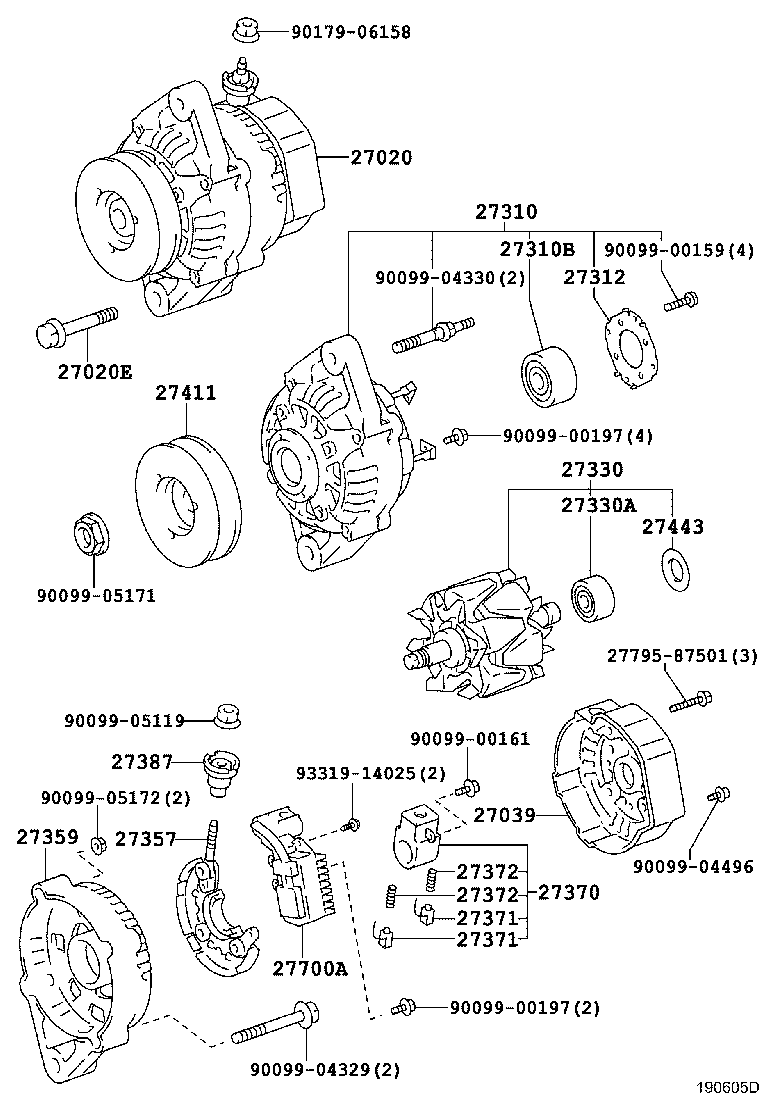

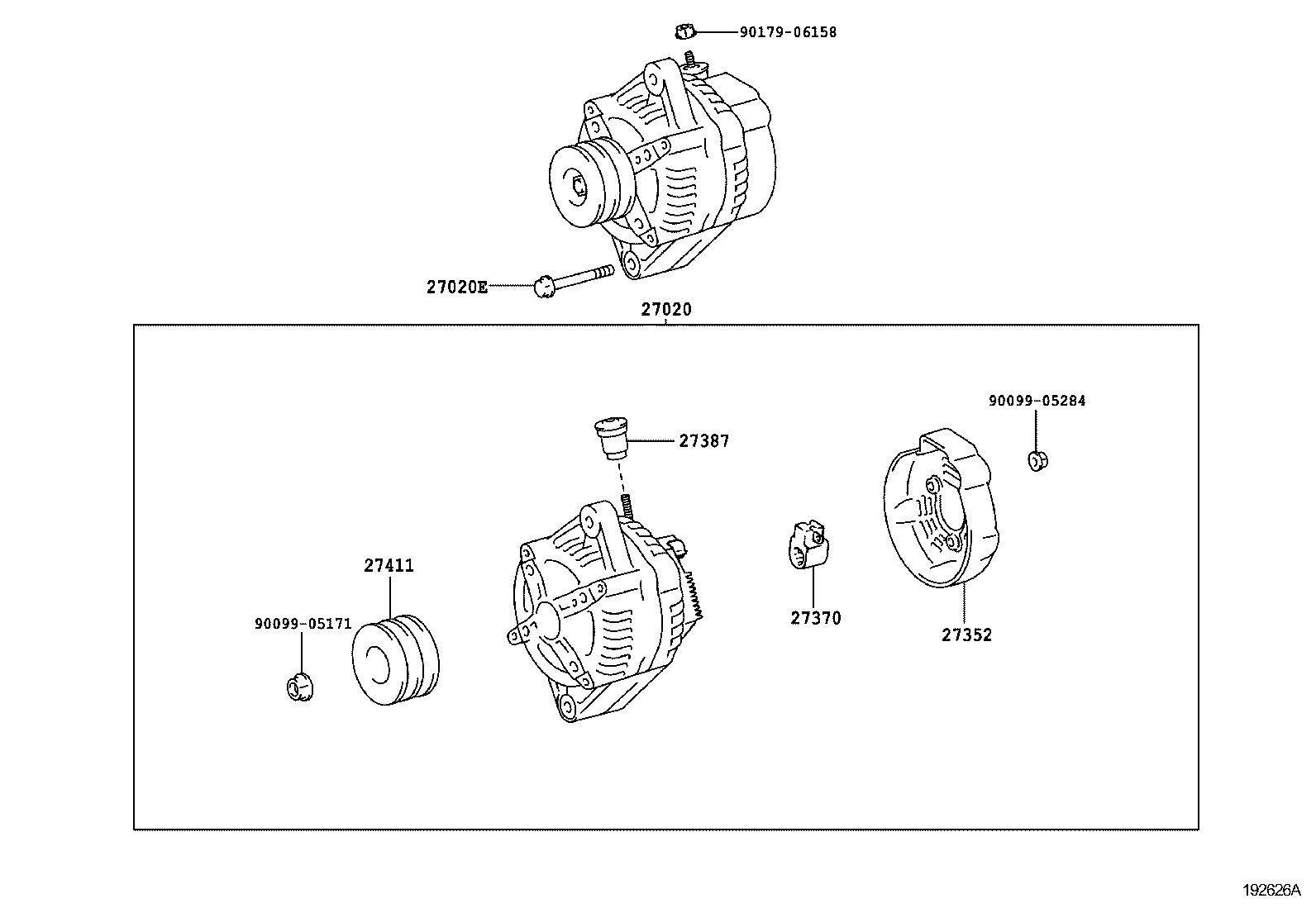

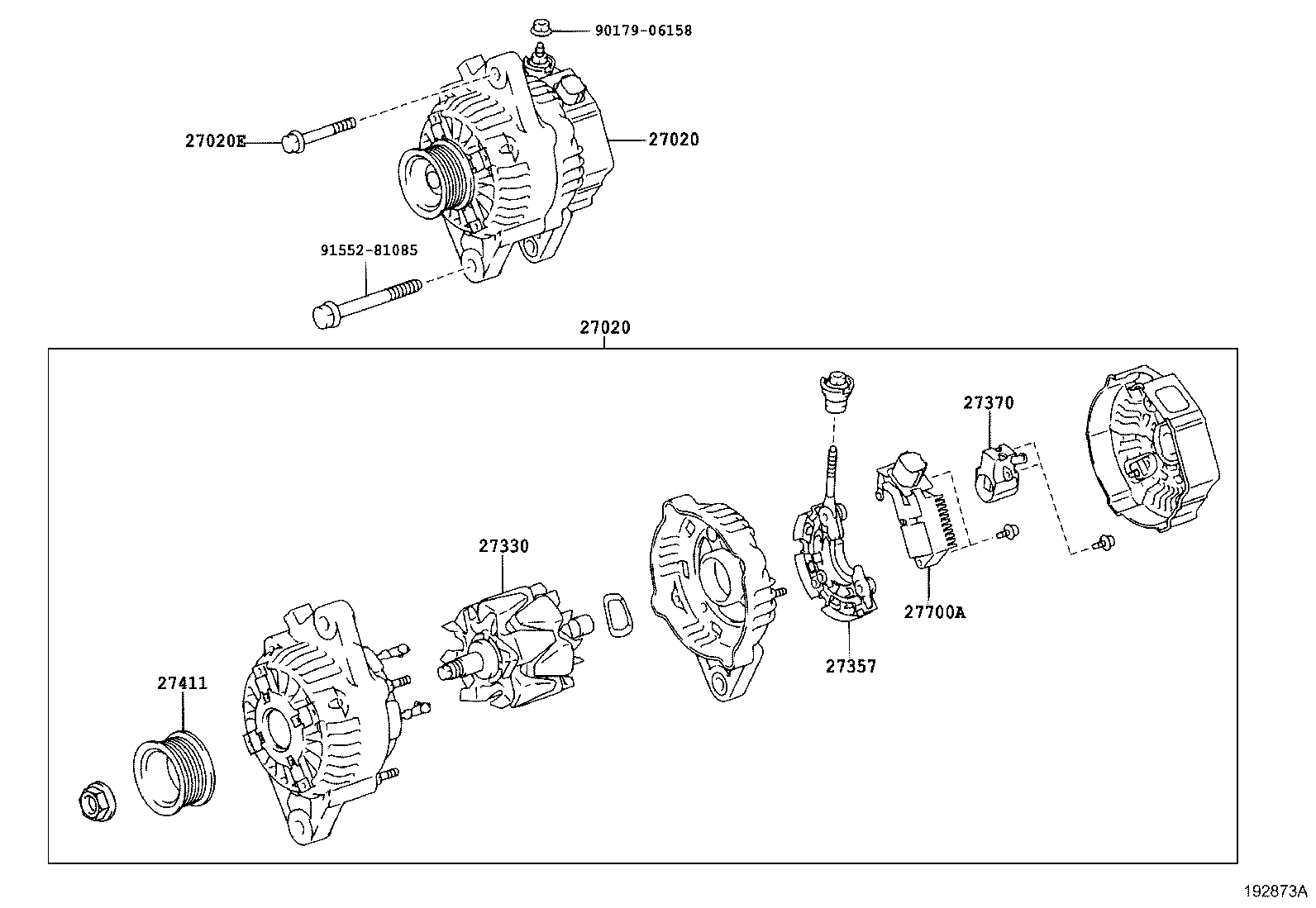

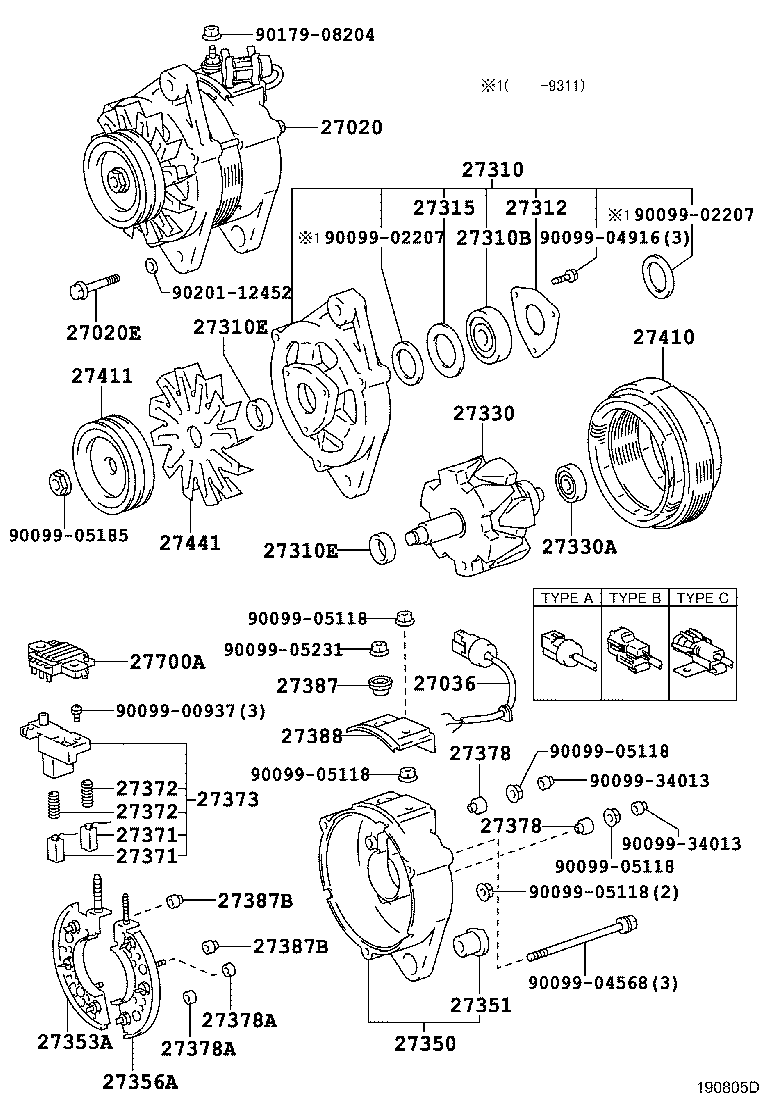

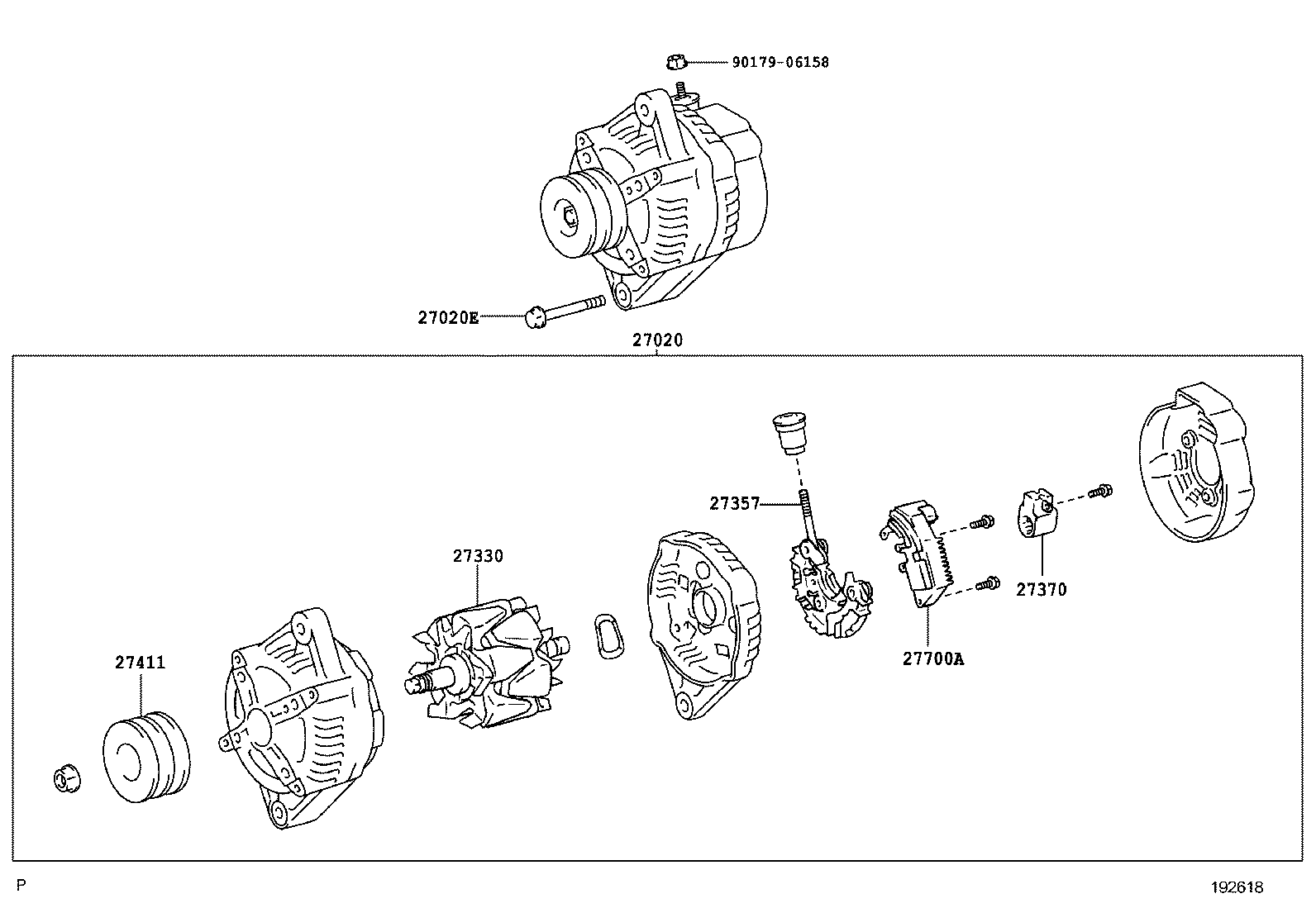

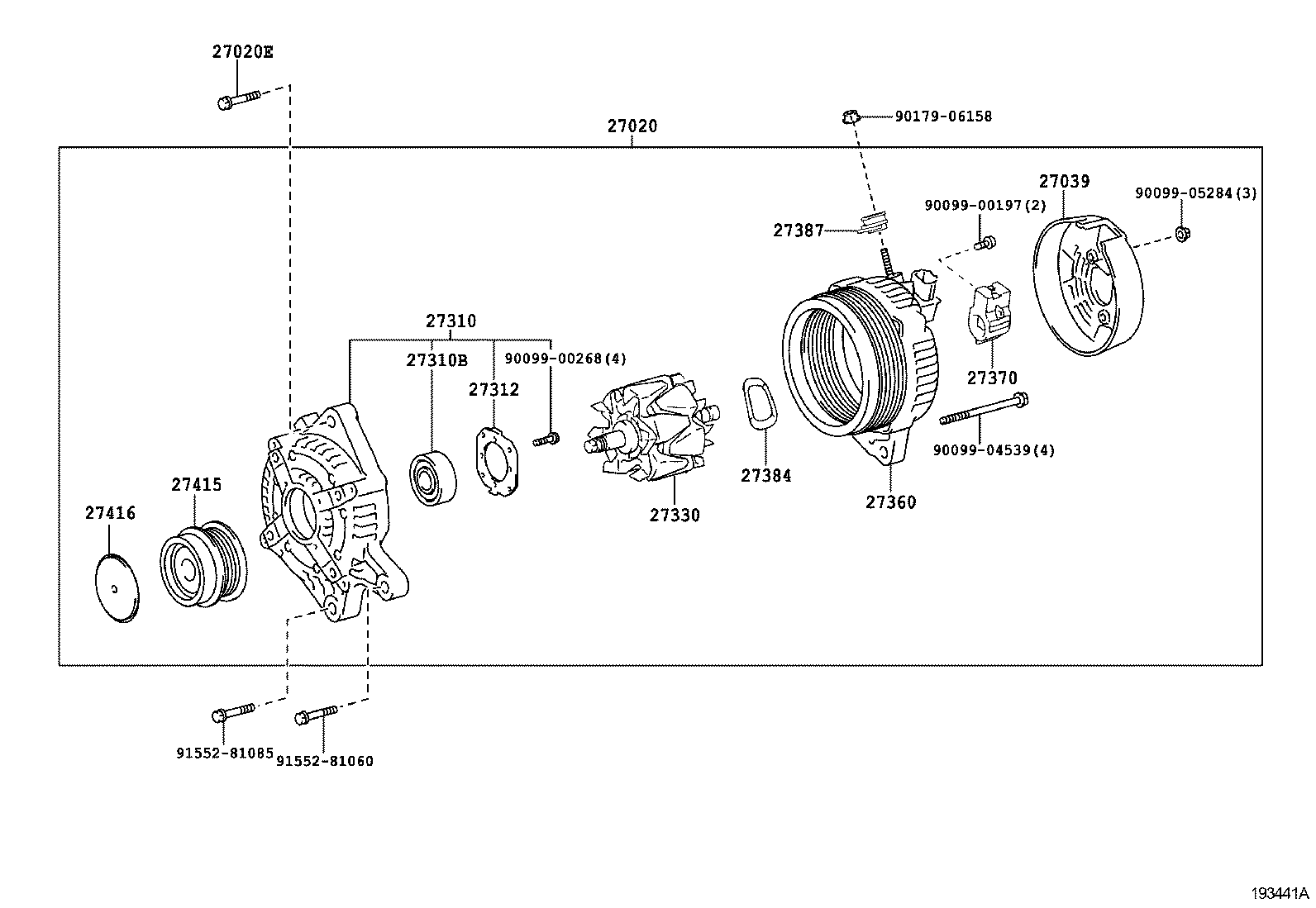

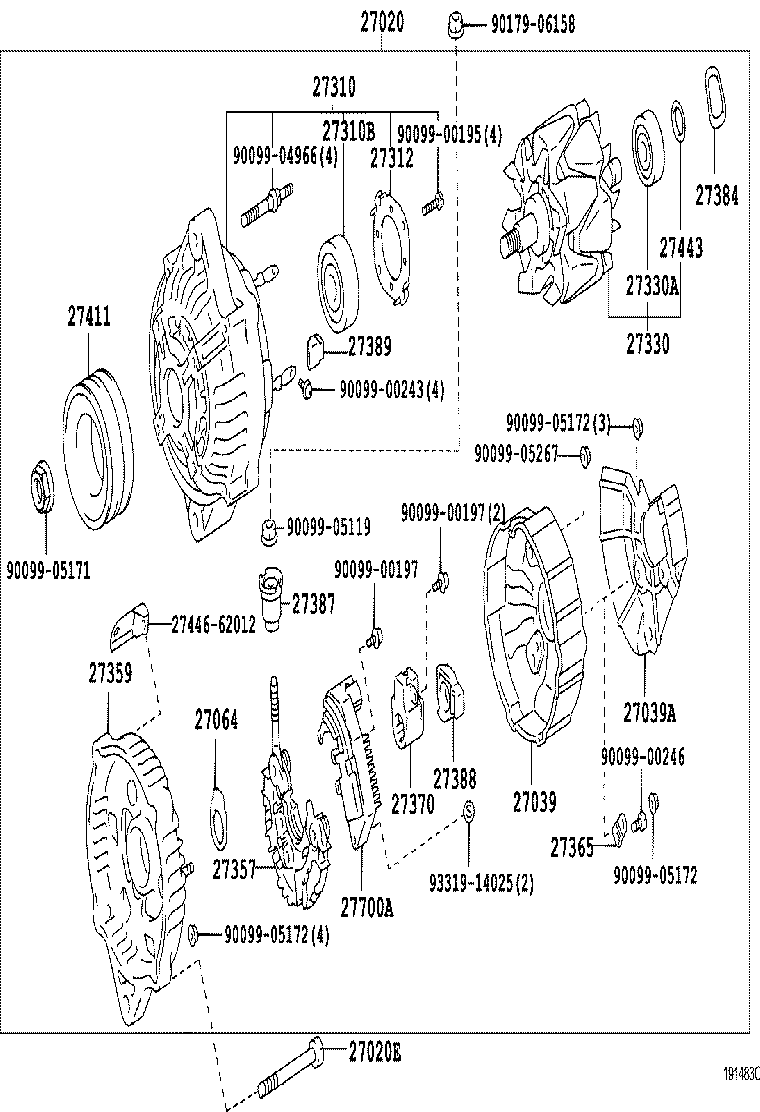

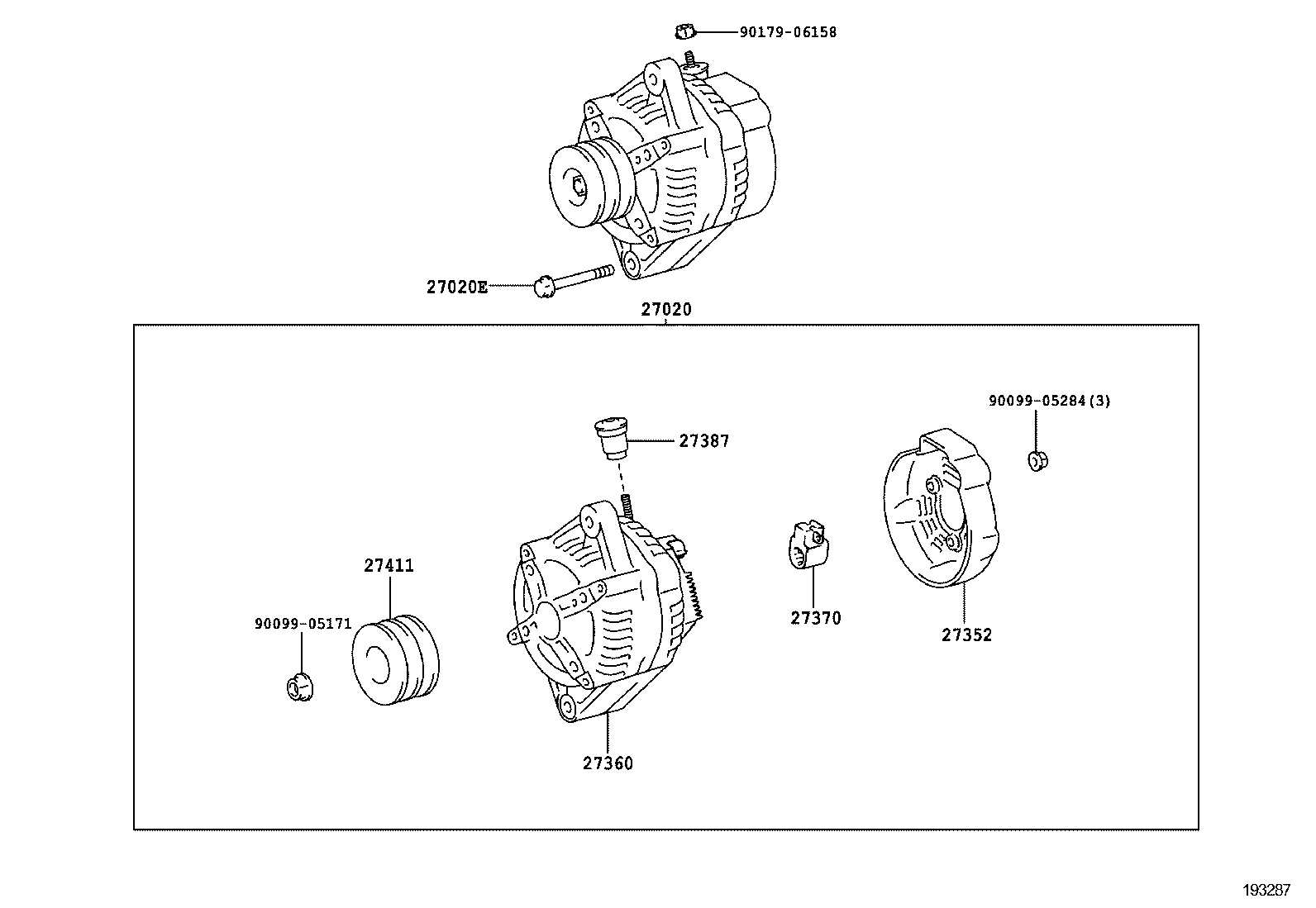

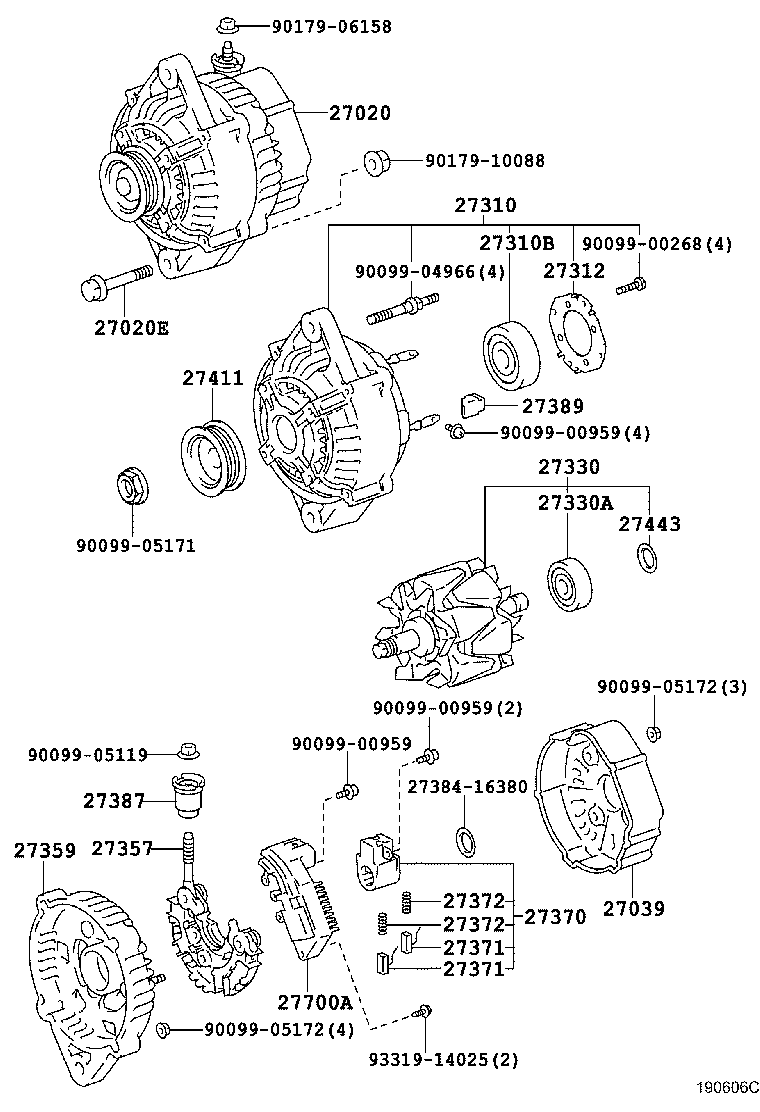

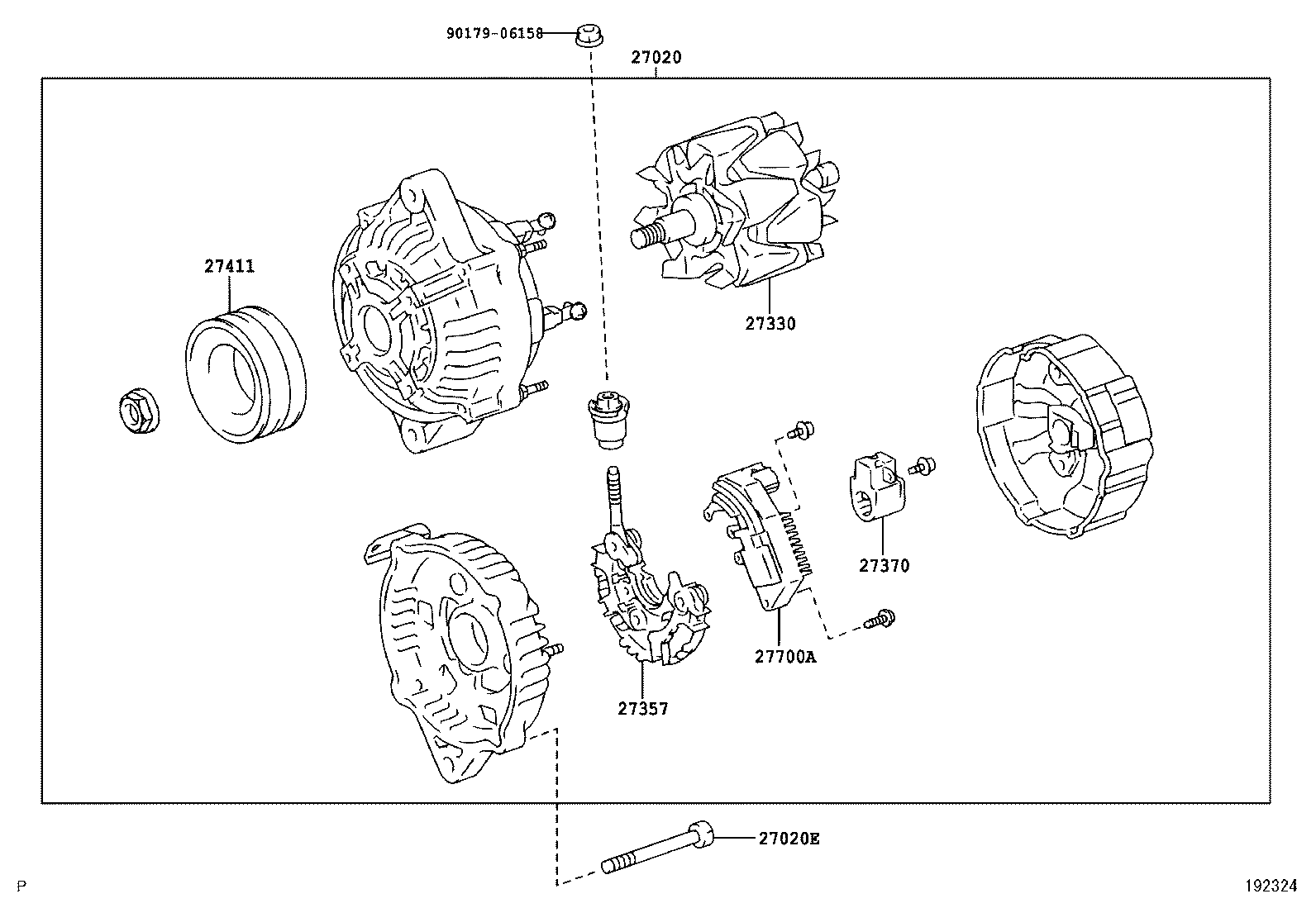

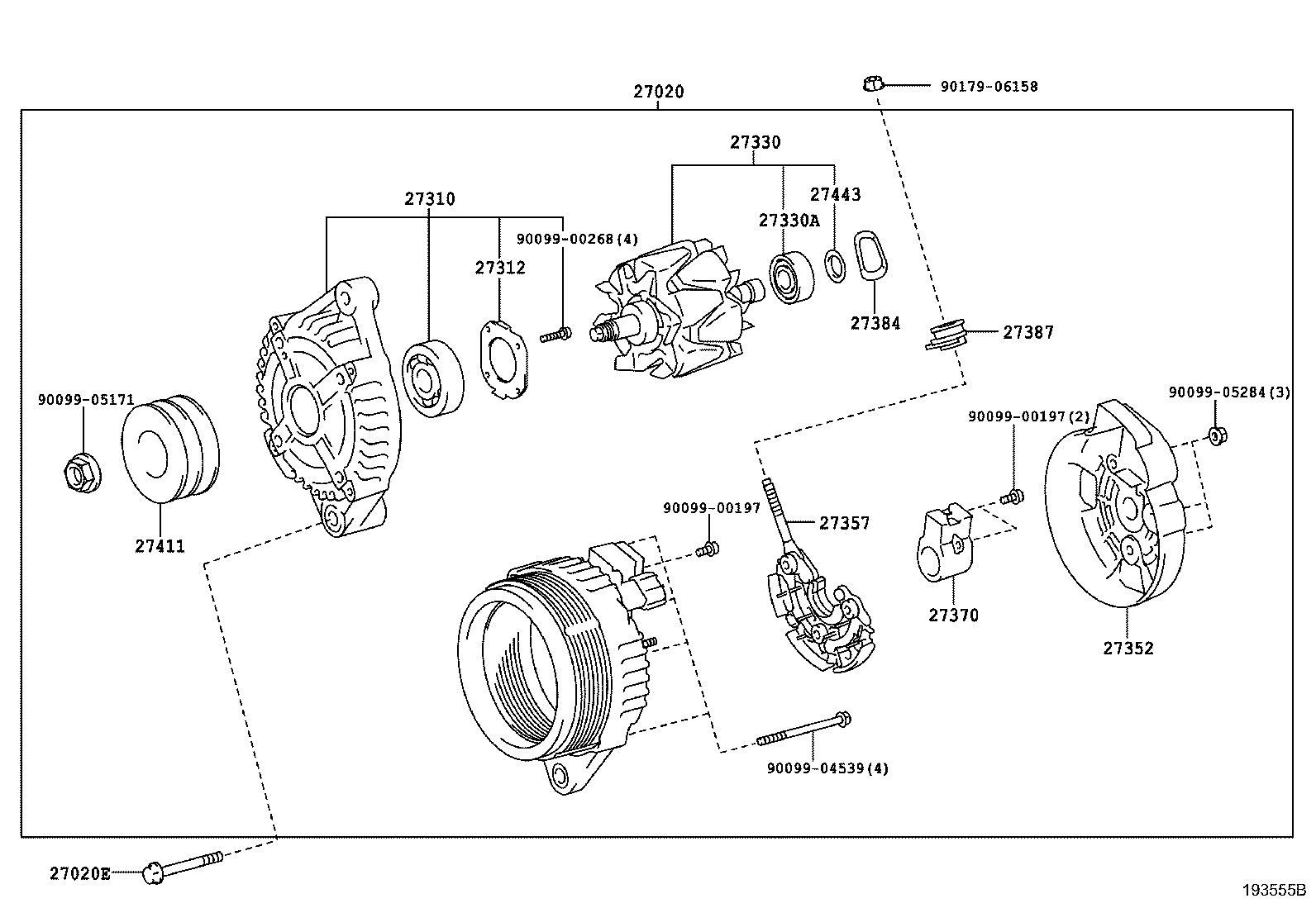

Figure 190603B 190603B 1993-01 → 2004-08 Figure 192618 192618 2004-08 → — Figure 192618 192618 2006-08 → 2009-08 Figure 190605D 190605D 1993-01 → 2004-08 Figure 194513 194513 2004-08 → — Figure 190805D 190805D 1993-01 → 1995-05 Figure 190805D 190805D 1996-05 → 2006-08 Figure 190606C 190606C 1993-09 → 1999-07 Figure 190607D 190607D 1993-09 → 2007-08 Figure 192325 192325 1999-07 → 2007-08 Figure 191483C 191483C 2001-08 → 2003-12 Figure 192324 192324 2003-12 → — Figure 192626A 192626A 2006-08 → 2010-10 Figure 192873A 192873A 2007-08 → — Figure 193287 193287 2009-08 → 2010-10 Figure 193441A 193441A 2010-06 → — Figure 193555B 193555B 2010-10 → 2013-11 Figure 193559A 193559A 2010-10 → —

Part groups

PNCDescription
27020 Alternator Assy
27020E Bolt(FOR ALTERNATOR)
27036 Terminal Sub-assy, Lead Wire, Alternator
27039 Cover, Alternator Rear End
27039A Cover, Alternator Rear End, NO.2
27064 Seal, Alternator Plate
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27310E Collar(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27315 Cover, Alternator Felt, Inner NO.1
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27350 Frame Assy, Rectifier End
27351 Bush(FOR ALTERNATOR RECTIFIER END FRAME)
27352 Cover, Frame Brush
27353A Holder, W/Rectifier
27356A Holder Sub-assy, Rectifier
27357 Holder, Alternator, W/Rectifier
27359 Frame, Alternator Rectifier End
27360 Coil Assy, Alternator
27365 Plate, Terminal
27370 Holder Assy, Alternator Brush
27371 Brush, Alternator
27372 Spring, Alternator Brush
27373 Holder, Alternator Brush, A
27378 Insulator, Alternator, NO.1
27378A Insulator, Alternator, NO.2
27384 Washer
27387 Insulator, Terminal
27387B Insulator, Alternator Terminal
27388 Cover, Alternator Brush
27389 Insulator, Terminal
27410 Stator Assy, Alternator
27411 Pulley, Alternator
27415 Pulley, Alternator W/Clutch
27416 Cap, Alternator Pulley
27441 Fan, Alternator
27443 Cover, Alternator Bearing
27700A Regulator Assy, Generator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
