Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe
Discontinued model
Data version 2016-12
Starter
34 part groups · 14 illustrations

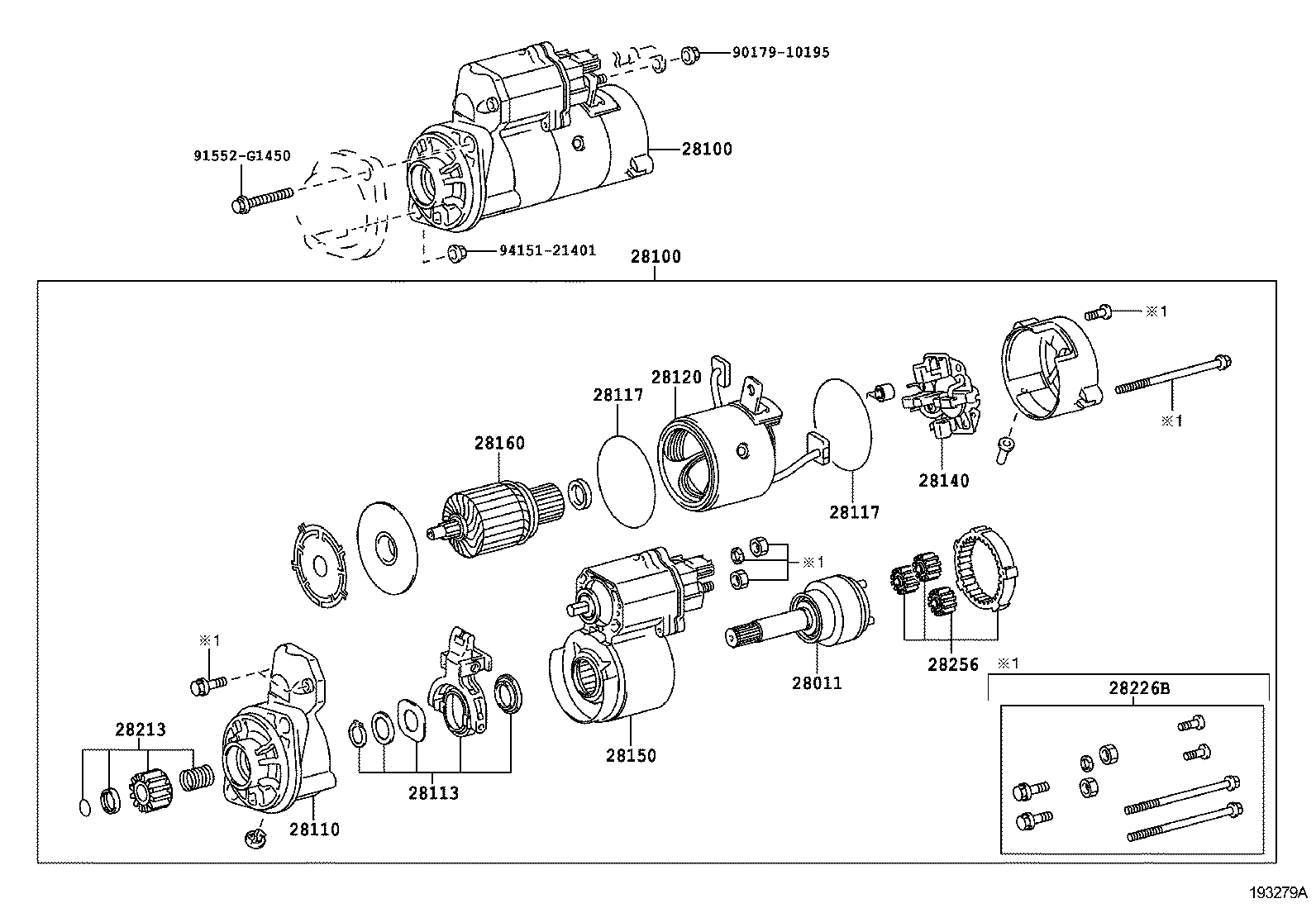

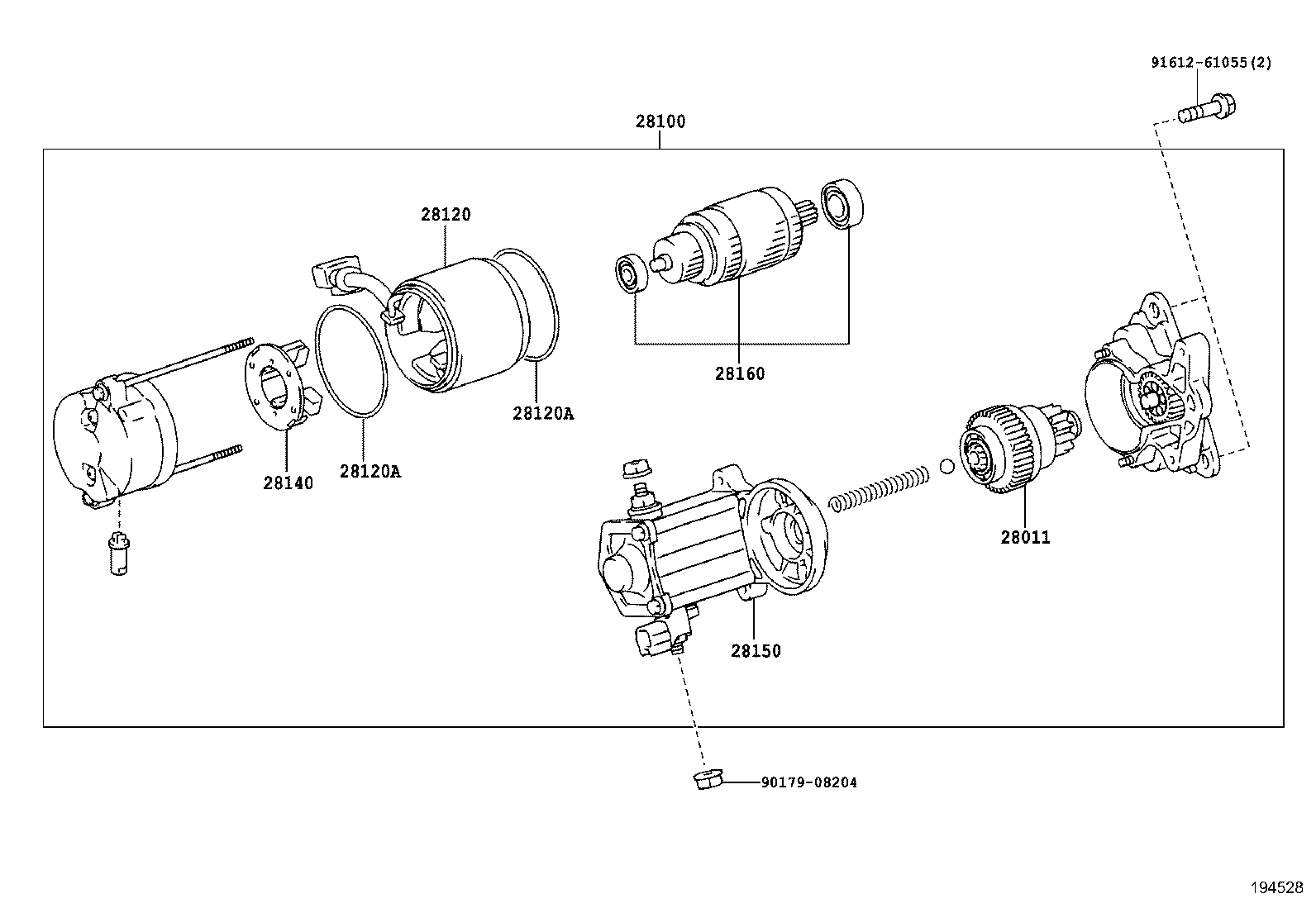

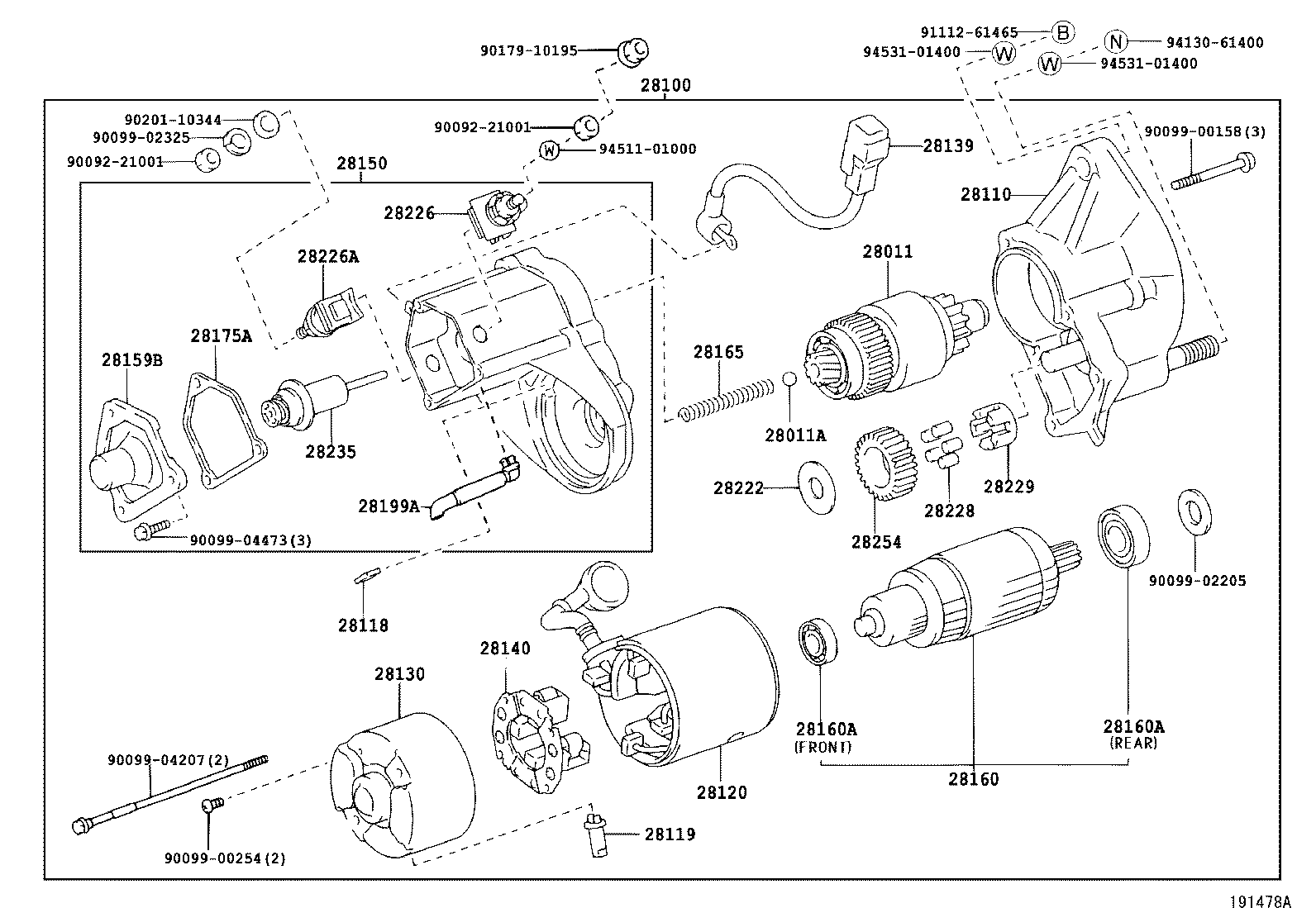

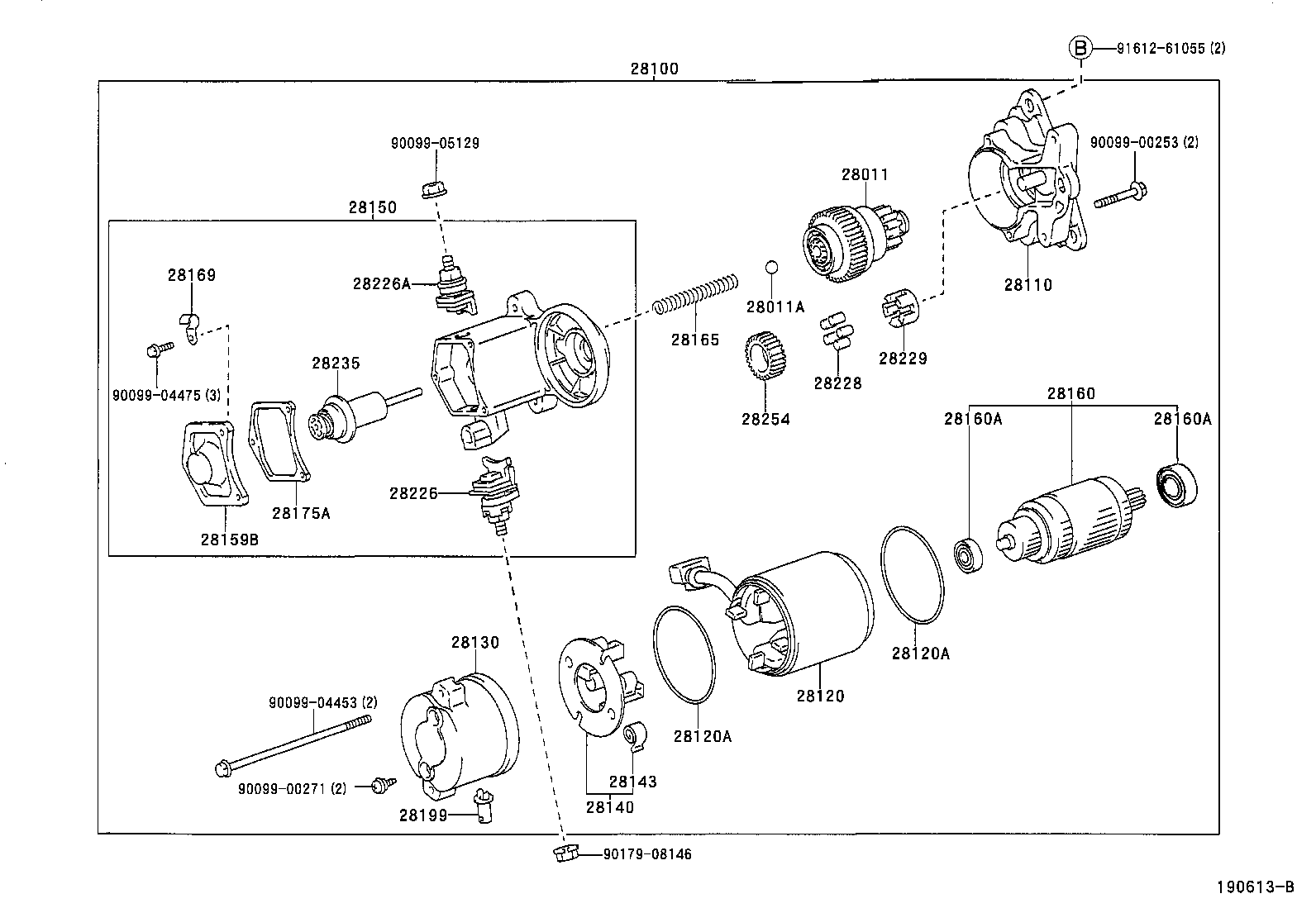

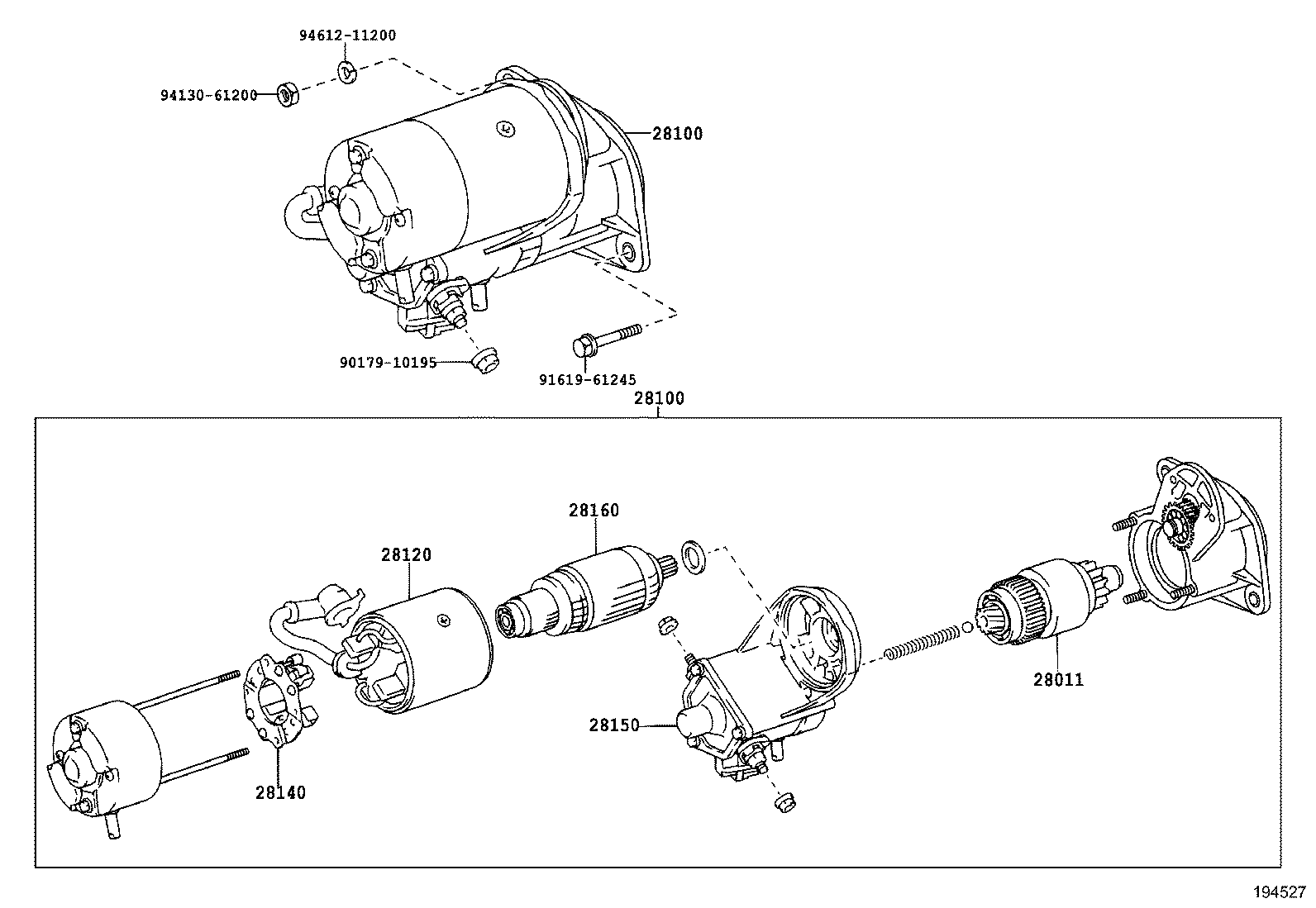

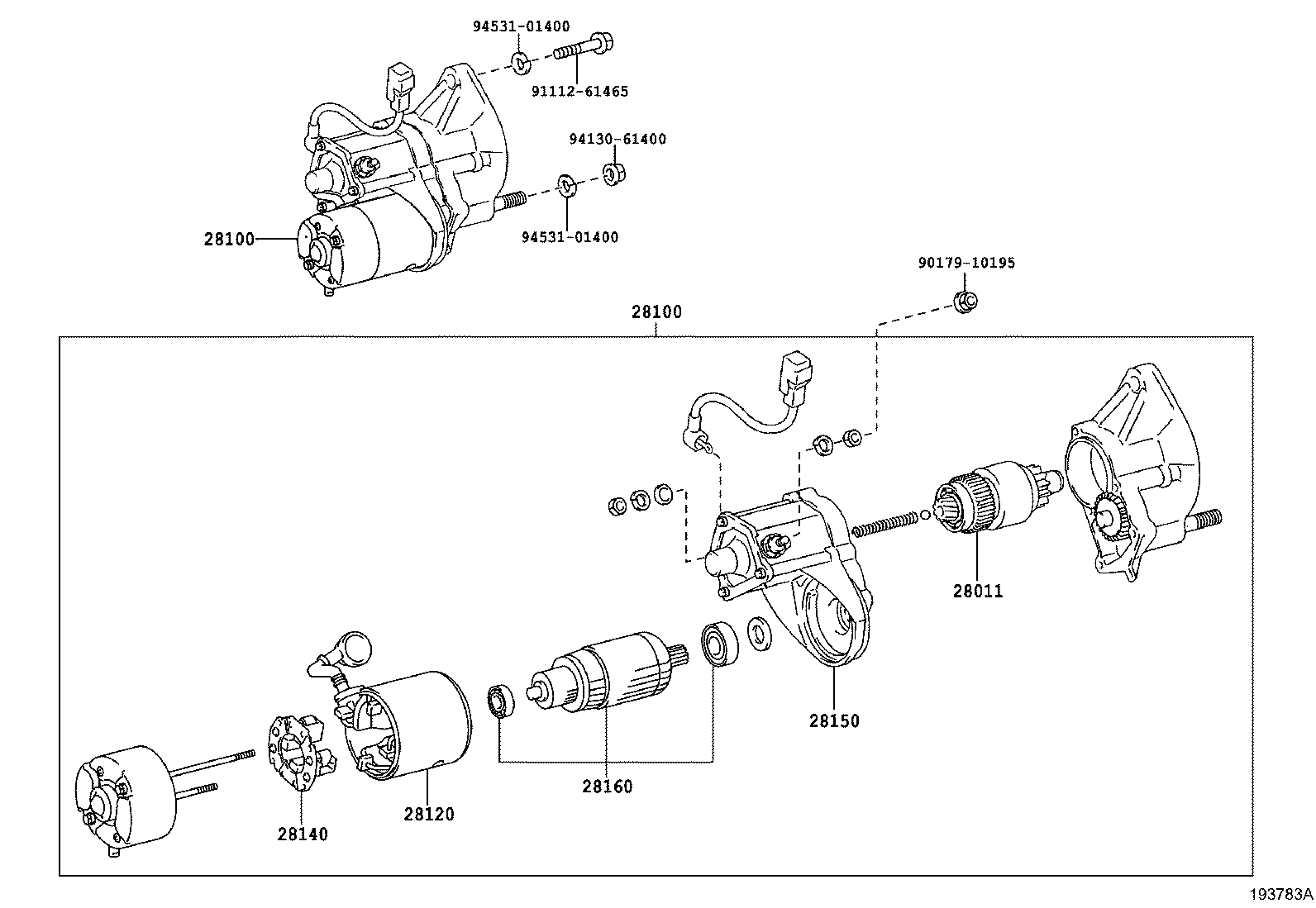

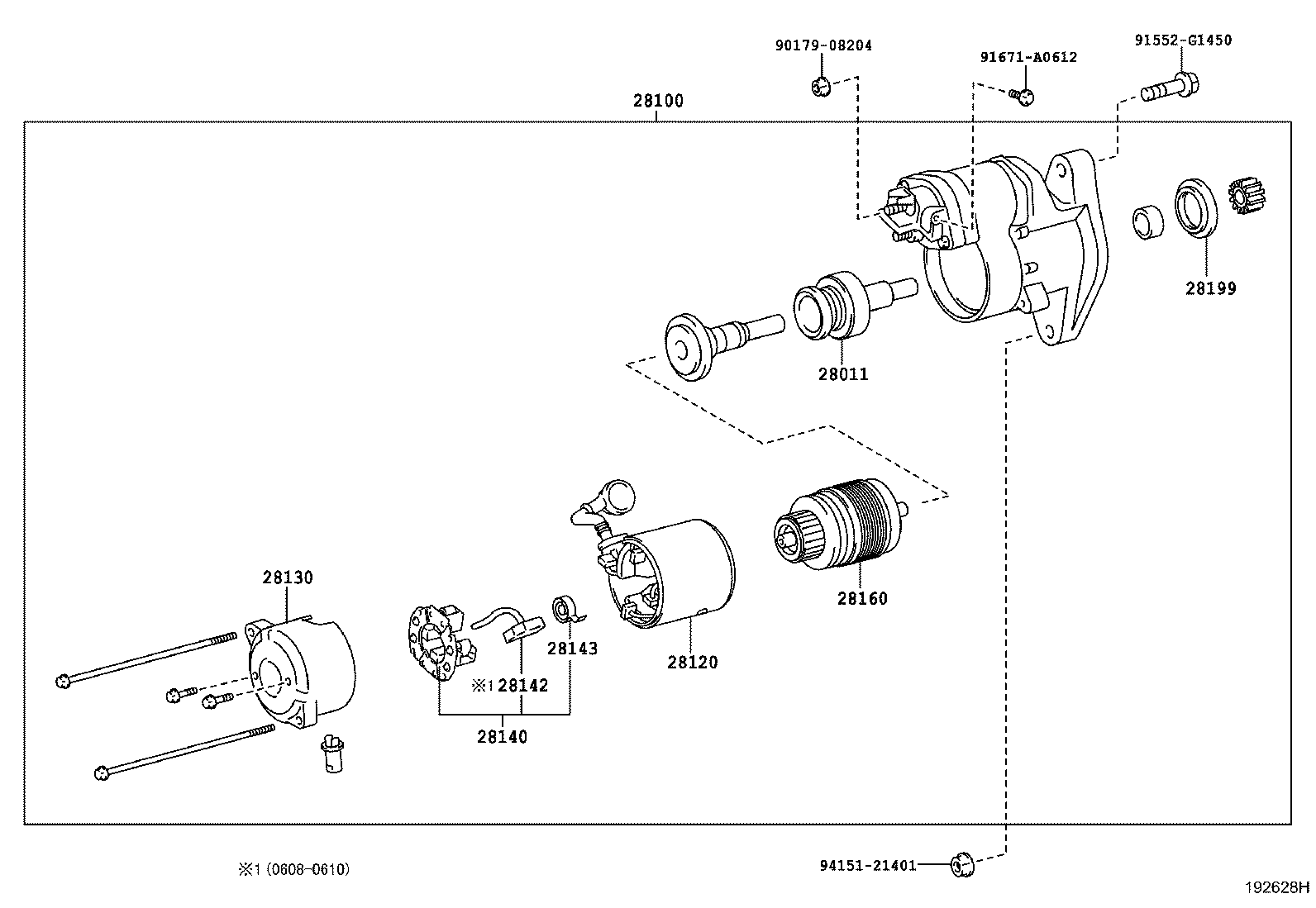

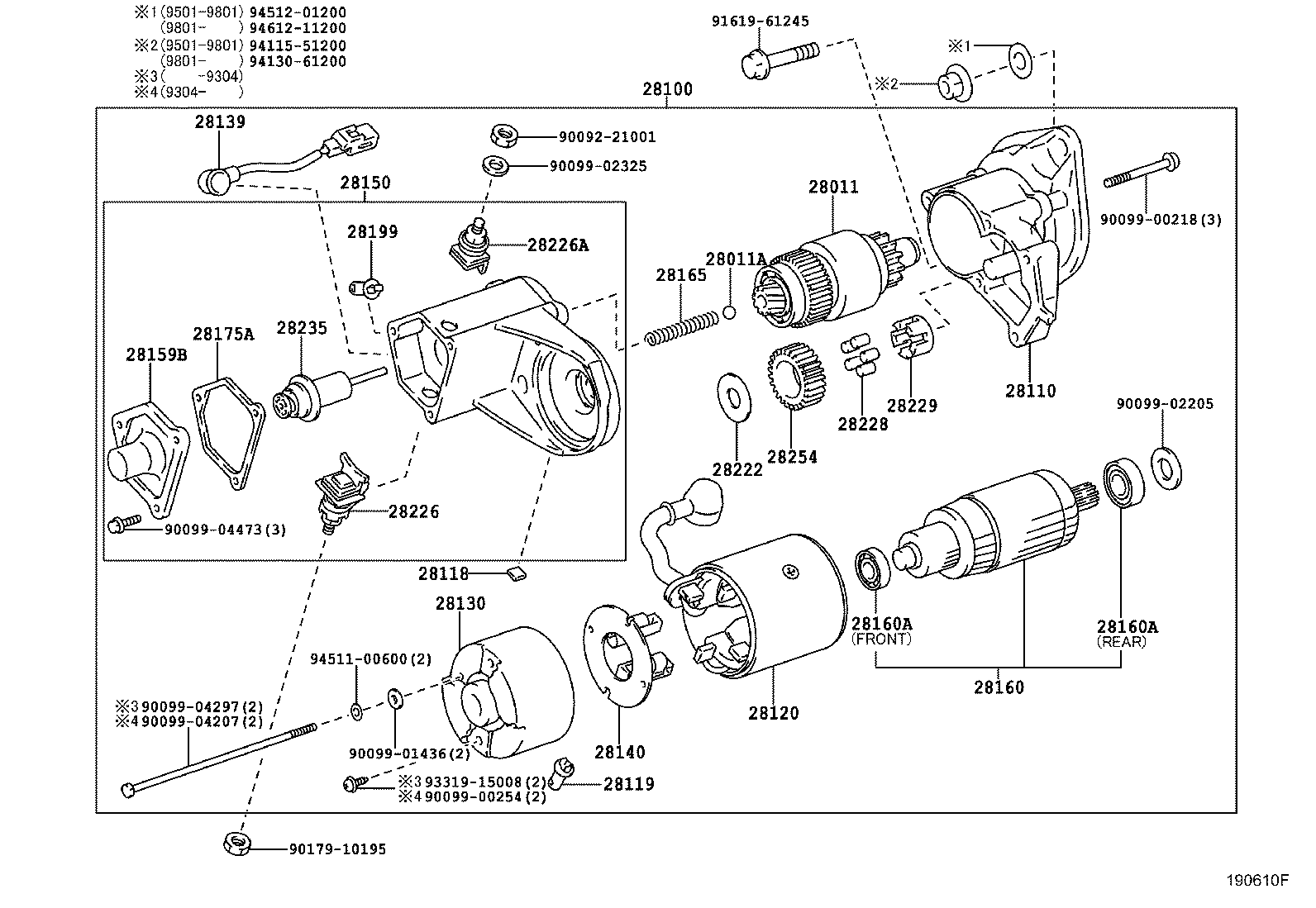

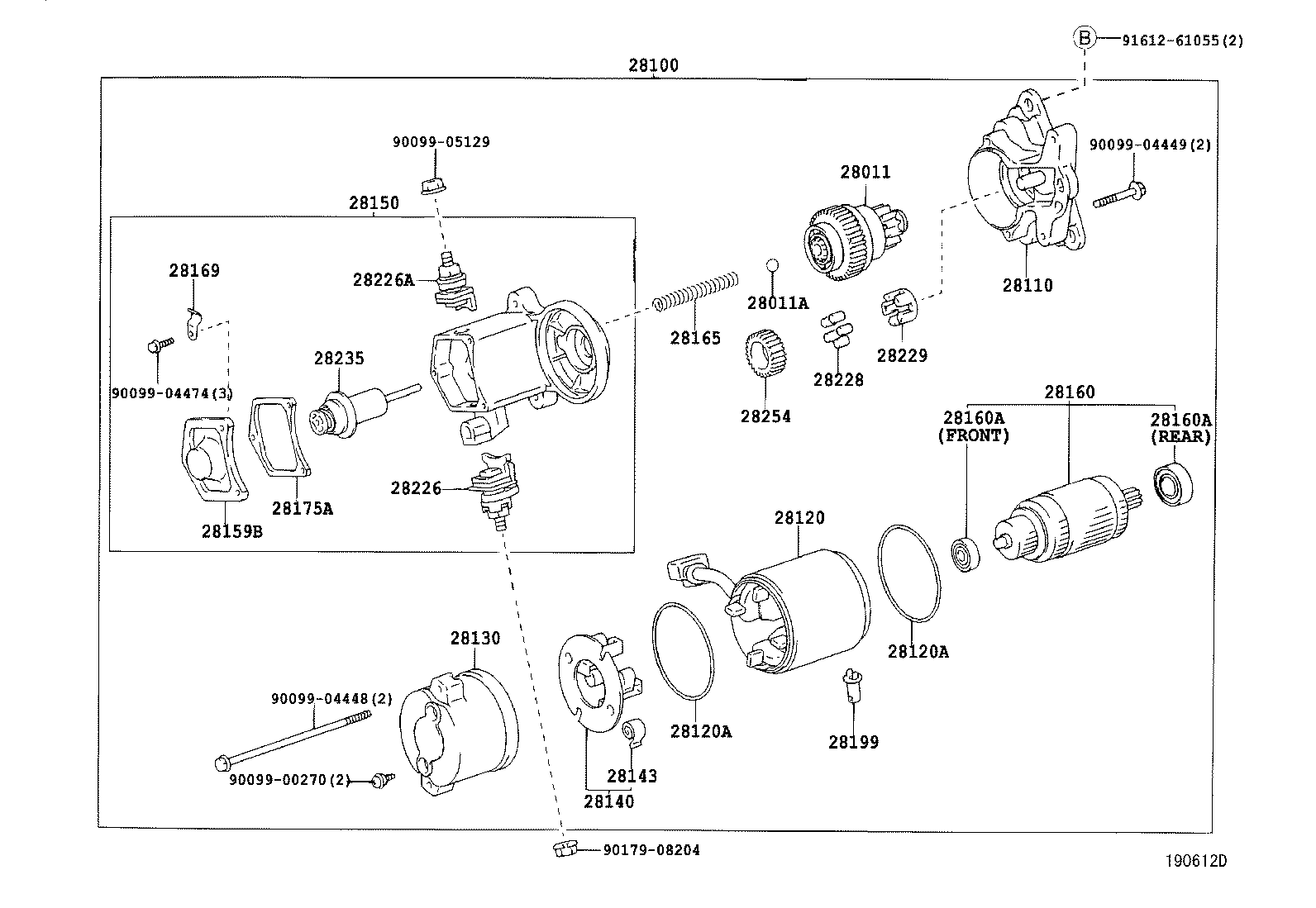

Illustrations
Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28011A | Ball, Starter Clutch |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28113 | Lever, Starter Pinion Drive |
| 28117 | Rubber(FOR STARTER YOKE) |
| 28118 | Plate(FOR STARTER YOKE) |
| 28119 | Cover, Starter End Frame |
| 28120 | Yoke Assy, Starter |
| 28120A | Ring, O(FOR STARTER YOKE) |
| 28130 | Frame Assy, Starter Commutator End |
| 28139 | Wire, Lead, NO.1(FOR STARTER) |
| 28140 | Holder Assy, Starter Brush |
| 28142 | Brush, Starter |
| 28143 | Spring, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28159B | Cover, Magnet Switch |
| 28160 | Armature Assy, Starter |
| 28160A | Bearing, Starter Armature |
| 28165 | Spring, Starter Magnet Switch Return |
| 28169 | Clamp, Starter Motor Lead Wire |
| 28175A | Gasket, Magnet Switch Cover |
| 28199 | Cover, Starter |
| 28199A | Protector, Dust Starter |
| 28213 | Pinion, Starter Clutch |
| 28222 | Washer, Starter Idle Gear Clutch |
| 28226 | Starter Kit, Battery Terminal |
| 28226A | Starter Kit, Motor Terminal |
| 28226B | Starter Kit, Repair Service |
| 28228 | Roller, Starter Idle Gear Clutch |
| 28229 | Retainer, Starter Idle Gear |
| 28235 | Plunger, Magnet Switch |
| 28254 | Pinion, Starter Idle Gear |
| 28256 | Gear, Starter Internal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
