Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

17 part groups · 8 illustrations

Illustrations

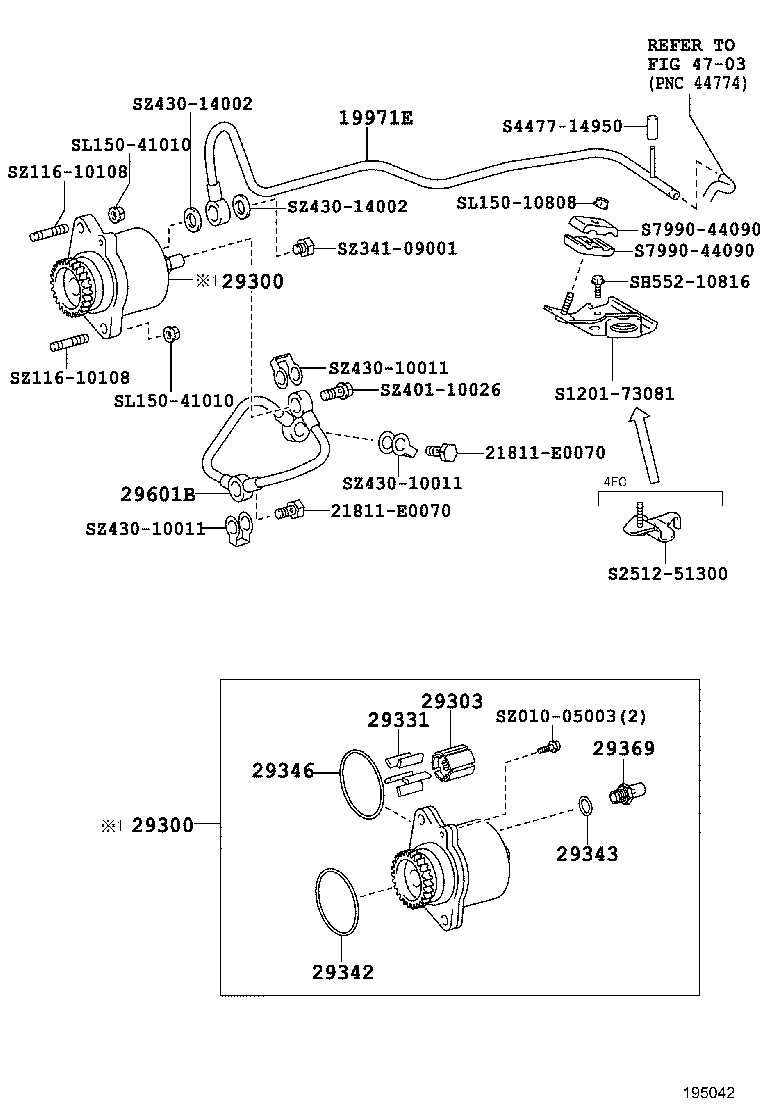

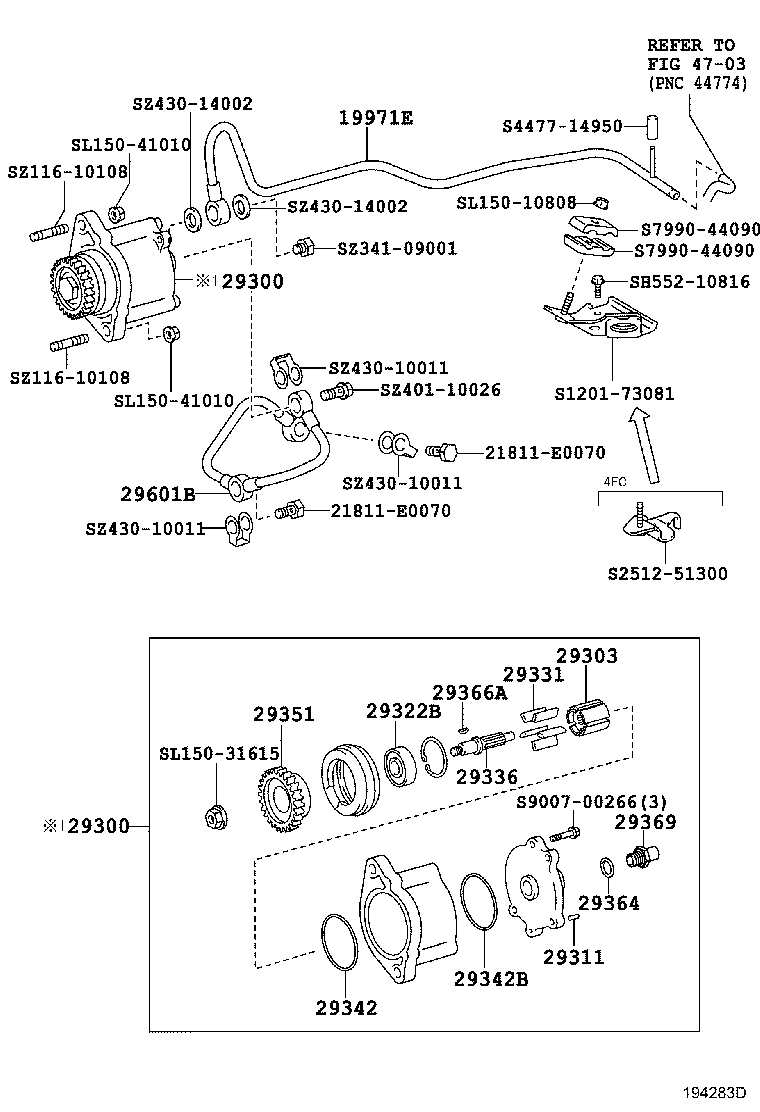

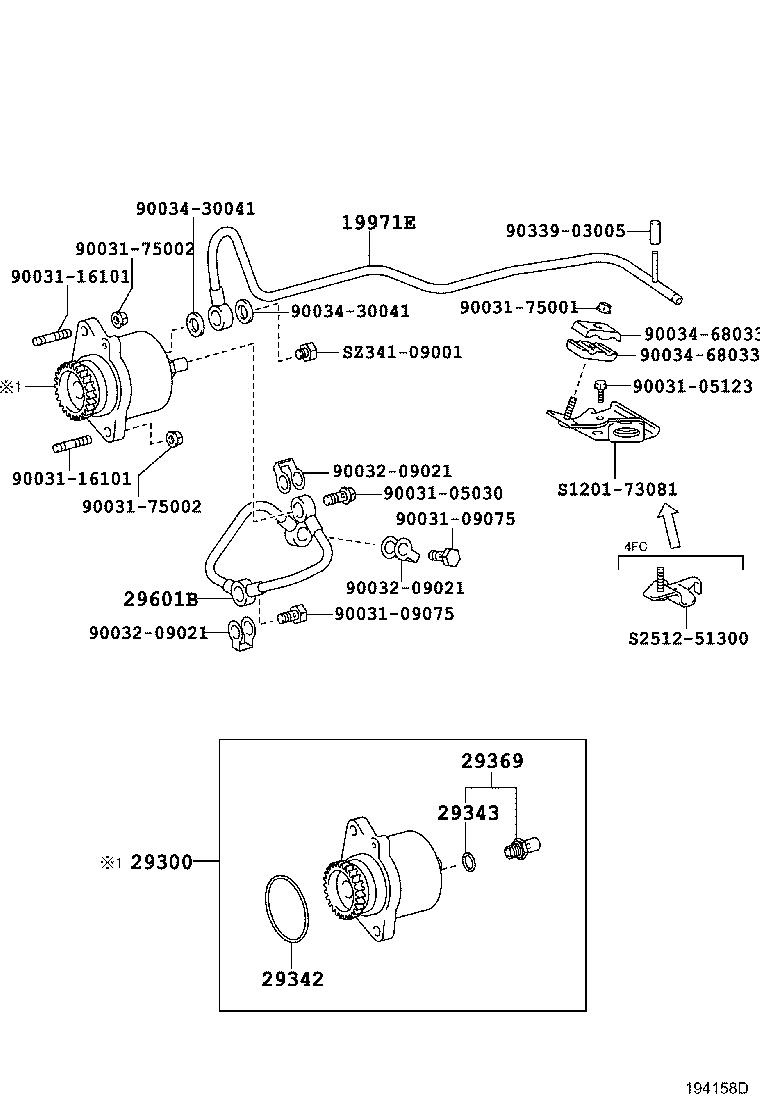

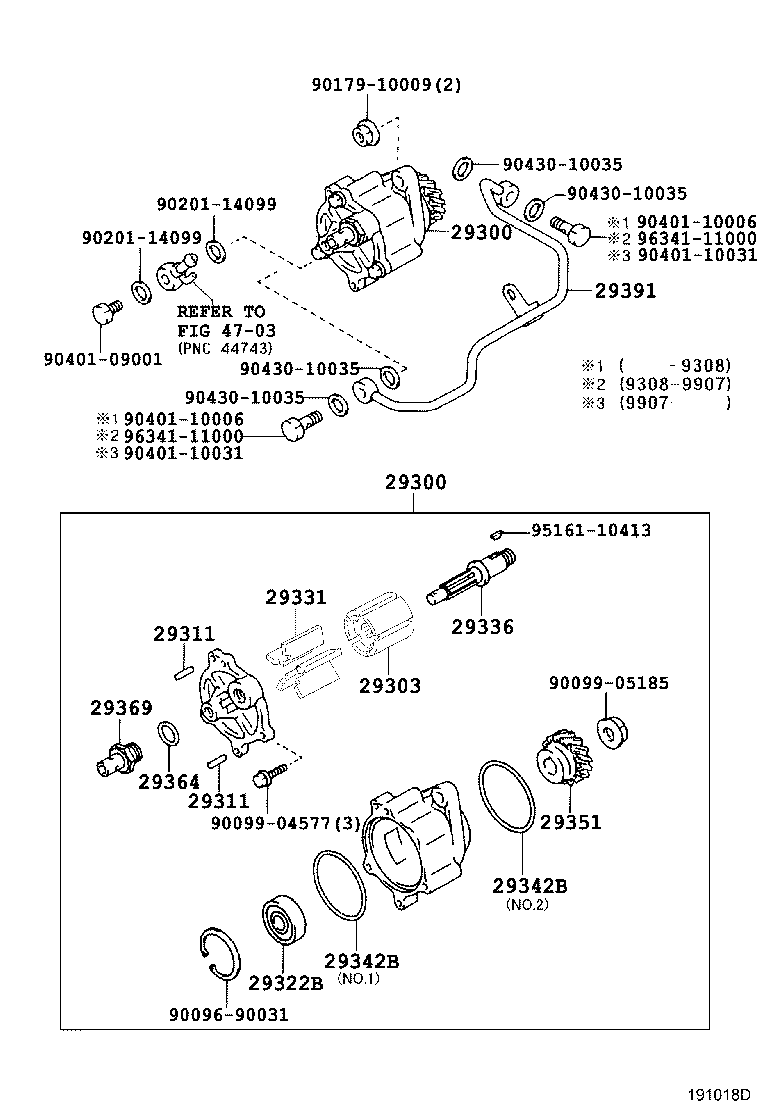

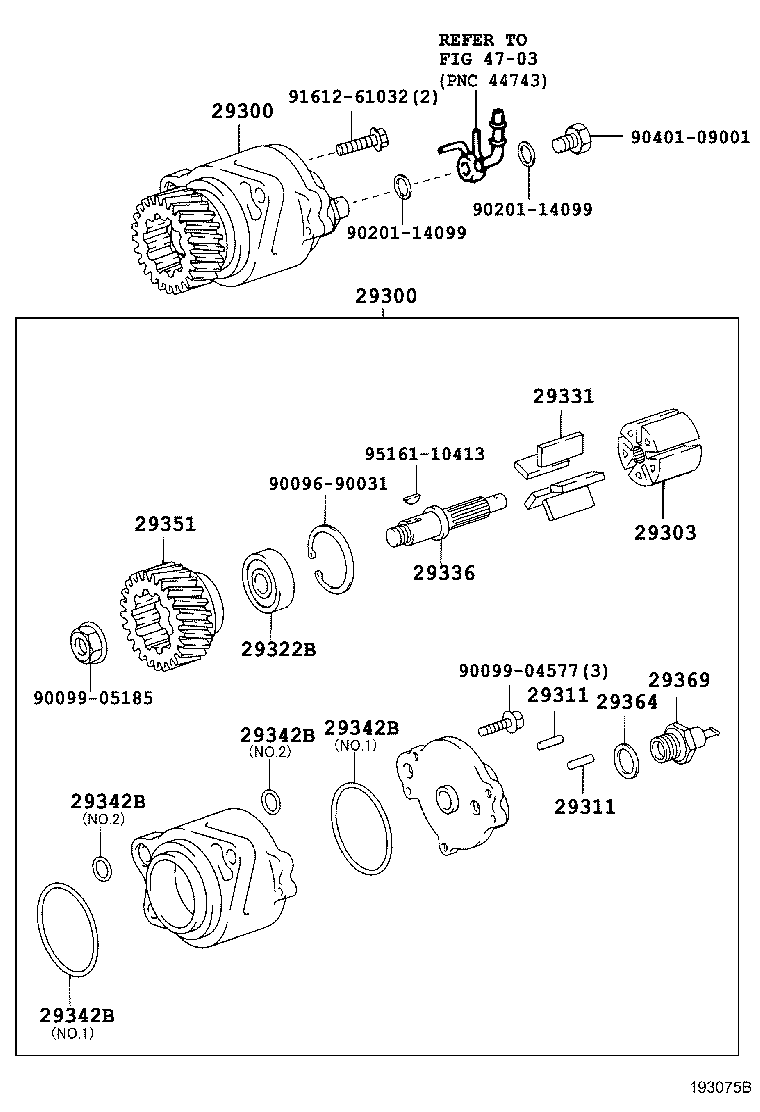

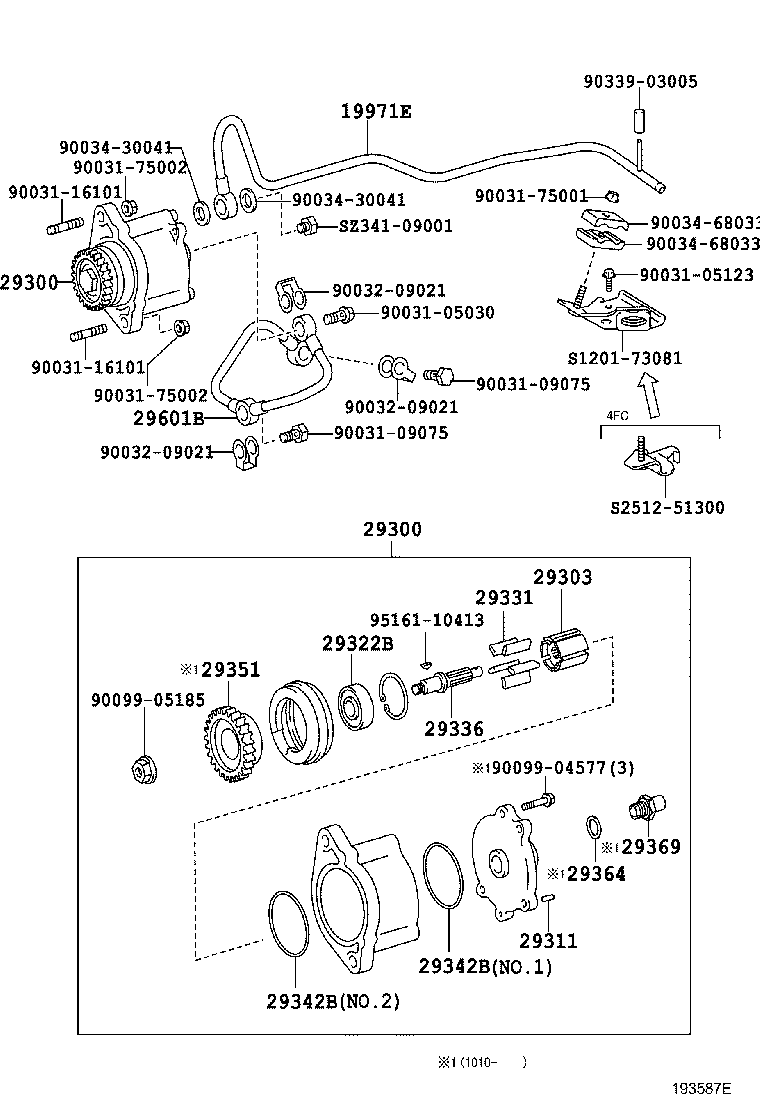

Figure 191186A 191186A 1993-01 → 1999-02 Figure 191018D 191018D 1993-01 → 1996-05 Figure 191018D 191018D 1993-01 → — Figure 193075B 193075B 1999-02 → — Figure 193587E 193587E 2006-08 → 2012-02 Figure 194158D 194158D 2012-02 → 2013-09 Figure 194283D 194283D 2013-09 → 2015-06 Figure 195042 195042 2015-06 → —

Part groups

PNCDescription
19971E Pipe, Vacuum
29300 Pump Assy, Vacuum
29303 Rotor Sub-assy, Vacuum Pump
29311 Pin, Vacuum Pump Dowel, NO.1
29322B Bearing, Vacuum Pump
29331 Blade, Vacuum Pump, A
29336 Shaft, Vacuum Pump
29342 Packing, Vacuum Pump
29342B Ring, O
29343 Ring, O Vacuum Pump, NO.1
29346 Ring, O Vacuum Pump Cover
29351 Gear, Vacuum Pump
29364 Washer, Vacuum Pump
29366A Key, Vacuum Pump
29369 Valve Sub-assy, Check
29391 Tube, Vacuum Pump
29601B Pipe Sub-assy, Oil(FOR VACUUM PUMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
