Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

46 part groups · 11 illustrations

Illustrations

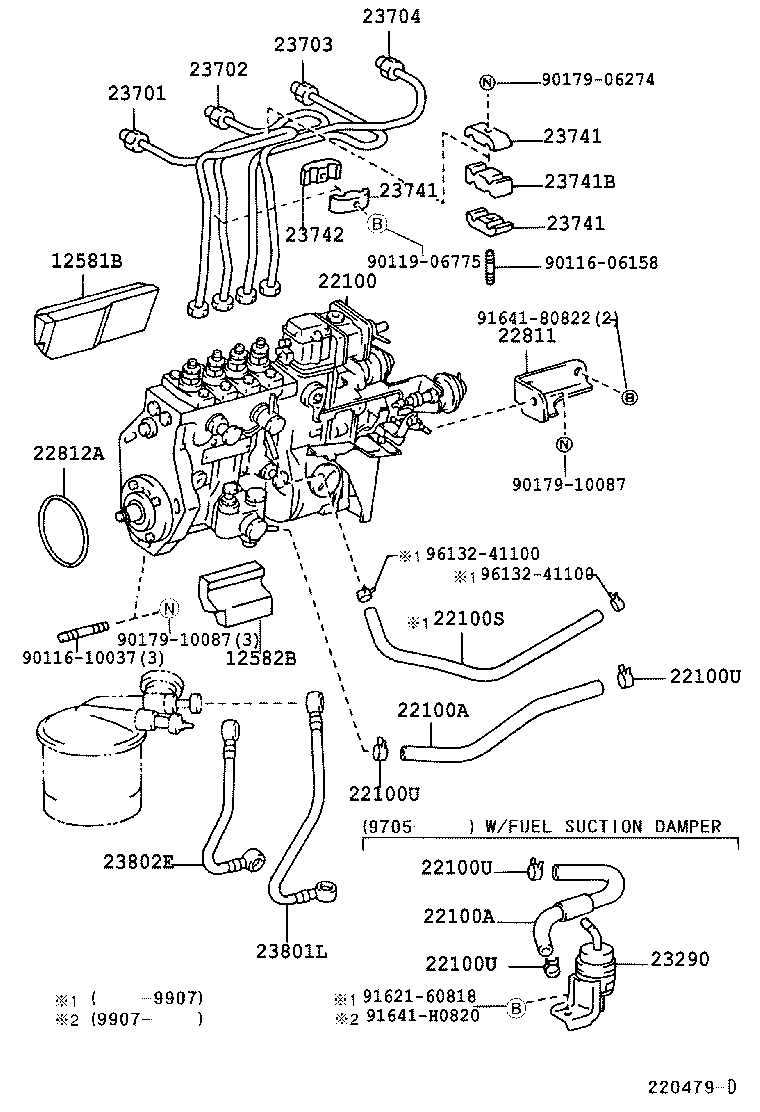

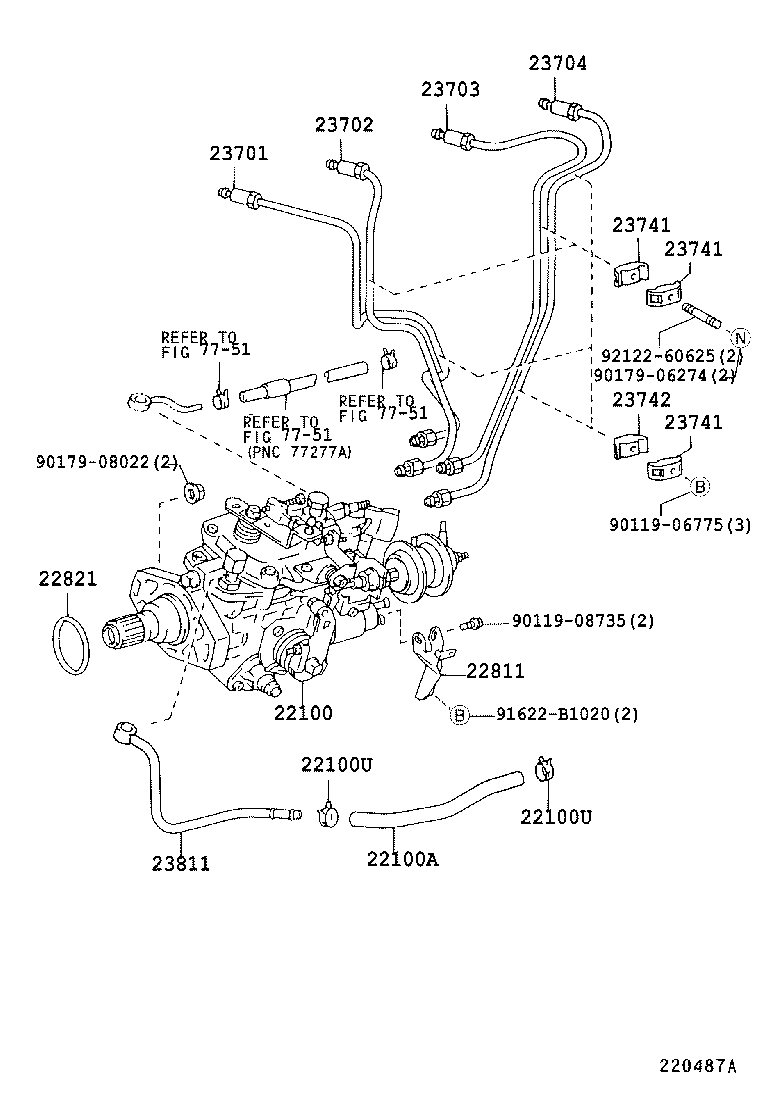

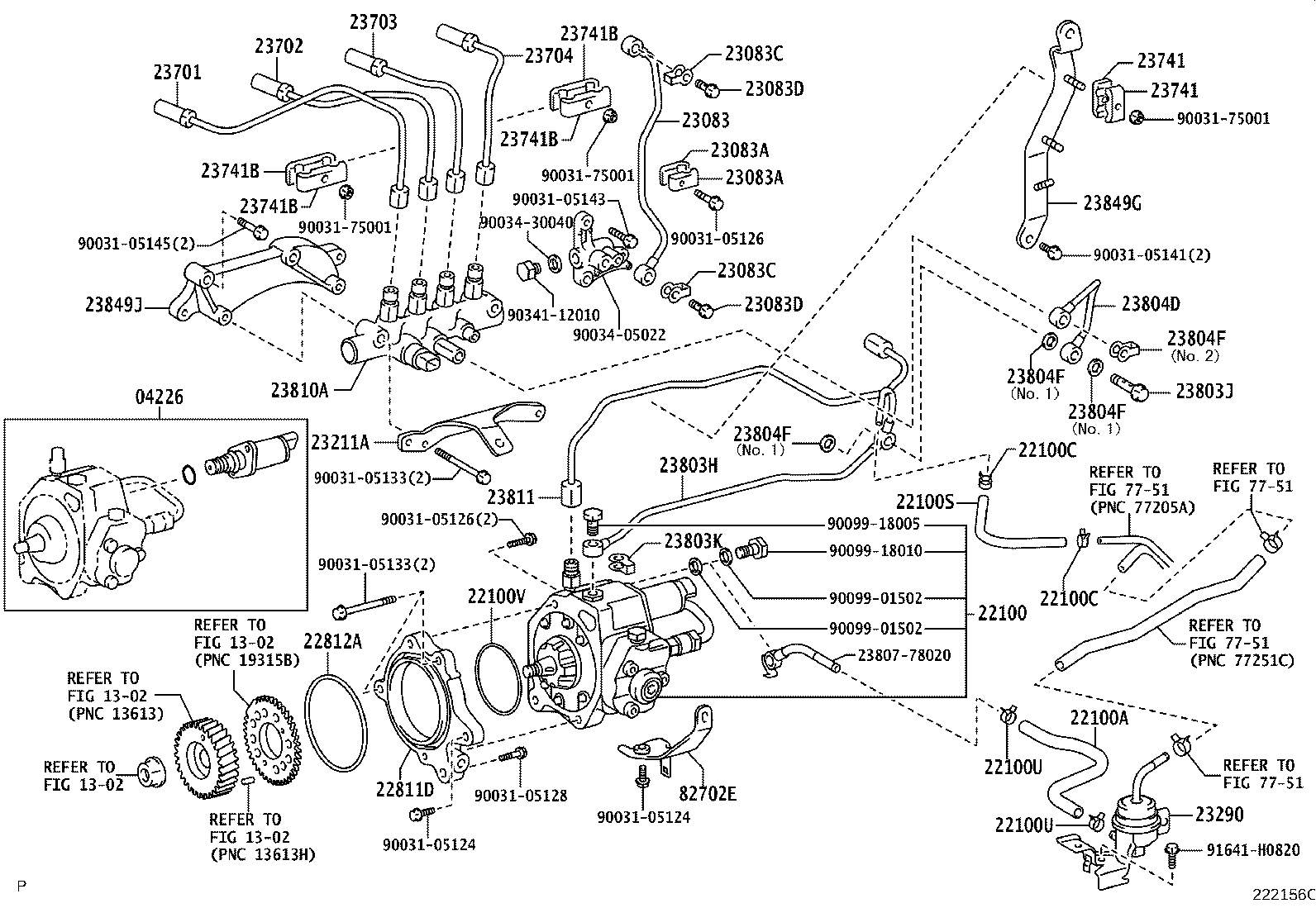

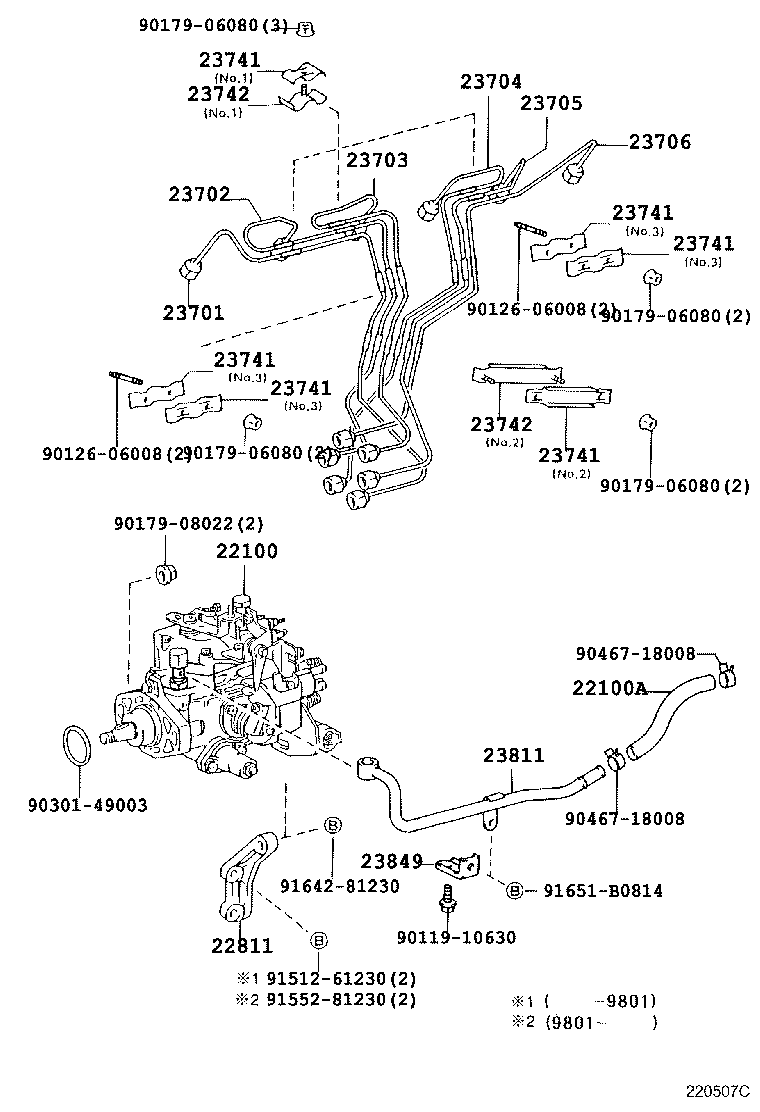

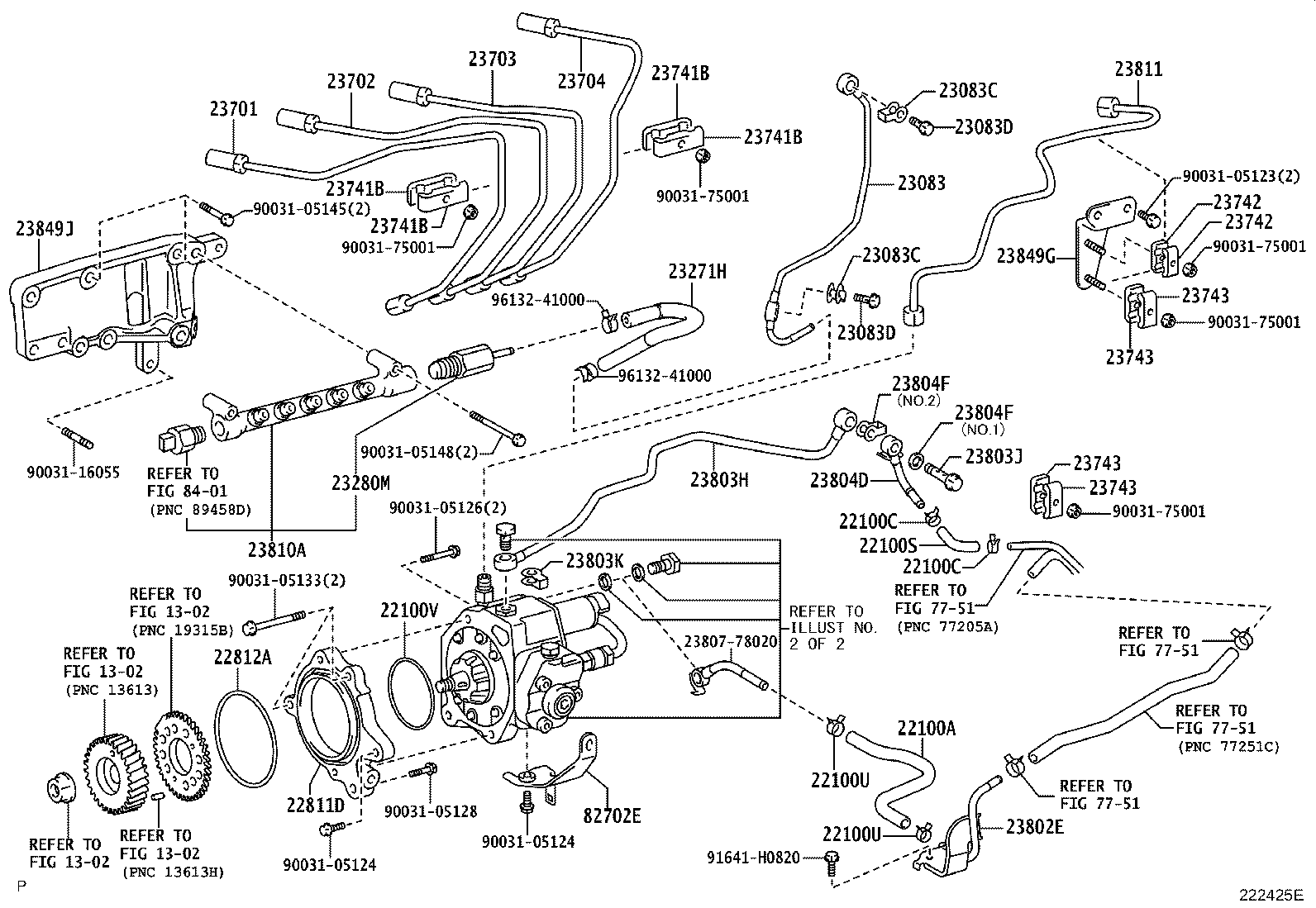

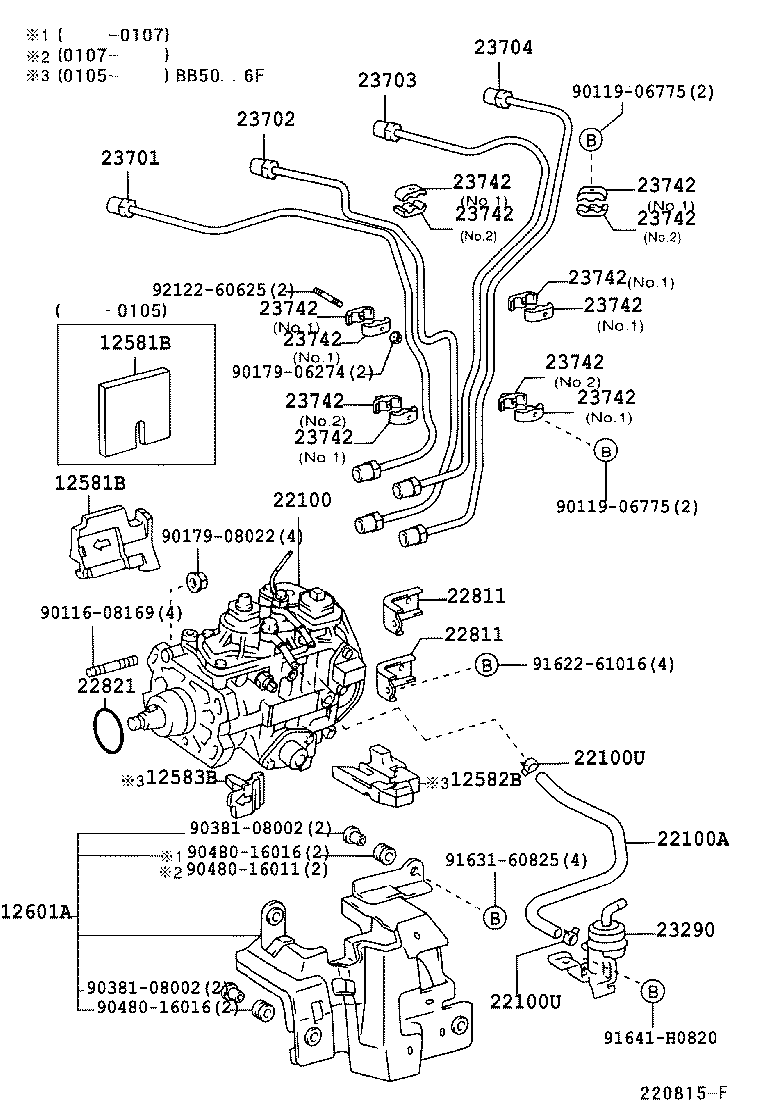

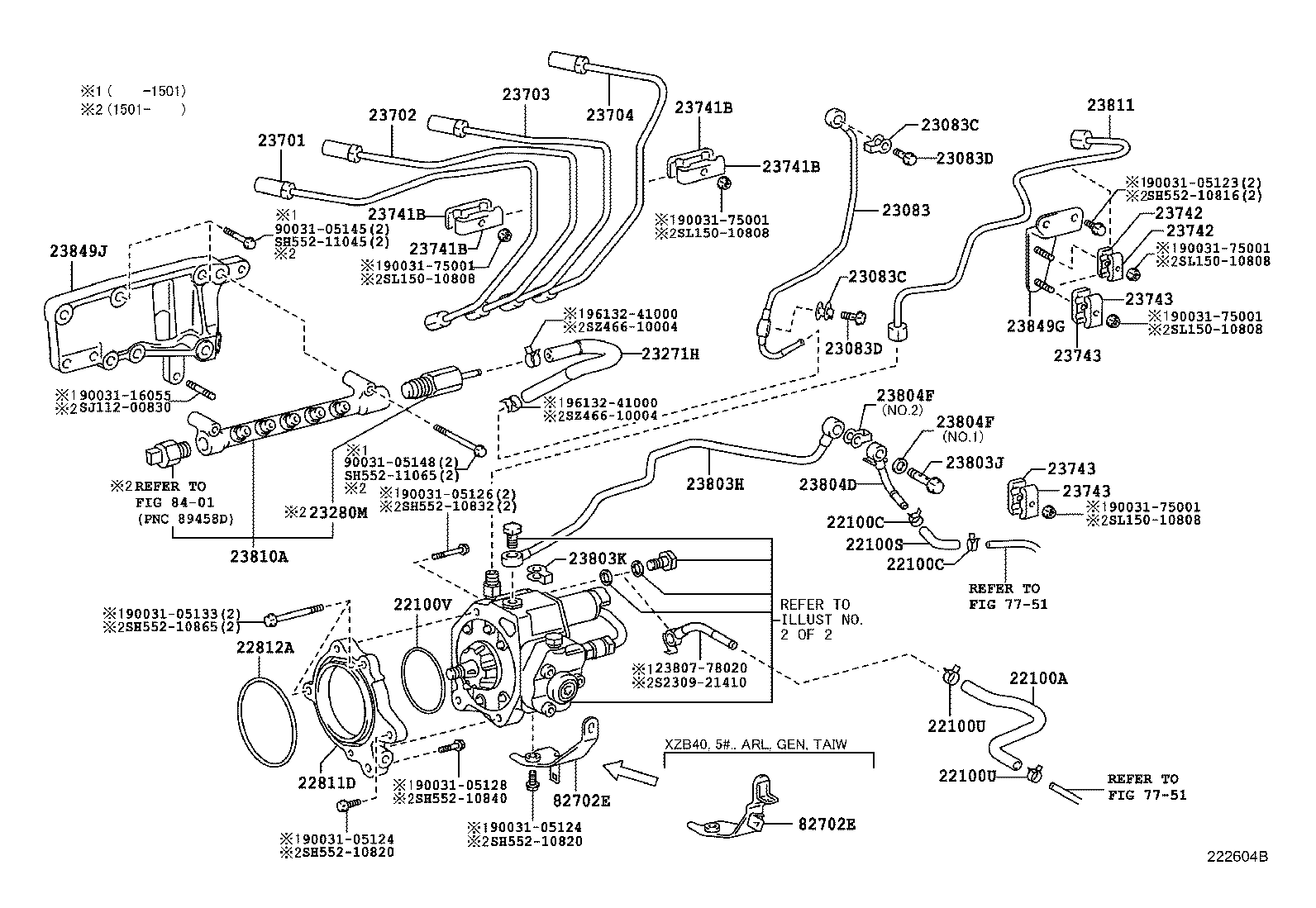

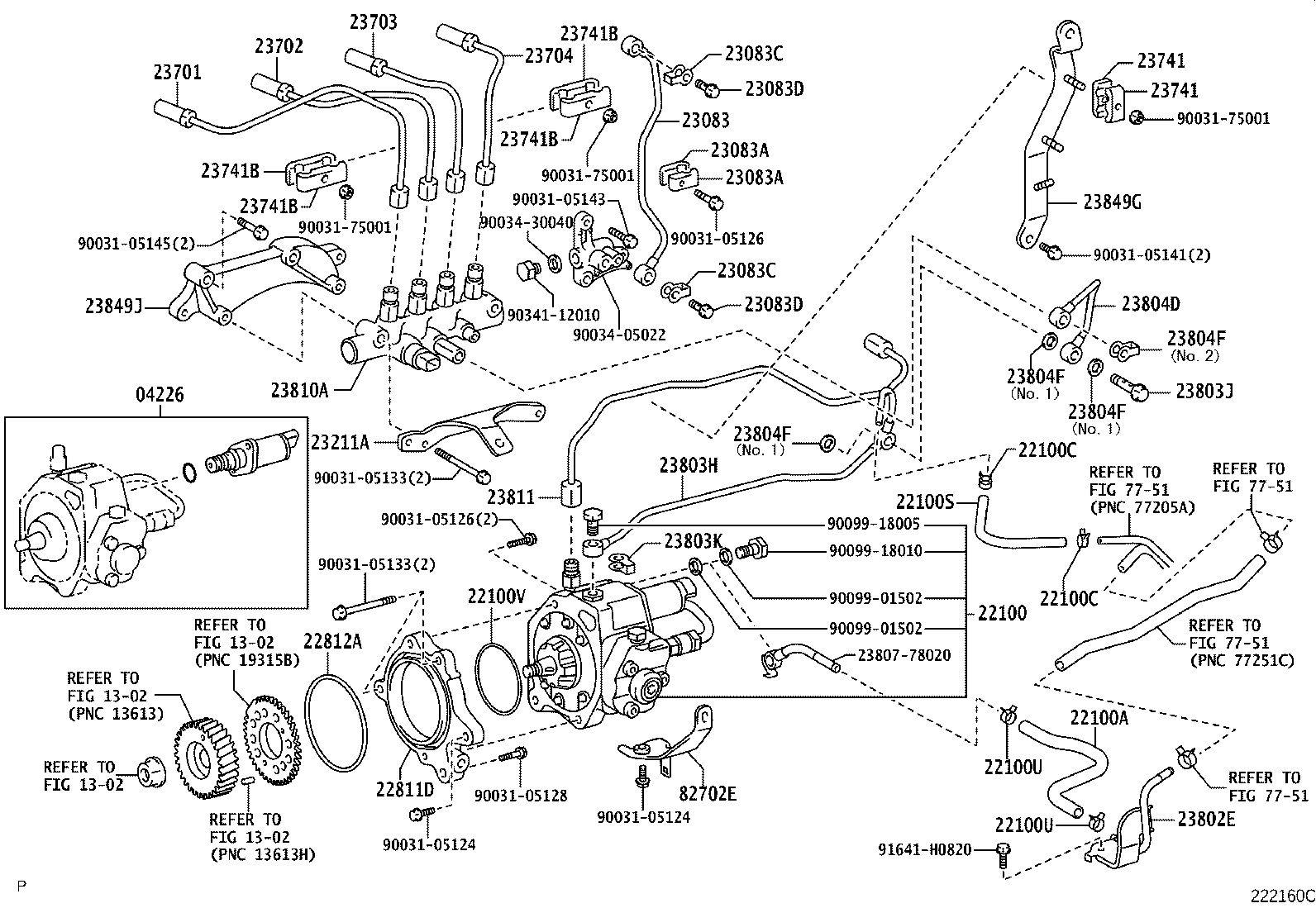

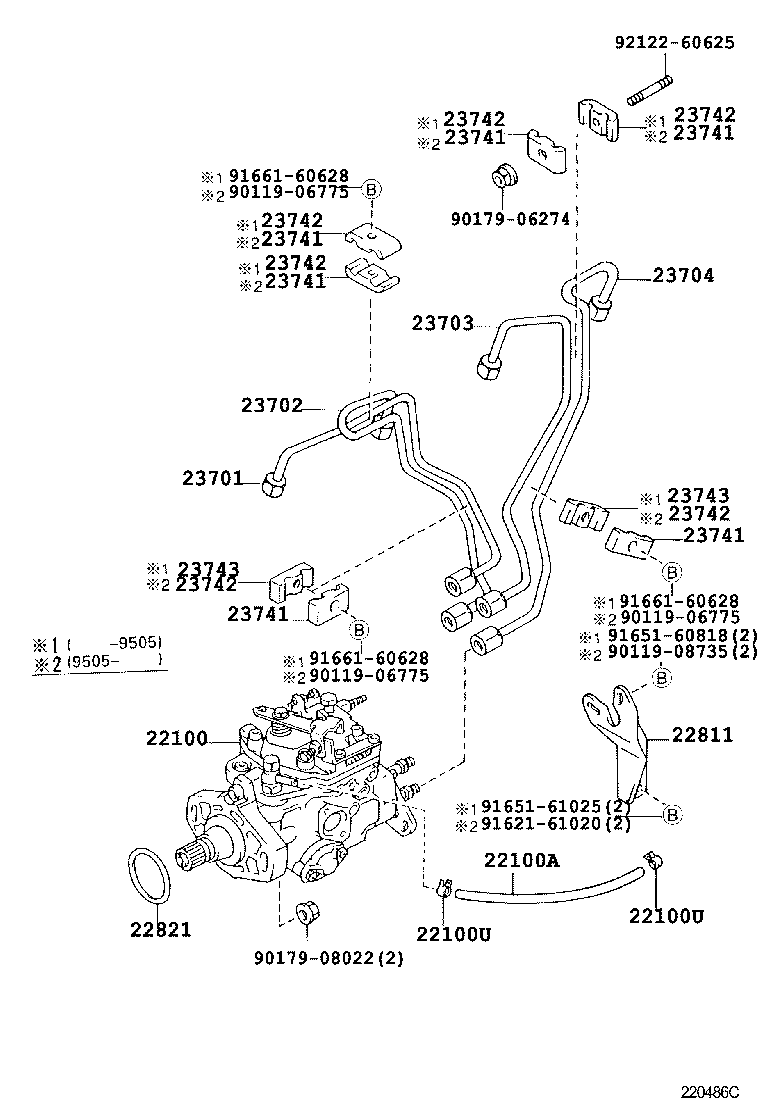

Figure 220813A 220813A 1993-01 → 1999-07 Figure 220486C 220486C 1993-01 → — Figure 220479D 220479D 1996-05 → — Figure 220487A 220487A 1997-05 → — Figure 220815F 220815F 1999-07 → — Figure 220507C 220507C 1993-01 → — Figure 222156C 222156C 2006-08 → 2007-08 Figure 222160C 222160C 2007-08 → 2009-08 Figure 222425E 222425E 2009-08 → 2011-08 Figure 222604B 222604B 2011-08 → — Figure 222576A 222576A 2009-08 → —

Part groups

PNCDescription
04226 Valve Kit, Suction Control
12581B Insulator, Cylinder Block, NO.1
12582B Insulator, Cylinder Block, NO.2
12583B Insulator, Cylinder Block, NO.3
12601A Insulator, Cylinder Block
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22100C Clamp, Fuel Hose, NO.2
22100S Hose, Fuel(FOR INJECTION PUMP TO FUEL PIPE)
22100U Clip, Hose Fuel(FOR INJECTION PUMP)
22100V Ring, O(FOR INJECTION PUMP)
22811 Stay, Injection Pump, NO.1
22811D Stay, Injection Pump, NO.2
22812A Ring, O
22821 Gasket, Injection Pump
23083 Pipe Sub-assy, Nozzle Leakage, NO.3
23083A Clamp, Nozzle Leakage
23083C Gasket(NOZZLE LEKAGE PIPE NO.3)
23083D Bolt, Union(FOR NOZZLE LEKAGE PIPE NO.3)
23211A Bracket(FOR INJECTION PIPE NO.3)
23271H Hose, Fuel, NO.1
23280M Limitter Assy, Fuel Pressure
23290 Damper Assy, Fuel Suction
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23705 Pipe Sub-assy, Injection, NO.5
23706 Pipe Sub-assy, Injection, NO.6
23741 Clamp, Injection Pipe, NO.1
23741B Clamp, Injection Pipe
23742 Clamp, Injection Pipe, NO.2
23743 Clamp, Injection Pipe, NO.3
23801L Pipe Sub-assy, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23802E Pipe Sub-assy, Fuel
23803H Pipe Sub-assy, Fuel Return
23803J Bolt, Union(FOR FUEL RETURN PIPE)
23803K Gasket(FOR FUEL RETURN PIPE)
23804D Pipe Sub-assy, Fuel, NO.4
23804F Gasket(FOR FUEL PIPE NO.4)
23810A Rail Assy, Common
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23849 Support, Fuel
23849G Support, Fuel Pipe
23849J Support, Fuel Pipe(FOR RAIL ASSY, COMMON)
82702E Bracket Sub-assy, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
