Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

9 part groups · 7 illustrations

Illustrations

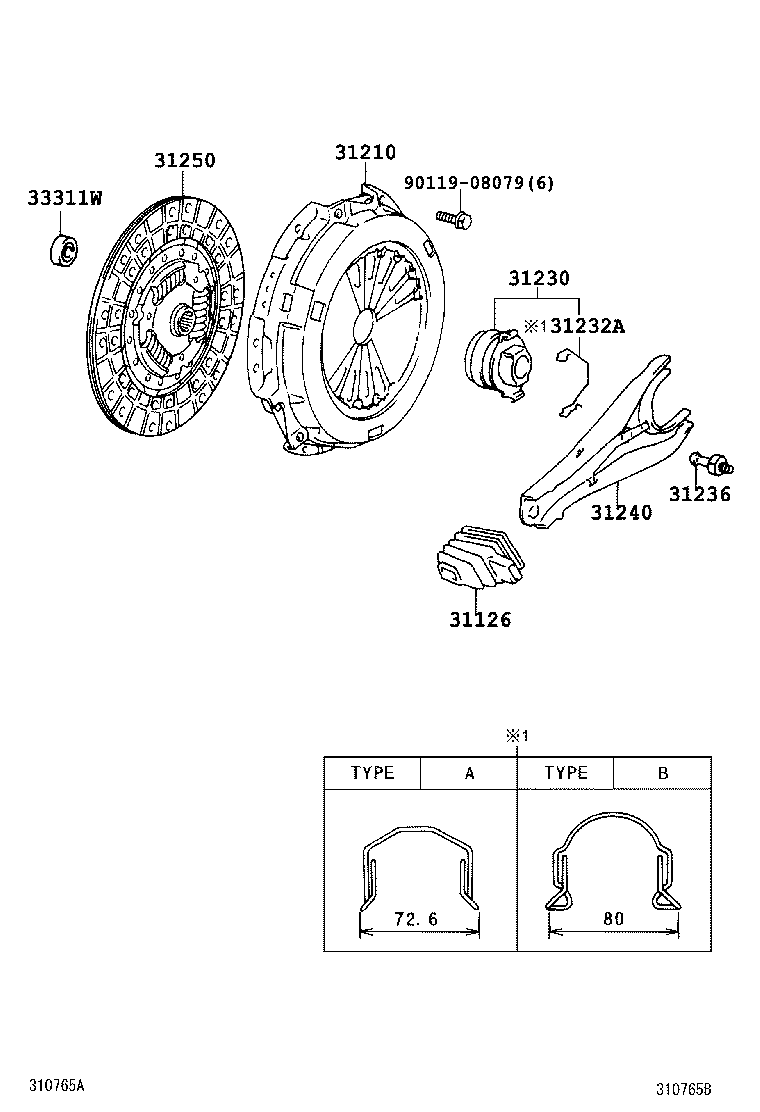

Figure 310766 310766 1993-01 → — Figure 310766 310766 1996-05 → — Figure 310764B 310764B 1993-01 → — Figure 310765B 310765B 1993-09 → 2007-08 Figure 310765B 310765B 2007-08 → — Figure 310767 310767 1997-05 → — Figure 311386 311386 2006-08 → —

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31232A Clip, Release Bearing Hub
31236 Ball, Release Fork
31240 Fork Assy, Clutch Release
31250 Disc Assy, Clutch
33311W Bearing (FOR INPUT SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
