Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe
Discontinued model
Data version 2016-12

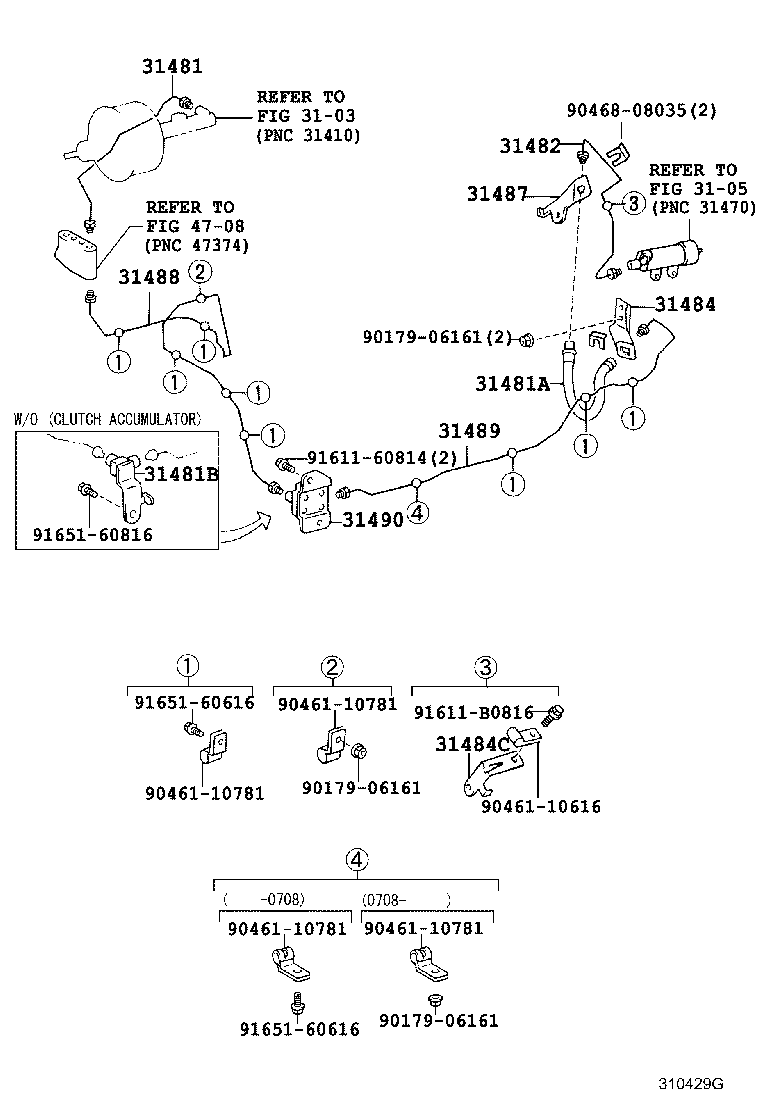

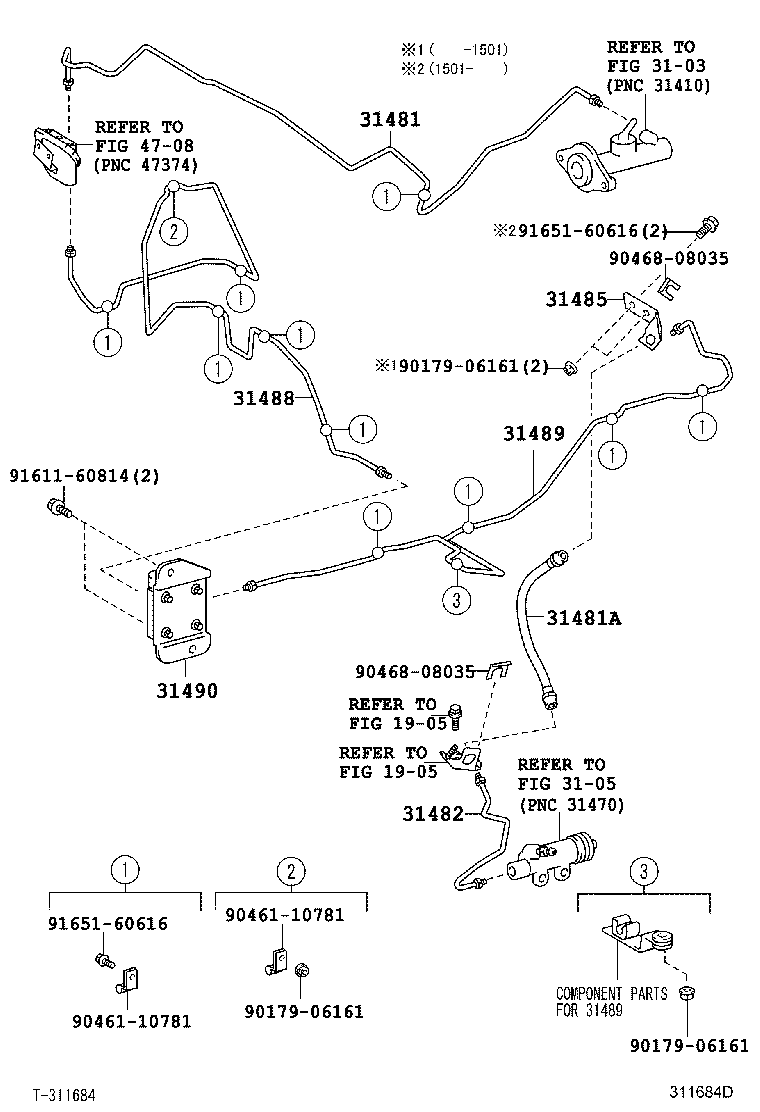

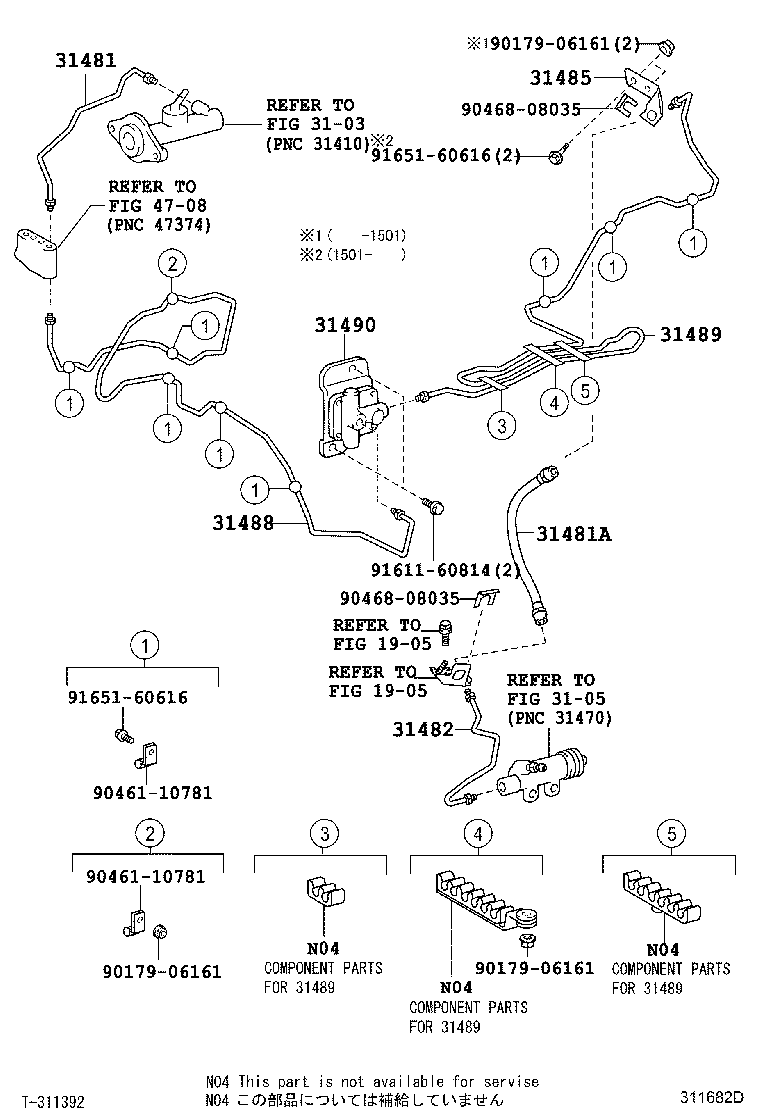

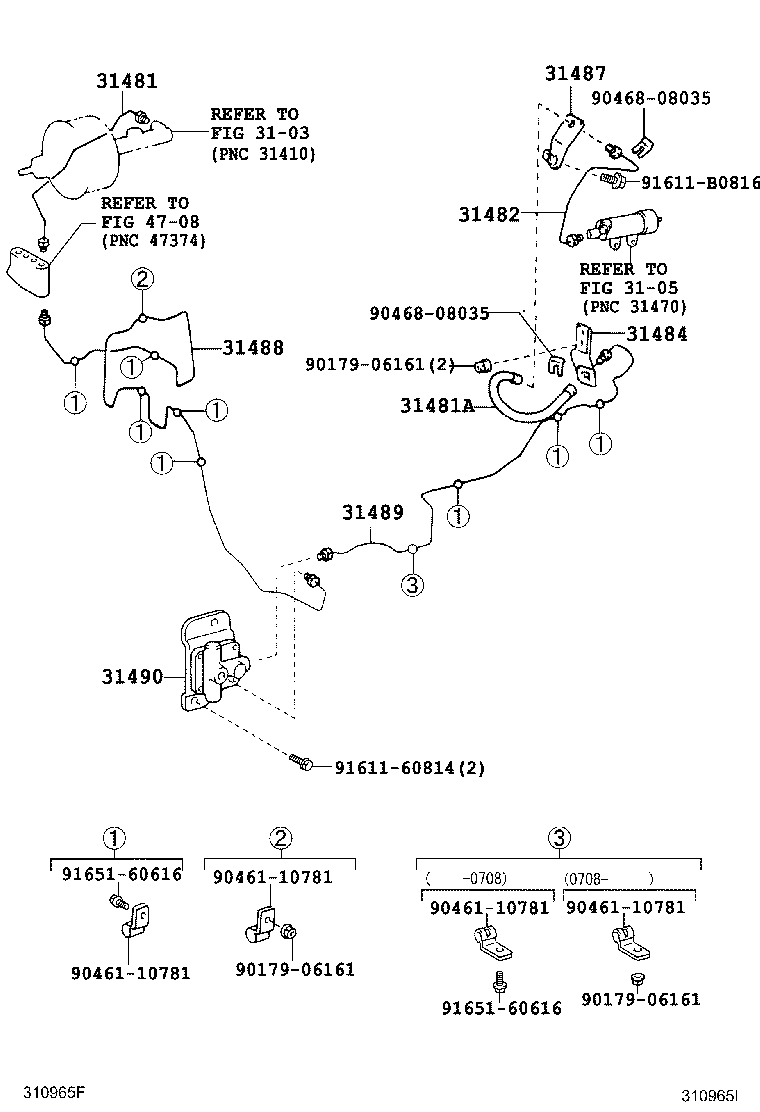

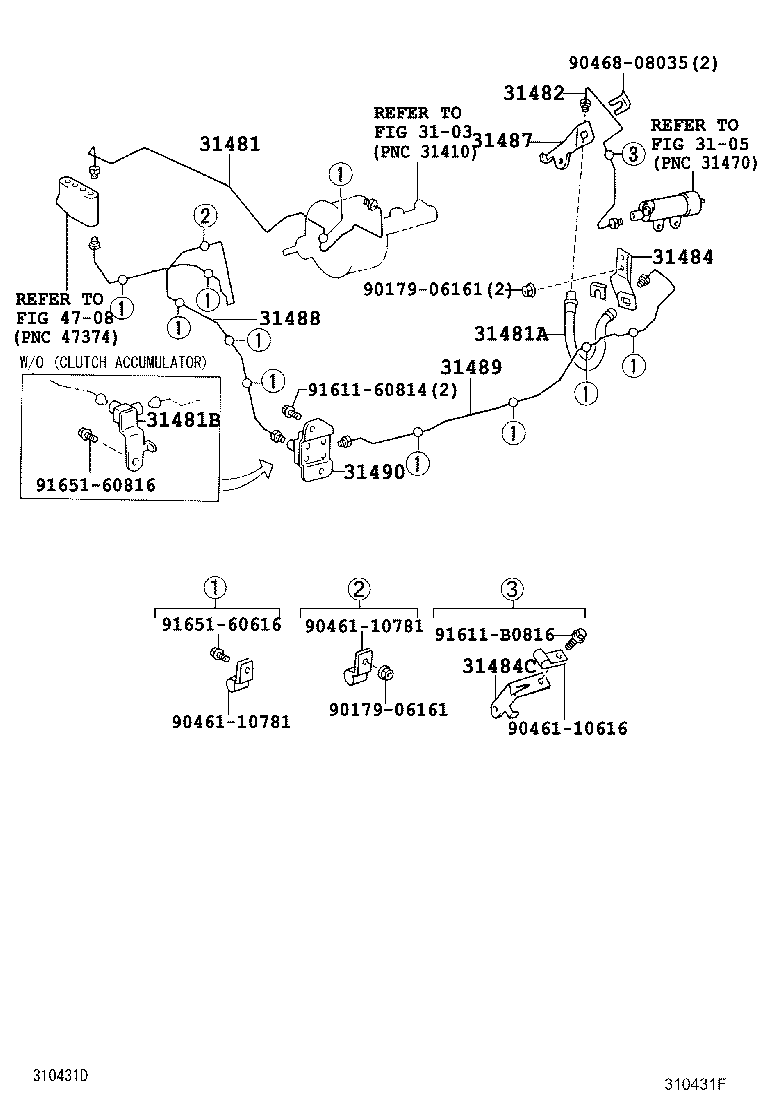

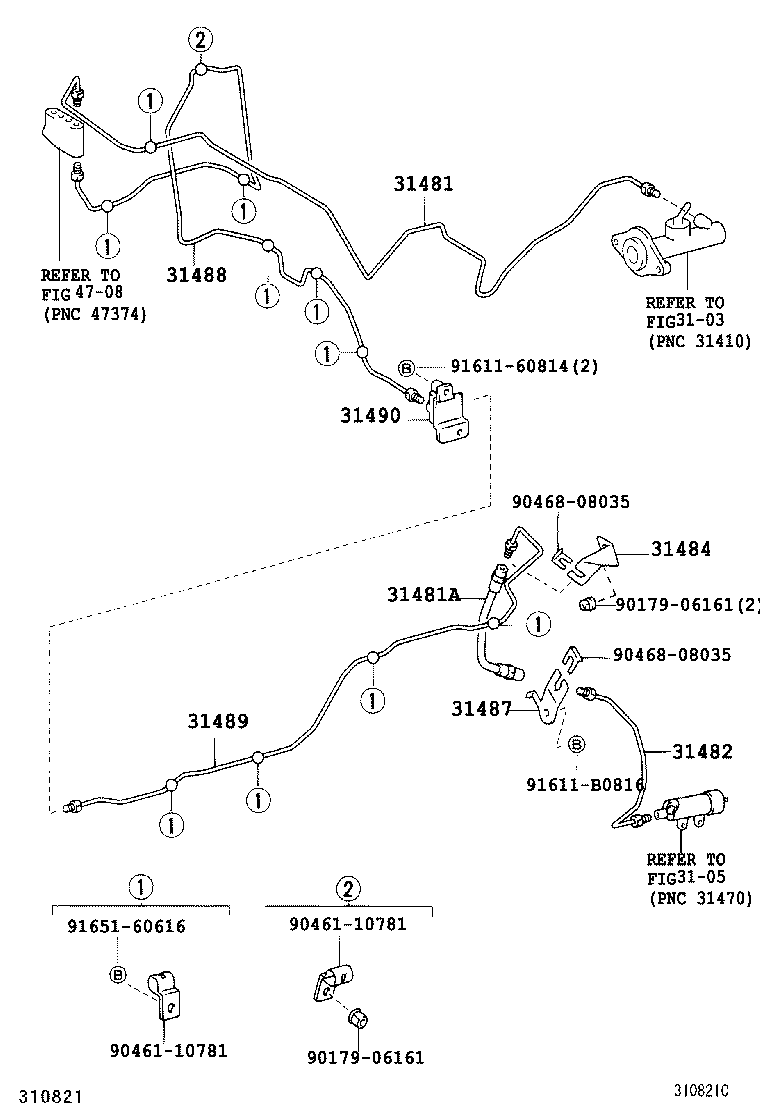

Clutch Pedal & Flexible Hose
27 part groups · 17 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|

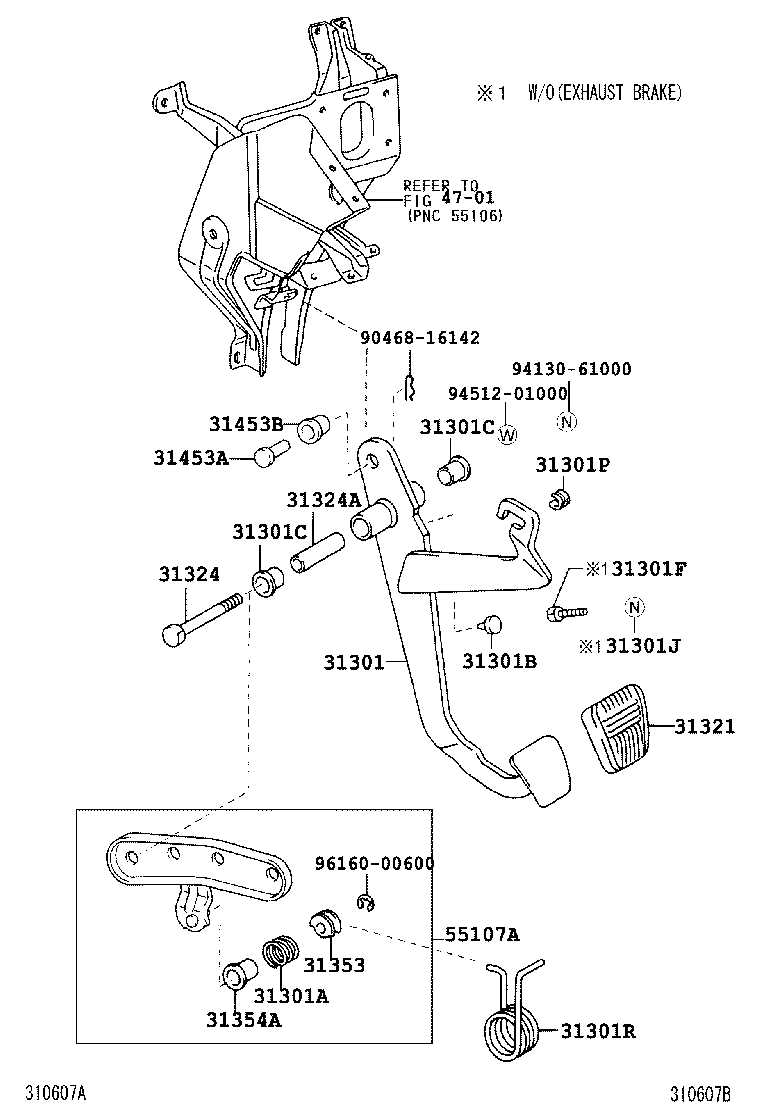

| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301F | Bolt(FOR CLUTCH PEDAL STOPPER) |
| 31301J | Nut(FOR CLUTCH PEDAL STOPPER) |
| 31301P | Bush(FOR CLUTCH PEDAL TURNOVER) |
| 31301R | Spring, Compression(FOR TURNOVER SPRING SEAT) |
| 31321 | Pad, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31353 | Holder, Clutch Pedal Spring |
| 31354A | Bush(FOR CLUTCH PEDAL SPRING SEAT UPPER) |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31453B | Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31481A | Hose, Clutch, NO.1 |
| 31481B | Way(FOR CLUTCH TUBE) |
| 31482 | Tube, Clutch Release Cylinder TO Flexible Hose |
| 31484 | Bracket, Flexible Hose(FOR CLUTCH) |
| 31484C | Bracket, Clutch Tube, NO.1 |
| 31485 | Bracket, Flexible Hose, NO.2(FOR CLUTCH) |
| 31487 | Plate, Release Tube Set |
| 31488 | Tube, Connector TO Tube Connector |
| 31489 | Tube, Tube Connector TO Flexible Hose |
| 31490 | Accumulator Assy, Clutch |
| 55107A | Support Sub-assy, Clutch Pedal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
