Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

13 part groups · 8 illustrations

Illustrations

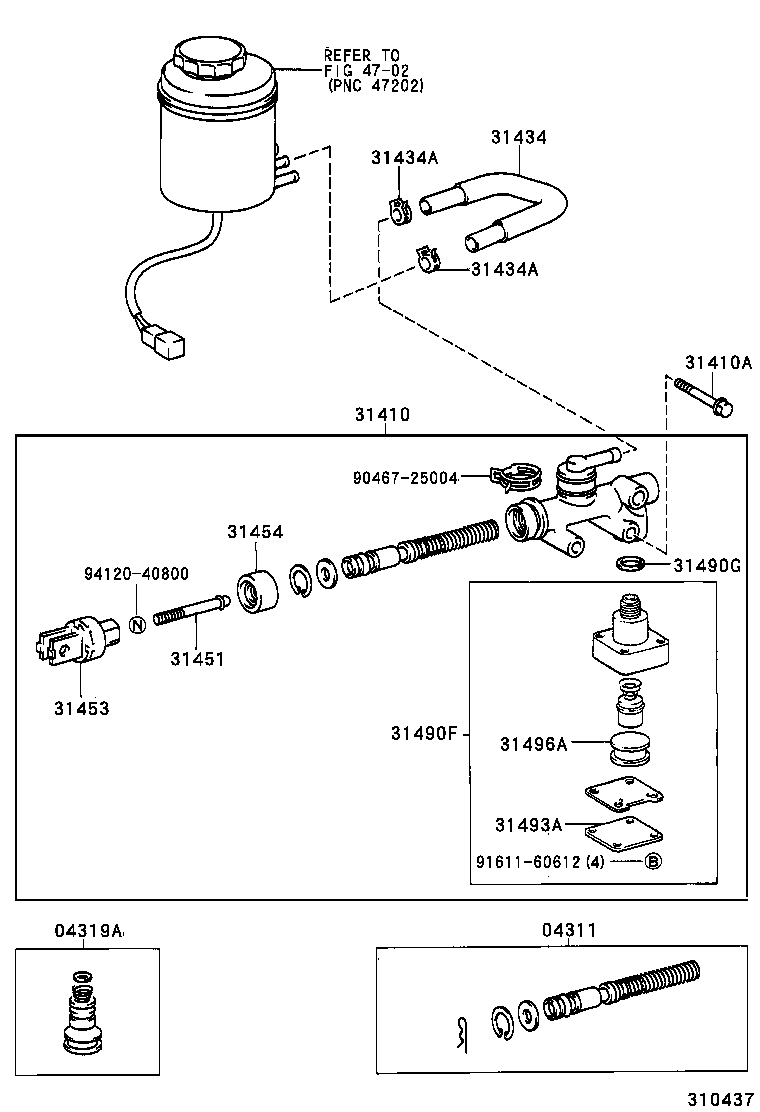

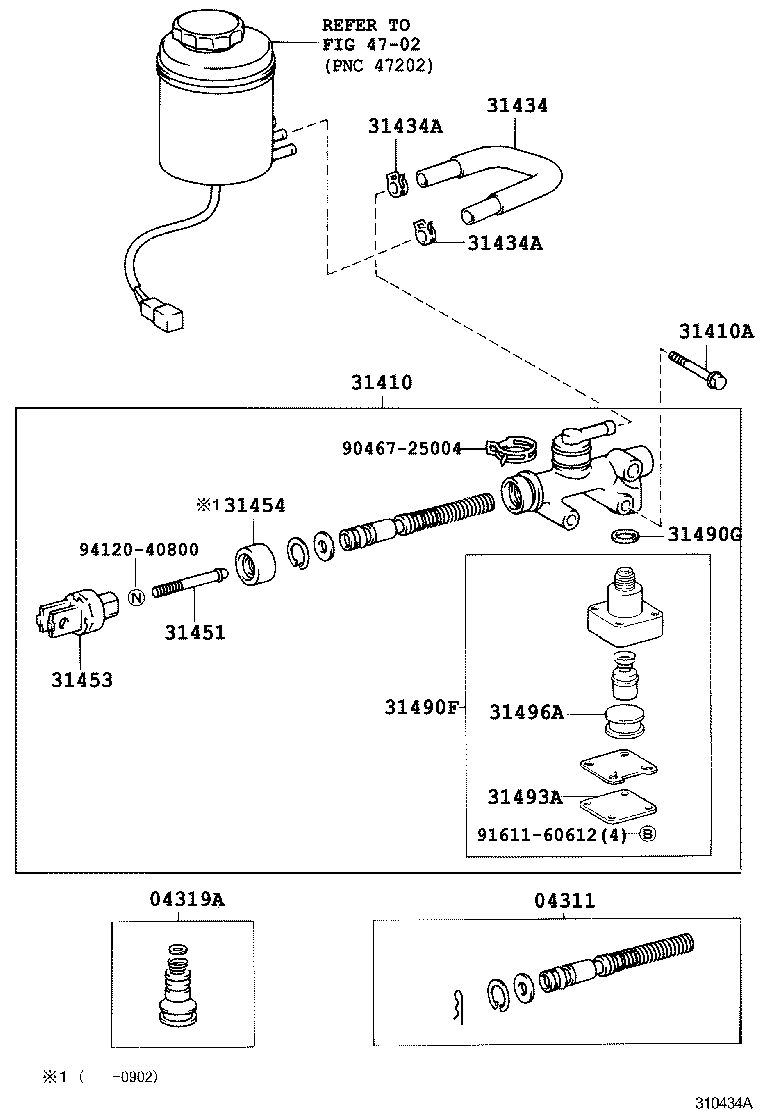

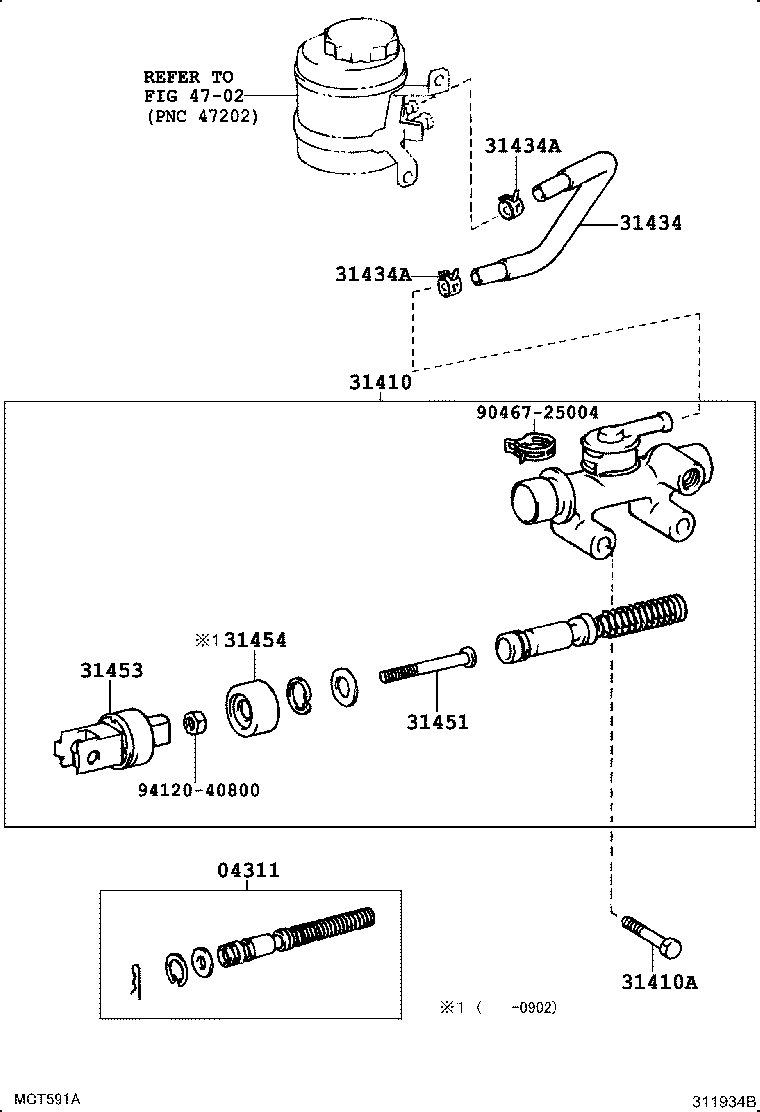

Figure 312249 312249 1993-01 → — Figure 310434A 310434A 1993-01 → — Figure 310437 310437 1993-09 → 1995-05 Figure 311934B 311934B 1995-05 → 2007-08 Figure 311934B 311934B 2007-08 → — Figure 311089A 311089A 1993-01 → — Figure 311089A 311089A 1996-05 → — Figure 311089A 311089A 1996-05 → —

Part groups

PNCDescription
04311 Cylinder Kit, Clutch Master
04319A Cylinder Kit, Clutch Accumulator
31410 Cylinder Assy, Clutch Master
31410A Bolt(FOR CLUTCH MASTER CYLINDER SETTING)
31434 Tube, Clutch Reservoir
31434A Clip(FOR CLUTCH RESERVOIR TUBE)
31451 Rod, Clutch Master Cylinder Push
31453 Clevis, Clutch Master Cylinder Push Rod
31454 Boot, Clutch Master Cylinder
31490F Accumulator Assy, Master Cylinder
31490G Gasket(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)
31493A Bracket, Clutch Accumulator
31496A Cushion, Clutch Accumulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
