Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

132 part groups · 5 illustrations

Illustrations

352022D 1993-01 → 2001-08

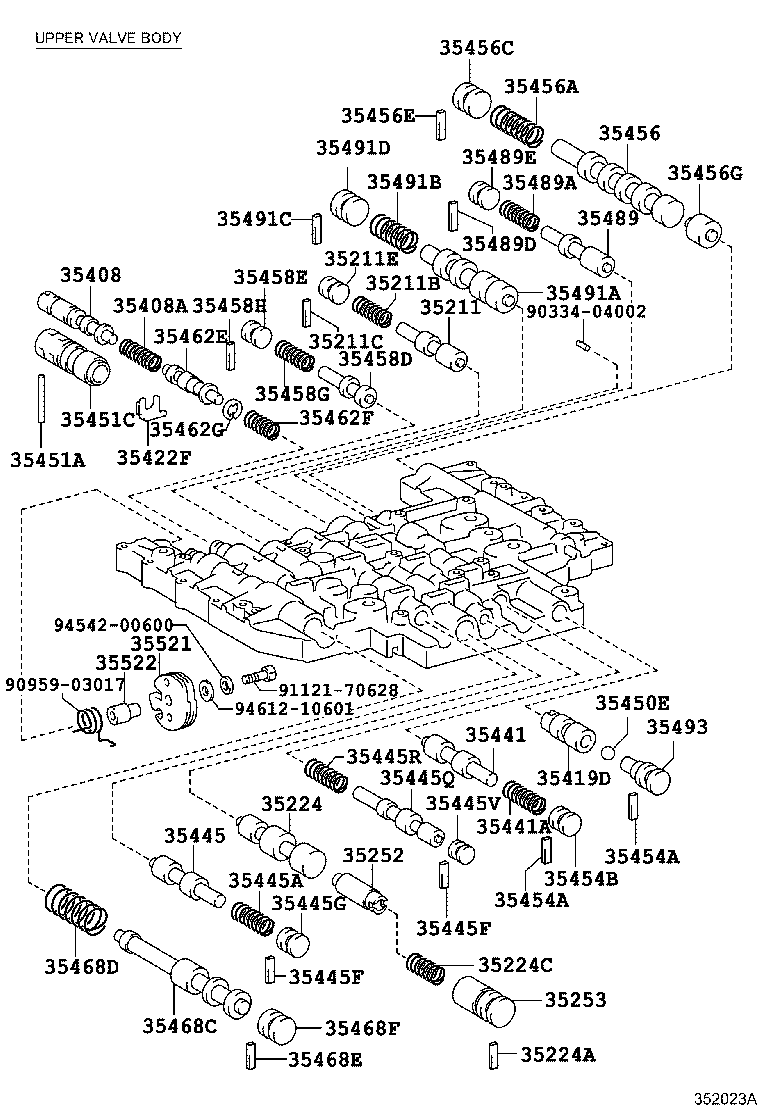

352023A 1993-01 → 2001-08

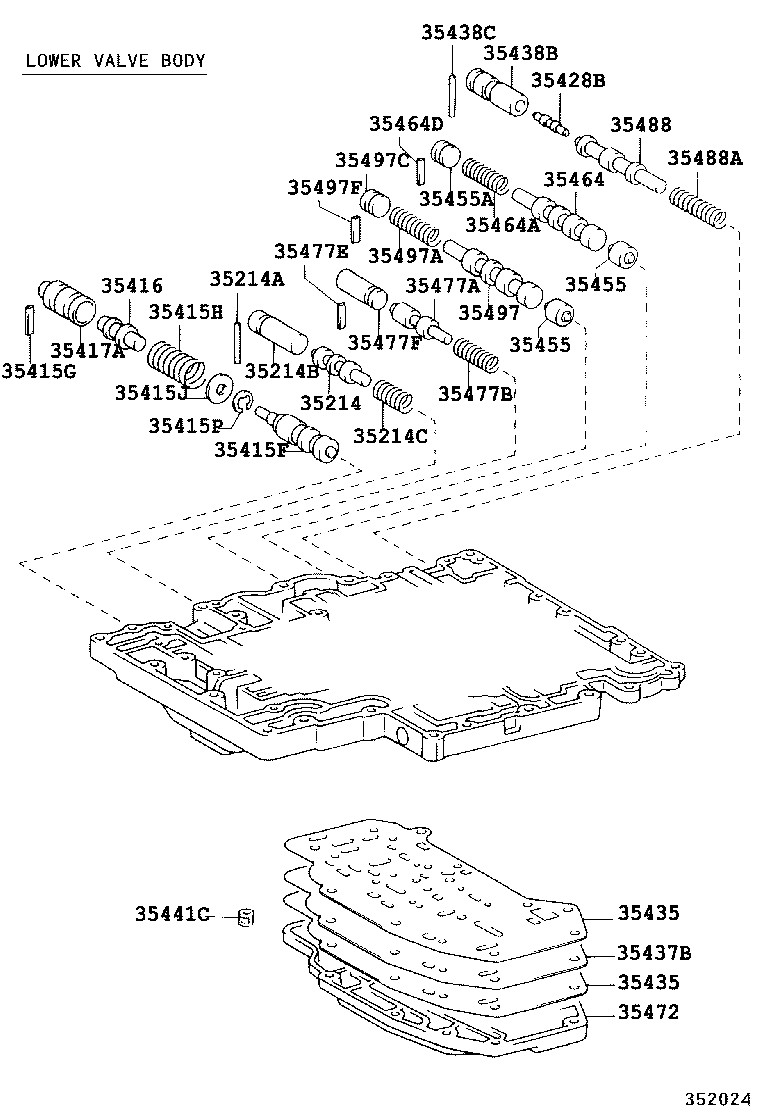

352024 1993-01 → 2001-08

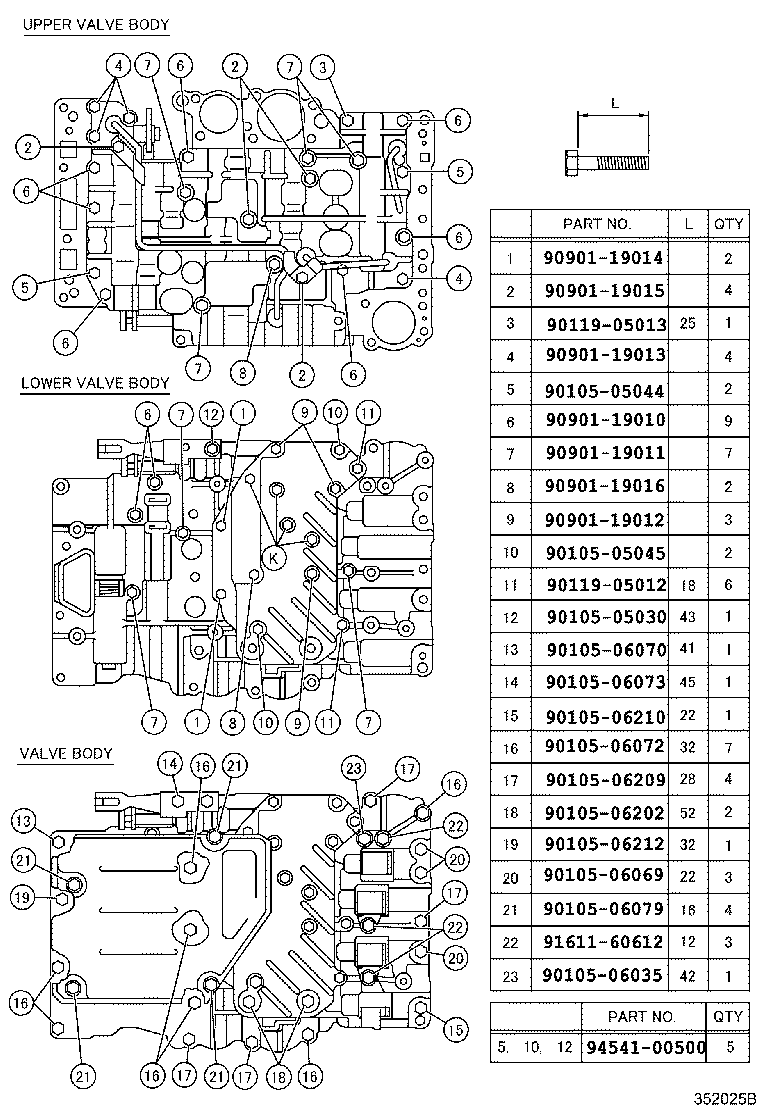

352025B 1993-01 → 2001-08

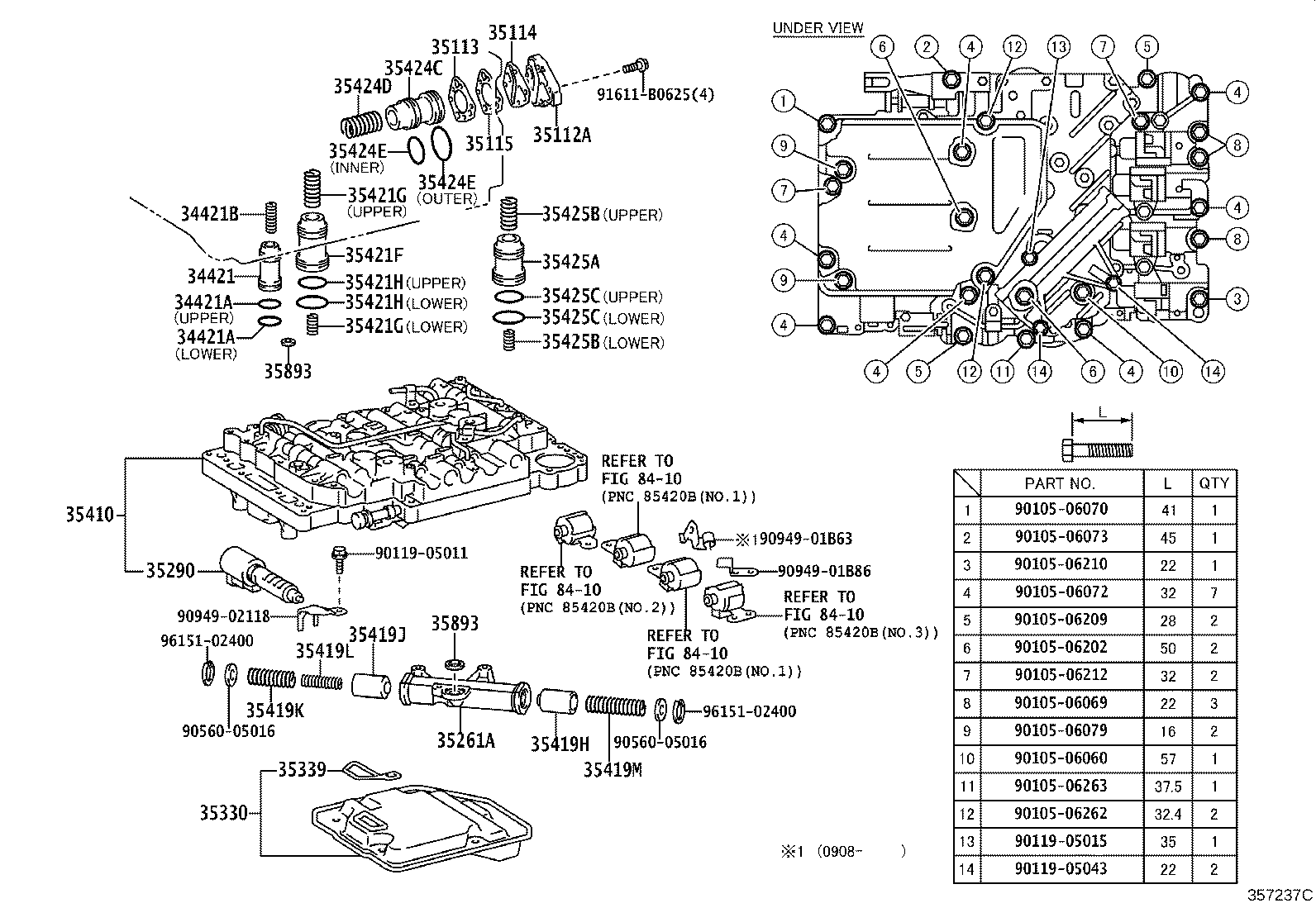

357237C 2007-08 → —

Part groups

PNC	Description
32912A	Cage, Check Valve(FOR VALVE BODY)
34421	Piston, Overdrive Brake Accumulator
34421A	Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
34421B	Spring (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
35112A	Cover, Front Clutch Accumulator
35113	Gasket, Front Clutch Accumlator, NO.2
35114	Gasket, Front Clutch Accumlator, NO.1
35115	Plate, Front Clutch Accumulator
35211	Valve, Lock UP Signal
35211B	Spring, Compression (FOR LOCK UP SIGNAL VALVE)
35211C	Key, Straight (FOR LOCK UP SIGNAL VALVE)
35211E	Plug (FOR LOCK UP SIGNAL VALVE)
35214	Valve, Lock UP Control
35214A	Key, Straight (FOR LOCK UP CONTROL VALVE)
35214B	Plug (FOR LOCK UP CONTROL VALVE)
35214C	Spring, Compression (FOR LOCK UP CONTROL VALVE)
35224	Valve, Reverse Control
35224A	Key, Straight (FOR REVERSE CONTROL VALVE)
35224C	Spring, Compression (FOR REVERSE CONTROL VALVE)
35252	Plunger, Reverse Control Valve
35253	Sleeve, Reverse Control Valve Plunger
35261A	Cylinder, Throttle Pressure Accumulator
35290	Solenoid Assy, Line Pressure Control
35330	Strainer Assy, Valve Body Oil
35339	Gasket, Oil Strainer
35396	Strainer, Throttle Oil
35408	Plug Sub-assy, Primary Down Shift
35408A	Spring, Compression (FOR PRIMARY DOWN SHIFT PLUG)
35409	Spring Sub-assy, Manual Detent
35410	Body Assy, Transmission Valve
35415F	Valve, Primary Regulator
35415G	Key, Straight (FOR PRIMARY REGULATOR VALVE)
35415H	Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415J	Washer (FOR PRIMARY REGULATOR VALVE)
35415P	Ring, E (FOR PRIMARY REGULATOR VALVE)
35416	Plunger, Primary Regulator Valve, NO.1
35417A	Sleeve, Primary Regulator Valve
35418	Valve, Manual
35419	Valve, Check, NO.1
35419A	Spring, Compression (FOR CHECK VALVE)
35419D	Valve, Check, NO.2
35419H	Valve, Check, NO.5
35419J	Valve, Check, NO.6
35419K	Spring, Compression (FOR CHECK VALVE NO.2)
35419L	Spring, Compression (FOR CHECK VALVE NO.3)
35419M	Spring, Compression (FOR CHECK VALVE NO.4)
35420F	Ball, Check, NO.1
35420G	Spring, Barrel Shaped
35421F	Piston, Accumulator, NO.2
35421G	Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
35421H	Ring (FOR ACCUMULATOR PISTON NO.2)
35422F	Stopper, Valve Vibrating
35424C	Piston, C-1 Accumulator
35424D	Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
35424E	Ring, O (FOR C-1 ACCUMULATOR PISTON)
35425A	Piston, C-2 Accumulator
35425B	Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C	Ring, O (FOR C-2 ACCUMULATOR PISTON)
35428B	Plug, 2-3 Shift Timing Valve
35429	Tube, Line Pressure
35429A	Tube, Line Pressure
35430A	Ball (FOR REAR UPPER VALVE BODY)
35432	Plate, Valve Body, NO.1
35433	Gasket, Valve Body, NO.1
35434	Gasket, Valve Body, NO.2
35435	Gasket, Valve Body Plate, NO.3
35437B	Plate, Valve Body Cover
35438B	Sleeve, 2-3 Shift Timing Valve Plug
35438C	Pin, Straight (FOR 2-3 SHIFT TIMING VALVE PLUG SLEEVE)
35441	Valve, Low Coast Shift Control
35441A	Spring, Compression (FOR LOW COAST SHIFT CONTROL VALVE)
35441C	Strainer, Solenoid Oil
35445	Valve, Low Modulator
35445A	Spring, Compression (FOR LOW MODULATOR VALVE)
35445F	Key, Straight (FOR LOW MODULATOR VALVE)
35445G	Plug (FOR LOW MODULATOR VALVE)
35445Q	Valve, Low Coast Modulator
35445R	Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35445V	Plug (FOR LOW COAST MODULATOR VALVE)
35448	Tube, 2-3 Shift Valve Apply
35450E	Ball (FOR UPPER VALVE BODY)
35451A	Pin, Straight (FOR THROTTLE VALVE SLEEVE)
35451C	Sleeve, Throttle Valve, NO.1
35454A	Key, Straight (FOR LOW COAST SHIFT VALVE)
35454B	Plug (FOR LOW COAST SHIFT VALVE)
35455	Plug, 1-2 Shift Valve Low
35455A	Plug (FOR 1-2 SHIFT VALVE LOW PLUG)
35456	Valve, 2-3 Shift
35456A	Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C	Plug (FOR 2-3 SHIFT VALVE)
35456E	Pin, Straight (FOR 2-3 SHIFT VALVE)
35456G	Plug (FOR 2-3 SHIFT VALVE)
35458D	Valve, Cut Back
35458E	Plug (FOR CUT BACK VALVE)
35458G	Spring, Compression (FOR CUT BACK VALVE)
35458H	Key, Straight (FOR CUT BACK VALVE)
35462E	Valve, Primary Throttle
35462F	Spring, Compression (FOR PRIMARY THROTTLE VALVE)
35462G	Ring, E (FOR PRIMARY THROTTLE VALVE)
35464	Valve, 1-2 Shift
35464A	Spring, Compression (FOR 1-2 SHIFT VALVE)
35464D	Key, Straight (FOR 1-2 SHIFT VALVE)
35468C	Valve, Secondary Regulator
35468D	Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468E	Key, Straight (FOR SECONDARY REGULATOR VALVE)
35468F	Plug (FOR SECONDARY REGULATOR VALVE)
35472	Cover, Valve Body, NO.2
35477A	Valve, Overdrive Clutch Exhaust
35477B	Spring, Compression (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477E	Key, Straight (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477F	Plug (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35488	Valve, 2-3 Shift Timing
35488A	Spring, Compression (FOR 2-3 SHIFT TIMING VALVE)
35489	Valve, 3-2 Kick Down Orifice Control
35489A	Spring (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35489D	Key, Straight (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35489E	Plug (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35491A	Valve, Accumulator Control, NO.1
35491B	Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C	Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491D	Plug (FOR ACCUMULATOR CONTROL VALVE NO.1)
35493	Seat, Shift Valve Spring
35497	Valve, 3-4 Shift
35497A	Spring, Compression (FOR 3-4 SHIFT VALVE)
35497C	Plug (FOR 3-4 SHIFT VALVE)
35497F	Key, Straight (FOR 3-4 SHIFT VALVE)
35521	Cam, Throttle Valve
35522	Pin, Throttle Valve Cam
35599	Cover, Manual Detent Spring
35844A	Tube, Accumulator Back Pressure, NO.1
35891	Tube, Overdrive Direct Clutch
35893	Gasket, Center Support Apply

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
