Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

28 part groups · 23 illustrations

Illustrations

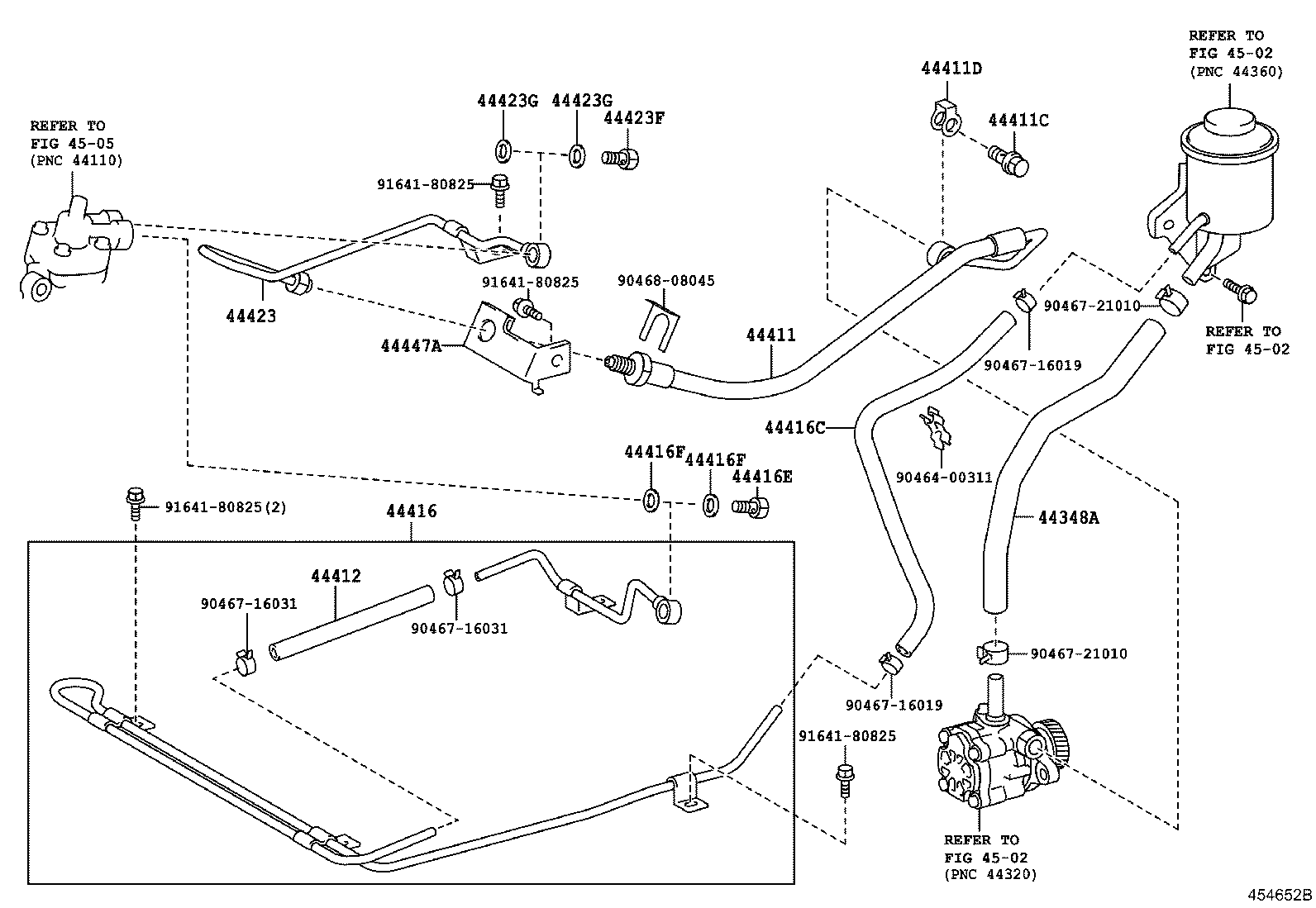

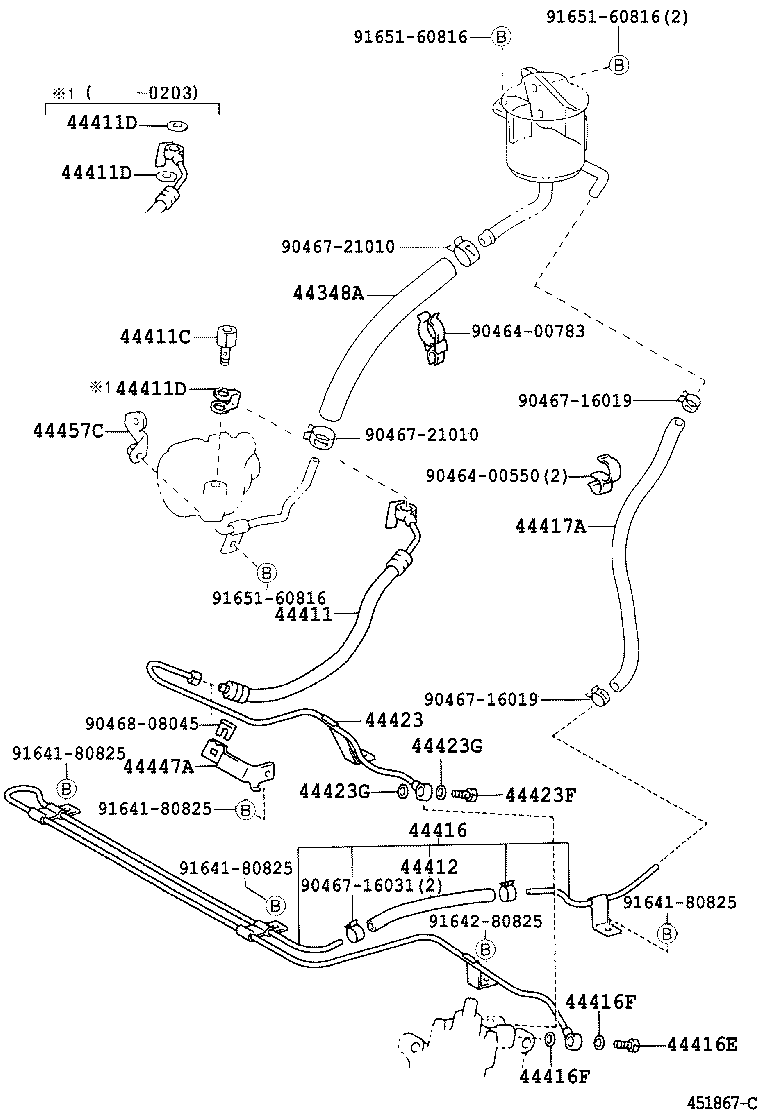

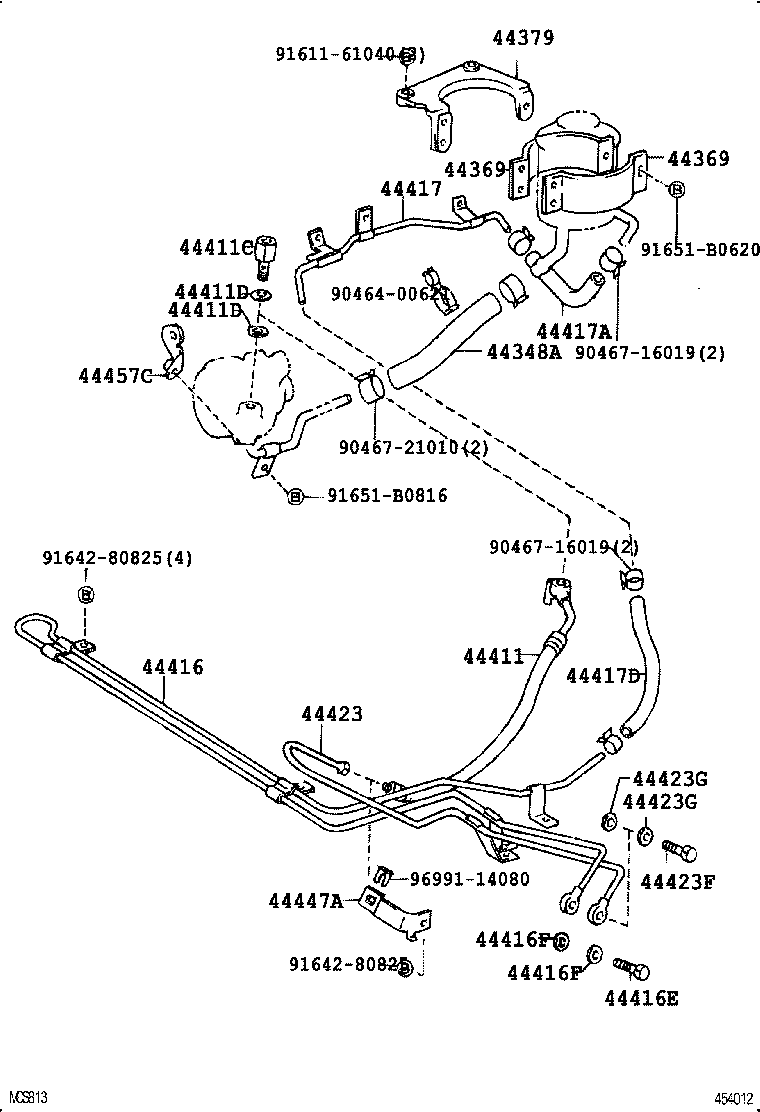

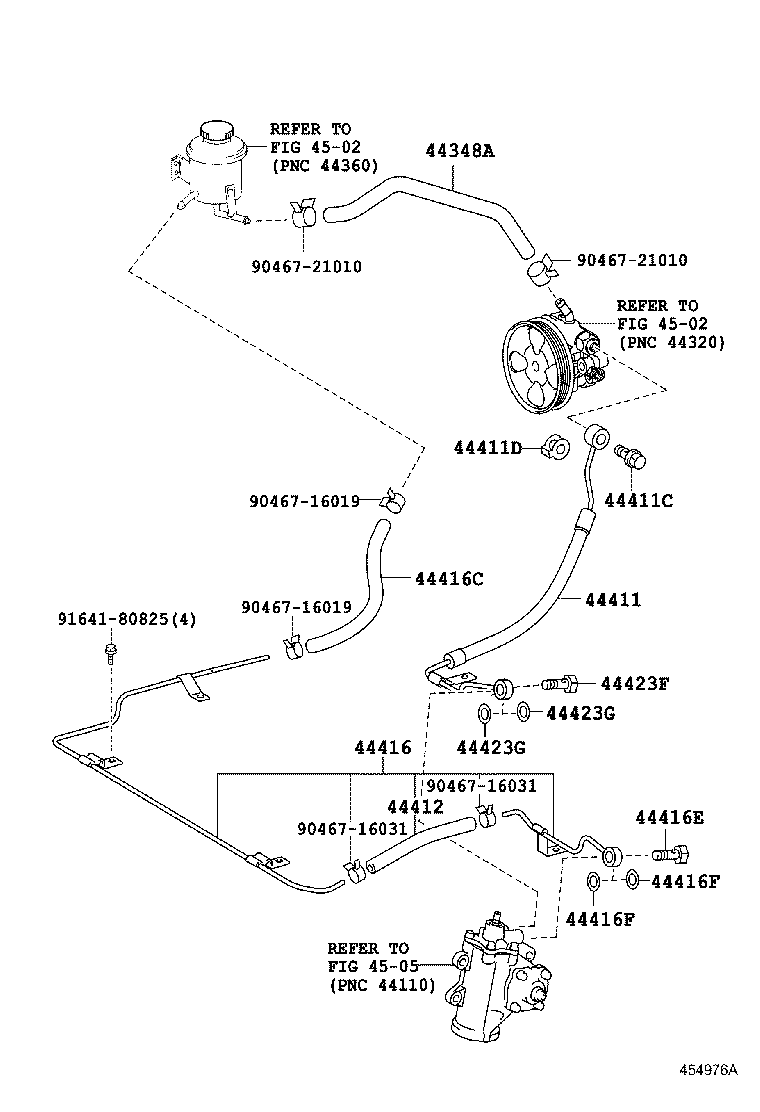

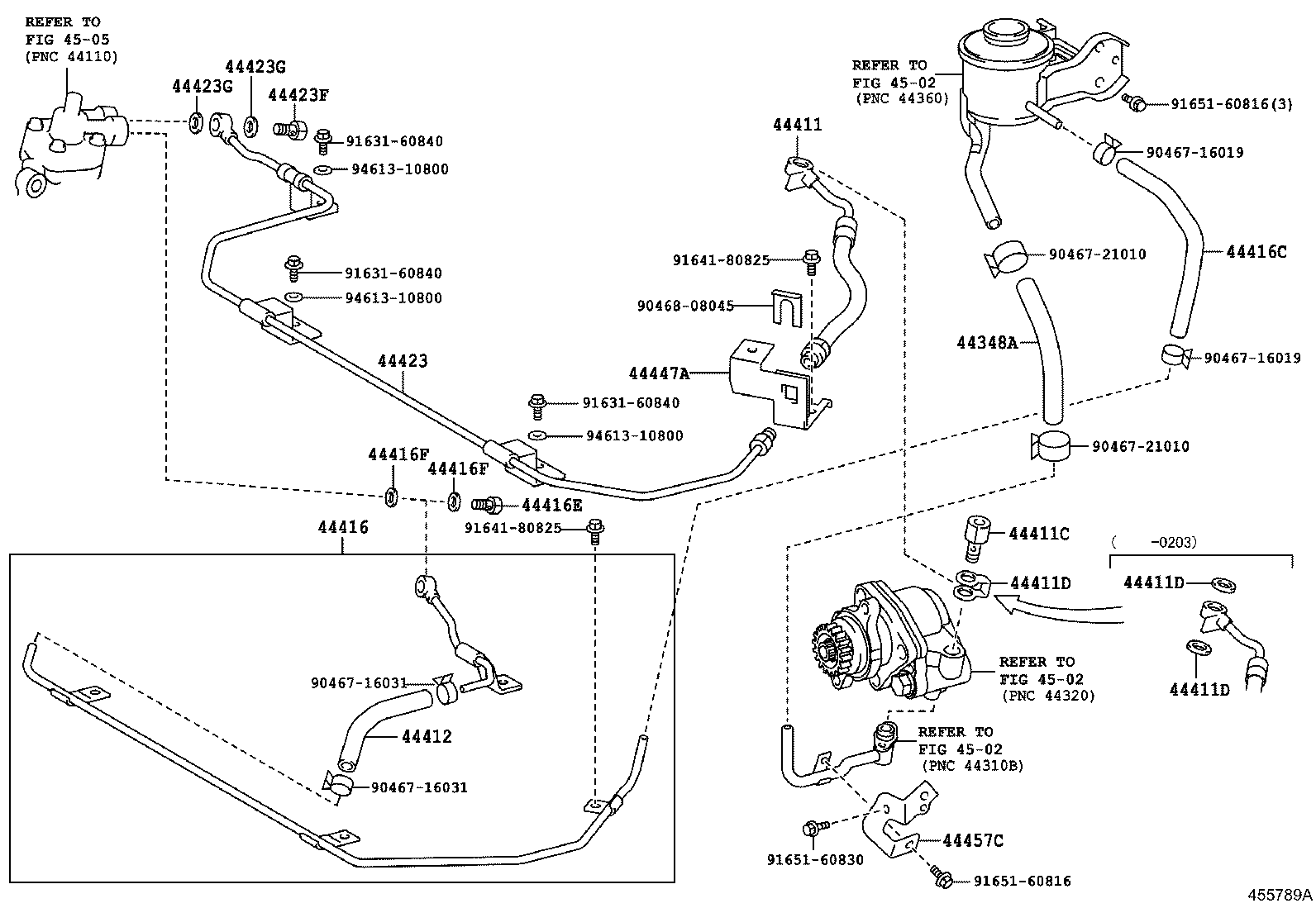

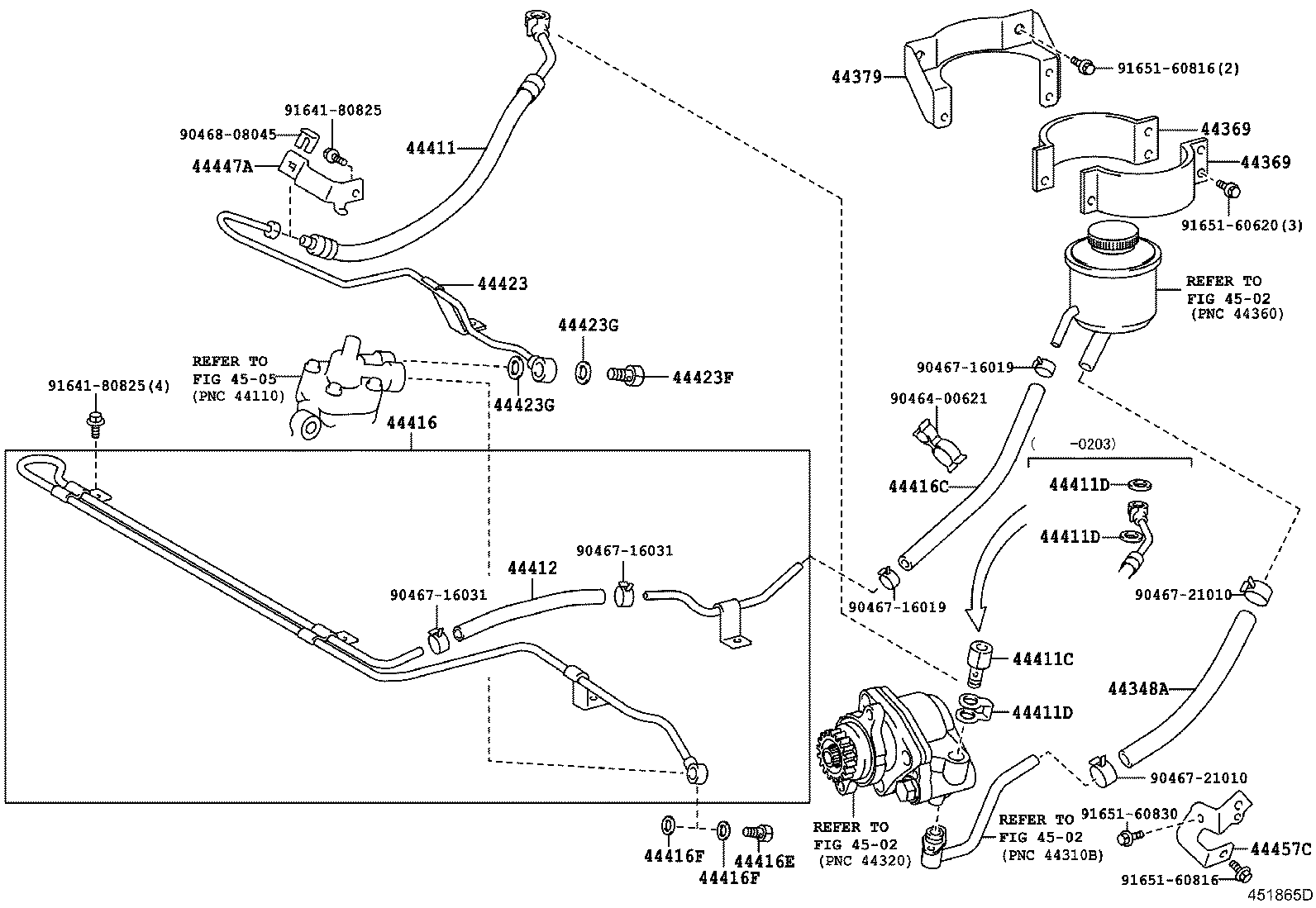

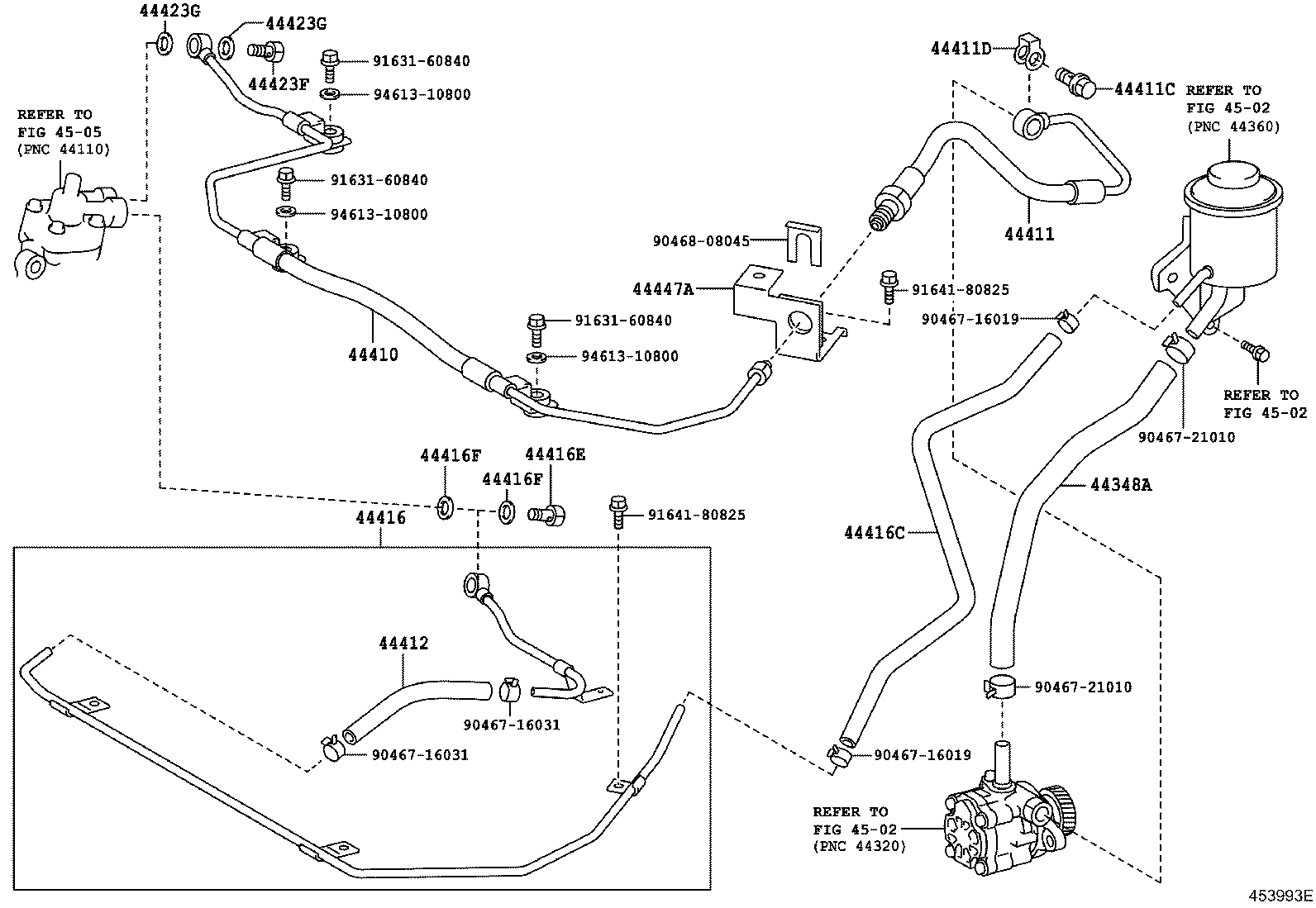

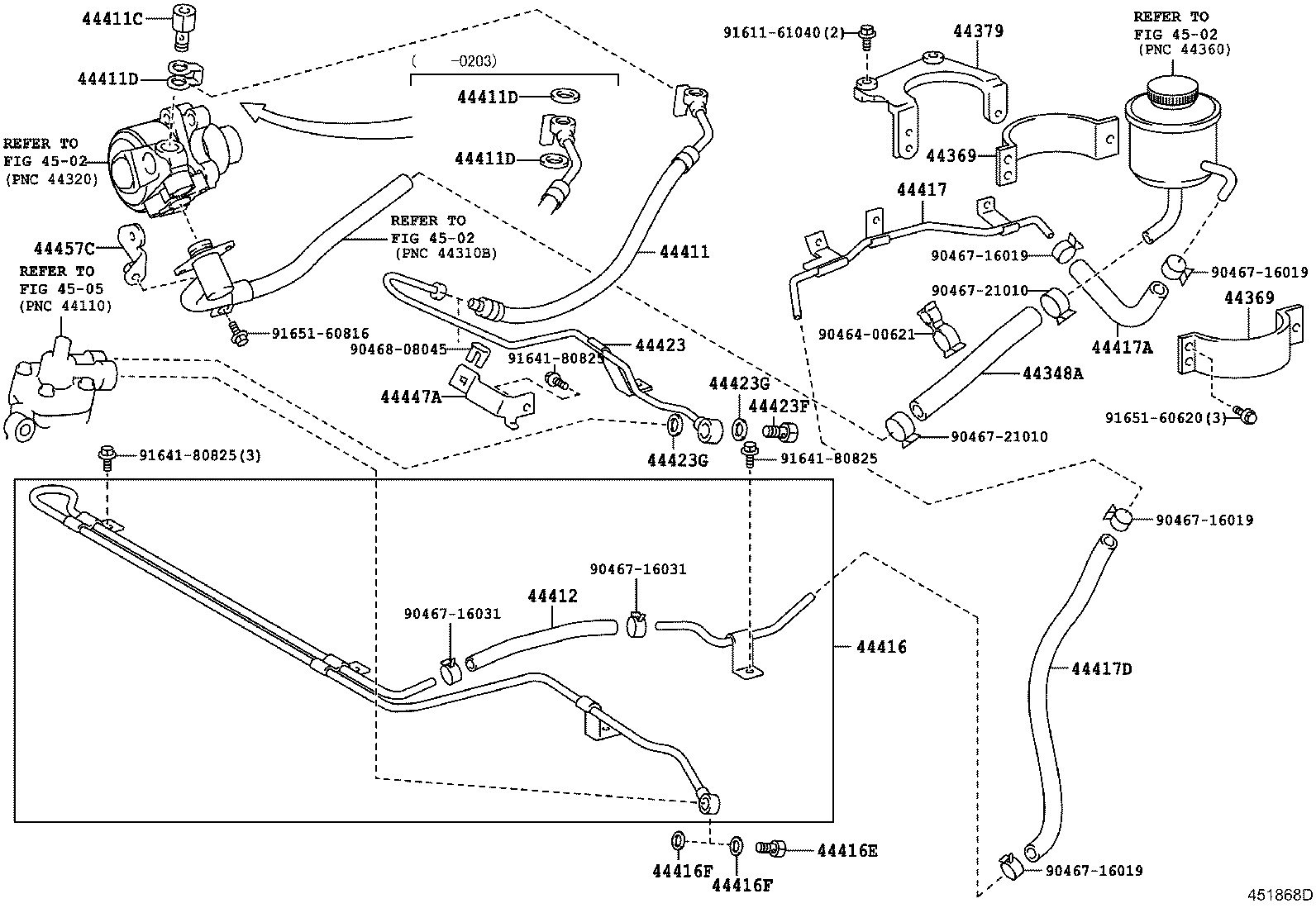

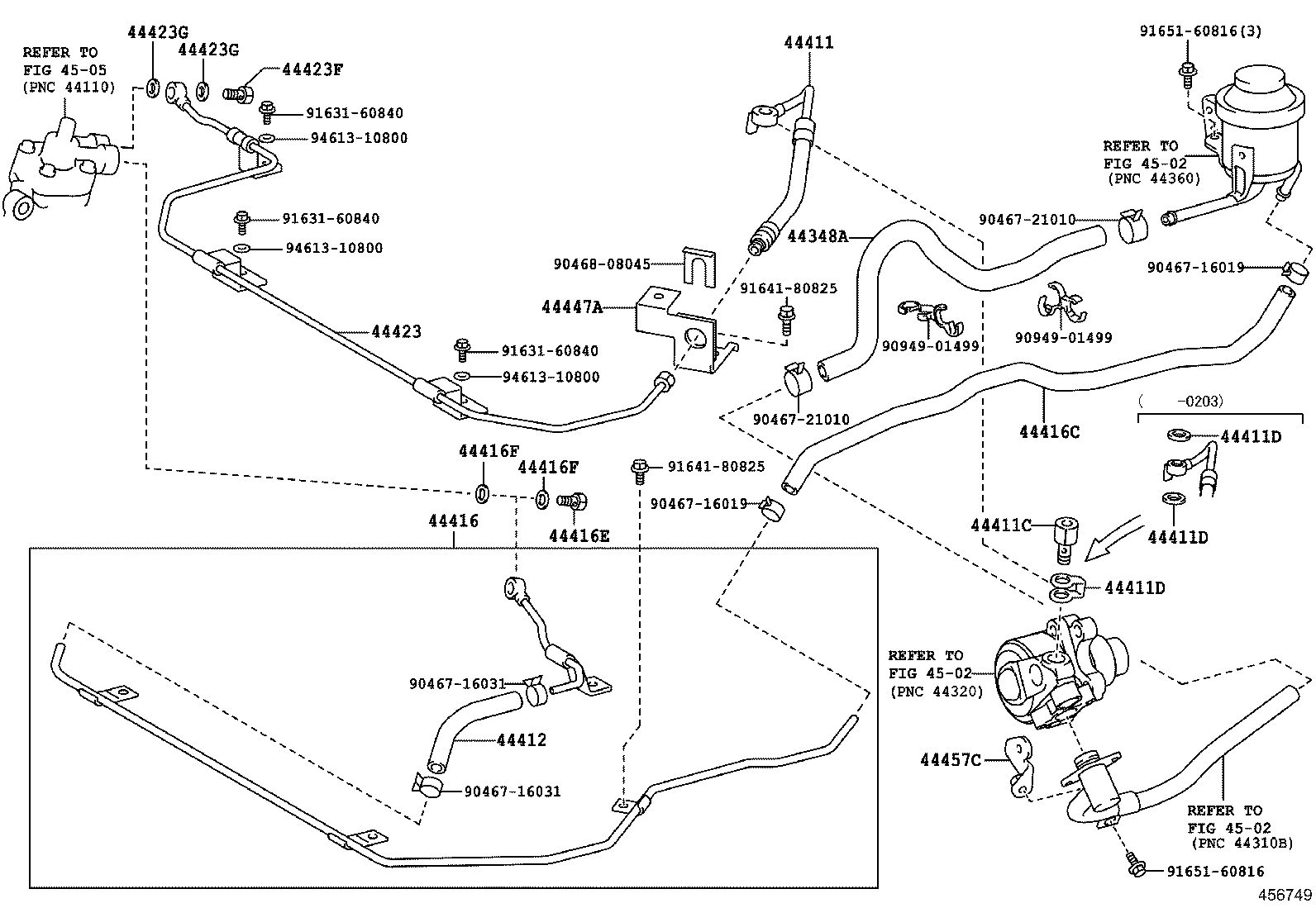

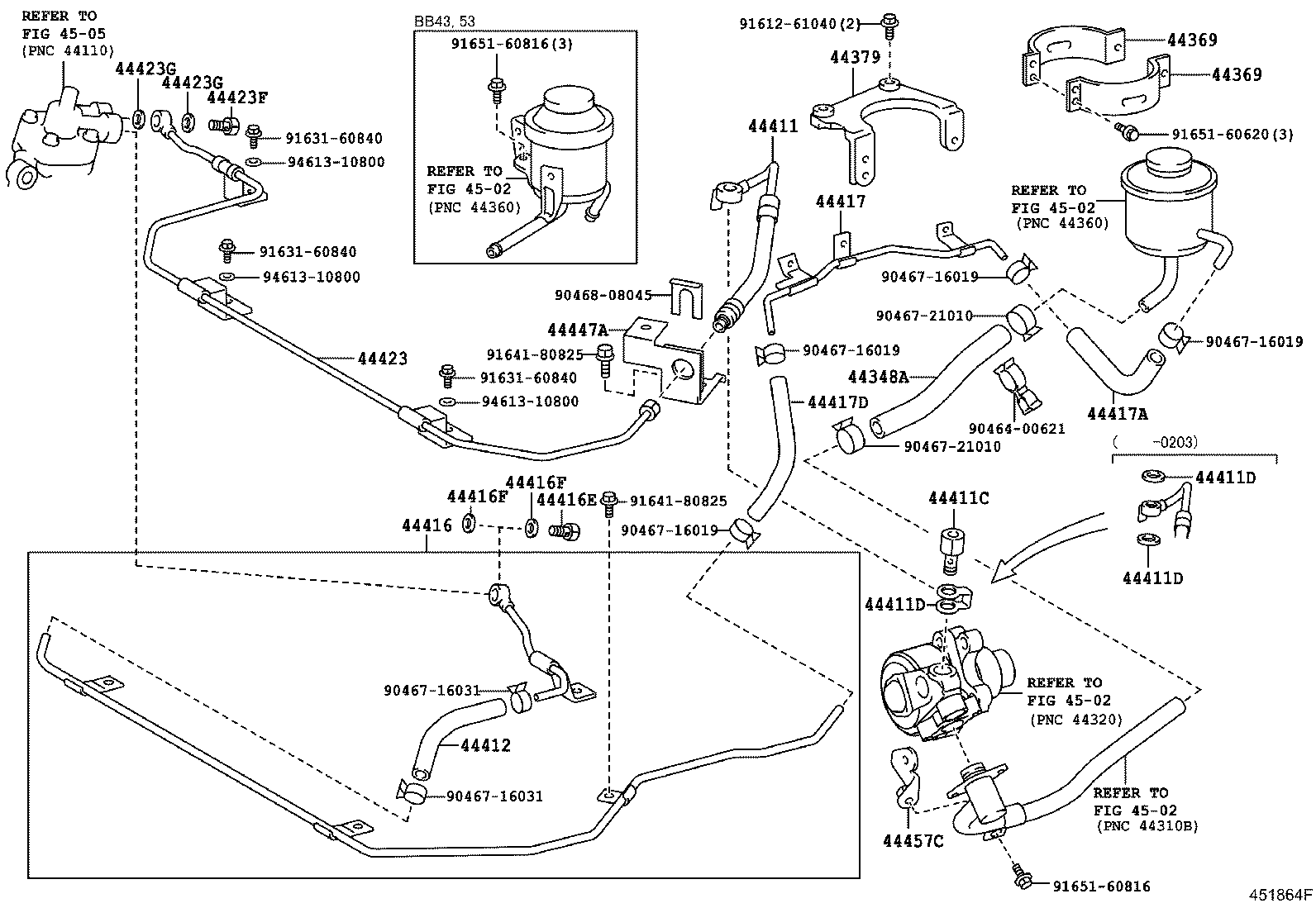

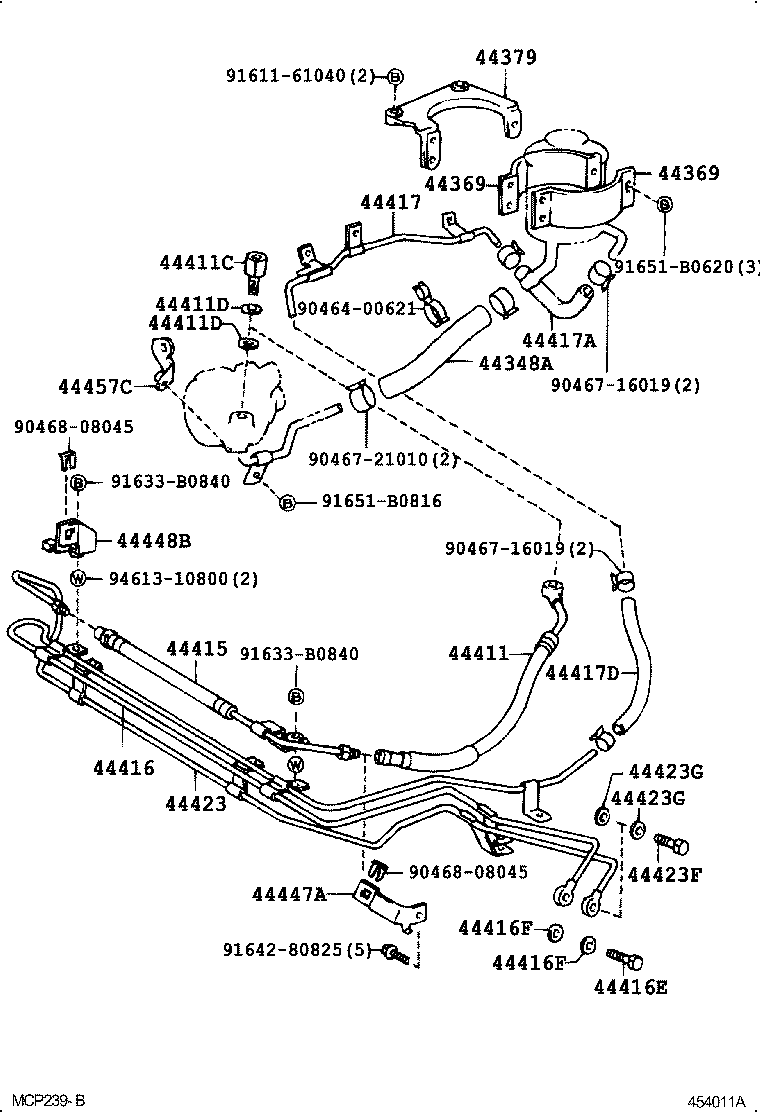

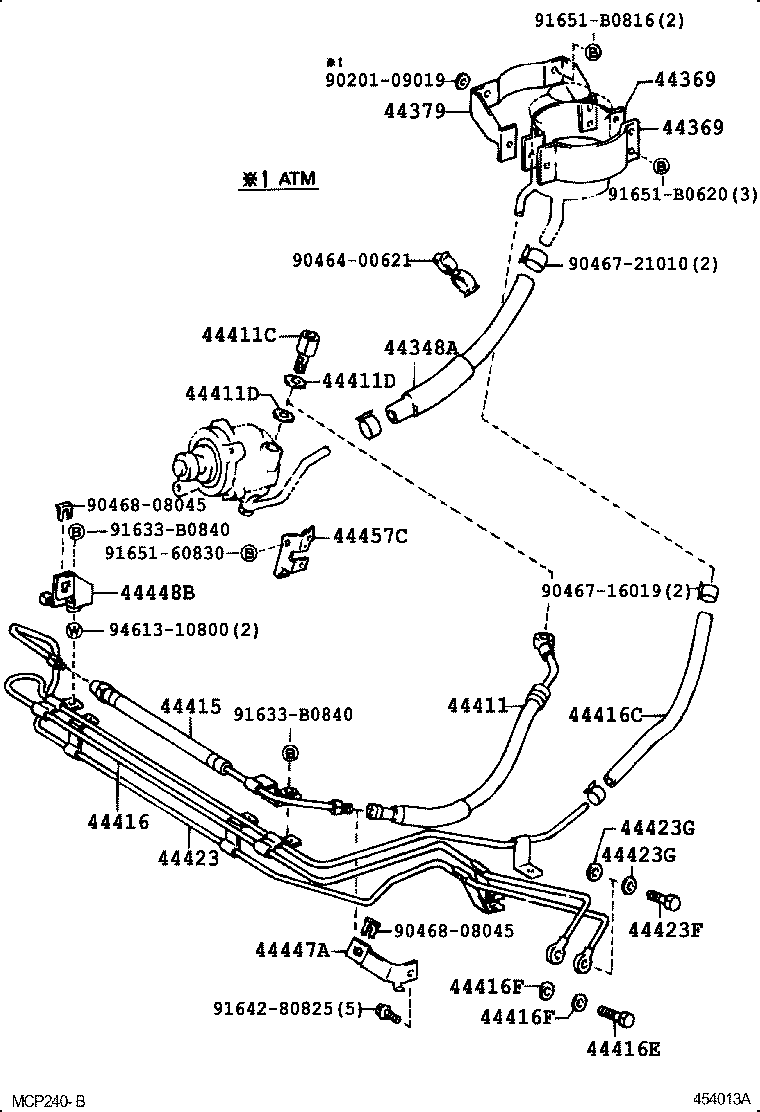

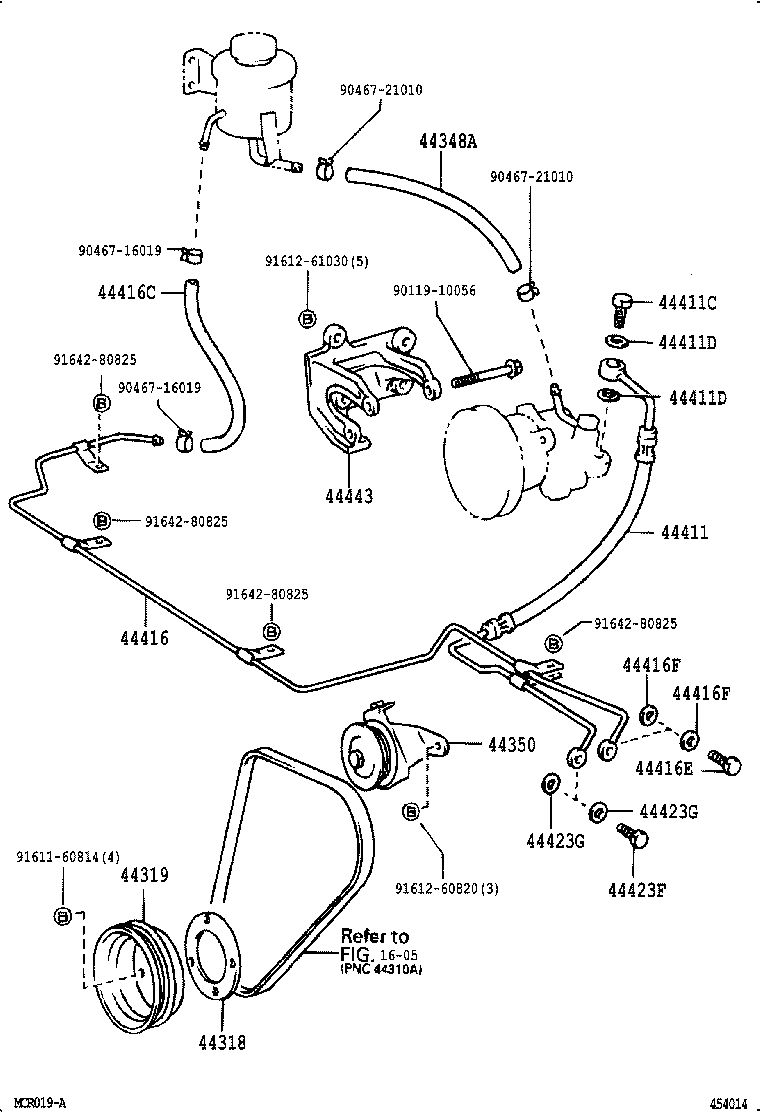

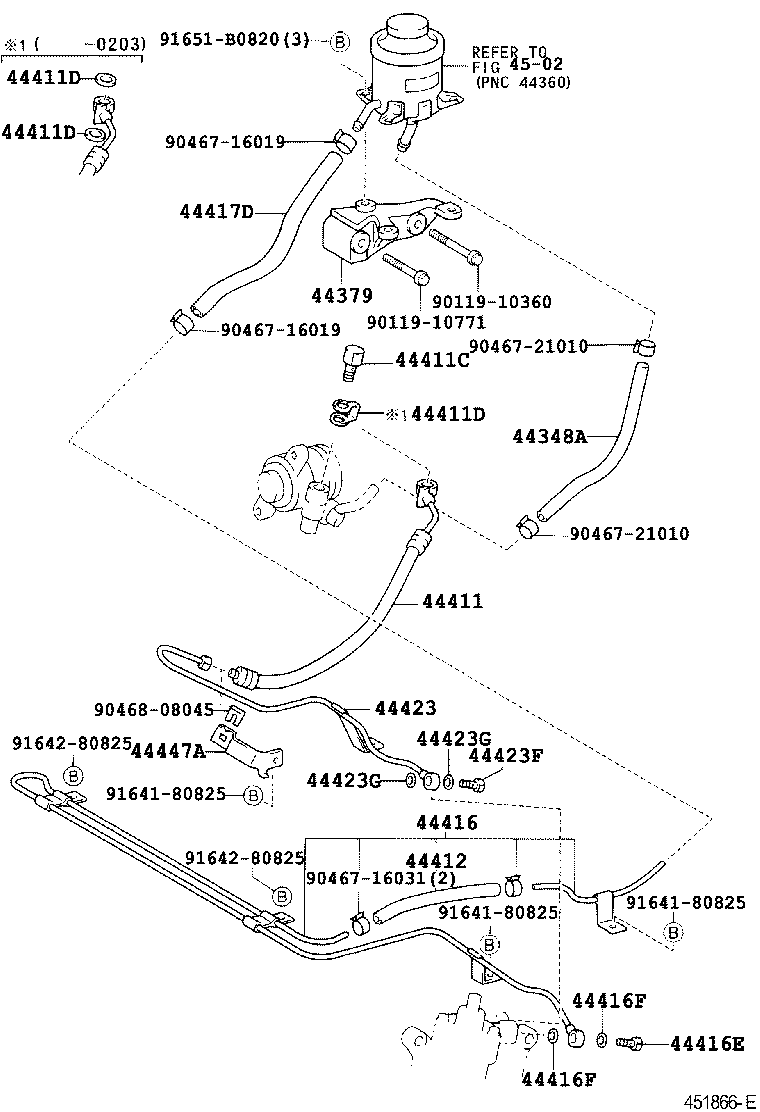

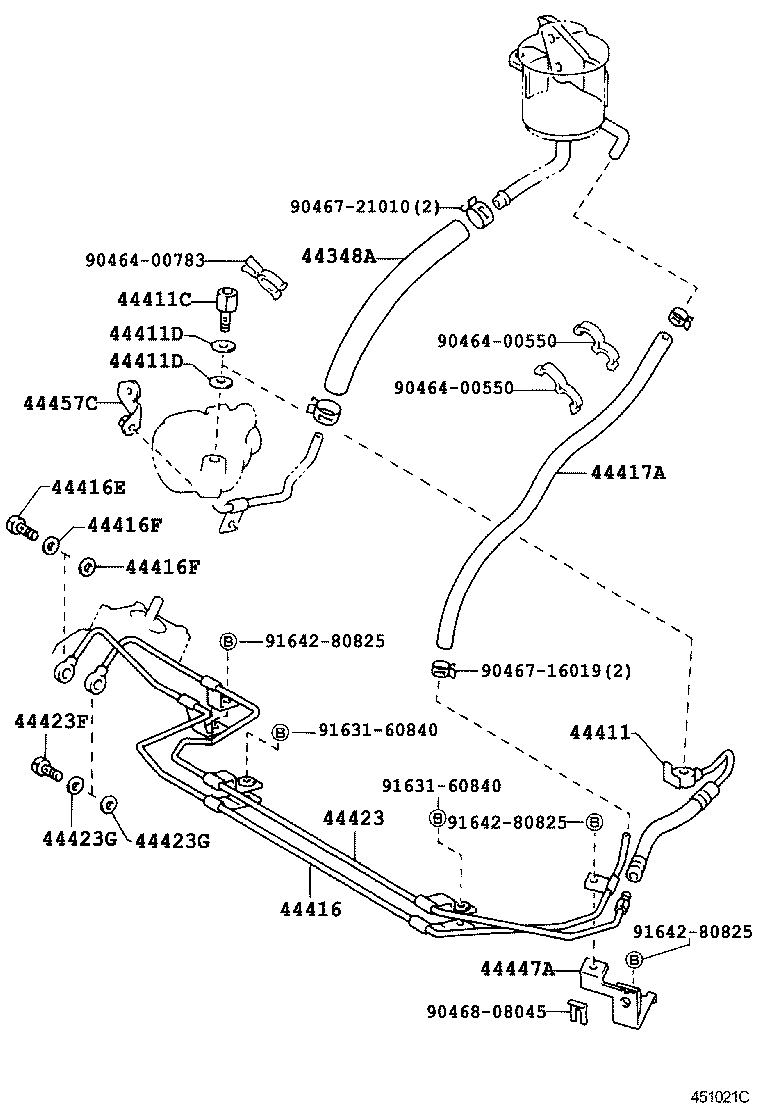

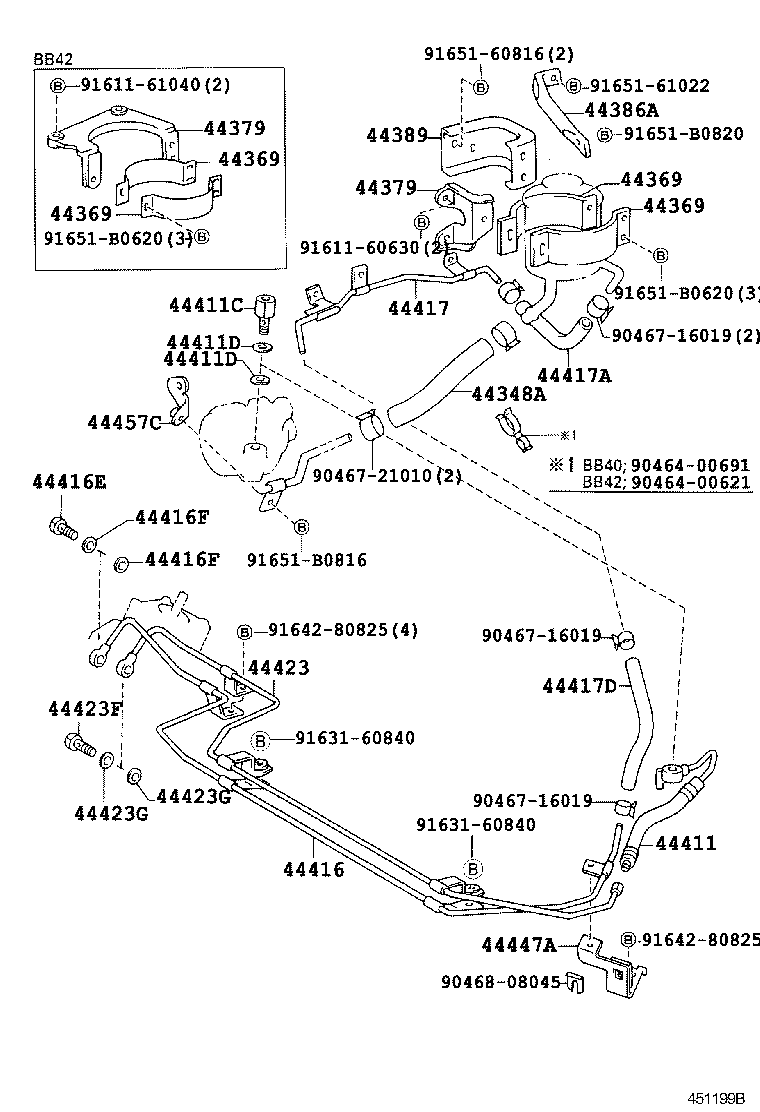

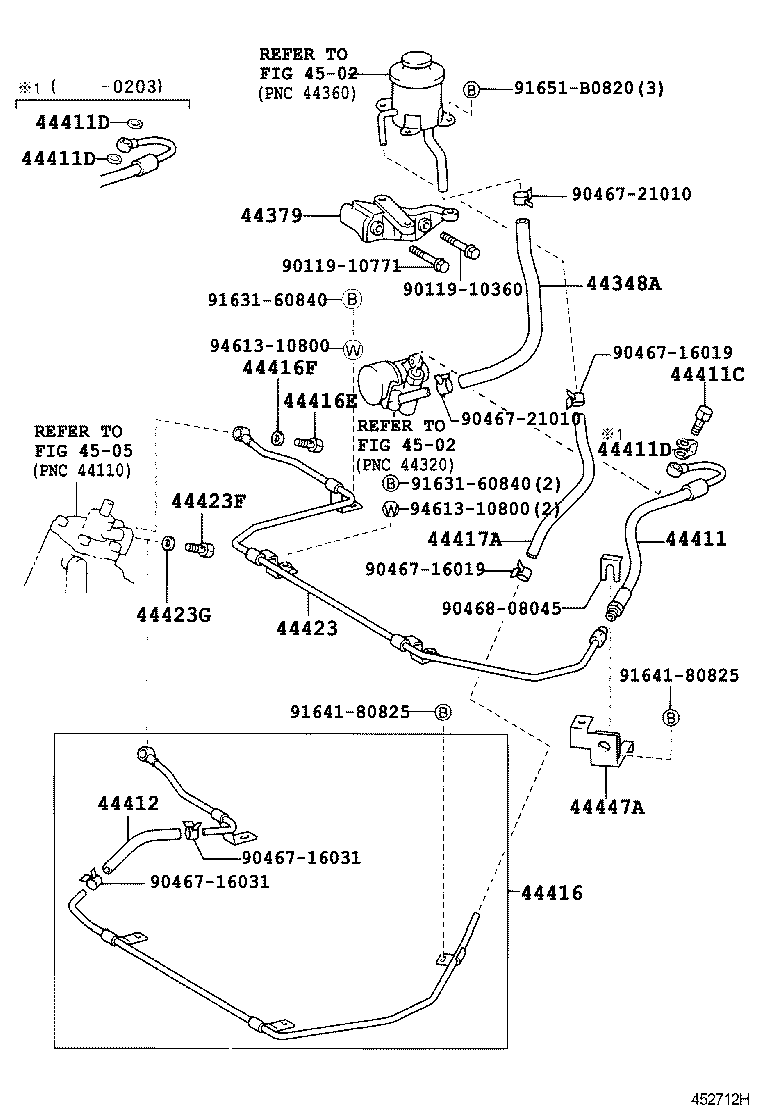

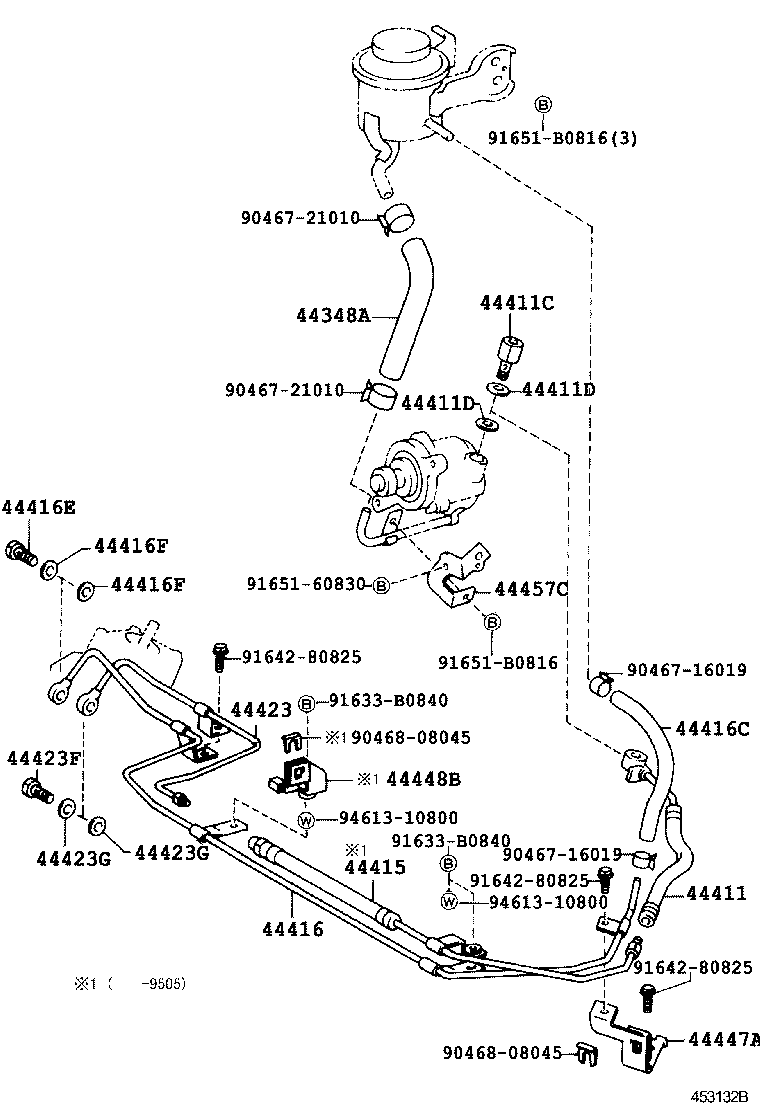

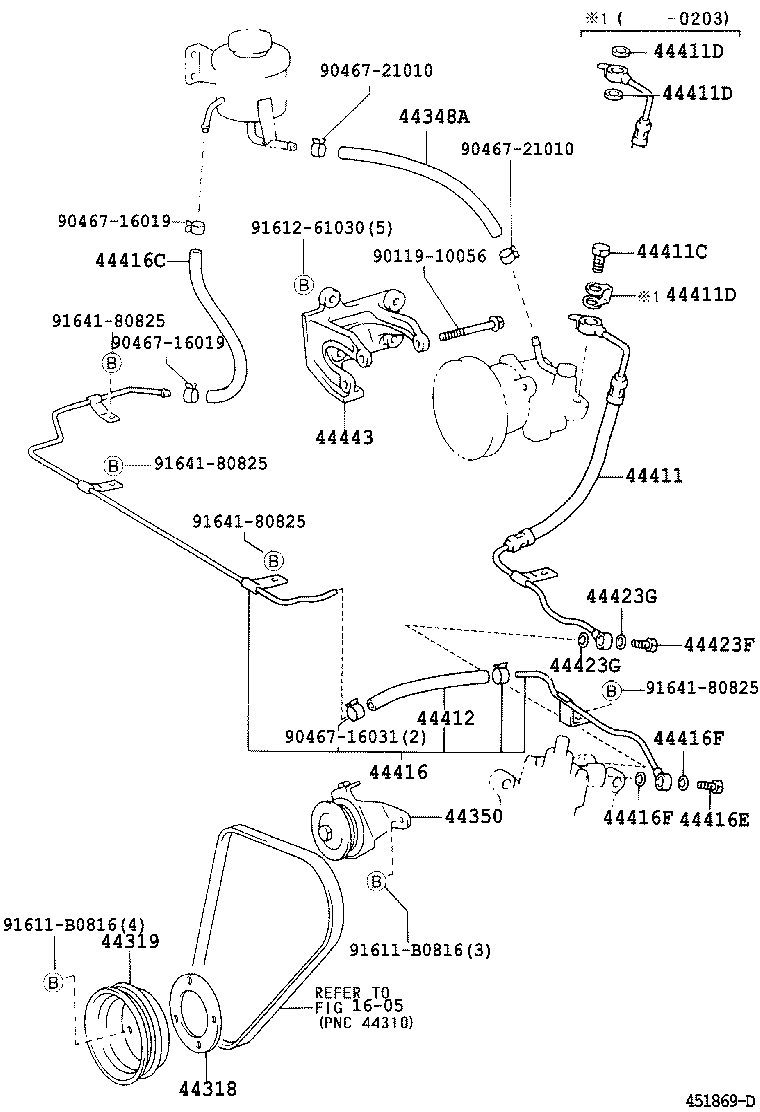

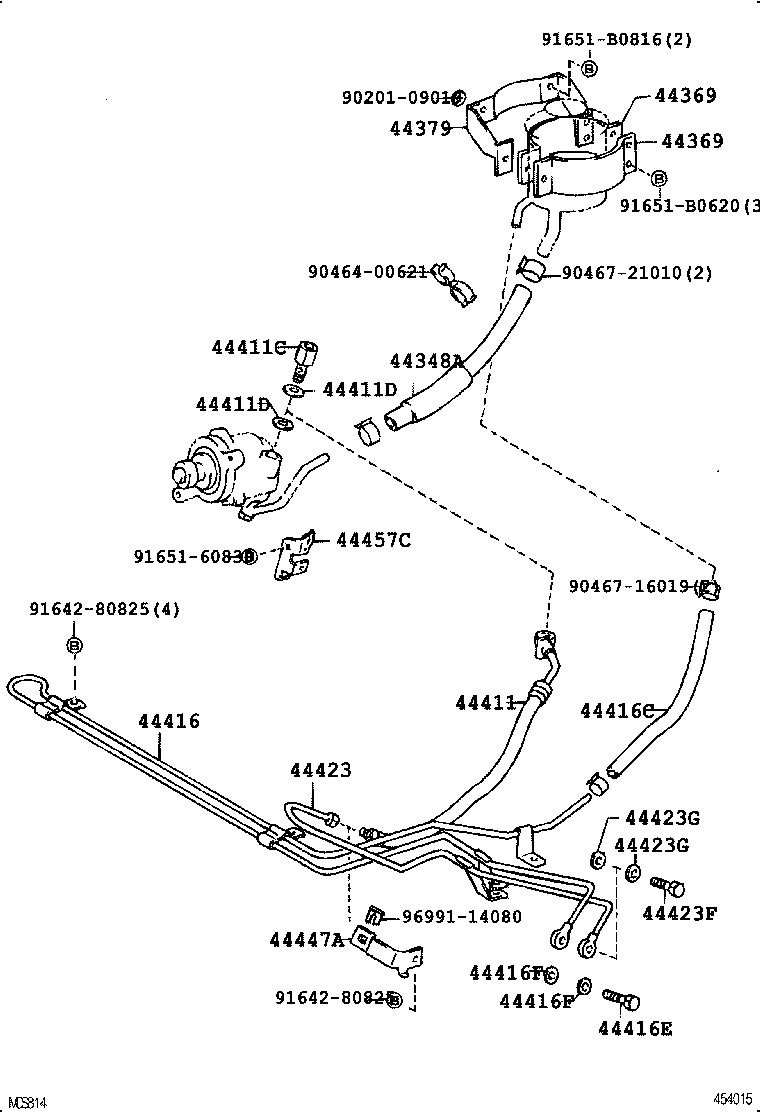

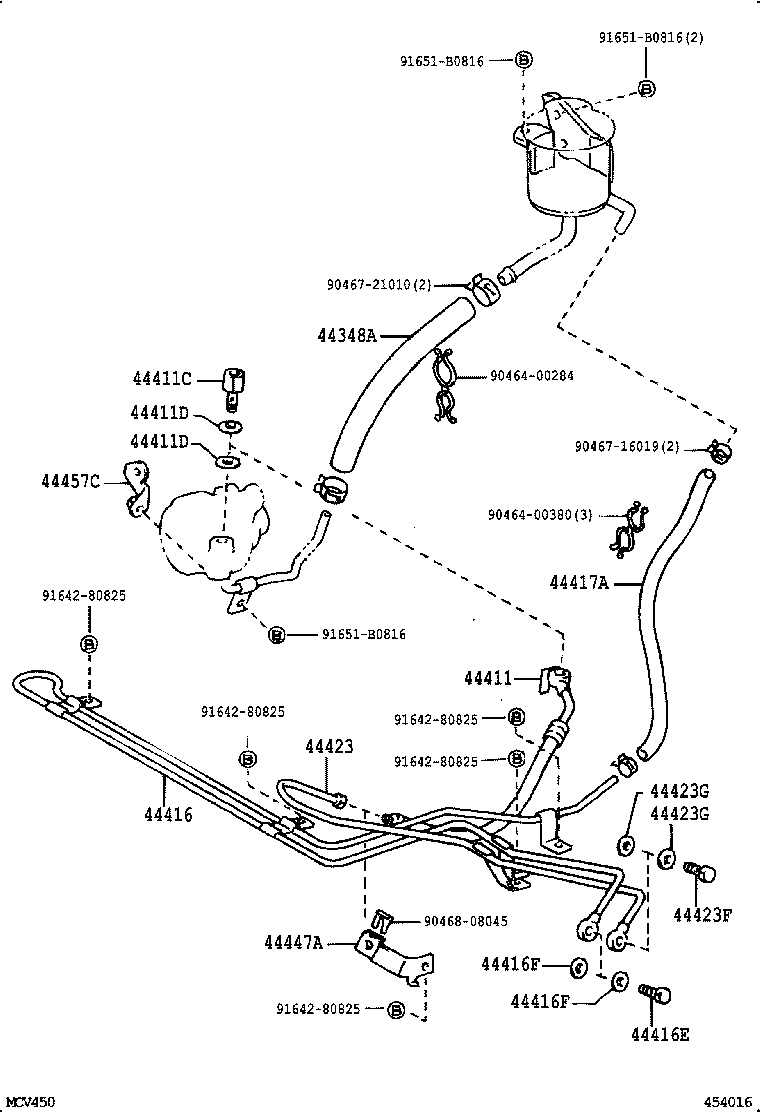

Figure 454010A 454010A 1993-01 → 1995-05 Figure 451199B 451199B 1995-05 → 1999-07 Figure 451864F 451864F 1999-07 → — Figure 454011A 454011A 1993-01 → 1995-05 Figure 454012 454012 1995-05 → 1999-07 Figure 451868D 451868D 1999-07 → — Figure 454013A 454013A 1993-01 → 1995-05 Figure 454013A 454013A 1995-05 → 1996-05 Figure 451865D 451865D 1999-07 → — Figure 453132B 453132B 1993-01 → 1999-07 Figure 455789A 455789A 1999-07 → — Figure 454014 454014 1993-09 → 1999-07 Figure 451869D 451869D 1999-07 → — Figure 454015 454015 1995-05 → 1999-07 Figure 451021C 451021C 1996-05 → 1999-07 Figure 454016 454016 1996-05 → 1999-07 Figure 451867C 451867C 1999-07 → — Figure 451866F 451866F 1999-07 → — Figure 452712H 452712H 2001-05 → — Figure 456749 456749 2001-08 → — Figure 453993E 453993E 2006-08 → — Figure 454652B 454652B 2006-08 → — Figure 454976A 454976A 2007-08 → —

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44369 Bracket, Oil Reservoir, NO.1
44379 Bracket, Oil Reservoir, NO.2
44386A Support, Oil Reservoir
44389 Bracket, Oil Reservoir, NO.3
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44415 Hose, Pressure Feed, NO.2
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416C Hose(FOR RETURN TUBE TO RESERVIOR)
44416E Bolt, Union(FOR RETURN TUBE)
44416F Gasket(FOR RETURN TUBE)
44417 Tube, Return, NO.2
44417A Hose, Return Tube (FOR RETURN TUBE TO RETURN TUBE NO.2)
44417D Hose(FOR RETURN TUBE TO RESERVOIR)
44423 Tube, Oil Pump TO Gear Box
44423F Bolt, Union
44423G Gasket, Union Bolt
44443 Bracket, Pump
44447A Bracket, Hose Support, NO.1
44448B Bracket, Hose Support, NO.2
44457C Bracket, Power Steering Tube Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
