Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

33 part groups · 23 illustrations

Illustrations

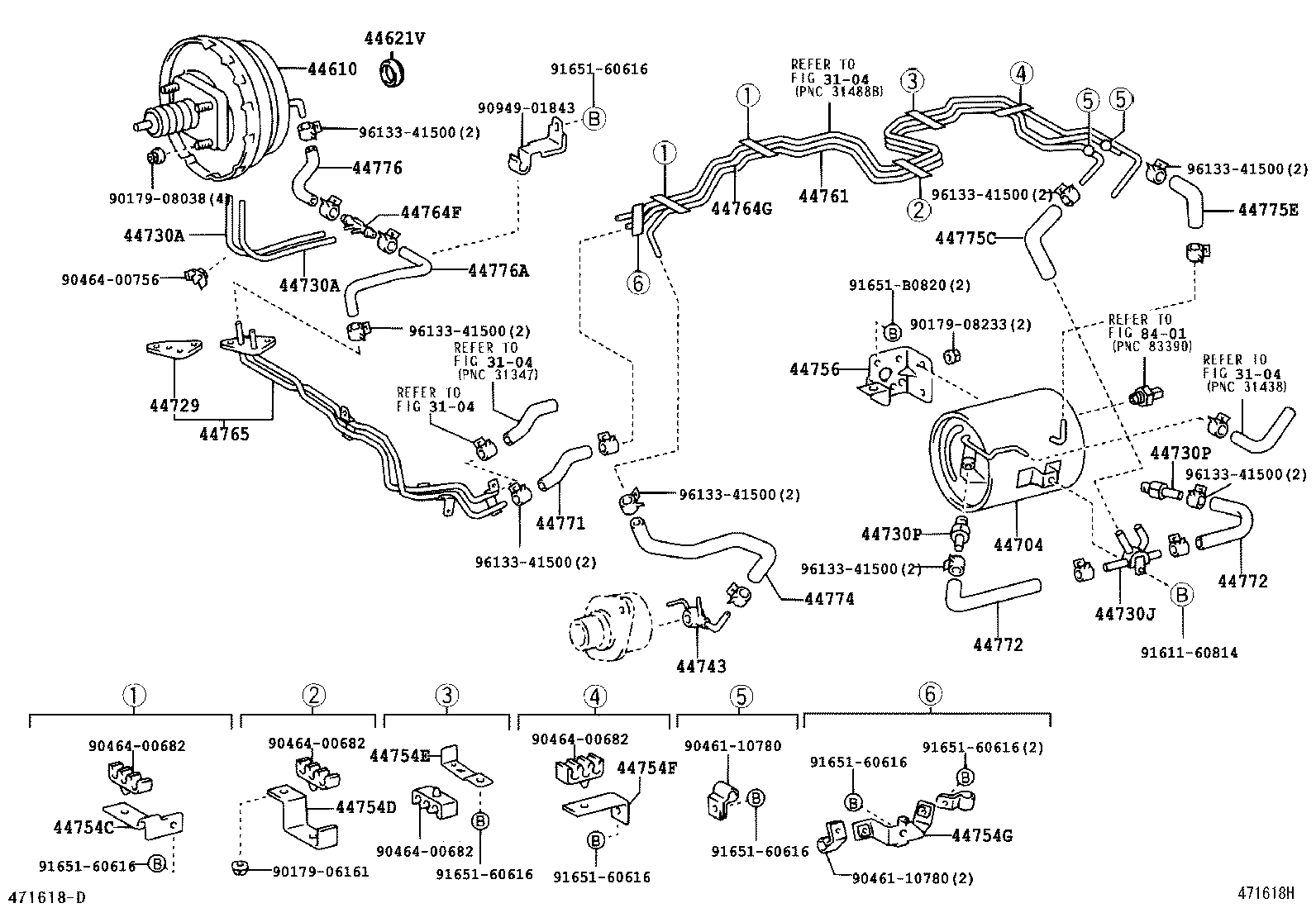

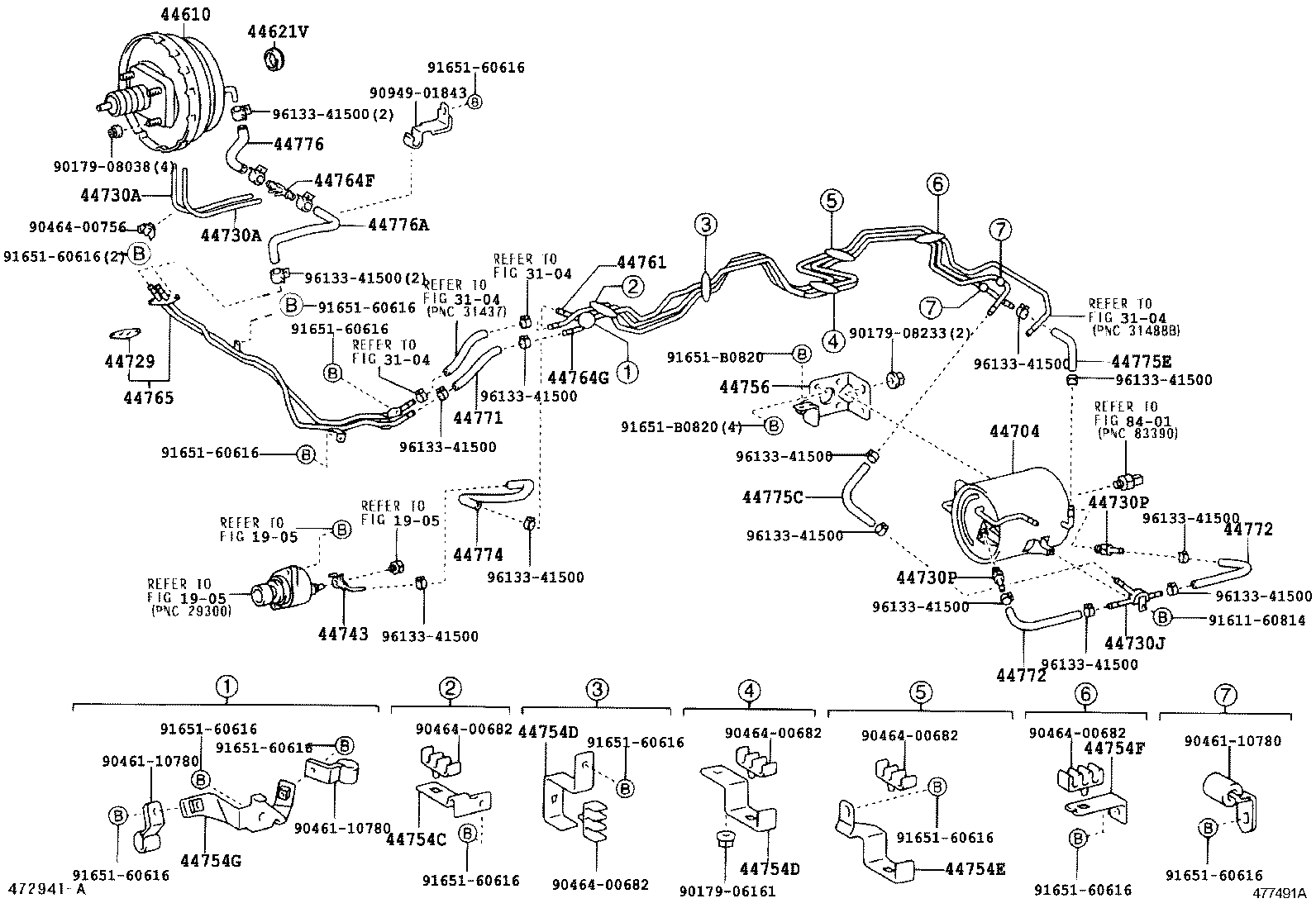

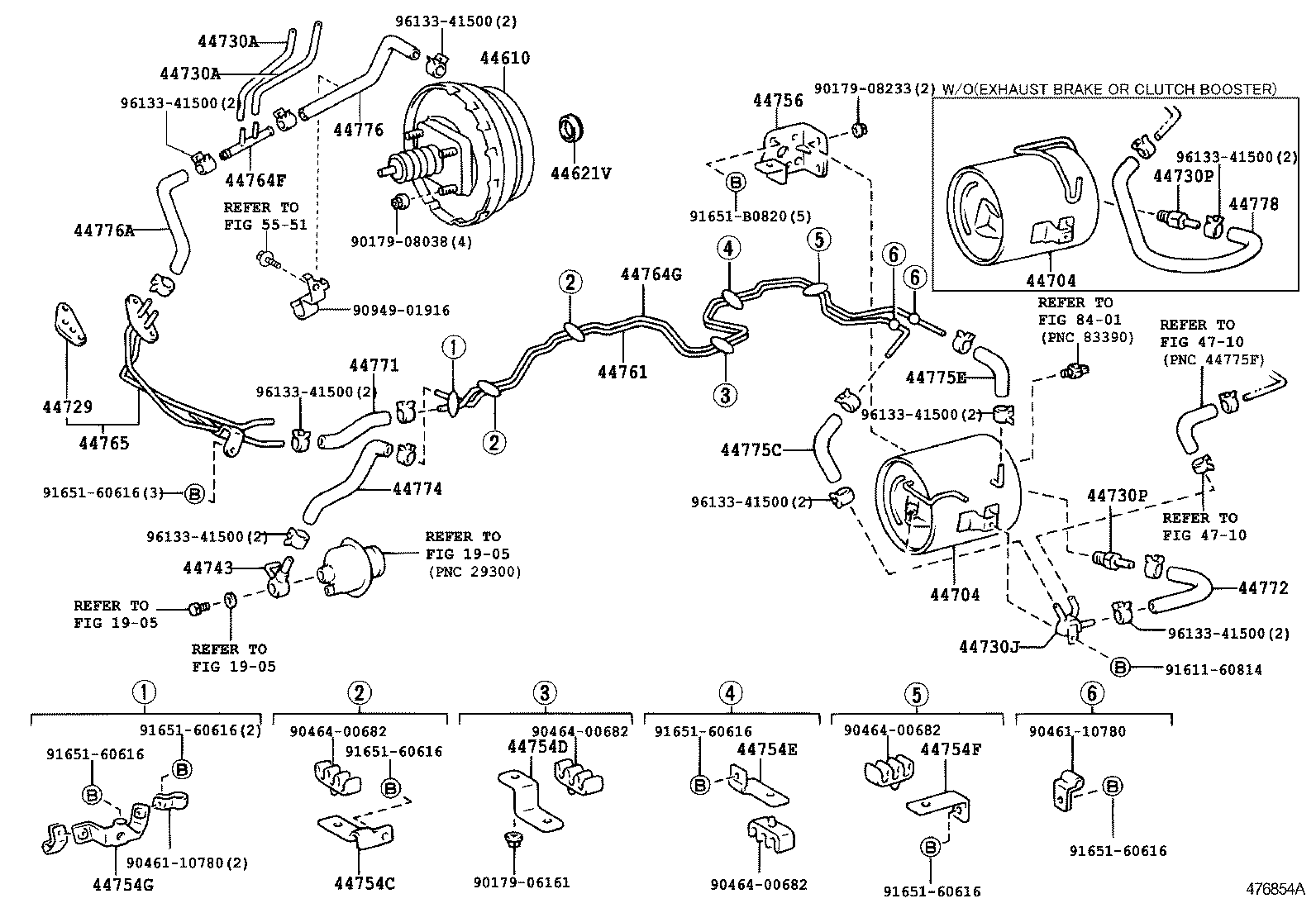

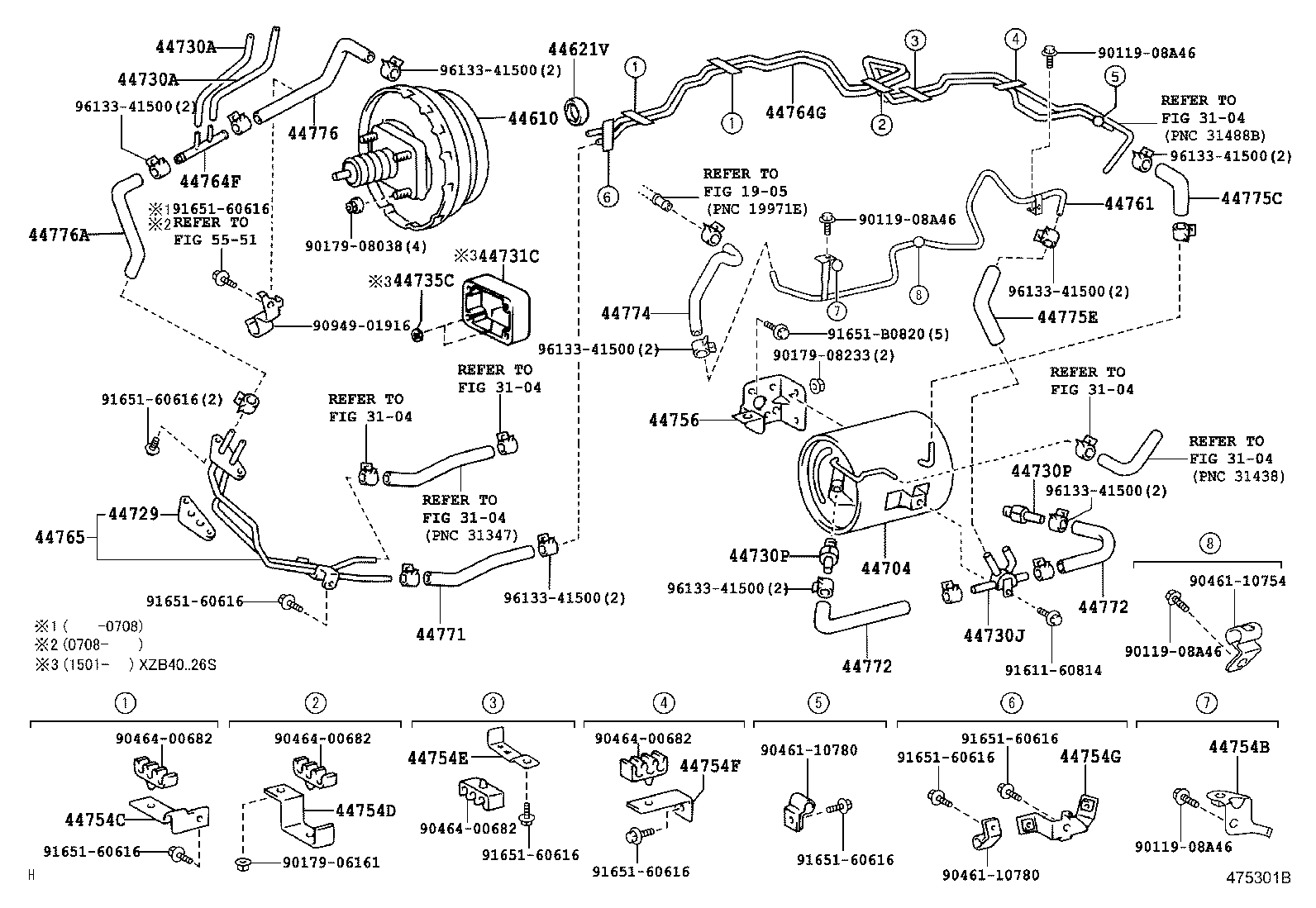

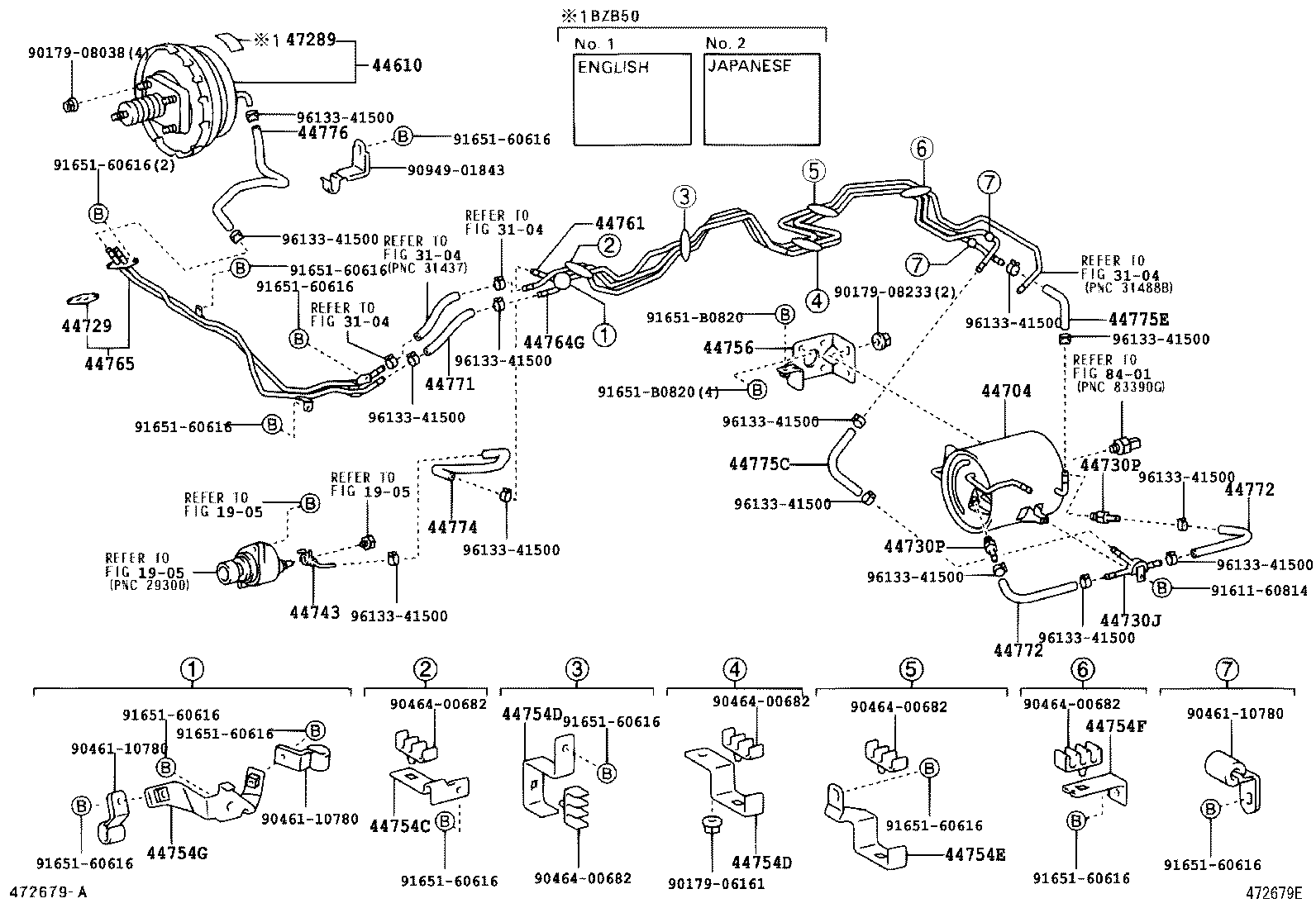

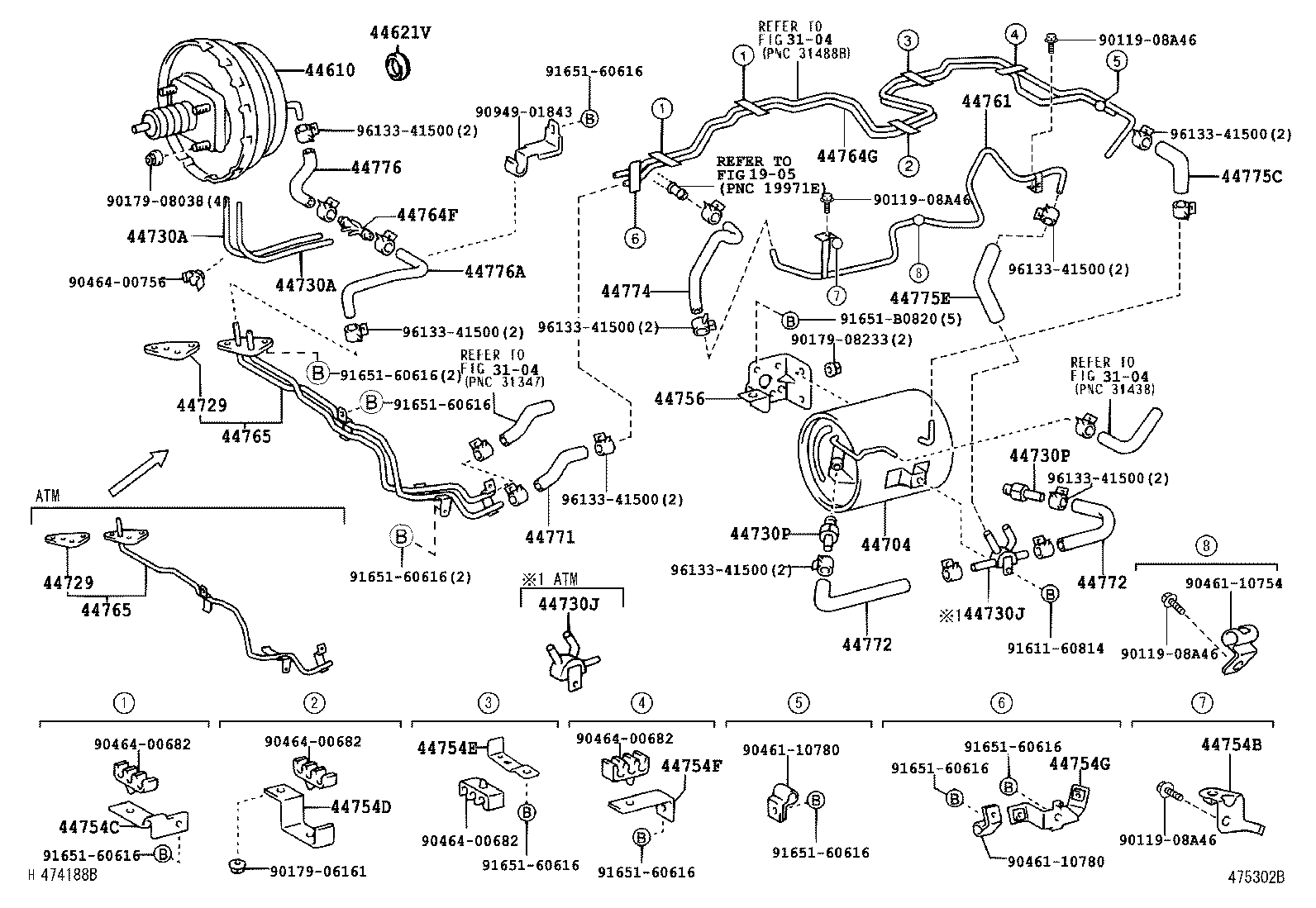

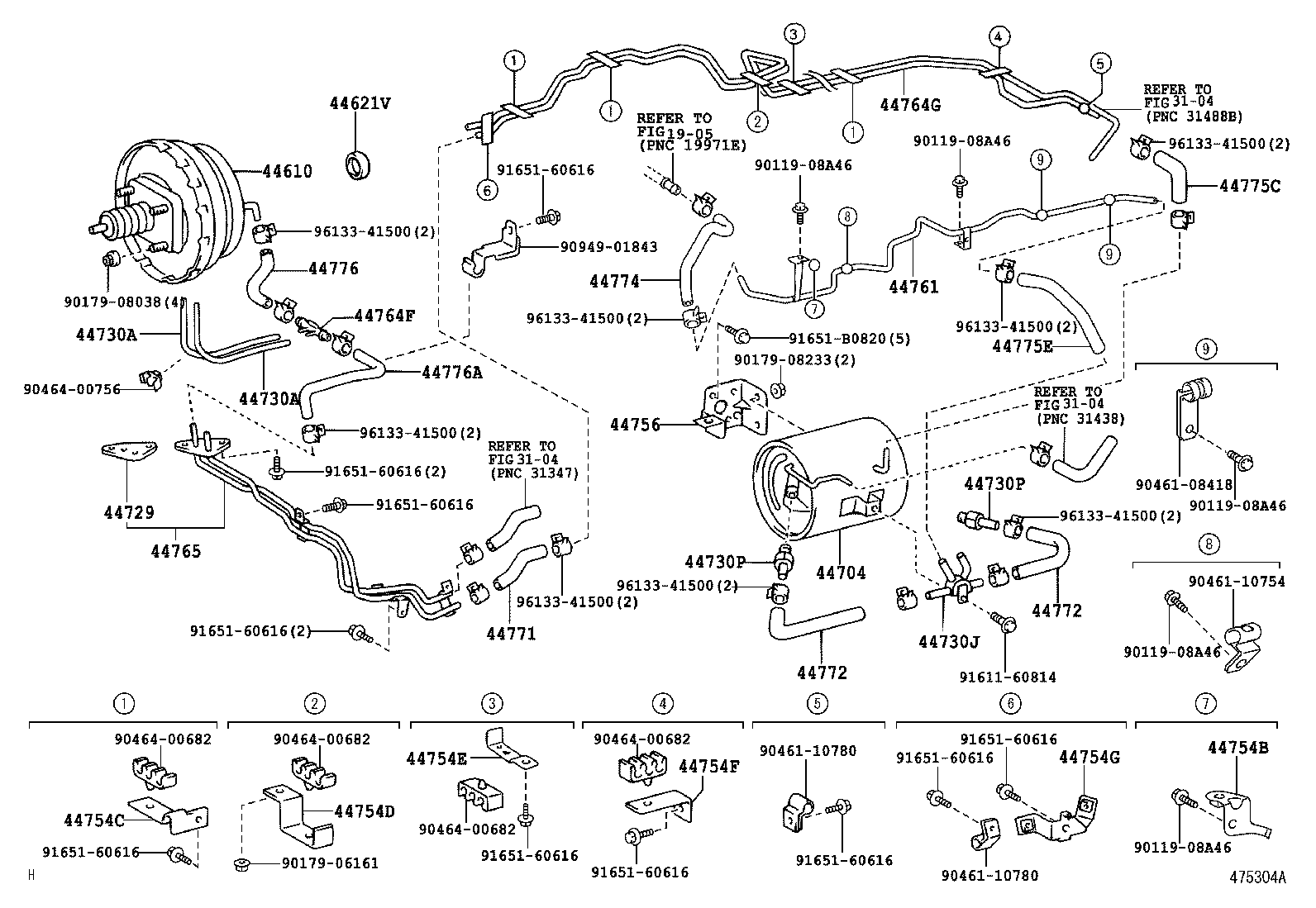

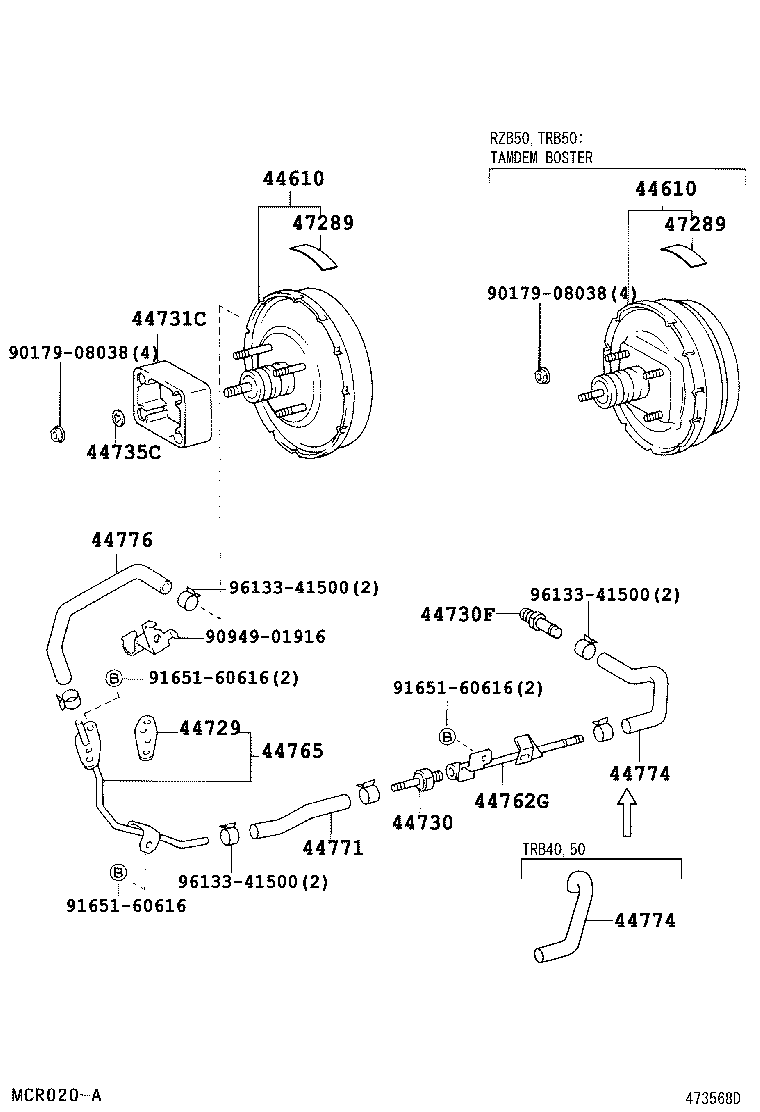

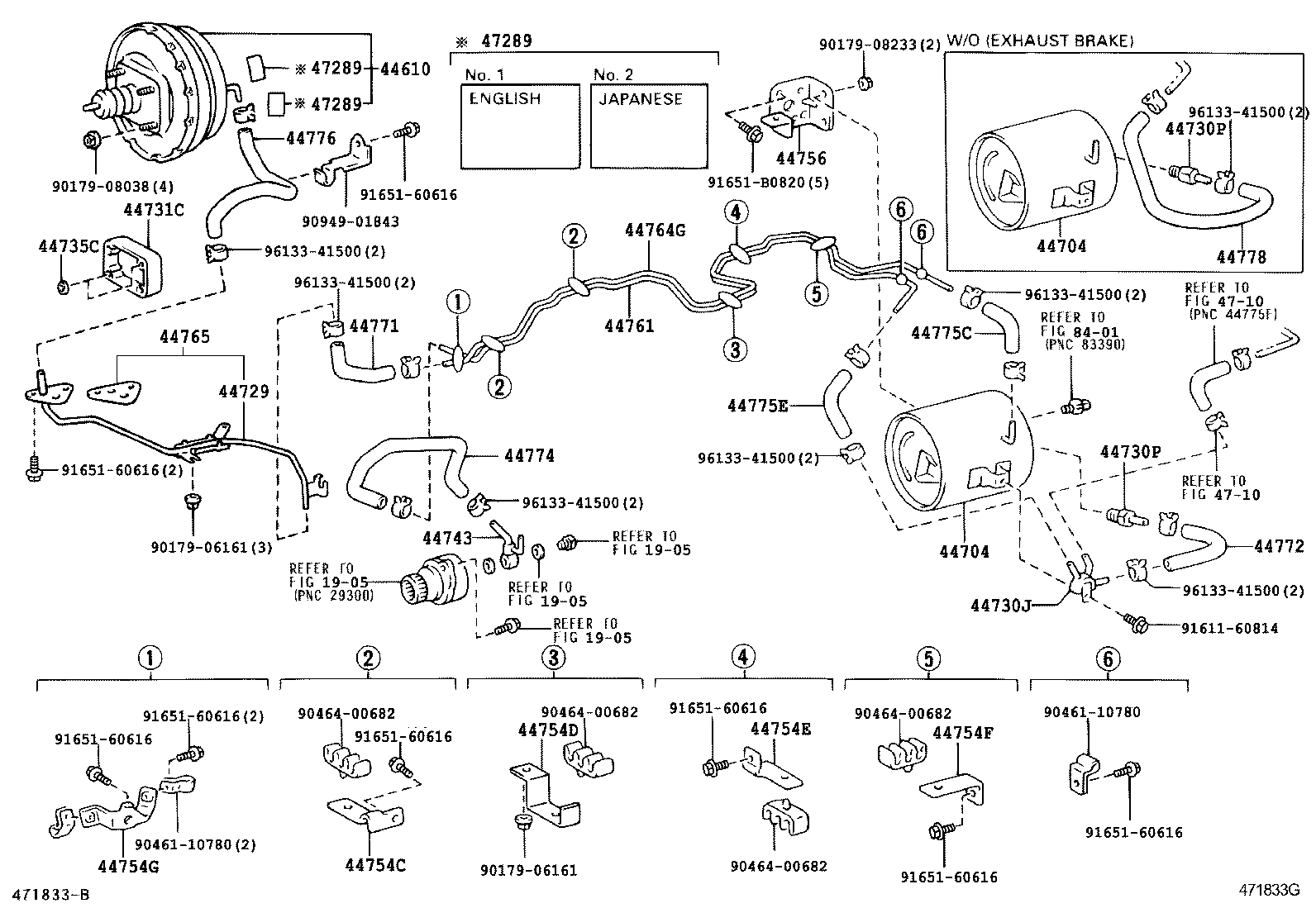

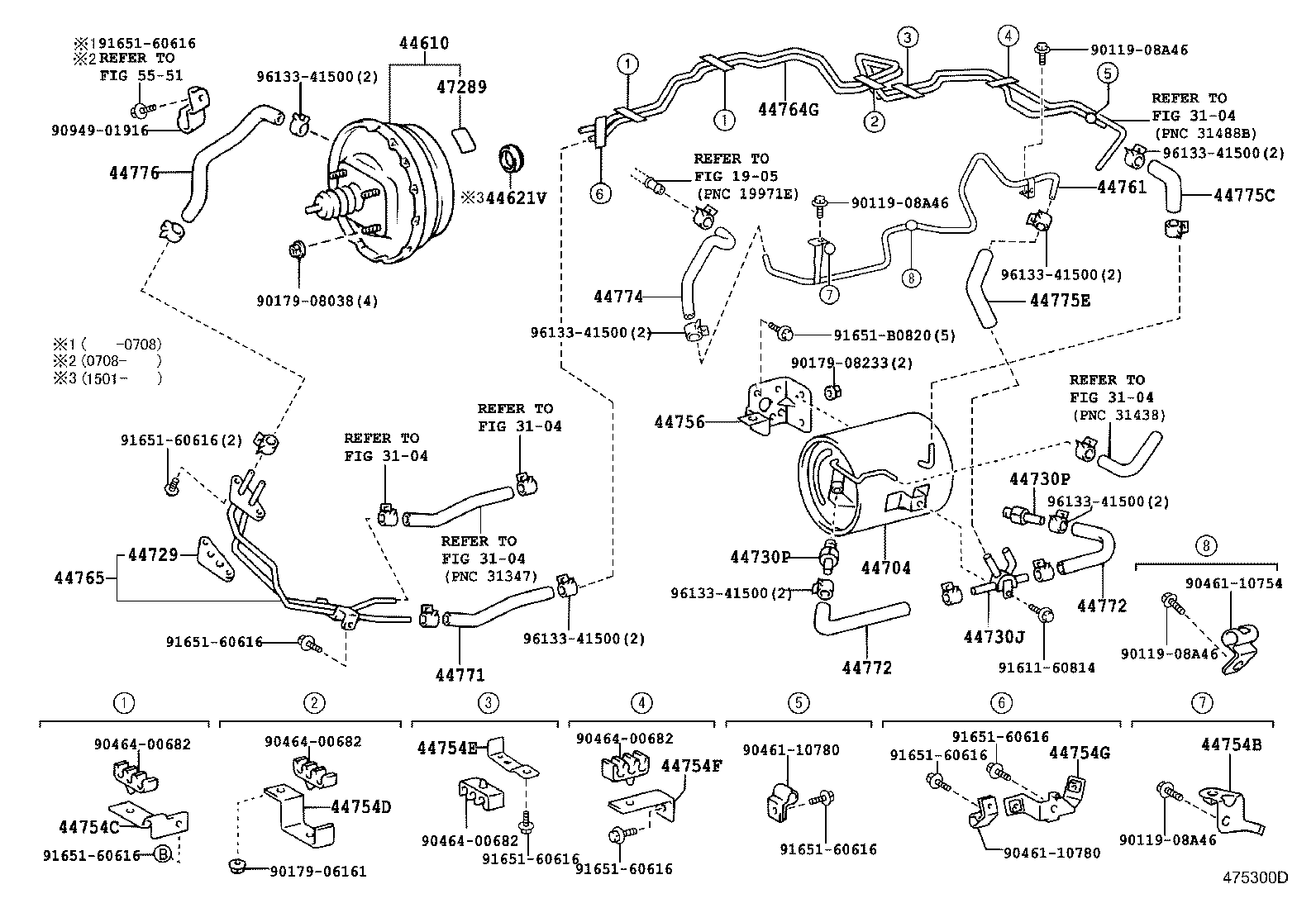

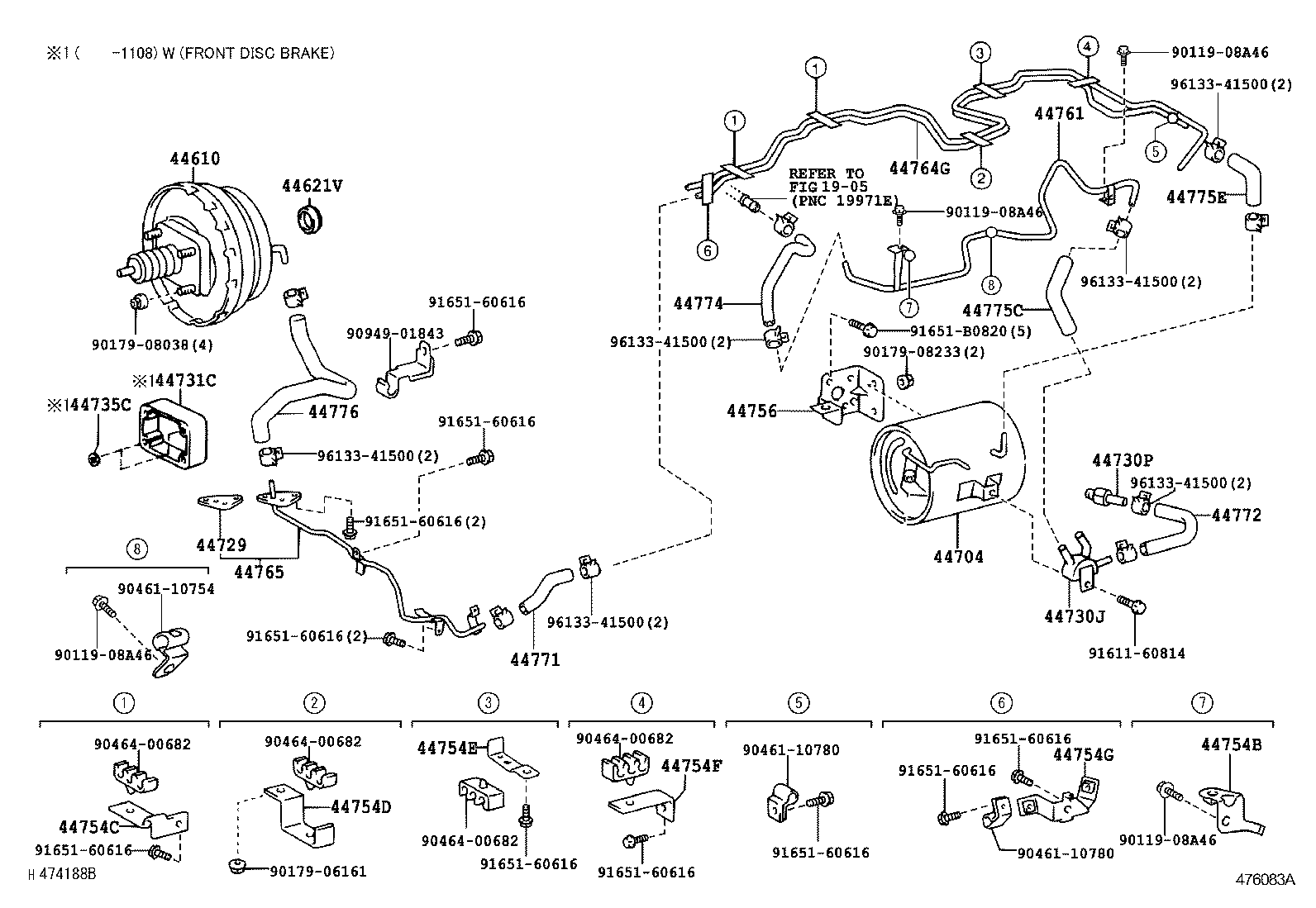

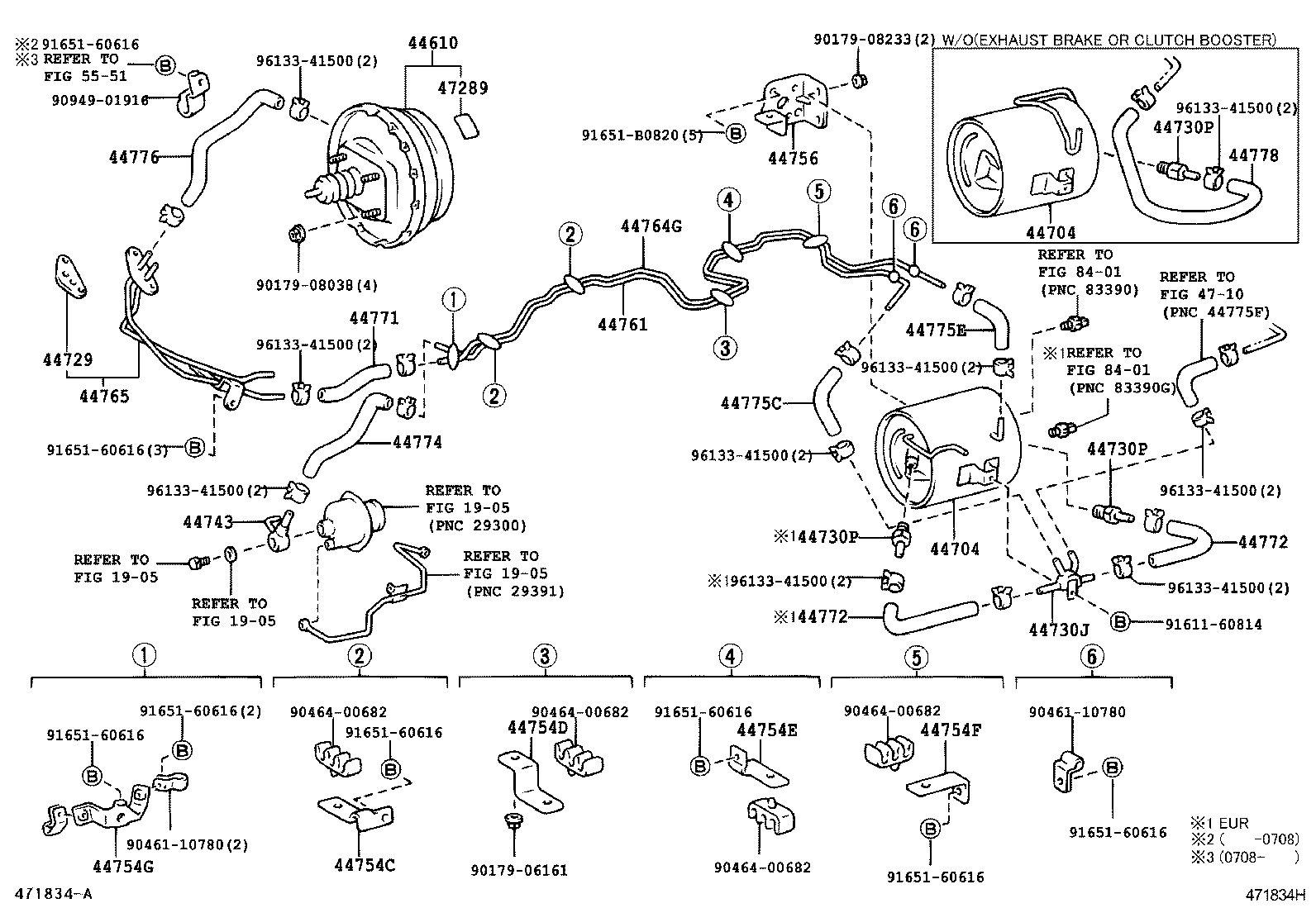

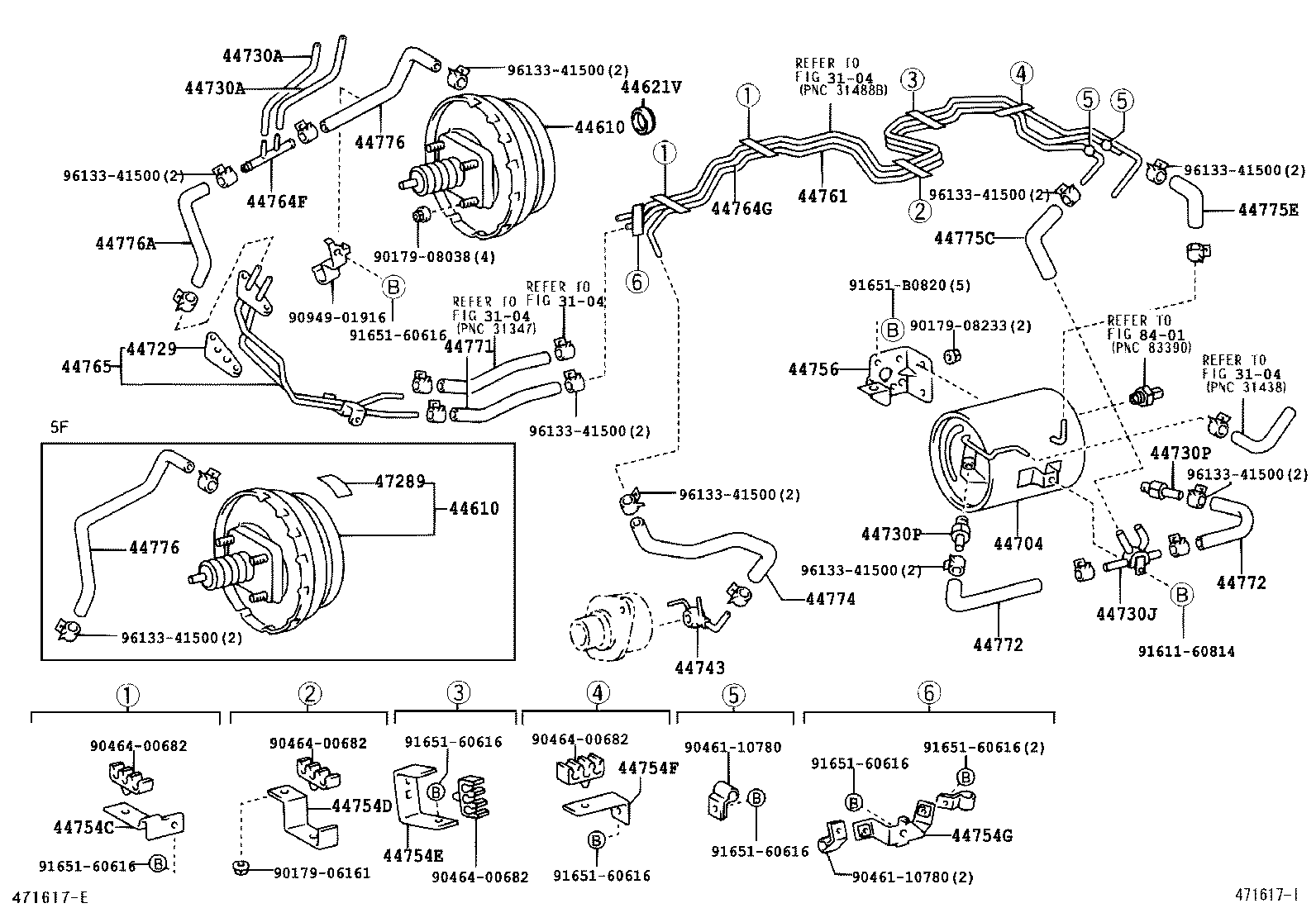

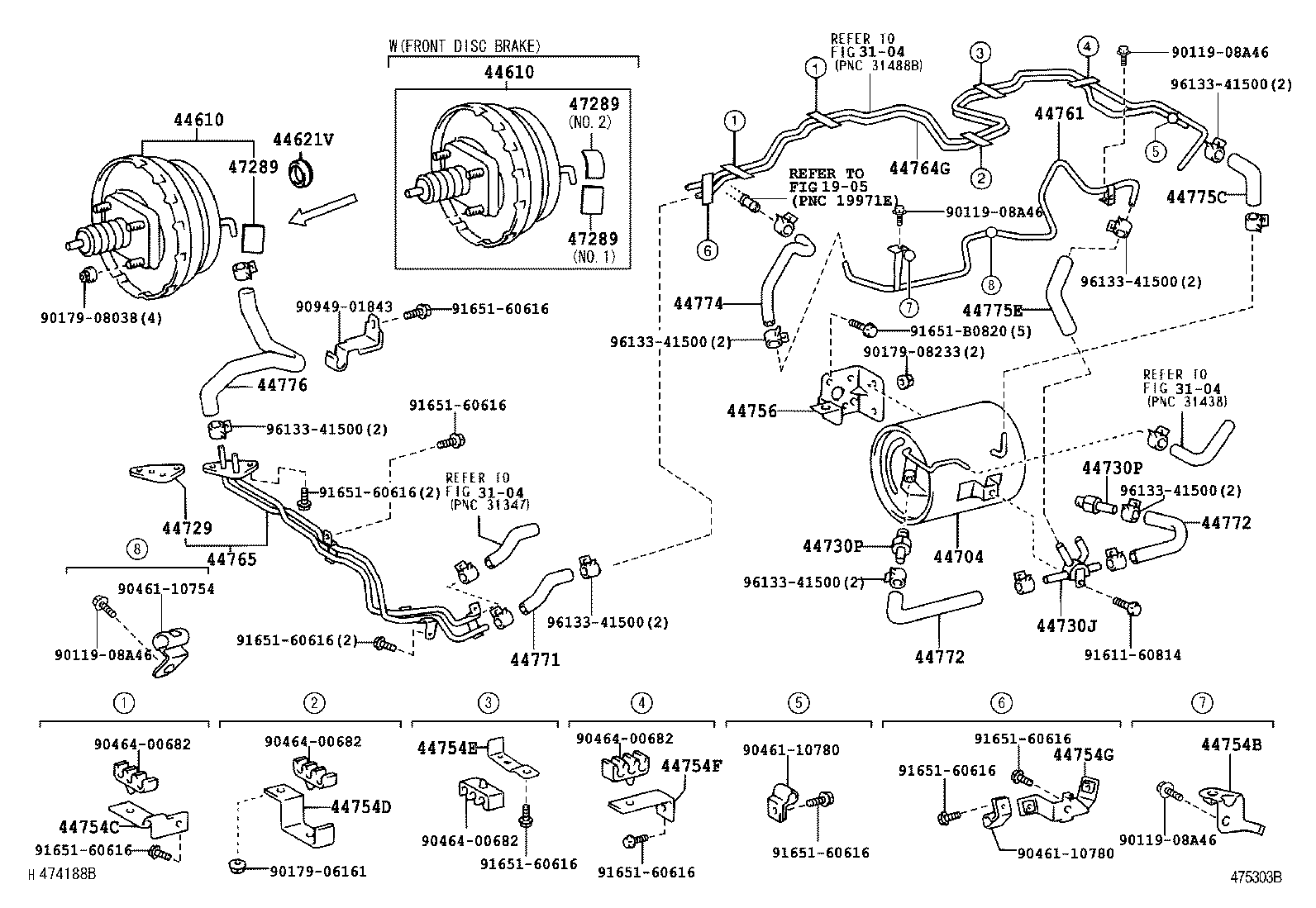

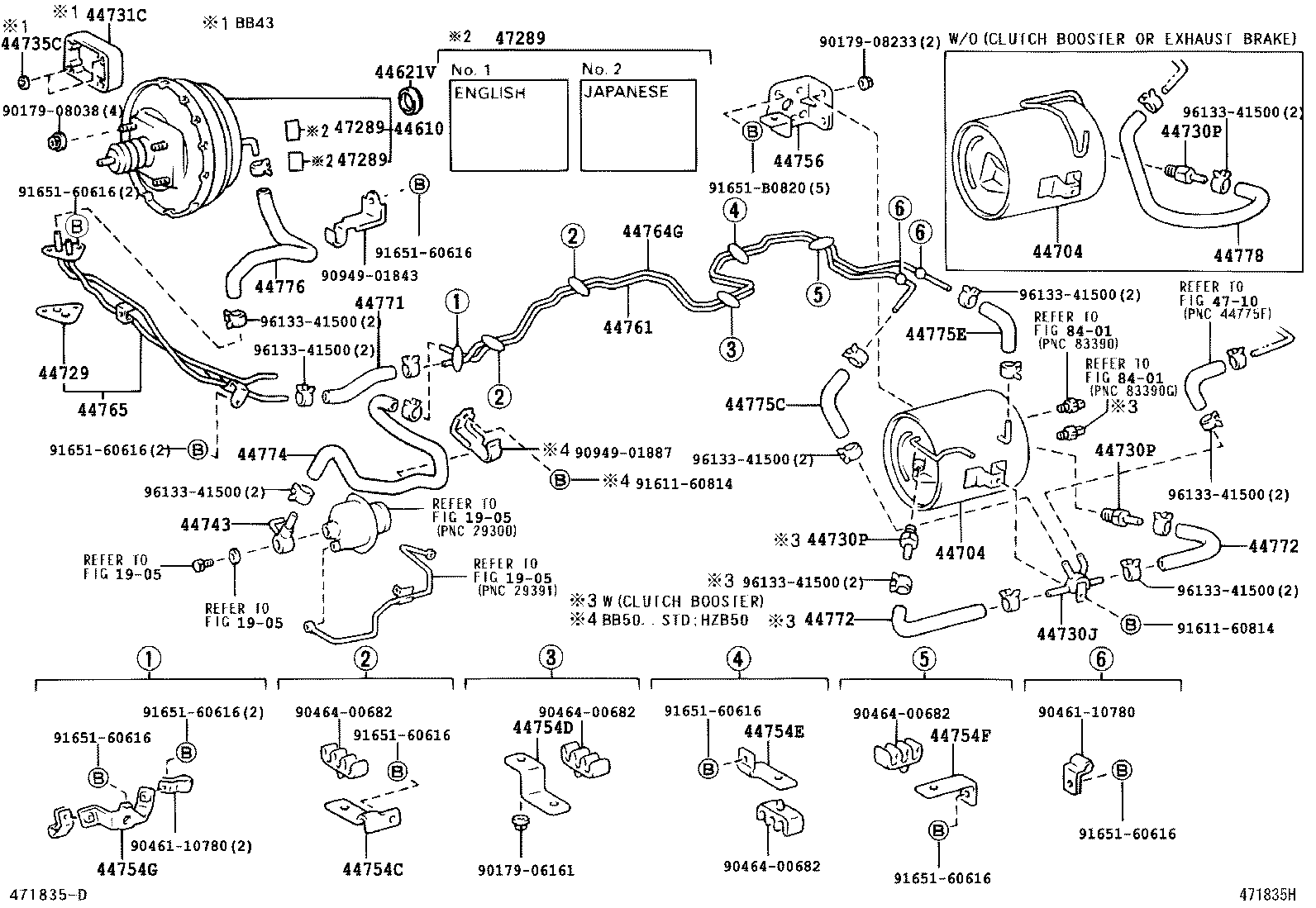

Figure 471832E 471832E 1993-01 → — Figure 471833G 471833G 1993-01 → — Figure 471834H 471834H 1993-01 → 1999-07 Figure 471834H 471834H 1999-07 → — Figure 471617I 471617I 1999-07 → — Figure 471835H 471835H 1993-01 → — Figure 471618H 471618H 1999-07 → — Figure 473568D 473568D 1993-09 → 2007-08 Figure 473568D 473568D 2007-08 → — Figure 478395A 478395A 2012-09 → — Figure 472679E 472679E 2001-08 → 2011-08 Figure 477491A 477491A 2011-08 → — Figure 475300D 475300D 2006-08 → 2009-08 Figure 475300D 475300D 2015-01 → — Figure 475301C 475301C 2006-08 → — Figure 475301C 475301C 2009-08 → — Figure 475302B 475302B 2006-08 → — Figure 475302B 475302B 2011-08 → — Figure 475303B 475303B 2006-08 → 2011-08 Figure 475304A 475304A 2006-08 → — Figure 476083A 476083A 2007-08 → — Figure 476854A 476854A 2009-08 → 2012-09 Figure 476854A 476854A 2012-09 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44621V Seal, Booster Body
44704 Reservoir Sub-assy, Vacuum
44729 Gasket, Vacuum Tube
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730A Hose, Vacuum, NO.1
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730J Way(FOR BOOSTER VACUUM)
44730P Valve Assy, Vacuum Check, NO.1
44731C Bracket, Brake Booster
44735C Ring, Booster Bracket Stopper
44743 Union(FOR VACUUM PUMP)
44754B Bracket, Vacuum Tube
44754C Bracket, Vacuum Tube, NO.1
44754D Bracket, Vacuum Tube, NO.2
44754E Bracket, Vacuum Tube, NO.3
44754F Bracket, Vacuum Tube, NO.4
44754G Bracket, Vacuum Tube, NO.5
44756 Bracket, Vacuum Reservoir
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44762G Tube, Vacuum Check Valve TO Connector
44764F Way(FOR BOOSTER VACUUM TUBE)
44764G Tube, Connector TO Brake Booster
44765 Tube, Connector TO Brake Booster, NO.2
44771 Hose, Vacuum Tube Connector
44772 Hose, Check Valve TO Connector Tube
44774 Hose, Union TO Connector Tube
44775C Hose, Connector TO Way
44775E Hose, Way TO Connector
44776 Hose, Brake Booster
44776A Hose, Vacuum Reservoir TO Brake Booster
44778 Hose, Connector TO Check Valve
47289 Label, Brake Master Cylinder Adjust Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
