Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drum Brake Wheel Cylinder & Backing Plate

33 part groups · 7 illustrations

Illustrations

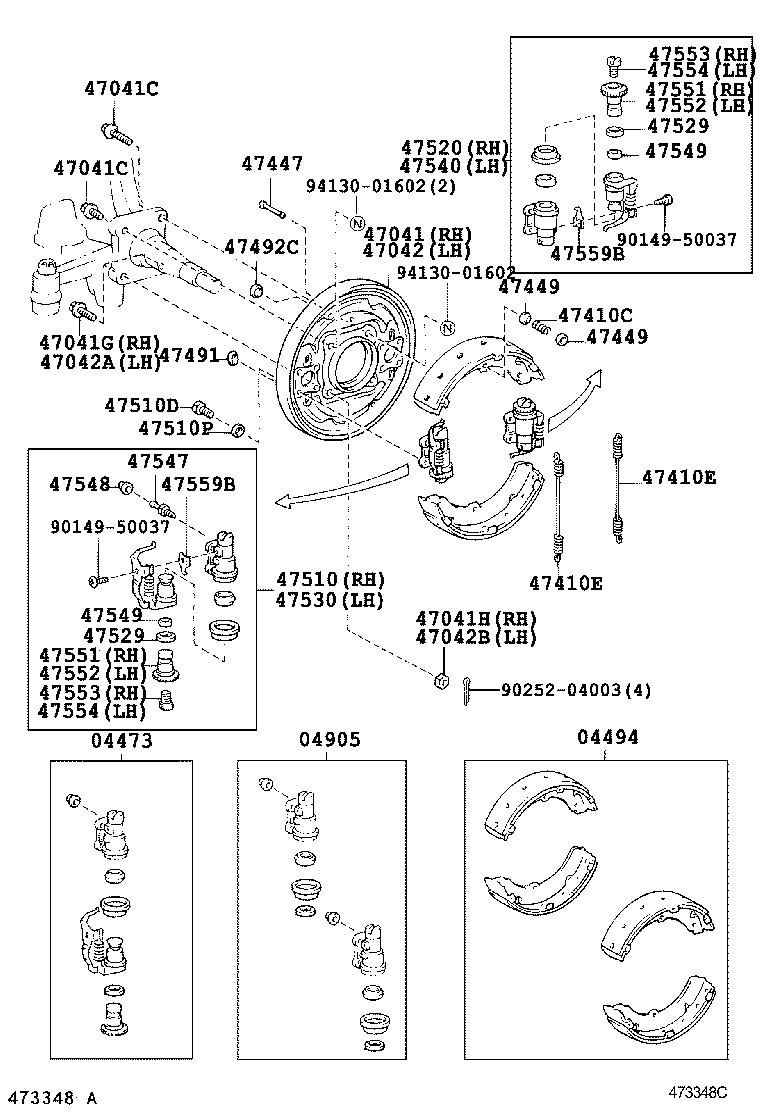

Figure 473349A 473349A 1993-01 → — Figure 473349A 473349A 1997-05 → 2009-08 Figure 473349A 473349A 2009-08 → 2011-08 Figure 473349A 473349A 2011-08 → — Figure 473348C 473348C 1993-01 → 2004-08 Figure 473348C 473348C 1997-05 → 2004-08 Figure 473348C 473348C 2001-08 → 2011-08

Part groups

PNCDescription
04473 Cylinder Kit, Front Wheel
04494 Shoe Kit, Front Brake
04905 Cup Kit, Front Wheel Cylinder
47041 Plate Sub-assy, Brake Backing, Front RH
47041C Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
47041G Bolt(FOR BRAKE BACKING PLATE FRONT RH)
47041H Nut(FOR BRAKE BACKING PLATE FRONT RH)
47042 Plate Sub-assy, Brake Backing, Front LH
47042A Bolt(FOR BRAKE BACKING PLATE FRONT LH)
47042B Nut(FOR BRAKE BACKING PLATE FRONT LH)
47410C Spring(FOR FRONT BRAKE SHOE HOLD DOWN)
47410E Spring, Tension(FOR FRONT BRAKE SHOE RETURN)
47419 Plug, Hole(FOR FRONT BRAKE)
47447 Pin, Shoe Hold Down Spring(FOR FRONT BRAKE)
47449 Cup, Shoe Hold Down Spring(FOR FRONT BRAKE)
47491 Plug, Hole(FOR FRONT BRAKE)
47492C Plug, Hole(FOR FRONT BRAKE)
47510 Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
47510D Bolt(FOR FRONT WHEEL CYLINDER)
47510P Washer(FOR FRONT WHEEL CYLINDER)
47520 Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
47529 Seal, Front Wheel Brake Cylinder Adjust Dust
47530 Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
47540 Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
47547 Plug, Bleeder(FOR FRONT DRUM BRAKE)
47548 Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT)
47549 Seat, Front Brake Automatic Adjust Nut
47551 Nut, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
47552 Nut, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
47553 Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
47554 Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
47555 Spring, Adjuster Lock(FOR FRONT BRAKE)
47559B Sping, Front Automatic Adjust Lever Support
