Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Brake Tube & Clamp

6 part groups · 4 illustrations

Illustrations

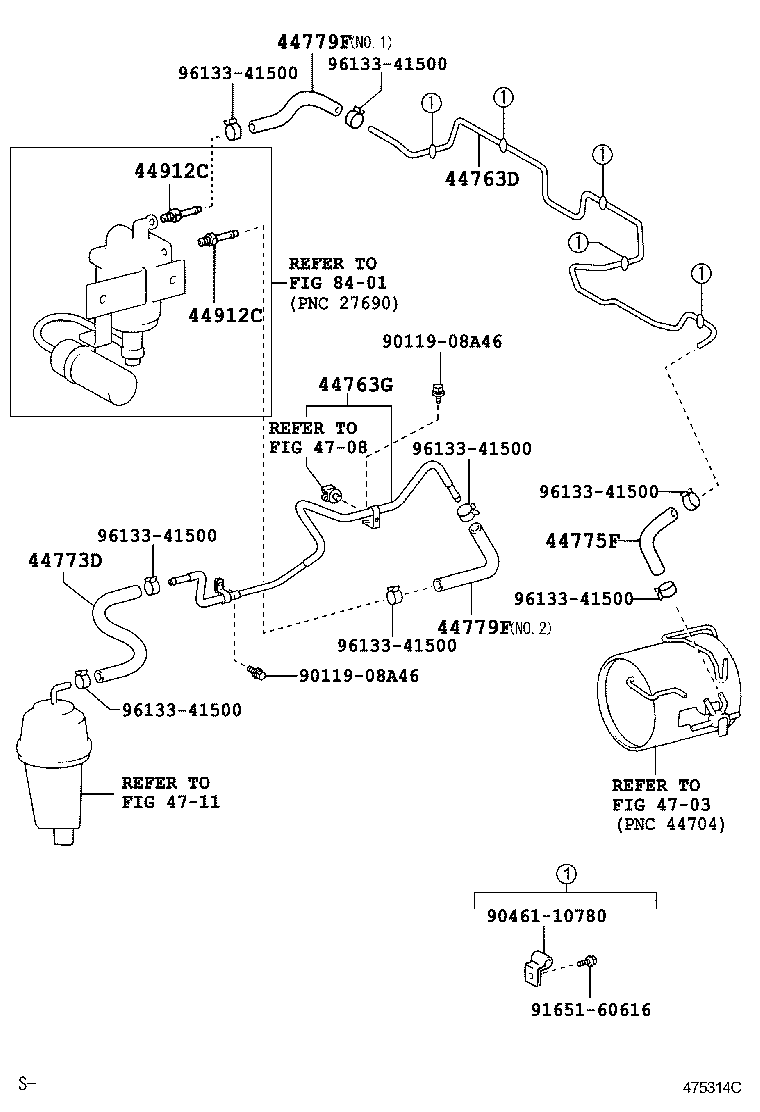

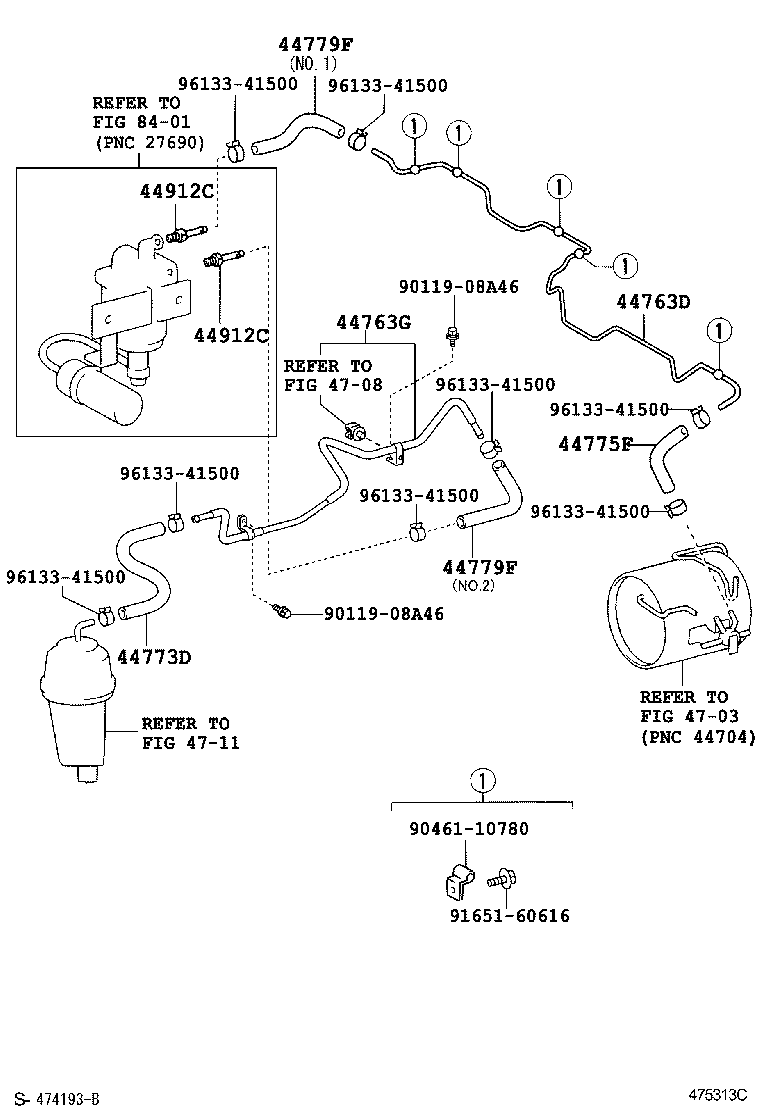

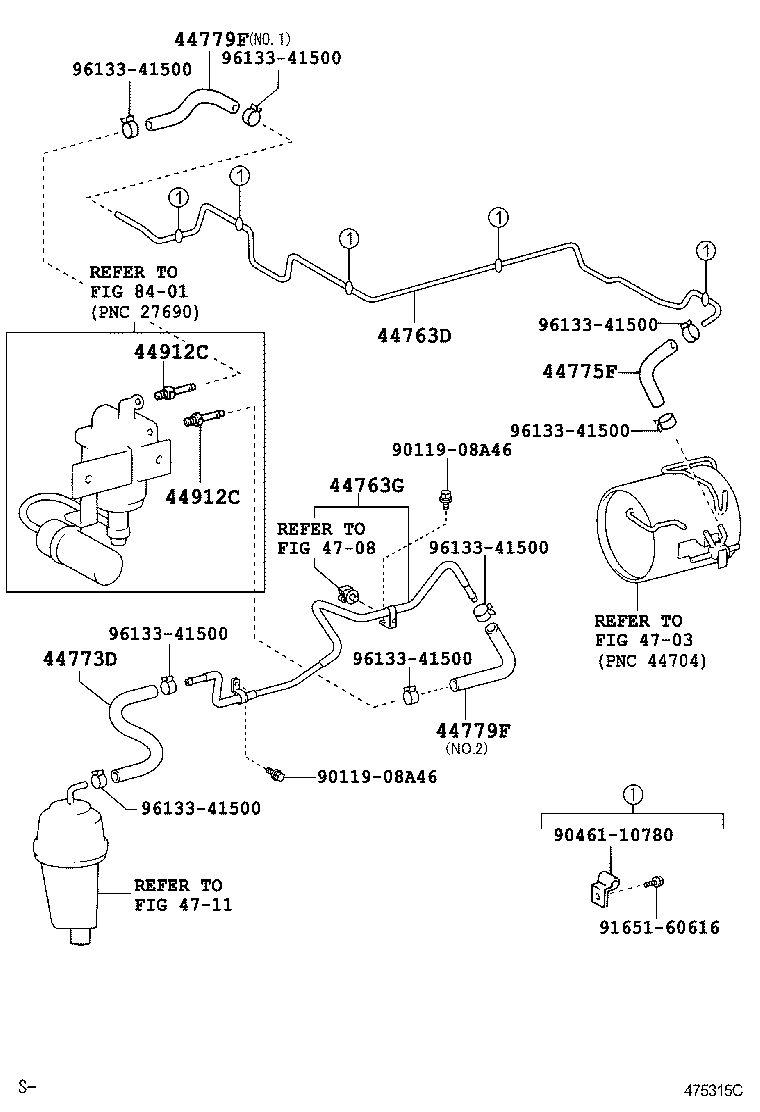

Figure 474194C 474194C 1993-01 → — Figure 475313C 475313C 2006-08 → — Figure 475314C 475314C 2006-08 → — Figure 475315C 475315C 2006-08 → 2015-01

Part groups

PNCDescription
44763D Tube, Hose TO Hose, NO.1
44763G Tube, Hose TO Hose, NO.2
44773D Hose, Solenoido TO Retarder
44775F Hose, Way TO Connector
44779F Hose, Connector Tube TO Solenoid, NO.1
44912C Union(FOR 3 WAY TO MAGNETIC VALVE TUBE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
