Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe
Discontinued model
Data version 2016-12

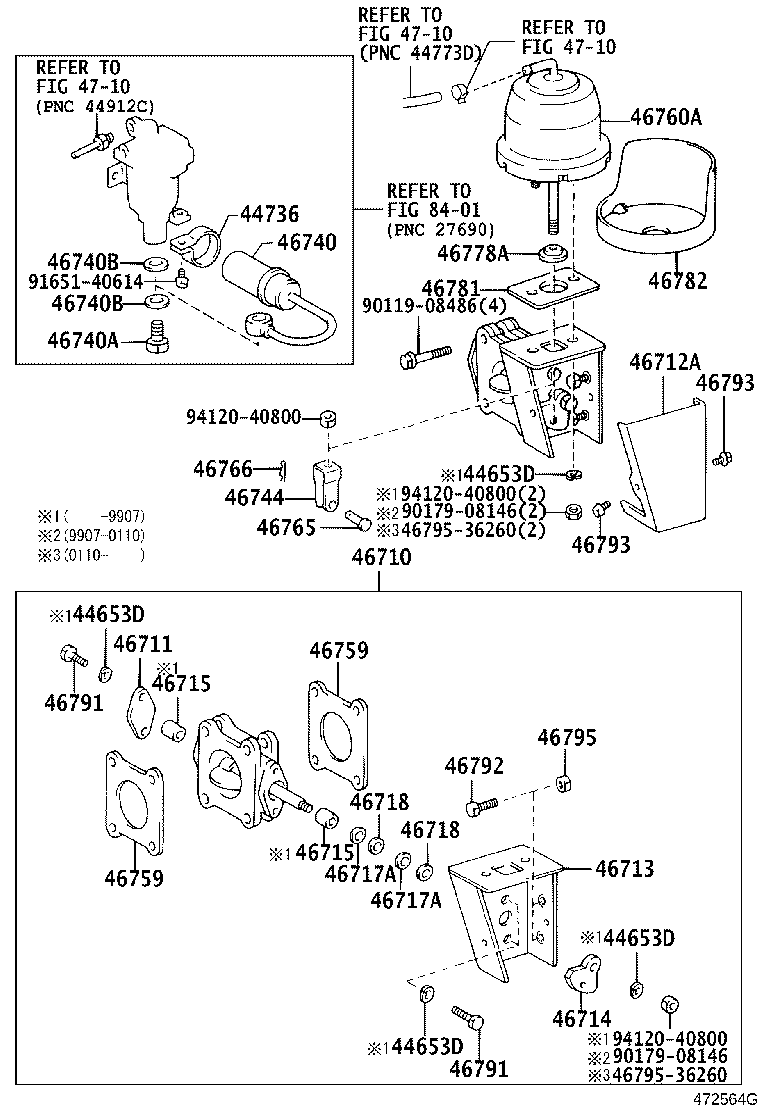

Exhaust Brake Assembly & Vacuum Cylinder
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44653D | Washer, Exhaust Valve Cover |
| 44736 | Bracket, Air Cleaner |
| 46710 | Valve Assy, Exhaust Brake |
| 46711 | Cover, Exhaust Valve |
| 46712A | Cover, Exhaust Brake Bracket |
| 46713 | Bracket, Exhaust Valve |
| 46714 | Lever, Exhaust Valve |
| 46715 | Bush, Exhaust Valve, NO.1 |
| 46717A | Ring, Exhaust Valve Seal, NO.1 |
| 46718 | Ring, Exhaust Valve Seal, NO.2 |
| 46740 | Cleaner Assy, Exhaust Retarder |
| 46740A | Bolt, Union(FOR EXHAUST BRAKE CLEANER ASSY) |
| 46740B | Gasket(FOR EXHAUST BRAKE CLEANER ASSY) |
| 46744 | Clevis, Exhaust Brake Rod Clevis |
| 46759 | Gasket, Exhaust Retarder |
| 46760A | Chamber Assy, Exhaust Brake |
| 46765 | Pin, Vacuum Cylinder Clevis |
| 46766 | Pin, Vacuum Cylinder Clevis Snap |
| 46778A | Bearing, Exhaust Brake Chamber Rod |
| 46781 | Insulator, Exhaust Brake Chamber, NO.1 |
| 46782 | Insulator, Exhaust Brake Chamber, NO.2 |
| 46791 | Bolt, Exhaust Valve Cover |
| 46792 | Bolt, Exhaust Valve Stopper |
| 46793 | Bolt, Exhaust Valve Link Cover |
| 46795 | Nut, Exhaust Valve Bracket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
