Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

20 part groups · 2 illustrations

Illustrations

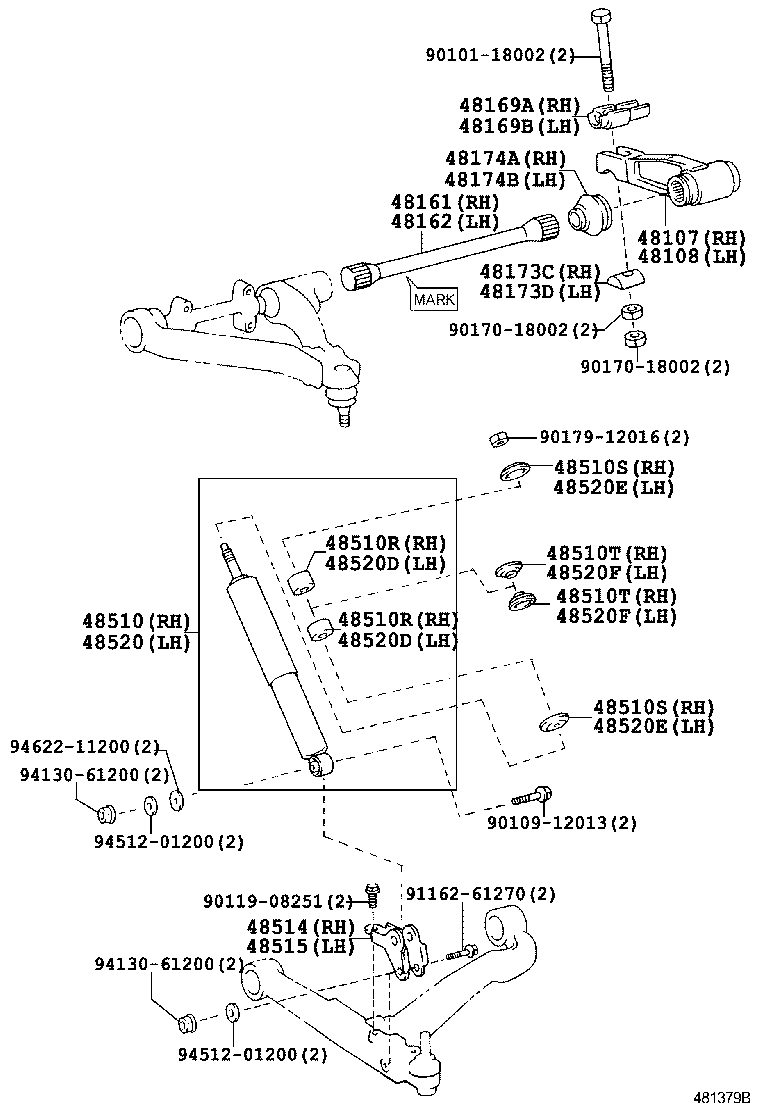

Figure 481271A 481271A 1993-01 → 1997-03 Figure 481379B 481379B 1997-03 → —

Part groups

PNCDescription
48107 Arm Sub-assy, Anchor, RH
48108 Arm Sub-assy, Anchor, LH
48161 Spring, Torsion Bar, RH
48162 Spring, Torsion Bar, LH
48169A Swivel, Anchor Arm, RH
48169B Swivel, Anchor Arm, LH
48173C Seat, Anchor Arm Adjuster, RH
48173D Seat, Anchor Arm Adjuster, LH
48174A Cover, Torsion Bar Dust, RH
48174B Cover, Torsion Bar Dust, LH
48510 Absorber Assy, Shock, Front RH
48510R Cushion, Front Shock Absorber, NO.1 RH
48510S Retainer, Front Shock Absorber Cushion, NO.1 RH
48510T Retainer, Front Shock Absorber Cushion, NO.2 RH
48514 Bracket, Front Shock Absorber, Lower RH
48515 Bracket, Front Shock Absorber, Lower LH
48520 Absorber Assy, Shock, Front LH
48520D Cushion, Front Shock Absorber, NO.1 LH
48520E Retainer, Front Shock Absorber Cushion, NO.1 LH
48520F Retainer, Front Shock Absorber Cushion, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
