Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

50 part groups · 10 illustrations

Illustrations

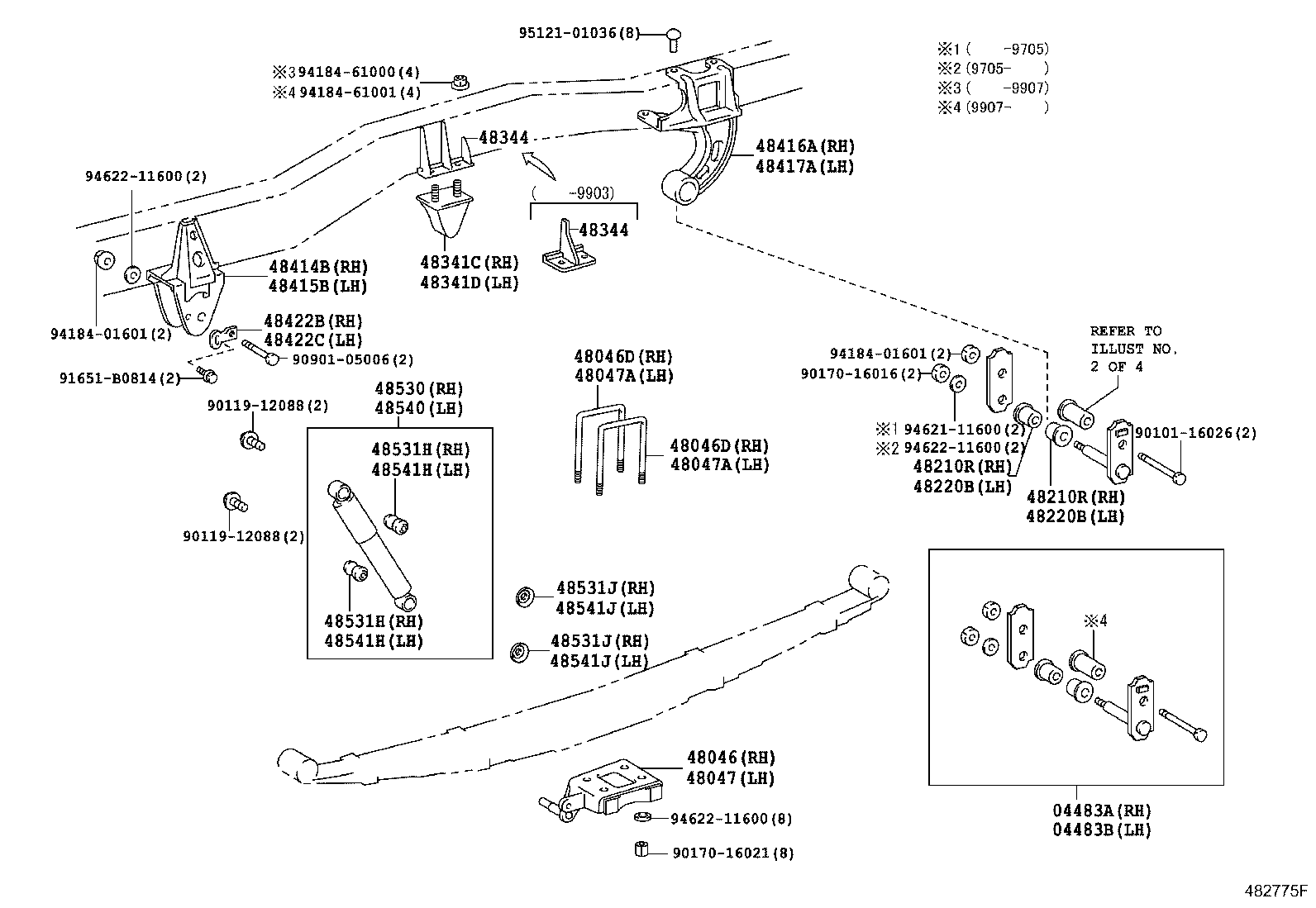

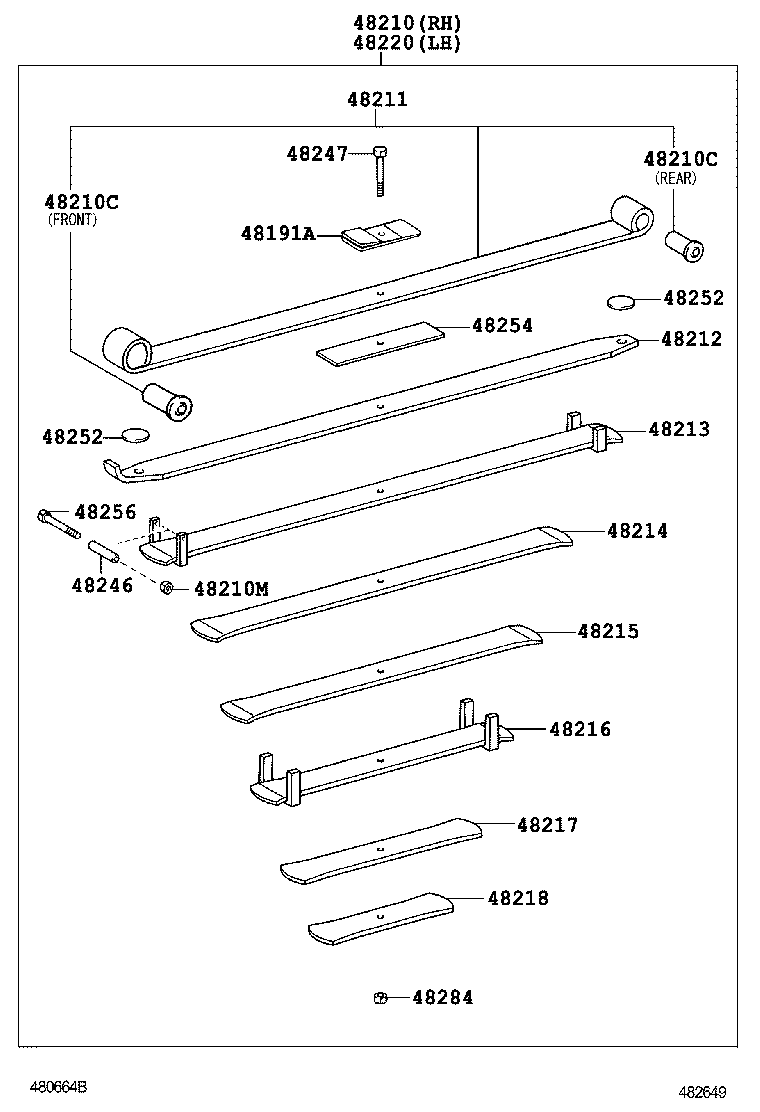

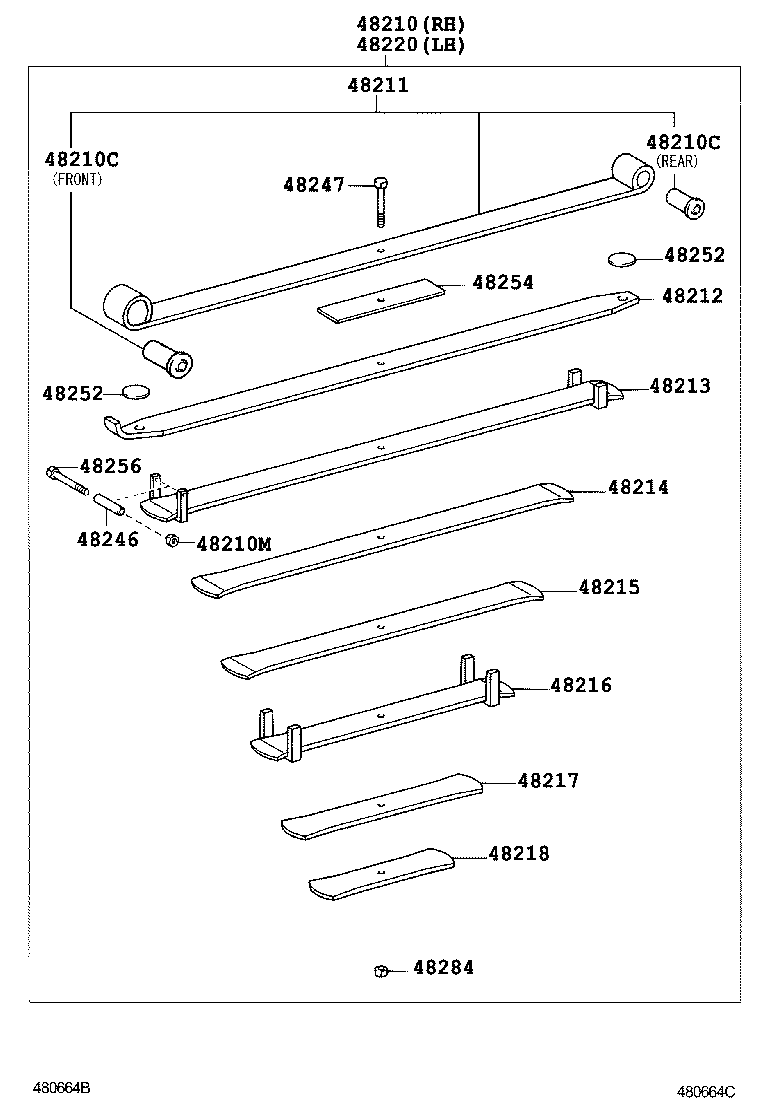

Figure 482774A 482774A 1993-01 → 1997-03 Figure 482775F 482775F 1997-03 → — Figure 480978G 480978G 1993-01 → 2004-08 Figure 480978G 480978G 2004-08 → — Figure 480580C 480580C 1993-01 → 2004-08 Figure 480580C 480580C 2004-08 → — Figure 480664C 480664C 1997-05 → 1997-12 Figure 482649 482649 1997-12 → — Figure 481272D 481272D 1993-01 → — Figure 482651 482651 2007-08 → —

Part groups

PNCDescription
04483A Shackle Kit, Rear Spring, RH
04483B Shackle Kit, Rear Spring, LH
48046 Seat Sub-assy, Spring U Bolt, RH
48046D Bolt, U(FOR REAR SPRING RH)
48047 Seat Sub-assy, Spring U Bolt, LH
48047A Bolt, U(FOR REAR SPRING LH)
48191A Wedge, Caster(FOR REAR LEAF SPRING)
48210 Spring Assy, Rear RH
48210C Bush(FOR REAR SPRING LEAF)
48210M Nut(FOR REAR SPRING)
48210R Bush(FOR REAR SPRING SHACKLE LOWER RH)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48217 Leaf, Rear Spring, NO.7
48218 Leaf, Rear Spring, NO.8
48220 Spring Assy, Rear LH
48220B Bush(FOR REAR SPRING SHACKLE LOWER LH)
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48252 Silencer, Rear Spring
48253 Spacer, Rear Spring, NO.1
48254 Spacer, Rear Spring Leaf
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48284 Nut, Rear Spring Center Bolt
48284A Nut, Rear Spring Clip
48341C Bumper, Rear Spring, NO.2 RH
48341D Bumper, Rear Spring, NO.2 LH
48344 Stopper, Bumper, Rear
48375 Damper, Leaf Spring Dynamic
48414B Bracket, Spring, NO.3 RH
48415B Bracket, Spring, NO.3 LH
48416A Bracket, Spring, NO.4 RH
48417A Bracket, Spring, NO.4 LH
48422B Support, Rear Spring Pin, RH
48422C Support, Rear Spring Pin, LH
48530 Absorber Assy, Shock, Rear RH
48531H Bush(FOR REAR SHOCK ABSORBER RH)
48531J Washer, Rear Shock Absorber Cushion, NO.1 RH
48540 Absorber Assy, Shock, Rear LH
48541H Bush(FOR REAR SHOCK ABSORBER LH)
48541J Washer, Rear Shock Absorber Cushion, NO.1 LH
48812 Bar, Stabilizer, Rear
48815R Bush, Stabilizer(FOR REAR)
48823C Cover, Rear Stabilizer Bracket
48830D Link Assy, Rear Stabilizer, RH
48840A Link Assy, Rear Stabilizer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
