Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

25 part groups · 11 illustrations

Illustrations

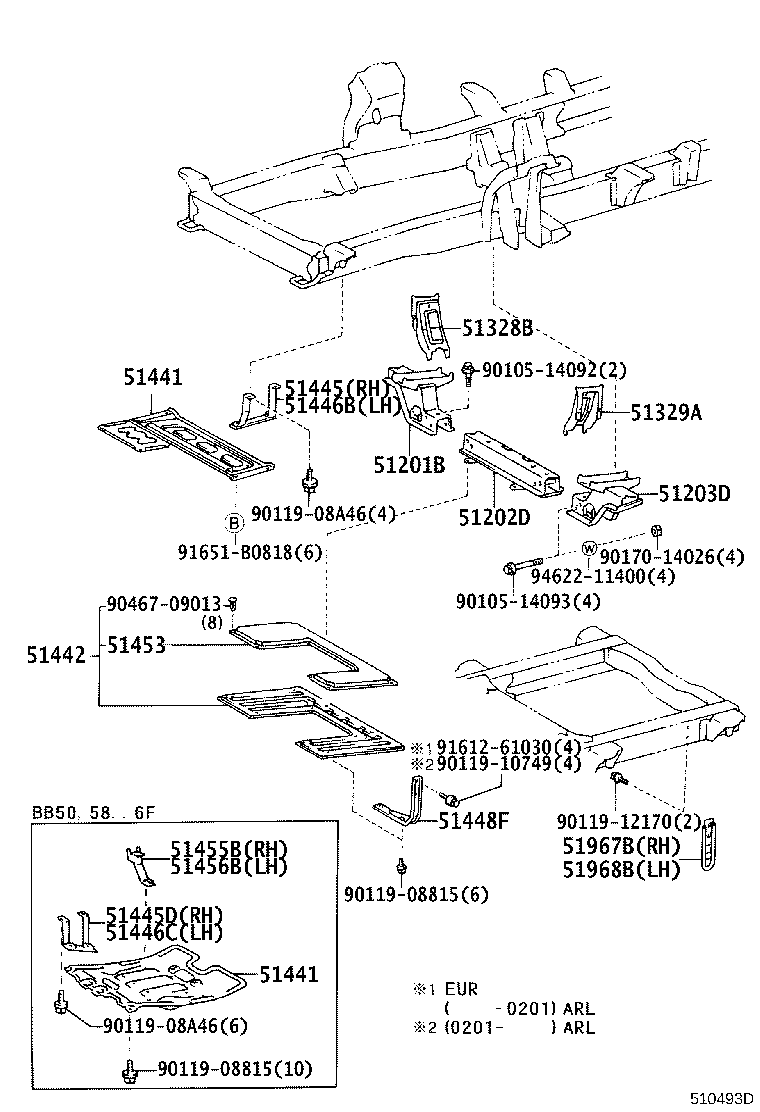

Figure 510325C 510325C 1993-01 → 1999-07 Figure 510325C 510325C 1997-05 → 1999-07 Figure 510493D 510493D 1999-07 → 2004-08 Figure 510326C 510326C 1996-05 → 1999-07 Figure 510491F 510491F 1999-07 → 2004-08 Figure 510491F 510491F 2004-08 → — Figure 510327C 510327C 1997-05 → 1999-07 Figure 510492I 510492I 1999-07 → 2006-08 Figure 510492I 510492I 2004-08 → 2015-01 Figure 510492I 510492I 2015-01 → — Figure 512829A 512829A 2015-01 → —

Part groups

PNCDescription
51201B Crossmember Sub-assy, Front Suspension, RH
51202D Crossmenber Sub-assy, Front Suspension, Lower
51203D Crossmenber Sub-assy, Front Suspension, LH
51328B Support, Front Suspension Member, RH
51329A Support, Front Suspension Member, LH
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51445 Bracket, Engine Under Cover
51445D Bracket, Engine Under Cover, RH
51446B Bracket, Engine Under Cover, NO.2
51446C Bracket, Engine Under Cover, LH
51448F Bracket, Oil Pan Protector Side
51453 Silencer, Engine Under Cover, Front
51454C Silencer, Engine Under Cover, Rear
51455B Bracket, Engine Under Cover, Rear RH
51456B Bracket, Engine Under Cover, Rear LH
51456C Seal, Engine Under Cover, NO.2
51457C Seal, Engine Under Cover, NO.3
51459 Stay, Engine Side Cover
51463B Silencer, Transmission Under, RH NO.1
51475 Silencer, Engine Under Cover, NO.5
51476 Silencer, Transmission Cover, Center
51495 Cover, Transmission Under
51967B Hook, Transport, Rear RH
51968B Hook, Transport, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
