Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

5 part groups · 2 illustrations

Illustrations

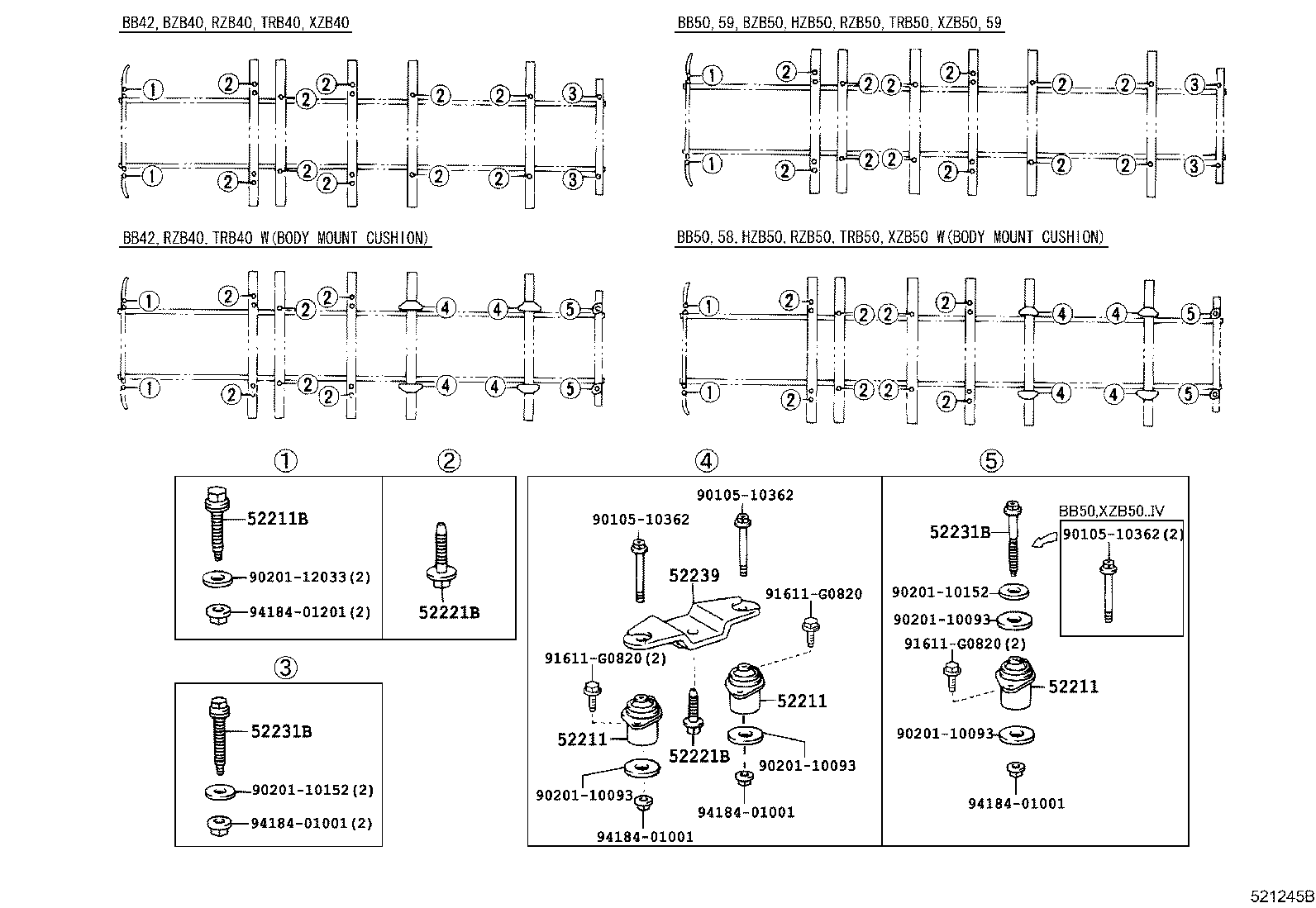

Figure 520525F 520525F 1993-01 → 2004-08 Figure 521245B 521245B 2004-08 → —

Part groups

PNCDescription
52211 Cushion, Body Mounting, NO.1 Upper
52211B Bolt(FOR BODY MOUNTING NO.1 CUSHION)
52221B Bolt(FOR BODY MOUNT NO.2 CUSHION)
52231B Bolt(FOR BODY MOUNT NO.3 CUSHION)
52239 Plate, Body Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
