Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

9 part groups · 4 illustrations

Illustrations

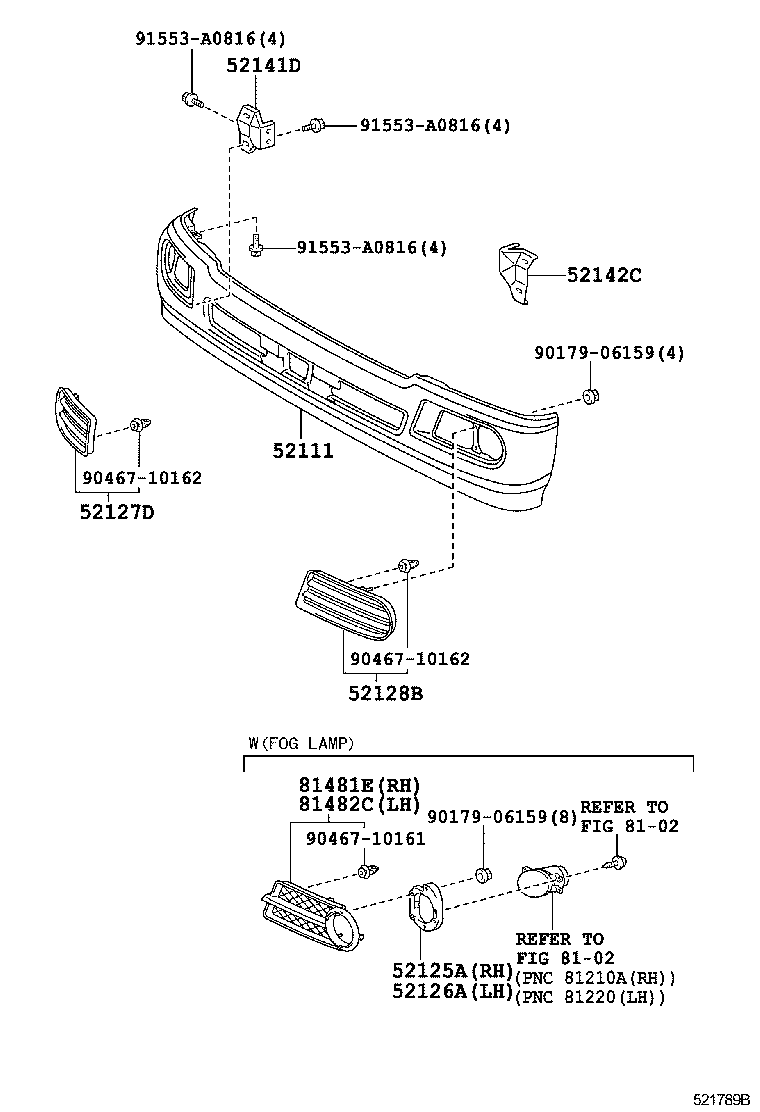

Figure 520657B 520657B 1993-01 → 2004-08 Figure 520657B 520657B 2004-08 → 2007-08 Figure 520657B 520657B 2007-08 → — Figure 521789B 521789B 2007-08 → —

Part groups

PNCDescription
52111 Bumper Assy, Front
52125A Bracket, Fog Lamp Mounting, RH
52126A Bracket, Fog Lamp Mounting, LH
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52141D Stay, Front Bumper, RH
52142C Stay, Front Bumper, LH
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
