Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

9 part groups · 4 illustrations

Illustrations

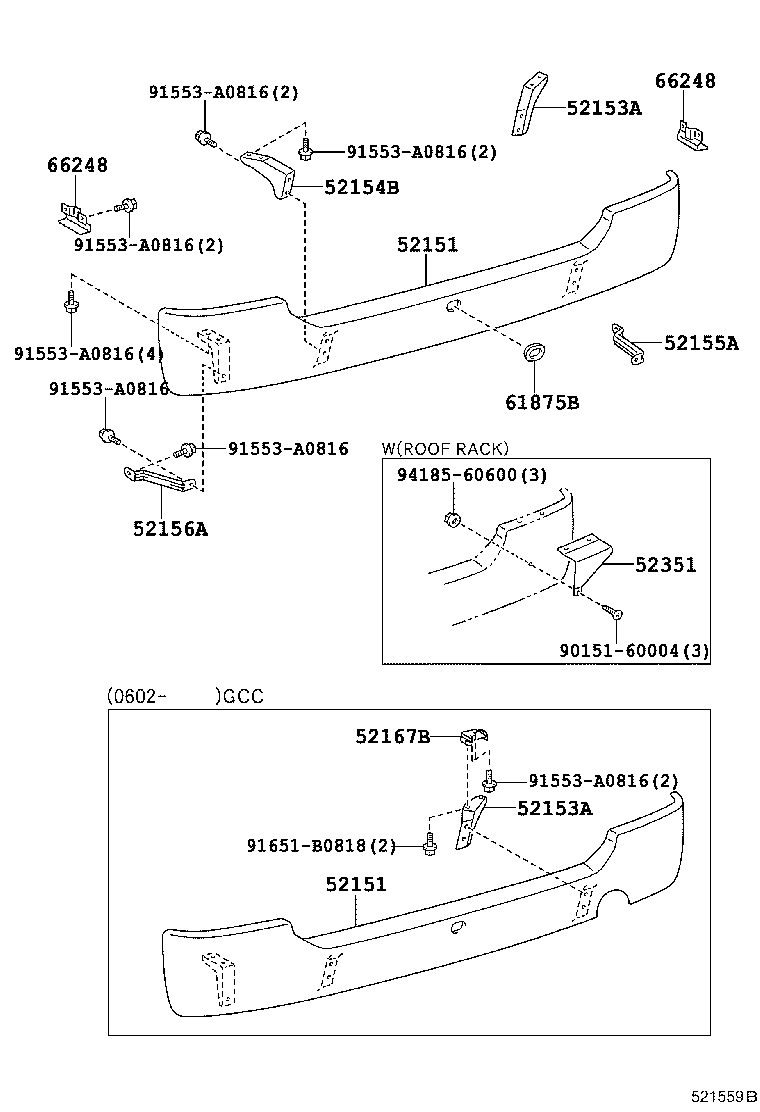

Figure 520341B 520341B 1993-01 → 2004-08 Figure 520341B 520341B 2004-08 → 2005-12 Figure 521559B 521559B 2005-12 → — Figure 521514A 521514A 2005-12 → 2006-08

Part groups

PNCDescription
52151 Bumper Assy, Rear
52153A Stay, Rear Bumper Side, RH
52154B Stay, Rear Bumper Side, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52167B Bracket, Rear Bumper Extension Mounting, RH
52351 Step, Rear Bumper
61875B Lid, Spare Wheel Carrier, NO.1
66248 Protector, Rear Body Side Panel, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
