Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

55 part groups · 8 illustrations

Illustrations

550431G 1993-01 → 2007-08

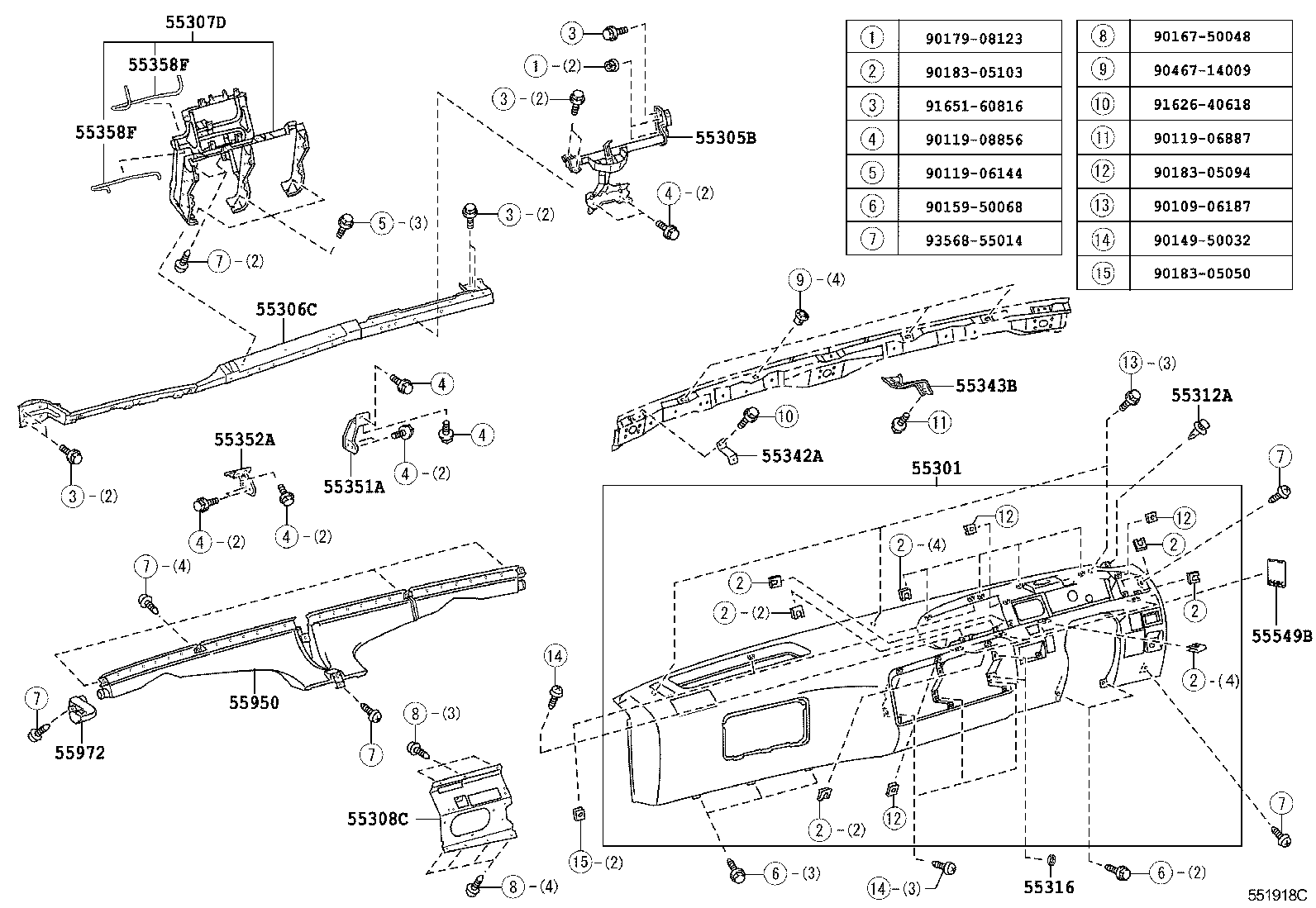

551918C 2007-08 → —

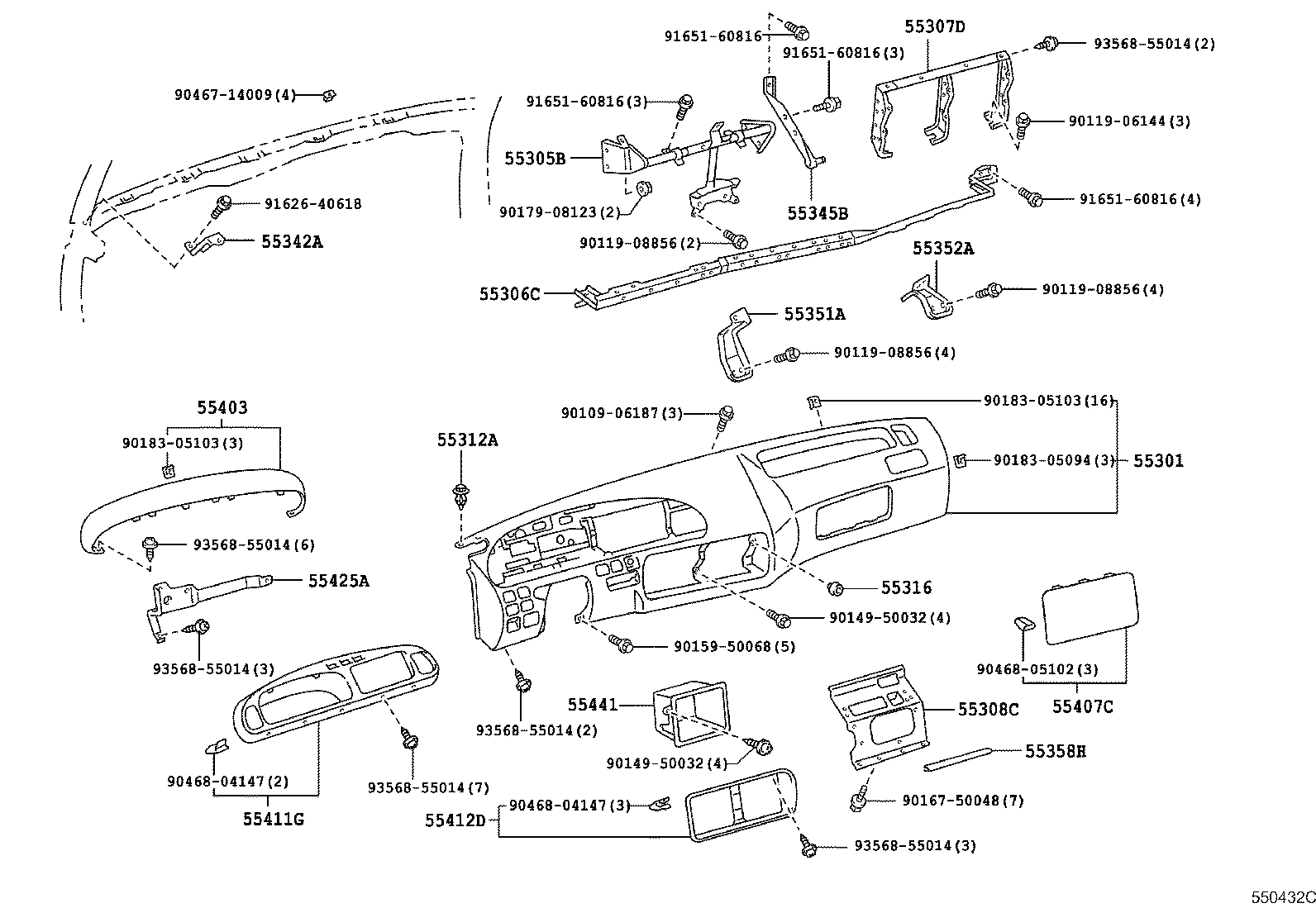

550432C 1993-01 → 2015-01

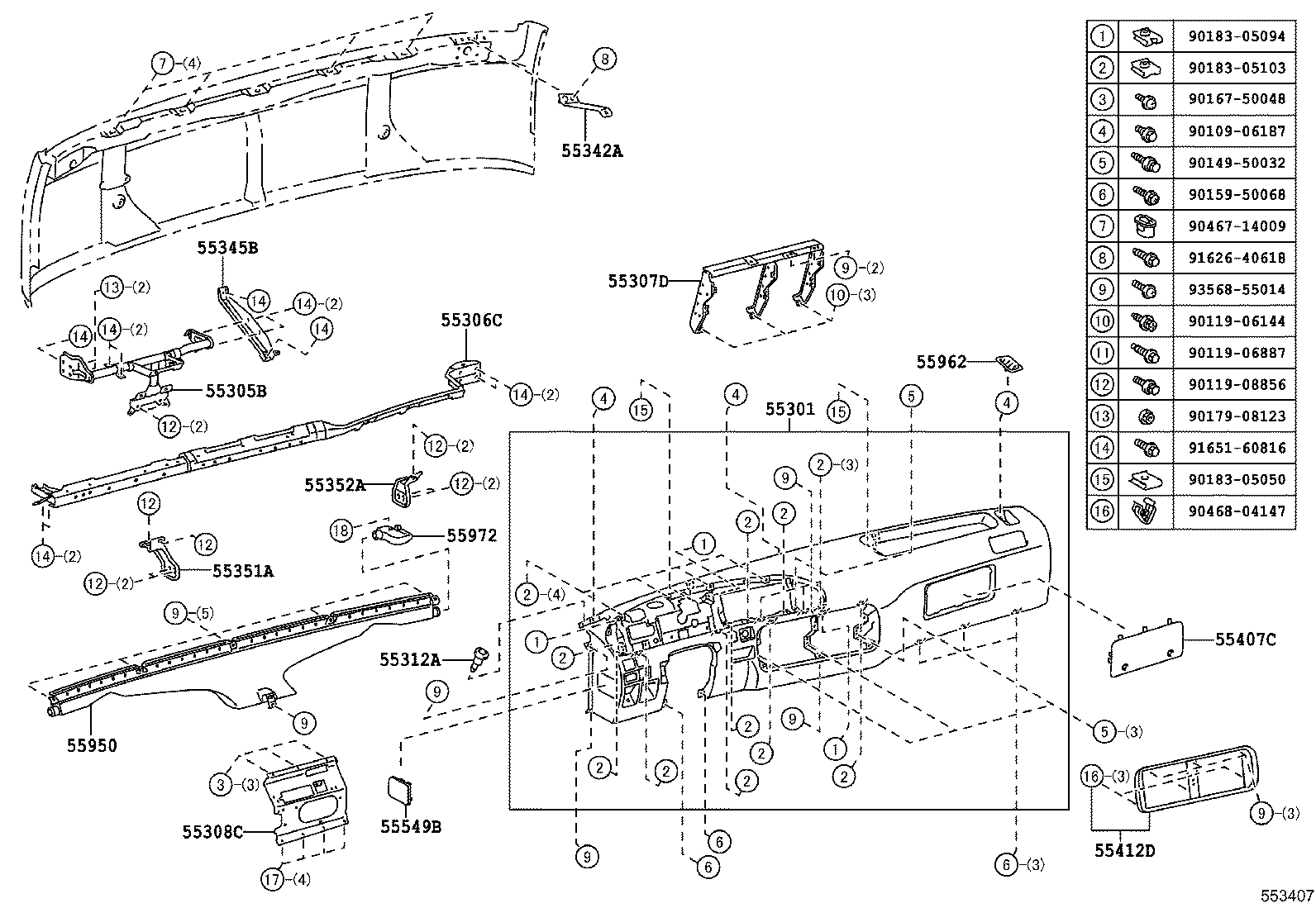

553407 2015-01 → —

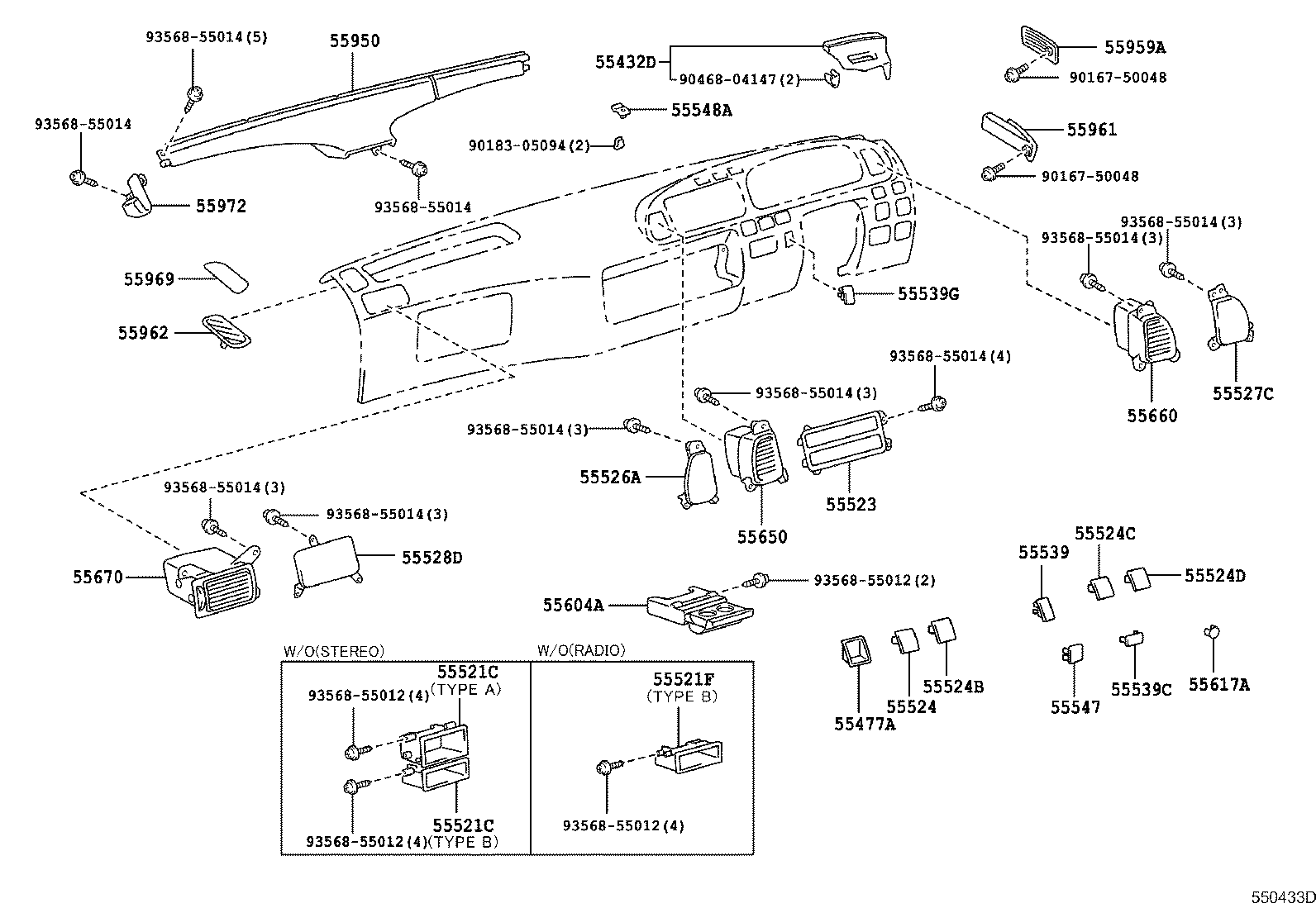

550433D 1993-01 → 2007-08

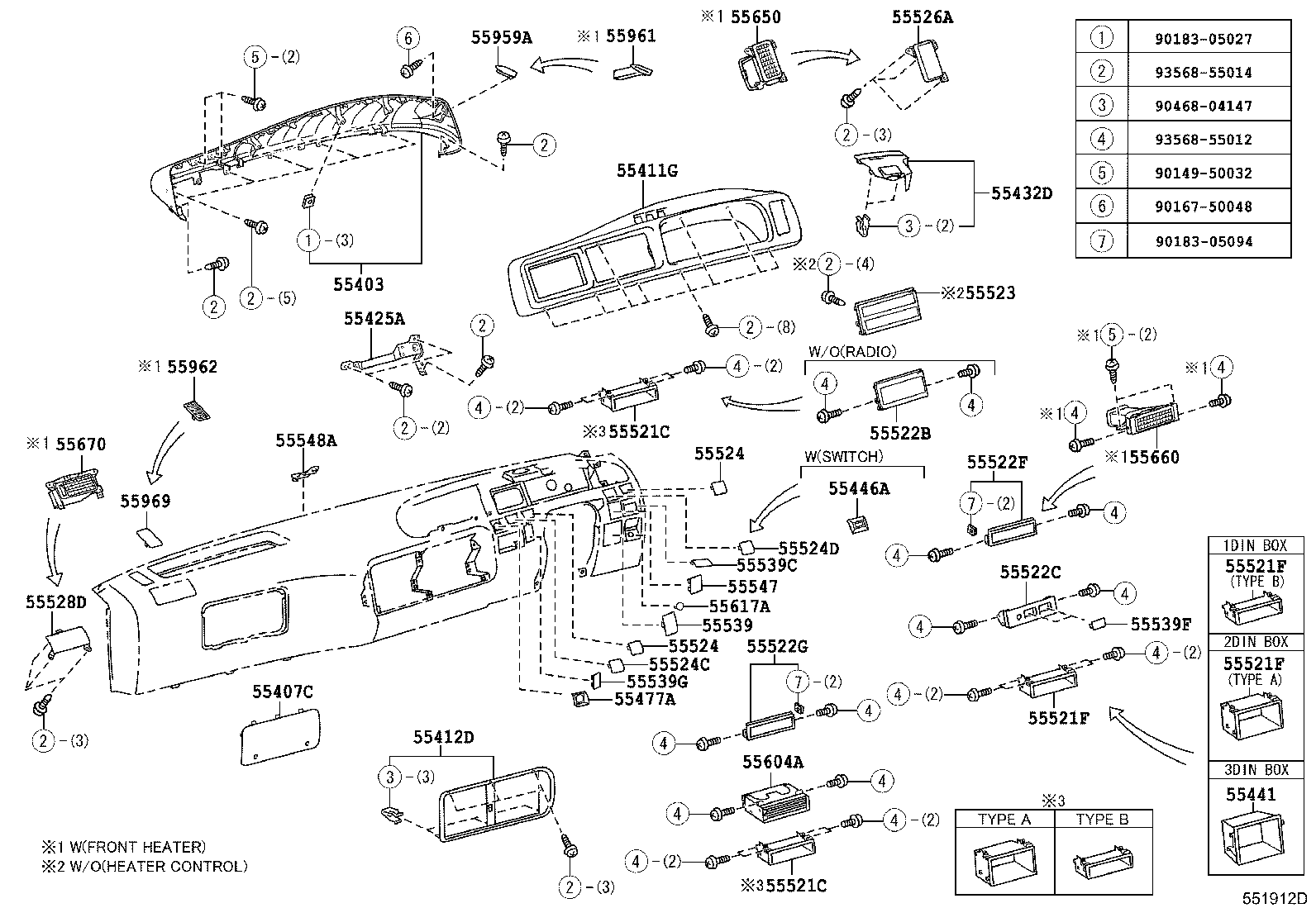

551912D 2007-08 → —

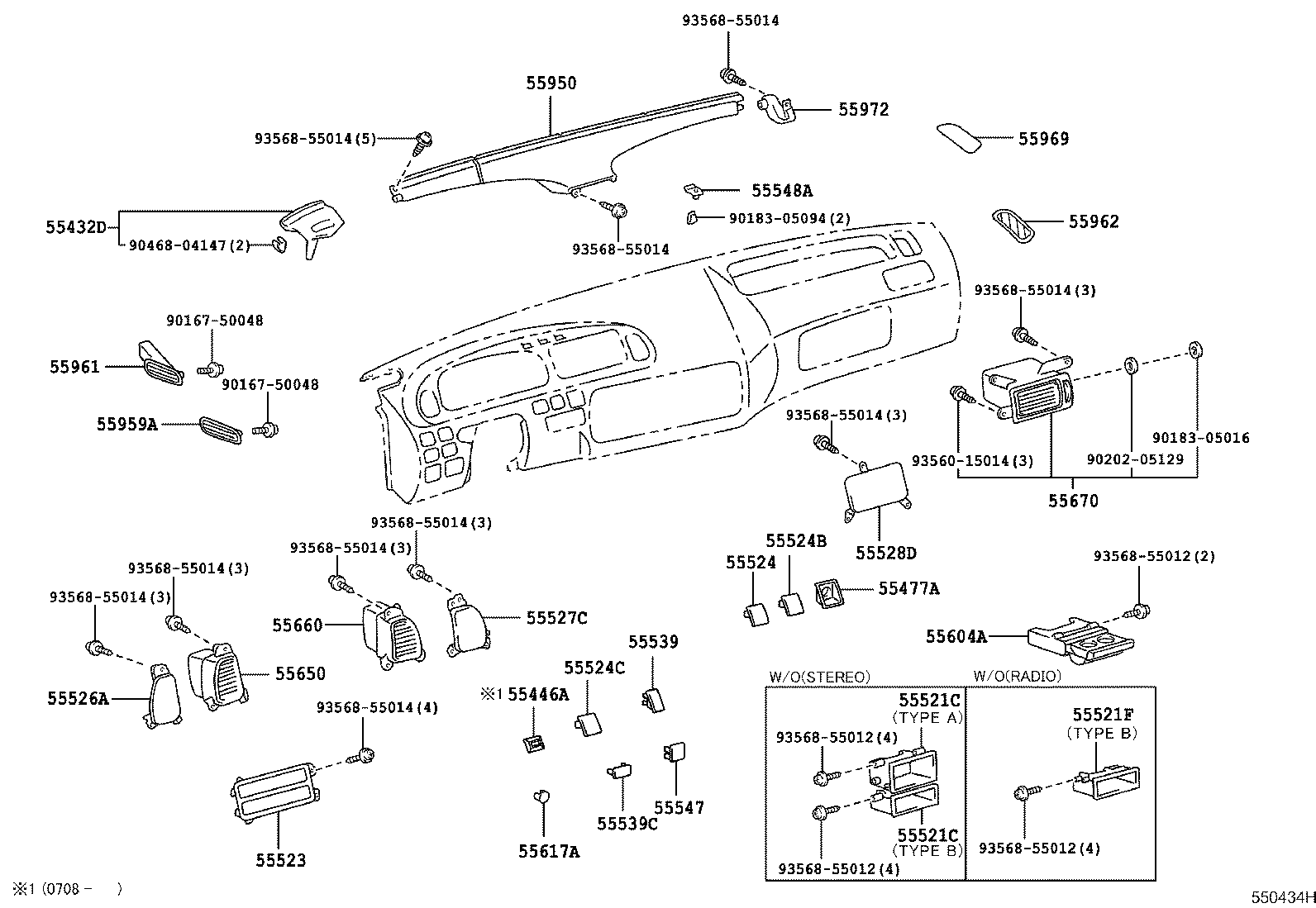

550434H 1993-01 → 2015-01

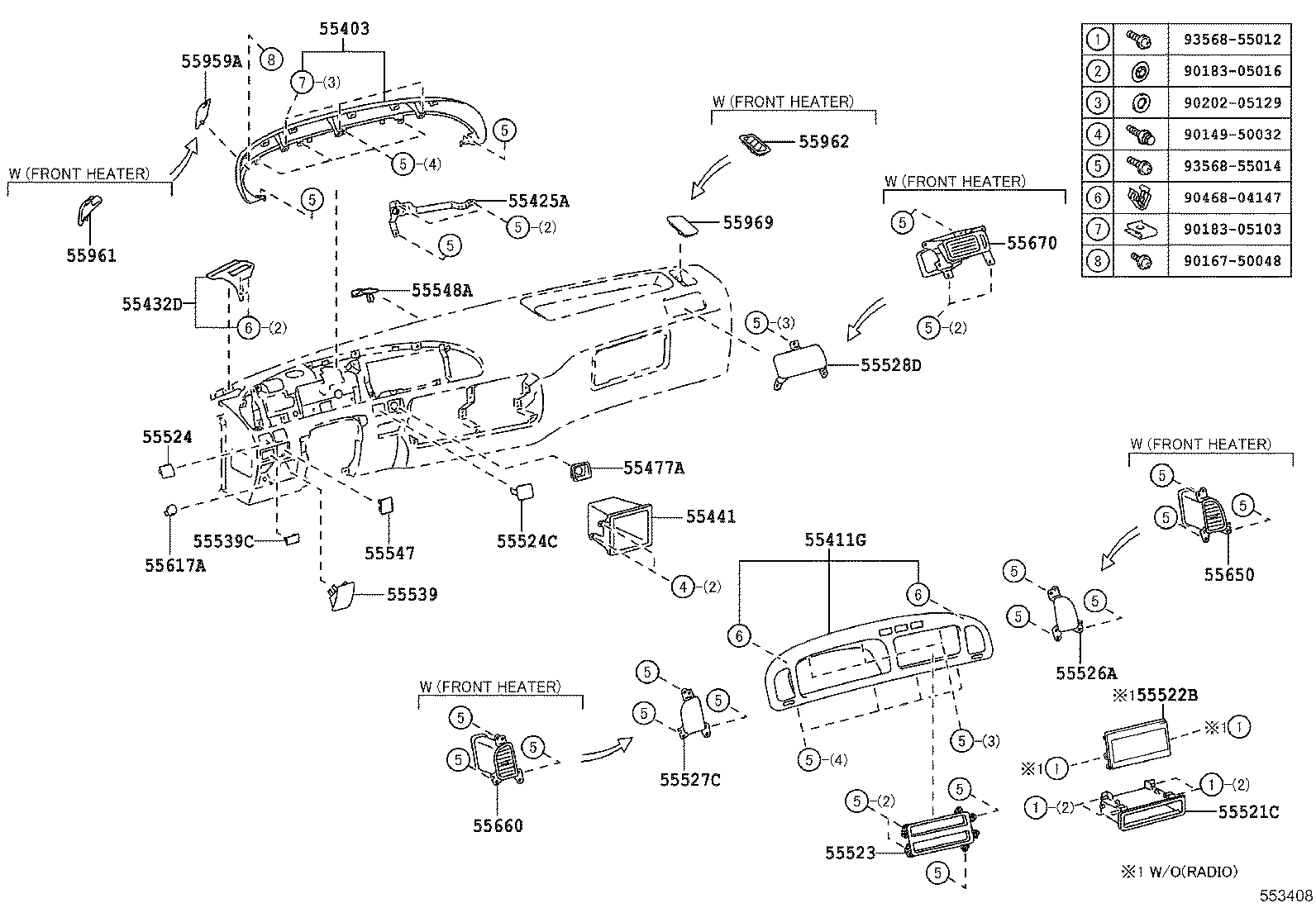

553408 2015-01 → —

Part groups

PNC	Description
55301	Panel Sub-assy, Instrument
55305B	Reinforcement Sub-assy, Instrument Panel, NO.1
55306C	Reinforcement Sub-assy, Instrument Panel, NO.2
55307D	Reinforcement Sub-assy, Instrument Panel, NO.3
55308C	Bracket Sub-assy, Instrument Panel, Center
55312A	Clip, Instrument Panel
55316	Spacer, Instrument Panel, NO.2
55342A	Brace, Instrument Panel TO Cowl, NO.2
55343B	Brace, Instrument Panel TO Cowl, Center
55345B	Brace, Instrument Panel TO Cowl, NO.4
55351A	Brace, Instrument Panel TO Floor
55352A	Brace, Instrument Panel TO Floor, NO.2
55358F	Protector, Edge
55358H	Protector, Instrument Panel
55403	Hood Sub-assy, Meter
55407C	Cover Sub-assy, Instrument, Lower
55411G	Panel, Instrument Cluster Finish, NO.1
55412D	Panel, Instrument Cluster Finish, Center
55425A	Bracket, Meter Hood Set
55432D	Panel, Instrument Panel Finish, Lower NO.1
55441	Box, Instrument Panel
55446A	Base, Switch Hole, NO.1
55477A	Bezel, Cigarette Lighter Hole
55521C	Cover, Stereo Opening
55521F	Cover, Stereo Opening, NO.2
55522B	Cover, Radio Tuner Opening
55522C	Cover, Radio Receiver Opening
55522F	Cover, Radio Tuner Opening
55522G	Cover, Radio Tuner Opening
55523	Cover, Heater Control Opening
55524	Cover, Switch Bace Hole
55524B	Cover, Switch Base Hole
55524C	Cover, Switch Base Hole, NO.4
55524D	Cover, Switch Base Hole, NO.5
55526A	Cover, Instrument Panel Register Opening, NO.1
55527C	Cover, Instrument Panel Register Opening, NO.2
55528D	Cover, Instrument Panel Register Opening, NO.3
55539	Cover, Spare Switch Hole
55539C	Cover, Spare Switch Hole
55539F	Cover, Spare Switch Hole
55539G	Cover, Spare Switch Hole
55547	Cover, Remote Control Mirror Hole
55548A	Cover, Instrument Panel Hole
55549B	Cover, Instrument Panel Hole, NO.2
55604A	Holder Sub-assy, Instrument Panel Cup
55617A	Cover, Throttle Knob Hole
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55950	Nozzle Assy, Defroster
55959A	Cover, Defroster Nozzle Opening, NO.1
55961	Nozzle, Side Defroster, NO.1
55962	Nozzle, Side Defroster, NO.2
55969	Cover, Defroster Nozzle Opening, NO.2
55972	Duct, Side Defroster Nozzle, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
