Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

23 part groups · 8 illustrations

Illustrations

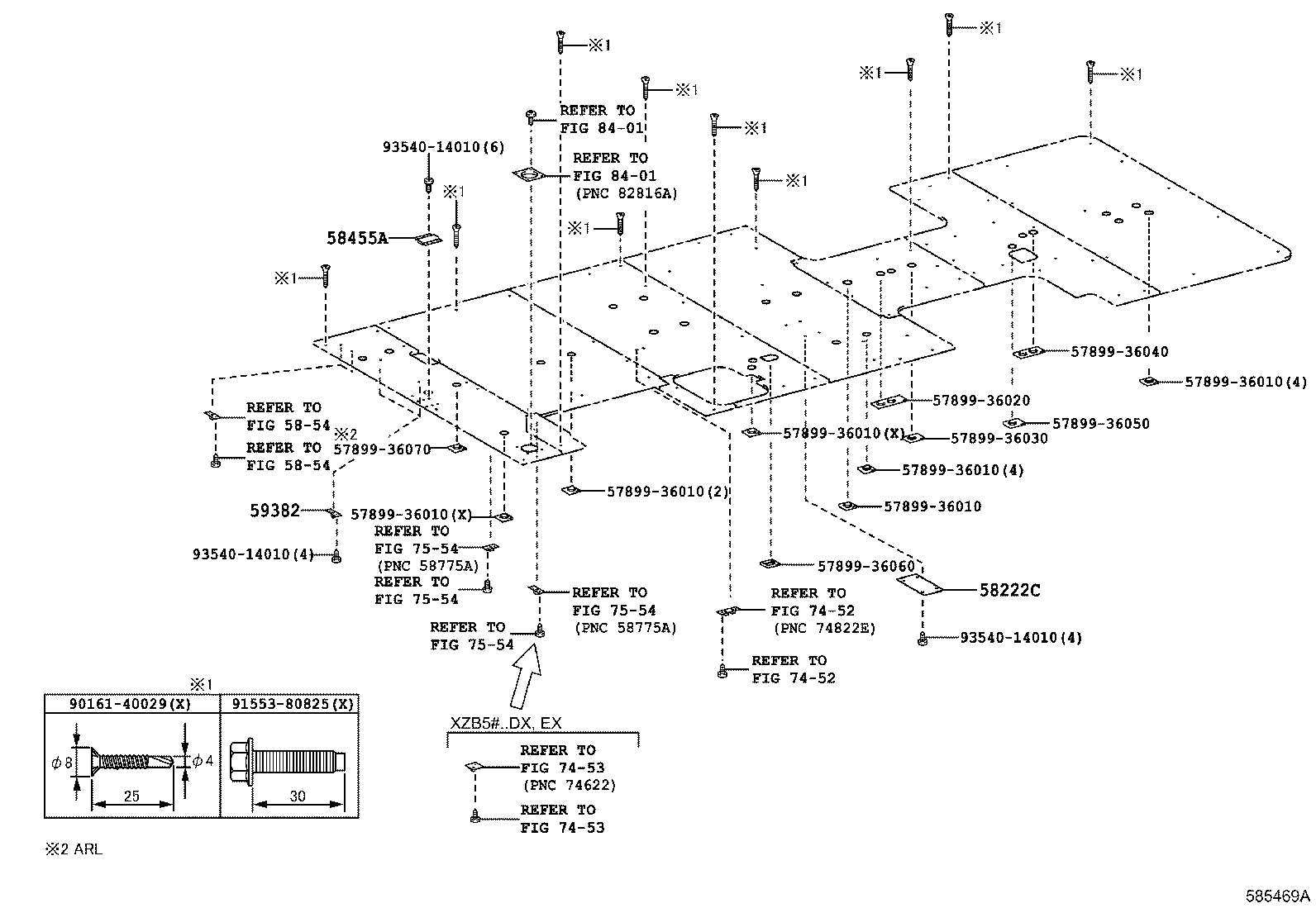

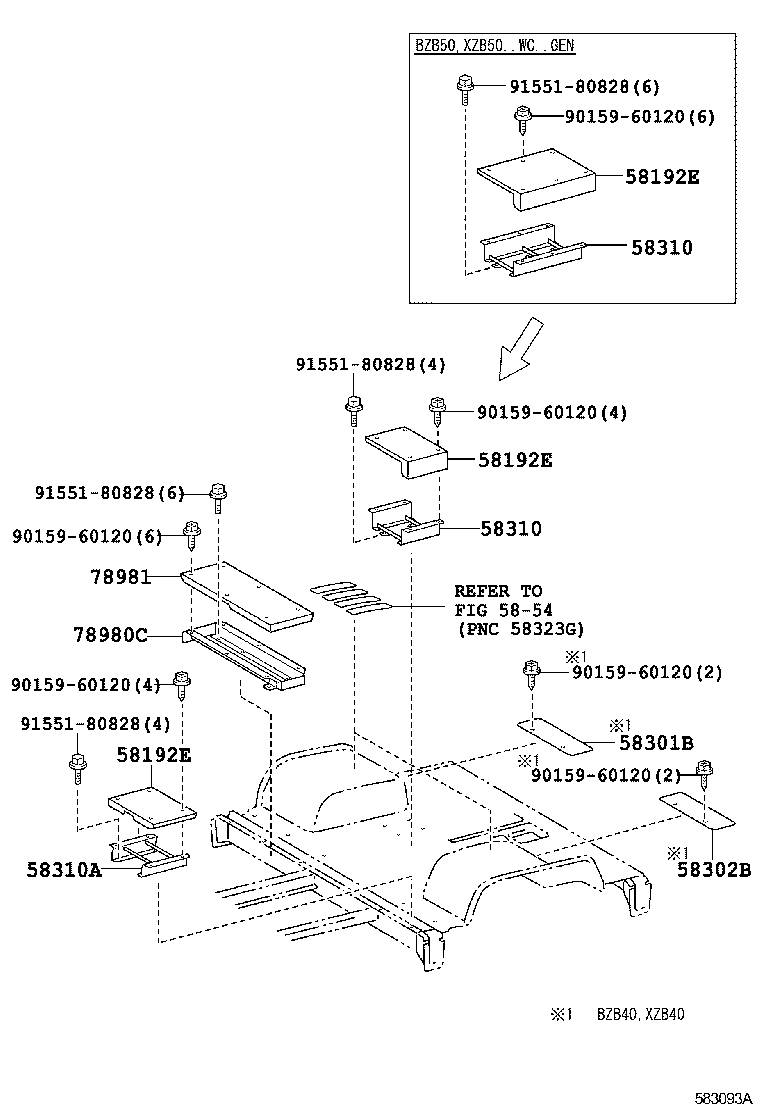

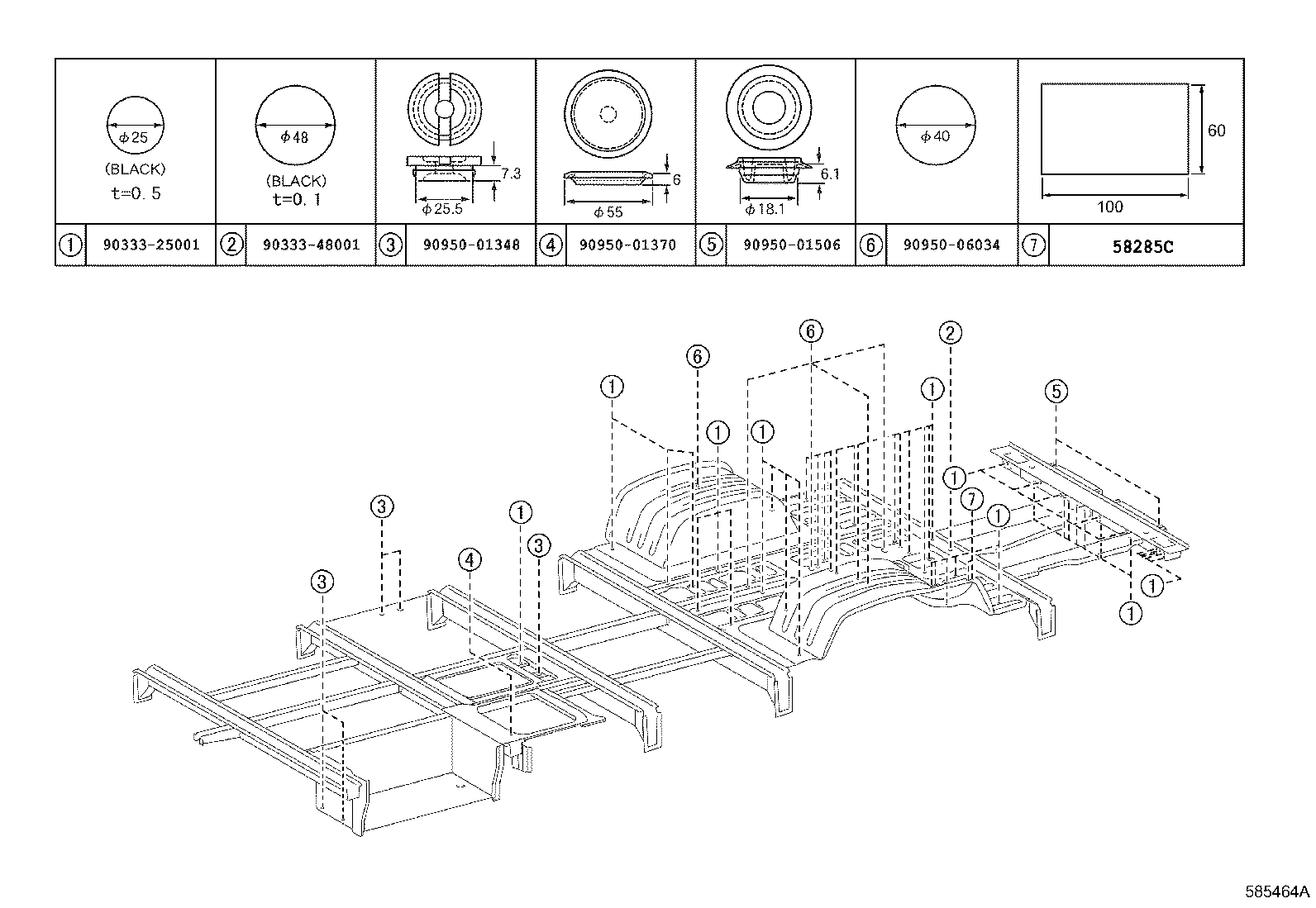

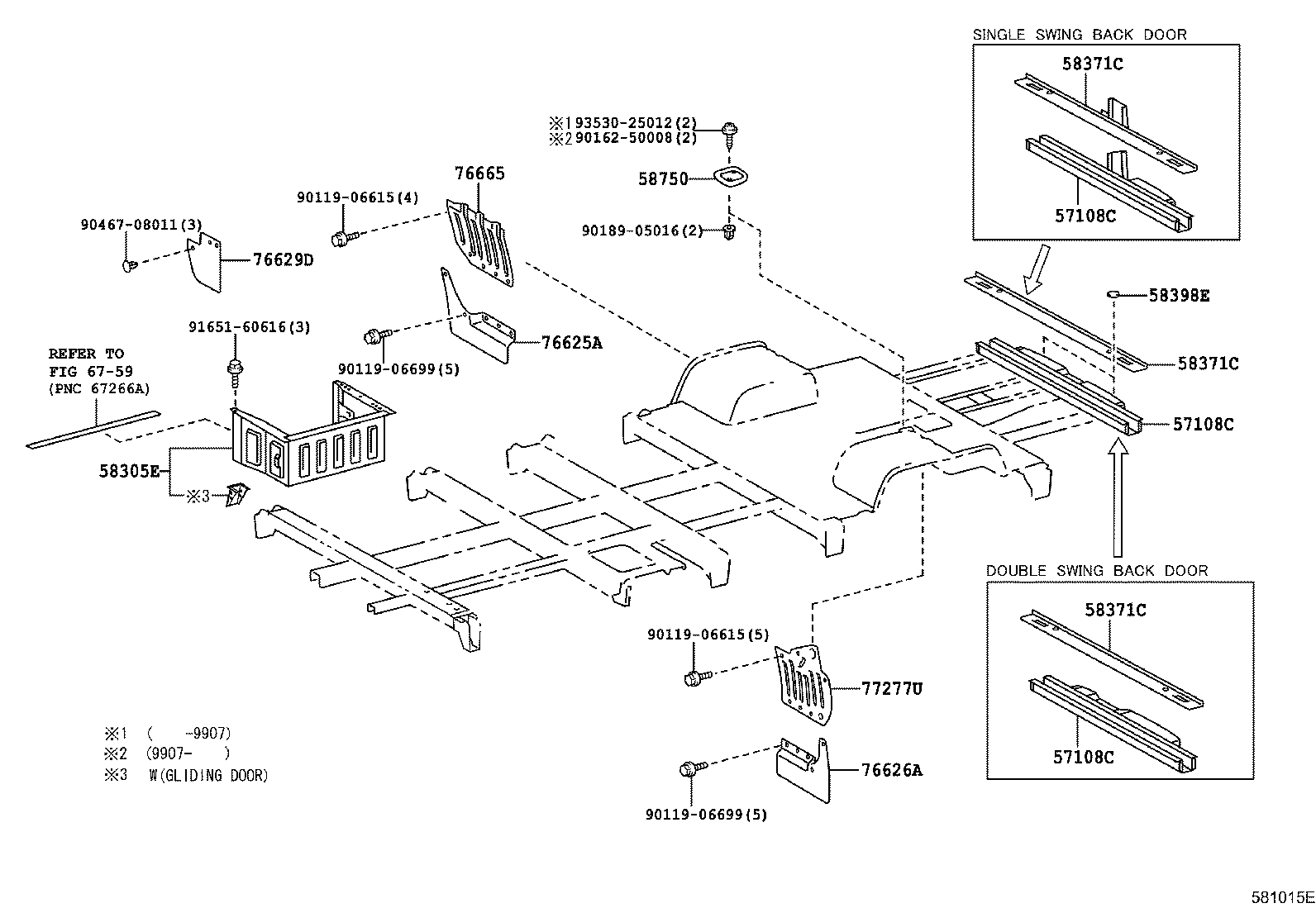

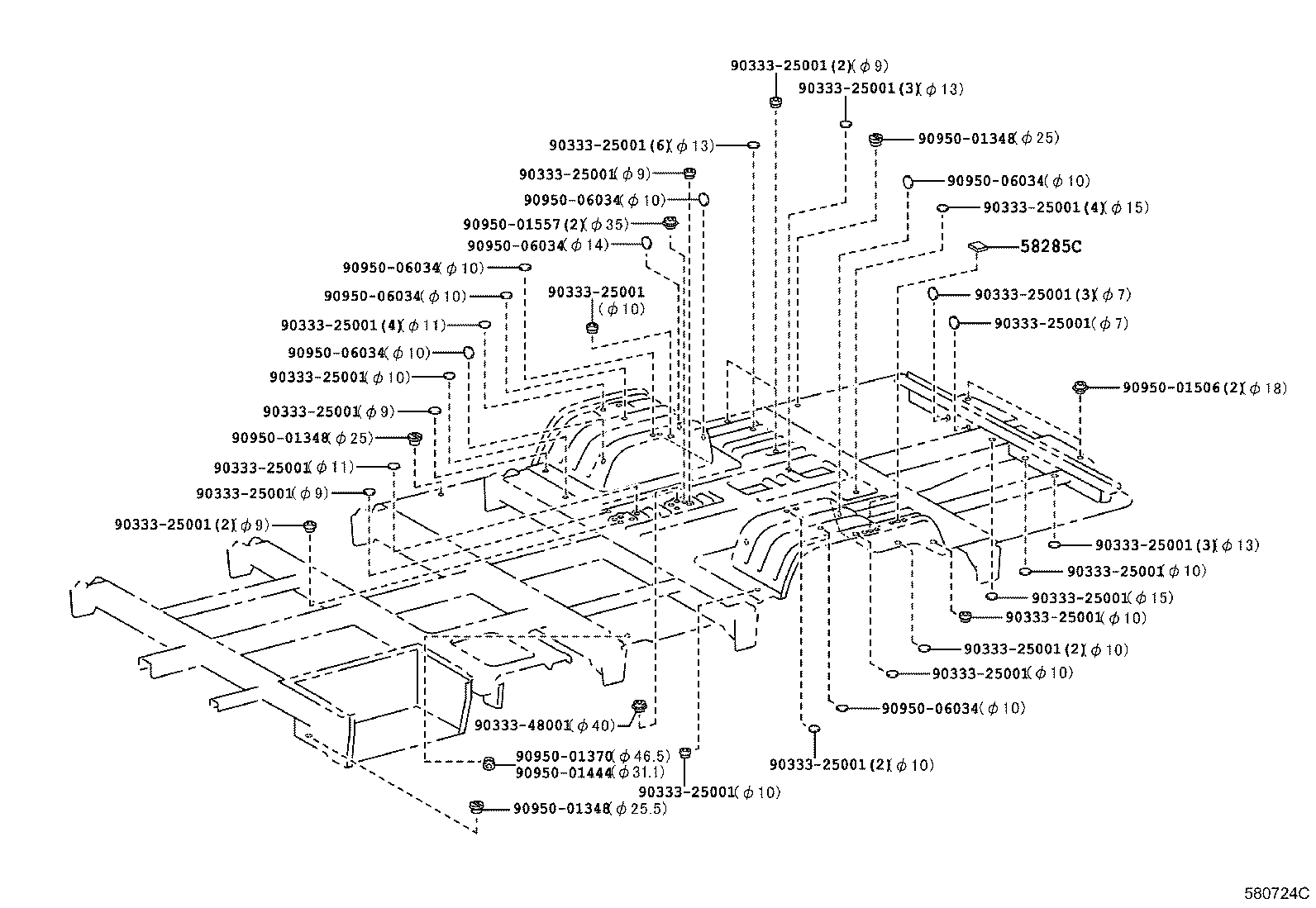

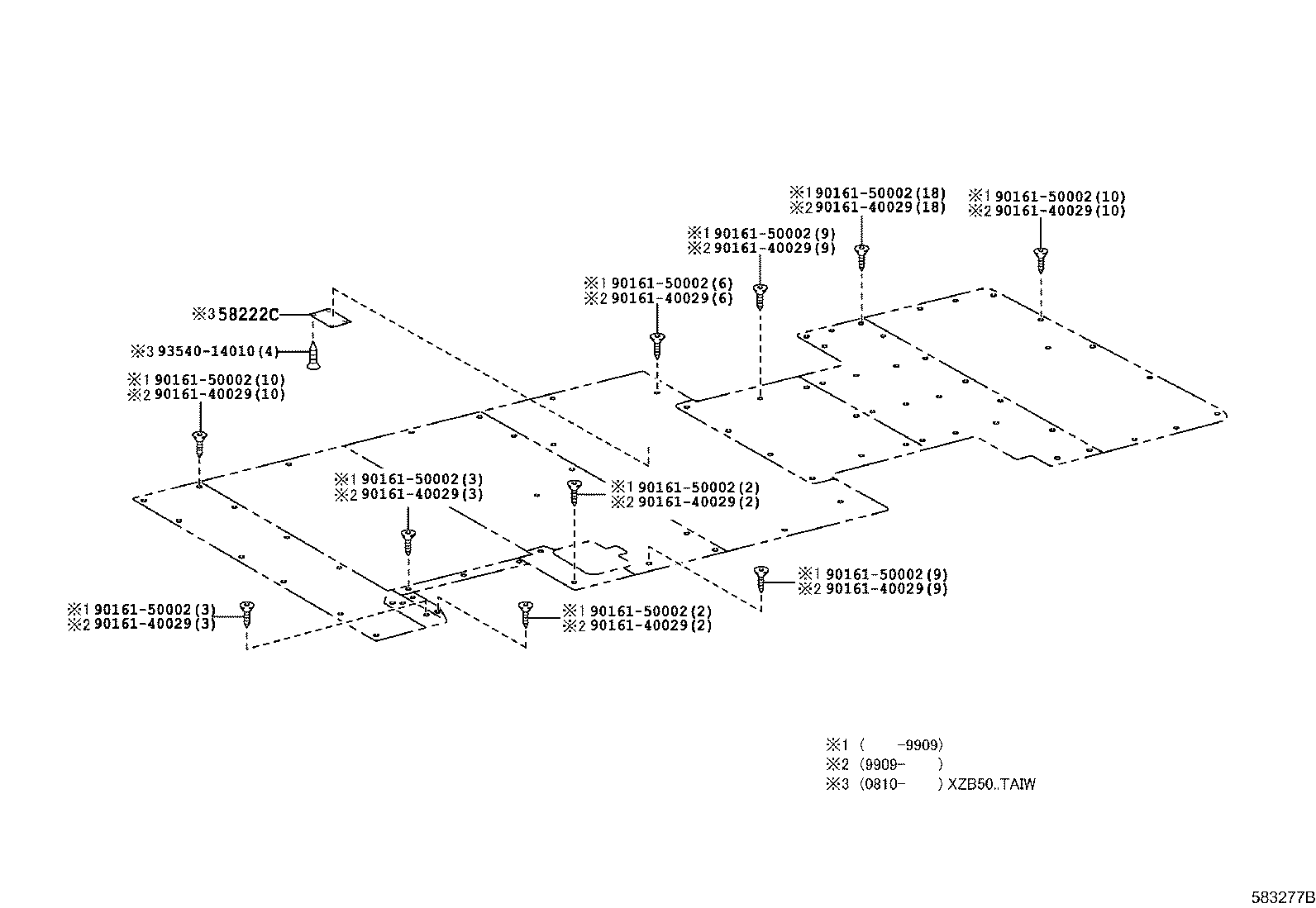

Figure 581014I 581014I 1993-01 → — Figure 581015E 581015E 1993-01 → — Figure 583093A 583093A 2007-08 → 2015-01 Figure 585468 585468 2015-01 → — Figure 583277B 583277B 1993-01 → 2015-01 Figure 585469A 585469A 2015-01 → — Figure 580724C 580724C 1993-01 → 2015-01 Figure 585464A 585464A 2015-01 → —

Part groups

PNCDescription
57108C Crossmember Sub-assy, Floor, NO.8
58192E Panel, Footrest
58222C Insulator, Center Floor Heat, NO.1 Lower
58285C Cover, Rear Floor Hole
58301B Plate Sub-assy, Footrest, RH
58302B Plate Sub-assy, Footrest, LH
58305E Panel Sub-assy, Center Door Step
58310 Footrest Assy, NO.1
58310A Footrest Assy, NO.2
58316K Plate, Footrest, Rear
58343B Bracket, Fuel Hose Protector, Front
58371C Panel, Body Lower Back, Upper
58398E Cover, Floor Under, NO.1
58455A Panel, Rear Floor Board, NO.1
58750 Cover Assy, Fuel Tank Inspection Hole
59382 Retainer, Floor Inverter, NO.2
76625A Mudguard, Rear Body, RH
76626A Mudguard, Rear Body, LH
76629D Mudguard, Front Side Member
76665 Brace, Rear Mudguard
77277U Protector, Fuel Tank Filler Pipe
78980C Footrest Assy, Rear Seat
78981 Panel, Rear Seat Footrest
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
