Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

68 part groups · 18 illustrations

Illustrations

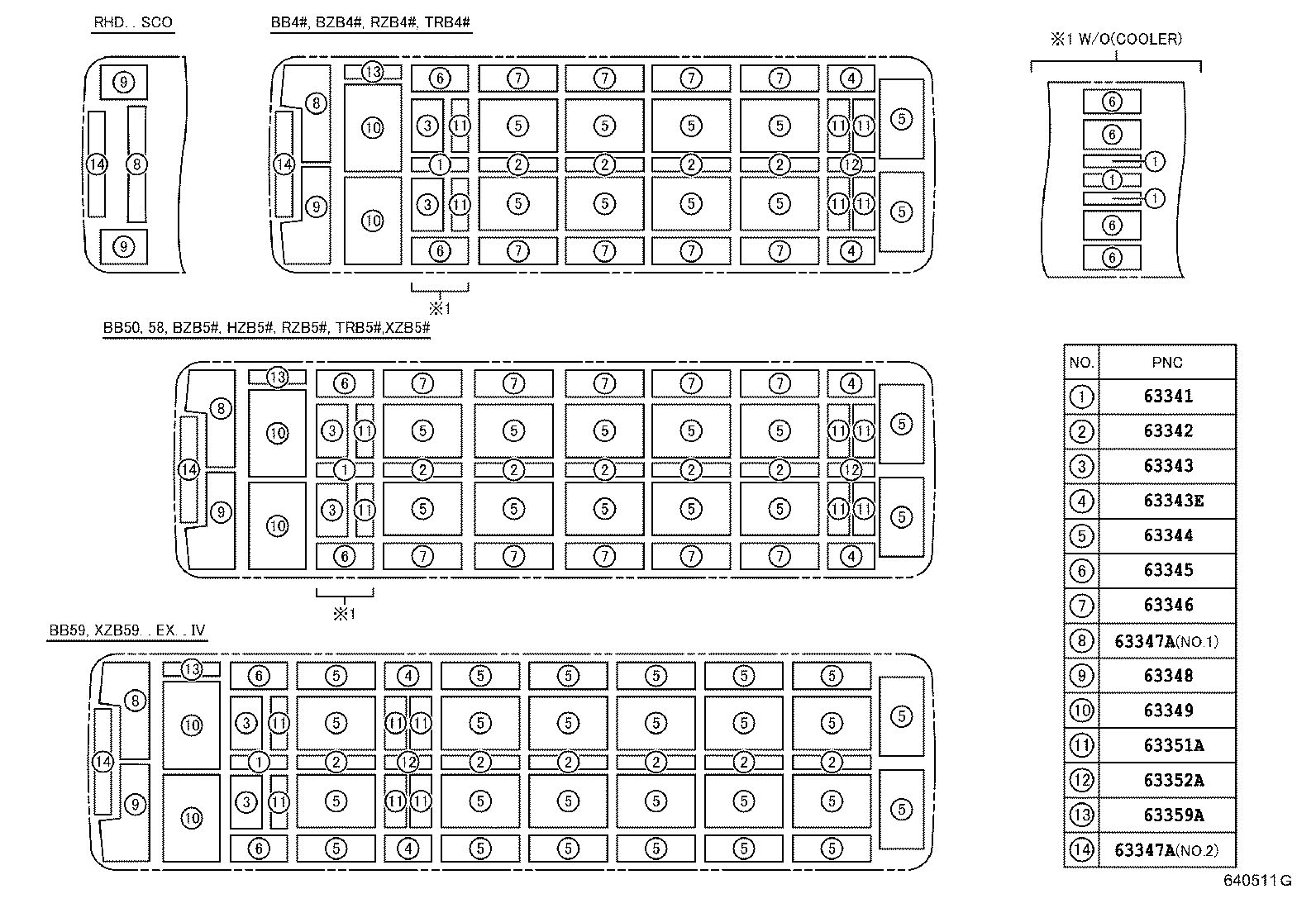

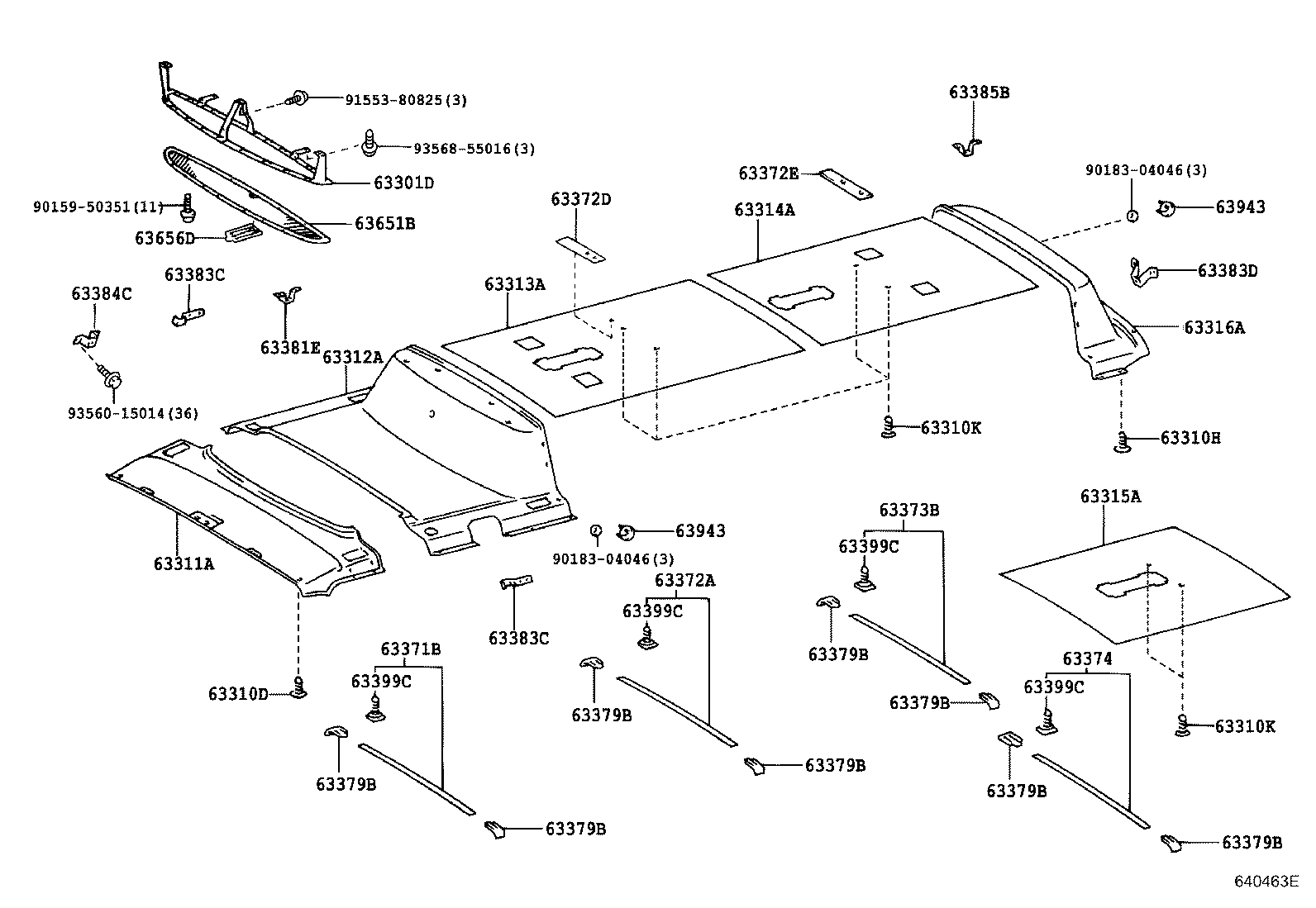

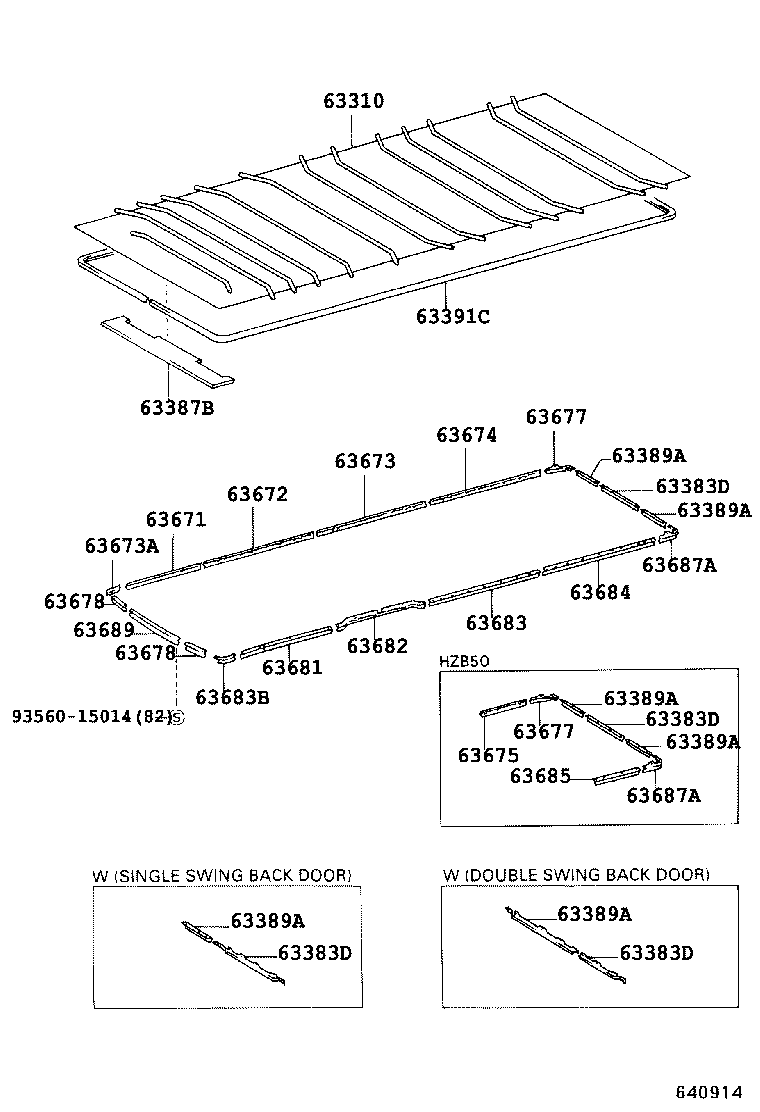

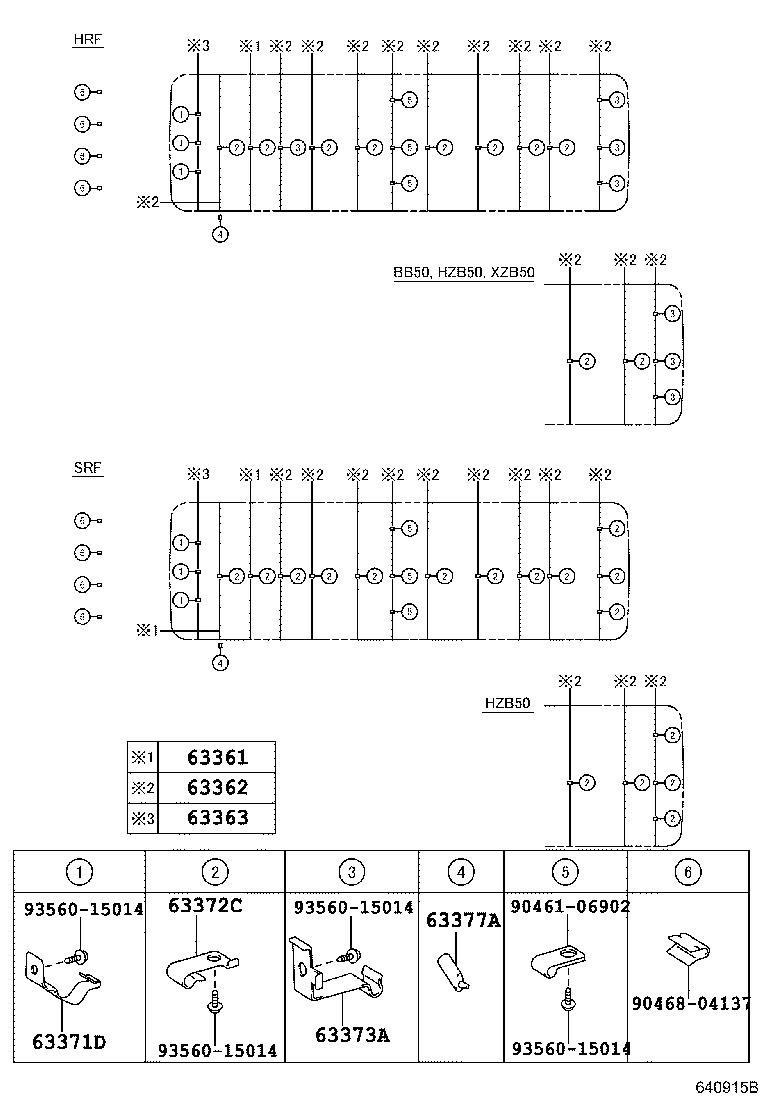

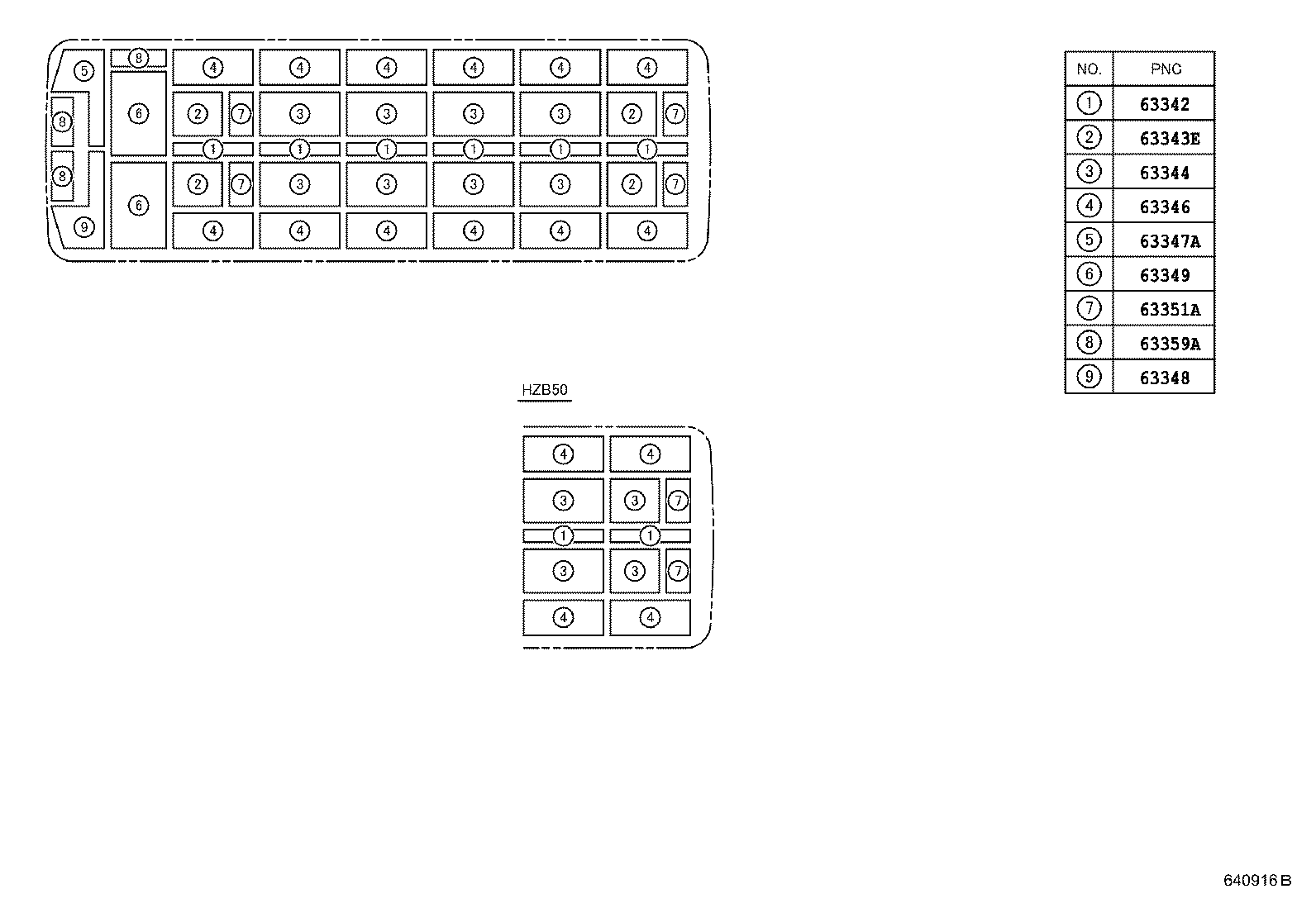

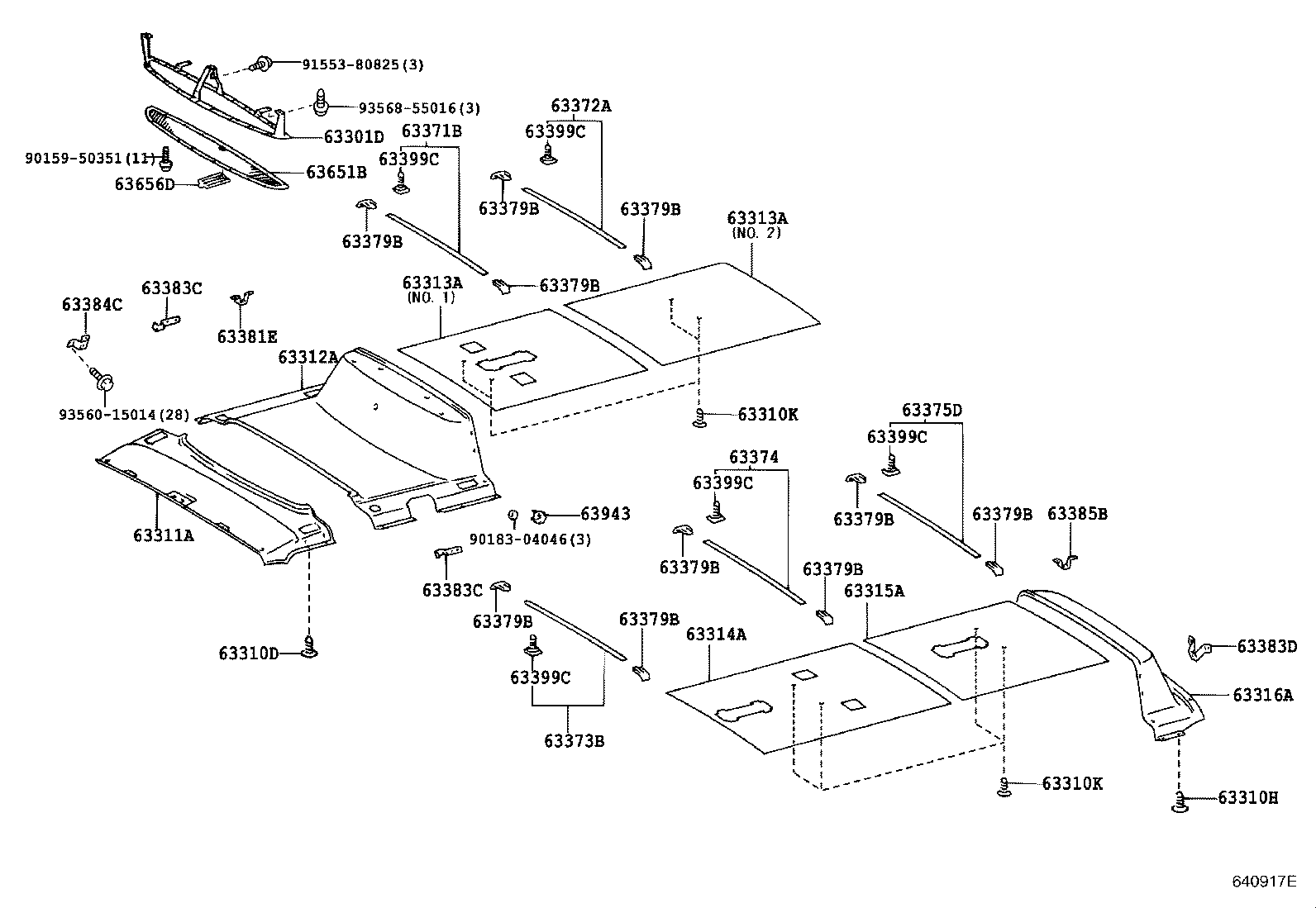

Figure 640667D 640667D 1993-01 → 2007-08 Figure 640667D 640667D 1993-01 → 2015-01 Figure 640667D 640667D 2015-01 → — Figure 640917E 640917E 2001-04 → 2001-08 Figure 640917E 640917E 2001-08 → — Figure 640463E 640463E 1993-01 → 2015-01 Figure 640463E 640463E 1993-01 → 2015-01 Figure 640463E 640463E 2015-01 → — Figure 640914 640914 1993-01 → 2015-01 Figure 640914 640914 2002-11 → 2015-01 Figure 640914 640914 2015-01 → — Figure 640915B 640915B 1993-01 → 2015-01 Figure 640915B 640915B 2015-01 → — Figure 640916B 640916B 1993-01 → 2015-01 Figure 640916B 640916B 2015-01 → — Figure 640511G 640511G 1993-01 → 2015-01 Figure 640511G 640511G 1993-01 → 2015-01 Figure 640511G 640511G 2015-01 → —

Part groups

PNCDescription
63301D Plate Sub-assy, Roof Headlining Set
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63310H Clip(FOR ROOF HEADLINING)
63310K Clip
63311A Headlining, Roof NO.1
63312A Headlining, Roof, NO.2
63313A Headlining, Roof, NO.3
63314A Headlining, Roof, NO.4
63315A Headlining, Roof, NO.5
63316A Headlining, Roof, NO.6
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63343E Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63345 Pad, Roof Silencer, NO.5
63346 Pad, Roof Silencer, NO.6
63347A Pad, Roof Silencer, NO.7
63348 Pad, Roof Silencer, NO.8
63349 Pad, Roof Silencer, NO.9
63351A Pad, Roof Silencer, NO.10
63352A Pad, Roof Silencer, NO.11
63359A Pad, Roof Silencer, NO.18
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63371B Moulding, Roof Board Set, NO.1
63371D Retainer, Roof Headlining Support
63372A Moulding, Roof Board Set, NO.2
63372C Hook, Roof Headlining Support
63372D Moulding, Roof Board Set, NO.2
63372E Moulding, Roof Board Set, NO.2
63373A Hook, Roof Headlining Support, NO.2
63373B Moulding, Roof Board Set, NO.3
63374 Moulding, Roof Board Set
63375D Moulding, Roof Headlining
63377A Retainer, Roof Headlining Support, NO.1
63379B Cover, Roof Headlining Moulding End
63381E Retainer, Roof Headlining Trim, Front
63383C Retainer, Roof Headlining Trim, Rear
63383D Retainer, Roof Headlining, Rear
63384B Bracket, Roof Headlining Trim Retainer
63384C Retainer, Roof Headlining Trim Side, NO.1
63385B Retainer, Roof Headlining Trim Side, NO.1
63387B Bracket, Roof Headlining Retainer
63389A Plate Sub-assy, Roof Headlining Set, RH
63391C Trim, Roof Headlining, NO.1
63399C Clip, Roof Headlining
63651B Net, Air Intake
63656D Cover, Air Intake, Center
63671 Retainer, Roof Headlining, NO.1 RH
63672 Retainer, Roof Headlining, NO.2 RH
63673 Retainer, Roof Headlining, NO.3 RH
63673A Retainer, Roof Headlining, NO.3 RH
63674 Retainer, Roof Headlining, NO.4 RH
63675 Retainer, Roof Headlining, NO.5 RH
63677 Retainer, Roof Headlining, NO.7 RH
63678 Retainer, Roof Headlining, NO.8 RH
63681 Retainer, Roof Headlining, NO.1 LH
63682 Retainer, Roof Headlining, NO.2 LH
63683 Retainer, Roof Headlining, NO.3 LH
63683B Retainer, Roof Headlining, NO.3 LH
63684 Retainer, Roof Headlining, NO.4 LH
63685 Retainer, Roof Headlining, NO.5 LH
63687A Retainer, Roof Headlining, NO.7 LH
63689 Retainer, Roof Headlining, NO.8 Center
63943 Cover, Cooler Thermistor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
