Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Room Curtain & Room Rack

29 part groups · 13 illustrations

Illustrations

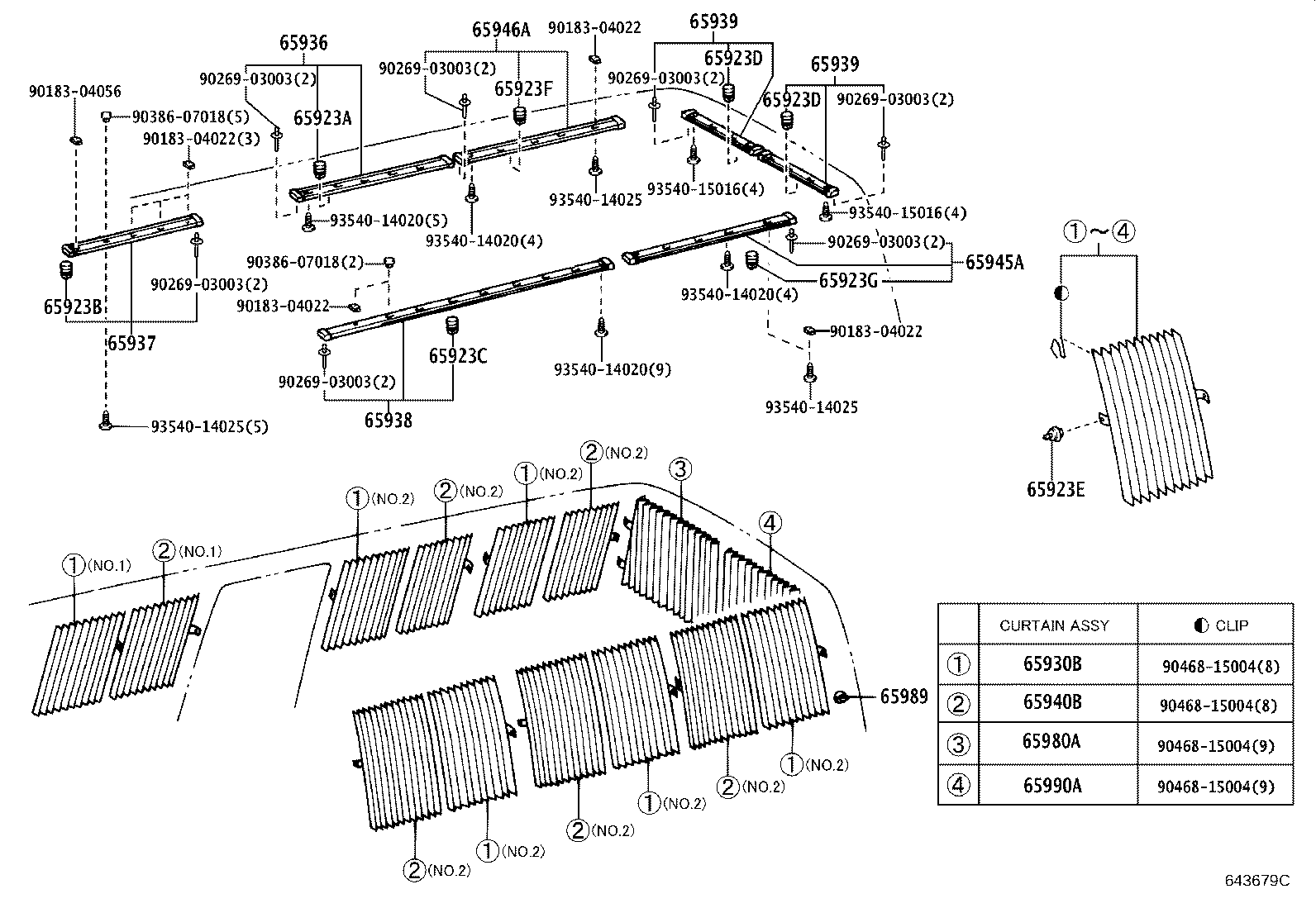

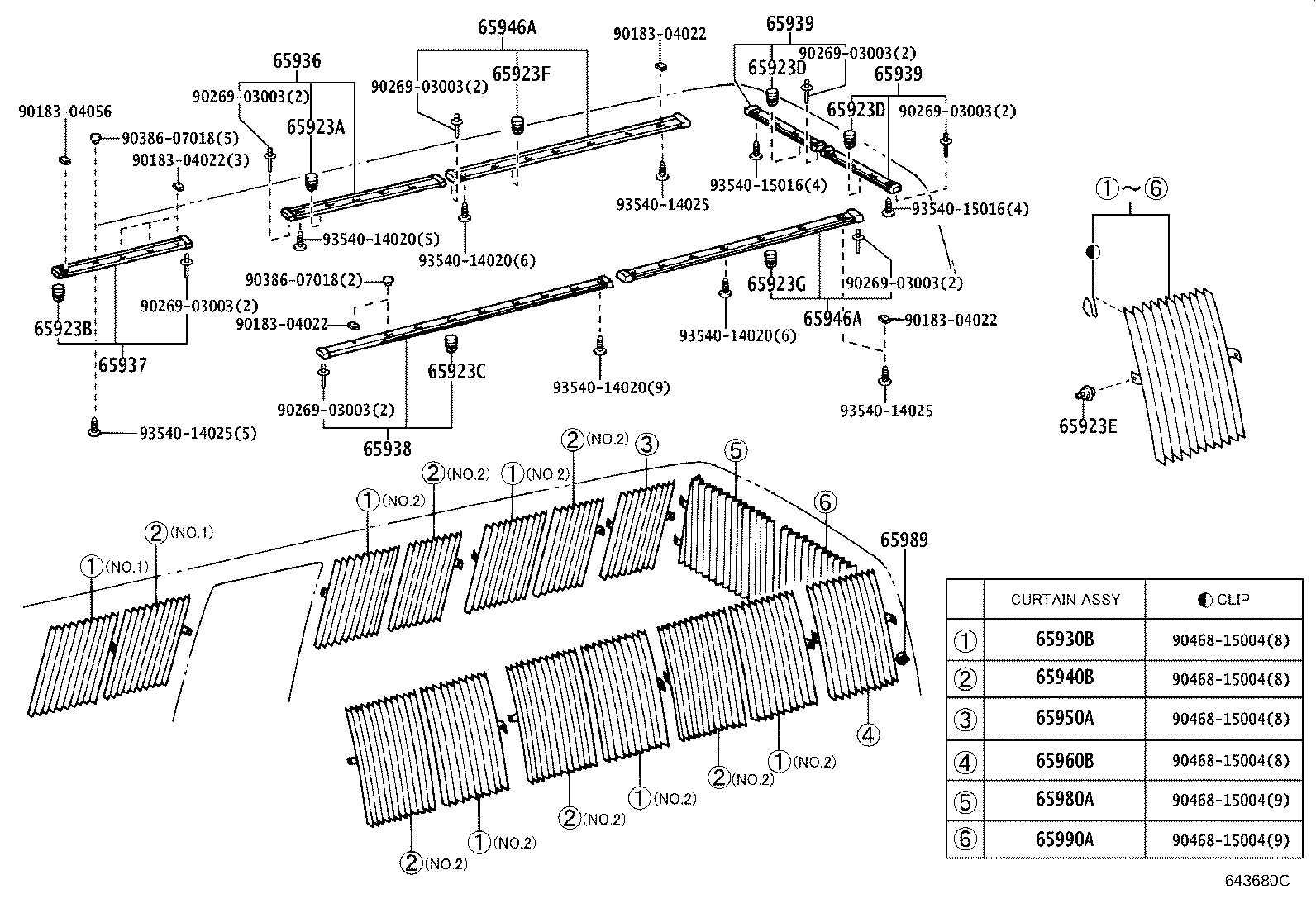

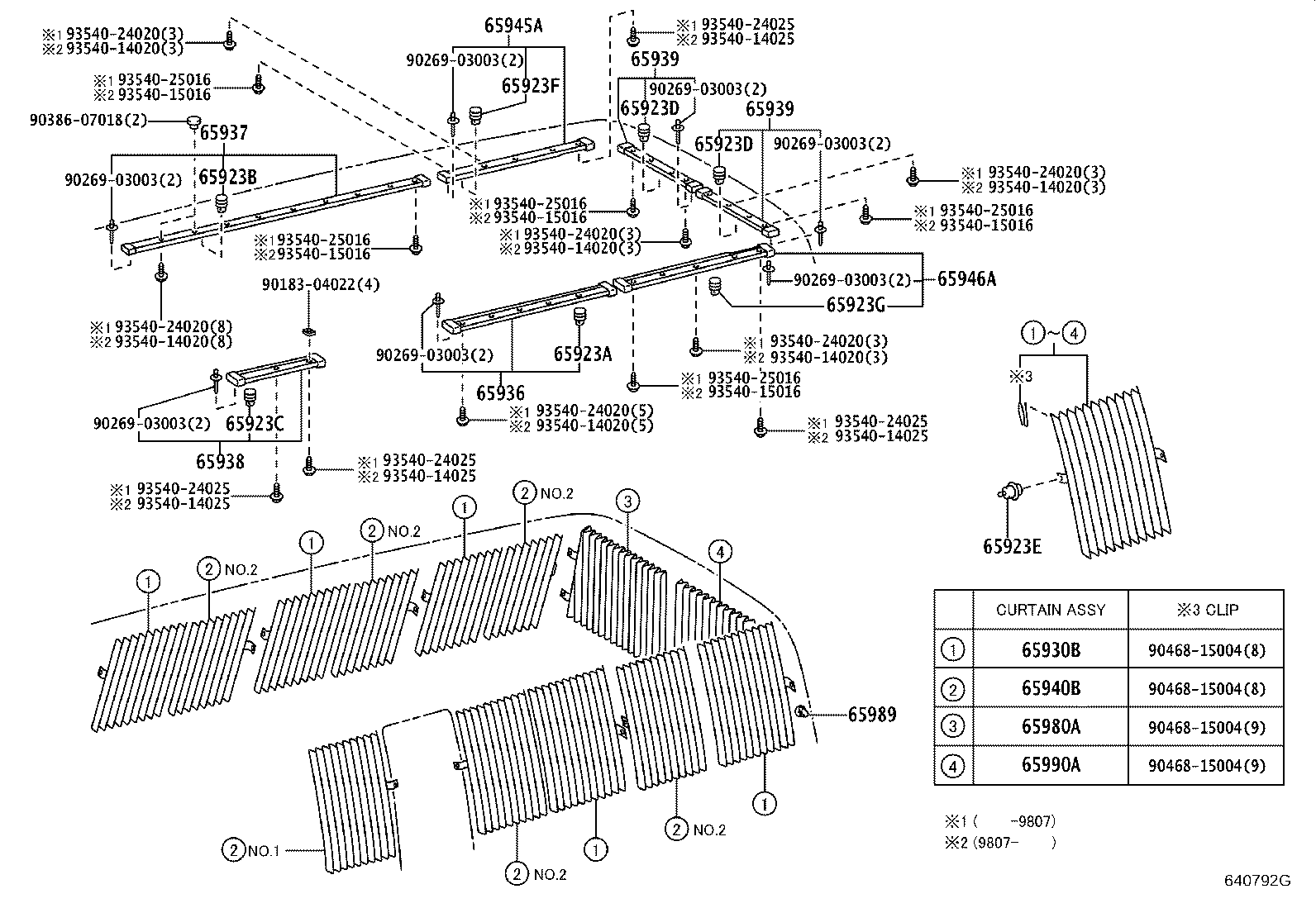

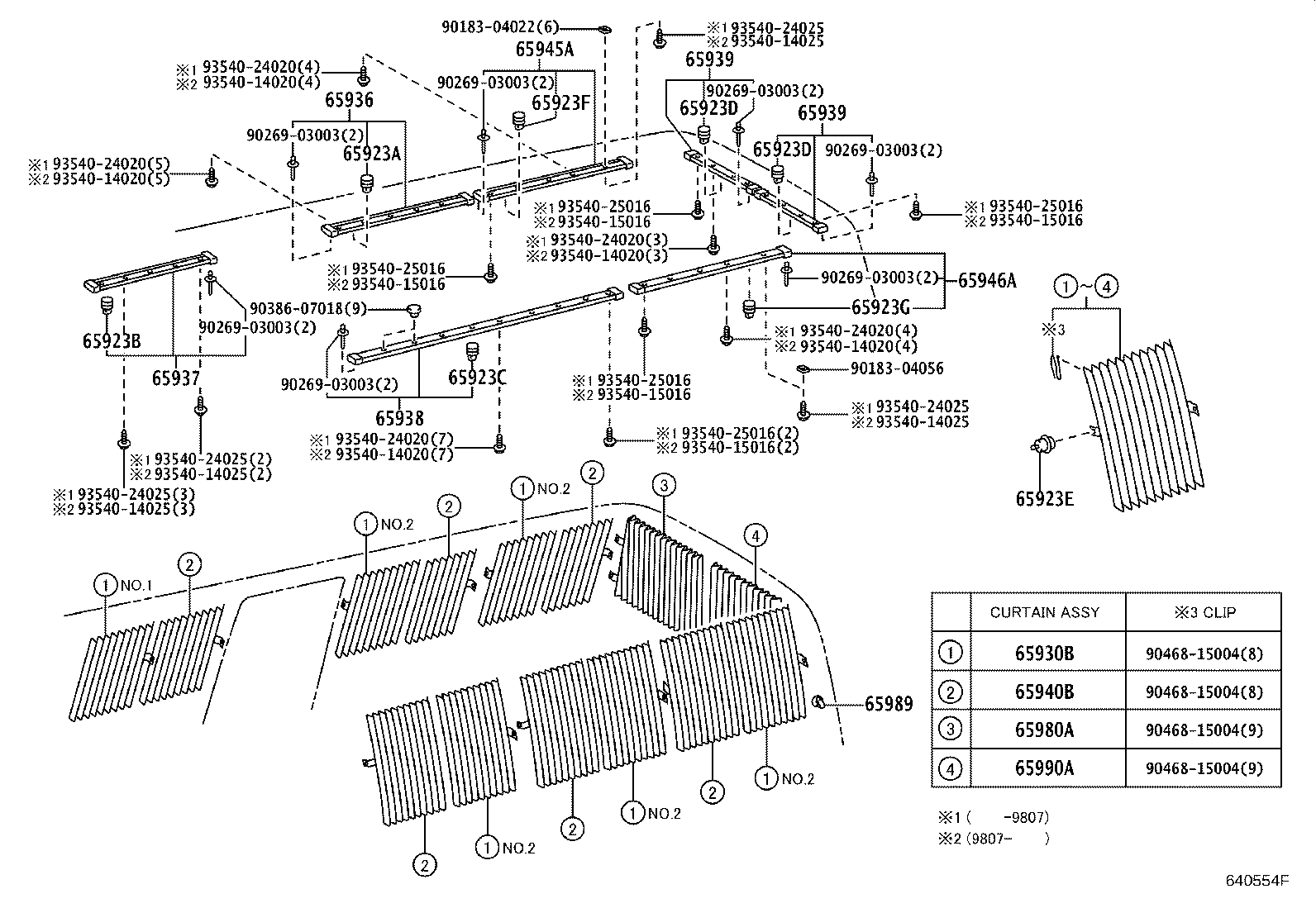

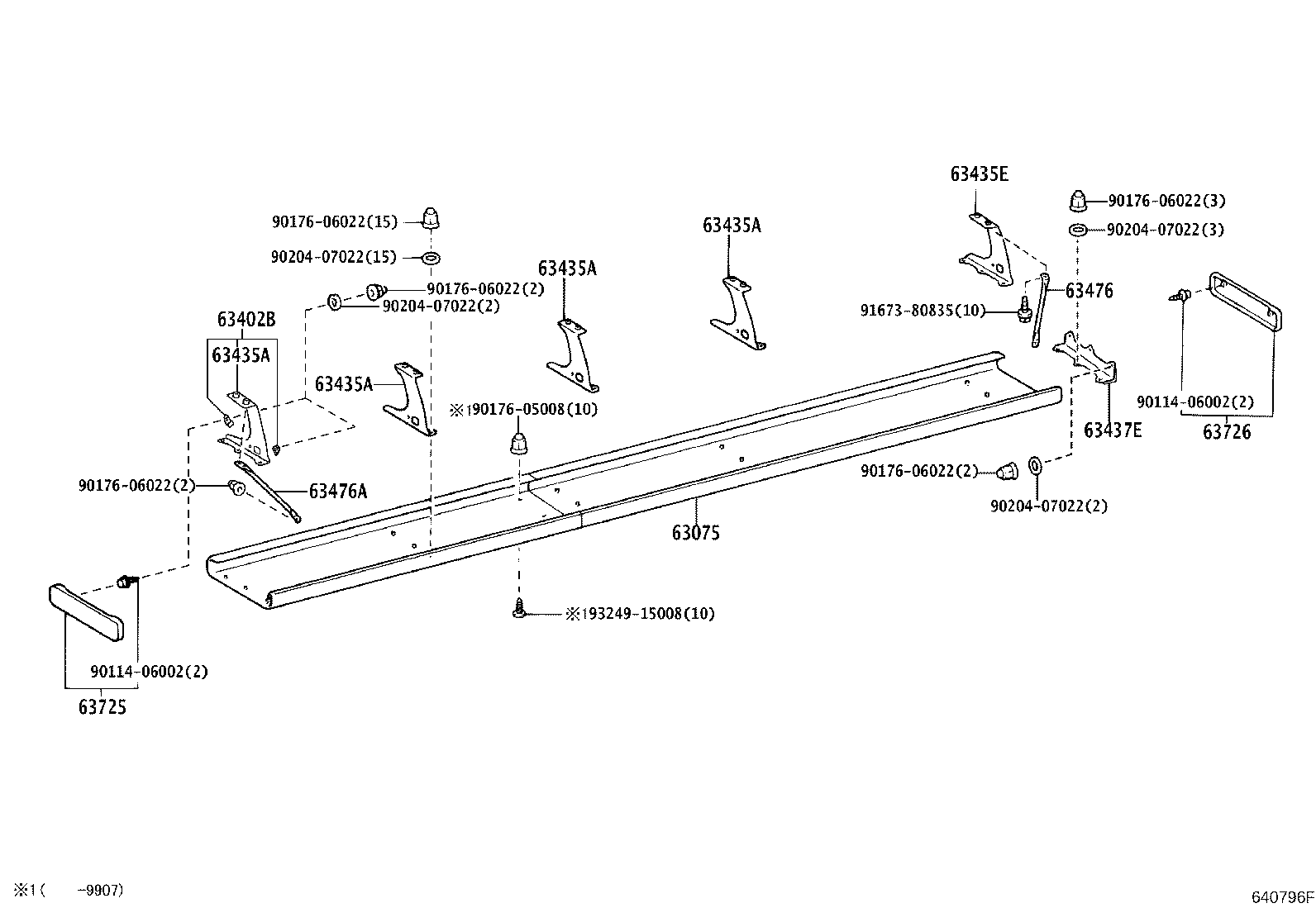

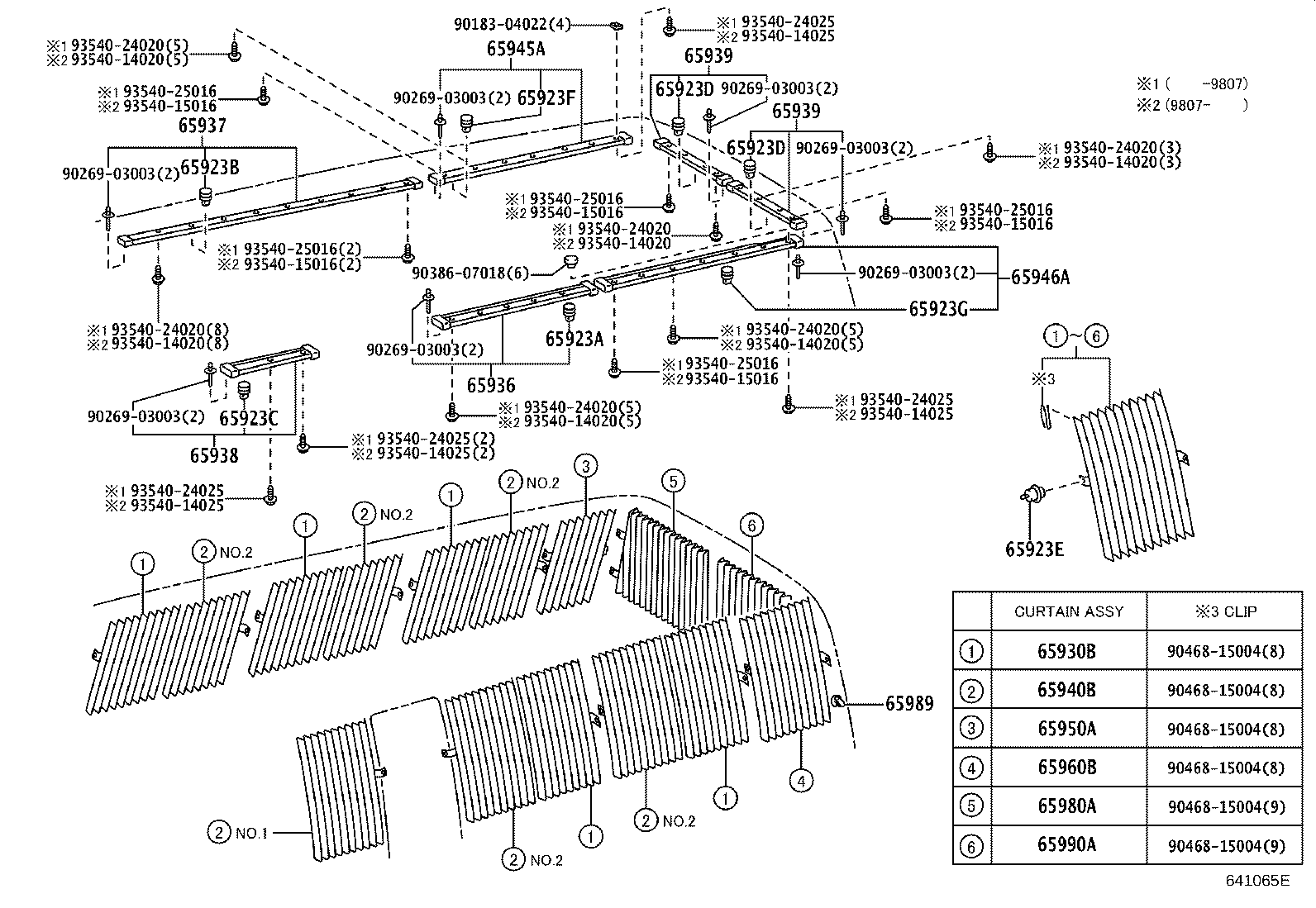

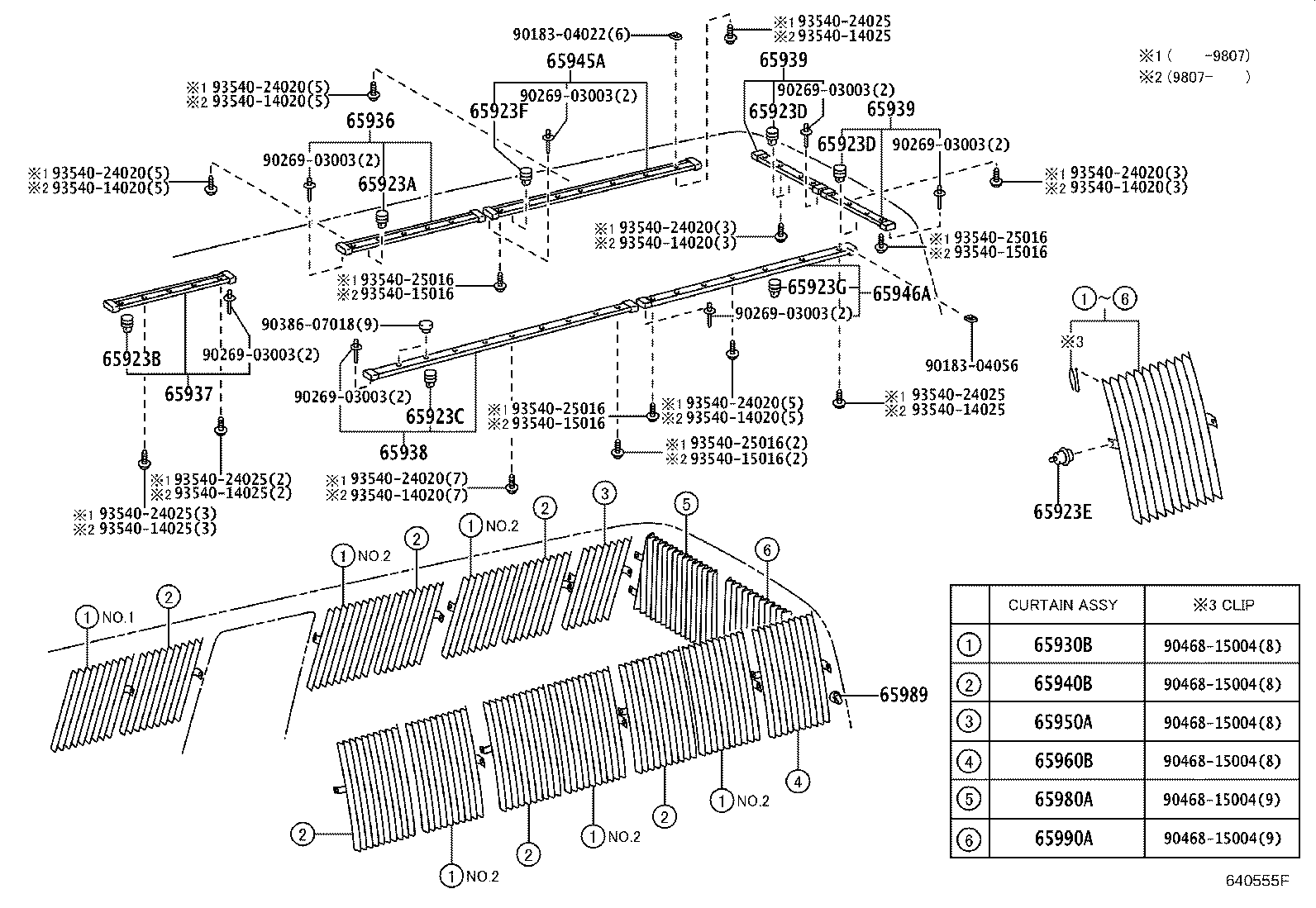

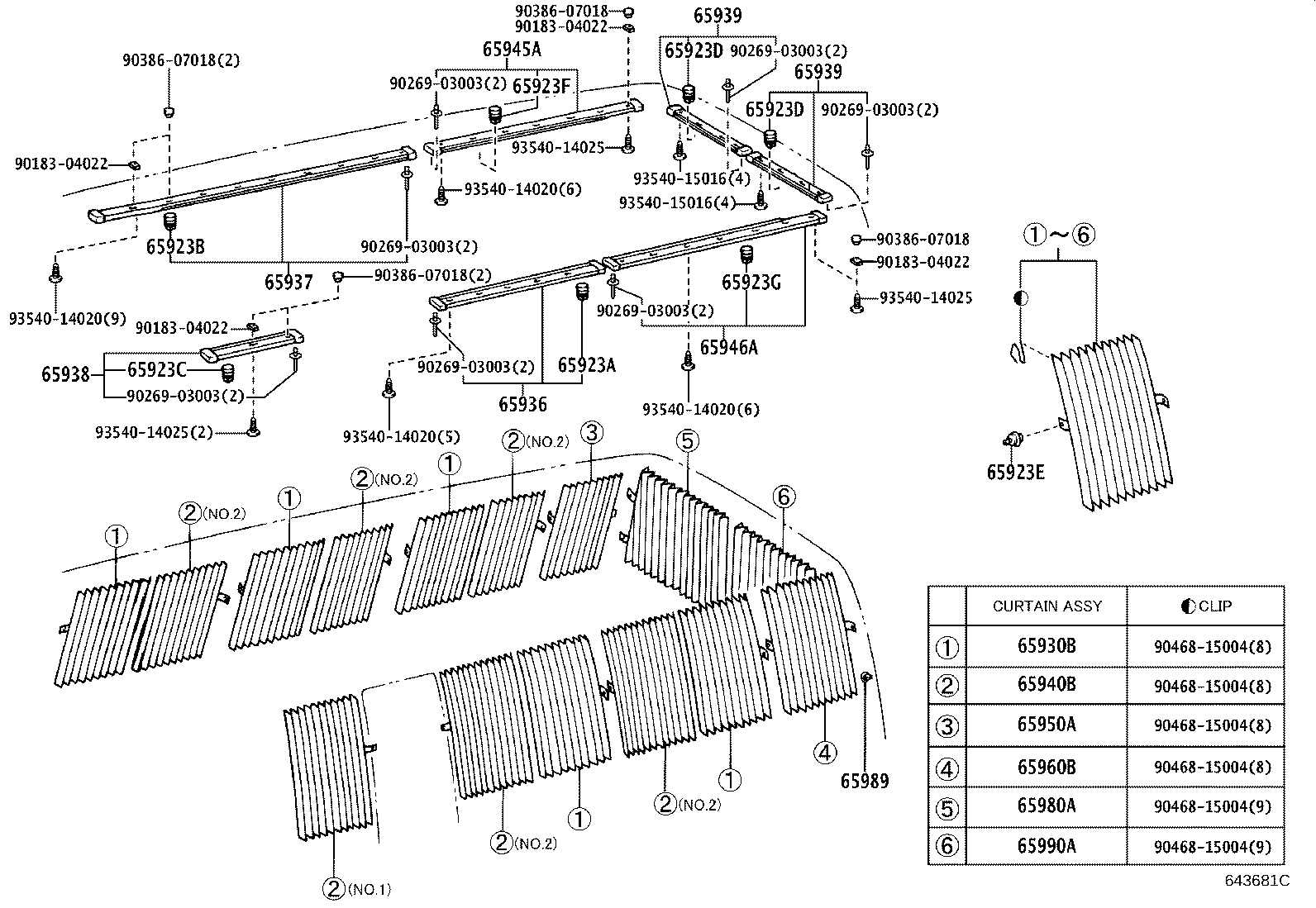

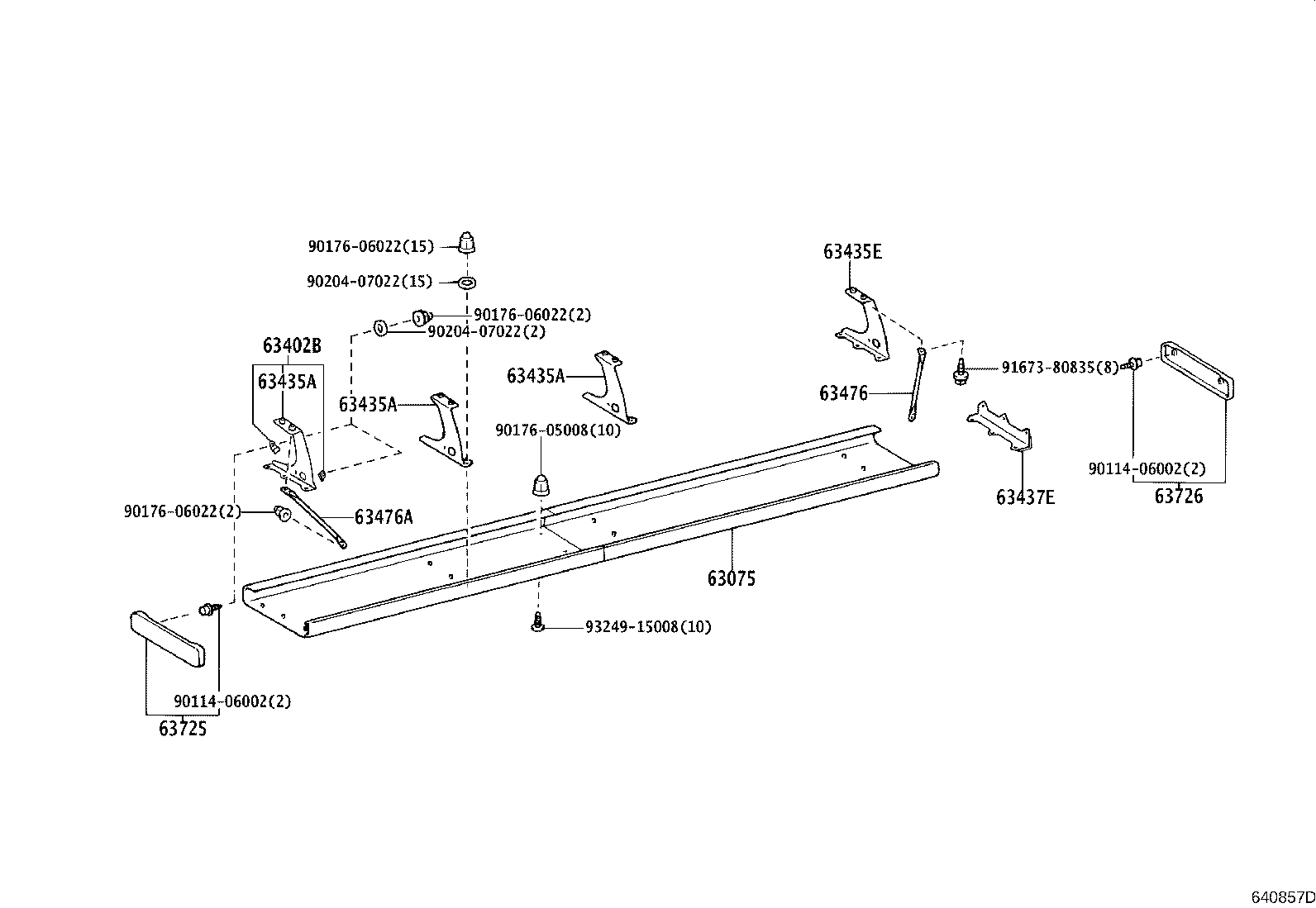

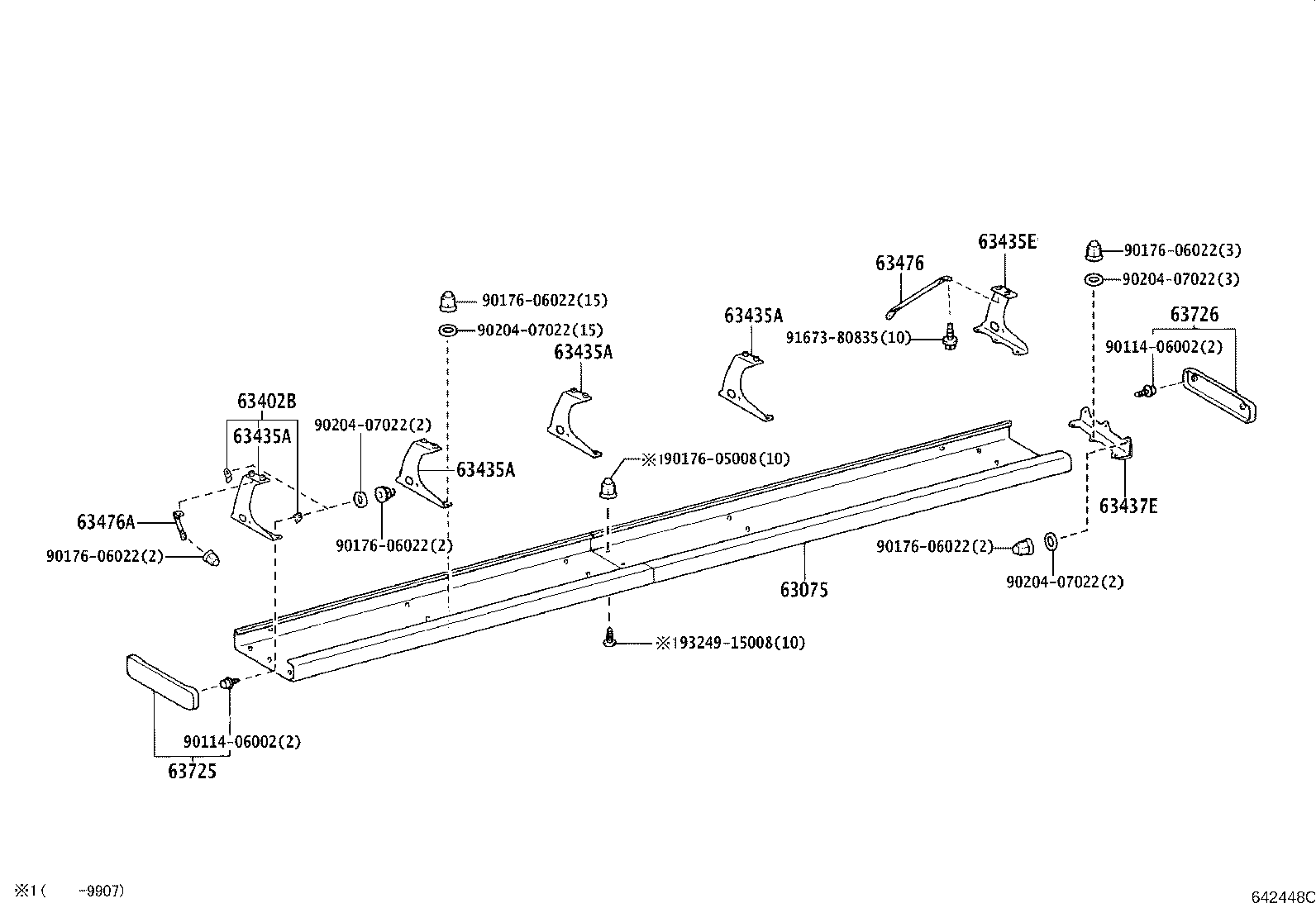

Figure 640521I 640521I 1993-01 → 1998-08 Figure 642448C 642448C 1993-01 → — Figure 642448C 642448C 2002-11 → — Figure 640857D 640857D 1993-01 → — Figure 640796F 640796F 1993-01 → — Figure 640554F 640554F 1993-01 → 2015-01 Figure 643679C 643679C 2015-01 → — Figure 640555F 640555F 1993-01 → 2015-01 Figure 643680C 643680C 2015-01 → — Figure 640792G 640792G 1994-02 → — Figure 641065E 641065E 1994-02 → 2015-01 Figure 641065E 641065E 2002-11 → 2015-01 Figure 643681C 643681C 2015-01 → —

Part groups

PNCDescription
63075 Cover Sub-assy, Room Rack
63402B Frame Sub-assy, Room Rack
63435A Frame, Room Rack, NO.1
63435E Frame, Room Rack, NO.1
63437E Frame, Room Rack, NO.3
63476 Stay, Room Rack
63476A Stay, Room Rack
63725 Plate, Room Rack Cover, Front
63726 Plate, Room Rack Cover, Rear
65923A Hook, Curtain, NO.1
65923B Hook, Curtain, NO.2
65923C Hook, Curtain, NO.3
65923D Hook, Curtain, NO.4
65923E Hook, Curtain
65923F Hook, Curtain, NO.5
65923G Hook, Curtain, NO.6
65930B Curtain Assy, Side Window, Front RH
65936 Rail, Curtain, NO.1
65937 Rail, Curtain, NO.2
65938 Rail, Curtain, NO.3
65939 Rail, Curtain, NO.4
65940B Curtain Assy, Side Window, Front LH
65945A Rail, Curtain, NO.5
65946A Rail Sub-assy, Curtain, Rear LH
65950A Curtain Assy, Side Window, Rear RH
65960B Curtain Assy, Side Window, Rear LH
65980A Curtain Assy, Back Window, RH
65989 Cap, Curtain Rail
65990A Curtain Assy, Back Window, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
