Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Door Panel & Glass

55 part groups · 6 illustrations

Illustrations

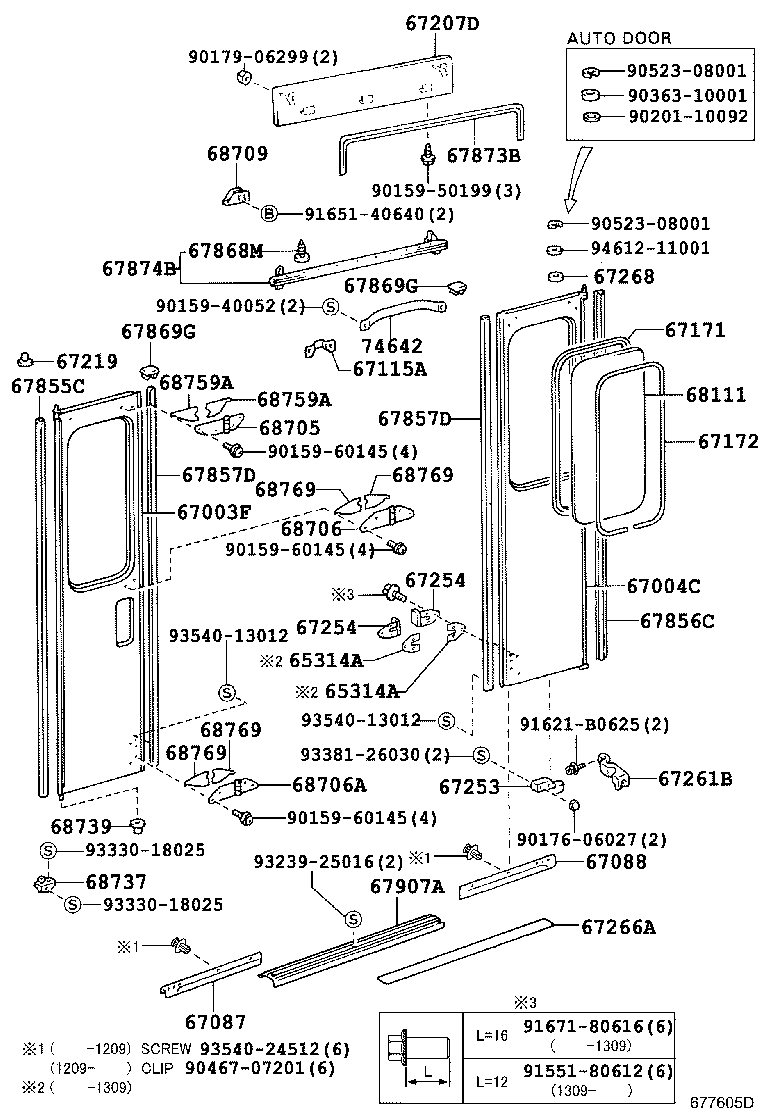

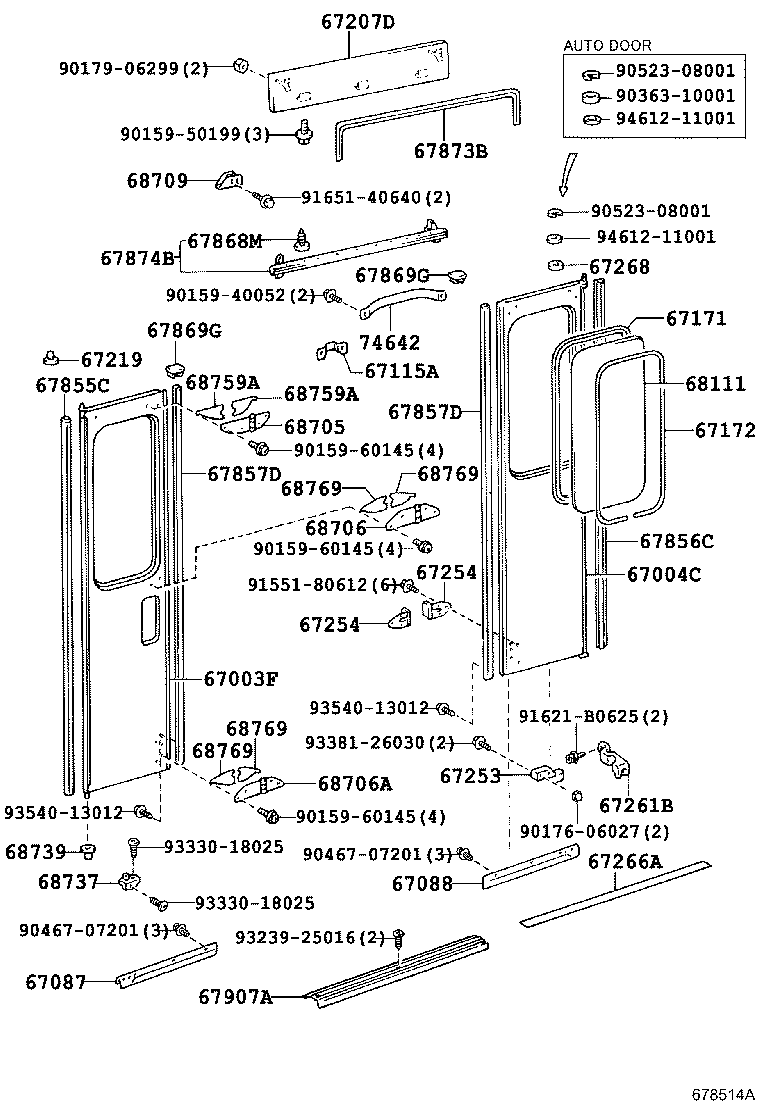

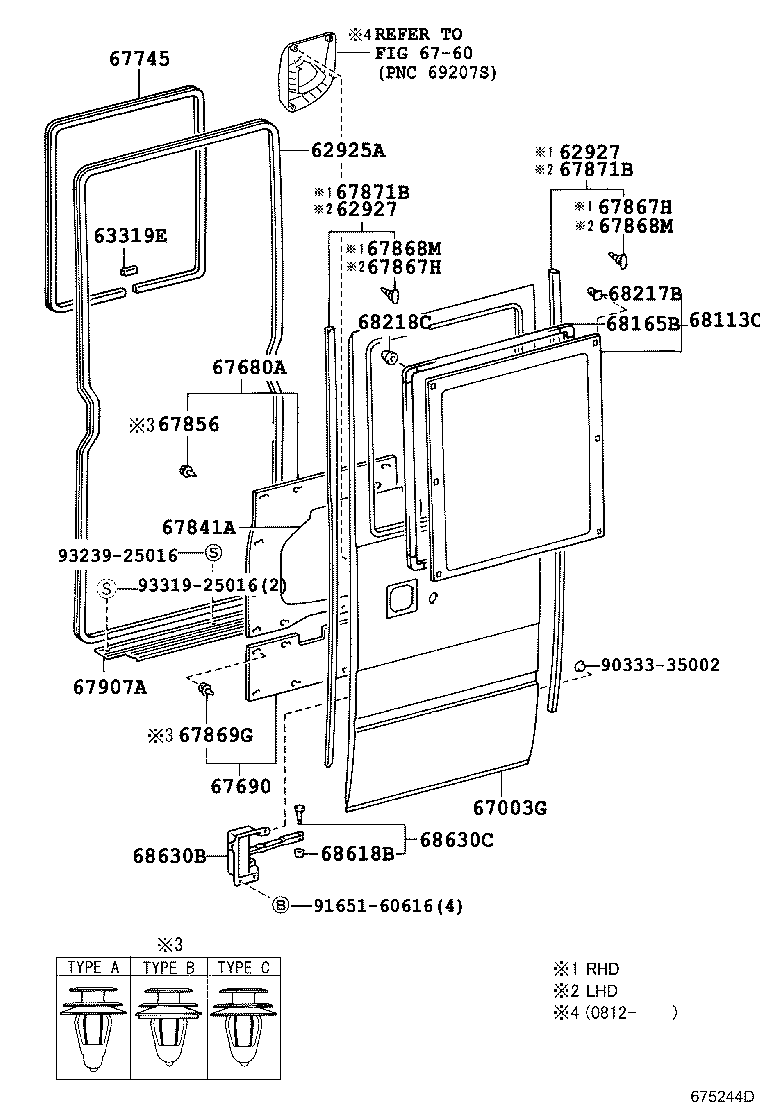

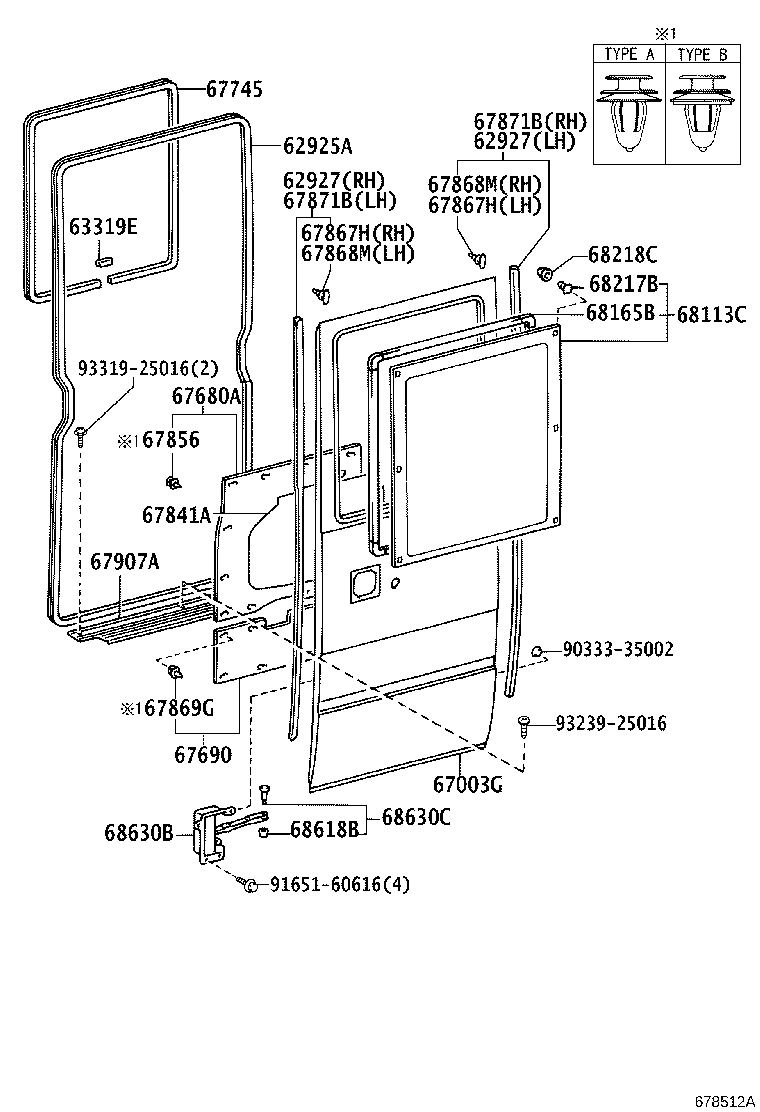

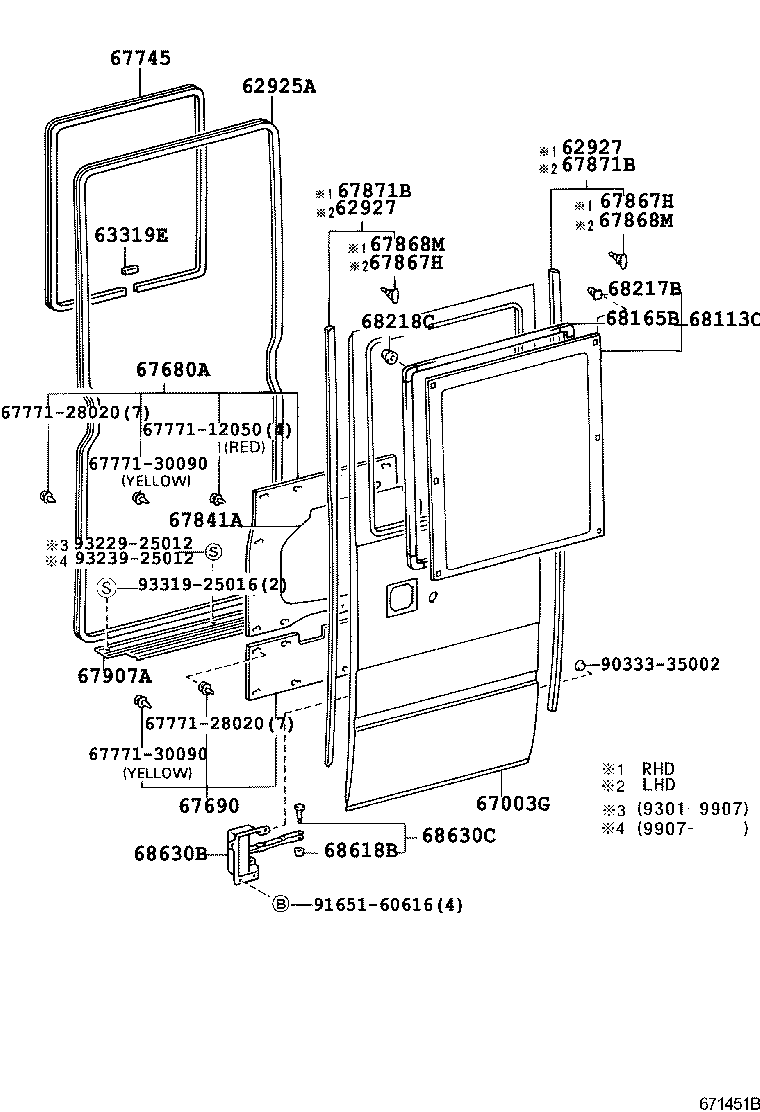

Figure 671470F 671470F 1993-01 → 2004-08 Figure 671451B 671451B 1993-01 → 2004-08 Figure 677605D 677605D 2004-08 → 2015-01 Figure 675244D 675244D 2004-08 → 2015-01 Figure 678514A 678514A 2015-01 → — Figure 678512A 678512A 2015-01 → —

Part groups

PNCDescription
62925A Weatherstrip, Glide Door Side
62927 Weatherstrip, Glide Door Outer
63319E Moulding, Slide Door Window
65314A Plate, Stopper
67003F Panel Sub-assy, Center Door, Front
67003G Panel Sub-assy, Slide Door
67004C Panel Sub-assy, Center Door, Rear
67087 Plate Sub-assy, Center Door Dust Seal, Front
67088 Plate Sub-assy, Center Door Dust Seal, Rear
67115A Reinforcement, Center Door, Front Upper
67171 Weatherstrip, Center Door Glass, Outer
67172 Weatherstrip, Center Door Glass, Inner
67207D Cover Sub-assy, Center Door, Outer
67219 Bush, Center Door Upper Bearing Case
67253 Piece, Center Door Guide
67254 Stopper, Center Door, Inside NO.1
67261B Case, Center Door Guide
67266A Stopper, Center Door Rail
67268 Rollar, Rear Door, Upper
67451 Bracket, Center Door Guide, Upper
67469A Protector, Center Door Guide
67680A Trim Assy, Gride Door
67690 Trim Assy, Gride Door, Lower
67745 Moulding, Center Door Trim
67841A Cover, Glide Door Service Hole
67855C Weatherstrip, Center Door Front
67856 Clip, Center Door Weatherstrip
67856C Weatherstrip, Center Door, Rear
67857D Weatherstrip, Center Door, Center
67867H Retainer, Door Weatherstrip, RH
67868M Clip, Door Weatherstrip
67869G Clip, Door Weatherstrip
67871B Weatherstrip, Glide Door
67873B Weatherstrip, Rear Door Glass, Front RH
67874B Weatherstrip, Center Door, Upper NO.2
67907A Plate Sub-assy, Center Door Scuff
68111 Glass, Center Door
68113C Glass, Glide Door
68165B Moulding, Glide Door Glass
68217B Pin, Glide Door Fix Window
68218C Bush, Glide Door Fix Window
68618B Retainer, Door Check Pin
68630B Check Assy, Glide Door
68630C Pin(FOR GLIDE DOOR CHECK)
68705 Hinge Sub-assy, Center Door, Outer NO.1
68706 Hinge Sub-assy, Center Door, Outer NO.1
68706A Hinge Sub-assy, Center Door, Outer NO.1
68709 Case Sub-assy, Center Door Upper Bearing
68737 Case, Center Door Lower Bearing
68739 Ball, Center Door Lower Bearing
68759A Spacer, Center Door Hinge
68769 Spacer, Center Door Hinge, NO.2
74642 Grip, Glide Door Assist
75741B Moulding, Center Door, Front
75742A Moulding, Center Door, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
