Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Door Lock & Hinge

41 part groups · 7 illustrations

Illustrations

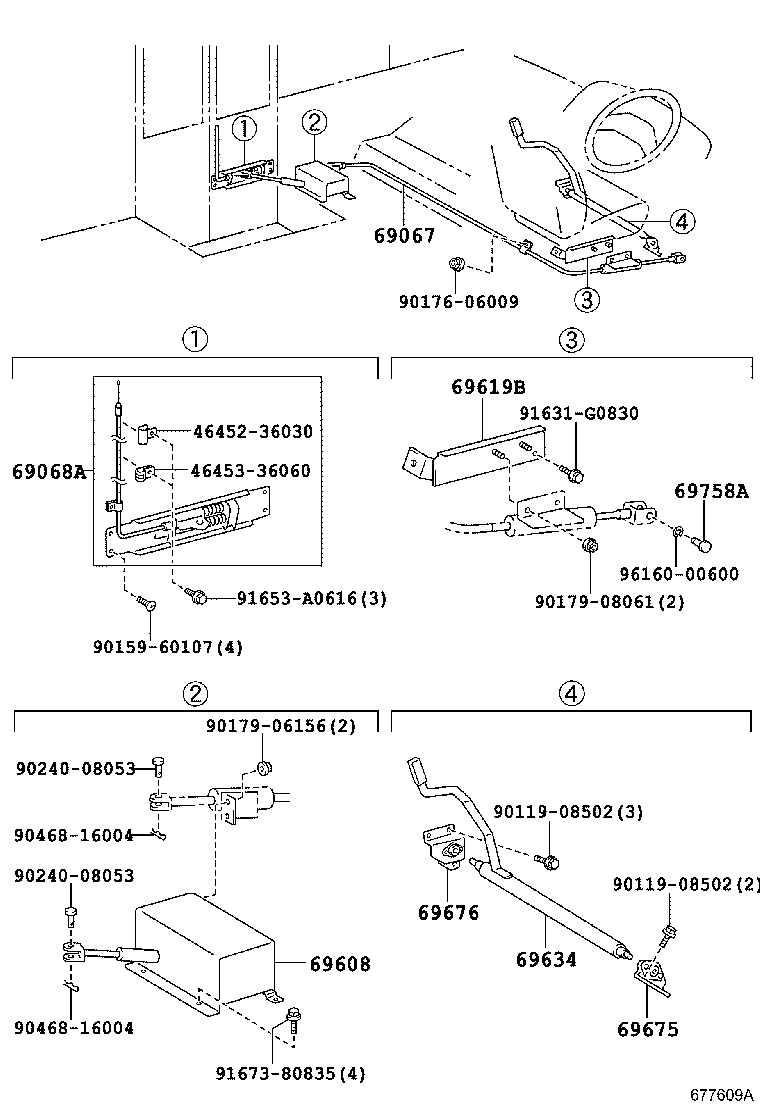

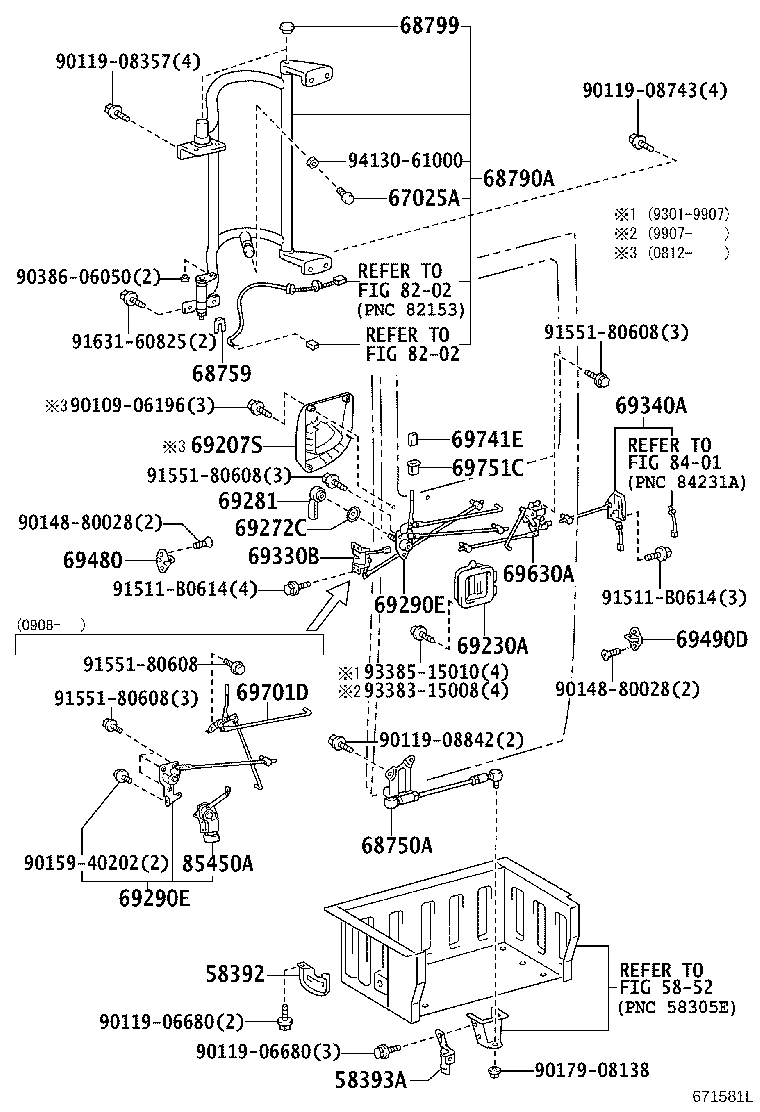

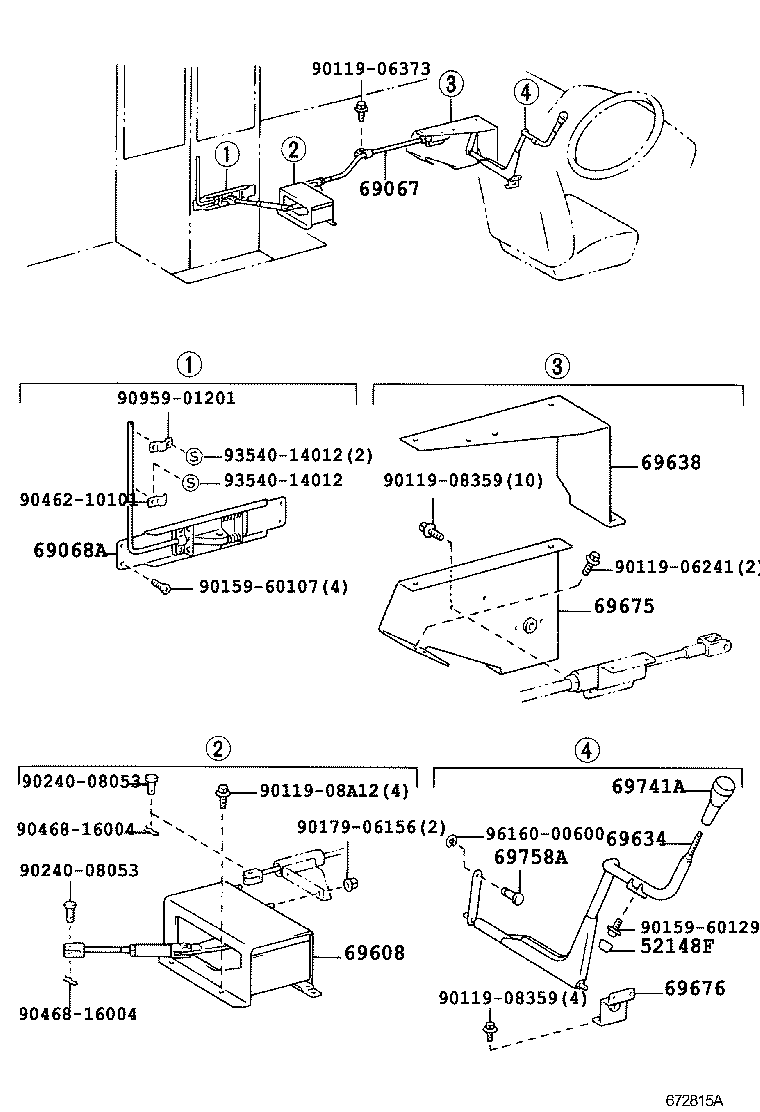

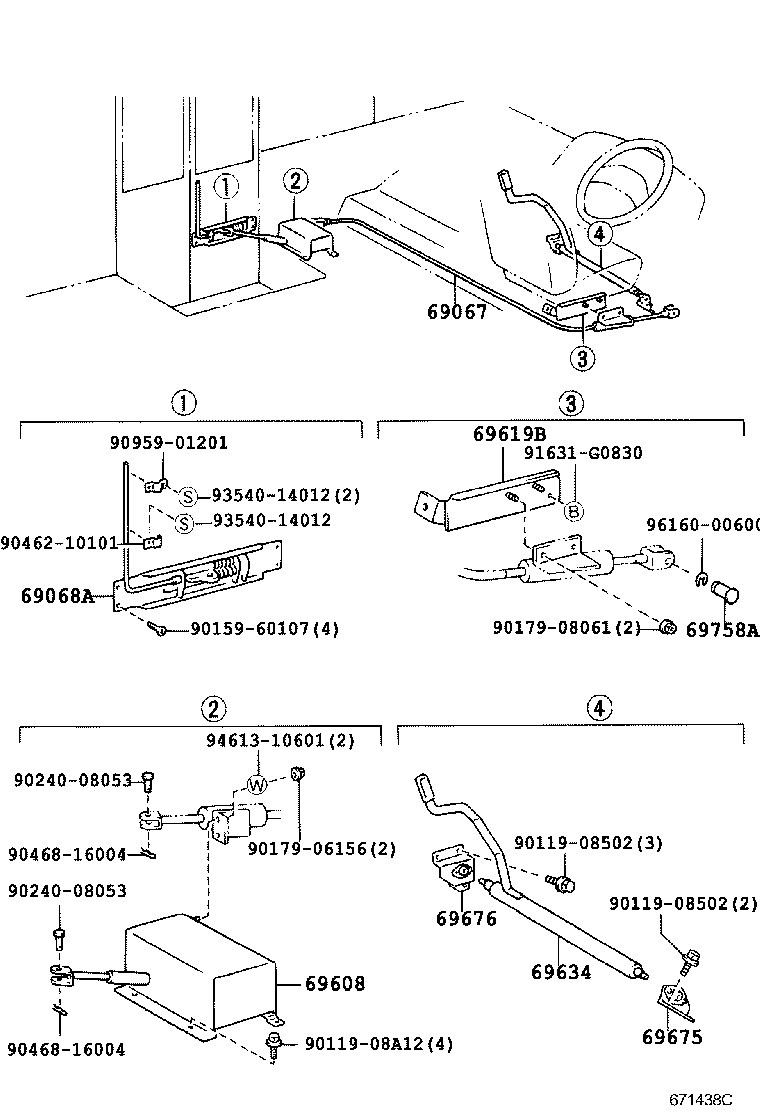

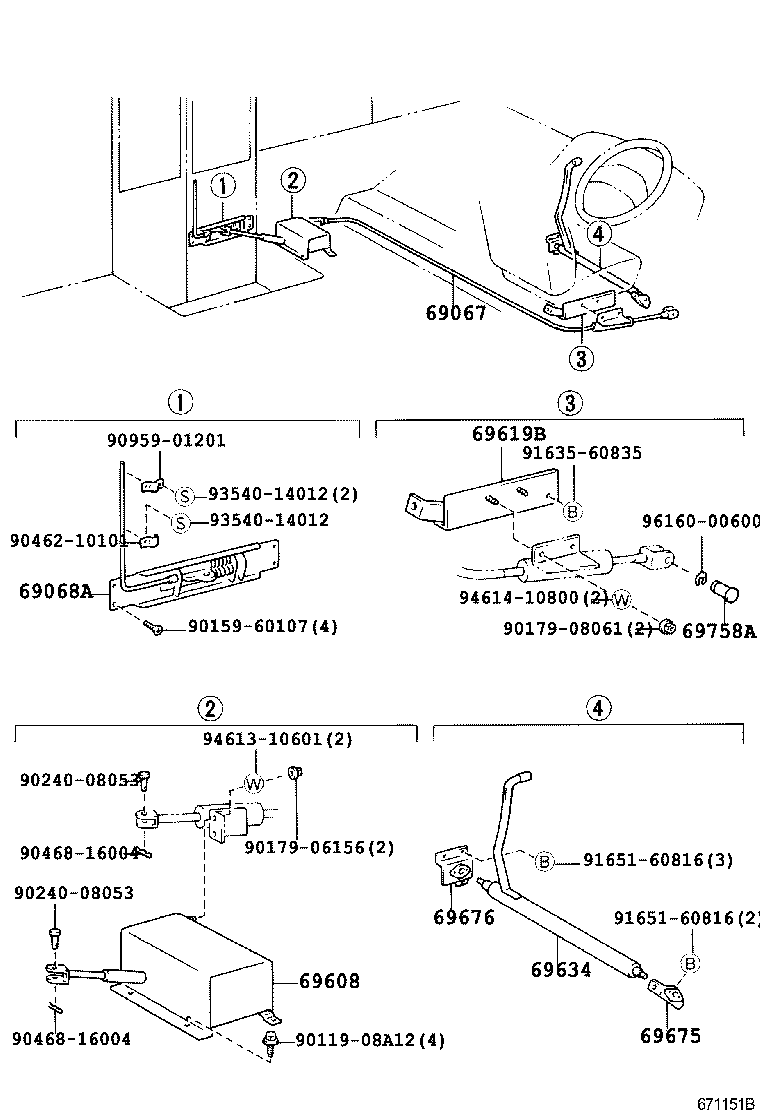

Figure 673687G 673687G 1993-01 → 2015-01 Figure 678516 678516 2015-01 → — Figure 671581L 671581L 1993-01 → — Figure 671151B 671151B 1994-02 → 1997-05 Figure 672815A 672815A 1997-05 → 1998-06 Figure 671438C 671438C 1998-06 → 2012-09 Figure 677609A 677609A 2012-09 → —

Part groups

PNCDescription
52148F Stopper, Door Lock Control Link
58392 Mudguard, Glide Door Link, Front
58393A Mudguard, Glide Door Link, Rear
67025A Stopper Sub-assy, Slide Door, Front
67224 Gum, Door Cushion, NO.2
67255 Stopper, Center Inside Lock
68750A Link Assy, Glide Door
68759 Spacer, Glide Door Arm
68790A Arm Assy, Glide Door
68799 Cap, Glide Door Arm
69067 Cable Sub-assy, Center Door Remote Control, NO.1
69068A Cable Sub-assy, Center Door Remote Control, NO.2
69207S Cover(FOR REAR DOOR INSIDE HANDLE)
69230A Handle Assy, Glide Door Outside
69272C Plate, Glide Door Inside Handle
69277F Bezel, Door Inside Handle, NO.1 RH
69278 Bezel, Door Inside Handle, NO.1 LH
69281 Handle, Glide Door Inside
69290E Base Assy, Glide Door Inside Handle
69297 Bezel, Door Inside Handle, NO.2 RH
69298F Bezel, Door Inside Handle, NO.2 LH
69302B Lock Sub-assy, Center Door Inside Handle
69303B Handle Sub-assy, Center Door Lock, Outside
69330B Lock Assy, Glide Door, Front
69340A Lock Assy, Glide Door, Rear
69405C Stopper Sub-assy, Center Door Inside Look
69480 Plate Assy, Glide Door Lock Striker, Front
69490D Plate Assy, Glide Door Lock Striker, Rear
69608 Link Sub-assy, Center Door Remote Control
69619B Retainer, Door Lock Remote Control Base
69630A Control Assy, Glide Door Lock Remote
69634 Rod, Center Door Remote Control
69638 Cover, Center Door Remote Control, NO.1
69675 Base, Center Door Remote Control, NO.1
69676 Base, Center Door Remote Control, NO.2
69701D Bellcrank Sub-assy, Door Lock Control, Upper
69741A Knob, Back Door Lock Control
69741E Knob, Door Lock Control
69751C Holder, Door Lock Control Knob(FOR GLIDE DOOR)
69758A Pin, Center Door Lock Control Link
85450A Motor Assy, Door Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
