Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

34 part groups · 7 illustrations

Illustrations

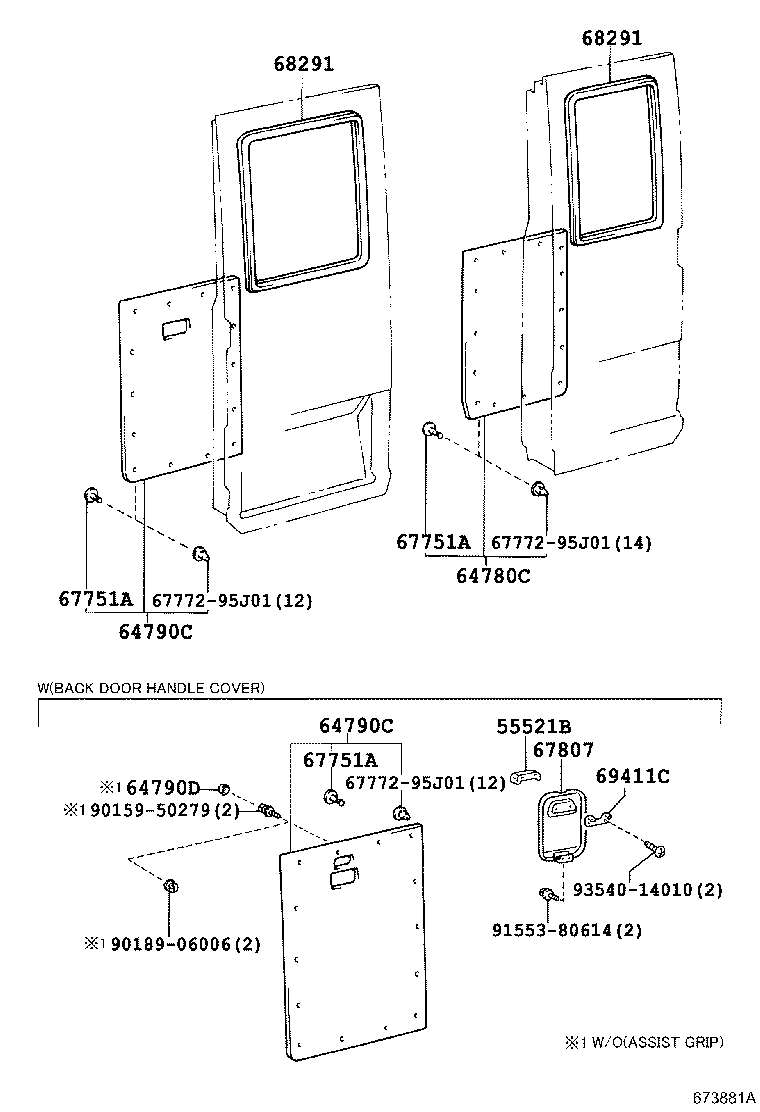

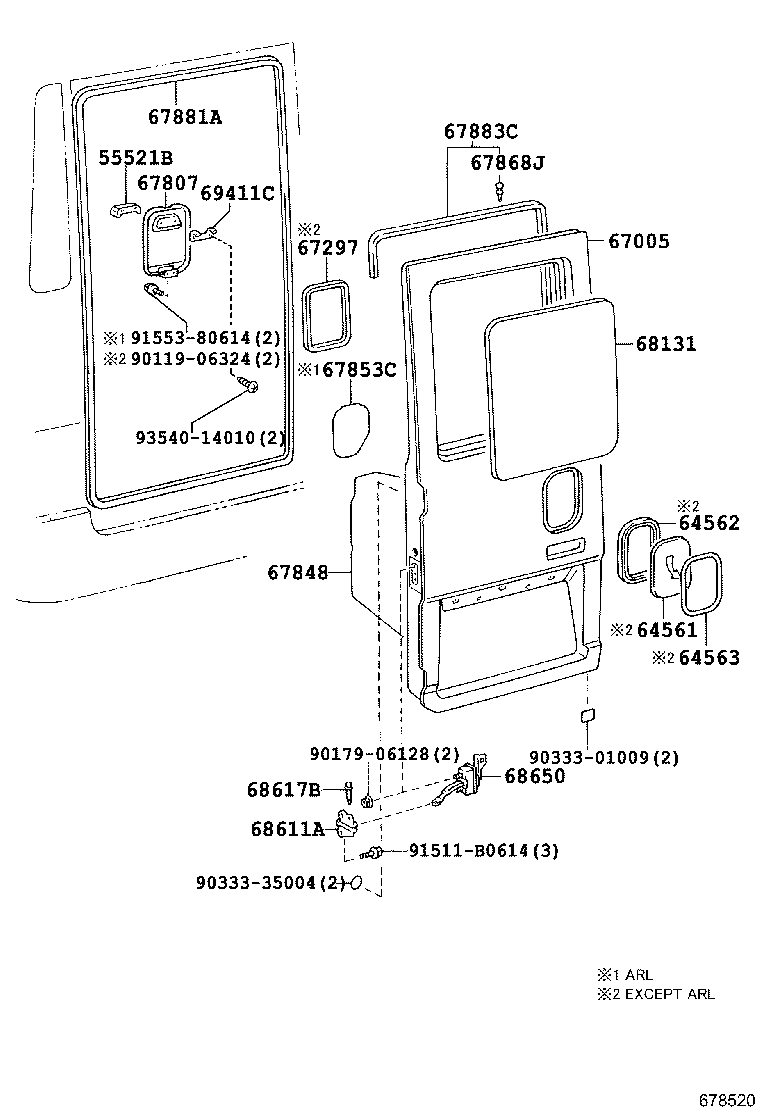

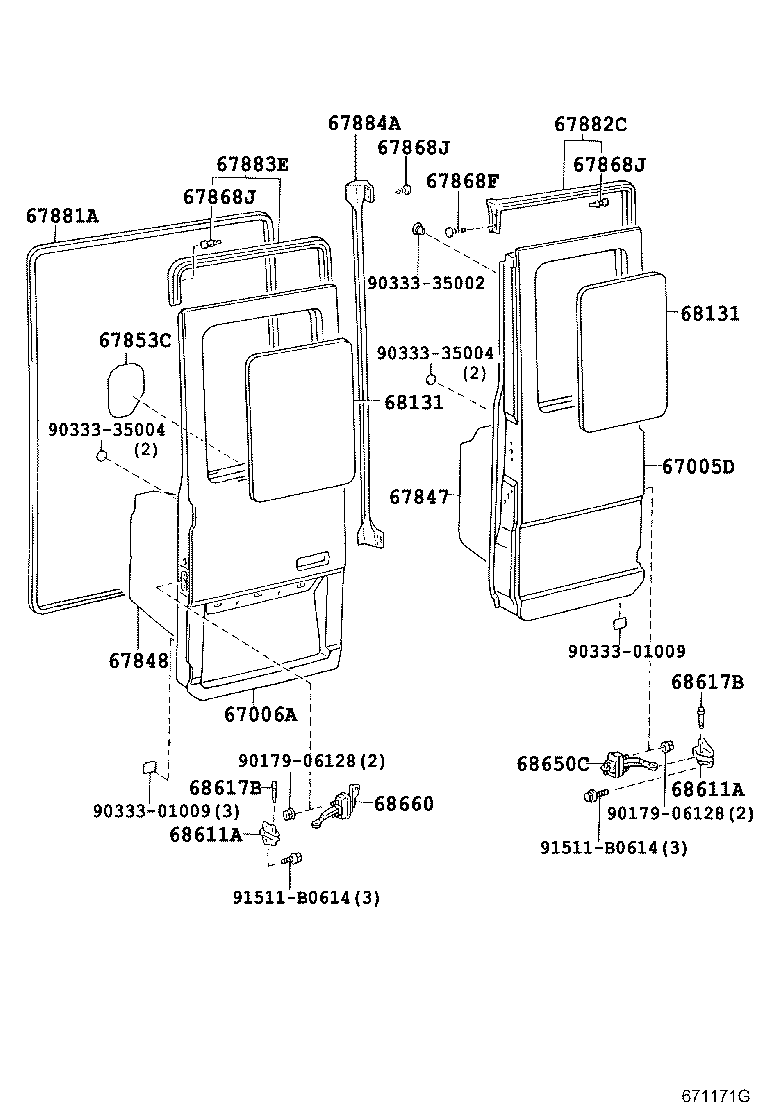

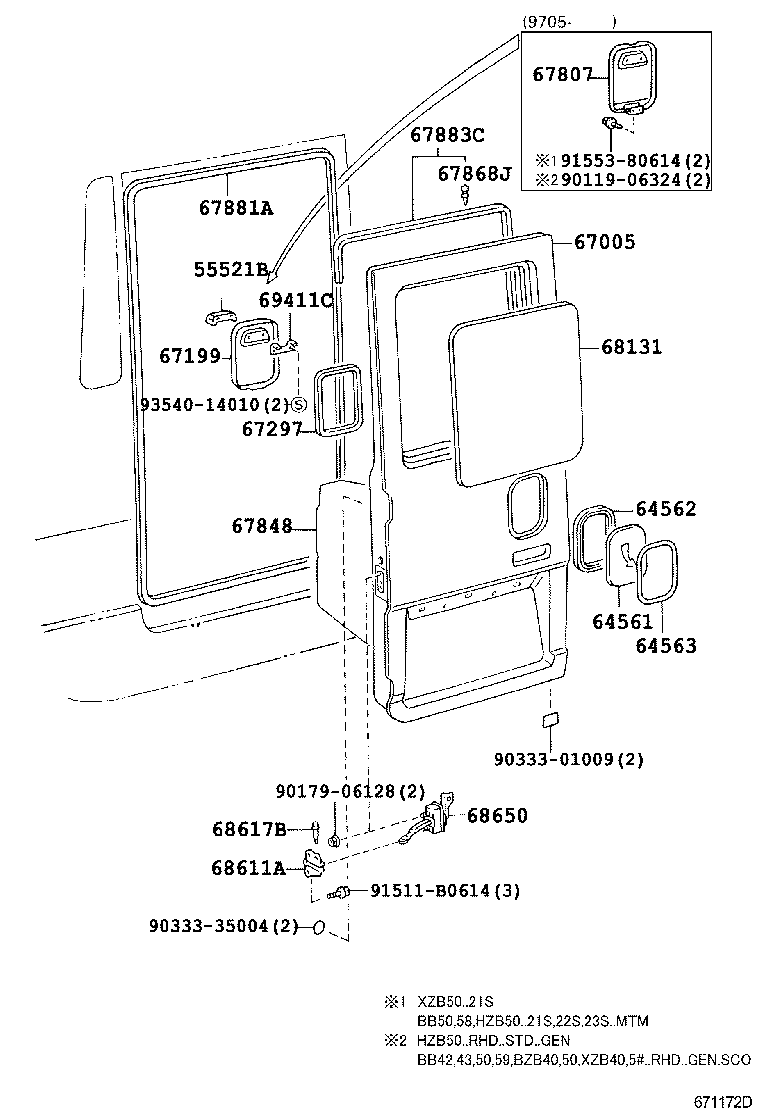

Figure 671170C 671170C 1993-01 → — Figure 671143A 671143A 1993-01 → 2006-08 Figure 671171G 671171G 1993-01 → — Figure 673881B 673881B 1993-01 → — Figure 671172D 671172D 1993-01 → 2015-01 Figure 678520 678520 2015-01 → — Figure 671145A 671145A 1993-01 → —

Part groups

PNCDescription
55521B Knob, Back Door Handle Cover
64561 Glass, Emergency Back Door Windshield
64562 Weatherstrip, Back Door Window Emergency Glass, Outer
64563 Weatherstrip, Back Door Window Emergency Glass, Inner
64780C Panel Assy, Back Door Trim, RH
64790C Panel Assy, Back Door Trim, LH
64790D Cap, Back Door Trim Panel
67005 Panel Sub-assy, Back Door
67005D Panel Sub-assy, Back Door, RH
67006A Panel Sub-assy, Back Door, LH
67115 Panel, Back Door, Outer
67199 Cover, Back Door Handle
67297 Weatherstrip, Back Door Cover
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67807 Cover Sub-assy, Back Door Service Hole
67847 Cover, Back Door Service Hole, RH
67848 Cover, Back Door Service Hole, LH
67853C Cover, Back Door Service Hole, NO.3
67868F Retainer, Door Weatherstrip, LH
67868J Retainer, Door Weatherstrip
67881A Weatherstrip, Back Door
67882C Weatherstrip, Back Door, NO.2
67883C Weatherstrip, Back Door, Lower RH
67883E Weatherstrip, Back Door, NO.3
67884A Weatherstrip, Back Door, Center
68131 Glass, Back Door
68291 Weatherstrip, Back Door Glass
68611A Base, Back Door Check
68617B Pin, Back Door Check
68650 Check Assy, Back Door
68650C Check Assy, Back Door, RH
68660 Check Assy, Back Door, LH
69411C Catch, Back Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
