Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Hinge

31 part groups · 9 illustrations

Illustrations

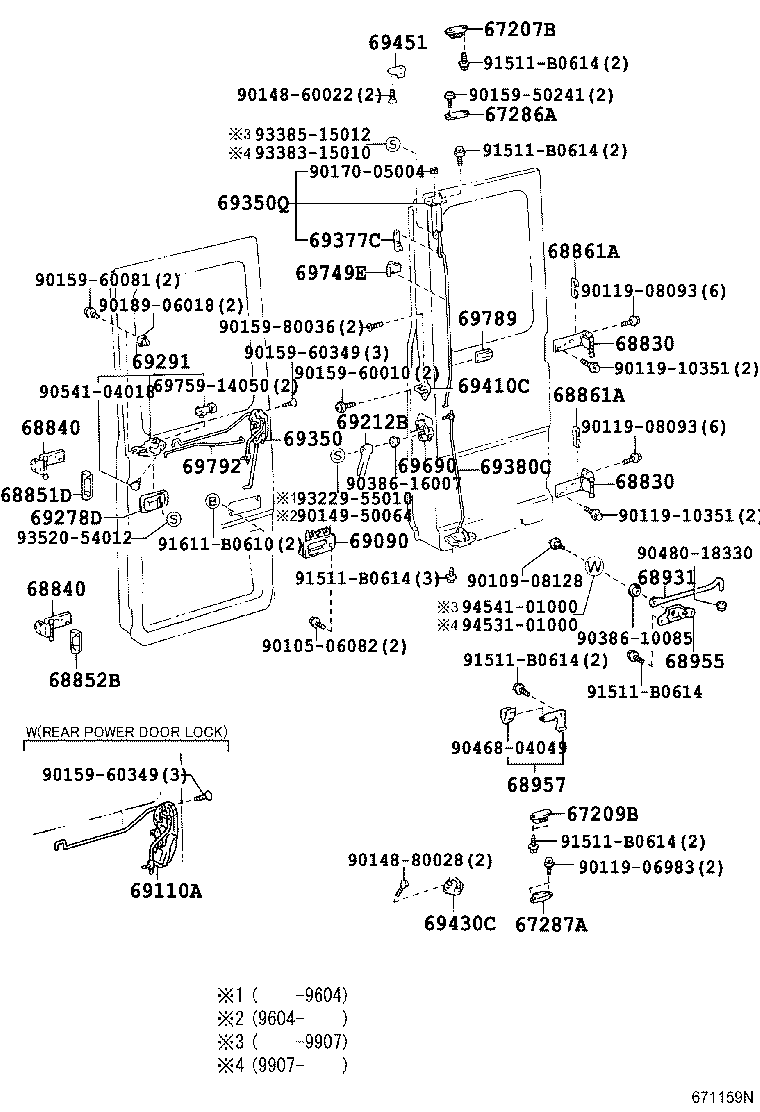

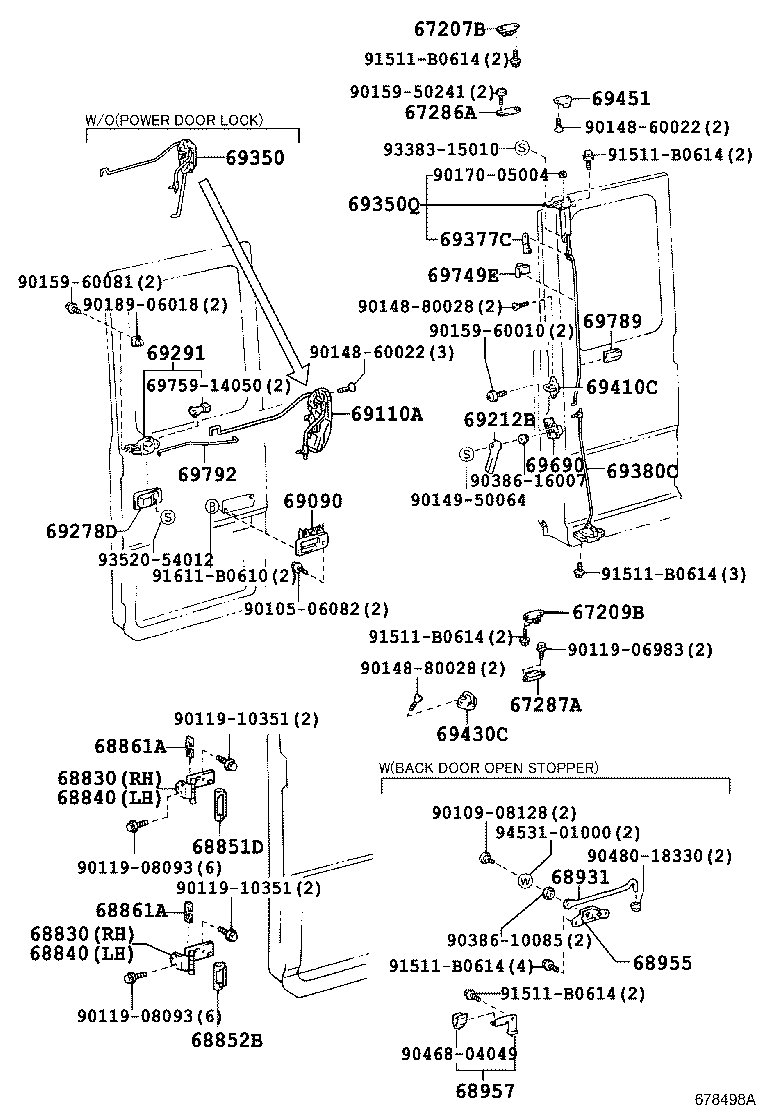

Figure 671582F 671582F 1993-01 → — Figure 672408H 672408H 1993-01 → 1997-05 Figure 672408H 672408H 1993-01 → 2015-01 Figure 672408H 672408H 1993-01 → 2015-01 Figure 672408H 672408H 2015-01 → — Figure 671160F 671160F 1997-05 → 2015-01 Figure 671160F 671160F 2015-01 → — Figure 671159N 671159N 1993-01 → 2015-01 Figure 678498A 678498A 2015-01 → —

Part groups

PNCDescription
67207B Stopper Sub-assy, Back Door, Upper
67209B Stopper Sub-assy, Back Door, Lower
67286A Anti-rattle, Back Door, Upper
67287A Anti-rattle, Back Door, Lower
68830 Hinge Assy, Back Door, RH
68838 Pad, Back Door Hinge, NO.1
68840 Hinge Assy, Back Door, LH
68851D Cover, Back Door Hinge, Upper
68852 Cover, Back Door Hinge
68852B Cover, Back Door Hinge, Lower
68861A Pad, Back Door Hinge
68931 Stay, Back Door, NO.1
68955 Bracket, Back Door Stay
68957 Bracket, Back Door Stay
68970 Stay Assy, Back Door, RH
69090 Handle Assy, Back Door, Outside
69110A Lock Assy, Back Door W/Motor
69212B Handle, Back Door Inside
69278D Bezel, Door Inside Handle, LH
69291 Handle Assy, Back Door Inside
69350 Lock Assy, Back Door
69350Q Lock Assy, Back Door, Upper
69377C Snap, Door Lock Control Rod
69380C Lock Assy, Back Door, Lower
69410C Plate Assy, Back Door Lock Striker
69430C Striker Assy, Back Door Lock
69451 Striker, Back Door Upper Lock
69690 Control Assy, Back Door Remote
69749E Clamp, Back Door Lock Link
69789 Silencer, Back Door Lock Control Link
69792 Link, Back Door Lock Locking
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
