Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

13 part groups · 4 illustrations

Illustrations

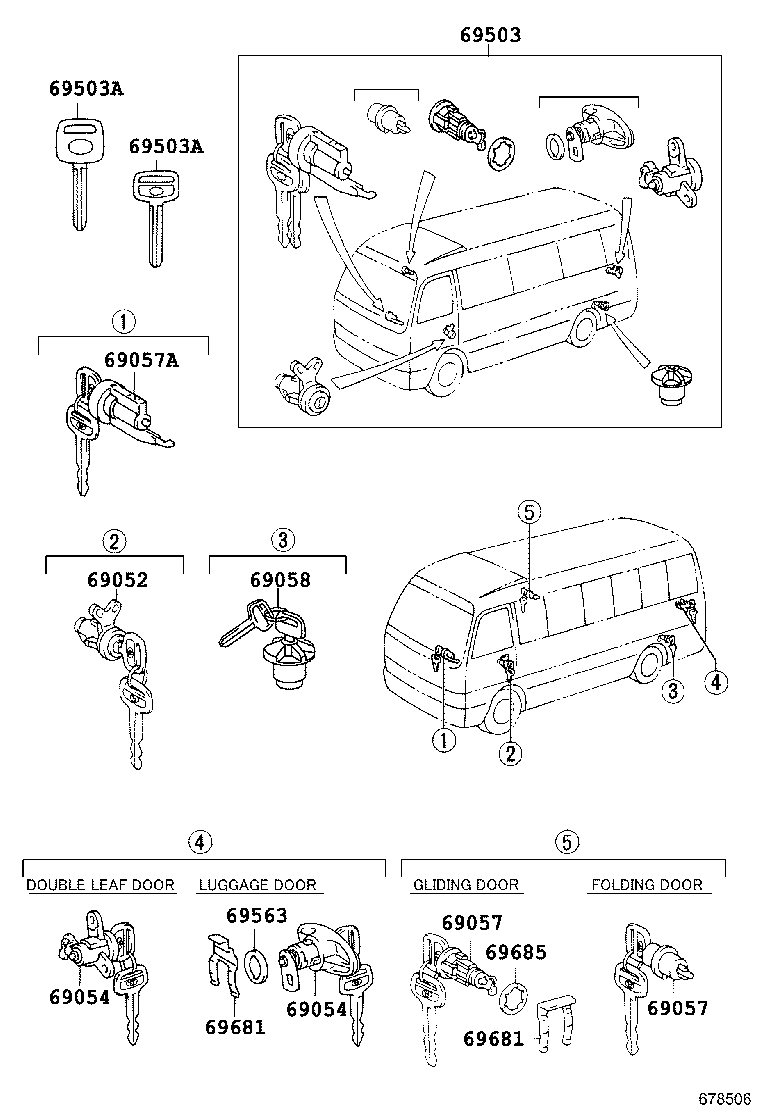

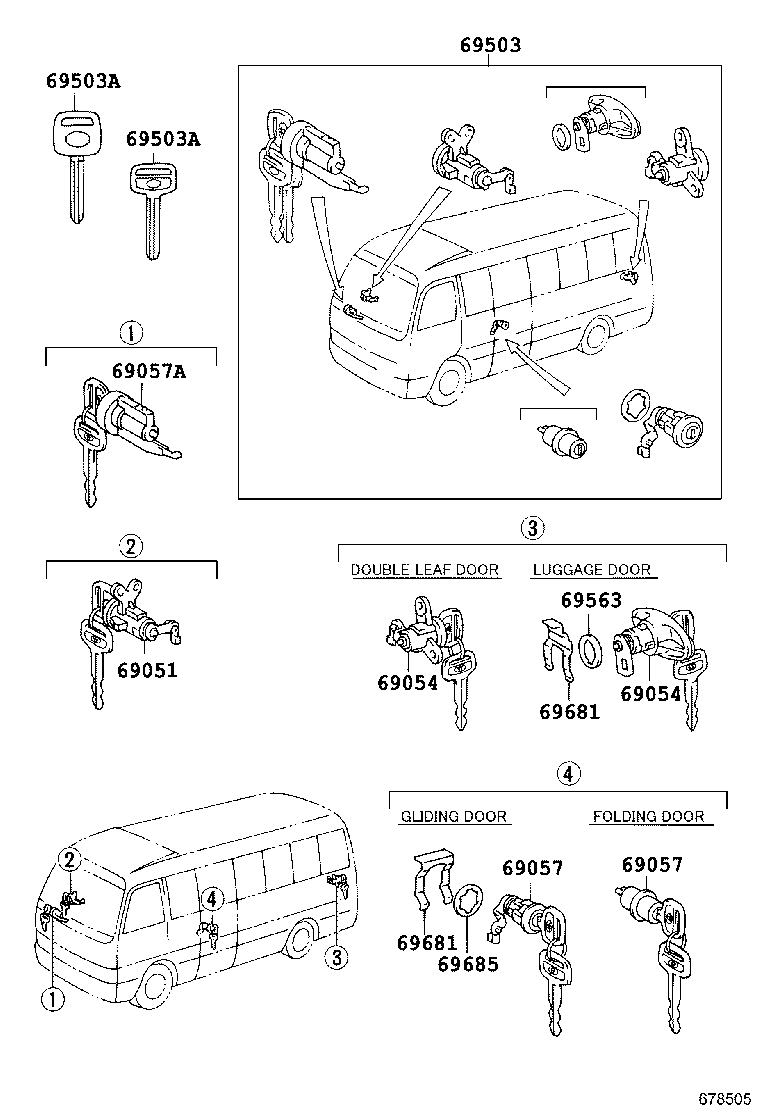

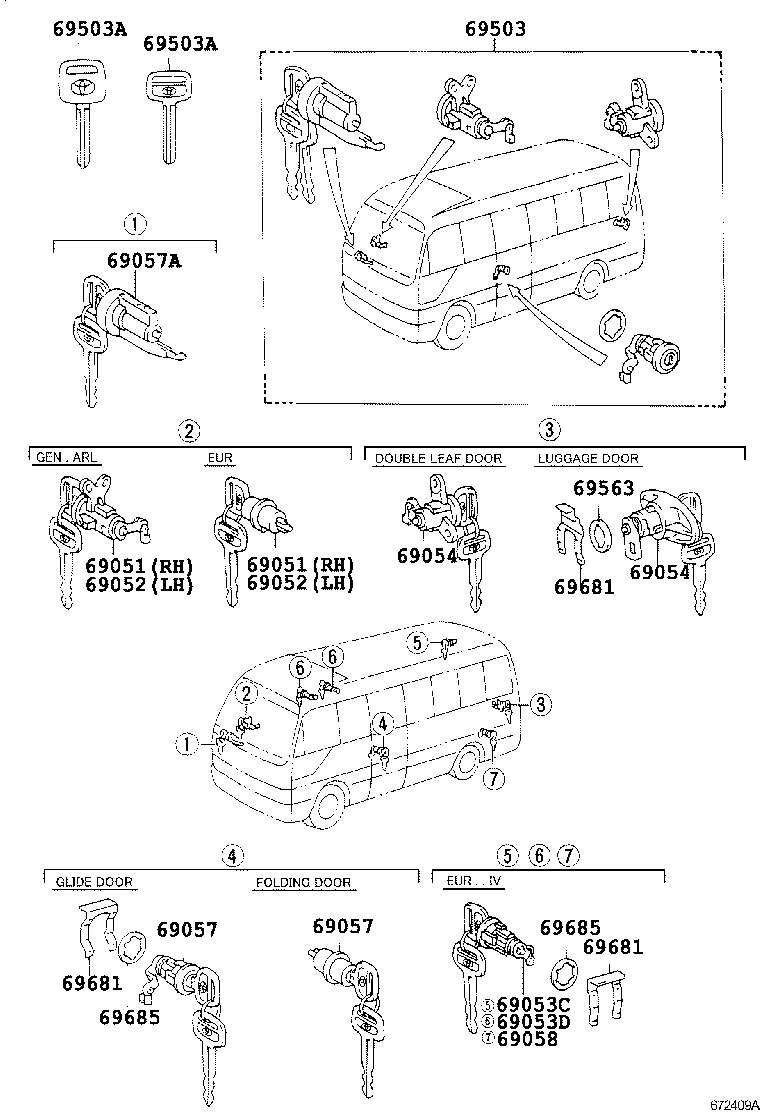

Figure 672410A 672410A 1993-01 → 2015-01 Figure 672409A 672409A 1993-01 → 2015-01 Figure 678506 678506 2015-01 → — Figure 678505 678505 2015-01 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69053C Cylinder & Key Set, Top Cover Lock
69053D Cylinder & Key Set, Glove Box Lock
69054 Cylinder & Key Set, Back Door Lock
69057 Cylinder & Key Set, Center Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69058 Cylinder & Key Set, Fuel Filler Lid
69503 Cylinder Set, Lock
69503A Key, Blank
69563 Pad, Back Door Lock Cylinder
69681 Clamp, Door Lock Cylinder & Sleeve
69685 Pad, Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
