Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe
Discontinued model
Data version 2016-12
Seat & Seat Track
638 part groups · 57 illustrations
Illustrations
710877M
710876K
713511I
713510H
713512D
711228I
711233C
710934G
714676C
710935I
714677B
710732N
714678C
711229K
711234F
711230F
717577A
711231E
715181B
710936I
710936I
711418C
711418C
717349B
719270B
719202
719255A
719203A
719204
719271B
719259A
719201B
719263B
719272A
719260D
719273B
719261C
710937H
711232G
718296A
713524E
717431C
719199A
719196B
719197B
719200A

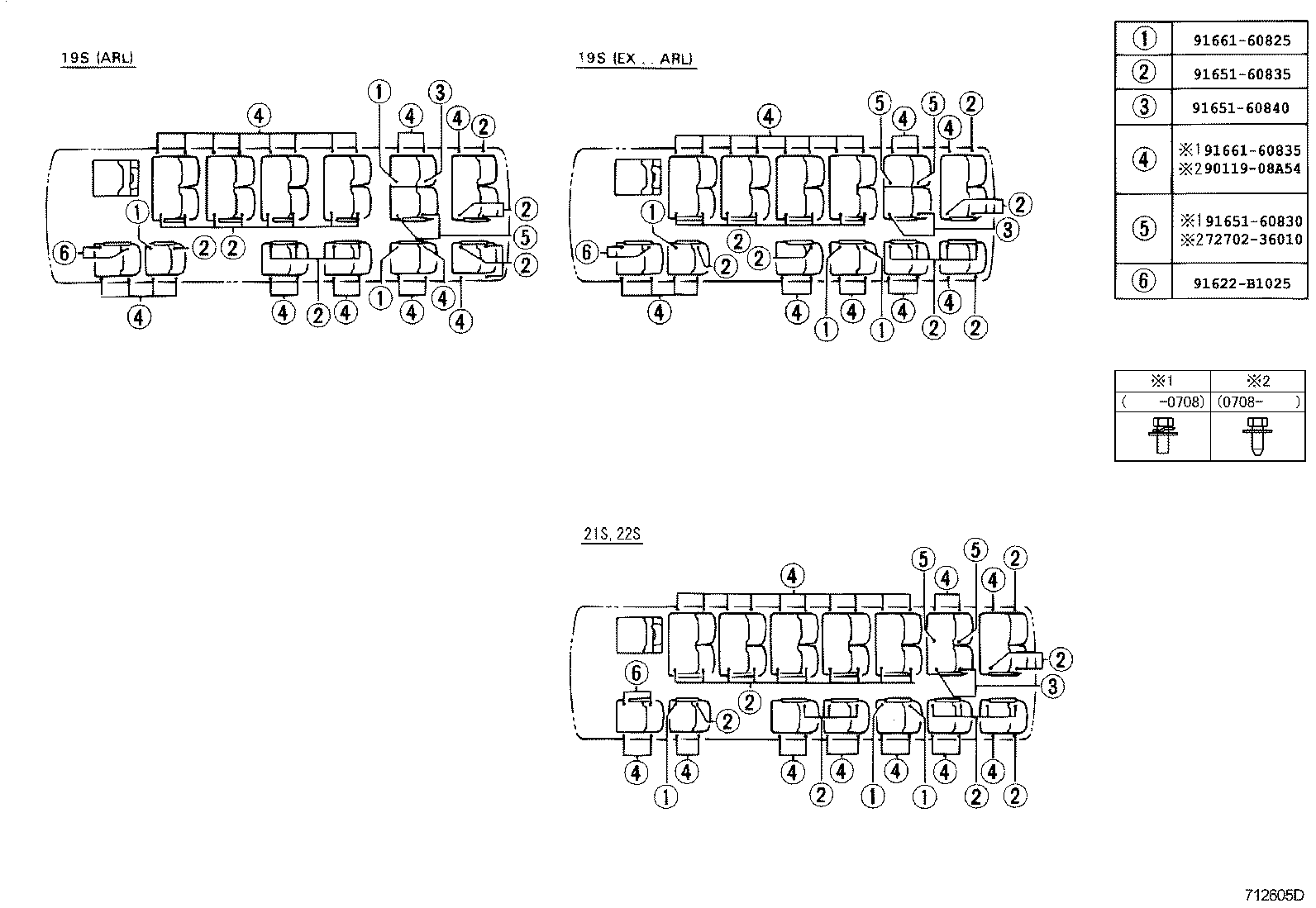

712605D

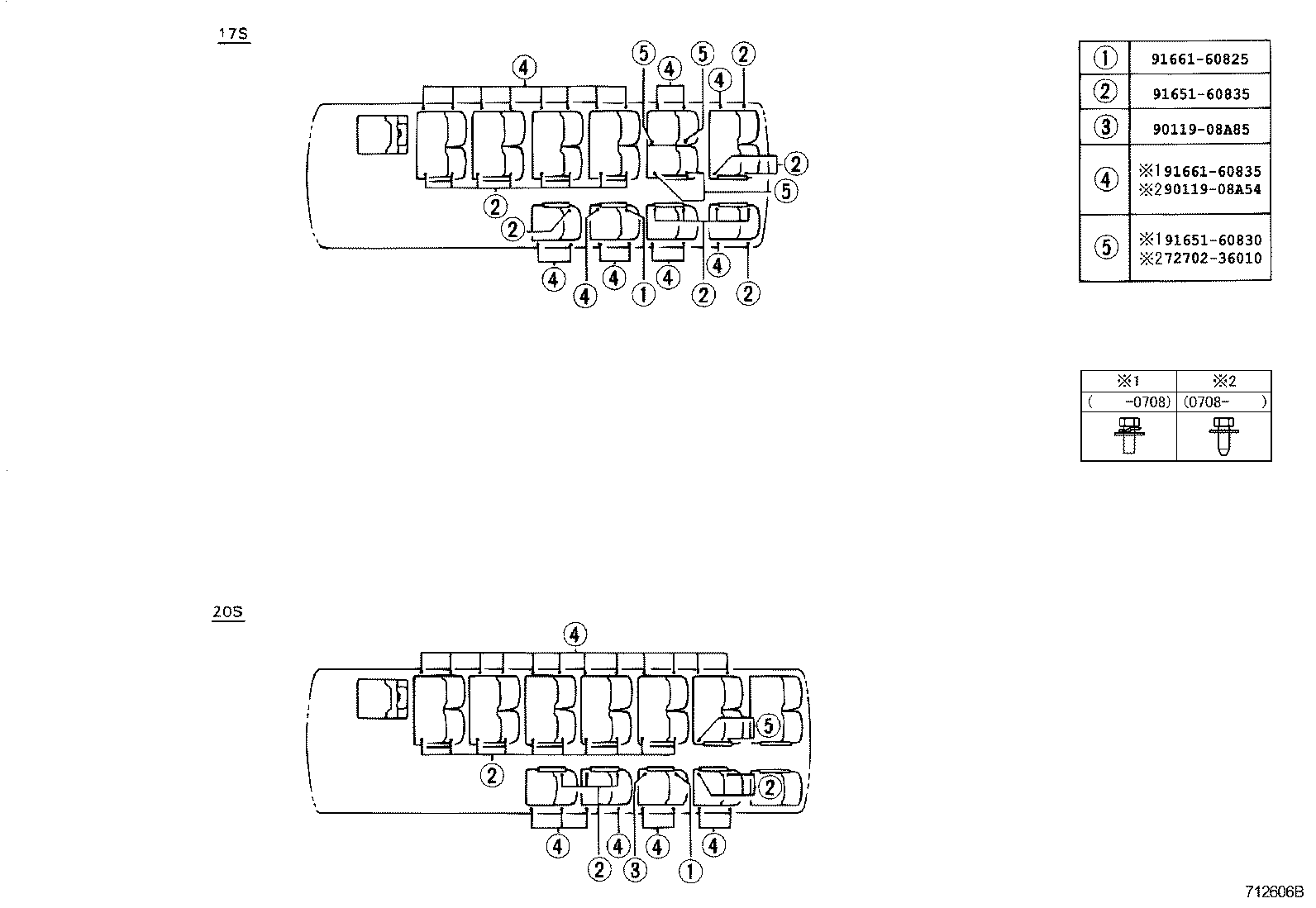

712606B

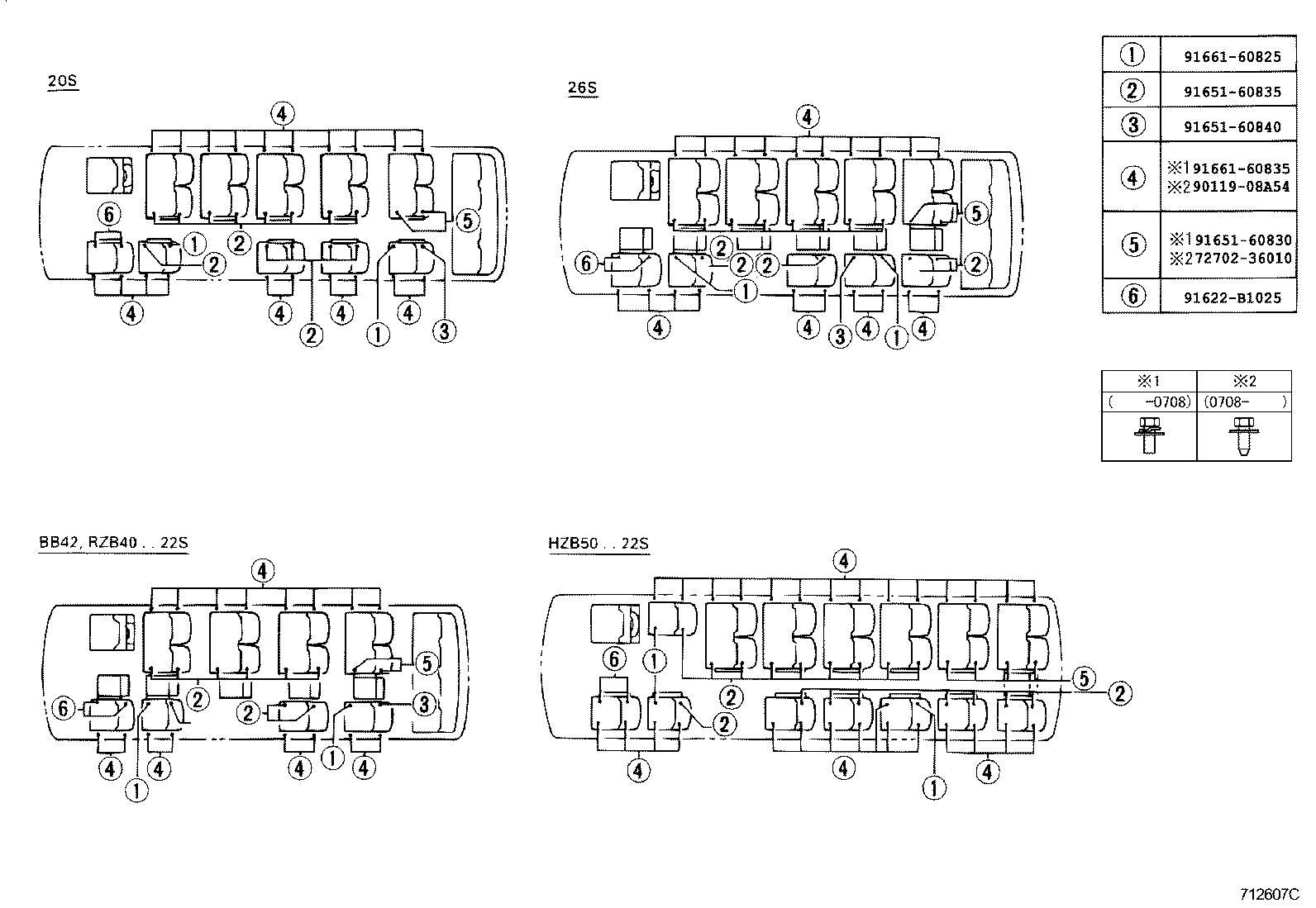

712607C

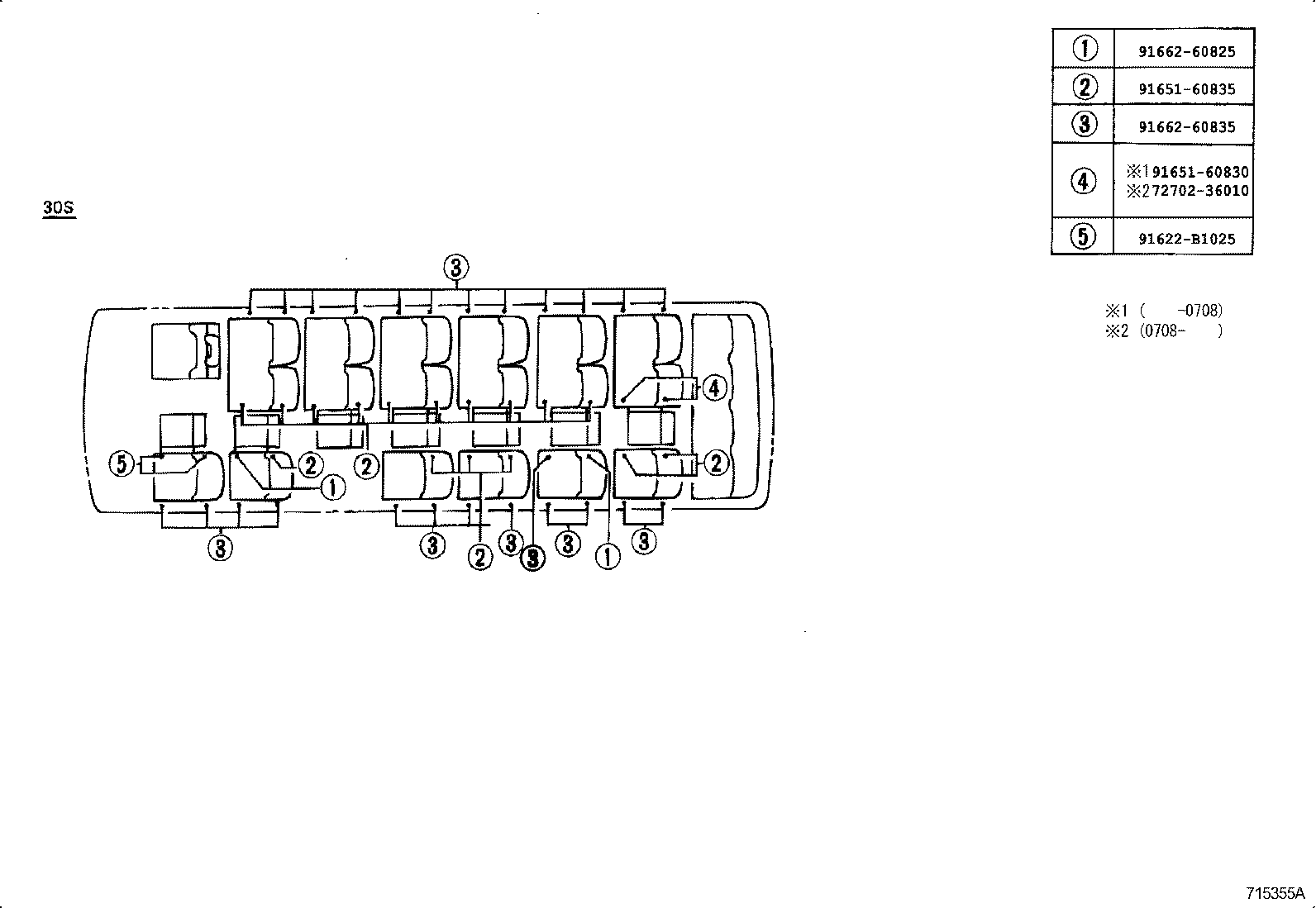

715355A

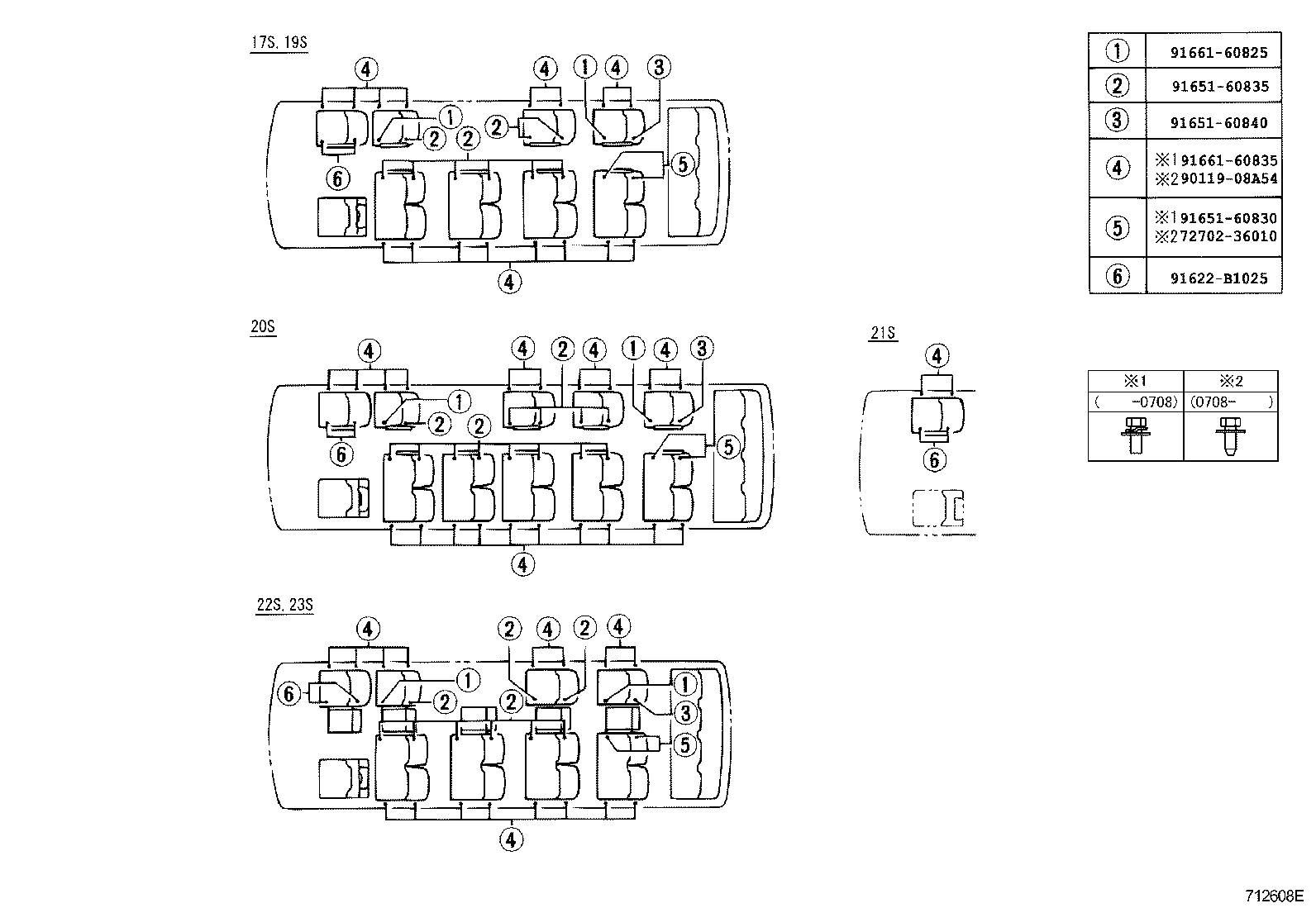

712608E

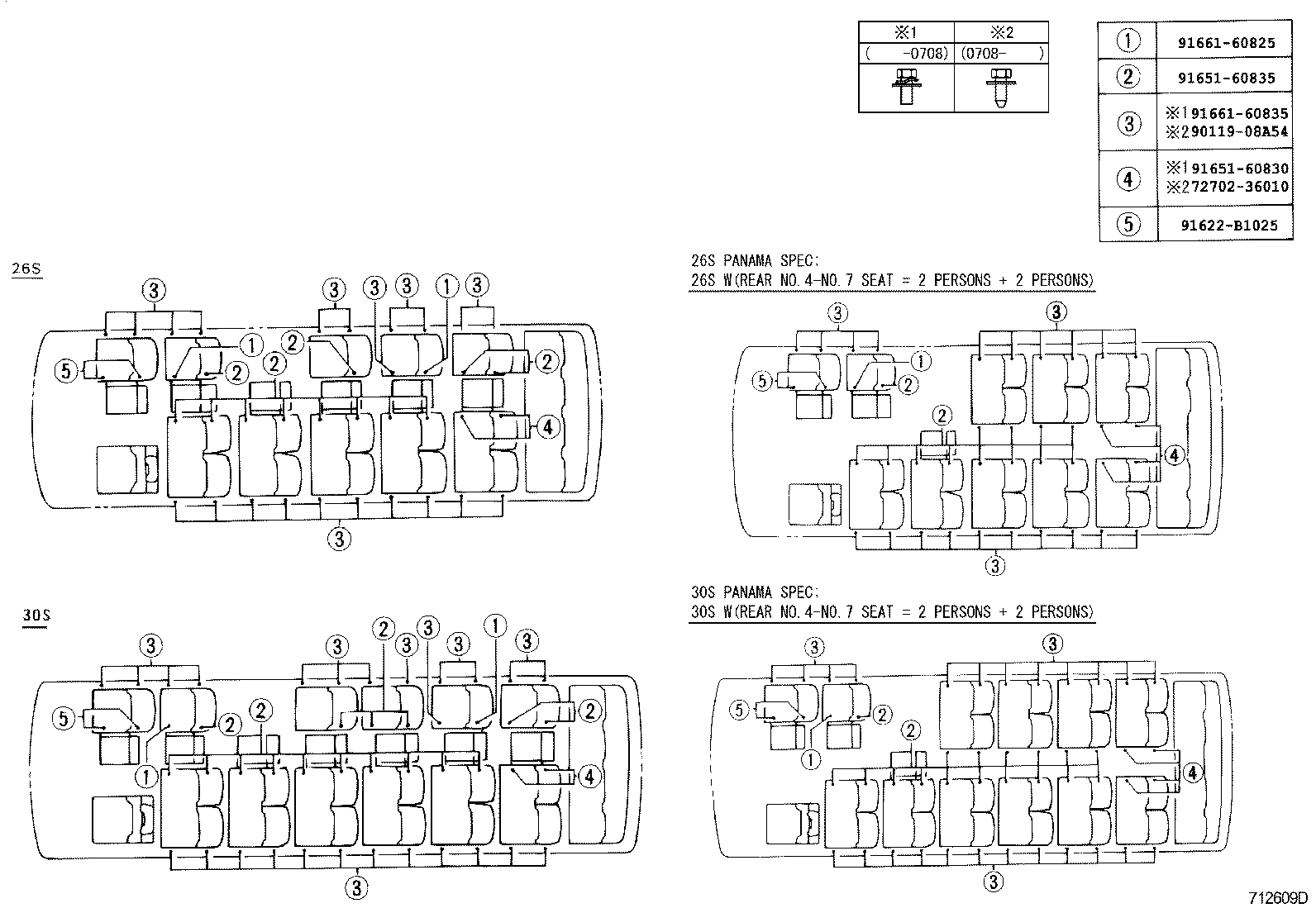

712609D

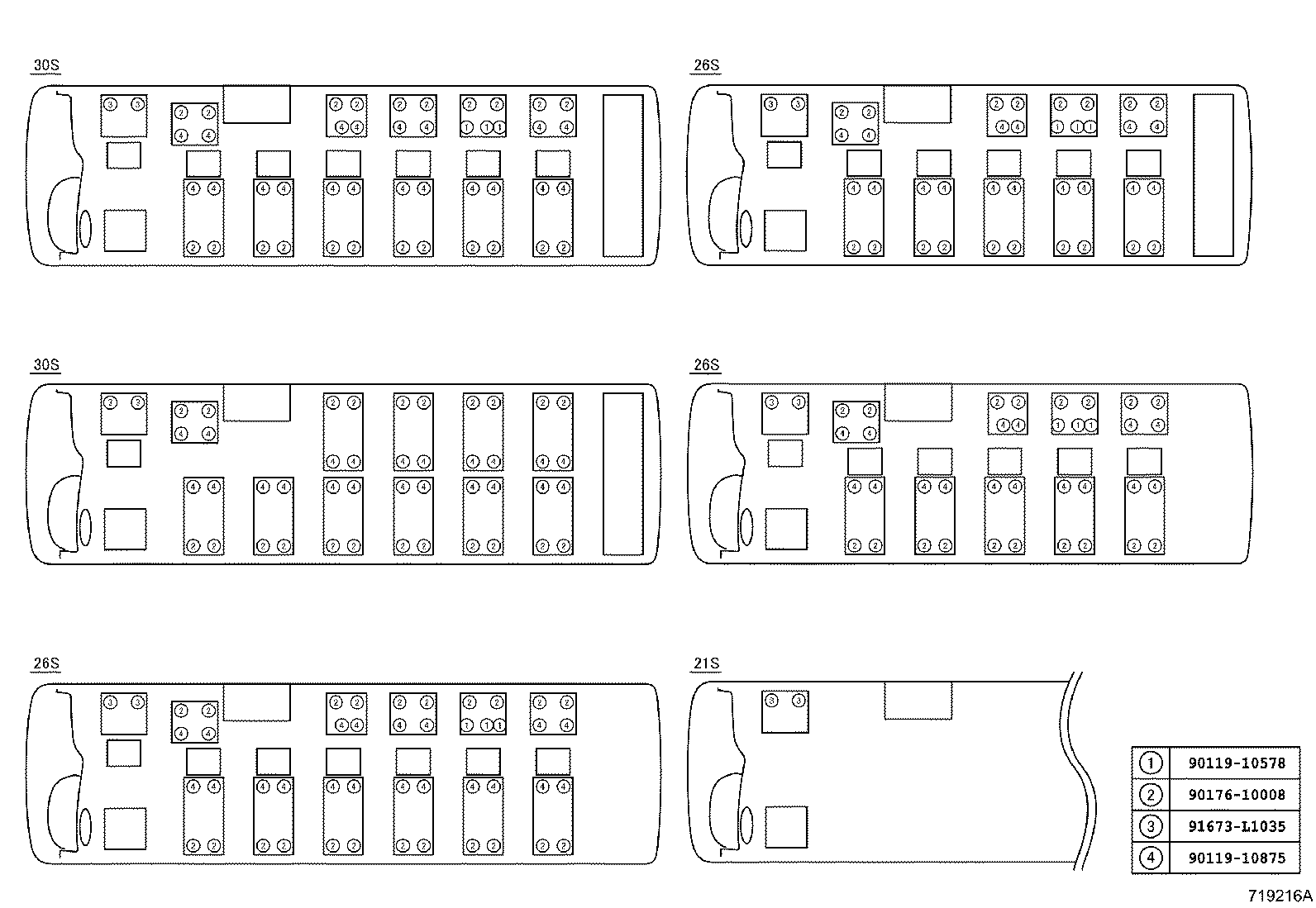

719216A
719217B
719258B
711417B
718166A
Part groups
| PNC | Description |
|---|---|
| 55560D | Lock Assy, Seat Under Tray |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71108B | Leg Sub-assy, Front Seat, RH |
| 71148C | Cover, Rear Seat Leg, Outer |
| 71148D | Cover, Rear Seat Leg, Outer |
| 71148E | Cover, Rear Seat Leg, Outer |
| 71148F | Cover, Rear Seat Leg, Outer |
| 71148G | Cover, Rear Seat Leg, Outer |
| 71148H | Cover, Rear Seat Leg, Outer |
| 71148J | Cover, Rear Seat Leg, Outer |
| 71148L | Cover, Rear Seat Leg, Outer |
| 71148M | Cover, Rear Seat Leg, Outer |
| 71148N | Cover, Rear Seat Leg, Outer |
| 71148P | Cover, Rear Seat Leg, Outer |
| 71148Q | Cover, Rear Seat Leg, Outer |
| 71148R | Cover, Rear Seat Leg, Outer |
| 71148S | Cover, Rear Seat Leg, Outer |
| 71149 | Wire, Front Seat Cushion Connecting |
| 71149H | Cover, Rear Seat Leg, Inner |
| 71149J | Cover, Rear Seat Leg, Inner |
| 71149K | Cover, Rear Seat Leg, Inner |
| 71149L | Cover, Rear Seat Leg, Inner |
| 71149M | Cover, Rear Seat Leg, Inner |
| 71149N | Cover, Rear Seat Leg, Inner |
| 71149P | Cover, Rear Seat Leg, Inner |
| 71149R | Cover, Rear Seat Leg, Inner |
| 71149S | Cover, Rear Seat Leg, Inner |
| 71149T | Cover, Rear Seat Leg, Inner |
| 71149U | Cover, Rear Seat Leg, Inner |
| 71149V | Cover, Rear Seat Leg, Inner |
| 71149W | Cover, Rear Seat Leg, Inner |
| 71149X | Cover, Rear Seat Leg, Inner |
| 71308F | Leg Sub-assy, Rear Seat, RH |
| 71308G | Leg Sub-assy, Rear Seat, RH |
| 71309D | Leg Sub-assy, Rear Seat, LH |
| 71309E | Leg Sub-assy, Rear Seat, LH |
| 71324A | Cushion, Rear Seat |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71521 | Pad, Front Seat Cushion Silencer, A |
| 71524 | Pad, Front Seat Cushion Silencer, D |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71745 | Board, Side Seat Cushion, RH |
| 71750A | Tray Assy, Front Seat Under |
| 71811C | Cover, Reclining Adjuster, RH |
| 71811D | Shield, Front Seat Cushion, RH |
| 71811F | Cover, Reclining Adjuster, RH |
| 71811H | Cover, Reclining Adjuster, RH |
| 71811J | Cover, Reclining Adjuster, RH |
| 71811L | Cover, Reclining Adjuster, RH |
| 71811M | Cover, Reclining Adjuster, RH |
| 71811N | Cover, Reclining Adjuster, RH |
| 71811P | Cover, Reclining Adjuster, RH |
| 71812B | Clip(FOR REAR SEAT CUSHION COVER) |
| 71812C | Cover, Reclining Adjuster, LH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71812E | Cover, Reclining Adjuster, LH |
| 71812G | Cover, Reclining Adjuster, LH |
| 71812K | Cover, Reclining Adjuster, LH |
| 71812M | Cover, Reclining Adjuster, LH |
| 71812N | Cover, Reclining Adjuster, LH |
| 71812P | Cover, Reclining Adjuster, LH |
| 71812Q | Cover, Reclining Adjuster, LH |
| 71846B | Cap, Rear Seatback Board, NO.1 |
| 71861A | Shield, Rear Seat Cushion, Inner RH |
| 71861C | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861D | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861E | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861F | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861G | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861H | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861J | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71862C | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862E | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862F | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862G | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862H | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862J | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71867M | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867N | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867P | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867Q | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867R | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867S | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867T | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867U | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71868C | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868E | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868F | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868G | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868H | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868L | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71873D | Shield, Rear Seat Cushion, Lower RH |
| 71873E | Shield, Rear Seat Cushion, Lower RH |
| 71873F | Shield, Rear Seat Cushion, Lower RH |
| 71873G | Shield, Rear Seat Cushion, Lower RH |
| 71873H | Shield, Rear Seat Cushion, Lower RH |
| 71873J | Shield, Rear Seat Cushion, Lower RH |
| 71873K | Shield, Rear Seat Cushion, Lower RH |
| 71874M | Shield, Rear Seat Cushion, Lower LH |
| 71874N | Shield, Rear Seat Cushion, Lower LH |
| 71874P | Shield, Rear Seat Cushion, Lower LH |
| 71874Q | Shield, Rear Seat Cushion, Lower LH |
| 71874R | Shield, Rear Seat Cushion, Lower LH |
| 71874S | Shield, Rear Seat Cushion, Lower LH |
| 71874T | Shield, Rear Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71875C | Cover, Reclining Adjuster Inside, RH |
| 71875E | Cover, Reclining Adjuster Inside, RH |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71875J | Cover, Reclining Adjuster Inside, RH |
| 71875K | Cover, Reclining Adjuster Inside, RH |
| 71875V | Cover, Reclining Adjuster Inside, RH |
| 71875W | Cover, Reclining Adjuster Inside, RH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71876B | Cover, Reclining Adjuster Inside, LH |
| 71876C | Cover, Reclining Adjuster Inside, LH |
| 71876E | Cover, Reclining Adjuster Inside, LH |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71876J | Cover, Reclining Adjuster Inside, LH |
| 71876K | Cover, Reclining Adjuster Inside, LH |
| 71876Y | Cover, Reclining Adjuster Inside, LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72301 | Wire Sub-assy, Seat Track Equalizing |
| 72345A | Pipe, Reclining Connecting |
| 72379 | Belt, Seat Reclining Handle |
| 72501G | Arm Sub-assy, NO.1 Seat Reclining Adjuster, Upper NO.1 RH |
| 72501H | Arm Sub-assy, NO.2 Seat Reclining Adjuster, Upper NO.1 RH |
| 72501J | Arm Sub-assy, NO.3 Seat Reclining Adjuster, Upper NO.1 RH |
| 72501K | Arm Sub-assy, NO.4 Seat Reclining Adjuster, Upper NO.1 RH |
| 72501L | Arm Sub-assy, NO.5 Seat Reclining Adjuster, Upper NO.1 RH |
| 72501M | Arm Sub-assy, NO.6 Seat Reclining Adjuster, Upper NO.1 RH |
| 72501N | Arm Sub-assy, NO.7 Seat Reclining Adjuster, Upper NO.1 RH |
| 72501R | Arm Sub-assy, NO.2 Seat Reclining Adjuster, Upper NO.2 RH |
| 72501S | Arm Sub-assy, NO.3 Seat Reclining Adjuster, Upper NO.2 RH |
| 72501T | Arm Sub-assy, NO.4 Seat Reclining Adjuster, Upper NO.2 RH |
| 72501U | Arm Sub-assy, Reclining Adjuster, Upper RH |
| 72501V | Arm Sub-assy, NO.6 Seat Reclining Adjuster, Upper NO.2 RH |
| 72501W | Arm Sub-assy, NO.7 Seat Reclining Adjuster, Upper NO.2 RH |
| 72502B | Arm Sub-assy, NO.2 Seat Reclining Adjuster, Upper NO.1 LH |
| 72502C | Arm Sub-assy, NO.3 Seat Reclining Adjuster, Upper NO.1 LH |
| 72502D | Arm Sub-assy, NO.4 Seat Reclining Adjuster, Upper NO.1 LH |
| 72502E | Arm Sub-assy, NO.5 Seat Reclining Adjuster, Upper NO.1 LH |
| 72502F | Arm Sub-assy, NO.6 Seat Reclining Adjuster, Upper NO.1 LH |
| 72502G | Arm Sub-assy NO.7 Seat Reclining Adjuster, Upper NO.1 LH |
| 72502J | Arm Sub-assy NO.1 Seat Reclining Adjuster, Upper NO.2 LH |
| 72502K | Arm Sub-assy, NO.2 Seat Reclining Adjuster, Upper NO.2 LH |
| 72502L | Arm Sub-assy, NO.3 Seat Reclining Adjuster, Upper NO.2 LH |
| 72502M | Arm Sub-assy, NO.4 Seat Reclining Adjuster, Upper NO.2 LH |
| 72502N | Arm Sub-assy, NO.5 Seat Reclining Adjuster, Upper NO.2 LH |
| 72502P | Arm Sub-assy, NO.6 Seat Reclining Adjuster, Upper NO.2 LH |
| 72502Q | Arm Sub-assy, NO.7 Seat Reclining Adjuster, Upper NO.2 LH |
| 72507A | Handle Sub-assy, Reclining Release |
| 72508A | Shaft Sub-assy, NO.1 Reclining Adjusting, RH |
| 72508B | Shaft Sub-assy, NO.2 Seat Reclining Adjusting, RH |
| 72508C | Shaft Sub-assy, NO.3 Seat Reclining Adjusting, RH |
| 72508D | Shaft Sub-assy, NO.4 Seat Reclining Adjusting, RH |
| 72508E | Shaft Sub-assy, NO.5 Seat Reclining Adjusting, RH |
| 72508F | Shaft Sub-assy, NO.6 Seat Reclining Adjusting, RH |
| 72508G | Shaft Sub-assy, NO.7 Seat Reclining Adjusting, RH |
| 72508H | Shaft Sub-seat, NO.8 Seat Reclining Adjusting, RH |
| 72508J | Shaft Sub-seat, NO.1 Seat Reclining Adjusting, LH |
| 72508K | Shaft Sub-seat, NO.2 Seat Reclining Adjusting, LH |
| 72508L | Shaft Sub-seat, NO.3 Seat Reclining Adjusting, LH |
| 72508M | Shaft Sub-seat, NO.4 Seat Reclining Adjusting, LH |
| 72508N | Shaft Sub-seat, NO.5 Seat Reclining Adjusting, LH |
| 72508P | Shaft Sub-seat, NO.6 Seat Reclining Adjusting, LH |
| 72508Q | Shaft Sub-seat, NO.7 Seat Reclining Adjusting, LH |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72520 | Adjuster Assy, Reclining Seatback, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72665C | Cover, Rear Seat Lock, RH |
| 72666B | Cover, Rear Seat Lock, LH |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72791 | Lever, Lumbar Support |
| 72995A | Cover, Rear Seat |
| 73173G | Cover, Rear Seat Shoulder Belt, RH |
| 73175A | Cover, Rear Seat Shoulder Belt, LH |
| 73175B | Cover, Rear Seat Shoulder Belt, LH |
| 73175C | Cover, Rear Seat Shoulder Belt, LH |
| 73175D | Cover, Rear Seat Shoulder Belt, LH |
| 73175E | Cover, Rear Seat Shoulder Belt, LH |
| 73175F | Cover, Rear Seat Shoulder Belt, LH |
| 73175G | Cover, Rear Seat Shoulder Belt, LH |
| 73373D | Cover, Rear Seat Shoulder Belt Hole, RH |
| 73373F | Cover, Rear Seat Shoulder Belt Hole |
| 73373L | Cover, Rear Seat Shoulder Belt, RH |
| 73373M | Cover, Rear Seat Shoulder Belt, RH |
| 73373N | Cover, Rear Seat Shoulder Belt, RH |
| 73373P | Cover, Rear Seat Shoulder Belt, RH |
| 73373Q | Cover, Rear Seat Shoulder Belt, RH |
| 73373R | Cover, Rear Seat Shoulder Belt, RH |
| 73373S | Cover, Rear Seat Shoulder Belt, RH |
| 73373T | Cover, Rear Seat Shoulder Belt, RH |
| 73375B | Cover, Rear Seat Shoulder Belt Hole, LH |
| 73375G | Cover, Rear Seat Shoulder Belt, LH |
| 73375H | Cover, Rear Seat Shoulder Belt, LH |
| 73375J | Cover, Rear Seat Shoulder Belt, LH |
| 73375K | Cover, Rear Seat Shoulder Belt, LH |
| 73375L | Cover, Rear Seat Shoulder Belt, LH |
| 73375M | Cover, Rear Seat Shoulder Belt Hole |
| 78071 | Cover Sub-assy, Sub Seat Cushion, RH |
| 78071B | Cover Sub-assy, Sub Seat Cushion, RH NO.2 |
| 78071C | Cover Sub-assy, Sub Seat Cushion, RH NO.3 |
| 78071D | Cover Sub-assy, Sub Seat Cushion, RH NO.4 |
| 78071E | Cover Sub-assy, Sub Seat Cushion, RH NO.5 |
| 78071F | Cover Sub-assy, Sub Seat Cushion, RH NO.6 |
| 78071G | Cover Sub-assy, Sub Seat Cushion, RH NO.7 |
| 78072 | Cover Sub-assy, Sub Seat Cushion, LH |
| 78072A | Cover Sub-assy, Sub Seat Cushion, LH NO.2 |
| 78072B | Cover Sub-assy, Sub Seat Cushion, LH NO.3 |
| 78072C | Cover Sub-assy, Sub Seat Cushion, LH NO.4 |
| 78072D | Cover Sub-assy, Sub Seat Cushion, LH NO.5 |
| 78072E | Cover Sub-assy, Sub Seat Cushion, LH NO.6 |
| 78072F | Cover Sub-assy, Sub Seat Cushion, LH NO.7 |
| 78073 | Cover Sub-assy, Sub Seatback, RH |
| 78073A | Cover Sub-assy, Sub Seatback, RH NO.2 |
| 78073B | Cover Sub-assy, Sub Seatback, RH NO.3 |
| 78073C | Cover Sub-assy, Sub Seatback, RH NO.4 |
| 78073D | Cover Sub-assy, Sub Seatback, RH NO.5 |
| 78073E | Cover Sub-assy, Sub Seatback, RH NO.6 |
| 78073F | Cover Sub-assy, Sub Seatback, RH NO.7 |
| 78074 | Cover Sub-assy, Sub Seatback, LH |
| 78074A | Cover Sub-assy, Sub Seatback, LH NO.2 |
| 78074B | Cover Sub-assy, Sub Seatback, LH NO.3 |
| 78074C | Cover Sub-assy, Sub Seatback, LH NO.4 |
| 78074D | Cover Sub-assy, Sub Seatback, LH NO.5 |
| 78074E | Cover Sub-assy, Sub Seatback, LH NO.6 |
| 78074F | Cover Sub-assy, Sub Seatback, LH NO.7 |
| 78077B | Board Sub-assy, Sub Seat Cushion, RH |
| 78077D | Board Sub-assy, Sub Seat Cushion, RH NO.2 |
| 78077E | Board Sub-assy, Sub Seat Cushion, RH NO.3 |
| 78077F | Board Sub-assy, Sub Seat Cushion, RH NO.4 |
| 78077G | Board Sub-assy, Sub Seat Cushion, RH NO.5 |
| 78077H | Board Sub-assy, Sub Seat Cushion, RH NO.6 |
| 78077J | Board Sub-assy, Sub Seat Cushion, RH NO.7 |
| 78078 | Board Sub-assy, Sub Seat Cushion, LH |
| 78078B | Board Sub-assy, Sub Seat Cushion, LH NO.2 |
| 78078C | Board Sub-assy, Sub Seat Cushion, LH NO.3 |
| 78078D | Board Sub-assy, Sub Seat Cushion, LH NO.4 |
| 78078E | Board Sub-assy, Sub Seat Cushion, LH NO.5 |
| 78078F | Board Sub-assy, Sub Seat Cushion, LH NO.6 |
| 78078G | Board Sub-assy, Sub Seat Cushion, LH NO.7 |
| 78701 | Frame Sub-assy, Sub Seat Cushion, RH |
| 78701B | Frame Sub-assy, Sub Seat Cushion, RH NO.2 |
| 78701C | Frame Sub-assy, Sub Seat Cushion, RH NO.3 |
| 78701D | Frame Sub-assy, Sub Seat Cushion, RH NO.4 |
| 78701E | Frame Sub-assy, Sub Seat Cushion, RH NO.5 |
| 78701F | Frame Sub-assy, Sub Seat Cushion, RH NO.6 |
| 78701G | Frame Sub-assy, Sub Seat Cushion, RH NO.7 |
| 78702 | Frame Sub-assy, Sub Seat Cushion, LH |
| 78702A | Frame Sub-assy, Sub Seat Cushion, LH |
| 78702B | Frame Sub-assy, Sub Seat Cushion, LH NO.3 |
| 78702C | Frame Sub-assy, Sub Seat Cushion, LH NO.4 |
| 78702D | Frame Sub-assy, Sub Seat Cushion, LH NO.5 |
| 78702E | Frame Sub-assy, Sub Seat Cushion, LH NO.6 |
| 78702F | Frame Sub-assy, Sub Seat Cushion, LH NO.7 |
| 78703A | Frame Sub-assy, Sub Seatback, RH |
| 78703B | Frame Sub-assy, Sub Seatback, LH |
| 78703C | Frame Sub-assy, Sub Seatback, RH NO.2 |
| 78703D | Frame Sub-assy, Sub Seatback, RH NO.3 |
| 78703E | Frame Sub-assy, Sub Seatback, RH NO.4 |
| 78703F | Frame Sub-assy, Sub Seatback, RH NO.5 |
| 78703G | Frame Sub-assy, Sub Seatback, RH NO.6 |
| 78703H | Frame Sub-assy, Sub Seatback, RH NO.7 |
| 78703J | Frame Sub-assy, Sub Seatback, LH NO.2 |
| 78703K | Frame Sub-assy, Sub Seatback, LH NO.3 |
| 78703L | Frame Sub-assy, Sub Seatback, LH NO.4 |
| 78703M | Frame Sub-assy, Sub Seatback, LH NO.5 |
| 78703N | Frame Sub-assy, Sub Seatback, LH NO.6 |
| 78703P | Frame Sub-assy, Sub Seatback, LH NO.7 |
| 78705 | Bracket Sub-assy, Sub Seat Cushion |
| 78705A | Bracket Sub-assy, Sub Seat Cushion NO.2 |
| 78705B | Bracket Sub-assy, Sub Seat Cushion NO.3 |
| 78705C | Bracket Sub-assy, Sub Seat Cushion NO.4 |
| 78705D | Bracket Sub-assy, Sub Seat Cushion NO.5 |
| 78705E | Bracket Sub-assy, Sub Seat Cushion NO.6 |
| 78705F | Bracket Sub-assy, Sub Seat Cushion NO.7 |
| 78707 | Frame Sub-assy, Sub Seatback, Lower RH |
| 78708 | Frame Sub-assy, Sub Seatback, Lower LH |
| 78715 | Panel, Sub Seat Cushion |
| 78715B | Panel, Sub Seat Cushion NO.2 |
| 78715C | Panel, Sub Seat Cushion NO.3 |
| 78715D | Panel, Sub Seat Cushion NO.4 |
| 78715E | Panel, Sub Seat Cushion NO.5 |
| 78715F | Panel, Sub Seat Cushion NO.6 |
| 78715G | Panel, Sub Seat Cushion NO.7 |
| 78720 | Cushion Assy, Sub Seat, RH |
| 78726 | Cushion, Sub Seat Cushion Frame |
| 78726A | Cushion, Sub Seat Cushion Frame, NO.2 |
| 78726B | Cushion, Sub Seat Cushion Frame, NO.3 |
| 78726C | Cushion, Sub Seat Cushion Frame, NO.4 |
| 78726D | Cushion, Sub Seat Cushion Frame, NO.5 |
| 78726E | Cushion, Sub Seat Cushion Frame, NO.6 |
| 78726F | Cushion, Sub Seat Cushion Frame, NO.7 |
| 78730 | Cushion Assy, Sub Seat, LH |
| 78735A | Pad, Sub Seat Cushion, RH |
| 78735B | Pad, Sub Seat Cushion, LH |
| 78735E | Pad, Sub Seat Cushion, RH NO.2 |
| 78735F | Pad, Sub Seat Cushion, RH NO.3 |
| 78735G | Pad, Sub Seat Cushion, RH NO.4 |
| 78735H | Pad, Sub Seat Cushion, RH NO.5 |
| 78735J | Pad, Sub Seat Cushion, RH NO.6 |
| 78735K | Pad, Sub Seat Cushion, RH NO.7 |
| 78735L | Pad, Sub Seat Cushion, LH NO.2 |
| 78735M | Pad, Sub Seat Cushion, LH NO.3 |
| 78735N | Pad, Sub Seat Cushion, LH NO.4 |
| 78735P | Pad, Sub Seat Cushion, LH NO.5 |
| 78735R | Pad, Sub Seat Cushion, LH NO.6 |
| 78735S | Pad, Sub Seat Cushion, LH NO.7 |
| 78740A | Back Assy, Sub Seat, RH |
| 78750A | Back Assy, Sub Seat, LH |
| 78773 | Cover, Sub Seat Hinge, RH |
| 78773A | Hoop, Sub Seatback Guide |
| 78775A | Pad, Sub Seatback, RH |
| 78775B | Pad, Sub Seatback, LH |
| 78775E | Pad, Sub Seatback, RH NO.2 |
| 78775F | Pad, Sub Seatback, RH NO.3 |
| 78775G | Pad, Sub Seatback, RH NO.4 |
| 78775H | Pad, Sub Seatback, RH NO.5 |
| 78775J | Pad, Sub Seatback, RH NO.6 |
| 78775K | Pad, Sub Seatback, RH NO.7 |
| 78775L | Pad, Sub Seatback, LH NO.2 |
| 78775M | Pad, Sub Seatback, LH NO.3 |
| 78775N | Pad, Sub Seatback, LH NO.4 |
| 78775P | Pad, Sub Seatback, LH NO.5 |
| 78775R | Pad, Sub Seatback, LH NO.6 |
| 78775S | Pad, Sub Seatback, LH NO.7 |
| 78798 | Spacer, Sub Seatback Frame |
| 78903 | Striker Sub-assy, Fold Seat Leg Lock |
| 78904 | Striker Sub-assy, Fold Seat Lock, NO.2 |
| 78910 | Cable Assy, Fold Seat Lock Control, NO.1 |
| 78910A | Lock Assy, Fold Seat, RH |
| 78920A | Lock Assy, Fold Seat, LH |
| 78930 | Cable Assy, Fold Seat Lock Control, NO.3 |
| 78950 | Band Assy, Fold Seat Stopper, NO.1 |
| 78960 | Band Assy, Fold Seat Stopper, NO.2 |
| 78970 | Band Assy, Seat Lock |
| 79011 | Cover Sub-assy, NO.1 Seat Cushion, RH |
| 79012 | Cover Sub-assy, NO.1 Seat Cushion, LH |
| 79013 | Cover Sub-assy, NO.1 Seatback, RH |
| 79014 | Cover Sub-assy, NO.1 Seatback, LH |
| 79015A | Pad Sub-assy, NO.1 Seat Cushion, RH |
| 79016A | Pad Sub-assy, NO.1 Seat Cushion, LH |
| 79017A | Pad Sub-assy, NO.1 Seatback, RH |
| 79018A | Pad Sub-assy, NO.1 Seatback, LH |
| 79021 | Cover Sub-assy, NO.2 Seat Cushion, RH |
| 79022 | Cover Sub-assy, NO.2 Seat Cushion, LH |
| 79023 | Cover Sub-assy, NO.2 Seatback, RH |
| 79024 | Cover Sub-assy, NO.2 Seatback, LH |
| 79025A | Pad Sub-assy, NO.2 Seat Cushion, RH |
| 79026 | Pad Sub-assy, NO.2 Seat Cushion, LH |
| 79026A | Pad Sub-assy, NO.2 Seat Cushion, LH |
| 79027A | Pad Sub-assy, NO.2 Seatback, RH |
| 79028A | Pad Sub-assy, NO.2 Seatback, LH |
| 79031 | Cover Sub-assy, NO.3 Seat Cushion, RH |
| 79032 | Cover Sub-assy, NO.3 Seat Cushion, LH |
| 79033 | Cover Sub-assy, NO.3 Seatback, RH |
| 79034 | Cover Sub-assy, NO.3 Seatback, LH |
| 79035A | Pad Sub-assy, NO.3 Seat Cushion, RH |
| 79036A | Pad, Sub-assy, NO.3 Seat Cushion, LH |
| 79037A | Pad Sub-assy, NO.3 Seatback, RH |
| 79038A | Pad Sub-assy, NO.3 Seatback, LH |
| 79041 | Cover Sub-assy, NO.4 Seat Cushion, RH |
| 79042 | Cover Sub-assy, NO.4 Seat Cushion, LH |
| 79043 | Cover Sub-assy, NO.4 Seatback, RH |
| 79044 | Cover Sub-assy, NO.4 Seatback, LH |
| 79045A | Pad Sub-assy, NO.4 Seat Cushion, RH |
| 79046A | Pad Sub-assy, NO.4 Seat Cushion, LH |
| 79047A | Pad Sub-assy, NO.4 Seatback, RH |
| 79048A | Pad Sub-assy, NO.4 Seatback, LH |
| 79051 | Cover Sub-assy, NO.5 Seat Cushion, RH |
| 79052 | Cover Sub-assy, NO.5 Seat Cushion, LH |
| 79053 | Cover Sub-assy, NO.5 Seatback, RH |
| 79054 | Cover Sub-assy, NO.5 Seatback, LH |
| 79055A | Pad Sub-assy, NO.5 Seat Cushion, RH |
| 79056A | Pad Sub-assy, NO.5 Seat Cushion, LH |
| 79057A | Pad Sub-assy, NO.5 Seatback, RH |
| 79058A | Pad Sub-assy, NO.5 Seatback, LH |
| 79061 | Cover Sub-assy, NO.6 Seat Cushion, RH |
| 79062 | Cover Sub-assy, NO.6 Seat Cushion, LH |
| 79063 | Cover Sub-assy, NO.6 Seatback, RH |
| 79064 | Cover Sub-assy, NO.6 Seatback, LH |
| 79065A | Pad Sub-assy, NO.6 Seat Cushion, RH |
| 79066A | Pad Sub-assy, NO.6 Seat Cushion, LH |
| 79067A | Pad Sub-assy, NO.6 Seatback, RH |
| 79068A | Pad Sub-assy, NO.6 Seatback, LH |
| 79071 | Cover Sub-assy, NO.7 Seat Cushion, RH |
| 79072 | Cover Sub-assy, NO.7 Seat Cushion, LH |
| 79073 | Cover Sub-assy, NO.7 Seatback, RH |
| 79074 | Cover Sub-assy, NO.7 Seatback, LH |
| 79075A | Pad Sub-assy, NO.7 Seat Cushion, RH |
| 79076 | Pad Sub-assy, NO.7 Seat Cushion, LH |
| 79077A | Pad Sub-assy, NO.7 Seatback, RH |
| 79078A | Pad Sub-assy, NO.7 Seatback, LH |
| 79081 | Cover Sub-assy, NO.8 Seat Cushion, RH |
| 79081A | Cover Sub-assy, NO.8 Seat Cushion |
| 79082 | Cover Sub-assy, NO.8 Seat Cushion, LH |
| 79083 | Cover Sub-assy, NO.8 Seatback, RH |
| 79084 | Cover Sub-assy, NO.8 Seatback, LH |
| 79085 | Pad Sub-assy, NO.8 Seat Cushion |
| 79085B | Pad Sub-assy, NO.8 Seat Cushion, RH |
| 79086B | Pad Sub-assy, NO.8 Seat Cushion, LH |
| 79087B | Pad Sub-assy, NO.8 Seatback, RH |
| 79088B | Pad Sub-assy, NO.8 Seatback, LH |
| 79094 | Stay Sub-assy, Seat Leg, NO.2 |
| 79097 | Partition Sub-assy, Luggage Compartment Wall |
| 79101B | Frame Sub-assy, NO.1 Seat Cushion, RH |
| 79102 | Frame Sub-assy, NO.1 Seat Cushion, LH |
| 79103A | Frame Sub-assy, NO.1 Seatback, RH |
| 79104 | Frame Sub-assy, NO.1 Seatback, LH |
| 79105 | Leg Sub-assy, NO.1 Seat, RH |
| 79106 | Leg Sub Assy, NO.1 Seat, LH |
| 79107G | Leg Sub-assy, NO.6 Seat, Rear |
| 79107J | Leg Sub-assy, NO.7 Seat, Rear |
| 79108A | Leg Sub-assy, NO.6 Seat, Rear |
| 79108B | Leg Sub-assy, NO.7 Seat, Rear |
| 79109 | Board Sub-assy, NO.1 Seatback |
| 79109C | Board Sub-assy, NO.1 Seatback, LH |
| 79115 | Plate, NO.1 Seat Cushion Hinge, NO.1 RH |
| 79115A | Plate, NO.1 Seat Cushion Hinge, NO.2 RH |
| 79119 | Bracket, NO.1 Seat Leg, NO.2 |
| 79120 | Cushion Assy, NO.1 Seat, RH |
| 79125 | Plate, NO.1 Seat Cushion Hinge, NO.1 LH |
| 79125A | Plate, NO.1 Seat Cushion Hinge, NO.2 LH |
| 79130 | Cushion Assy, NO.1 Seat, LH |
| 79140 | Back Assy, NO.1 Seat, RH |
| 79150 | Back Assy, NO.1 Seat, LH |
| 79179 | Pad, NO.1 Seatback Headrest |
| 79179B | Pad, NO.1 Seatback Headrest, LH |
| 79180A | Spring Assy, NO.1 Seatback, RH |
| 79190A | Spring Assy, NO.1 Seatback, LH |
| 79201B | Frame Sub-assy, NO.2 Seat Cushion, RH |
| 79202 | Frame Sub-assy, NO.2 Seat Cushion, LH |
| 79203A | Frame Sub-assy, NO.2 Seatback, RH |
| 79204A | Frame Sub-assy, NO.2 Seatback, LH |
| 79205B | Leg Sub-assy, NO.2 Seat, RH |
| 79206B | Leg Sub-assy, NO.2 Seat, LH |
| 79209 | Board Sub-assy, NO.2 Seatback |
| 79209B | Board Sub-assy, NO.2 Seatback, LH |
| 79215A | Plate, NO.2 Seat Cushion Hinge, NO.1 RH |
| 79215B | Plate, NO.1 Seat Cushion Hinge, RH |
| 79220 | Cushion Assy, NO.2 Seat, RH |
| 79225A | Plate, NO.2 Seat Cushion Hinge, NO.2 LH |
| 79230 | Cushion Assy, NO.2 Seat, LH |
| 79236A | Cover, NO.2 Seat Leg |
| 79240 | Back Assy, NO.2 Seat, RH |
| 79246A | Cover, NO.2 Seat Leg, NO.2 |
| 79250 | Back Assy, NO.2 Seat, LH |
| 79266 | Cover, NO.3 Seat Leg, NO.1 |
| 79279 | Pad, NO.2 Seatback Headrest |
| 79279A | Pad, NO.1 Seatback Headrest, LH |
| 79280A | Spring Assy, NO.2 Seatback, RH |
| 79290A | Spring Assy, NO.2 Seatback, LH |
| 79301B | Frame Sub-assy, NO.3 Seat Cushion, RH |
| 79302 | Frame Sub-assy, NO.3 Seat Cushion, LH |
| 79303A | Frame Sub-assy, NO.3 Seatback, RH |
| 79304A | Frame Sub-assy, NO.3 Seatback, LH |
| 79305A | Leg Sub-assy, NO.3 Seat, RH |
| 79306 | Leg Sub Assy, NO.3 Seat, LH |
| 79309 | Board Sub-assy, NO.3 Seatback |
| 79309D | Board Sub-assy, NO.3 Seatback, LH |
| 79320 | Cushion Assy, NO.3 Seat, RH |
| 79330 | Cushion Assy, NO.3 Seat, LH |
| 79336A | Cover, NO.3 Seat Leg, RH |
| 79340 | Back Assy, NO.3 Seat, RH |
| 79350 | Back Assy, NO.3 Seat, LH |
| 79366 | Cover, NO.3 Seat Leg, NO.1 |
| 79379 | Pad, NO.3 Seatback Headrest |
| 79379A | Pad, NO.3 Seatback Headrest, LH |
| 79380A | Spring Assy, NO.3 Seatback, RH |
| 79390A | Spring Assy, NO.3 Seatback, LH |
| 79401 | Frame Sub-assy, NO.4 Seat Cushion, RH |
| 79402 | Frame Sub-assy, NO.4 Seat Cushion, LH |
| 79403A | Frame Sub-assy, NO.4 Seatback, RH |
| 79404 | Frame Sub-assy, NO.4 Seatback, LH |
| 79405A | Leg Sub-assy, NO.4 Seat, RH |
| 79406A | Leg Sub-assy, NO.4 Seat, LH |
| 79409 | Board Sub-assy, NO.4 Seatback |
| 79409B | Board Sub-assy, NO.4 Seatback, LH |
| 79415A | Plate, NO.4 Seat Cushion Hinge, NO.1 RH |
| 79415B | Plate, NO.4 Seat Cushion Hinge, NO.2 RH |
| 79415C | Plate, NO.1 Seat Cushion Hinge, RH |
| 79420 | Cushion Assy, NO.4 Seat, RH |
| 79425 | Plate, NO.4 Seat Cushion Hinge, NO.1 LH |
| 79425A | Plate, NO.4 Seat Cushion Hinge, NO.2 LH |
| 79430 | Cushion Assy, NO.4 Seat, LH |
| 79436A | Cover, NO.4 Seat Leg, LH |
| 79440 | Back Assy, NO.4 Seat, RH |
| 79450 | Back Assy, NO.4 Seat, LH |
| 79466 | Cover, NO.4 Seat Leg, NO.1 |
| 79479 | Pad, NO.4 Seatback Headrest, RH |
| 79479A | Pad, NO.4 Seatback Headrest, LH |
| 79480A | Spring Assy, NO.4 Seatback, RH |
| 79490A | Spring Assy, NO.4 Seatback, LH |
| 79501 | Frame Sub-assy, NO.5 Seat Cushion, RH |
| 79502 | Frame Sub-assy, NO.5 Seat Cushion, LH |
| 79503 | Frame Sub-assy, NO.5 Seatback, RH |
| 79504 | Frame Sub-assy, NO.5 Seatback, LH |
| 79505 | Leg Sub-assy, NO.5 Seat, RH |
| 79506 | Leg Sub-assy, NO.5 Seat, LH |
| 79509 | Board Sub-assy, NO.5 Seatback, RH |
| 79509A | Board Sub-assy, NO.5 Seatback, LH |
| 79515A | Plate, NO.5 Seat Cushion Hinge, NO.1 RH |
| 79515B | Plate, NO.5 Seat Cushion Hinge, NO.2 RH |
| 79520 | Cushion Assy, NO.5 Seat, RH |
| 79525 | Plate, NO.5 Seat Cushion Hinge, NO.1 LH |
| 79525A | Plate, NO.5 Seat Cushion Hinge, NO.2 LH |
| 79530 | Cushion Assy, NO.5 Seat, LH |
| 79540 | Back Assy, NO.5 Seat, RH |
| 79550 | Back Assy, NO.5 Seat, LH |
| 79579 | Pad, NO.5 Seatback Headrest, RH |
| 79579A | Pad, NO.5 Seatback Headrest, LH |
| 79580A | Spring Assy, NO.5 Seatback, RH |
| 79590A | Spring Assy, NO.5 Seatback, LH |
| 79601 | Frame Sub-assy, NO.6 Seat Cushion, RH |
| 79602 | Frame Sub-assy, NO.6 Seat Cushion, LH |
| 79603 | Frame Sub-assy, NO.6 Seatback, RH |
| 79604 | Frame Sub-assy, NO.6 Seatback, LH |
| 79605 | Leg Sub-assy, NO.6 Seat, RH |
| 79606 | Leg Sub-assy, NO.6 Seat, LH |
| 79609 | Board Sub-assy, NO.6 Seatback, RH |
| 79609A | Board Sub-assy, NO.6 Seatback, LH |
| 79615 | Plate, NO.6 Seat Cushion Hinge, NO.1 RH |
| 79615A | Plate, NO.6 Seat Cushion Hinge, NO.2 RH |
| 79620 | Cushion Assy, NO.6 Seat, RH |
| 79625 | Plate, NO.6 Seat Cushion Hinge, NO.1 LH |
| 79625A | Plate, NO.6 Seat Cushion Hinge, NO.2 LH |
| 79630 | Cushion Assy, NO.6 Seat, LH |
| 79636 | Cover, NO.6 Seat Leg, RH |
| 79636A | Cover, NO.6 Seat Leg, LH |
| 79640 | Back Assy, NO.6 Seat, RH |
| 79650 | Back Assy, NO.6 Seat, LH |
| 79679 | Pad, NO.6 Seatback Headrest, RH |
| 79679A | Pad, NO.6 Seatback Headrest, LH |
| 79680B | Spring Assy, NO.6 Seatback, RH |
| 79690A | Spring Assy, NO.6 Seatback, LH |
| 79701 | Frame Sub-assy, NO.7 Seat Cushion, RH |
| 79702 | Frame Sub-assy, NO.7 Seat Cushion, LH |
| 79703 | Frame Sub-assy, NO.7 Seatback, RH |
| 79704 | Frame Sub-assy, NO.7 Seatback, LH |
| 79705 | Leg Sub-assy, NO.7 Seat, RH |
| 79706 | Leg Sub-assy, NO.7 Seat, LH |
| 79709 | Board Sub-assy, NO.7 Seatback, RH |
| 79709A | Board Sub-assy, NO.7 Seatback, LH |
| 79715 | Plate, NO.7 Seat Cushion Hinge, NO.1 RH |
| 79715A | Plate, NO.7 Seat Cushion Hinge, NO.2 RH |
| 79720 | Cushion Assy, NO.7 Seat, RH |
| 79725 | Plate, NO.7 Seat Cushion Hinge, NO.1 LH |
| 79725A | Plate, NO.7 Seat Cushion Hinge, NO.2 LH |
| 79730 | Cushion Assy, NO.7 Seat, LH |
| 79736C | Cover, NO.7 Seat Leg, RH |
| 79736D | Cover, NO.7 Seat Leg, LH |
| 79740 | Back Assy, NO.7 Seat, RH |
| 79750 | Back Assy, NO.7 Seat, LH |
| 79766 | Cover, NO.7 Seat Leg, NO.1 |
| 79779 | Pad, NO.7 Seatback Headrest, RH |
| 79779A | Pad, NO.7 Seatback Headrest, LH |
| 79780A | Spring Assy, NO.7 Seatback, RH |
| 79790A | Spring Assy, NO.7 Seatback, LH |
| 79801 | Frame Sub-assy, NO.8 Seat Cushion, RH |
| 79802 | Frame Sub-assy, NO.8 Seat Cushion, LH |
| 79803 | Frame Sub-assy, NO.8 Seatback, RH |
| 79804 | Frame Sub-assy, NO.8 Seatback, LH |
| 79805 | Leg Sub-assy, NO.8 Seat, RH |
| 79805A | Leg Sub-assy, Fold Seat, Front |
| 79806A | Leg Sub-assy, NO.8 Seat, LH |
| 79806B | Leg Sub Assy, Fold Seat Rear |
| 79820 | Cushion Assy, NO.8 Seat, RH |
| 79820A | Cushion Assy, NO.8 Seat |
| 79825 | Plate, NO.8 Seat Cushion Hinge, LH |
| 79830 | Cushion Assy, NO.8 Seat, LH |
| 79840 | Back Assy, NO.8 Seat, RH |
| 79850 | Back Assy, NO.8 Seat, LH |
| 79860 | Spring Assy, NO.8 Seat Cushion |
| 79879A | Pad, NO.8 Seatback Headrest, RH |
| 79879B | Pad, NO.8 Seatback Headrest, LH |
| 79880B | Spring Assy, NO.8 Seatback, RH |
| 79885 | Hinge, Fold Seatback Set, RH |
| 79886 | Hinge, Fold Seatback Set, LH |
| 79890B | Spring Assy, NO.8 Seatback, LH |
| 79915 | Bracket, Seat Leg |
| 79916 | Bracket, Seat Leg, NO.2 |
| 79916A | Bracket, Seat Leg, NO.2 |
| 79956S | Cover, Rear Seat Leg Side |
| 79959A | Cover, Rear Seat Leg, RH |
| 79959B | Cover, Rear Seat Leg, LH |
| 79967 | Cover, Rear Seat Leg Side, NO.4 |
| 79967B | Cover, Rear Seat Leg Side NO.2 |
| 79967C | Cover, Rear Seat Leg Side, NO.4 |
| 79967D | Cover, Rear Seat Leg Side, NO.4 |
| 79967E | Cover, Rear Seat Leg Side, NO.4 |
| 79967F | Cover, Rear Seat Leg Side, NO.4 |
| 79967G | Cover, Rear Seat Leg Side, NO.4 |
| 79967H | Cover, Rear Seat Leg Side, NO.4 |
| 79967K | Cover, Rear Seat Leg Side, NO.4 |
| 79967L | Cover, Rear Seat Leg Side, NO.4 |
| 79967M | Cover, Rear Seat Leg Side, NO.4 |
| 79967N | Cover, Rear Seat Leg Side, NO.4 |
| 79967P | Cover, Rear Seat Leg Side, NO.4 |
| 79967Q | Cover, Rear Seat Leg Side, NO.4 |
| 79967R | Cover, Rear Seat Leg Side, NO.4 |
| 79968 | Cover, Rear Seat Leg Side, NO.5 |
| 79968A | Cover, Rear Seat Leg Side, NO.5 |
| 79968F | Cover, Rear Seat Leg Side, NO.5 |
| 79968G | Cover, Rear Seat Leg Side, NO.5 |
| 79968H | Cover, Rear Seat Leg Side, NO.5 |
| 79968J | Cover, Rear Seat Leg Side, NO.5 |
| 79968K | Cover, Rear Seat Leg Side, NO.5 |
| 79968M | Cover, Rear Seat Leg Side, NO.5 |
| 79968N | Cover, Rear Seat Leg Side, NO.5 |
| 79968P | Cover, Rear Seat Leg Side, NO.5 |
| 79968Q | Cover, Rear Seat Leg Side, NO.5 |
| 79968R | Cover, Rear Seat Leg Side, NO.5 |
| 79968S | Cover, Rear Seat Leg Side, NO.5 |
| 79968T | Cover, Rear Seat Leg Side, NO.5 |
| 79974 | Bracket, Seatback Assist, RH |
| 79984 | Bracket, Seatback Assist, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
