Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

52 part groups · 10 illustrations

Illustrations

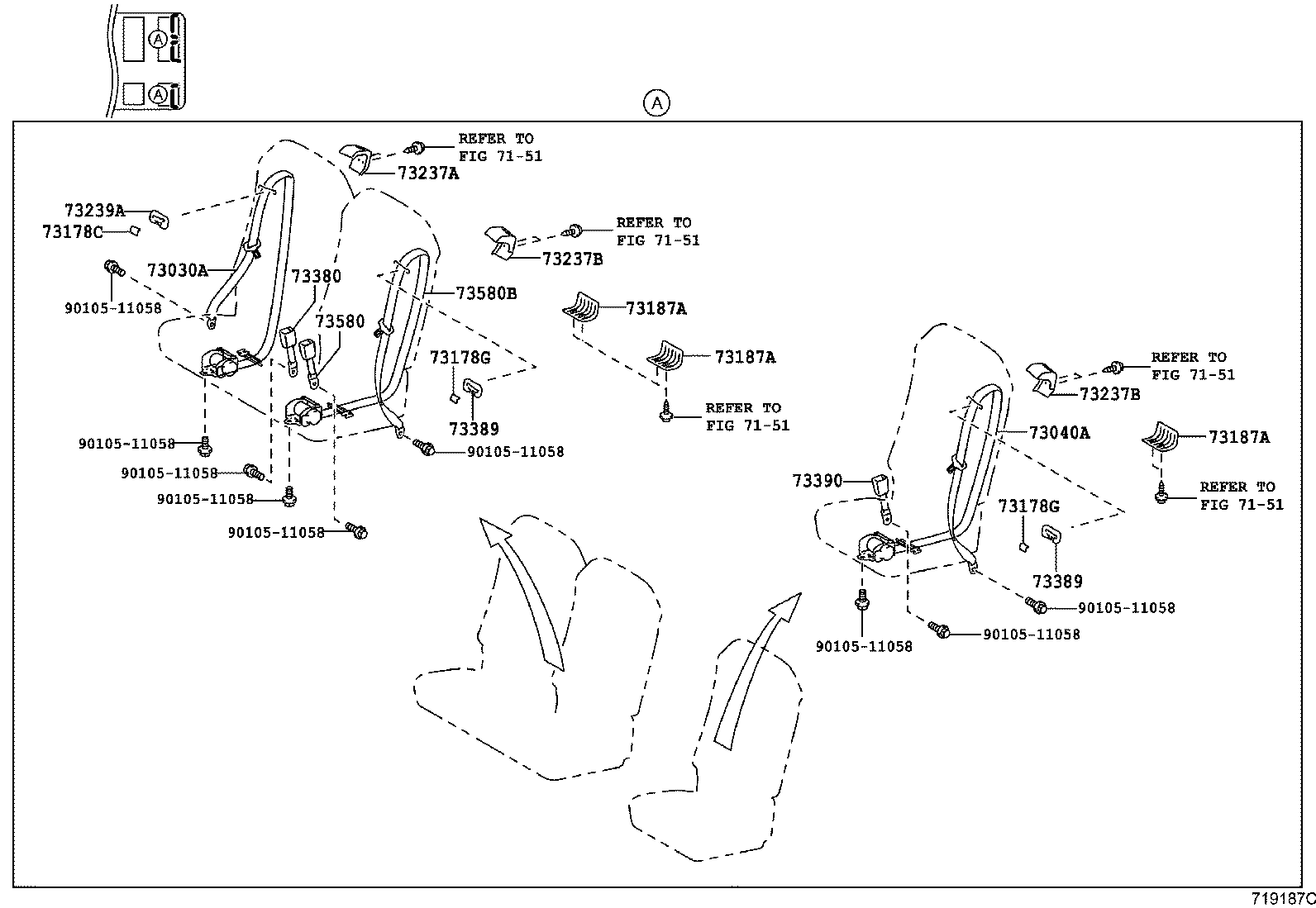

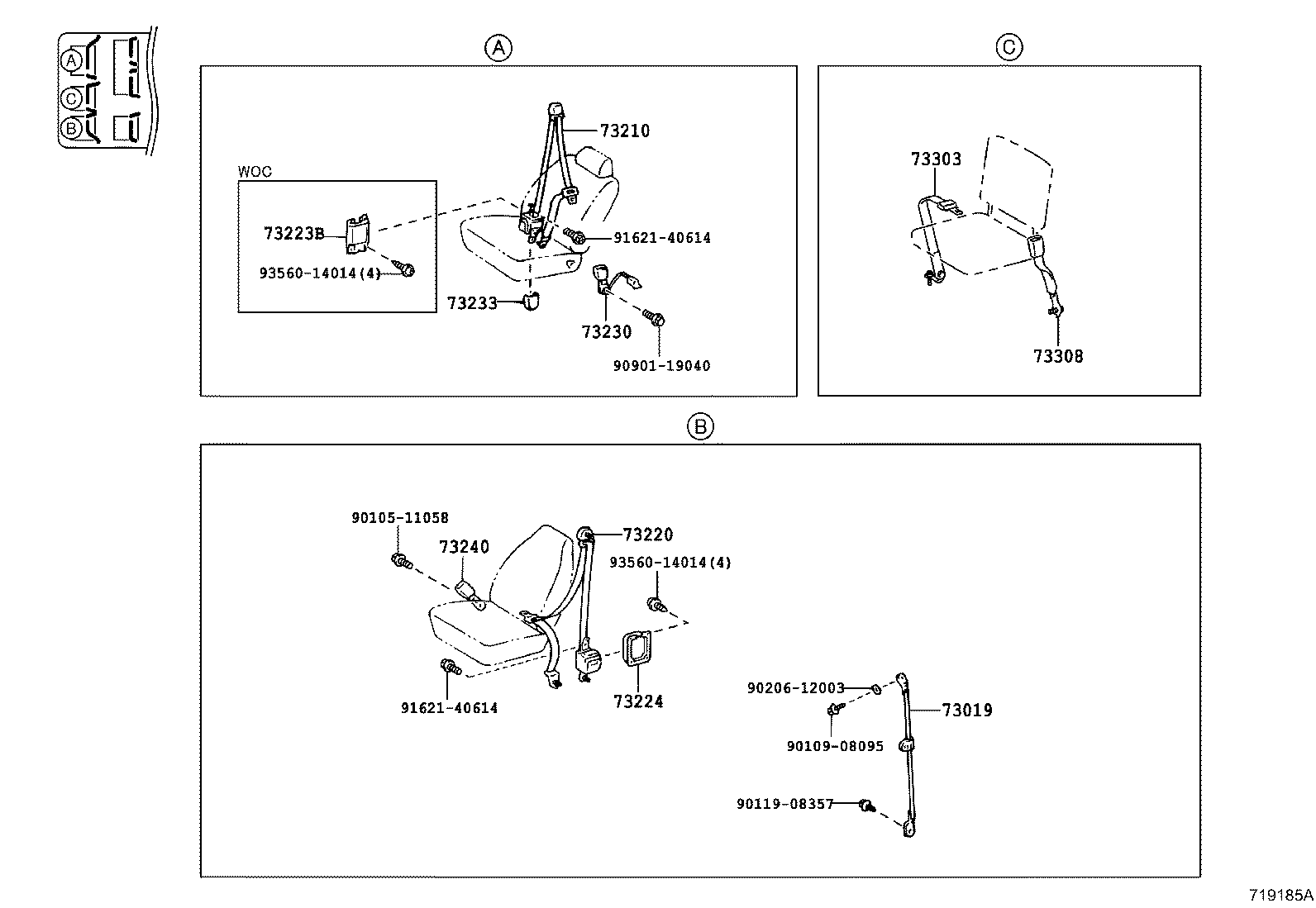

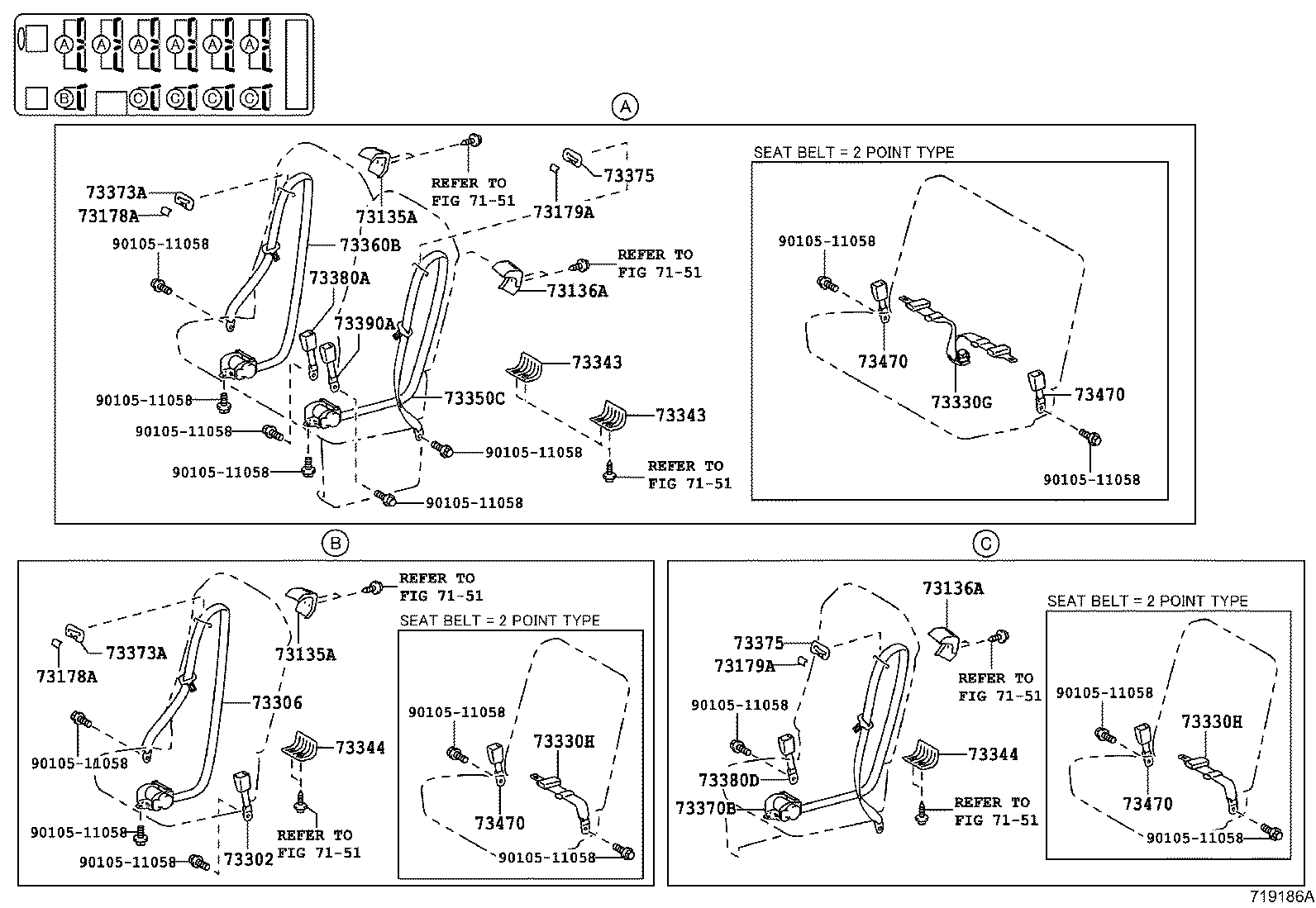

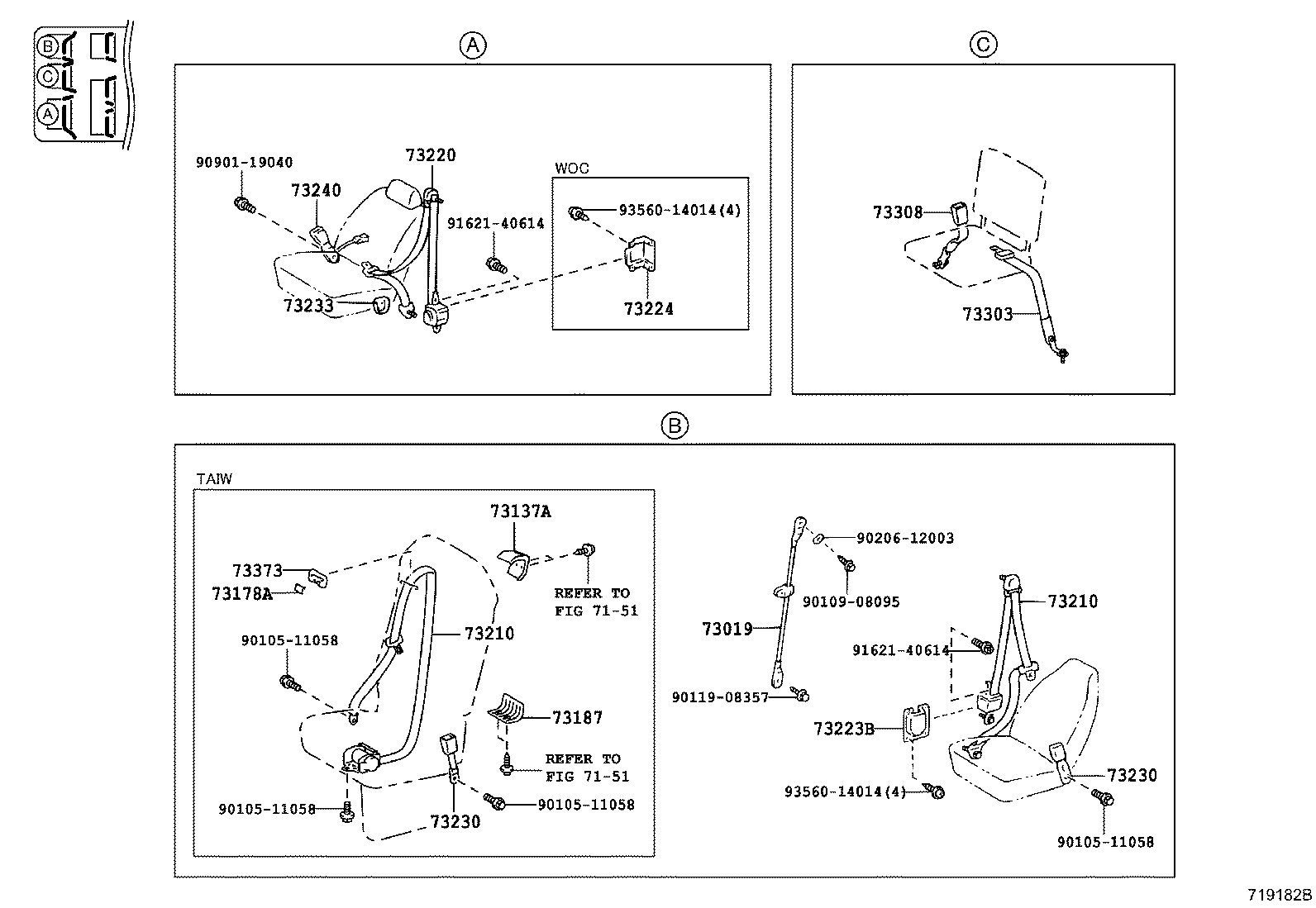

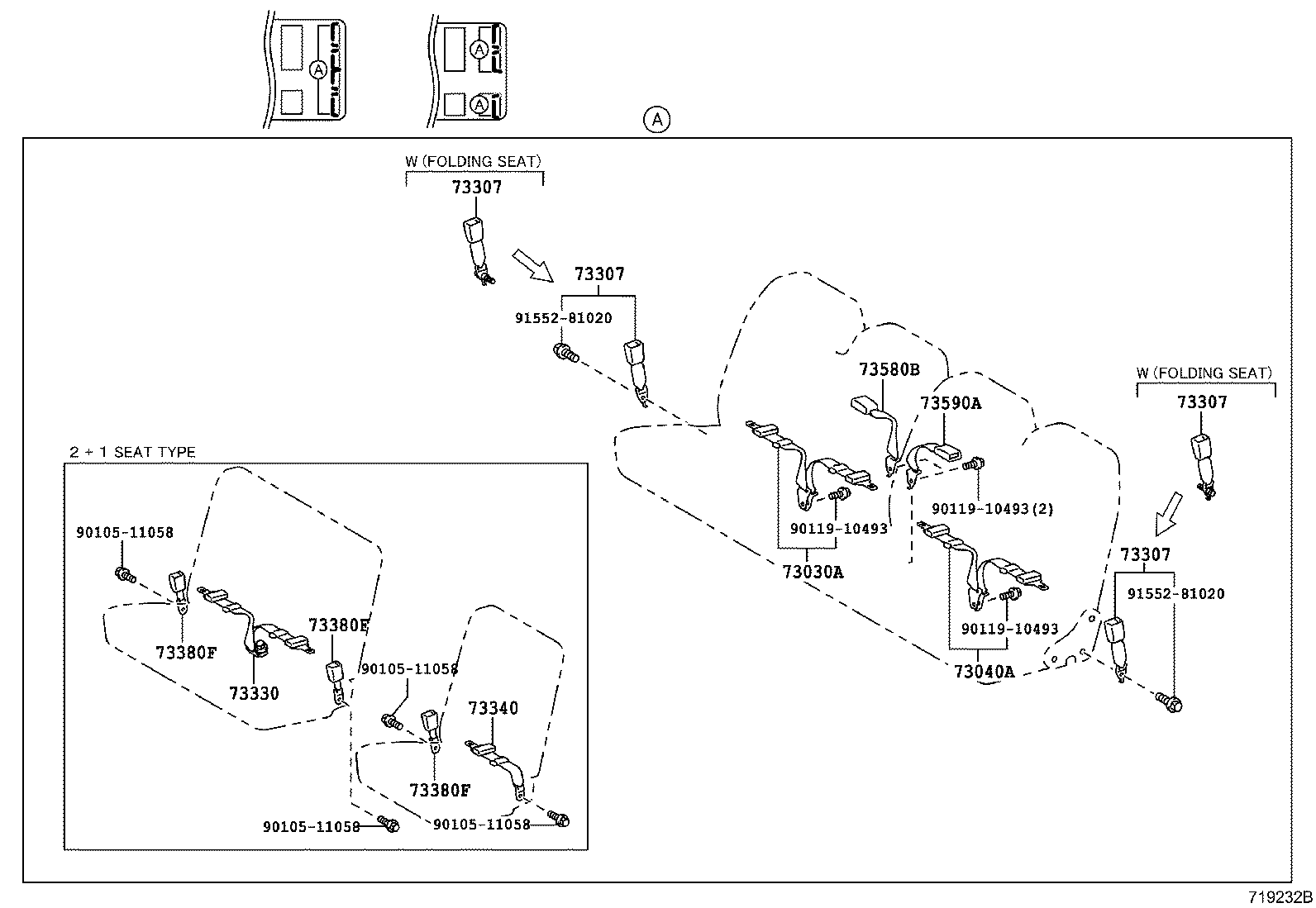

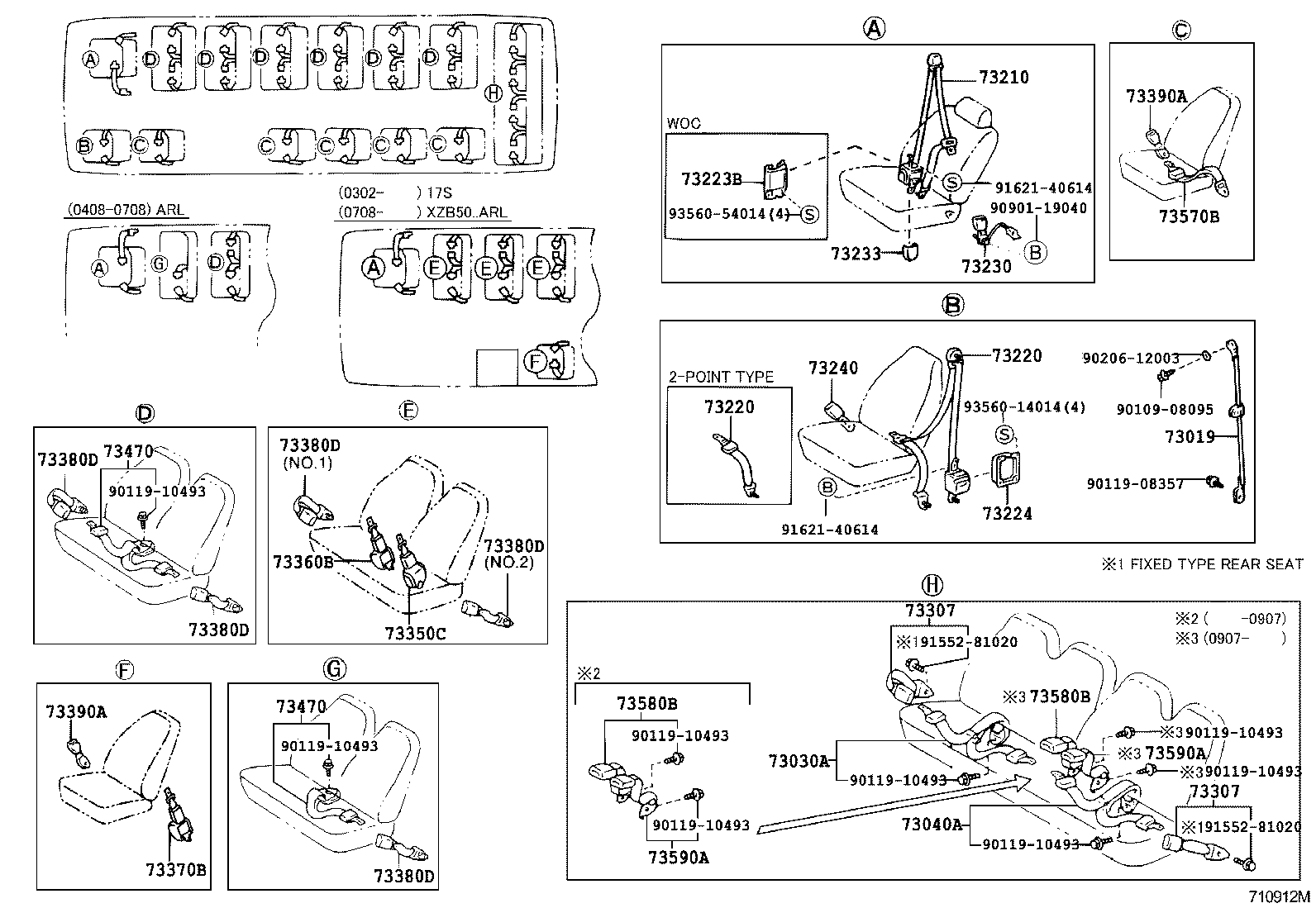

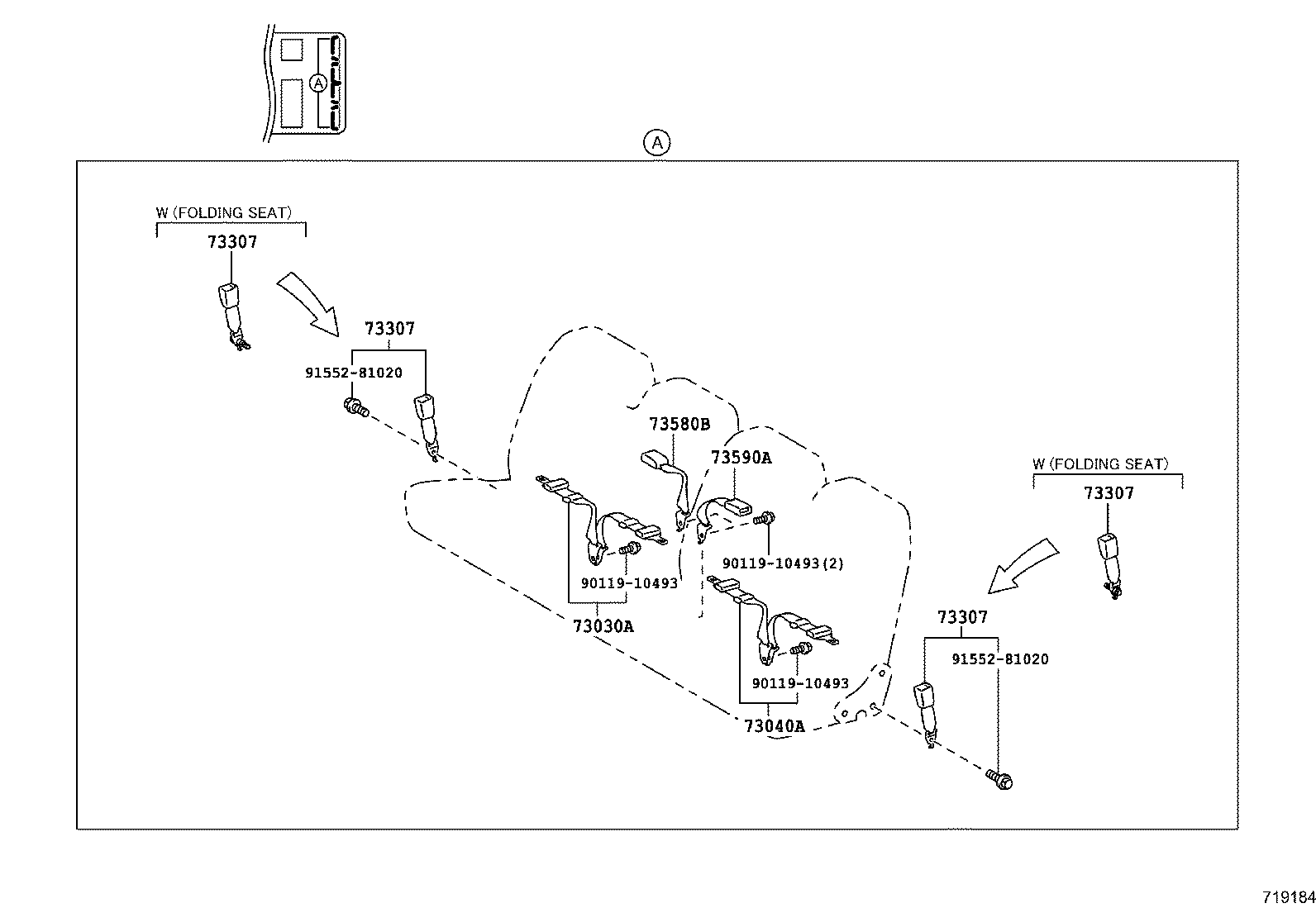

Figure 710913H 710913H 1993-01 → 2015-01 Figure 710912M 710912M 1993-01 → 2015-01 Figure 719182B 719182B 2015-01 → — Figure 719183 719183 2015-01 → — Figure 719184 719184 2015-01 → — Figure 719185A 719185A 2015-01 → — Figure 719186A 719186A 2015-01 → — Figure 719232B 719232B 2015-01 → — Figure 719187C 719187C 2015-01 → — Figure 717865 717865 2004-08 → —

Part groups

PNCDescription
73019 Shaft Sub-assy, Seat Belt
73030A Belt Assy, Rear Seat Lap Type, RH
73040A Belt Assy, Rear Seat Lap Type, LH
73135A Cover, Shoulder Belt Anchor, RH
73136A Cover, Shoulder Belt Anchor, LH
73137A Cover, Shoulder Belt Anchor, Upr
73178A Cap, Seat Belt Anchor Cover
73178C Cap, Seat Belt Anchor Cover
73178G Cap, Seat Belt Anchor Cover
73179A Cap, Seat Belt Anchor Cover, LH
73187 Guide, Front Seat Shoulder Belt
73187A Guide, Rear Seat Shoulder Belt
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223B Cover, Front Seat Belt Retractor, RH
73224 Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73237A Cover, Shoulder Belt Anchor
73237B Cover, Shoulder Belt Anchor
73239A Cover, Rear Seat Shoulder Belt, RH
73240 Belt Assy, Front Seat Inner, LH
73302 Belt Sub-assy, Rear Seat Outer
73303 Belt Sub-assy, Sub Seat, Outer
73306 Belt Sub-assy Seat, Inner
73307 Belt Sub-assy, Rear Seat, Inner
73308 Belt Sub-assy, Sub Seat, Inner
73330 Belt Assy, Rear Seat Lap Type, RH
73330G Belt Assy, RR Seat Lap Type
73330H Belt Assy, RR Seat Lap Type
73340 Belt Assy, Rear Seat Lap Type, LH
73343 Guide, Rear Seat Shoulder Belt, RH
73344 Guide, Rear Seat Shoulder Belt, LH
73350C Belt Assy, Rear Seat, Outer Center
73360B Belt Assy, Rear Seat, Outer
73370B Belt Assy, Rear Seat, Outer
73373 Cover, Rear Seat Shoulder Belt
73373A Cover, Rear Seat Shoulder Belt, RH
73375 Cover, Rear Seat Shoulder Belt, LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73380A Belt Assy, Rear Seat, Inner
73380D Belt Assy, Rear Seat, Inner
73380F Belt Assy, RR Seat, Inner
73389 Cover, Rear Seat Shoulder Belt, LH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73390A Belt Assy, Rear Seat, Inner
73470 Belt Assy, Rear Seat, Outer
73570B Belt Assy, Rear Seat, Outer
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73580B Belt Assy, Rear Seat, Inner RH
73590A Belt Assy, Rear Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
