Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe
Discontinued model
Data version 2016-12

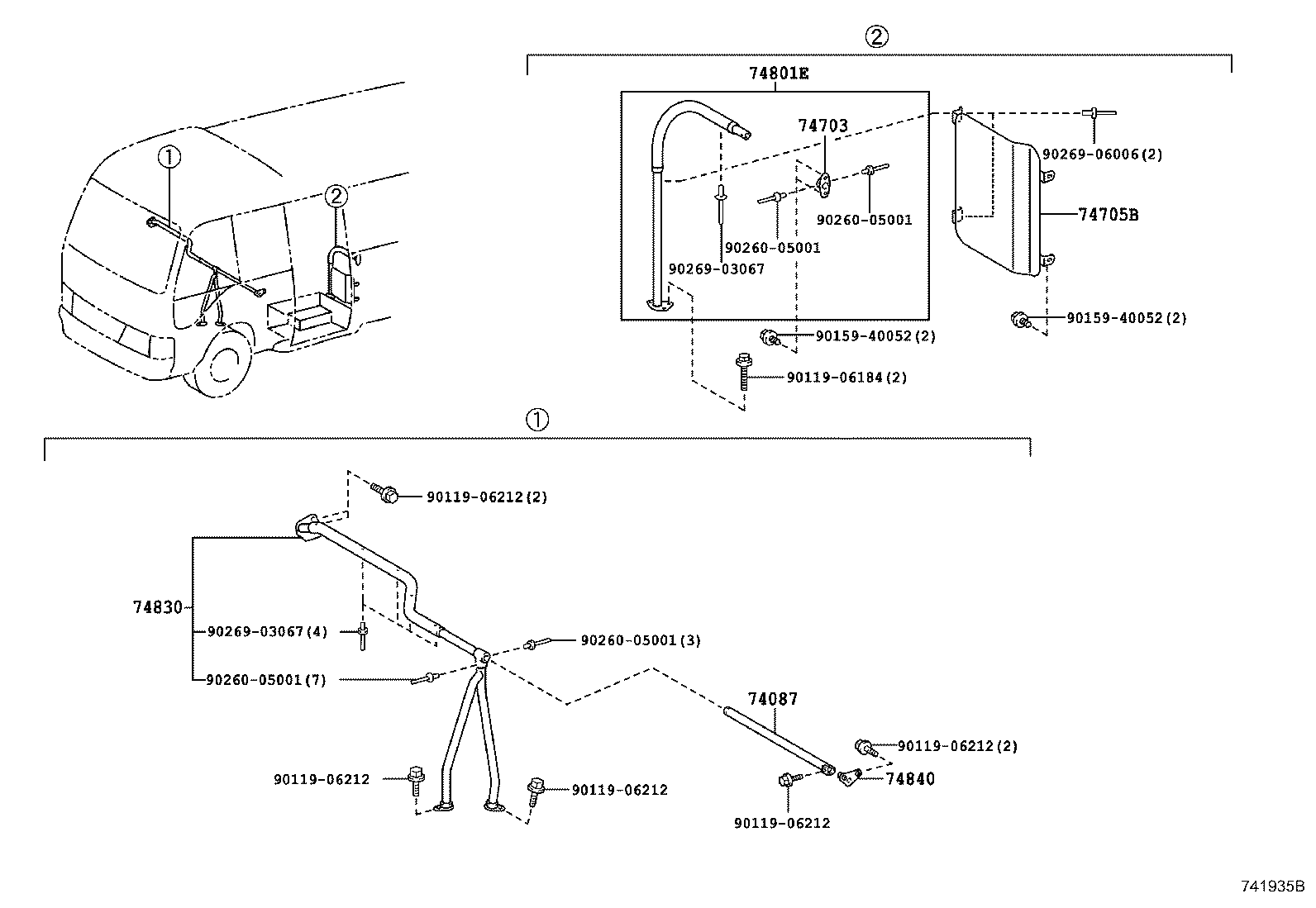

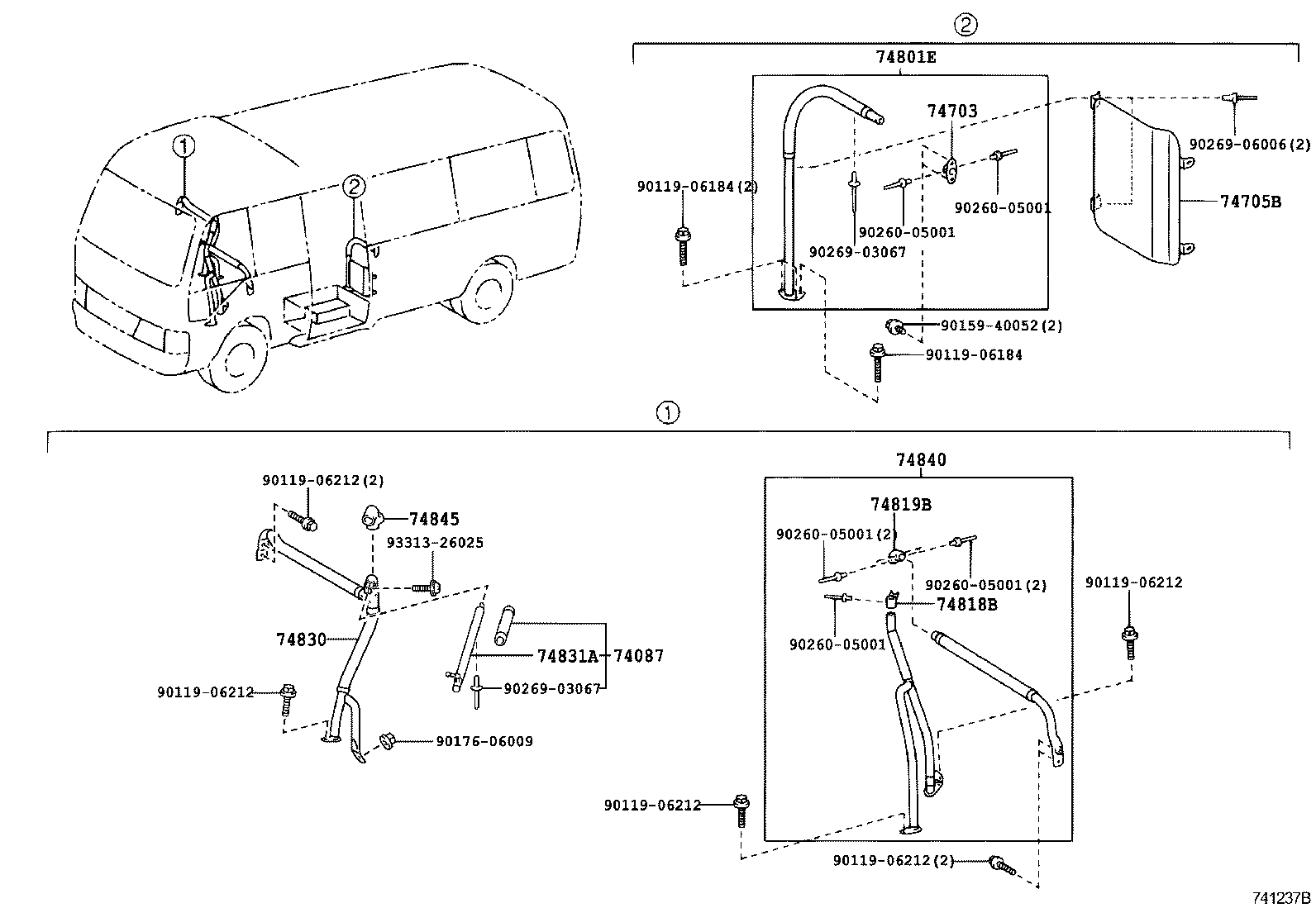

Protector Pipe, Roll Bar & Handrail
26 part groups · 18 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 74087 | Pipe Sub-assy, Rear Protector |
| 74622 | Bracket, Hand Grip |
| 74657C | Bracket, Hand Rail, NO.1 RH |
| 74657D | Bracket, Hand Rail, NO.1 LH |
| 74658C | Bracket, Hand Rail, NO.2 |
| 74659A | Bracket, Hand Rail, NO.3 |
| 74703 | Frame Sub-assy, Hand Grip Side |
| 74705B | Net Sub-assy, Hand Grip Protector |
| 74707 | Frame Sub-assy, Hand Grip, NO.1 |
| 74708 | Frame Sub-assy, Hand Grip, NO.2 |
| 74730 | Frame Assy, Hand Grip |
| 74737 | Bracket, Hand Grip Pipe, NO.1 RH |
| 74737A | Bracket, Hand Grip Pipe, NO.1 LH |
| 74765 | Pipe, Hand Grip Roof |
| 74775 | Bracket, Hand Grip Roof |
| 74801E | Pipe Sub-assy, Front Protector |
| 74818B | Holder, Front Protector Pipe |
| 74819B | Joint, Protector Pipe, L |
| 74829B | Bracket, Front Protector Pipe, NO.3 |
| 74830 | Pipe Assy, Front Protector, RH |
| 74831A | Pipe, Front Protector, Center |
| 74840 | Pipe Assy, Front Protector, LH |
| 74841C | Pipe, Separator, NO.1 |
| 74842C | Pipe, Separator, NO.2 |
| 74845 | Cover, Front Protector Pipe Horizontal, RH |
| 74871E | Protector, Hand Grip Pipe |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
