Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

8 part groups · 2 illustrations

Illustrations

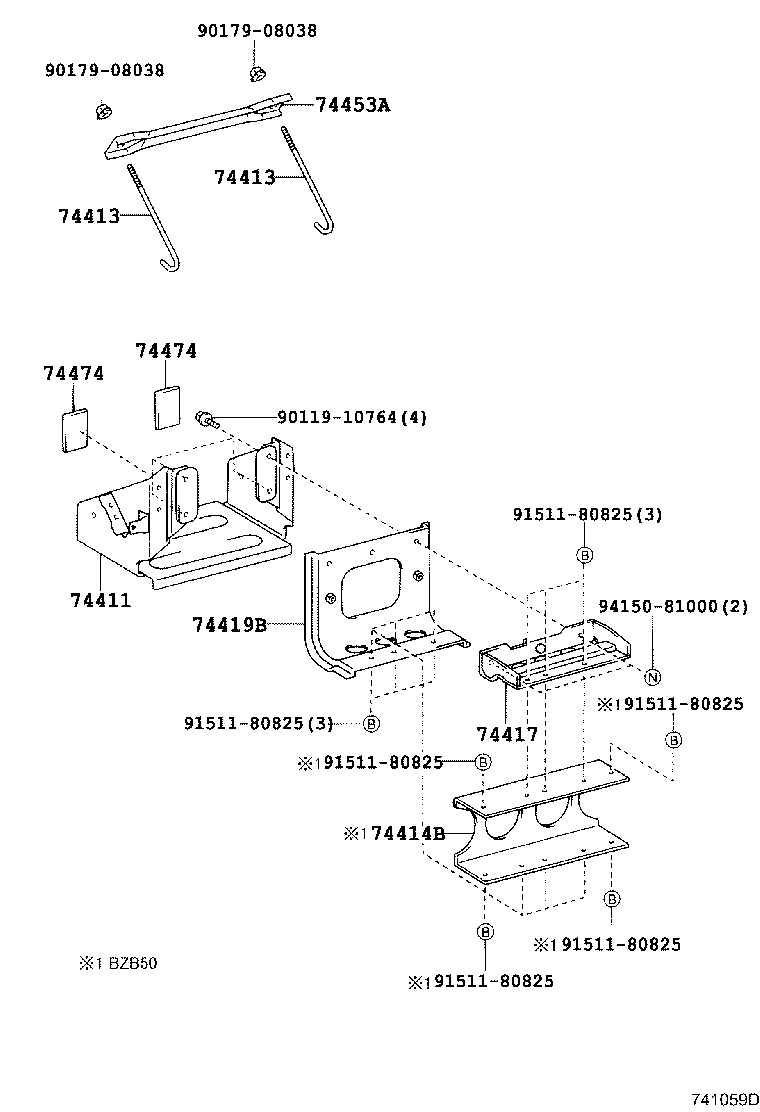

Figure 740411C 740411C 1993-01 → — Figure 741059D 741059D 2001-08 → —

Part groups

PNCDescription
74411 Carrier, Battery
74413 Bolt, Battery Clamp
74414B Reinforcement, Battery Bracket
74417 Bracket, Battery Carrier
74419B Bracket, Battery Carrier, NO.2
74453A Bar, Battery Set Plate
74474 Pad, Battery
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
