Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

109 part groups · 31 illustrations

Illustrations

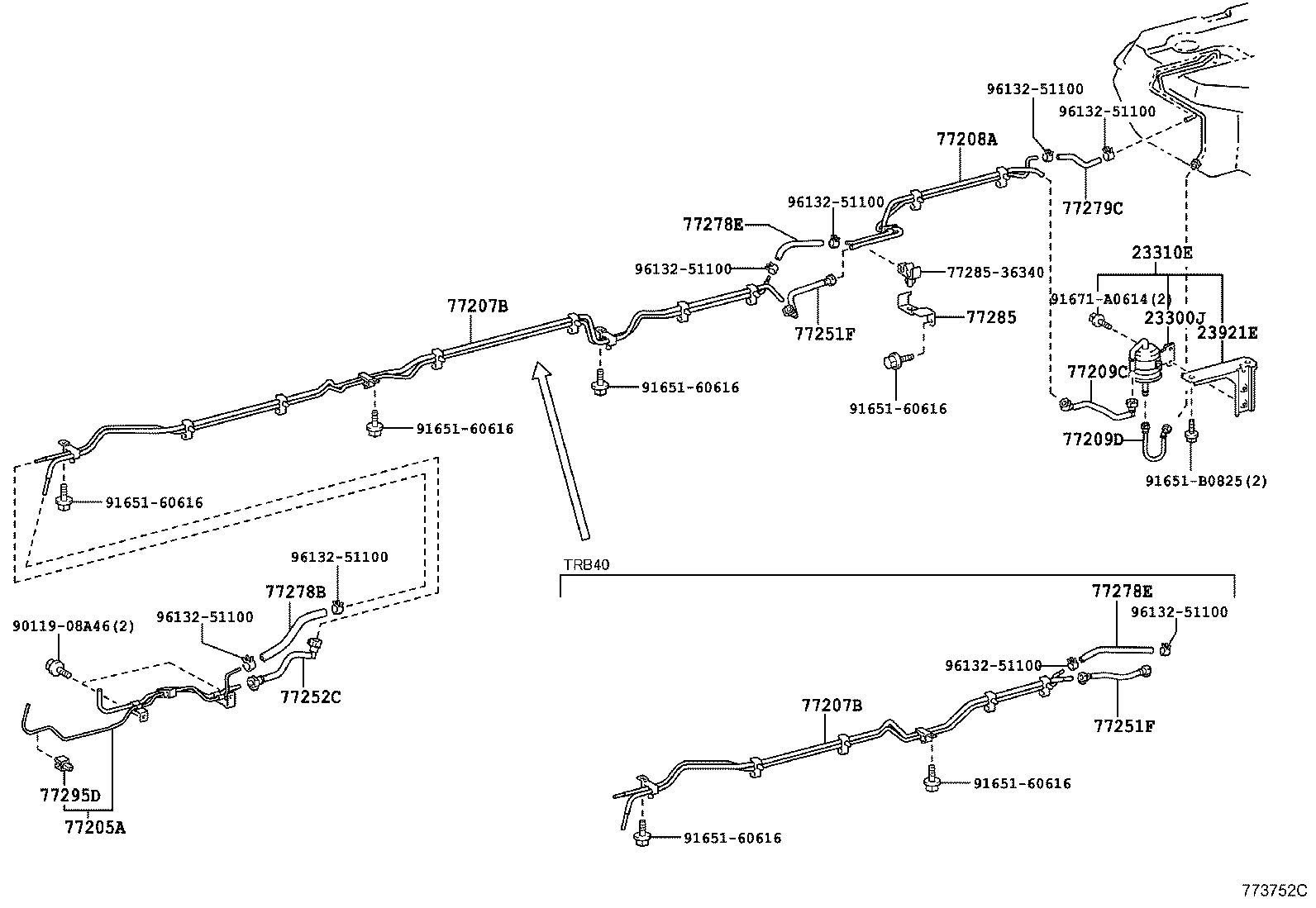

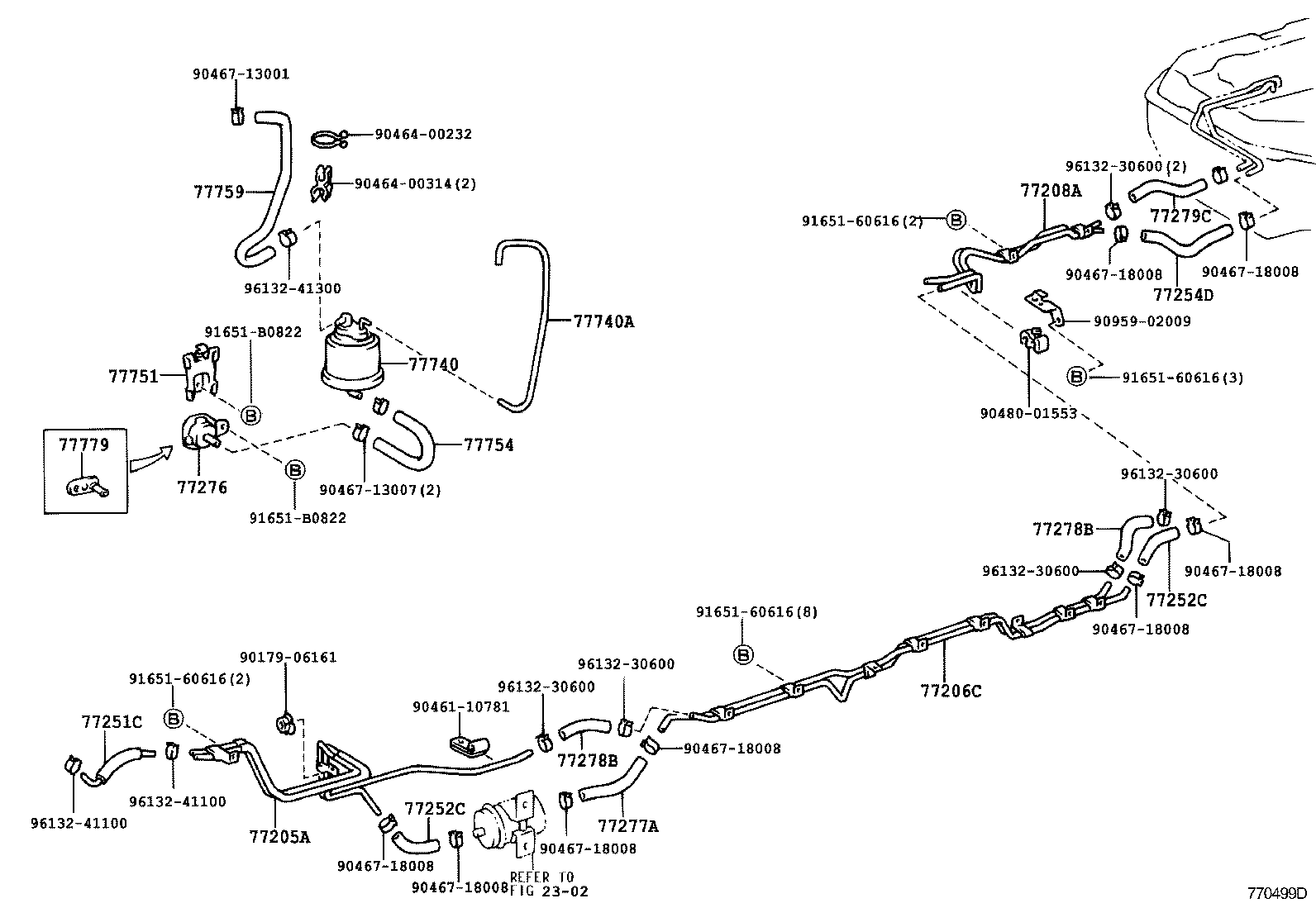

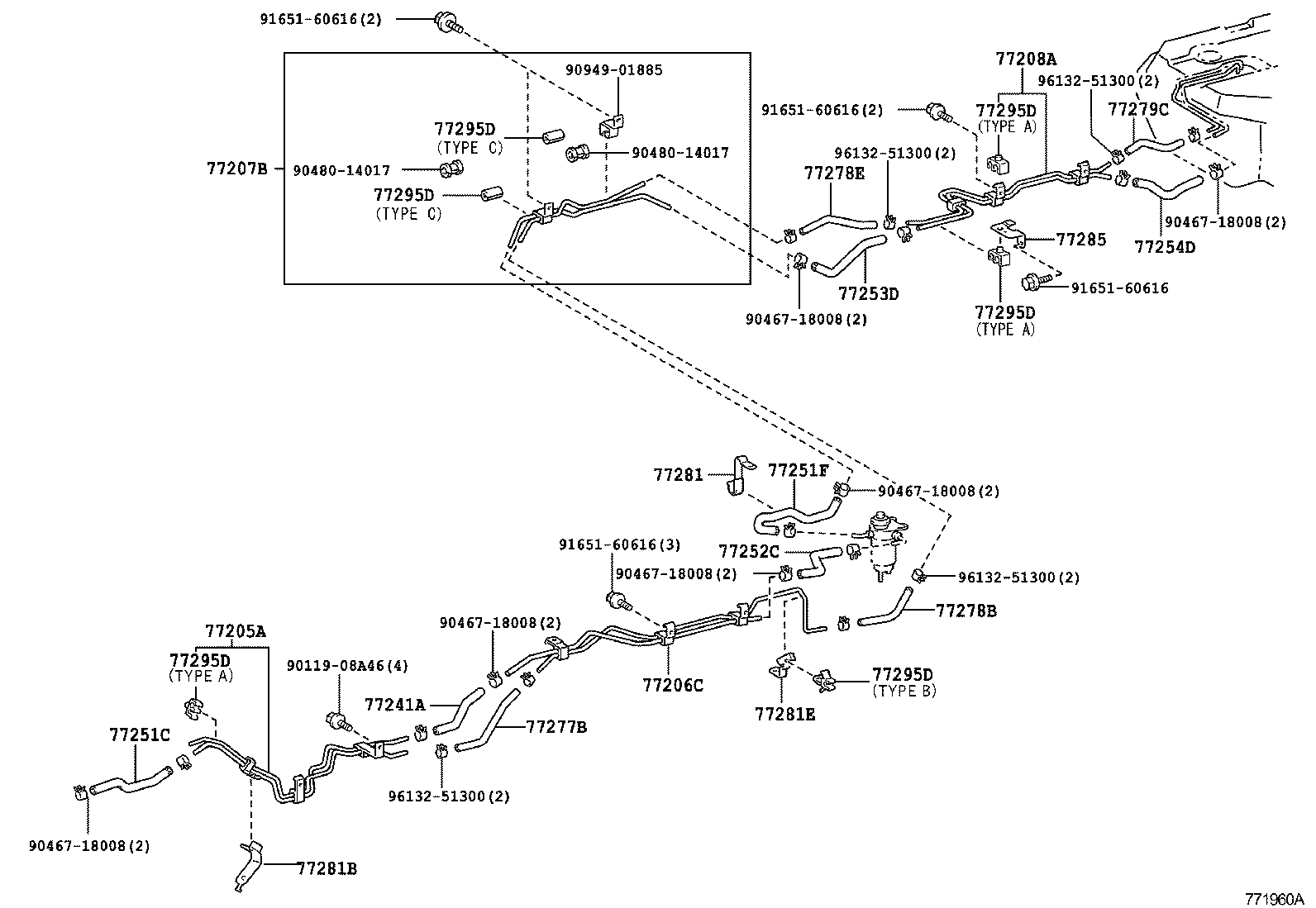

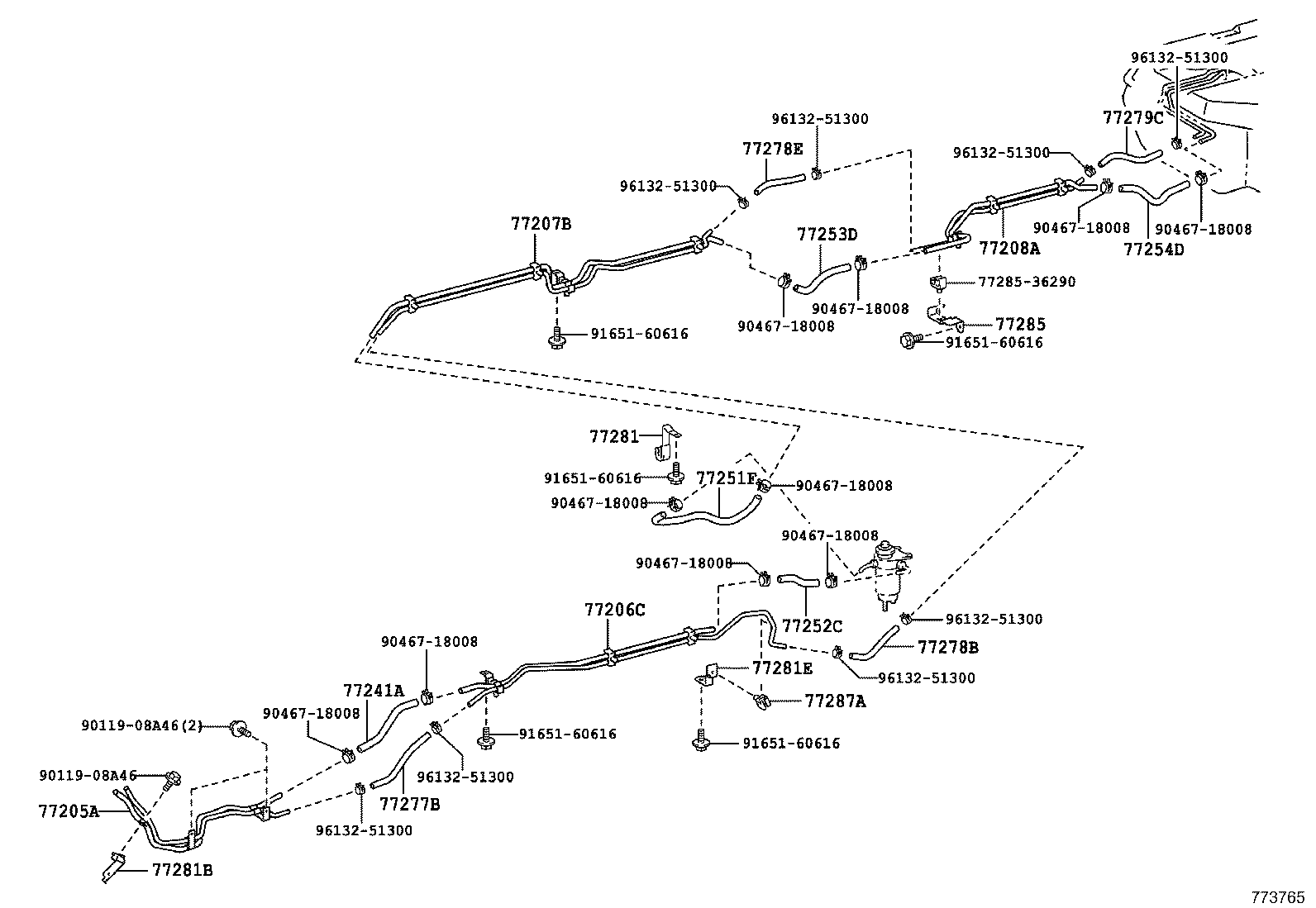

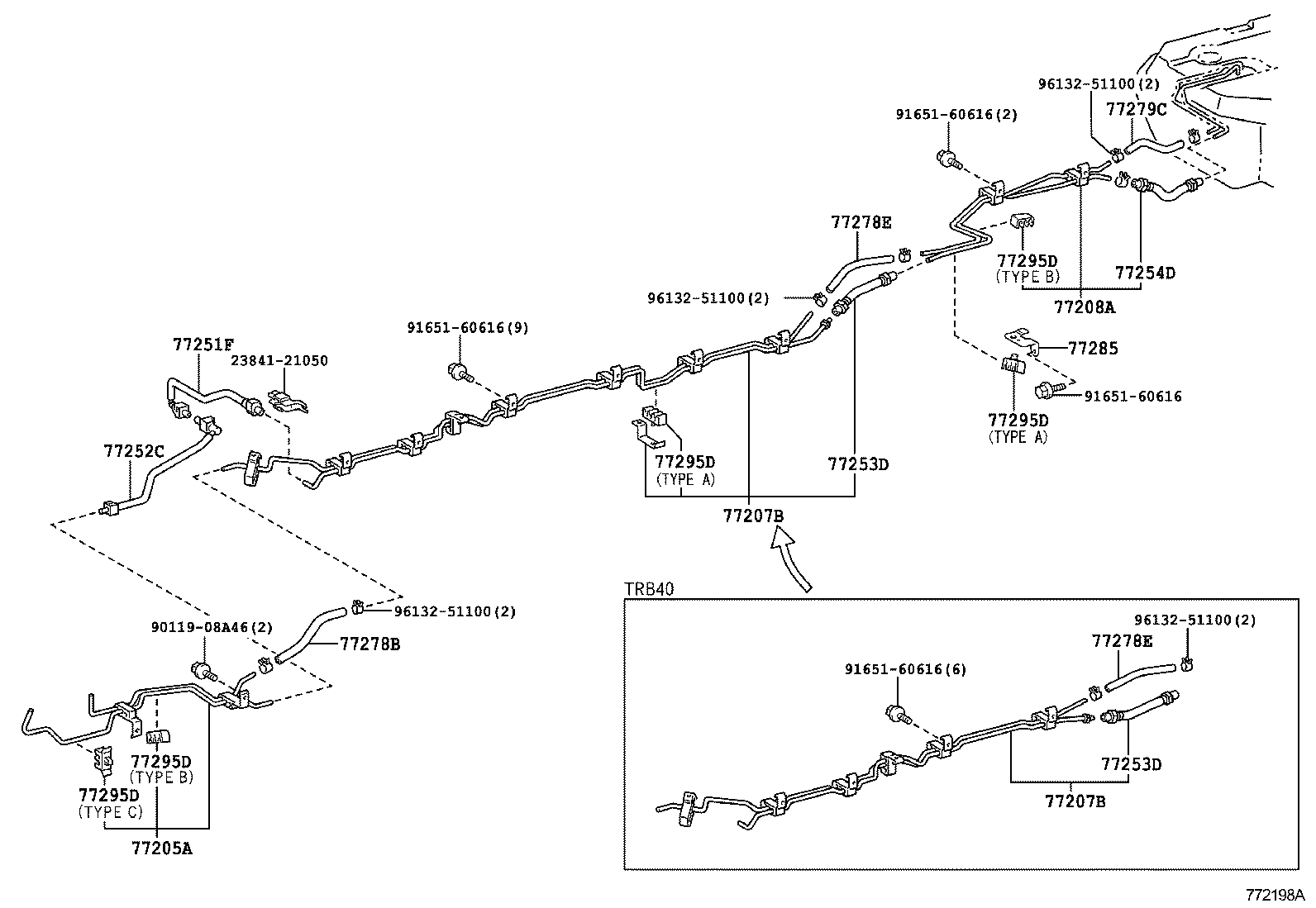

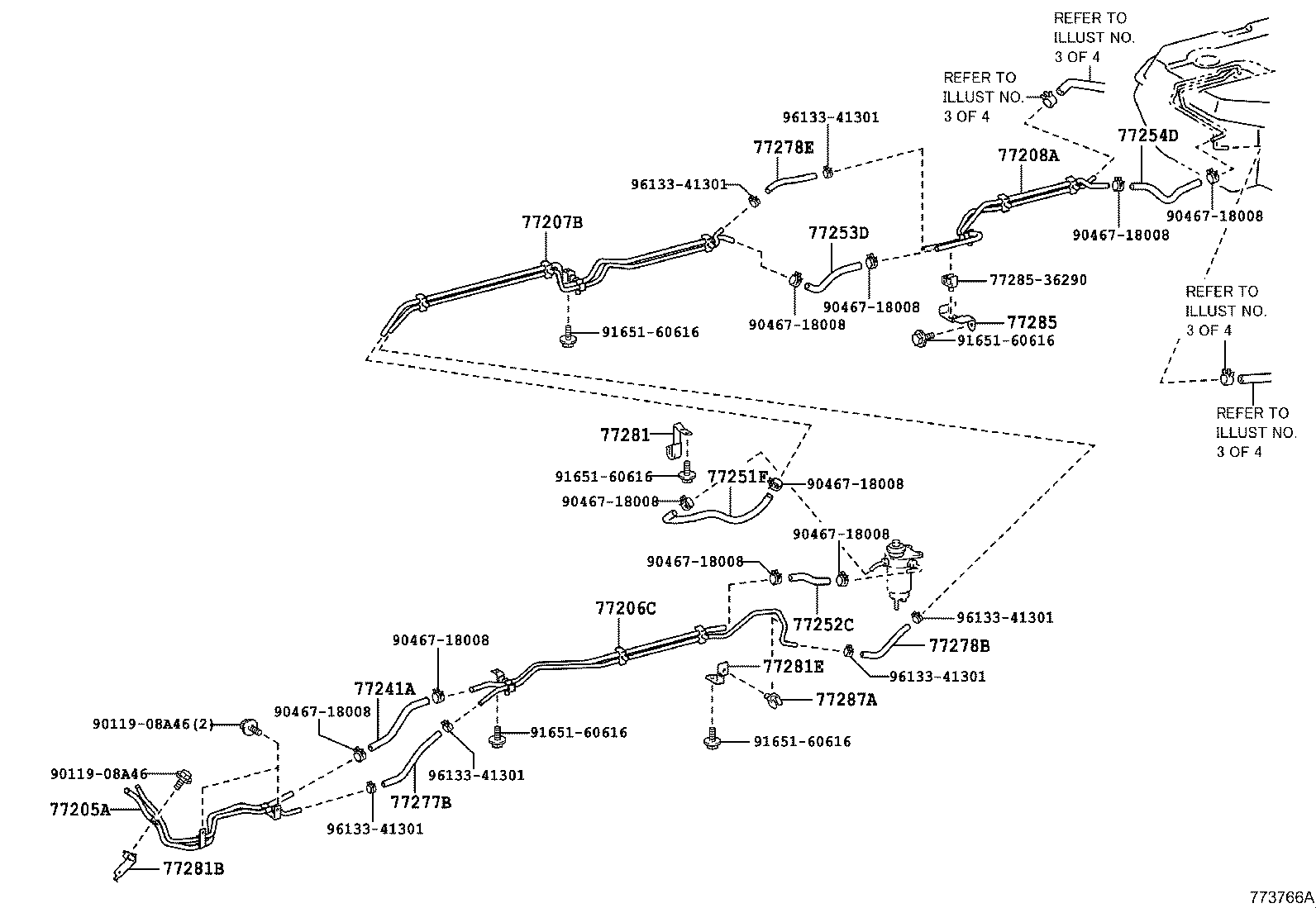

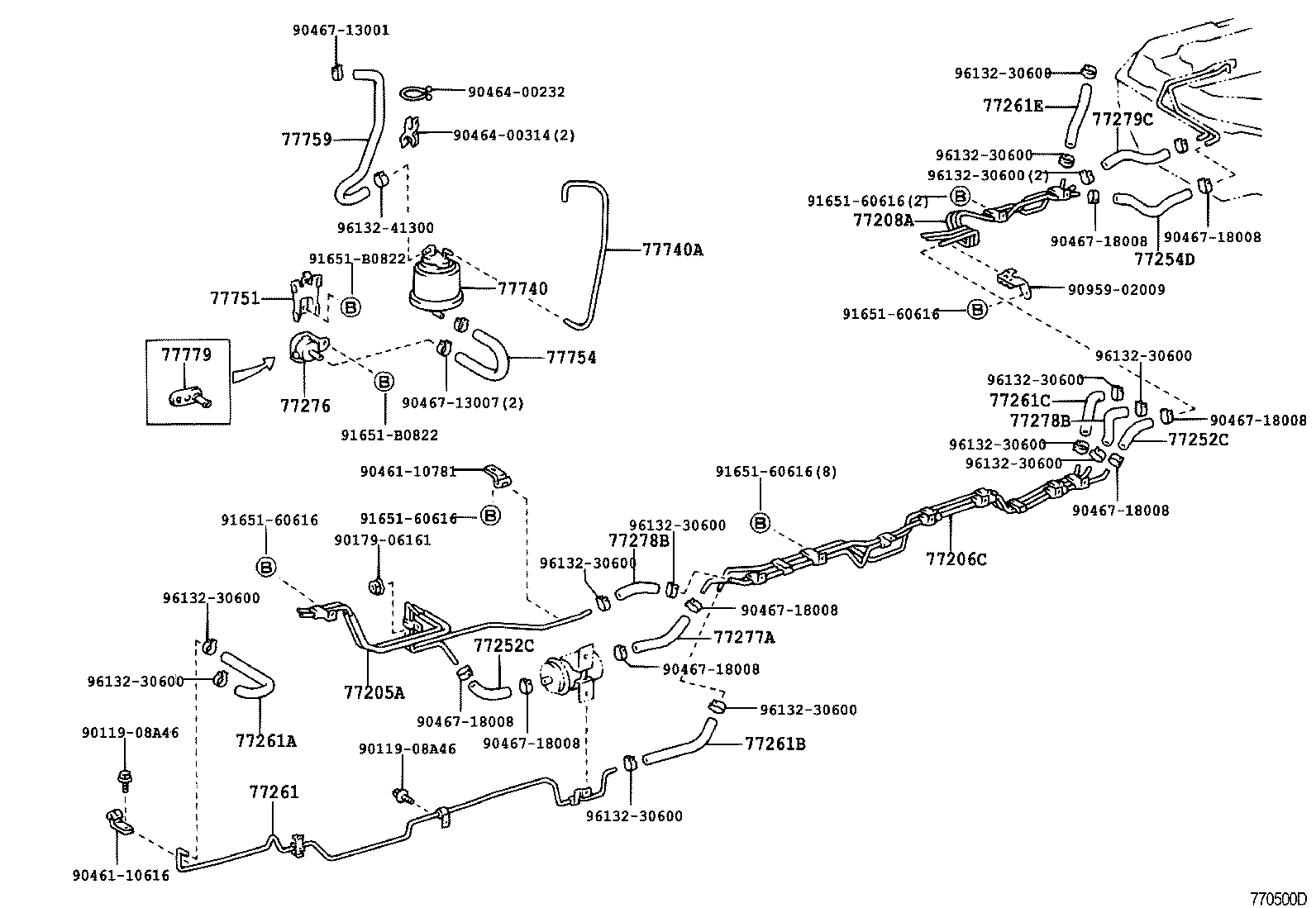

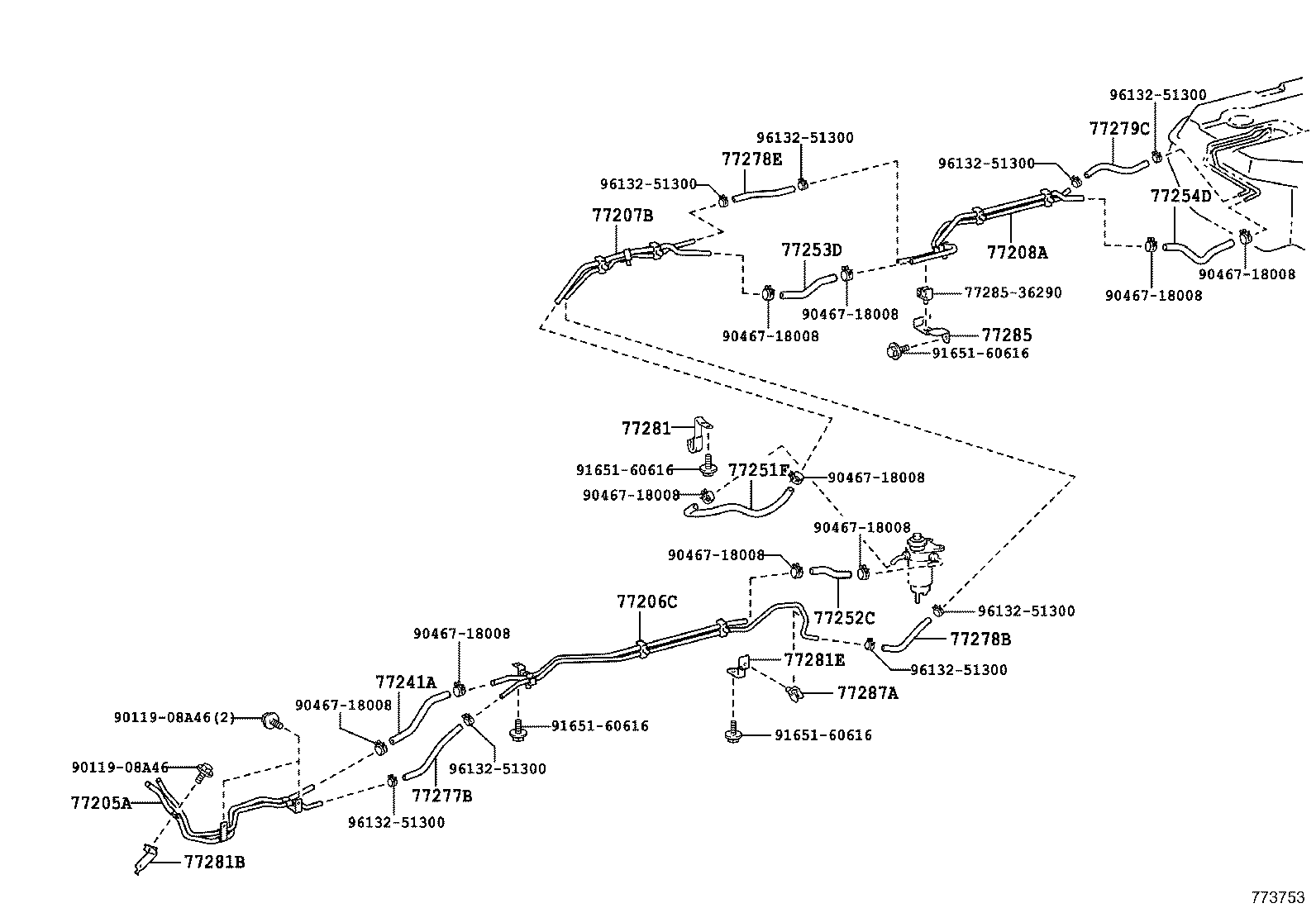

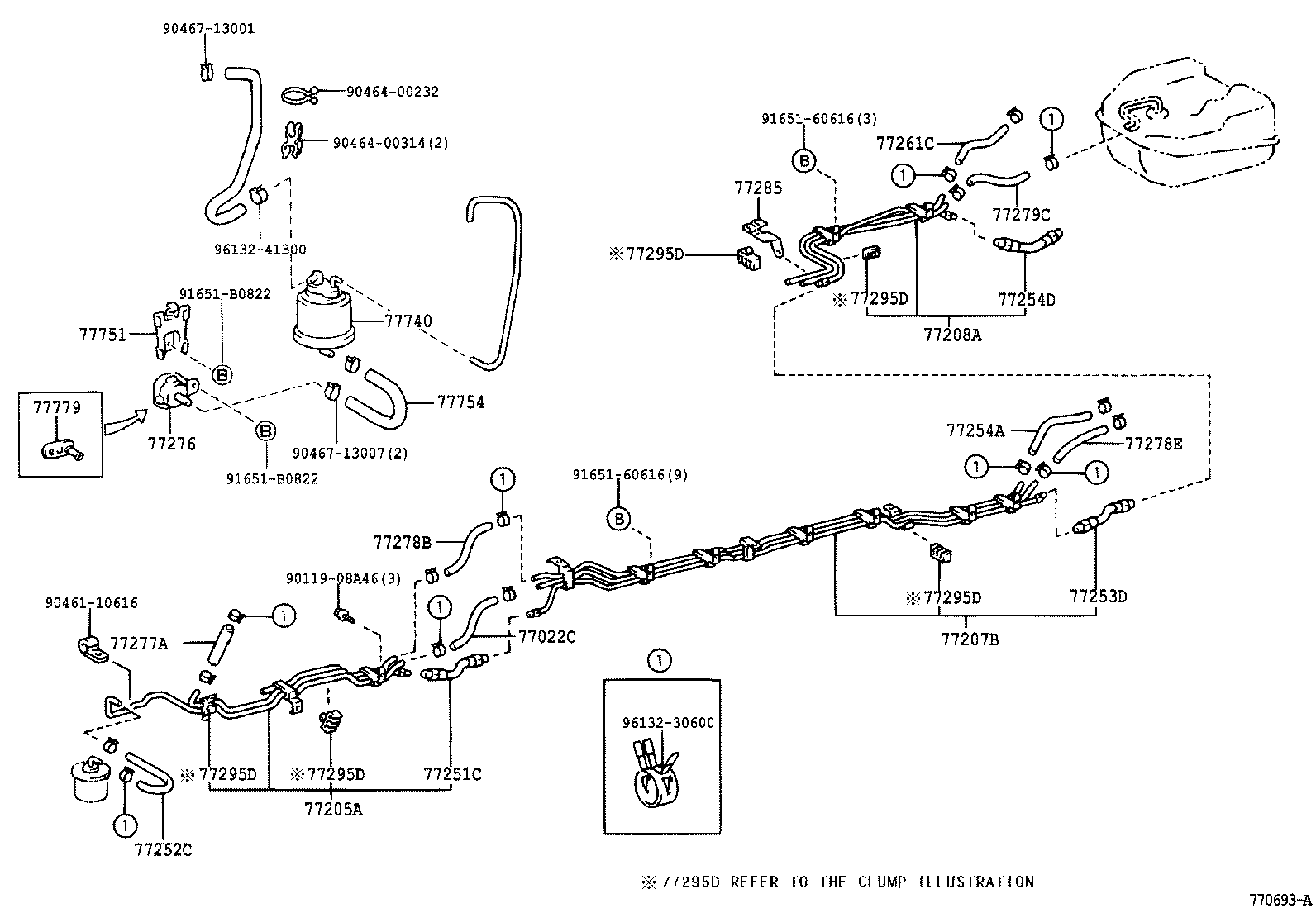

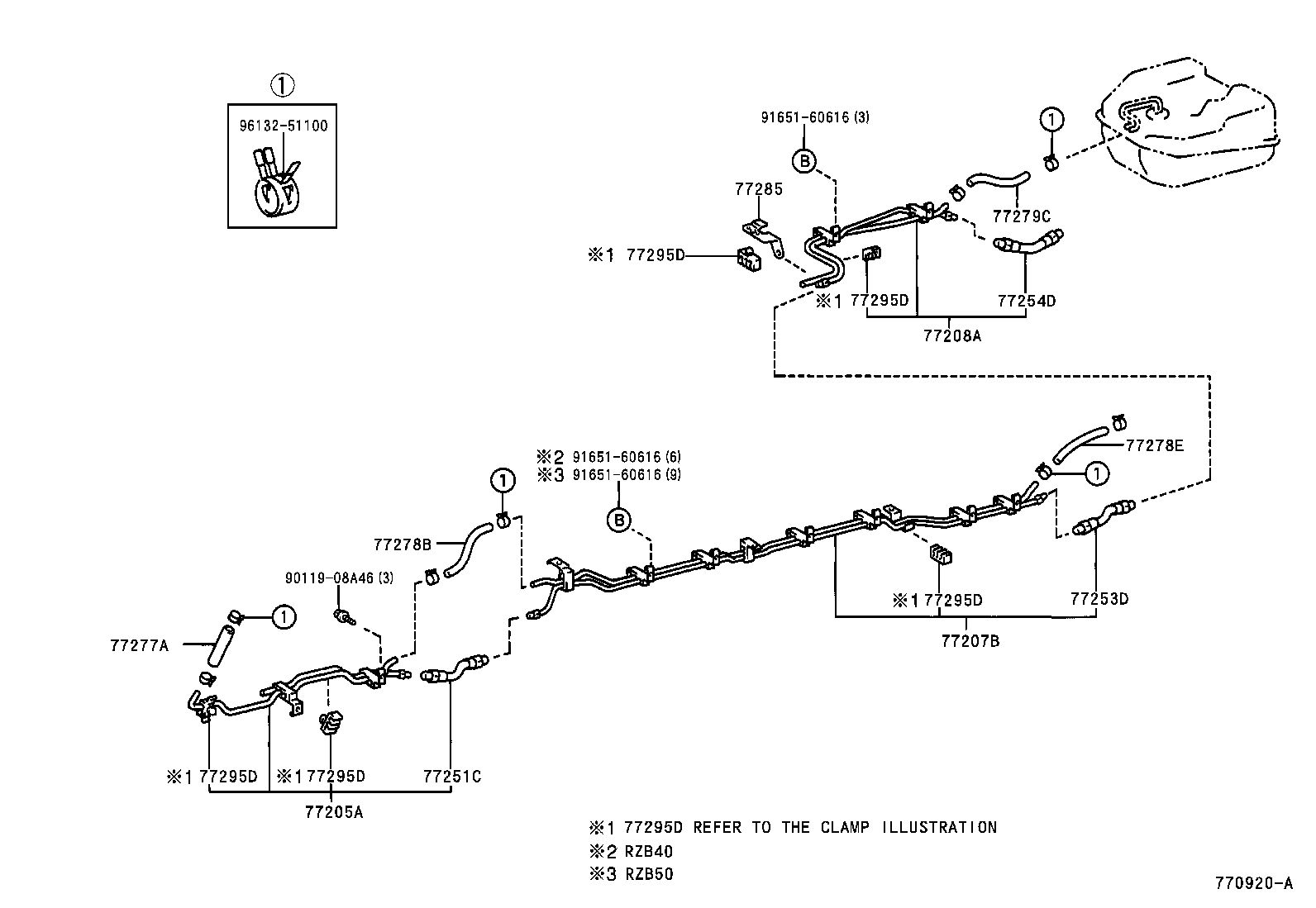

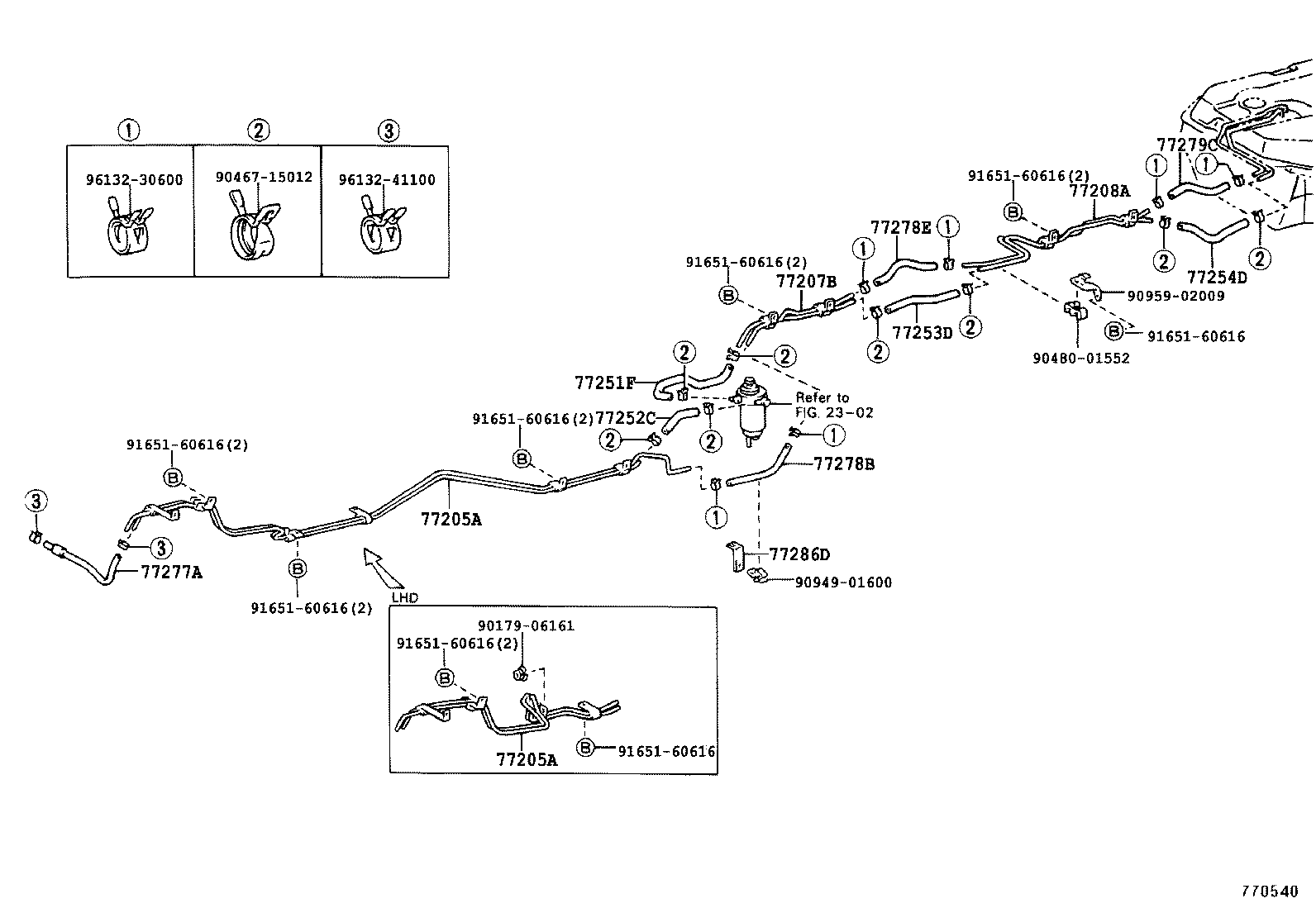

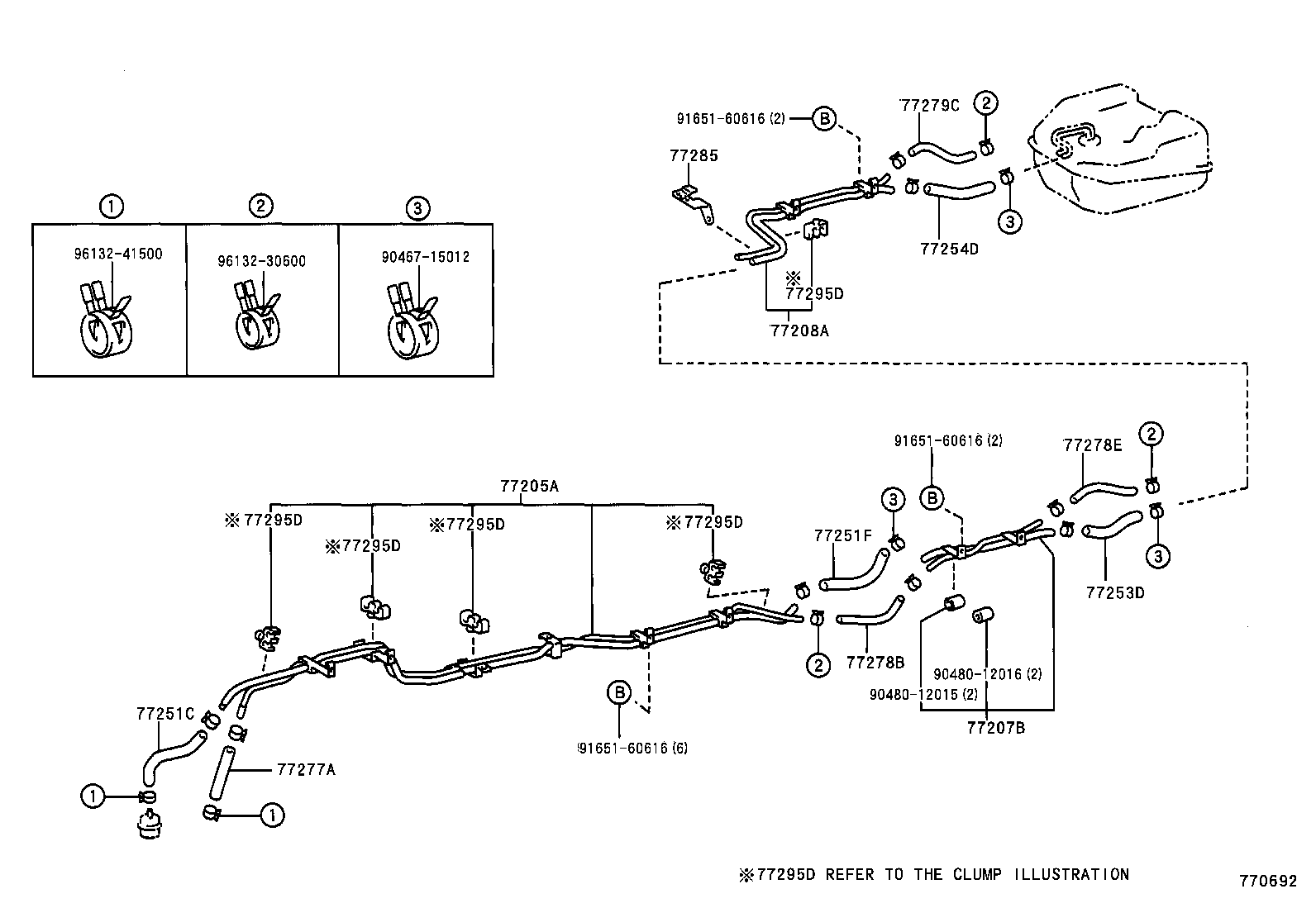

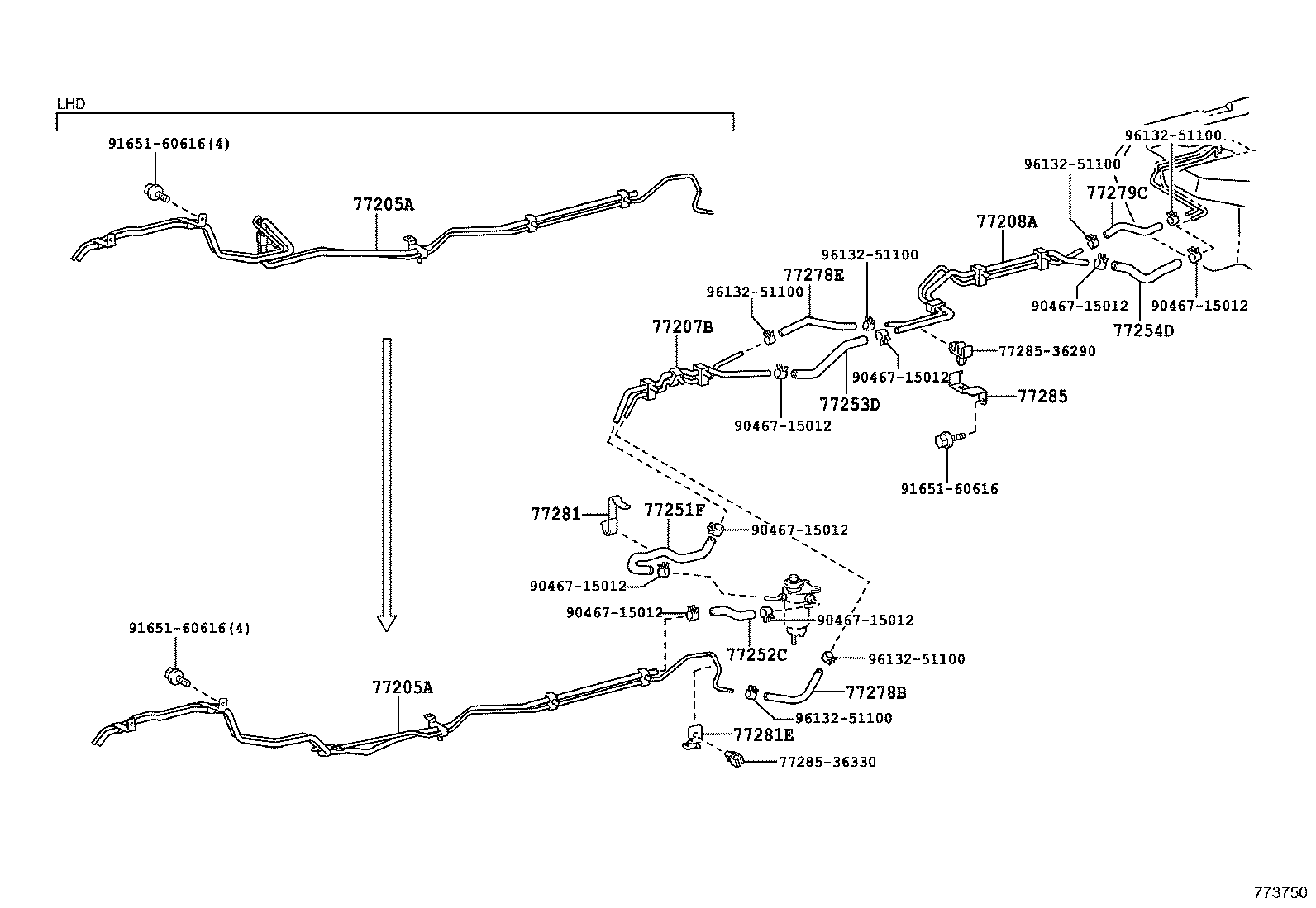

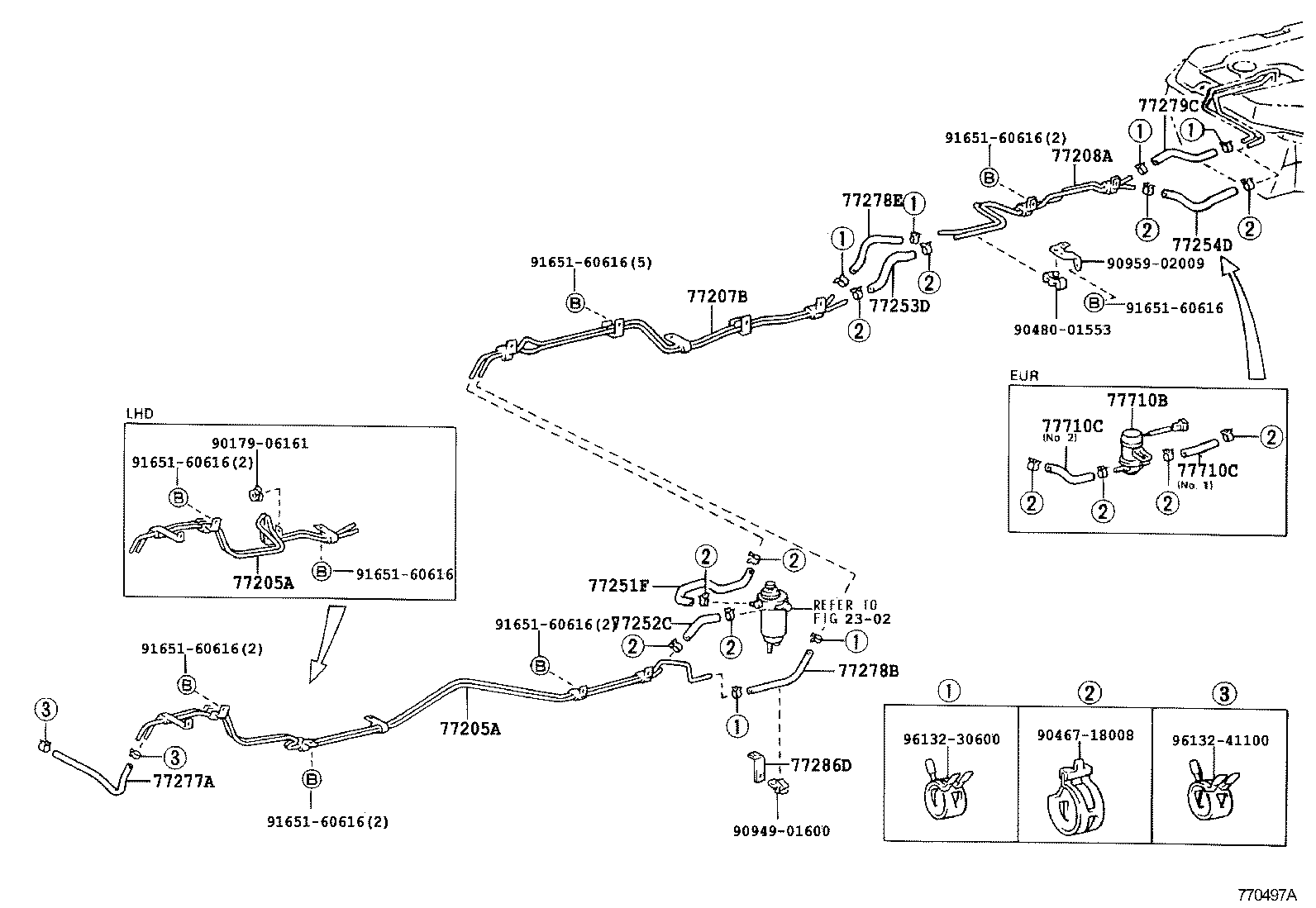

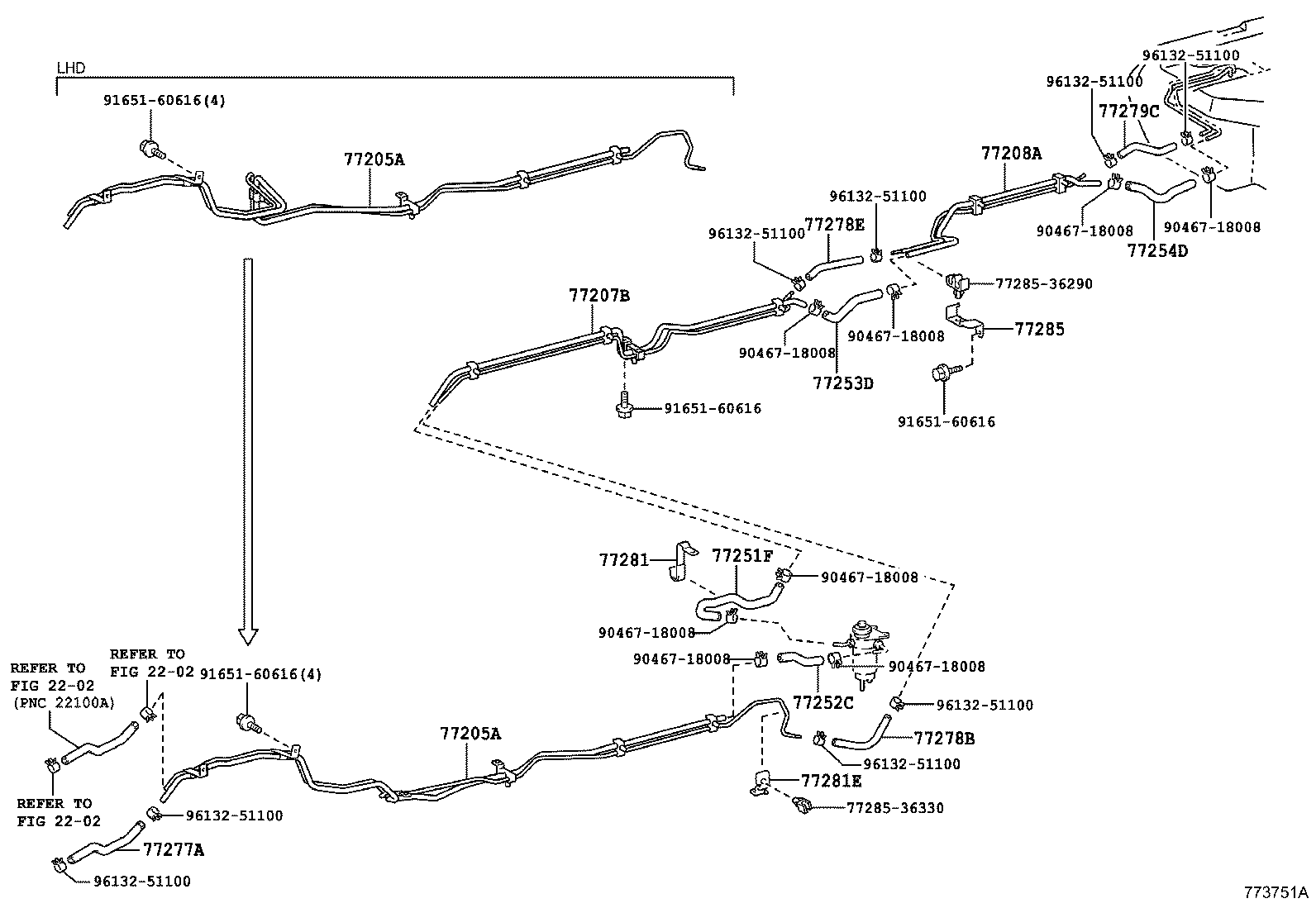

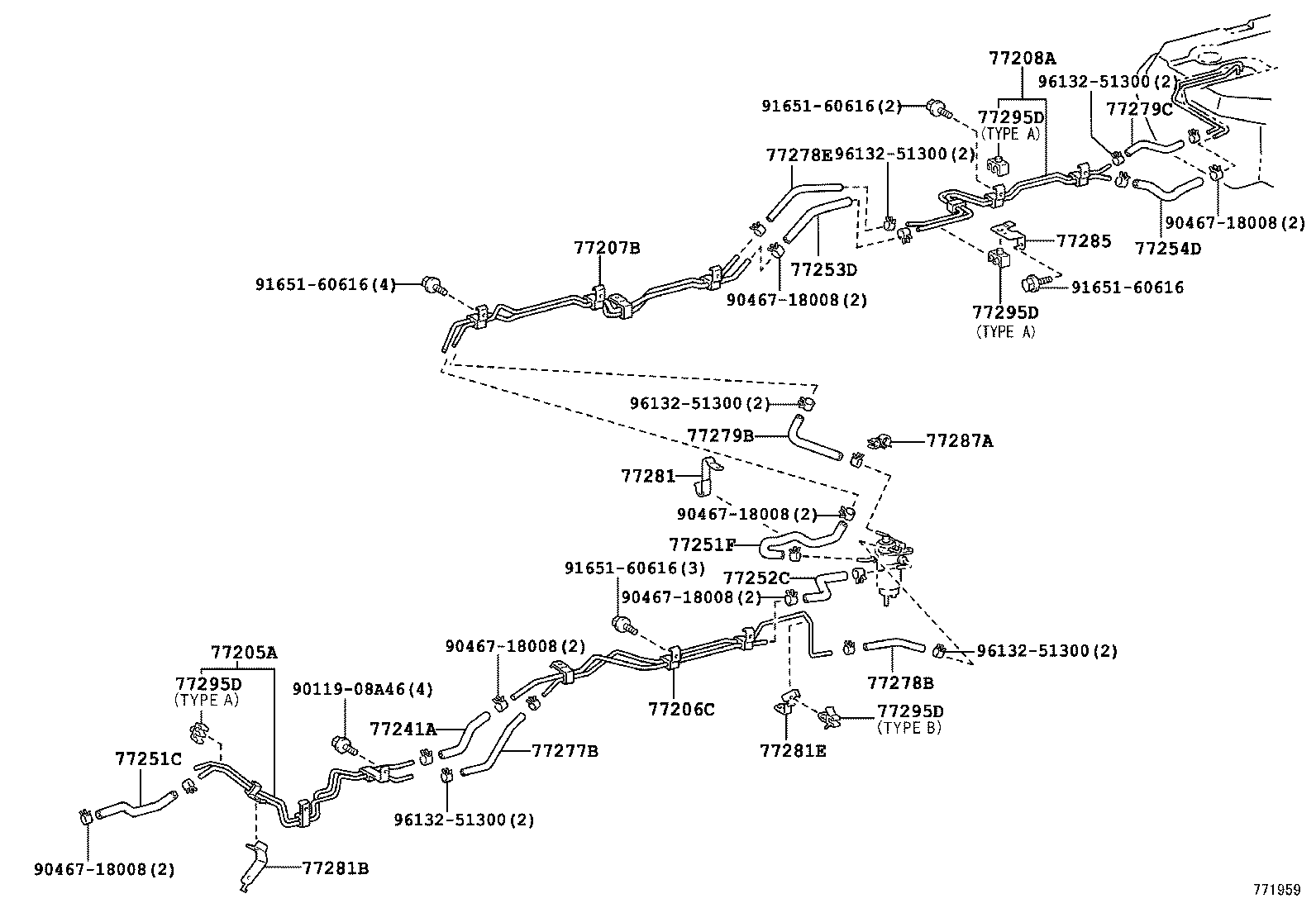

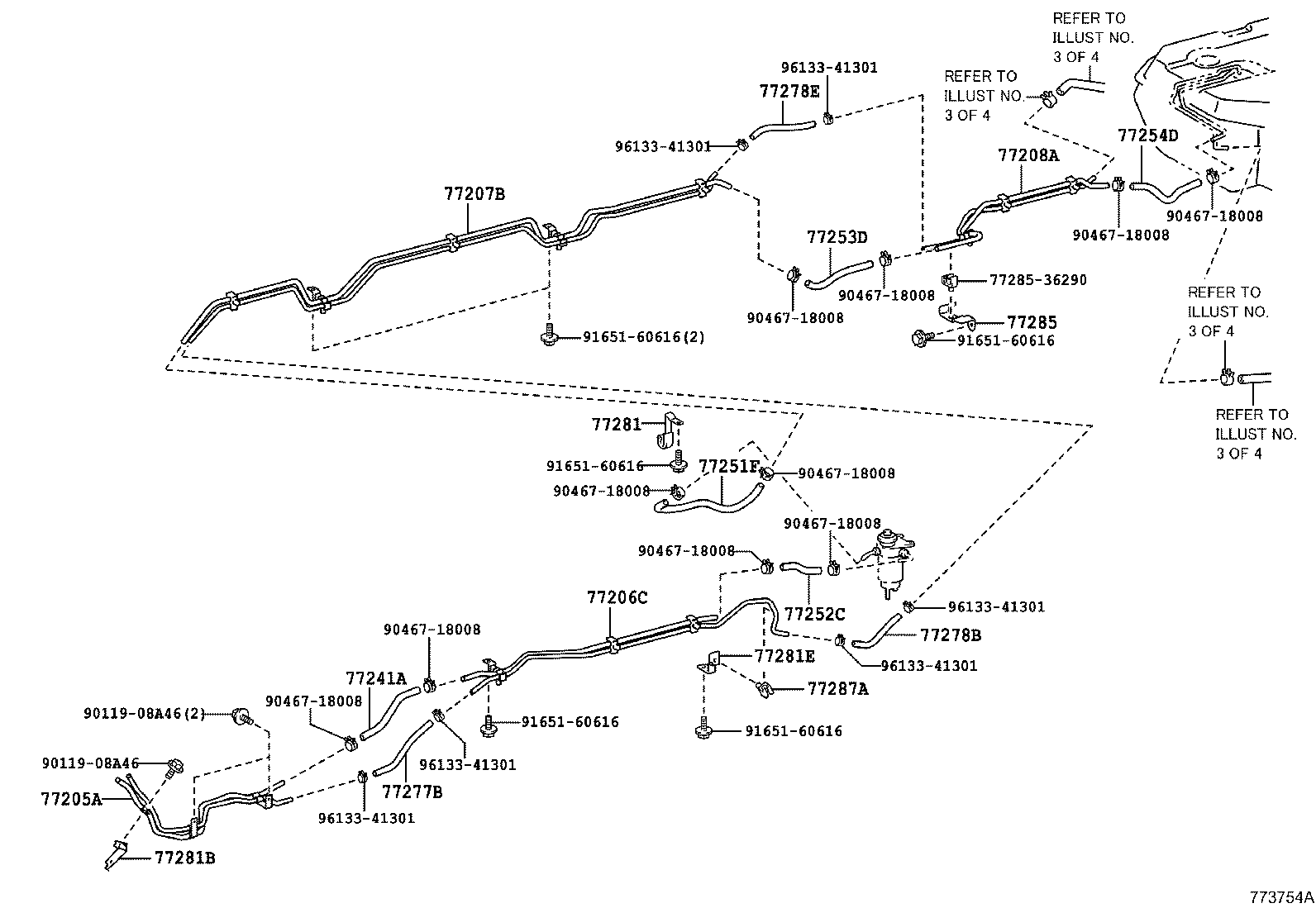

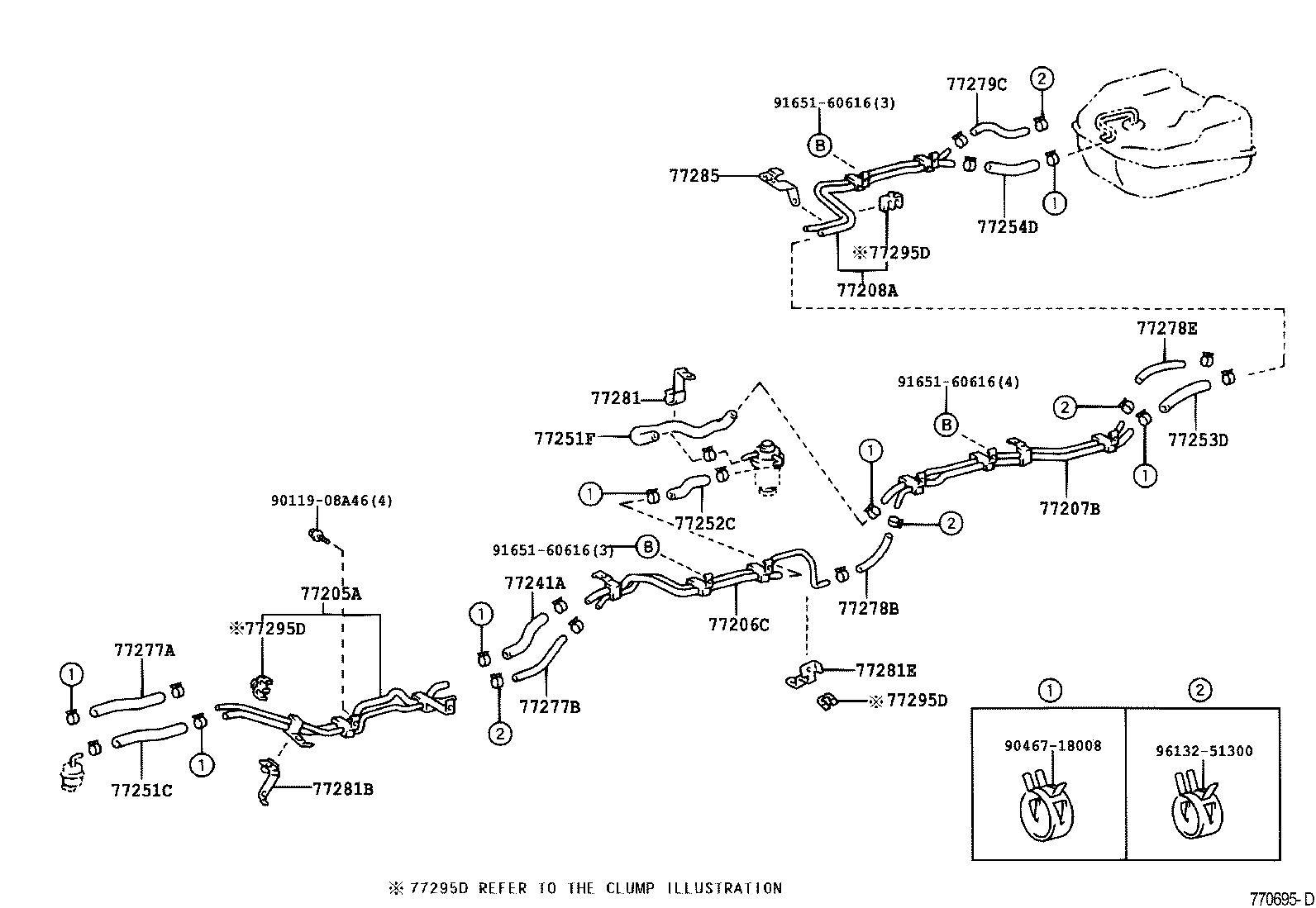

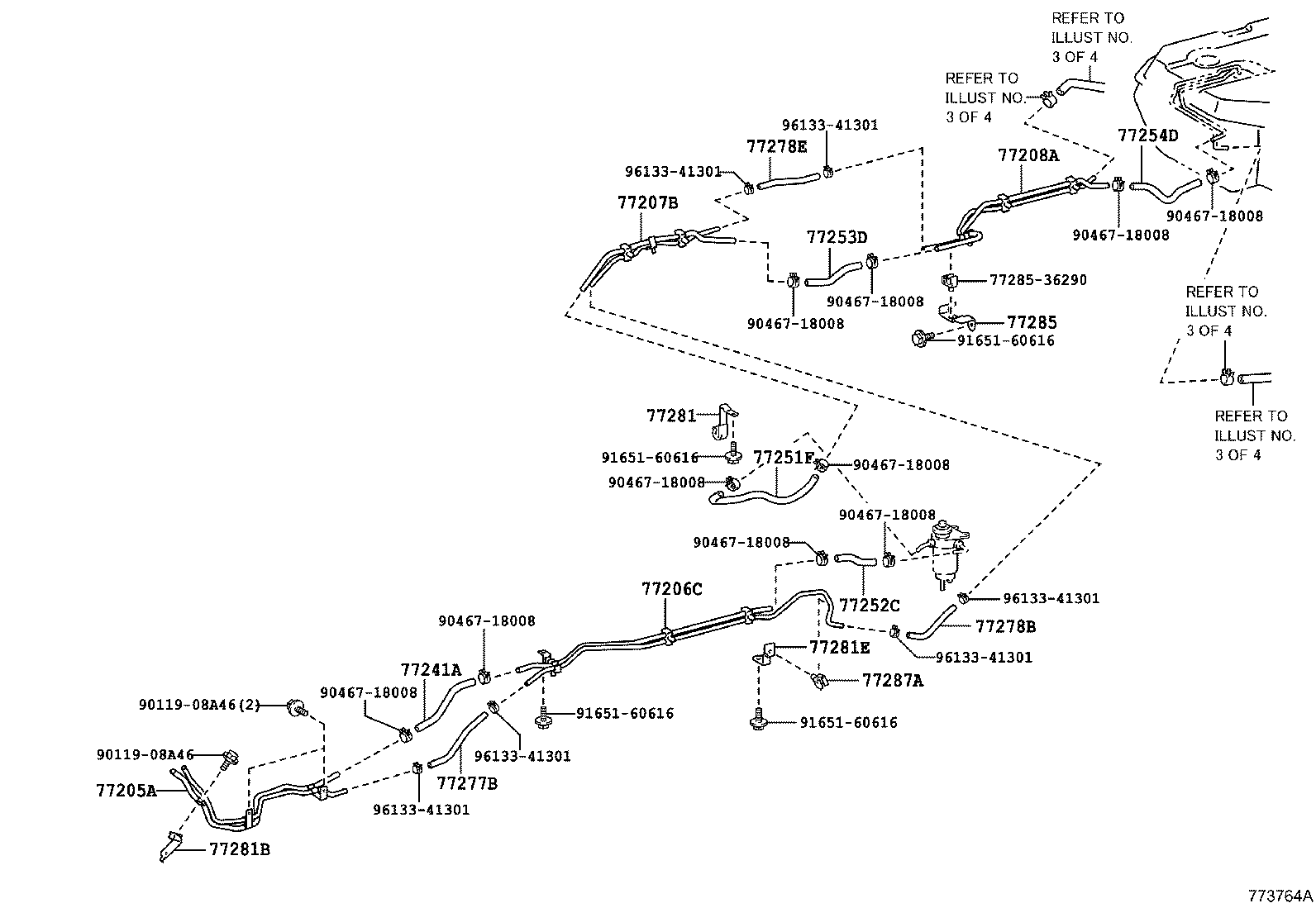

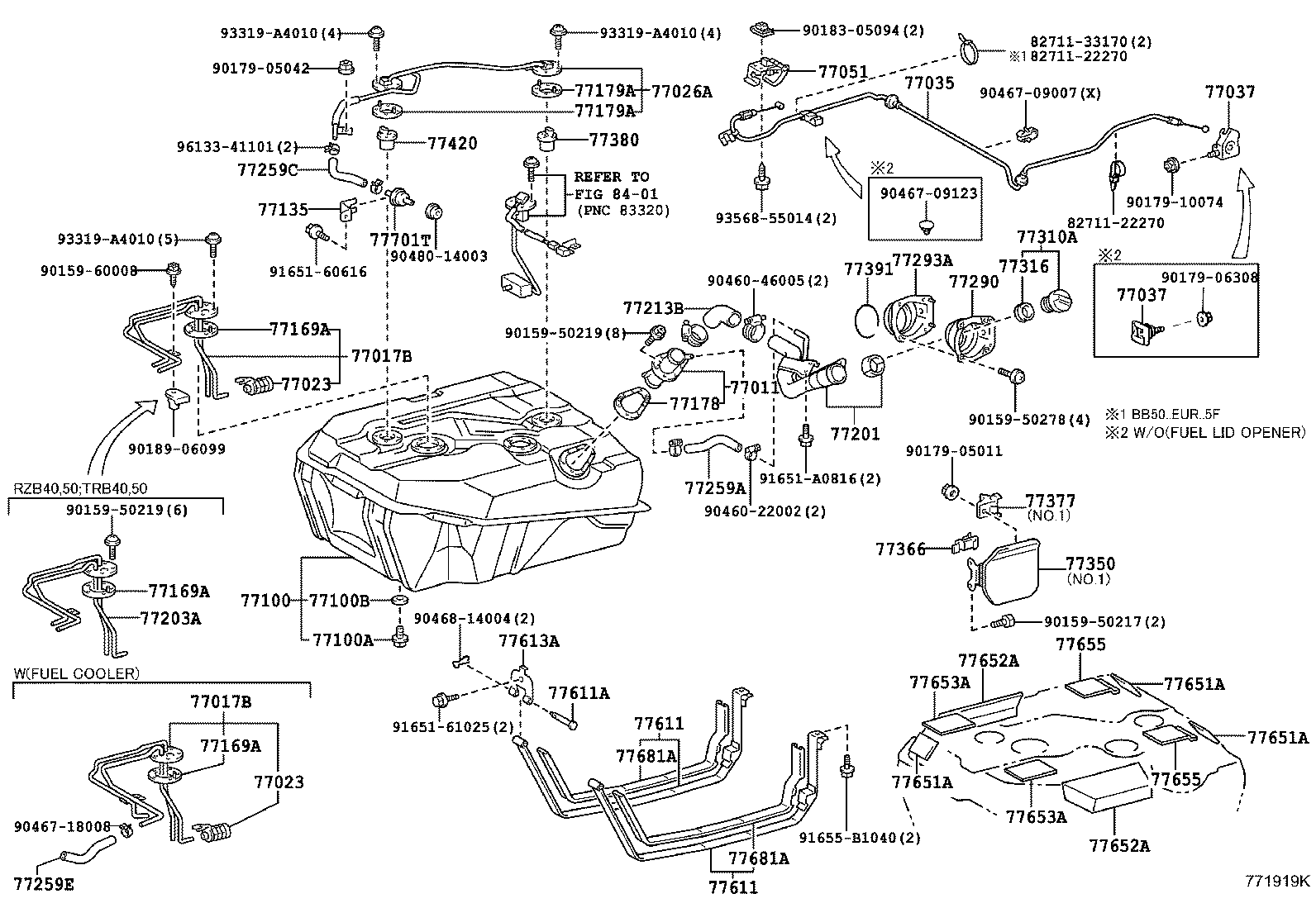

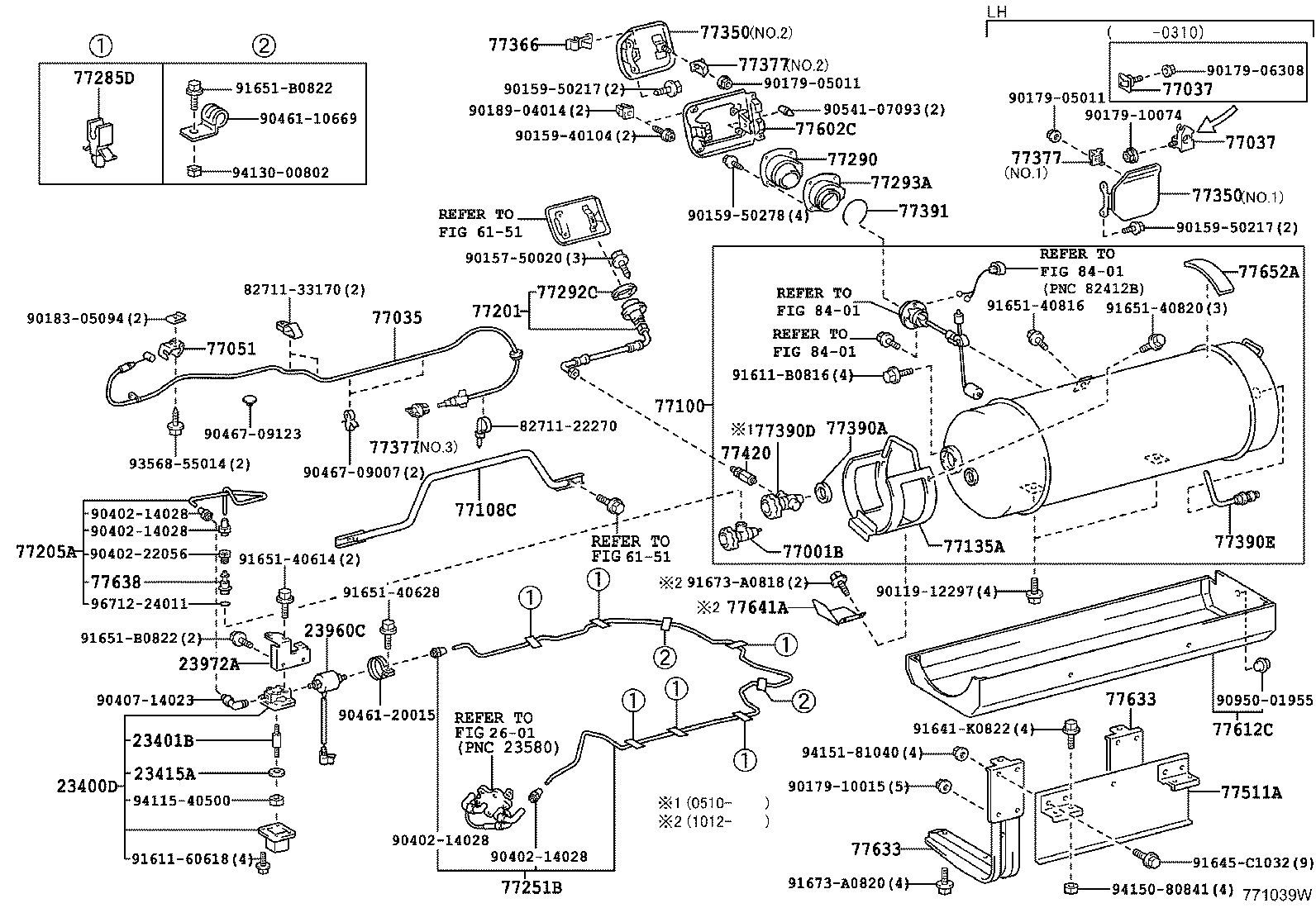

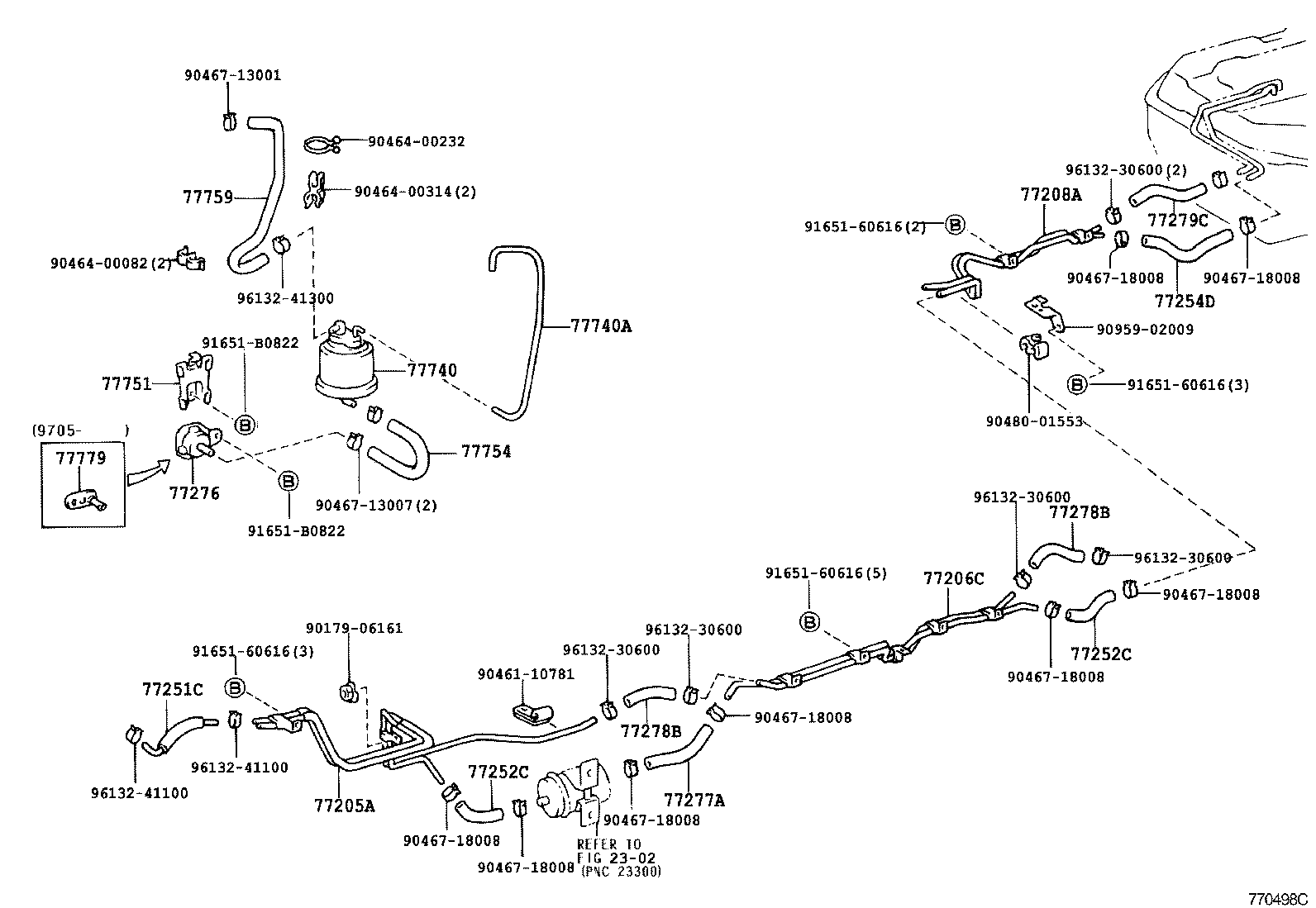

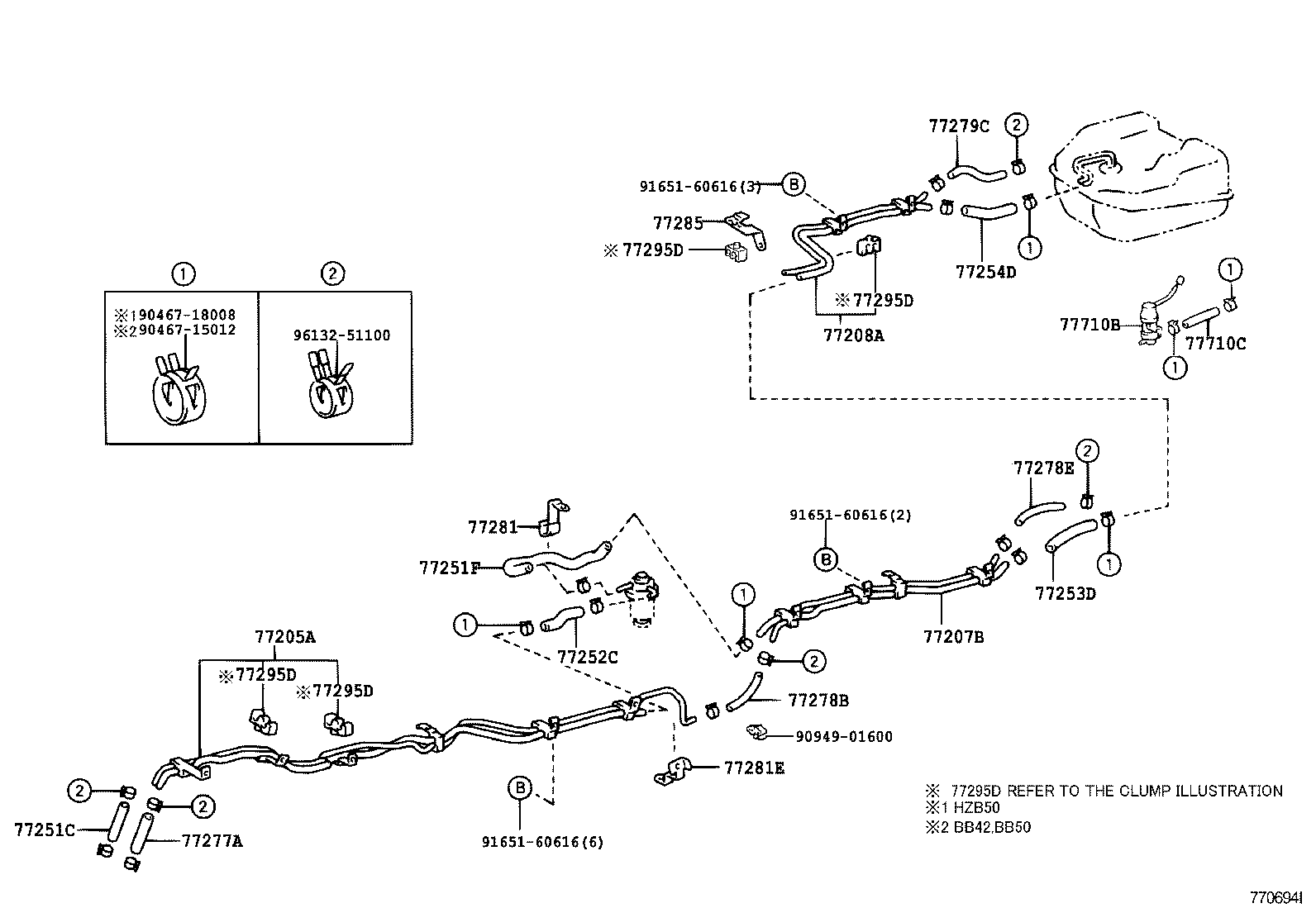

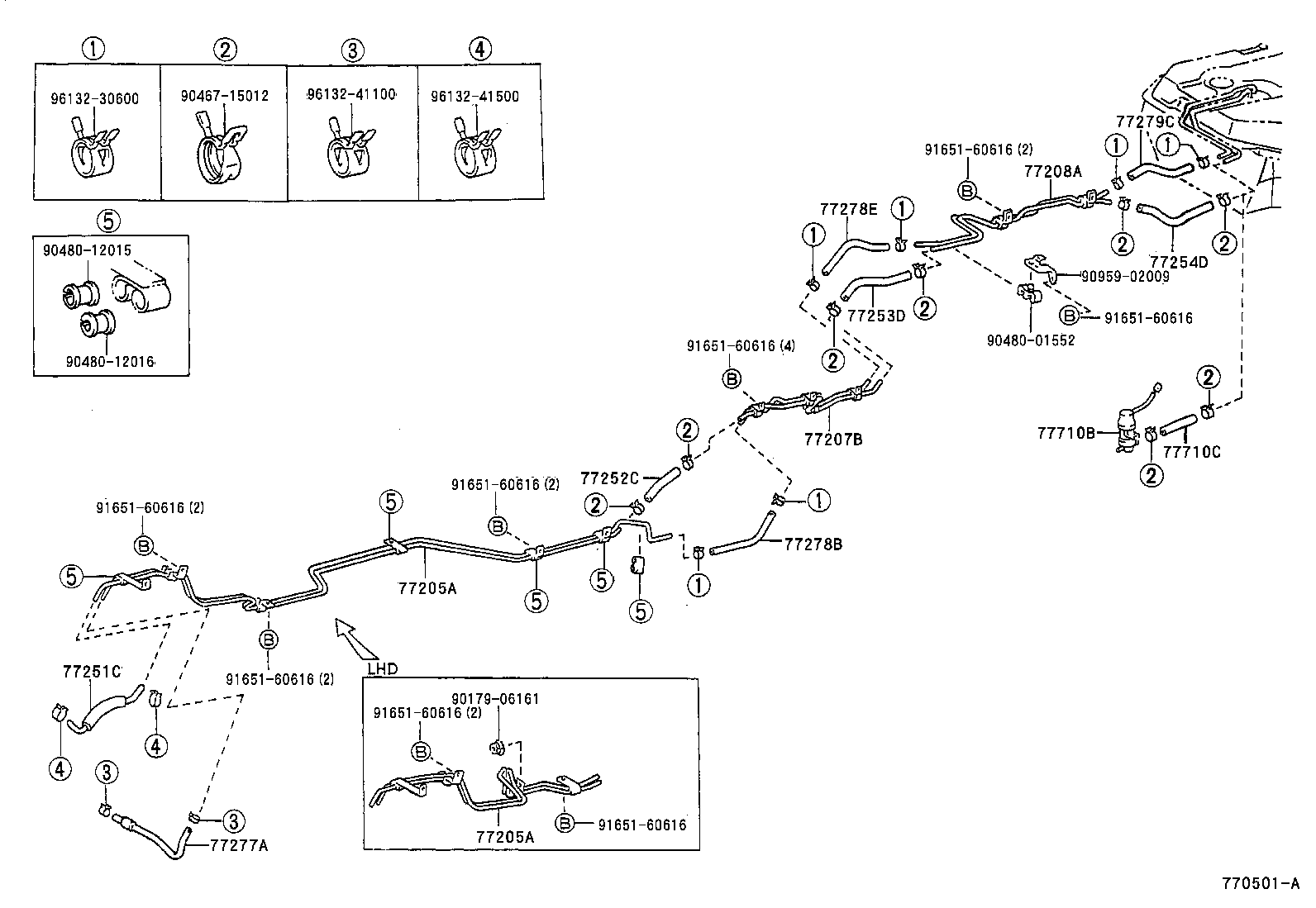

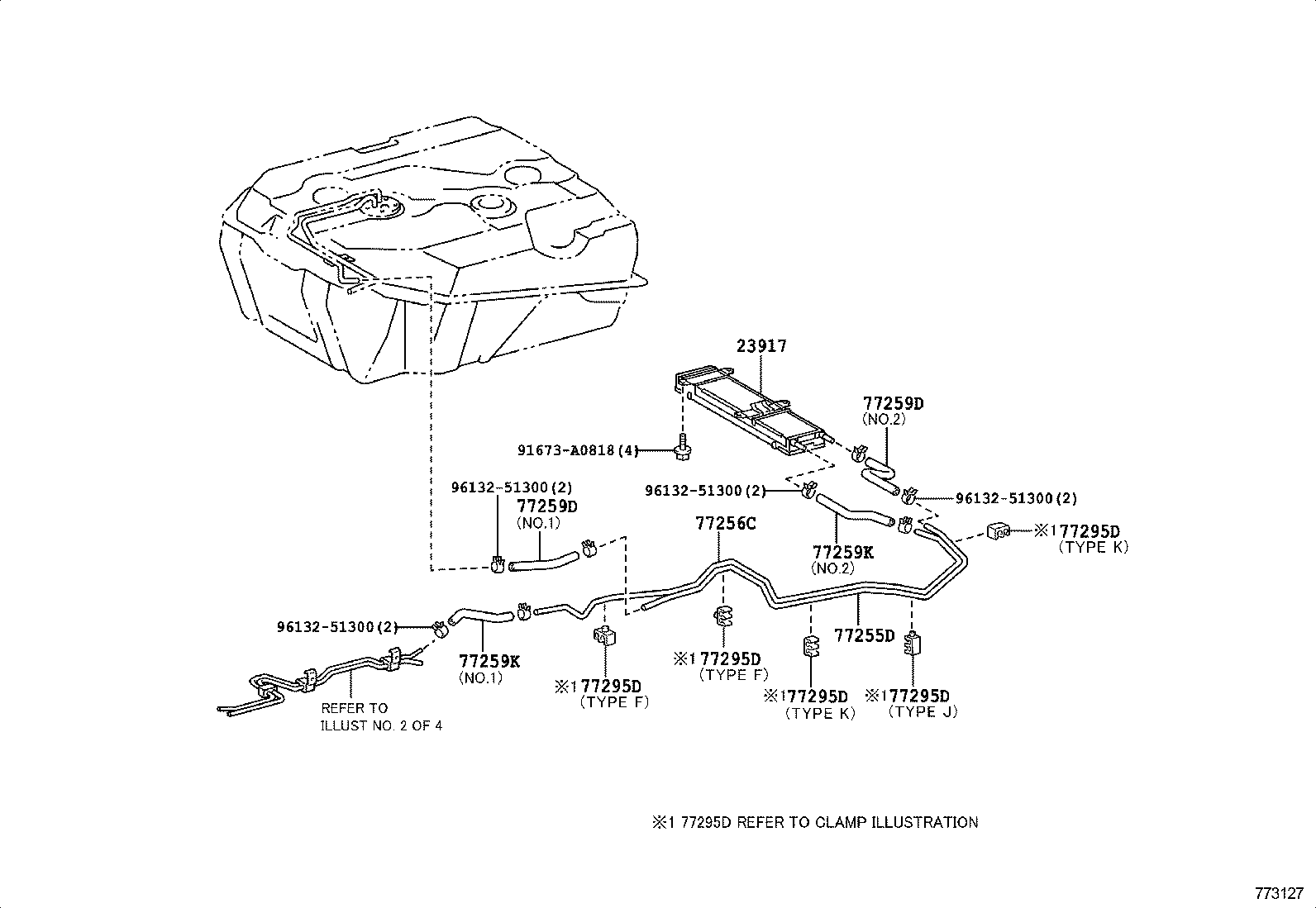

Figure 770921H 770921H 1993-01 → 2006-02 Figure 771039W 771039W 2001-08 → — Figure 771919K 771919K 2006-02 → — Figure 770540 770540 1993-01 → 1999-07 Figure 770540 770540 1997-05 → 1999-07 Figure 770540 770540 1997-11 → 1999-07 Figure 770497A 770497A 1993-01 → 1999-07 Figure 770498C 770498C 1993-09 → 1999-07 Figure 770499D 770499D 1993-09 → 1999-07 Figure 770500D 770500D 1997-05 → 1999-07 Figure 770501A 770501A 1996-05 → 1999-07 Figure 770501A 770501A 1998-02 → 1999-07 Figure 770692 770692 1999-07 → — Figure 770920A 770920A 1999-07 → 2007-08 Figure 770693A 770693A 1999-07 → 2000-08 Figure 770693A 770693A 2000-12 → — Figure 770694I 770694I 1999-07 → — Figure 770695E 770695E 1999-07 → — Figure 771959 771959 2006-08 → — Figure 771960A 771960A 2006-08 → 2015-01 Figure 772198A 772198A 2007-08 → 2015-01 Figure 773750 773750 2015-01 → — Figure 773751A 773751A 2015-01 → — Figure 773752C 773752C 2015-01 → — Figure 773753 773753 2015-01 → — Figure 773764A 773764A 2015-01 → — Figure 773765 773765 2015-01 → — Figure 773766A 773766A 2015-01 → — Figure 773754A 773754A 2015-01 → — Figure 773127 773127 1999-08 → — Figure 773128 773128 1999-07 → —

Part groups

PNCDescription
23300J Filter Assy, Fuel
23310E Filter Assy, Fuel Pump
23400D Filter Assy, Lpg
23401B Bolt
23415A Plate
23917 Cooler, Fuel
23921E Support, Fuel Filter
23960C Valve Assy, Solenoid Lpg
23972A Bracket, Filter & Solenoid Valve
77001B Valve (FOR LPG TANK)
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77017B Tube Sub-assy, Fuel Tank Vent
77022C Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77035 Cable Sub-assy, Fuel Lid Lock Control
77037 Lock Sub-assy, Fuel Filler Opening Lid
77051 Lever Sub-assy, Fuel Lid Open
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77108C Protector Sub-assy, Fuel Tank
77135 Bracket, Check Valve
77135A Protector, Fuel Tank Side
77169A Gasket, Fuel Suction Tube Set
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179A Gasket, Fuel Tank Breather Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77203A Tube Sub-assy, Fuel Suction
77205A Tube Sub-assy, Fuel Main
77206C Tube Sub-assy, Fuel Main, NO.2
77207B Tube Sub-assy, Fuel Main, NO.3
77208A Tube Sub-assy, Fuel Main, NO.4
77209C Tube Sub-assy, Fuel Tank Main
77209D Tube Sub-assy, Fuel Tank Main
77213B Hose, Fuel Tank TO Filler Pipe
77219 Cover, Fuel Tank Filler Pipe
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77251B Tube, Fuel Main
77251C Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77251F Hose, Fuel
77252C Hose, Fuel, NO.2(FOR FUEL MAIN NO.2 TUBE)
77253D Hose, Fuel
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77254D Hose, Fuel
77255D Tube, Fuel Return
77256C Tube, Fuel Return, NO.2
77259A Hose, Fuel(FOR BREATHER TUBE)
77259C Hose, Fuel
77259D Hose, Fuel, NO.1
77259E Hose, Fuel
77259K Hose, Fuel
77261 Tube Sub-assy, Fuel Emission
77261A Hose, Fuel, NO.1 (FOR FUEL EMISSION TUBE)
77261B Hose, Fuel, NO.2 (FOR FUEL EMISSION TUBE)
77261C Hose, Fuel, NO.3 (FOR FUEL EMISSION TUBE)
77261E Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77276 Protector, Fuel Hose
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77278E Hose, Fuel
77279B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.3)
77279C Hose, Fuel
77281 Bracket, Fuel Main Tube, NO.1
77281B Clamp, Fuel Hose(FOR REAR FUEL MAIN)
77281E Bracket, Fuel Main Tube, NO.1
77285 Bracket, Fuel Tube
77285D Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77287A Hose, Fuel
77290 Shield Assy, Fuel Tank Filler Pipe
77292C Shield, Fuel Tank Filler Pipe, NO.2
77293A Shield, Fuel Tank Filler Pipe, NO.3
77295D Grommet, Fuel Tube
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77377 Retainer, Fuel Filler Opening Lid Lock
77380 Valve Assy, Fuel Cut Off
77390A Gasket (FOR FUEL TANK VALVE)
77390D Valve Assy, Fuel Tank Over Fill Check
77390E Valve, Fuel(FOR LPG)
77391 Ring, Fuel Inlet Box
77420 Valve Assy, Fuel Cut Off, NO.2
77511A Bracket, Fuel Tank
77602C Cover Sub-assy, Fuel Tank, Lower
77611 Band, Fuel Tank
77611A Pin (FOR FUEL TANK BAND)
77612C Cover, Fuel Tank, Lower
77613A Bracket, Fuel Tank Band, NO.1
77633 Stay, Fuel Tank
77638 Sleeve, Tank Valve Joint
77641A Protector, Fuel Tank, NO.1
77651A Cushion, Fuel Tank, NO.1
77652A Cushion, Fuel Tank, NO.2
77653A Cushion, Fuel Tank, NO.3
77655 Cushion, Fuel Tank, NO.3
77681A Seat, Fuel Tank Band
77701T Valve, Check (FOR MAIN FUEL TANK)
77710B Valve Assy, Fuel Tank Solenoid Main
77710C Hose, Fuel
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
77754 Hose, Charcoal Canister Outlet, NO.1
77759 Hose, Charcoal Canister
77779 Tube, Charcoal Canister Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
