Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

26 part groups · 20 illustrations

Illustrations

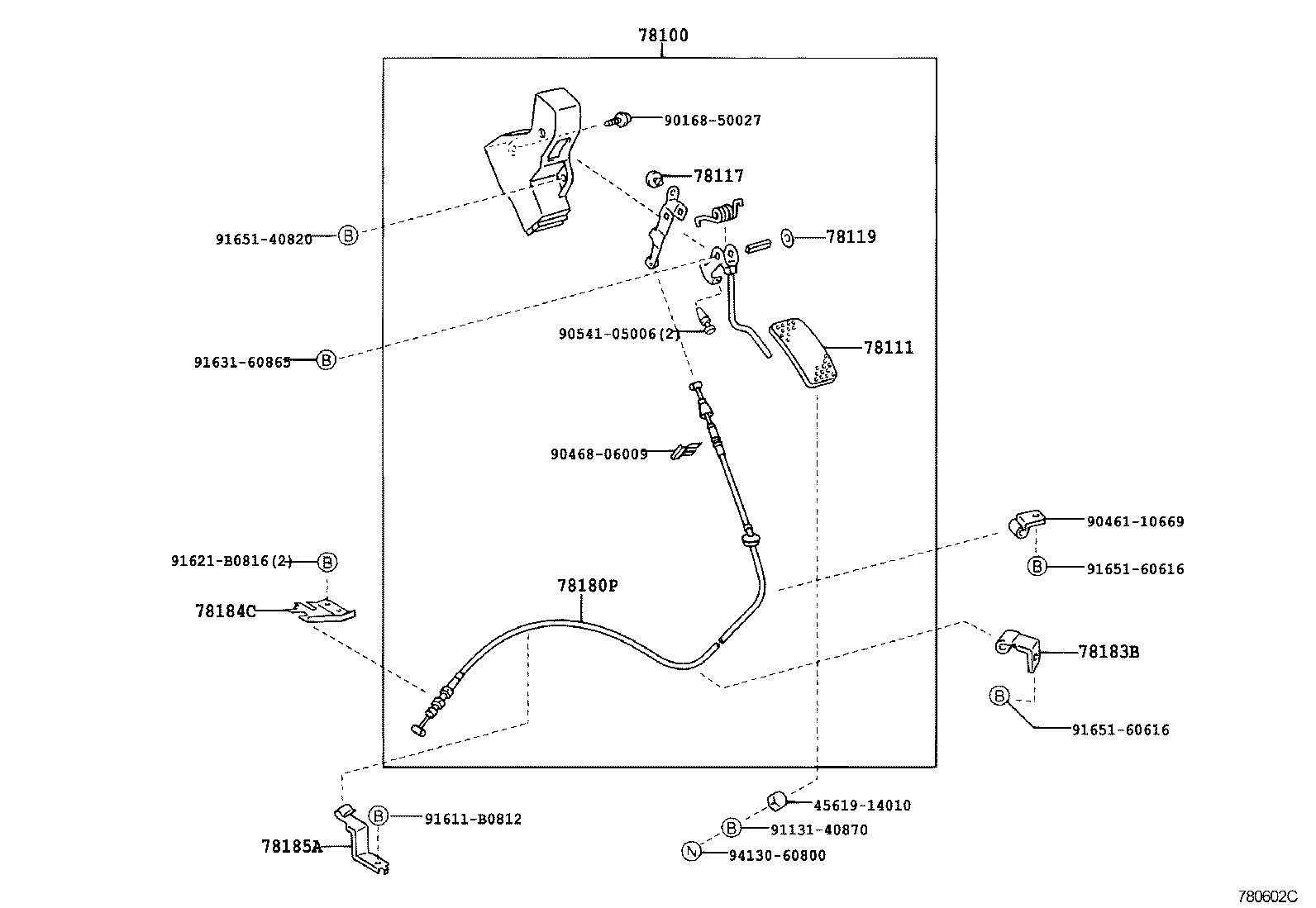

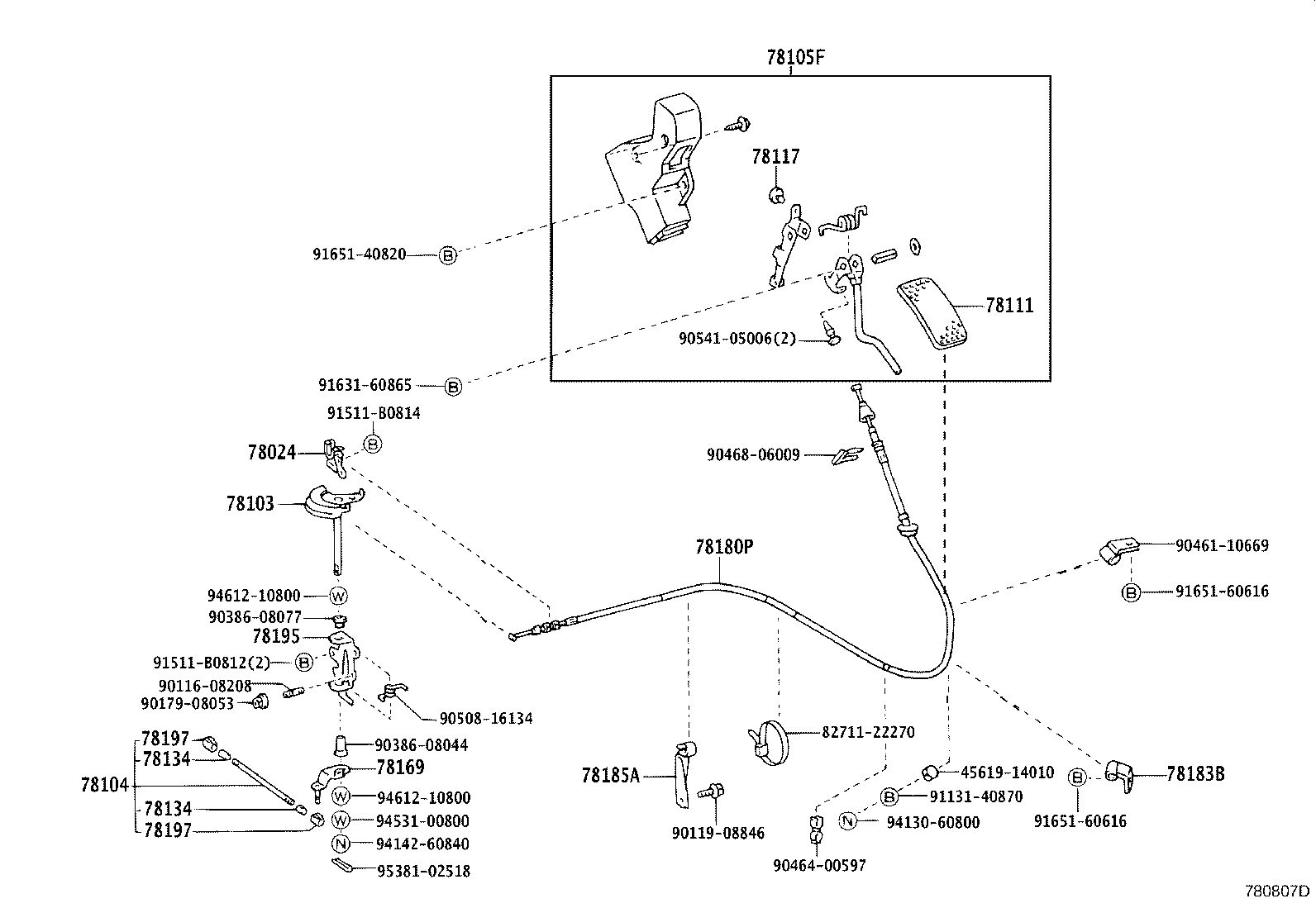

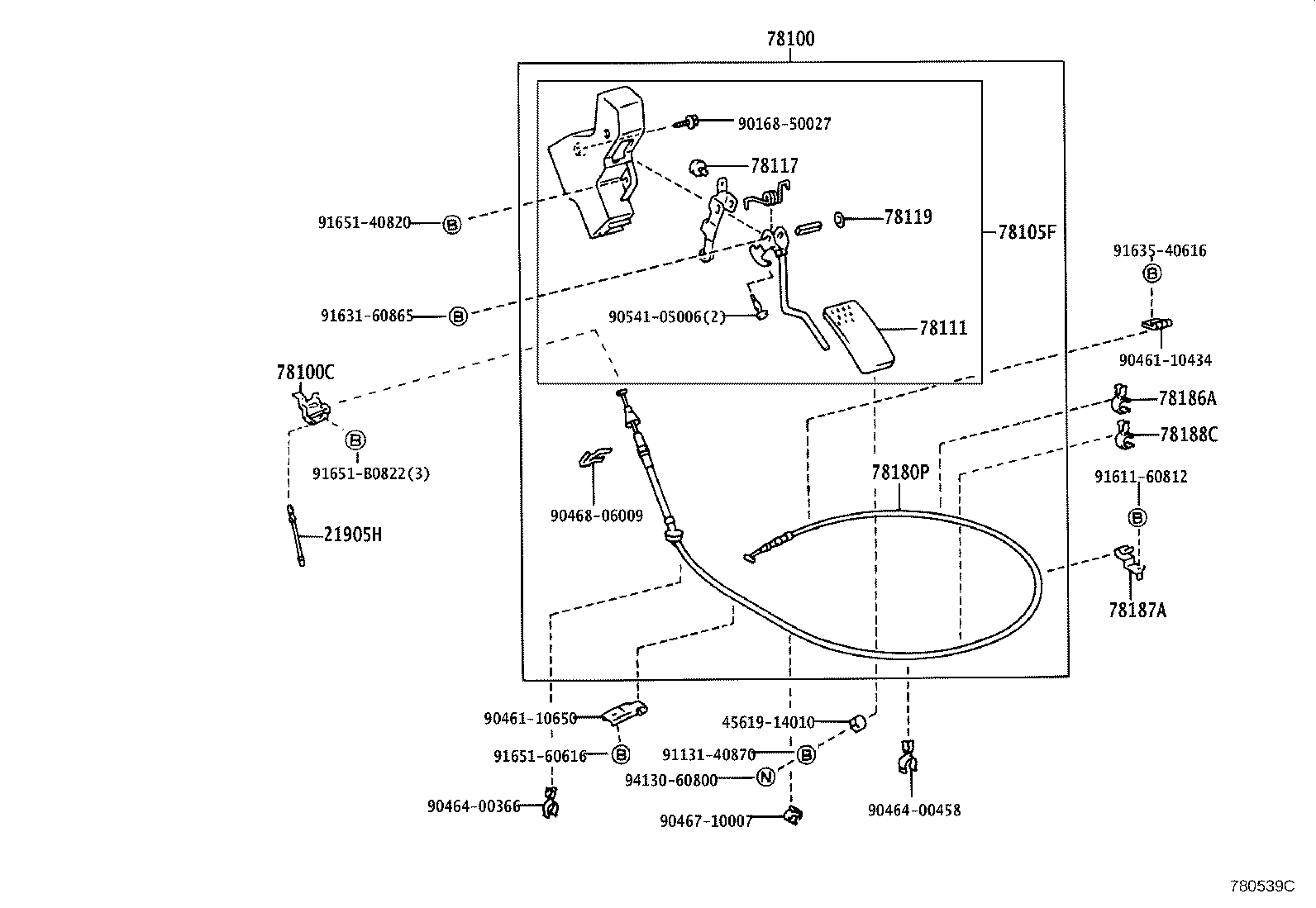

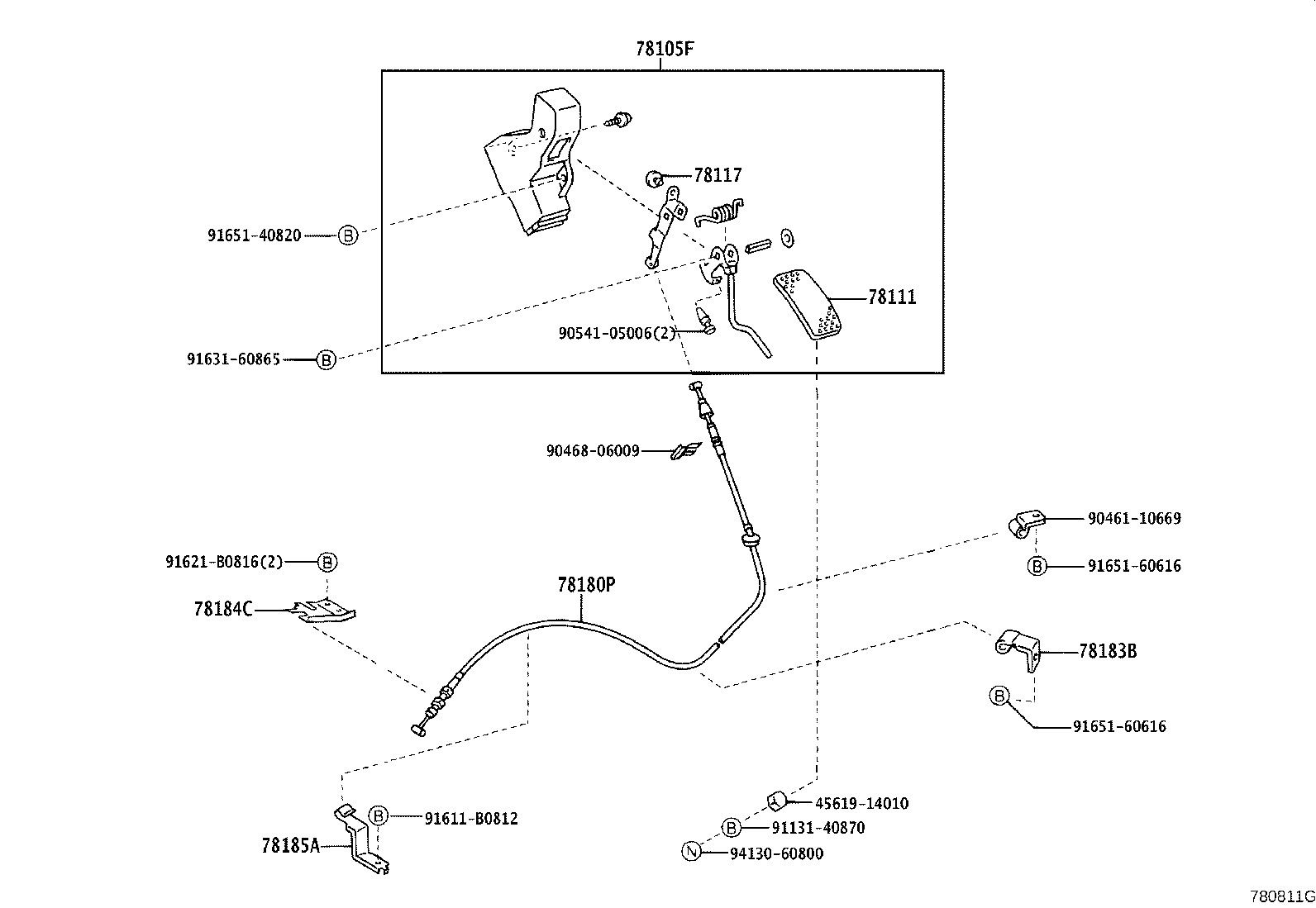

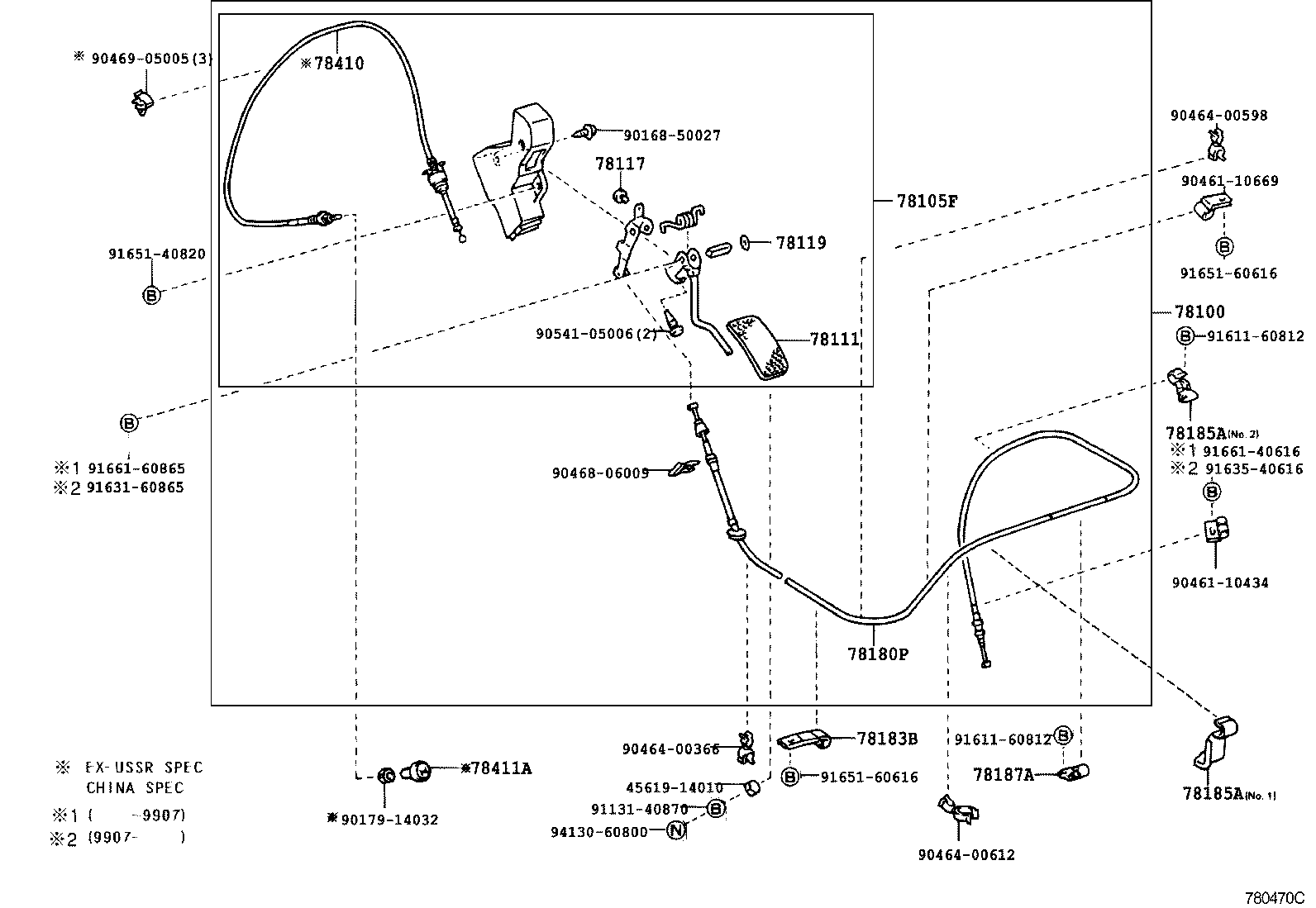

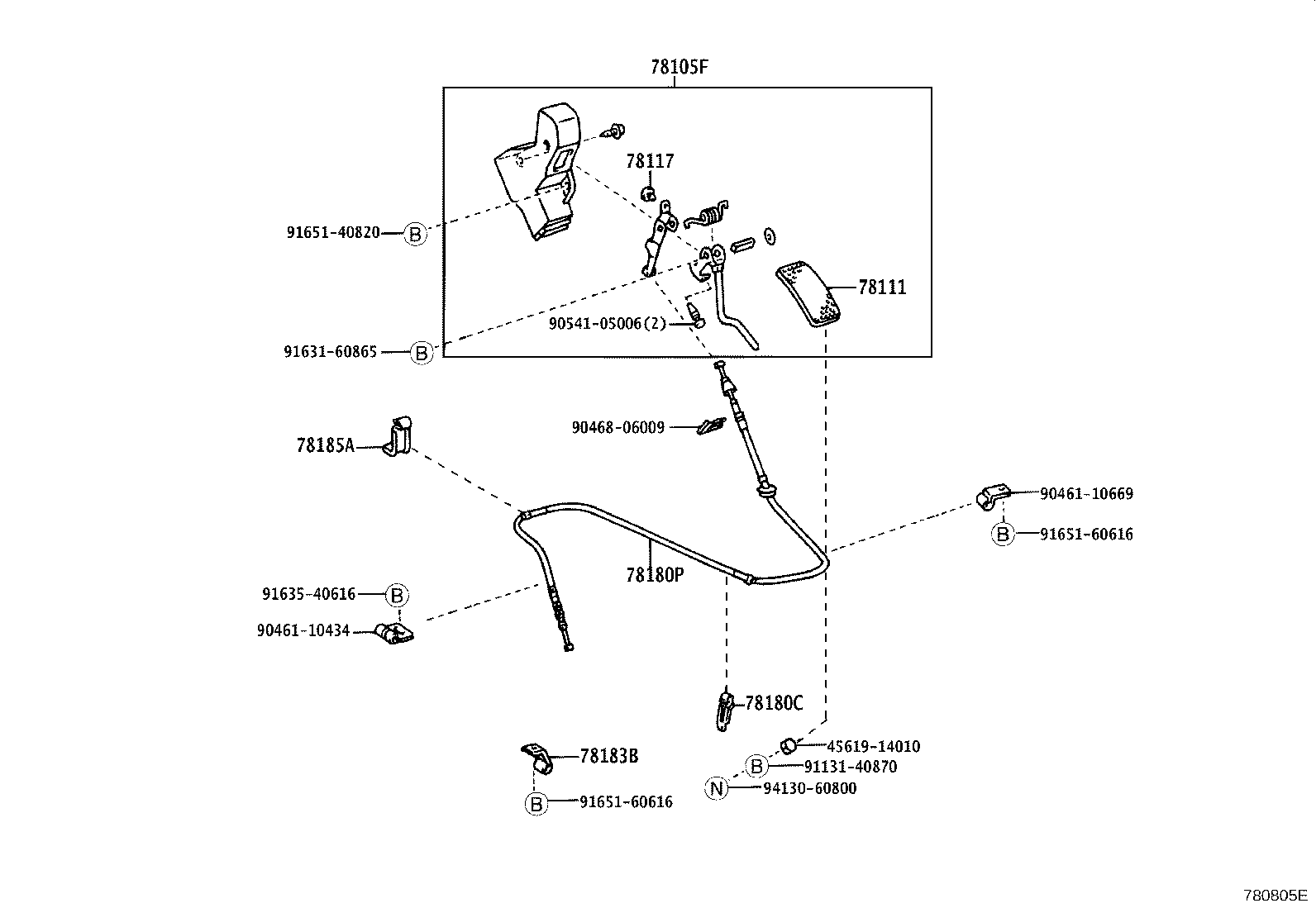

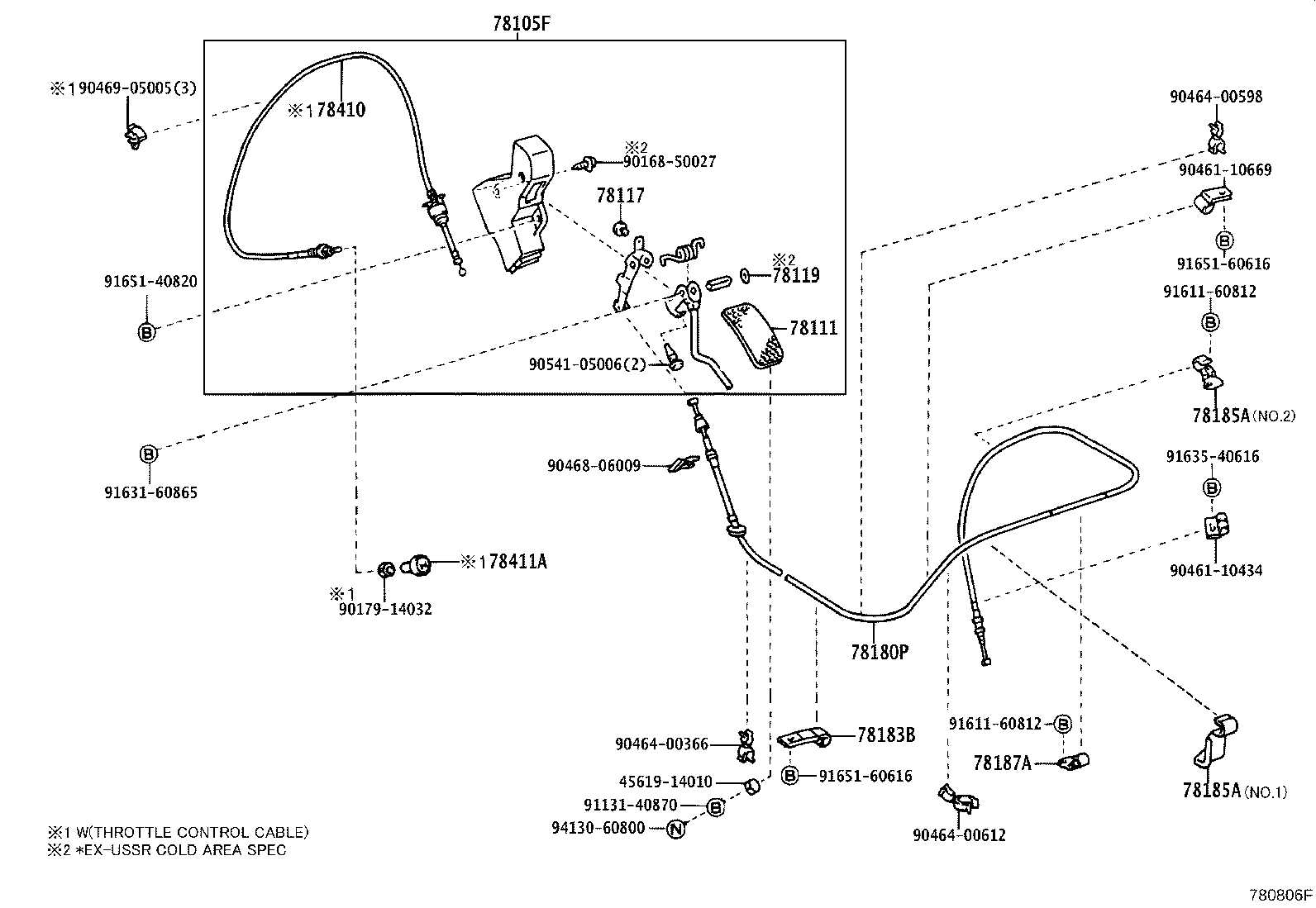

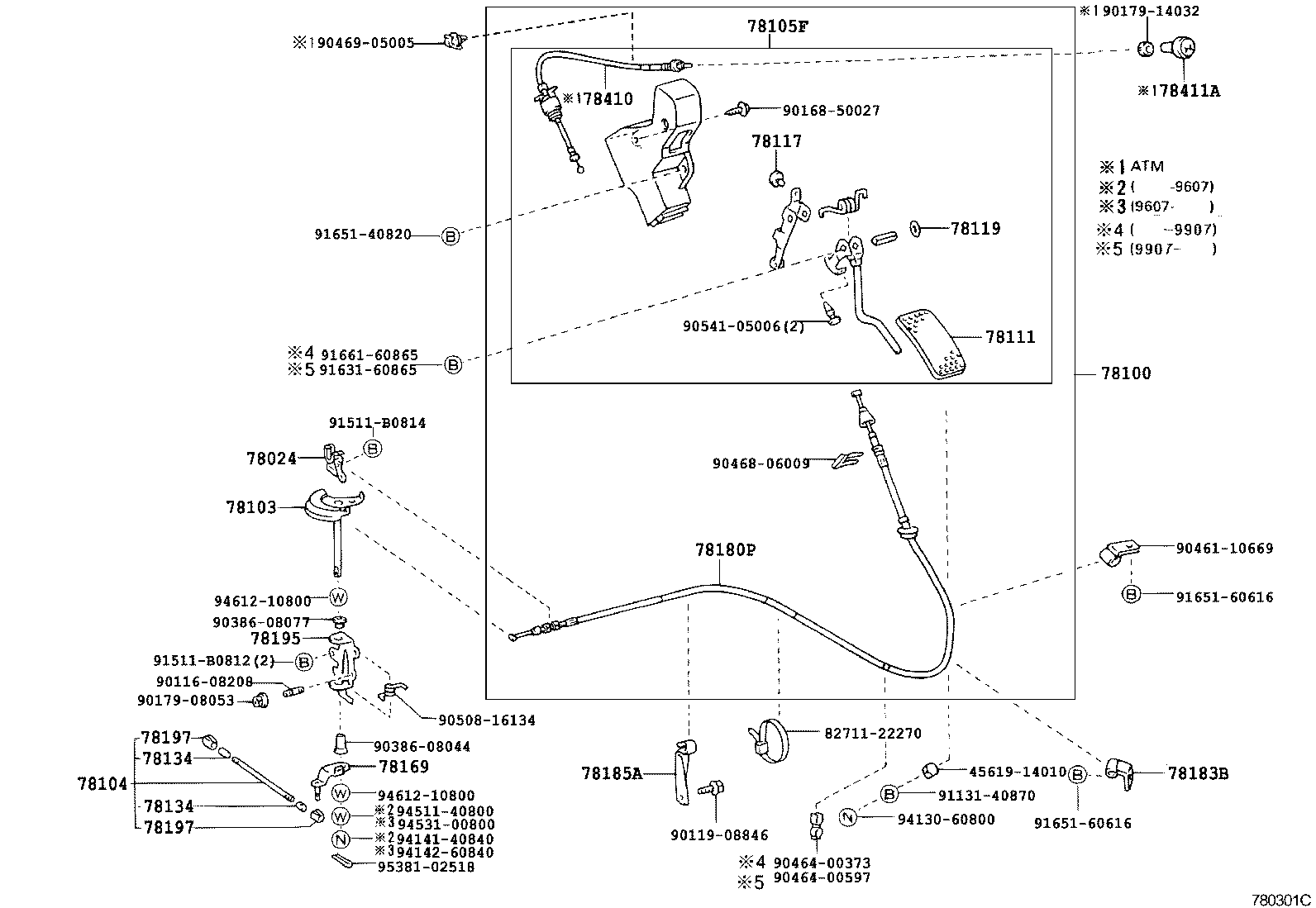

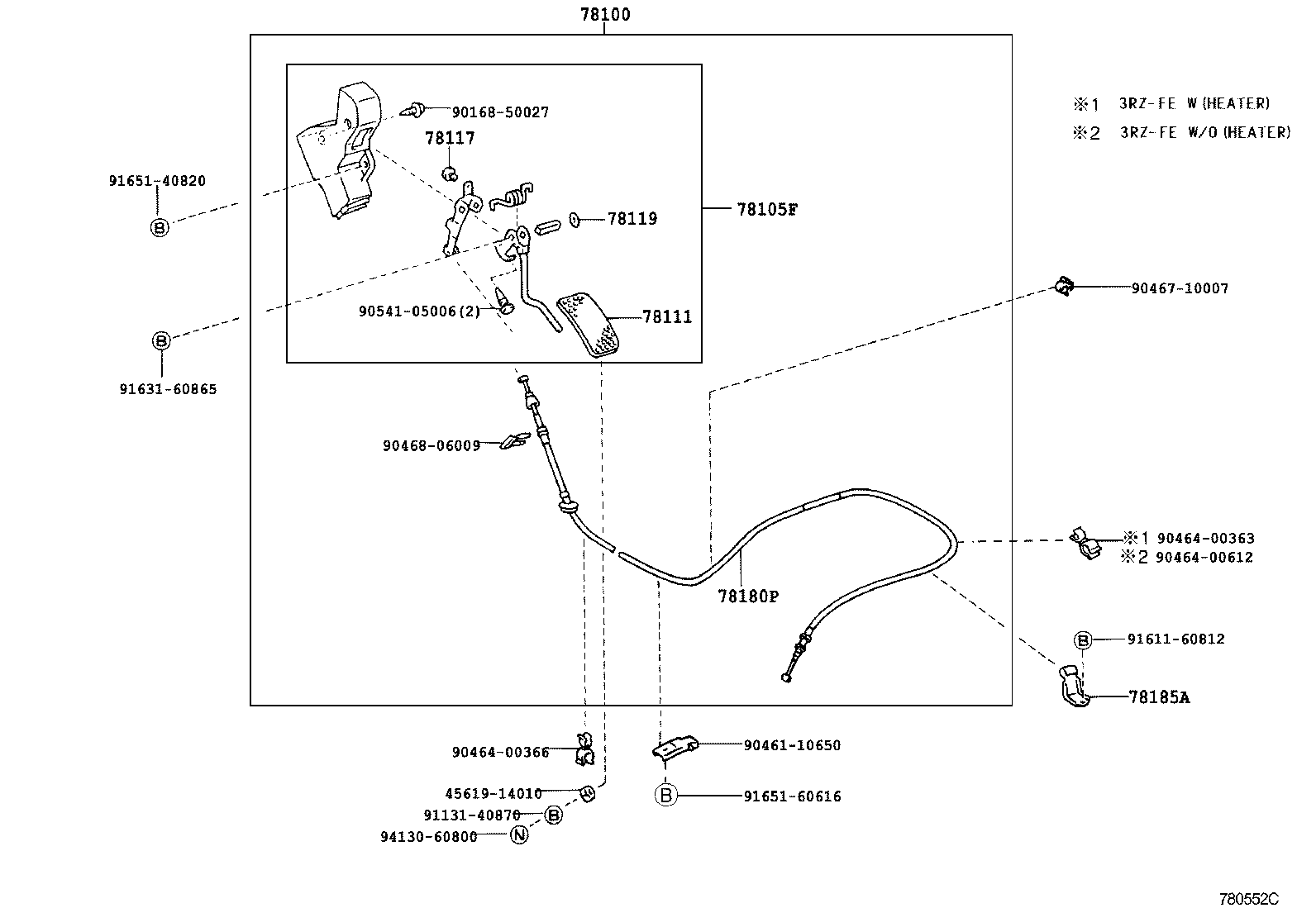

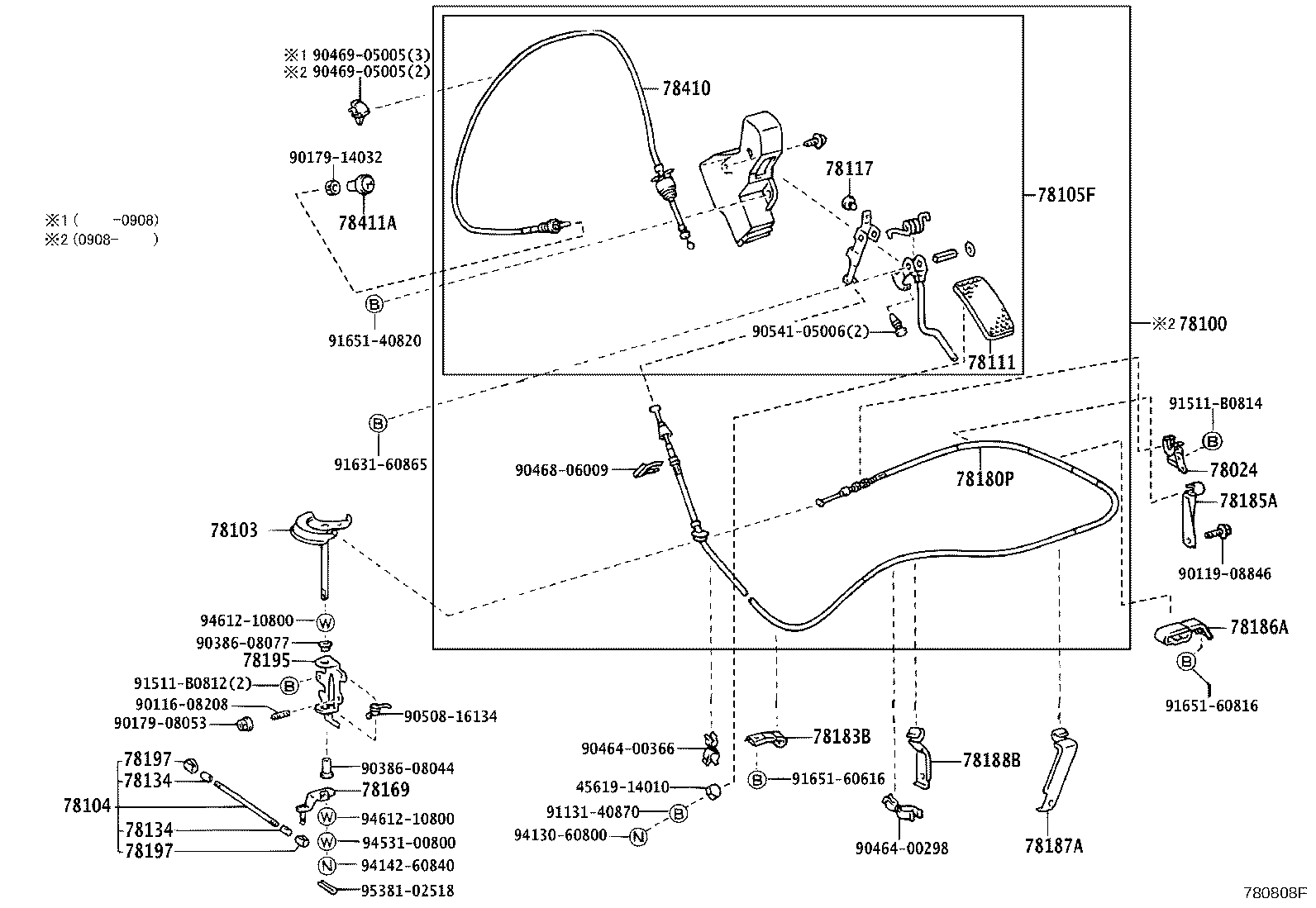

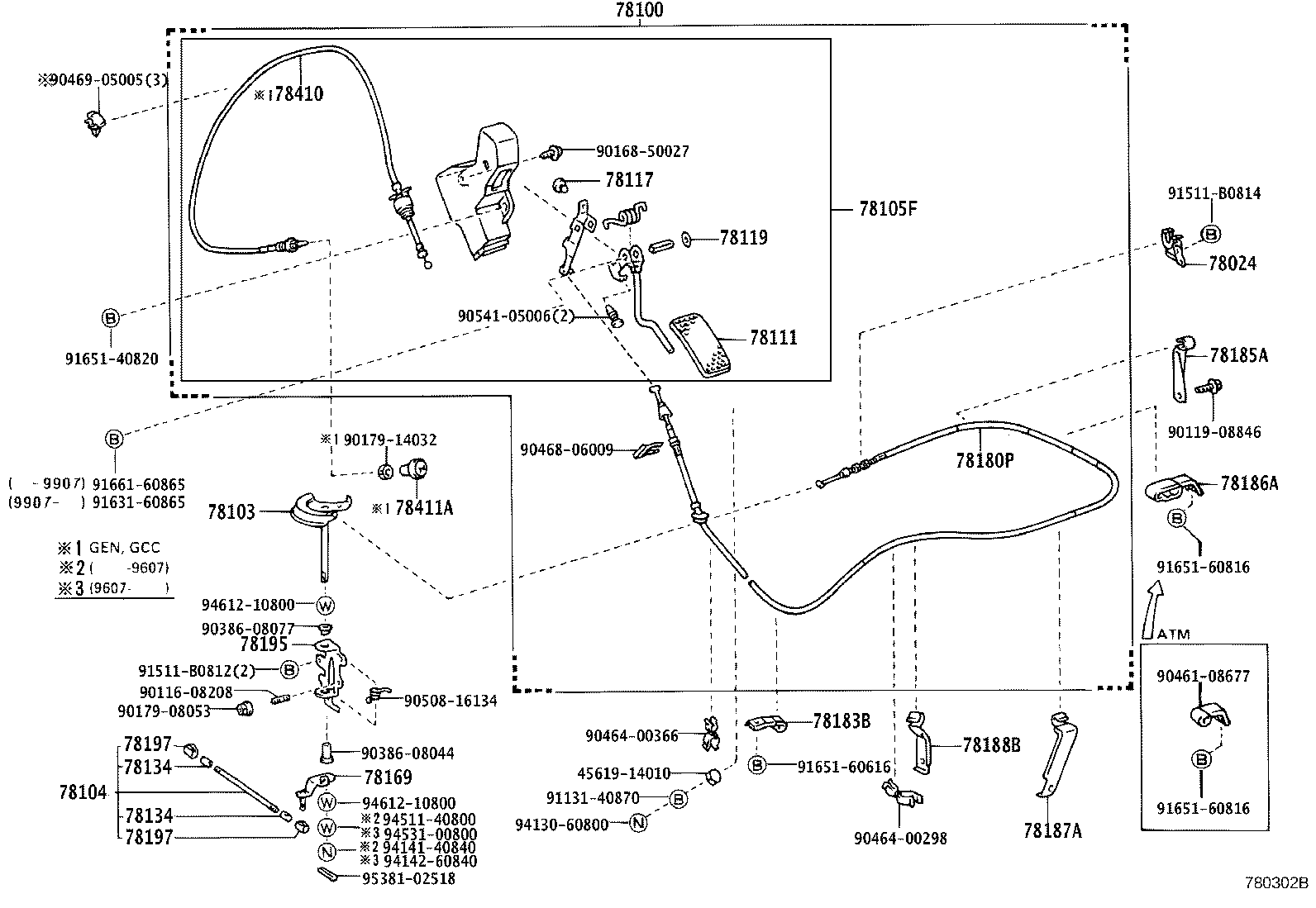

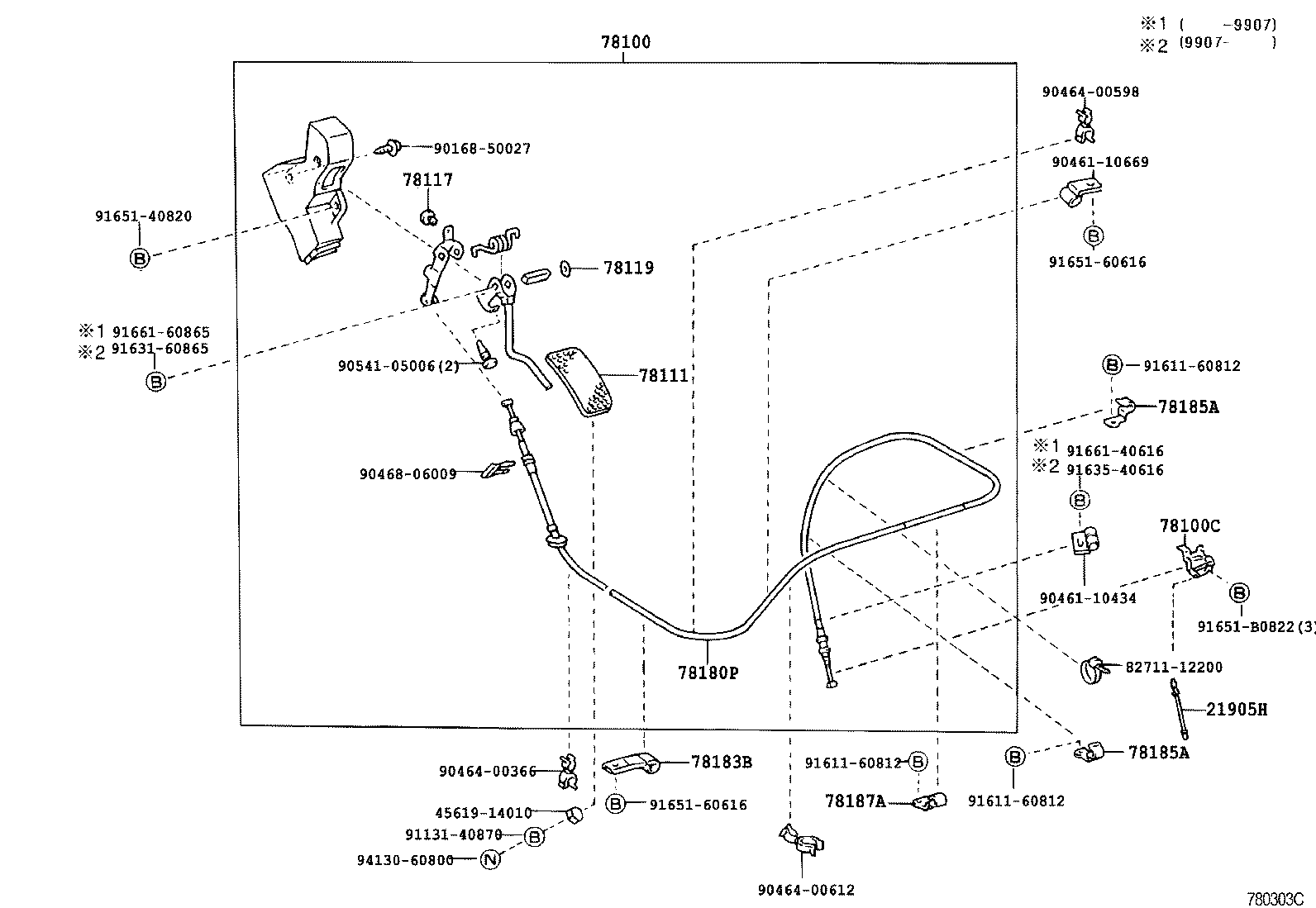

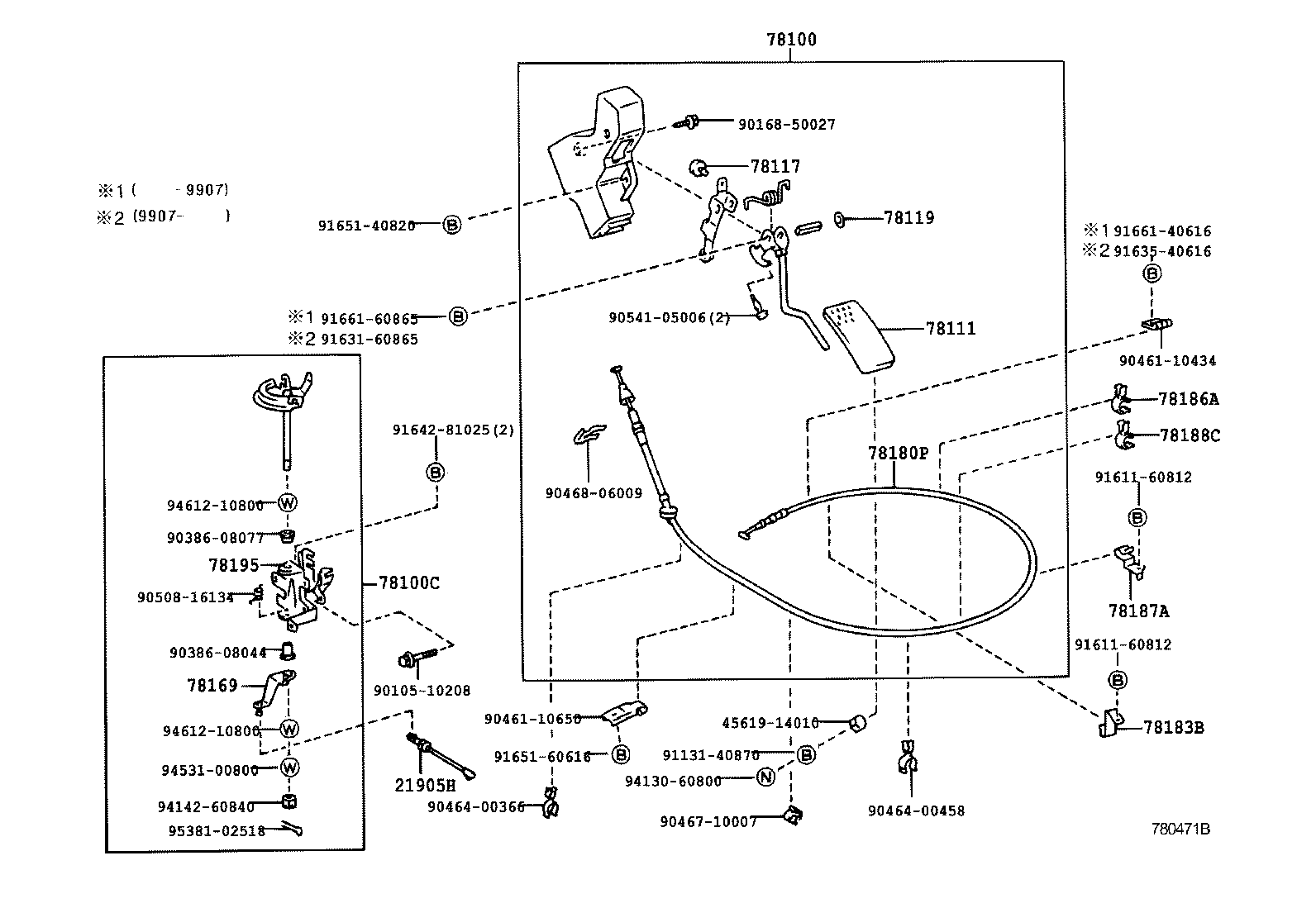

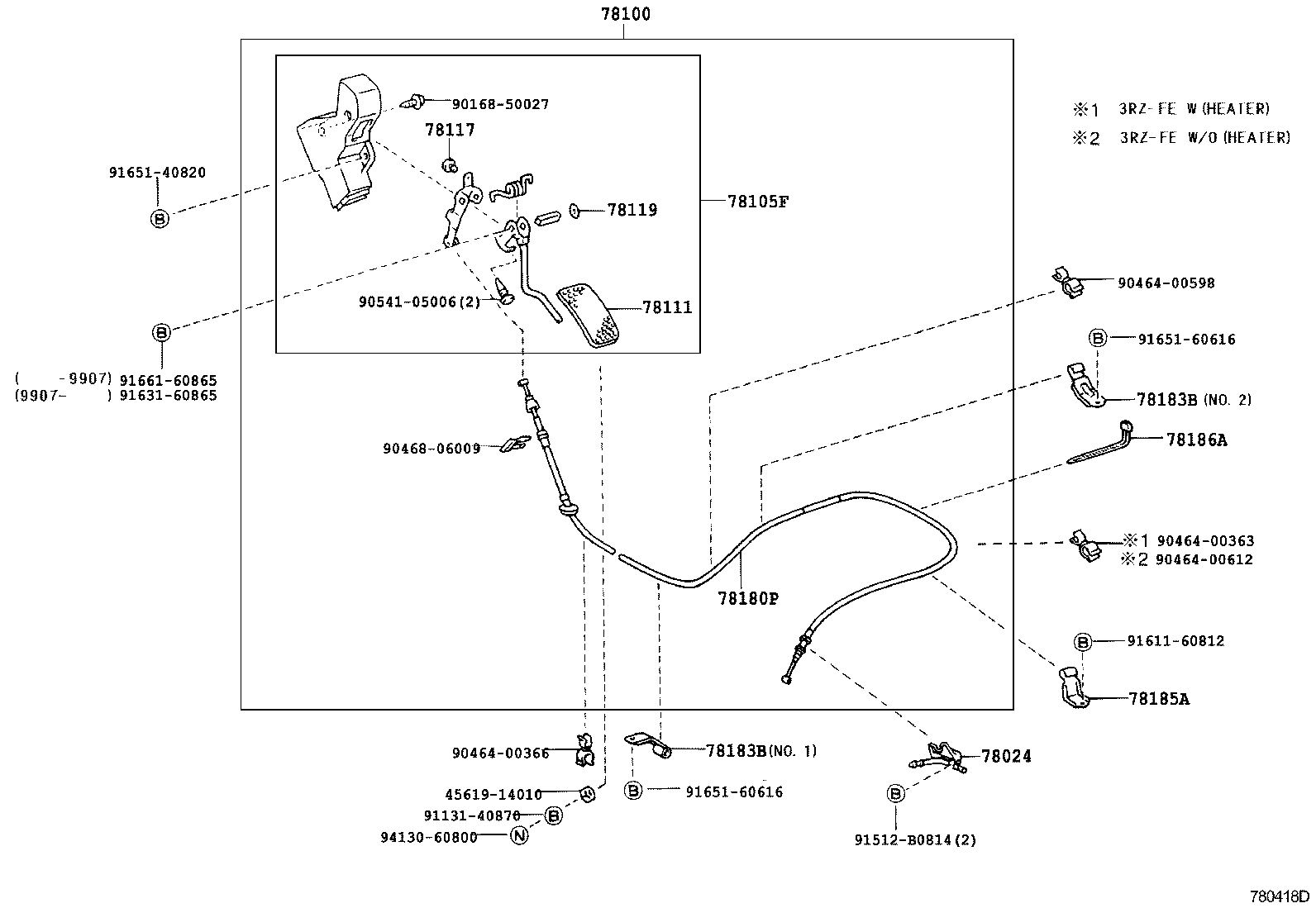

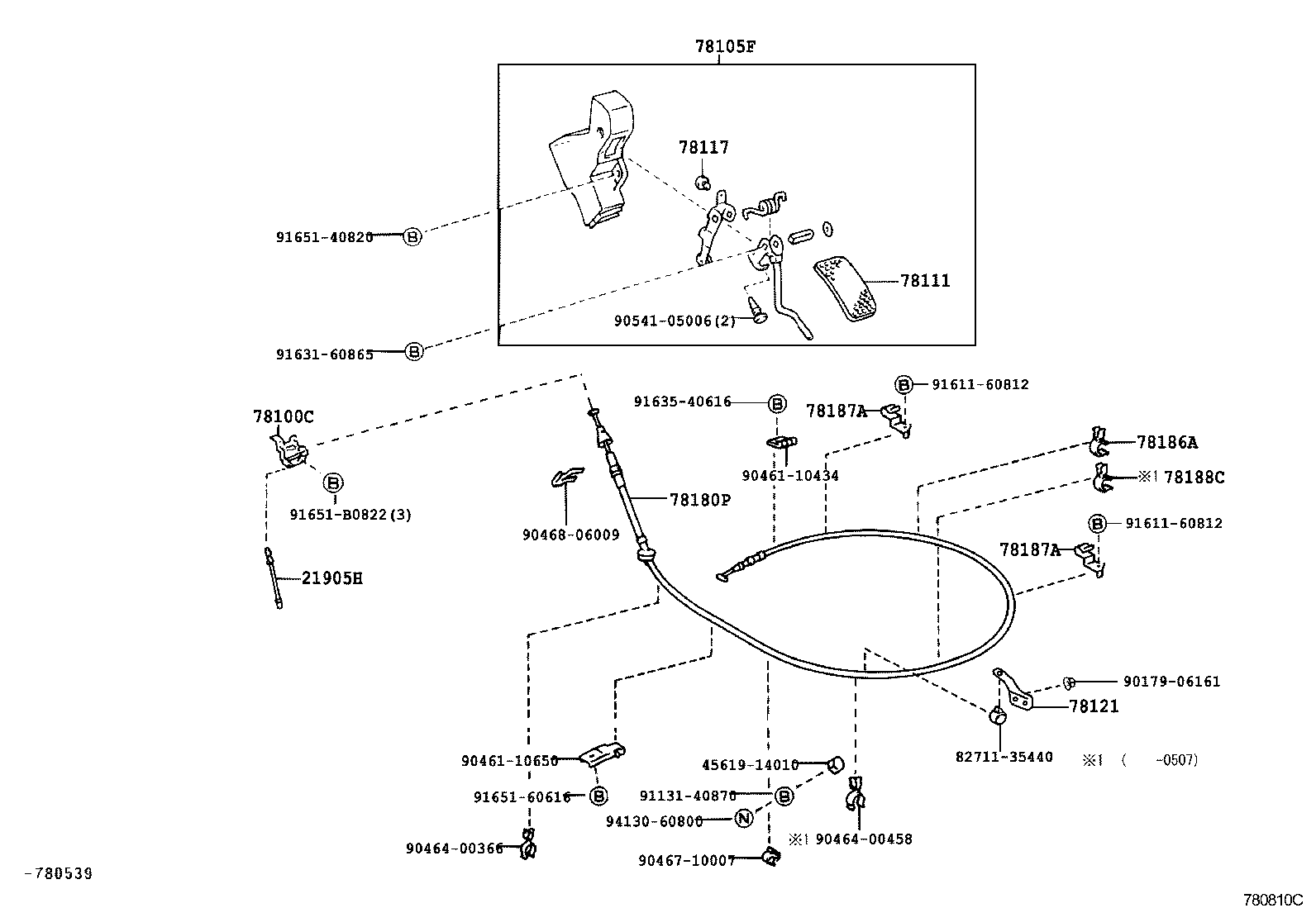

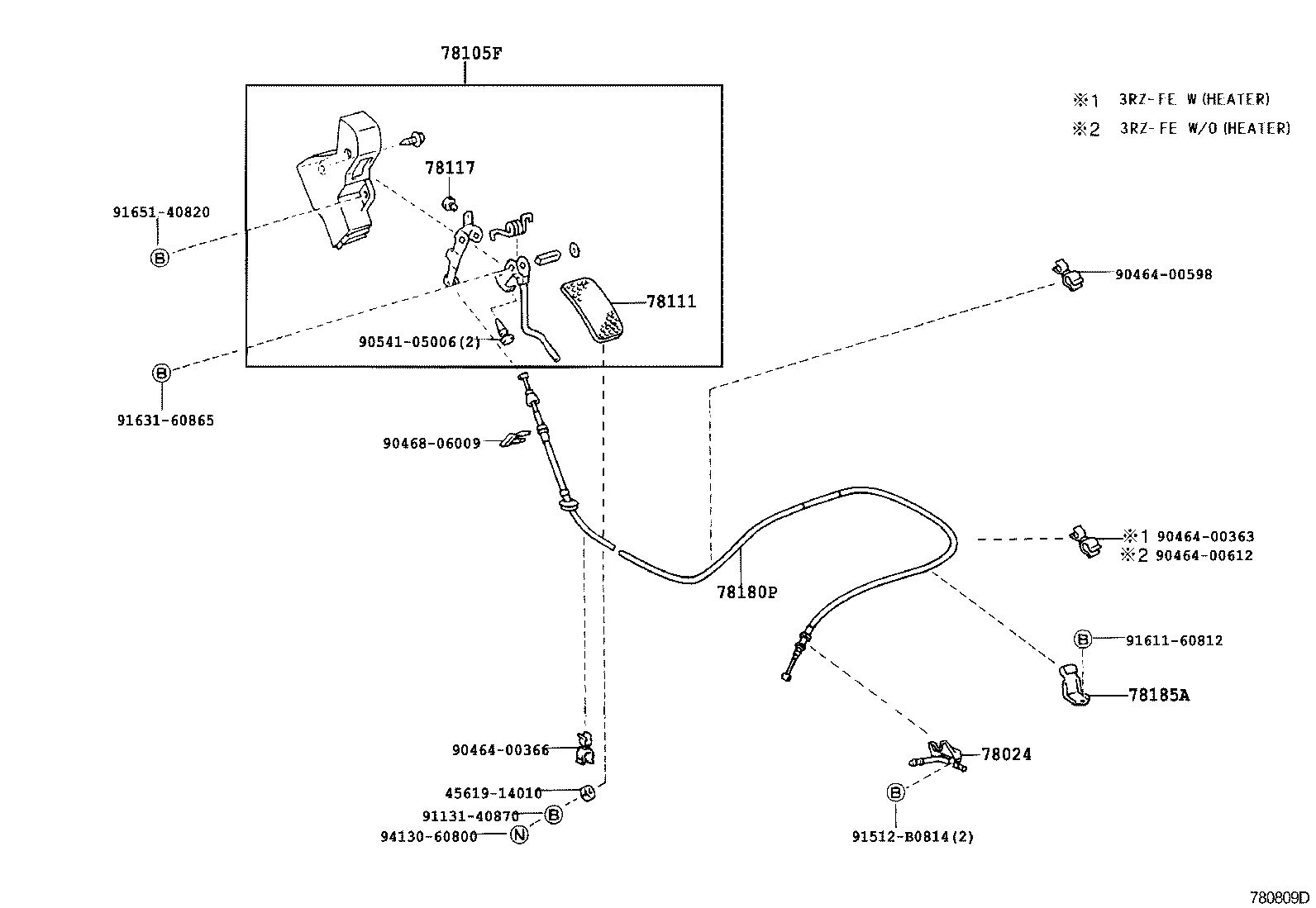

Figure 780469B 780469B 1993-01 → 2003-09 Figure 780805E 780805E 2003-09 → — Figure 780470C 780470C 1993-01 → 2003-09 Figure 780806F 780806F 2003-09 → — Figure 780301C 780301C 1993-01 → 2003-09 Figure 780807D 780807D 2003-09 → — Figure 780302B 780302B 1993-01 → 2003-09 Figure 780808F 780808F 2003-09 → — Figure 780418D 780418D 1993-09 → 2003-09 Figure 780809D 780809D 2003-09 → 2015-01 Figure 780303C 780303C 1996-05 → — Figure 780539C 780539C 1997-05 → 2003-09 Figure 780810C 780810C 2003-09 → — Figure 780471B 780471B 1997-05 → 1999-07 Figure 780471B 780471B 1997-05 → 2001-08 Figure 781568A 781568A 1999-07 → 2004-08 Figure 781568A 781568A 2004-08 → — Figure 780552C 780552C 2000-12 → 2002-11 Figure 780602C 780602C 2001-08 → 2003-09 Figure 780811G 780811G 2003-09 → —

Part groups

PNCDescription
21905H Rod Sub-assy, Accelerator Connecting
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78100C Link Assy, Accelerator, NO.2
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78105F Link Sub-assy, Accelerator
78111 Pedal, Accelerator
78117 Cushion (FOR ACCELERATOR ROD)
78119 Stopper, Accelerator Pedal Rod
78121 Retainer, Spring (FOR ACCELERATOR LINK ROD)
78134 End, Accelerator Connecting Rod
78169 Hanger, Accelerator Spring
78180C Spring, Tension (FOR ACCELERATOR WIRE)
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184C Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78186A Clamp, Accelerator Control Cable, NO.3
78187A Clamp, Accelerator Control Cable, NO.4
78188B Support, Accelerator Auto-drive Cable
78188C Clamp, Accelerator Control Cable, NO.5
78195 Bracket, Accelerator Link
78197 Clip, Accelerator Joint Ball
78410 Cable Assy, Throttle Control
78411A Knob, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
