Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

6 part groups · 3 illustrations

Illustrations

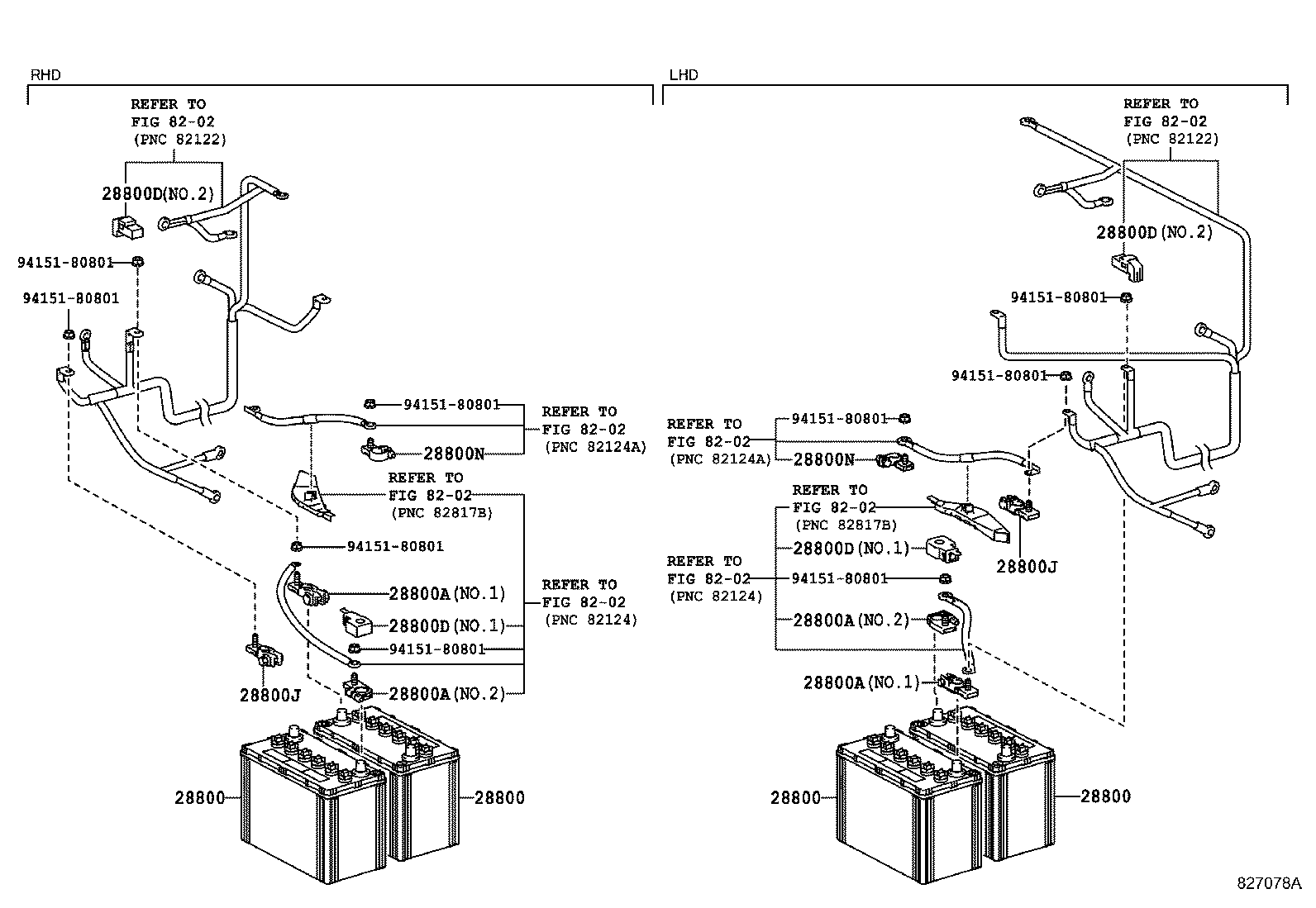

Figure 821323G 821323G 1993-01 → 2009-08 Figure 821323G 821323G 2009-08 → — Figure 827078A 827078A 2009-08 → —

Part groups

PNCDescription
28800 Battery
28800A Terminal, Battery Positive
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800J Terminal, Battery Negative
28800K Cover, Connector(FOR BATTERY TERMINAL NEGATIVE)
28800N Terminal, Battery Negative
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
