Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

87 part groups · 51 illustrations

Illustrations

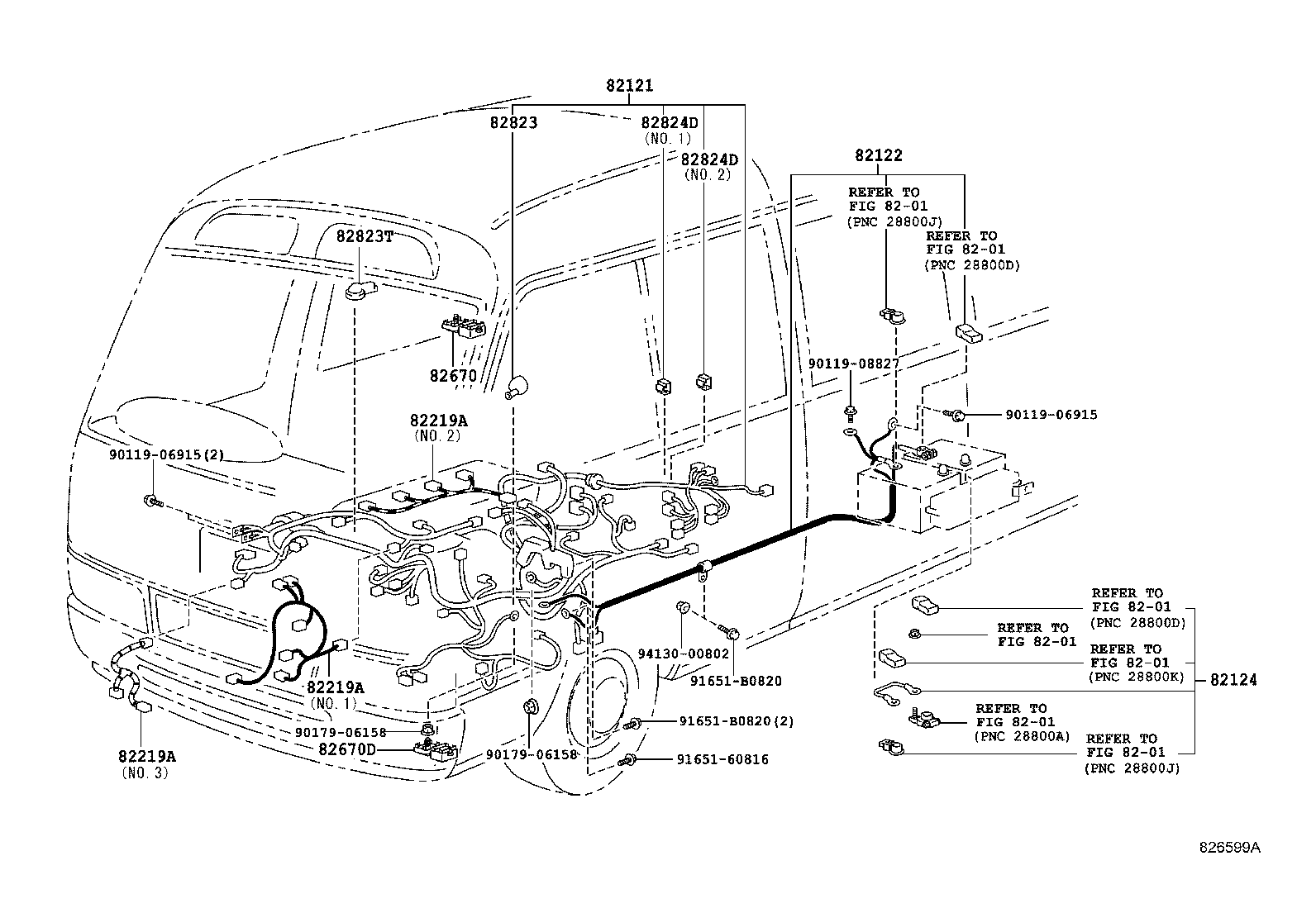

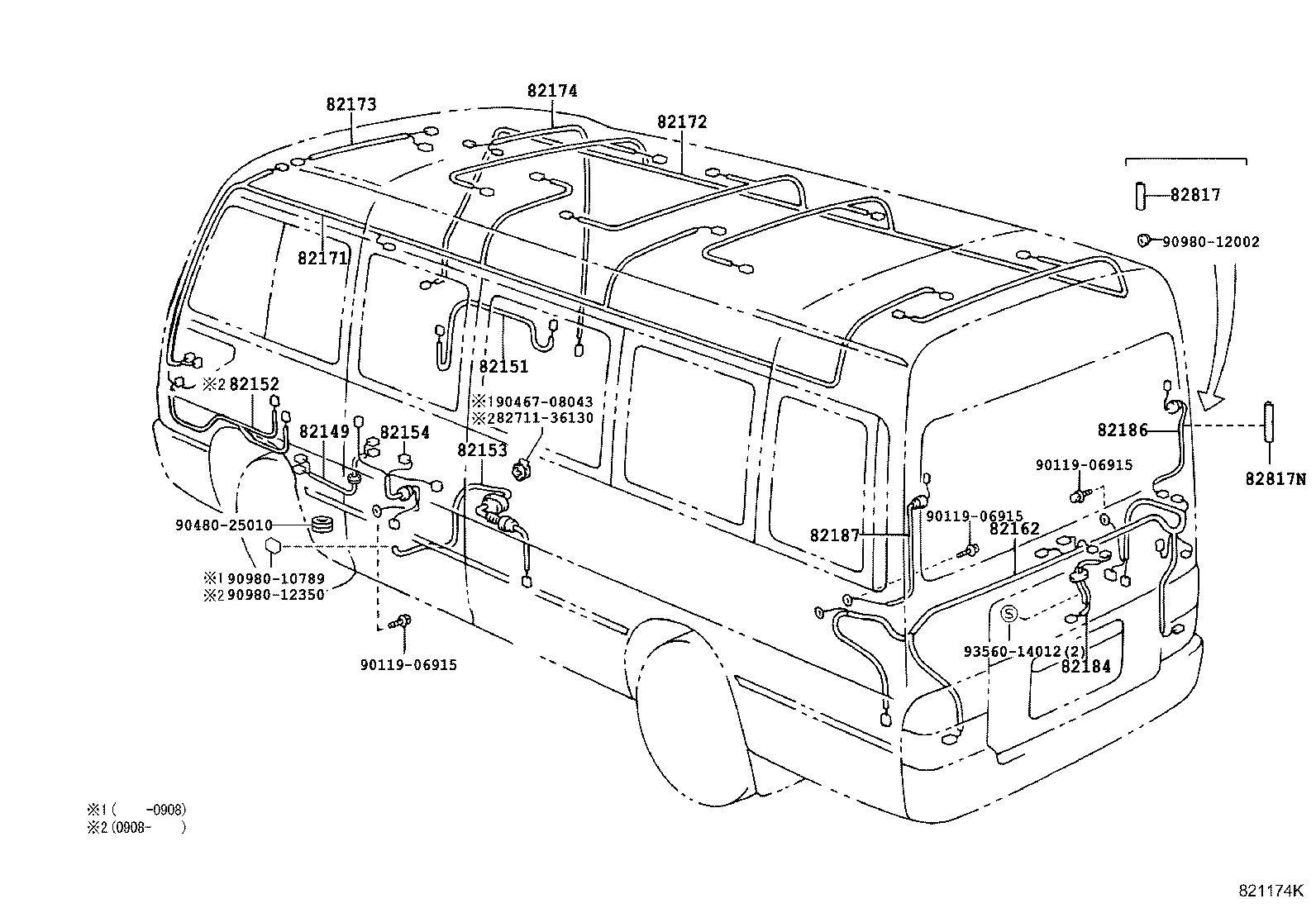

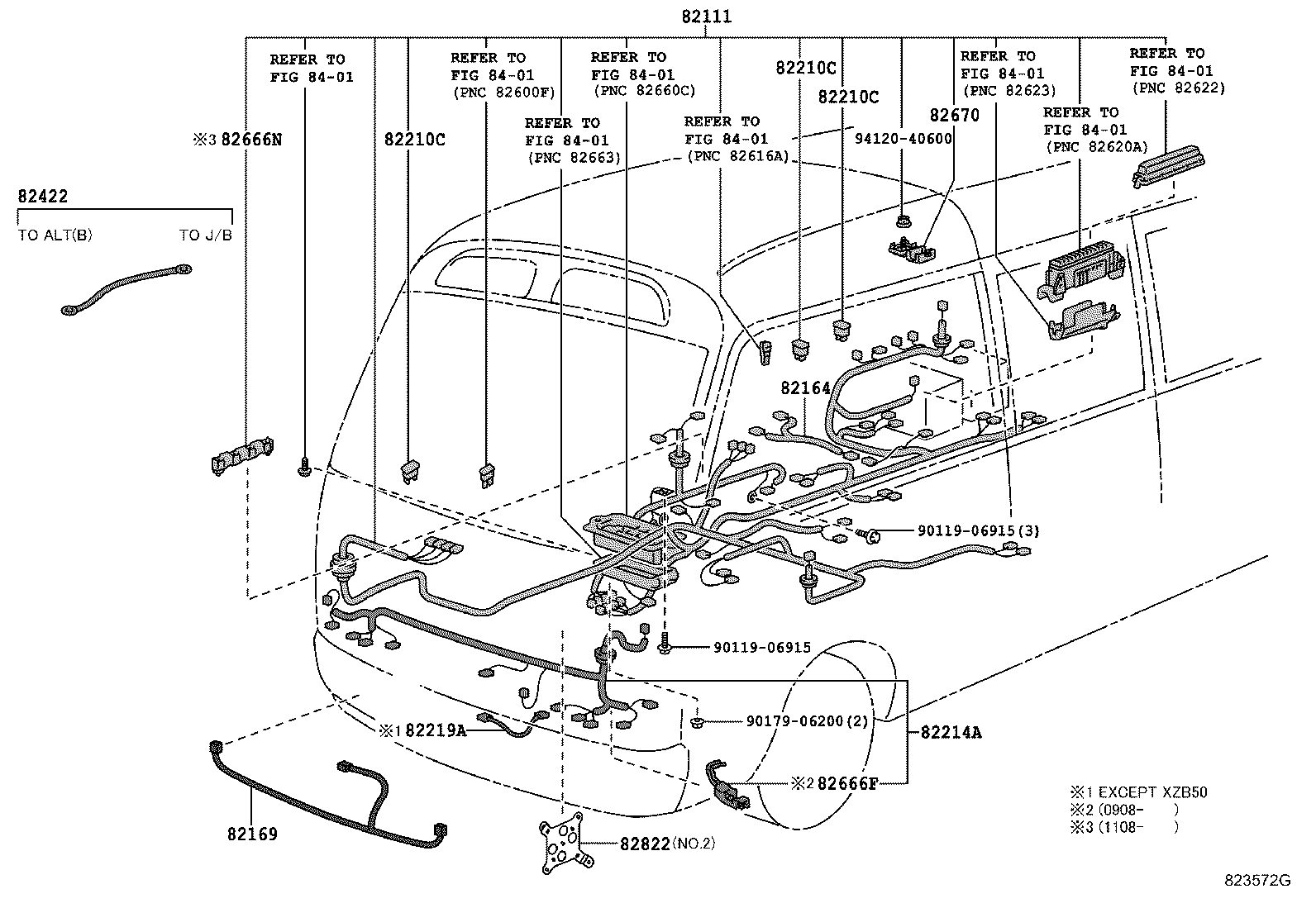

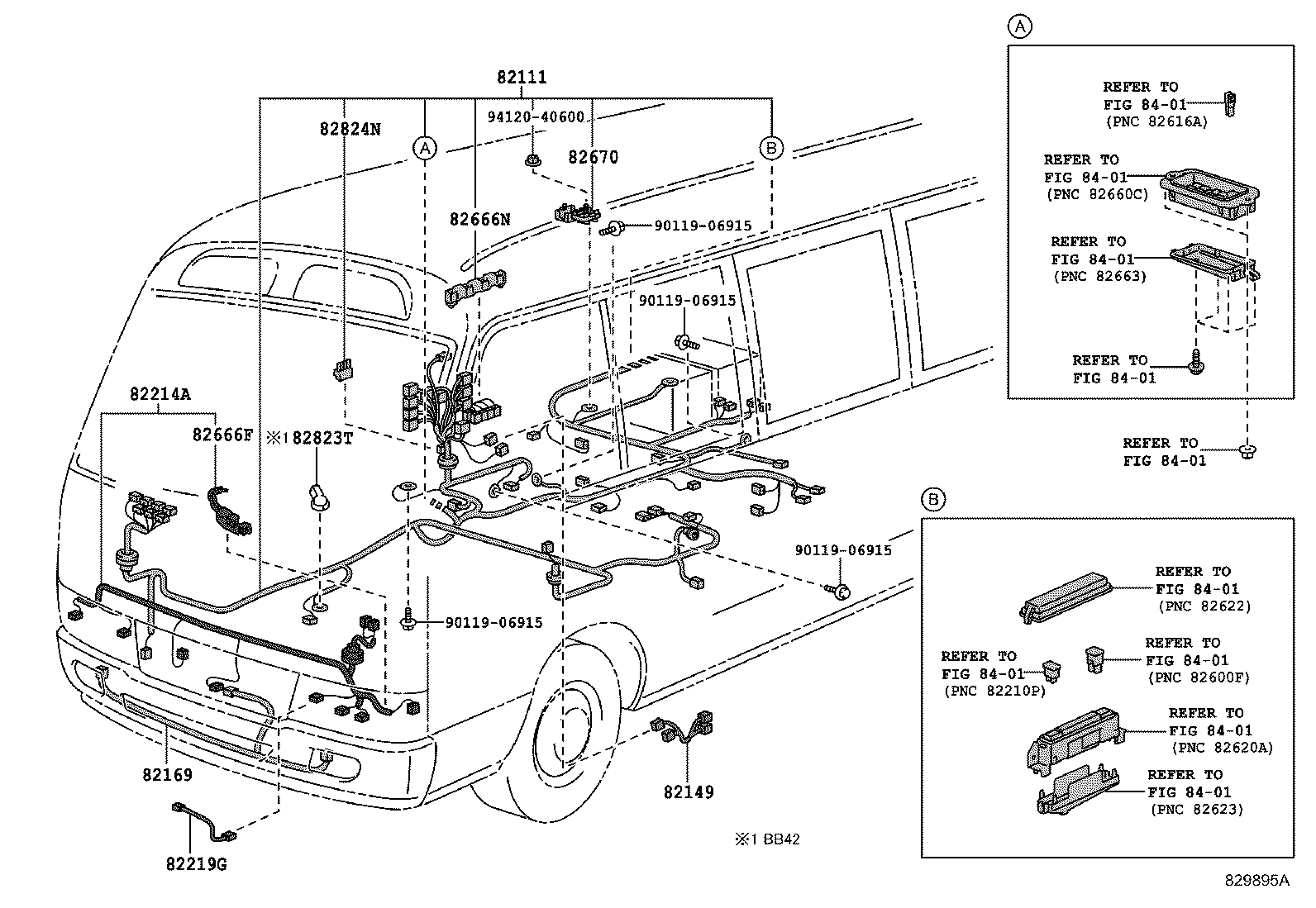

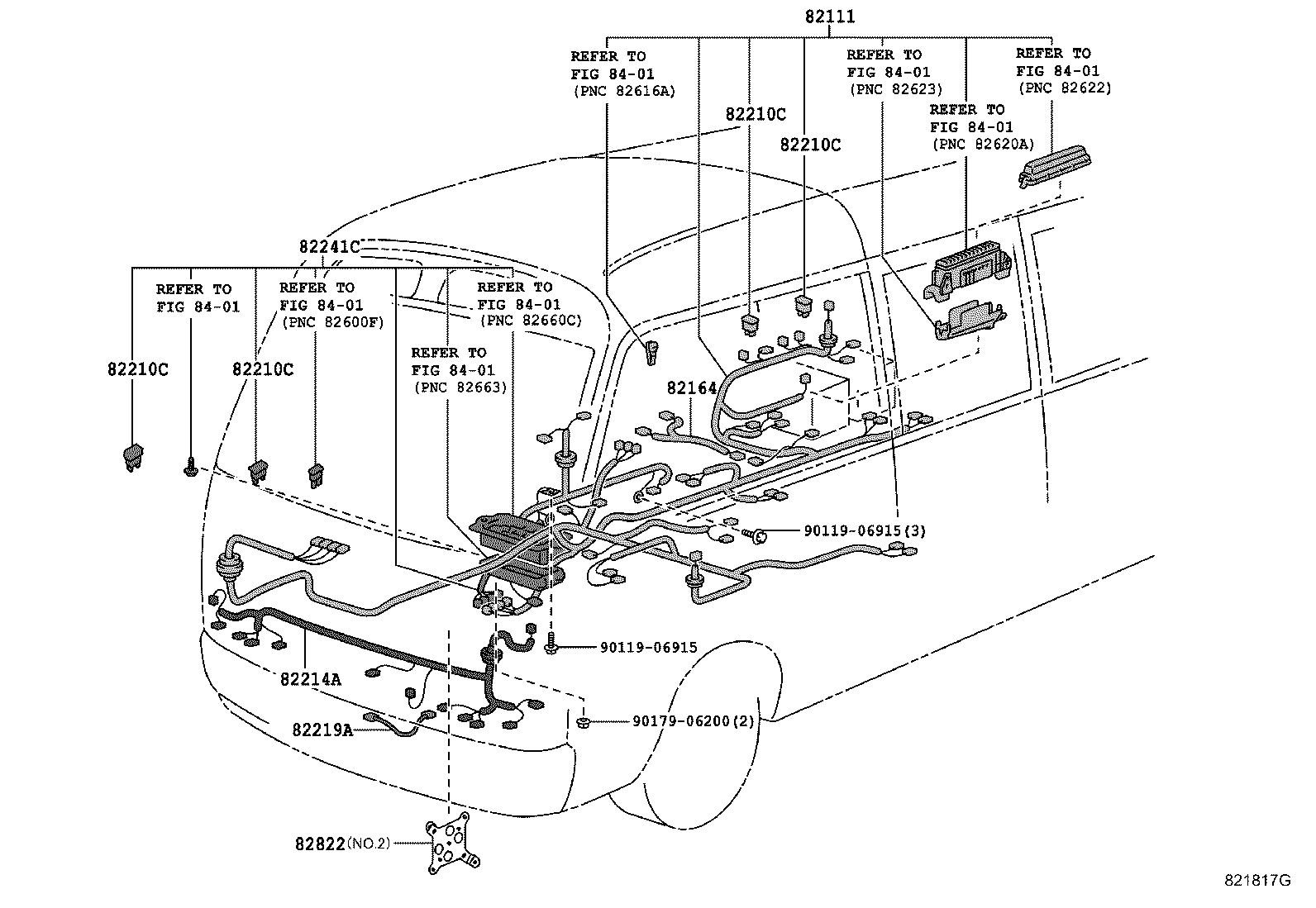

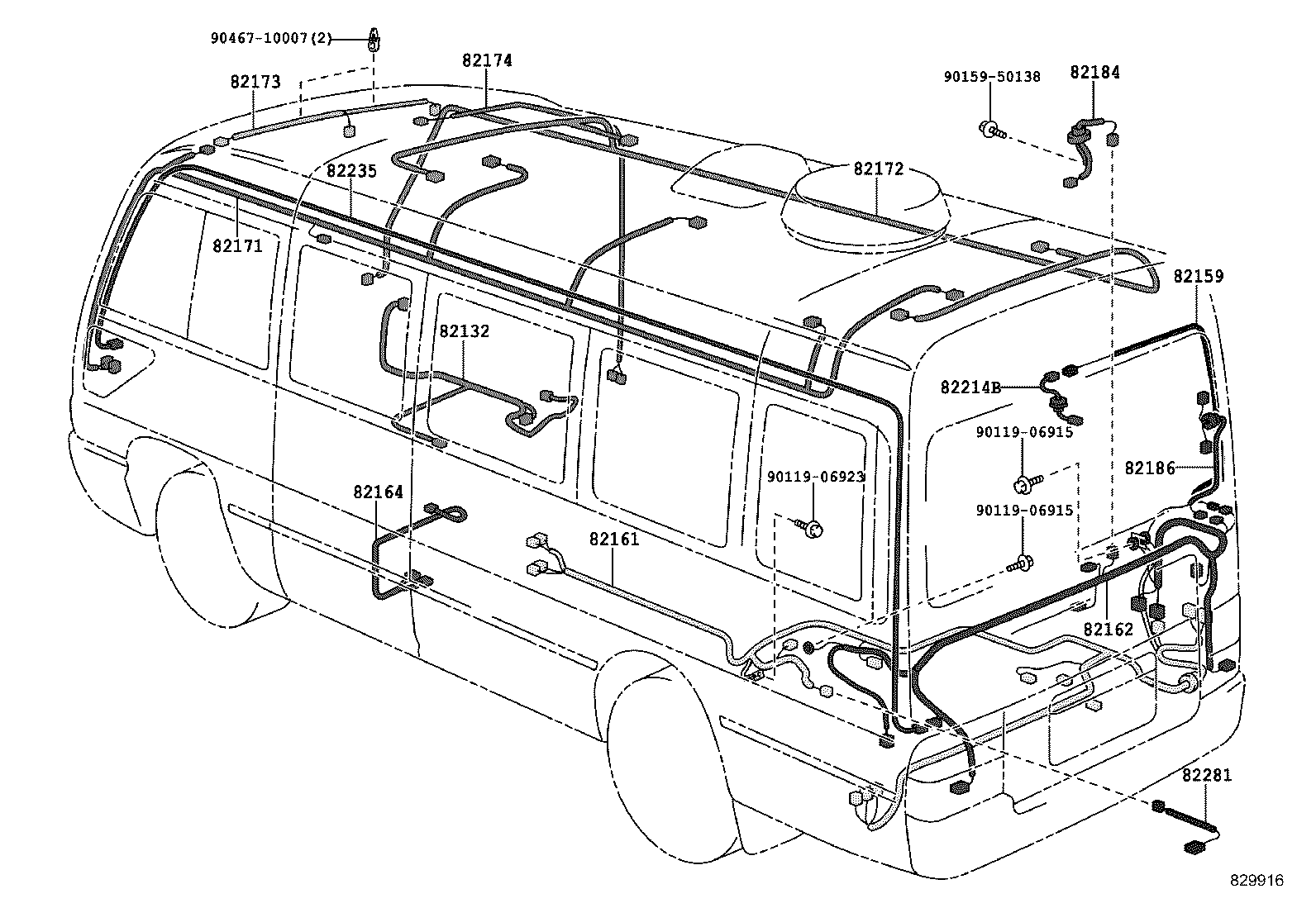

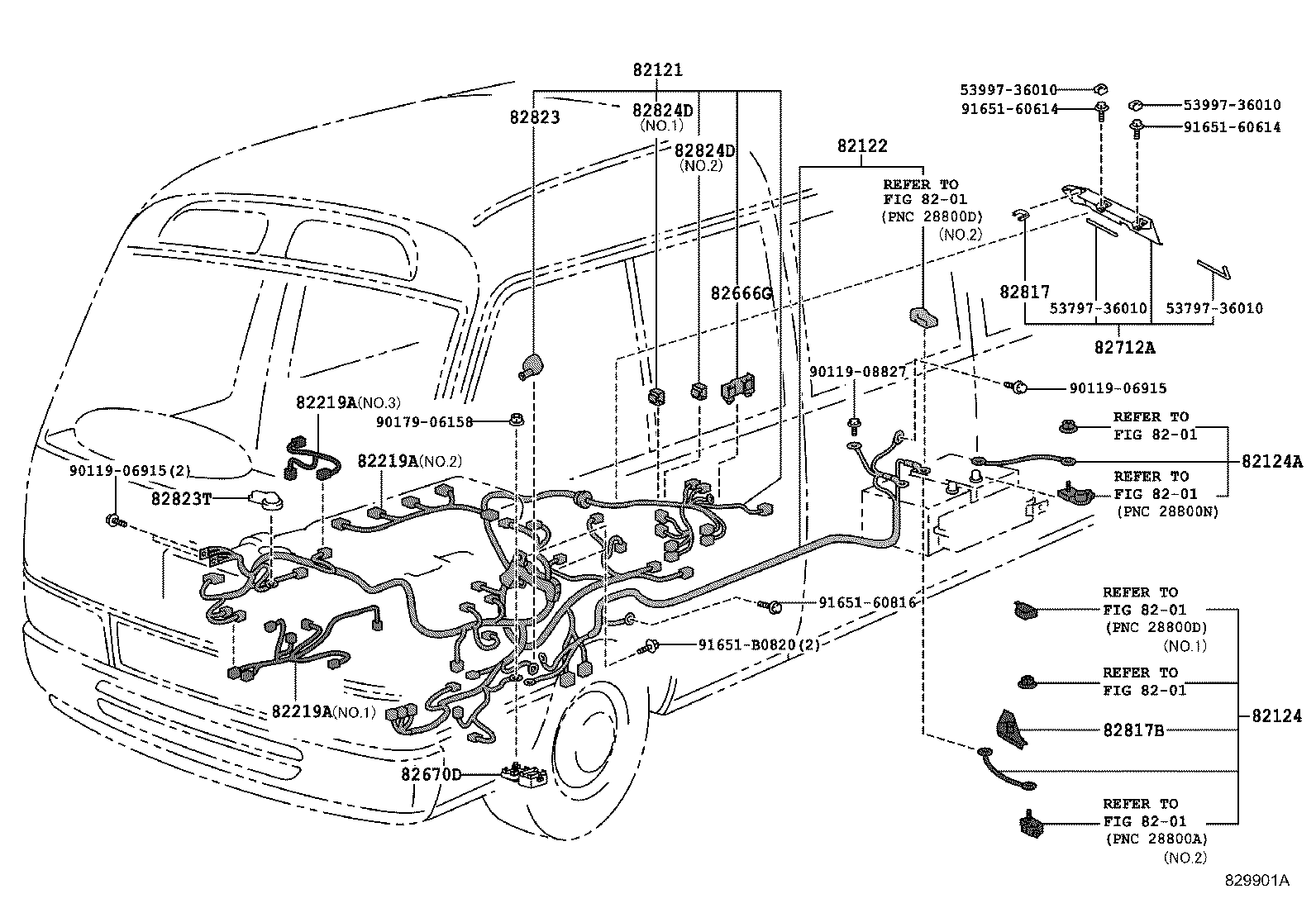

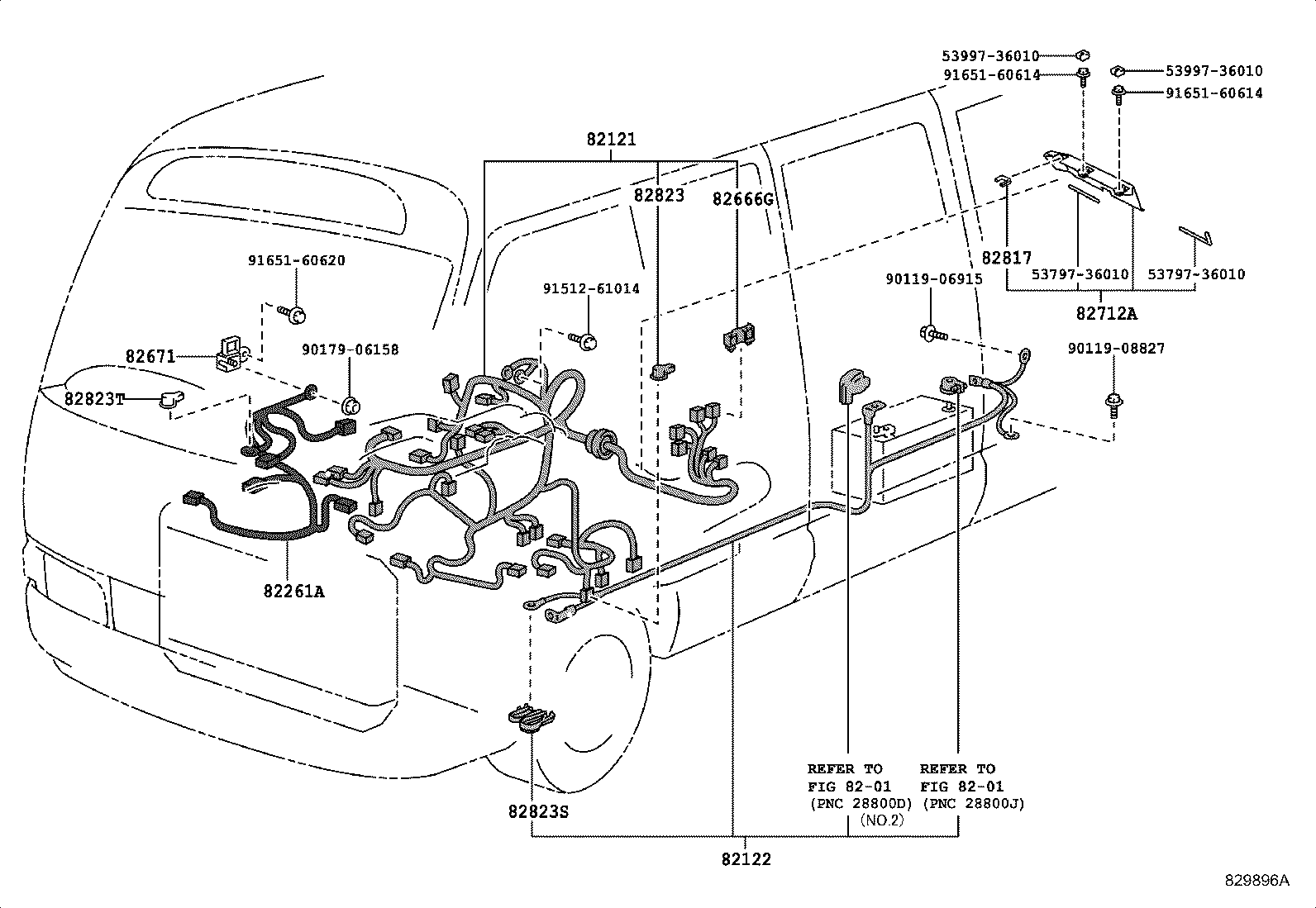

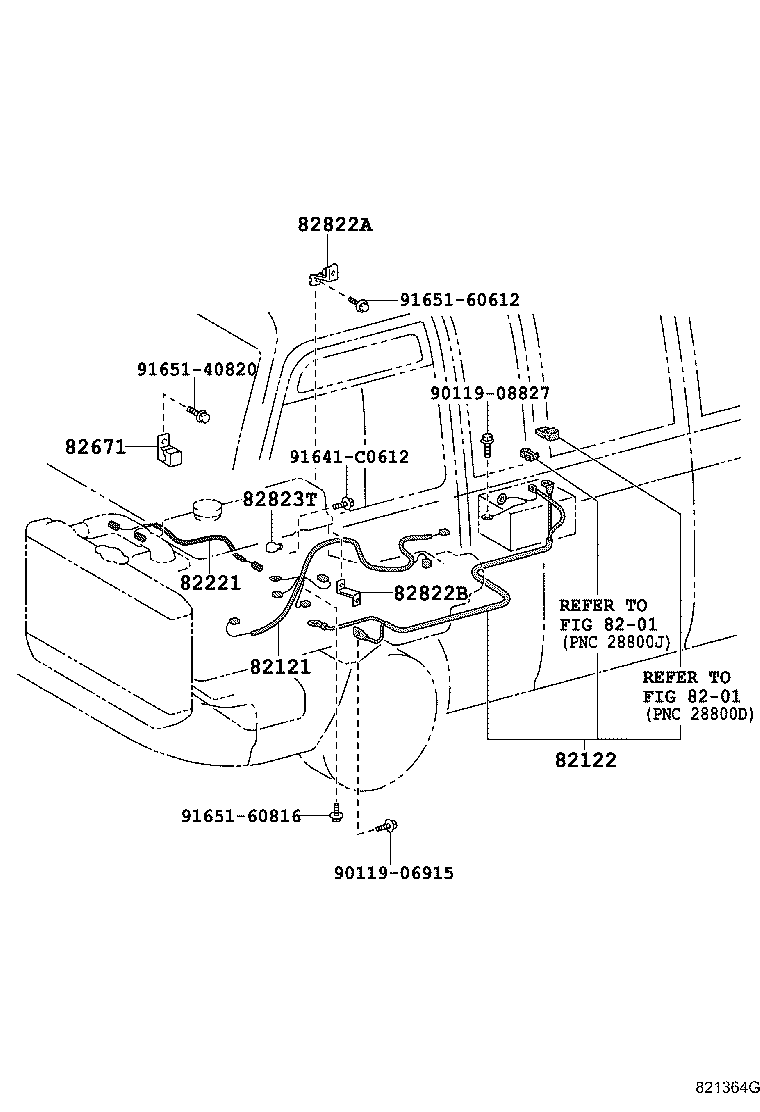

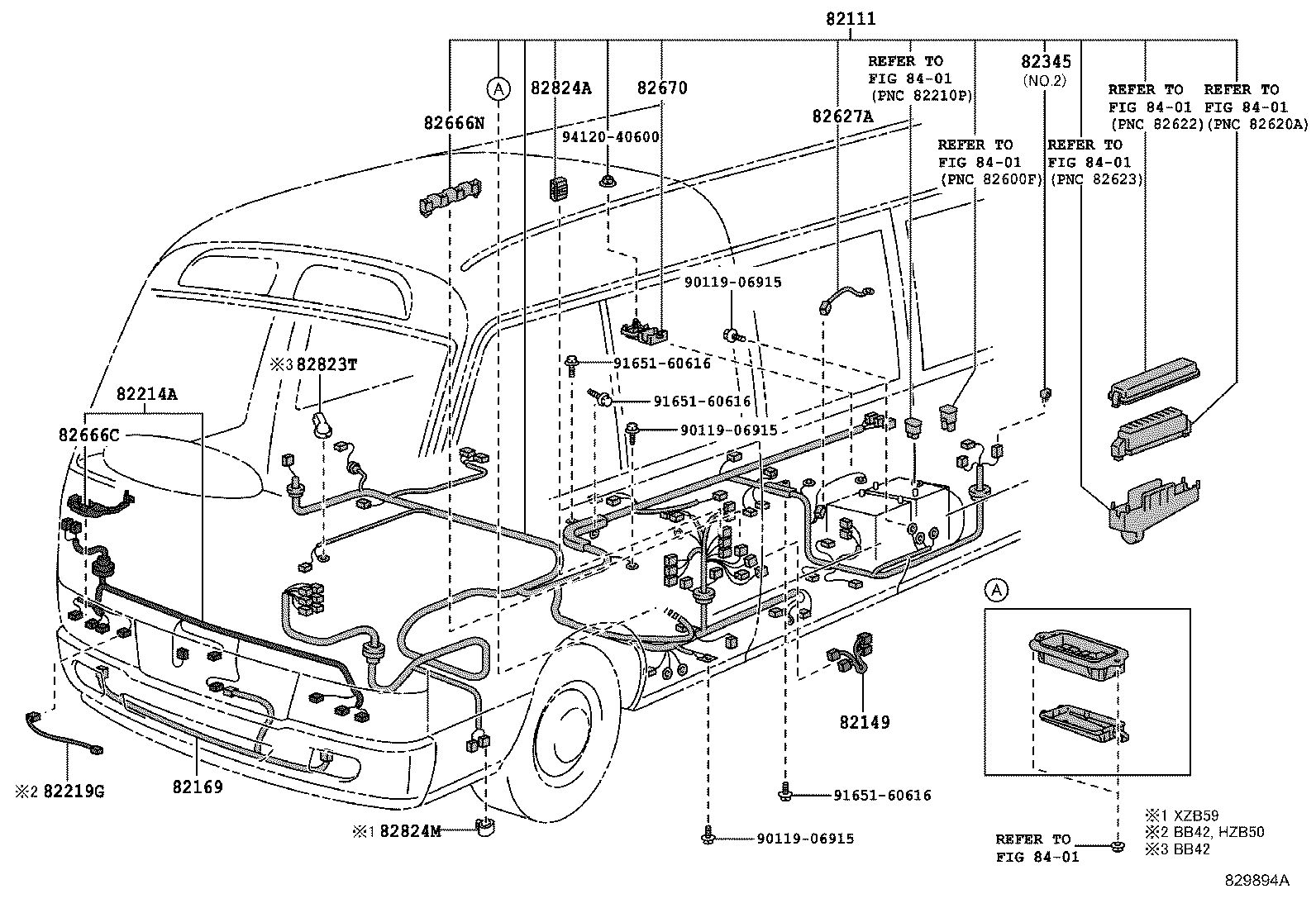

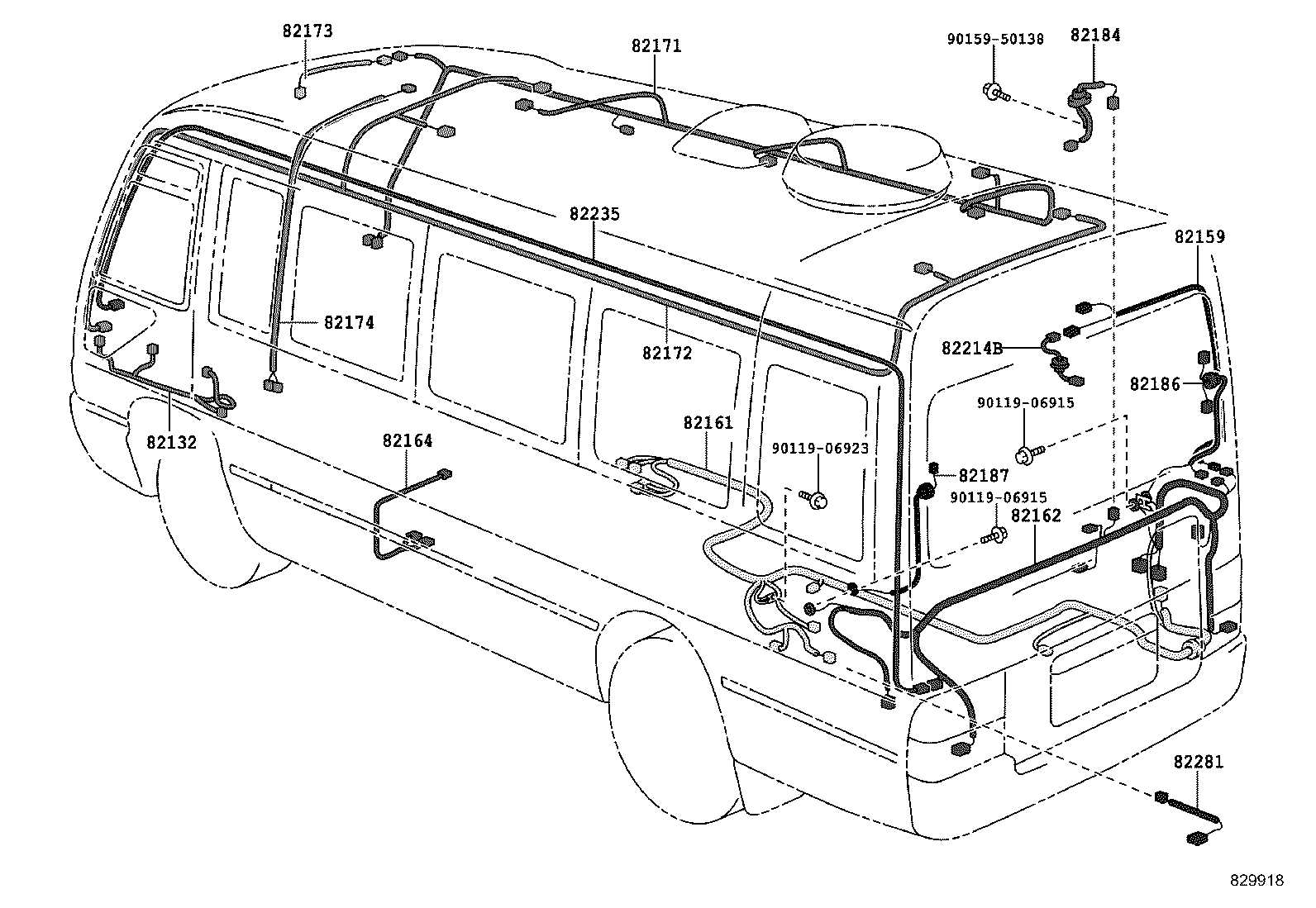

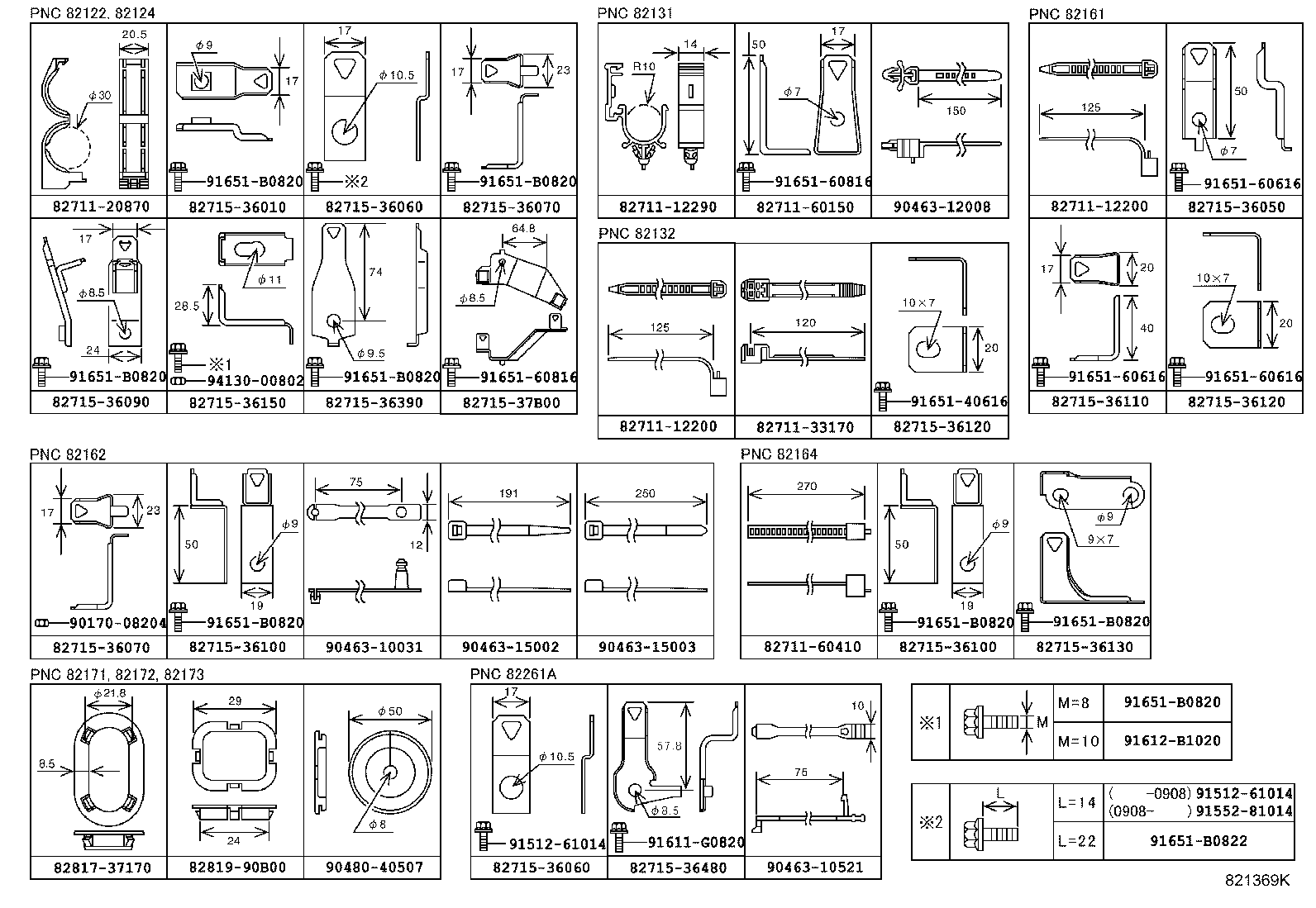

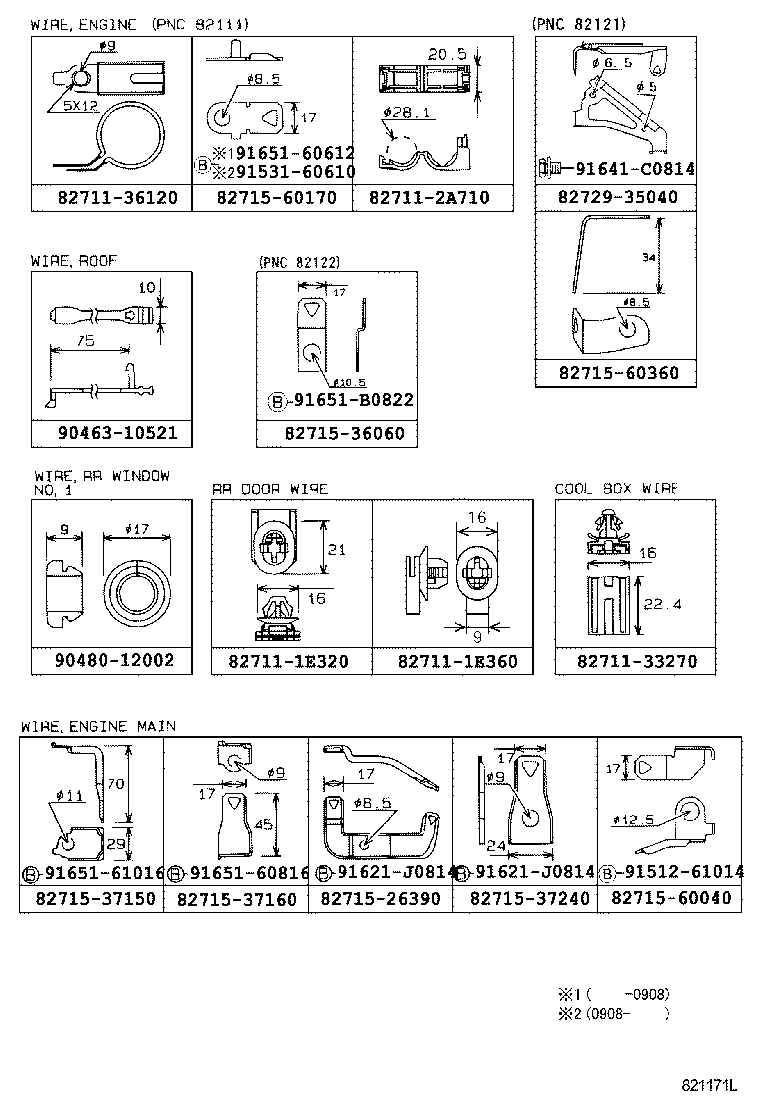

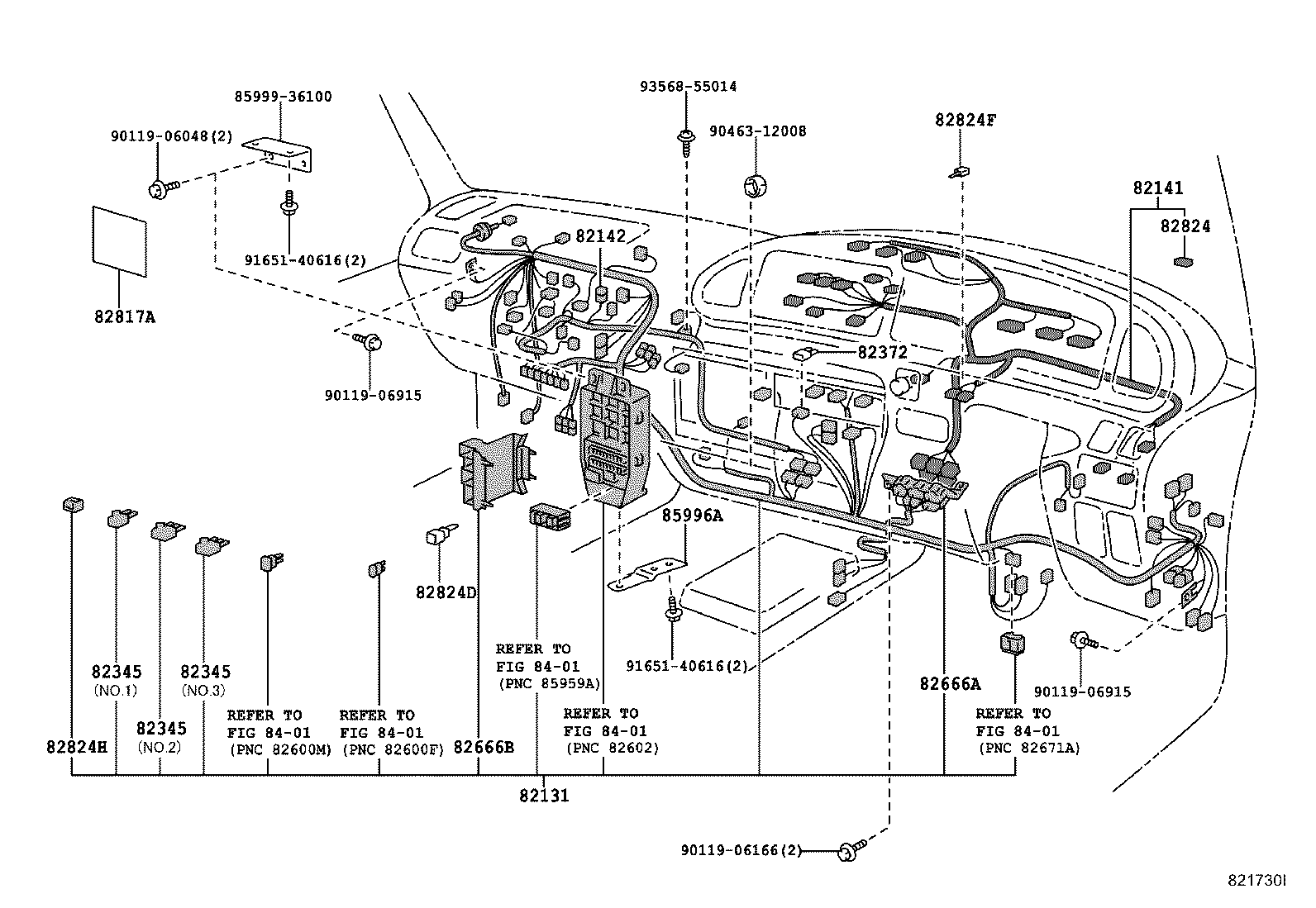

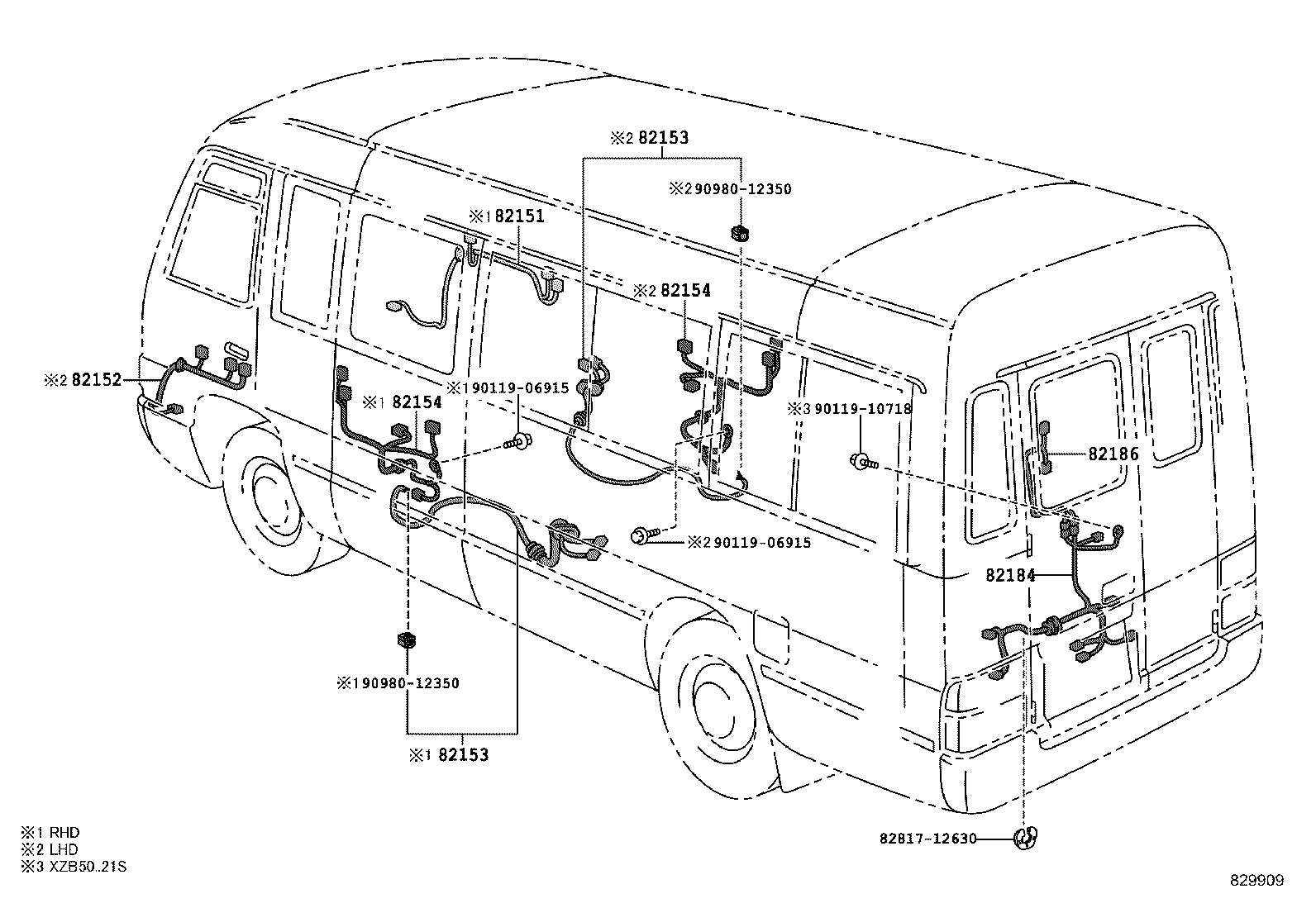

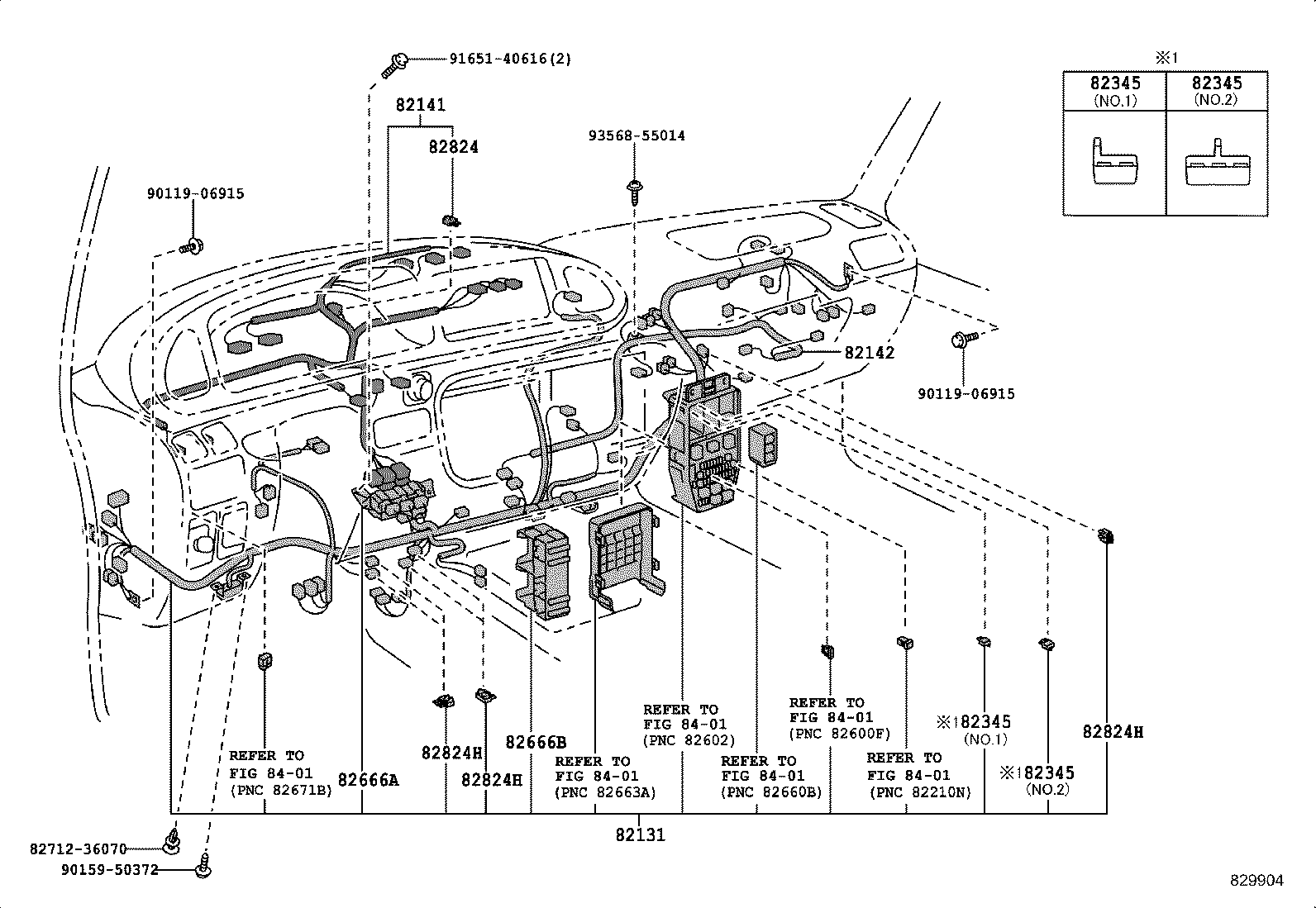

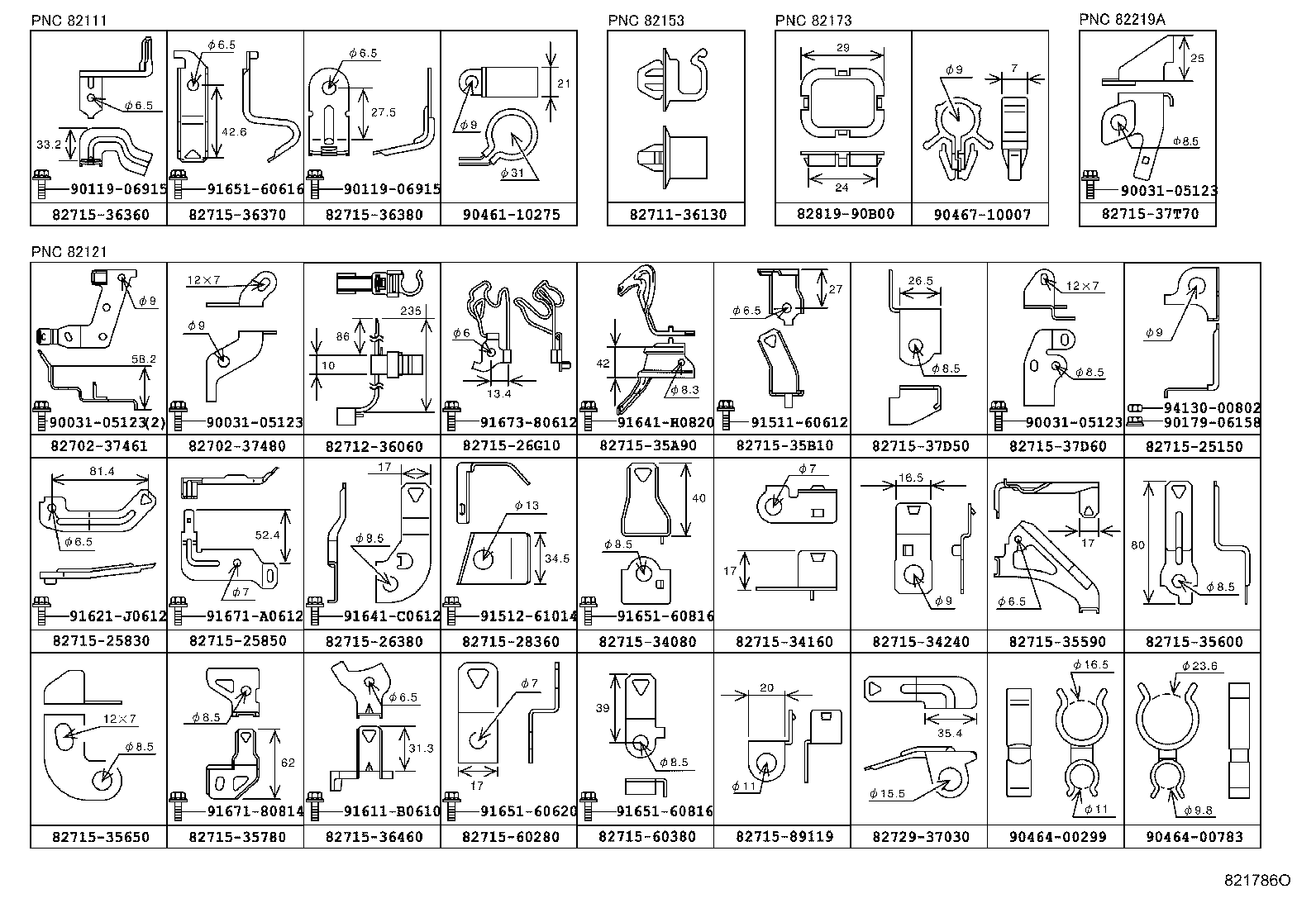

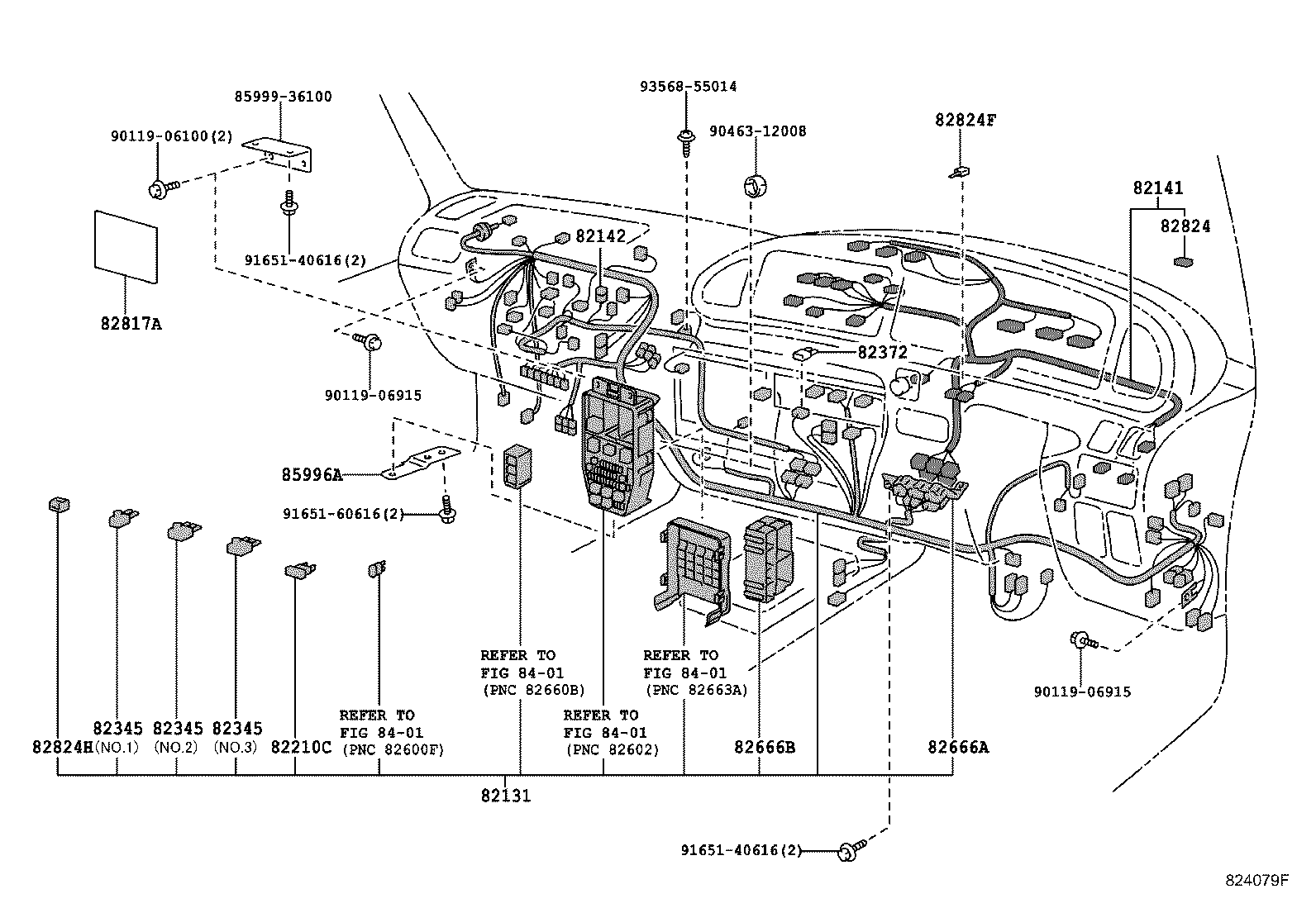

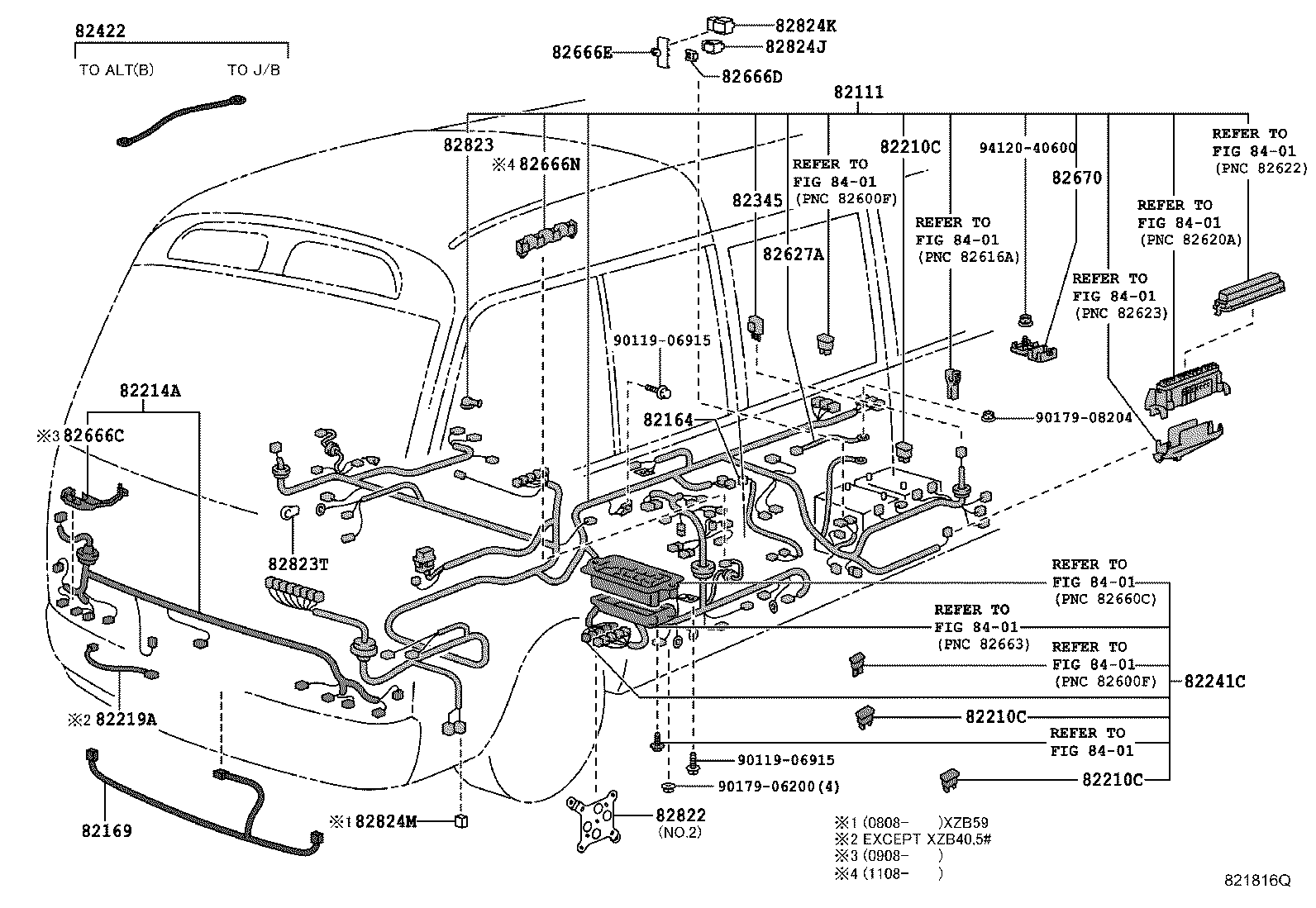

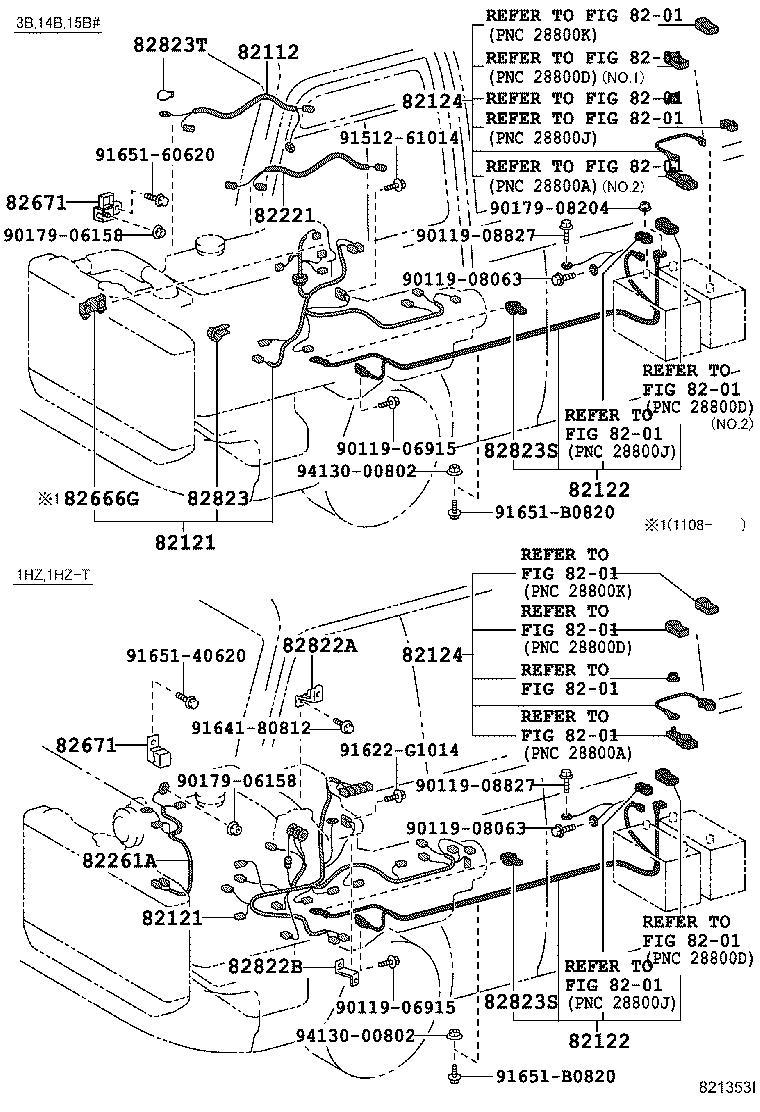

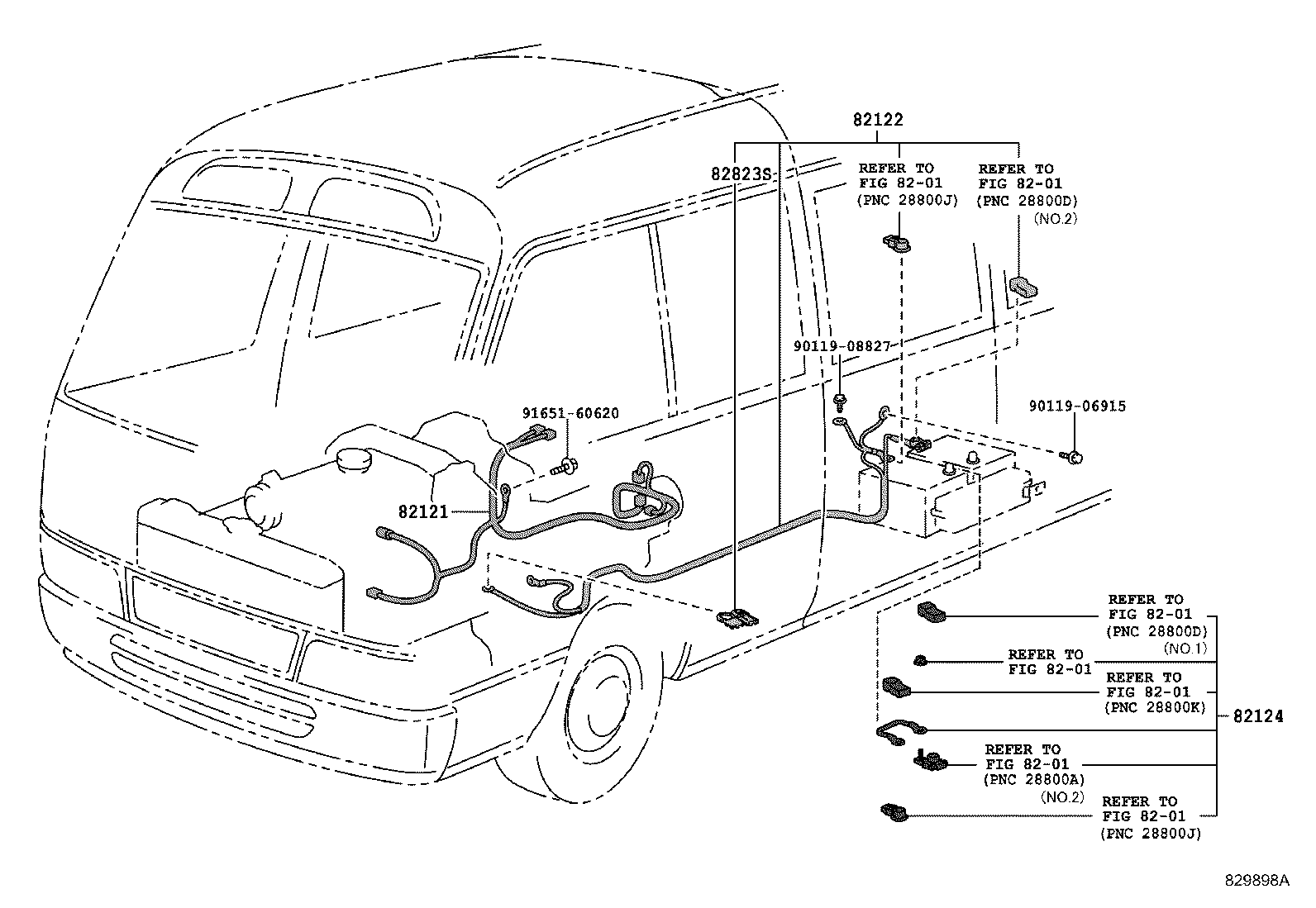

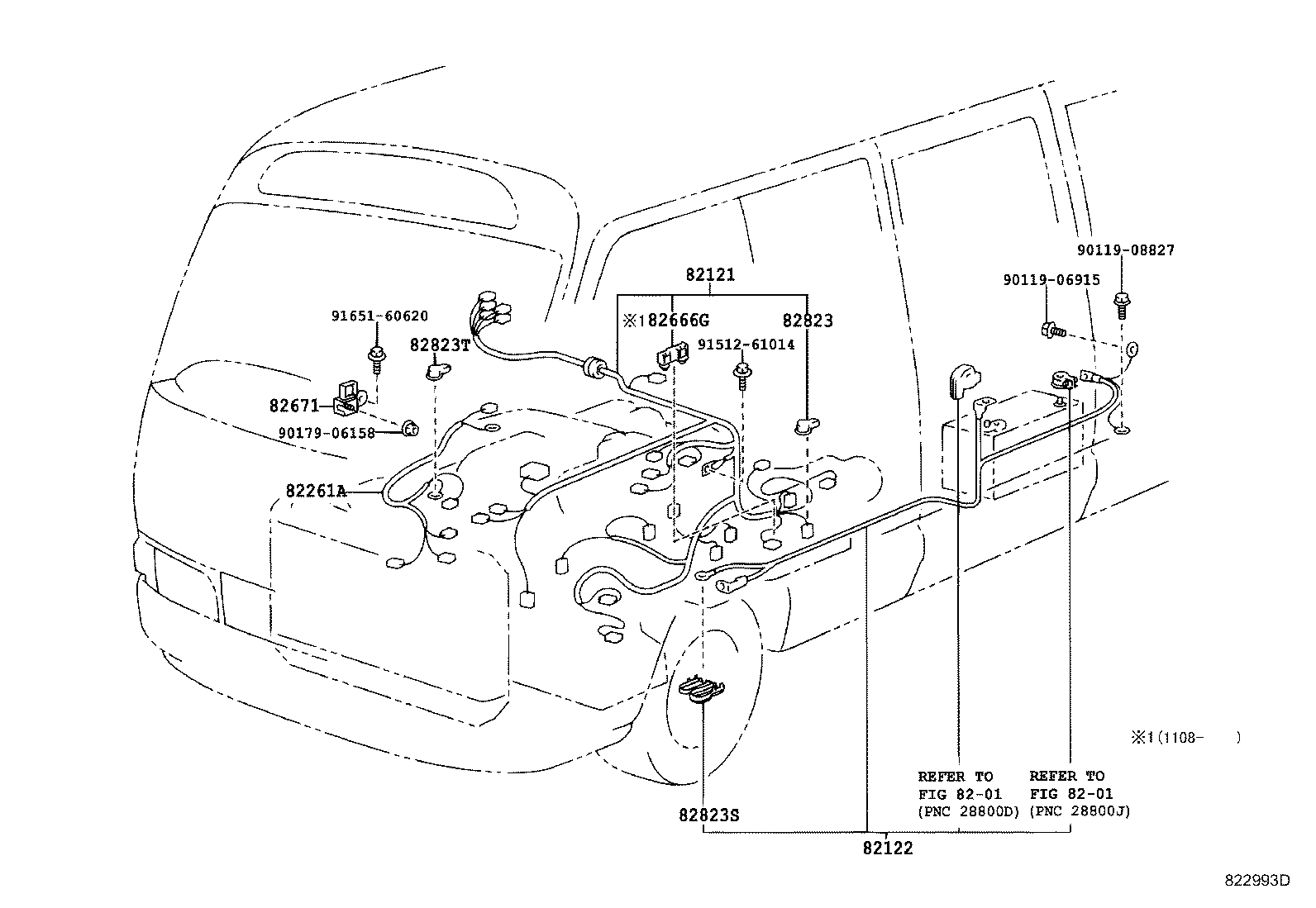

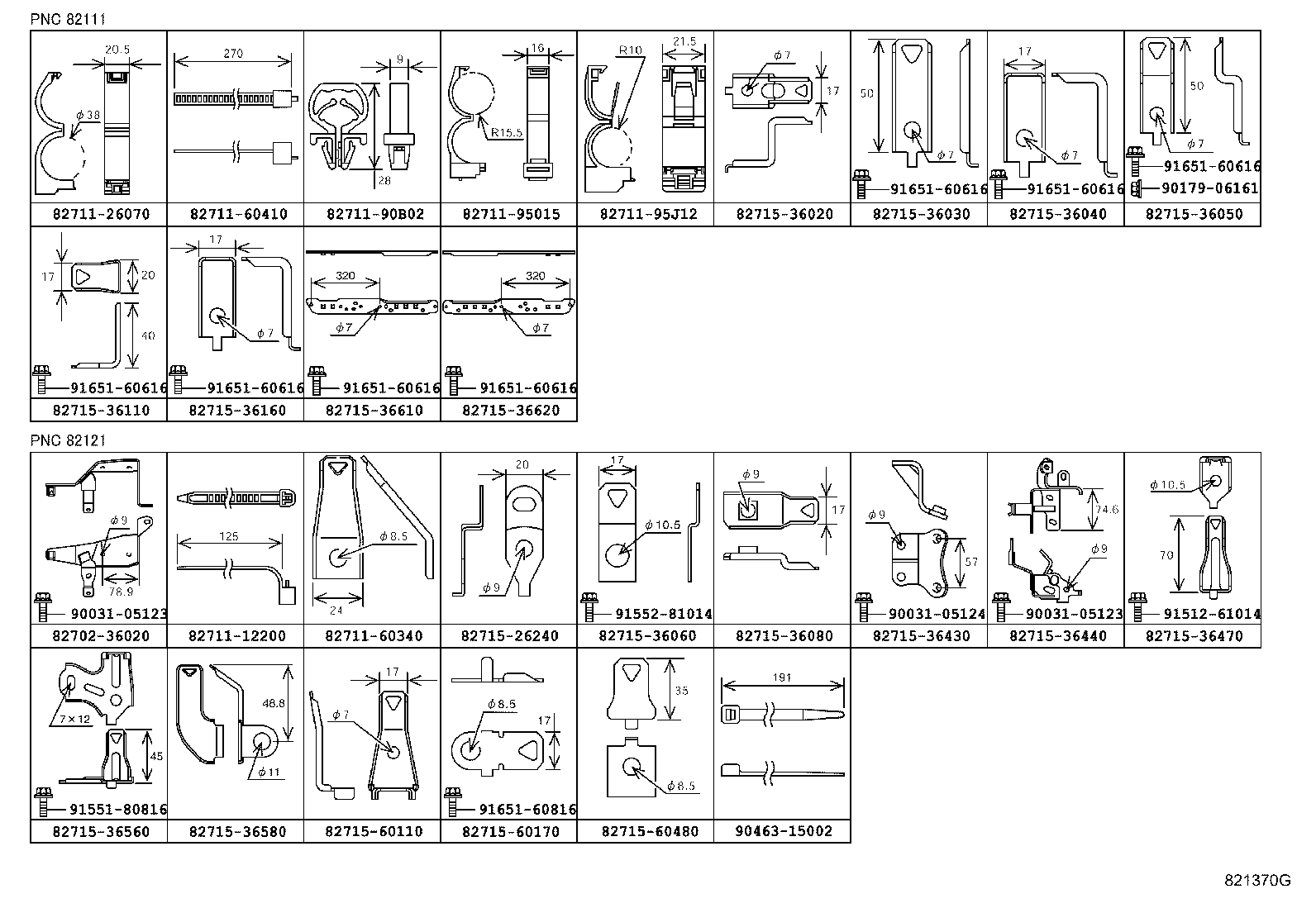

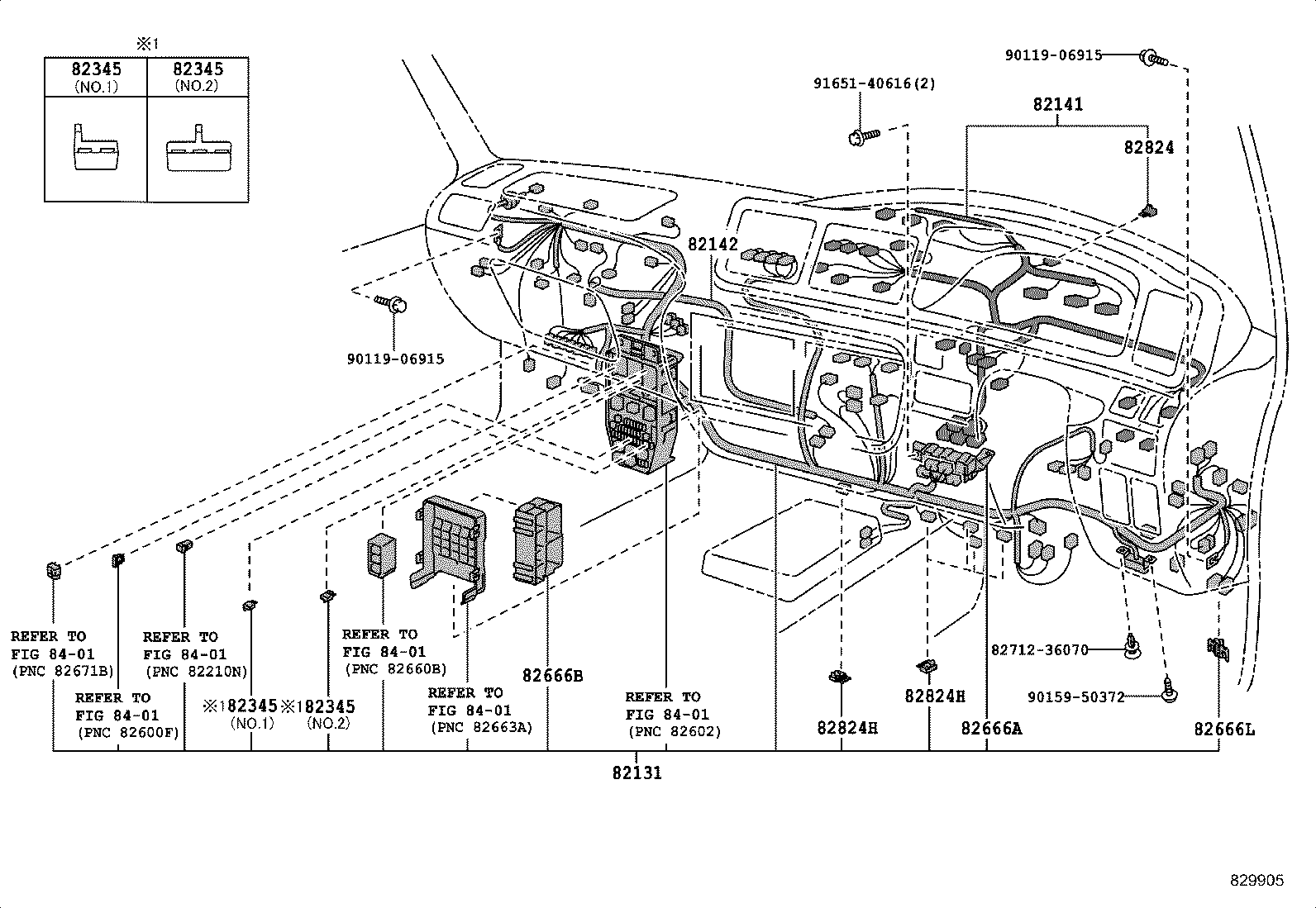

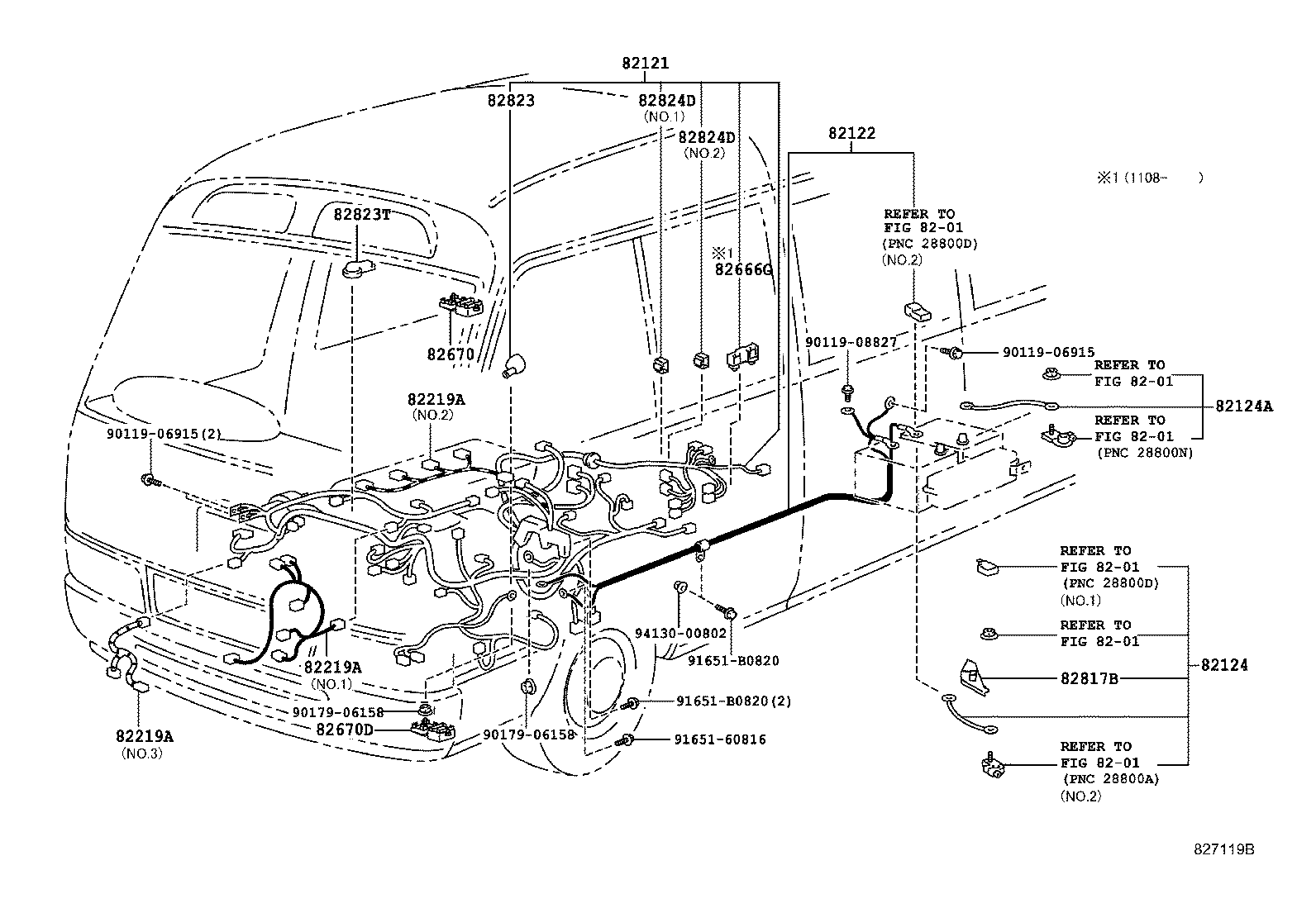

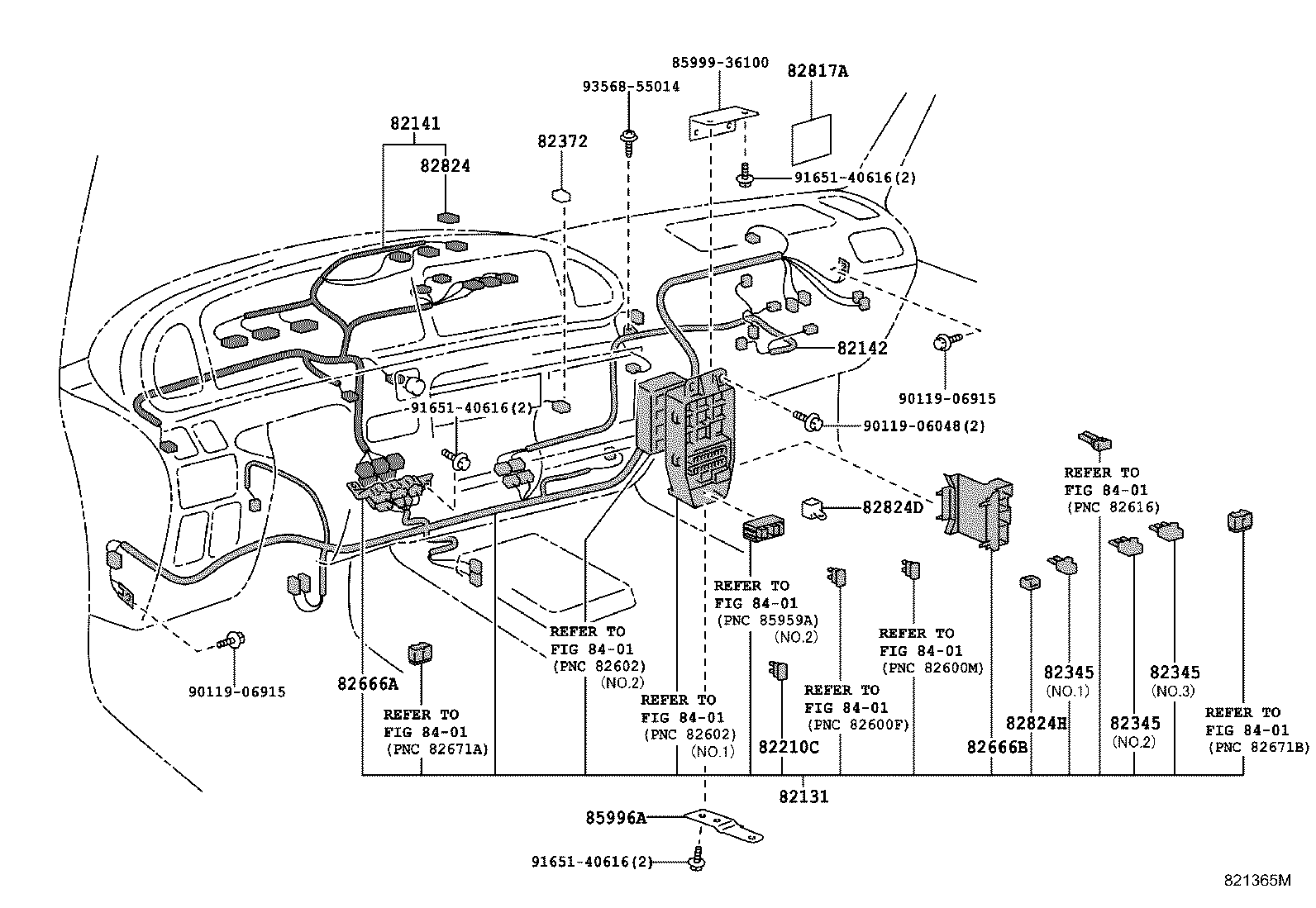

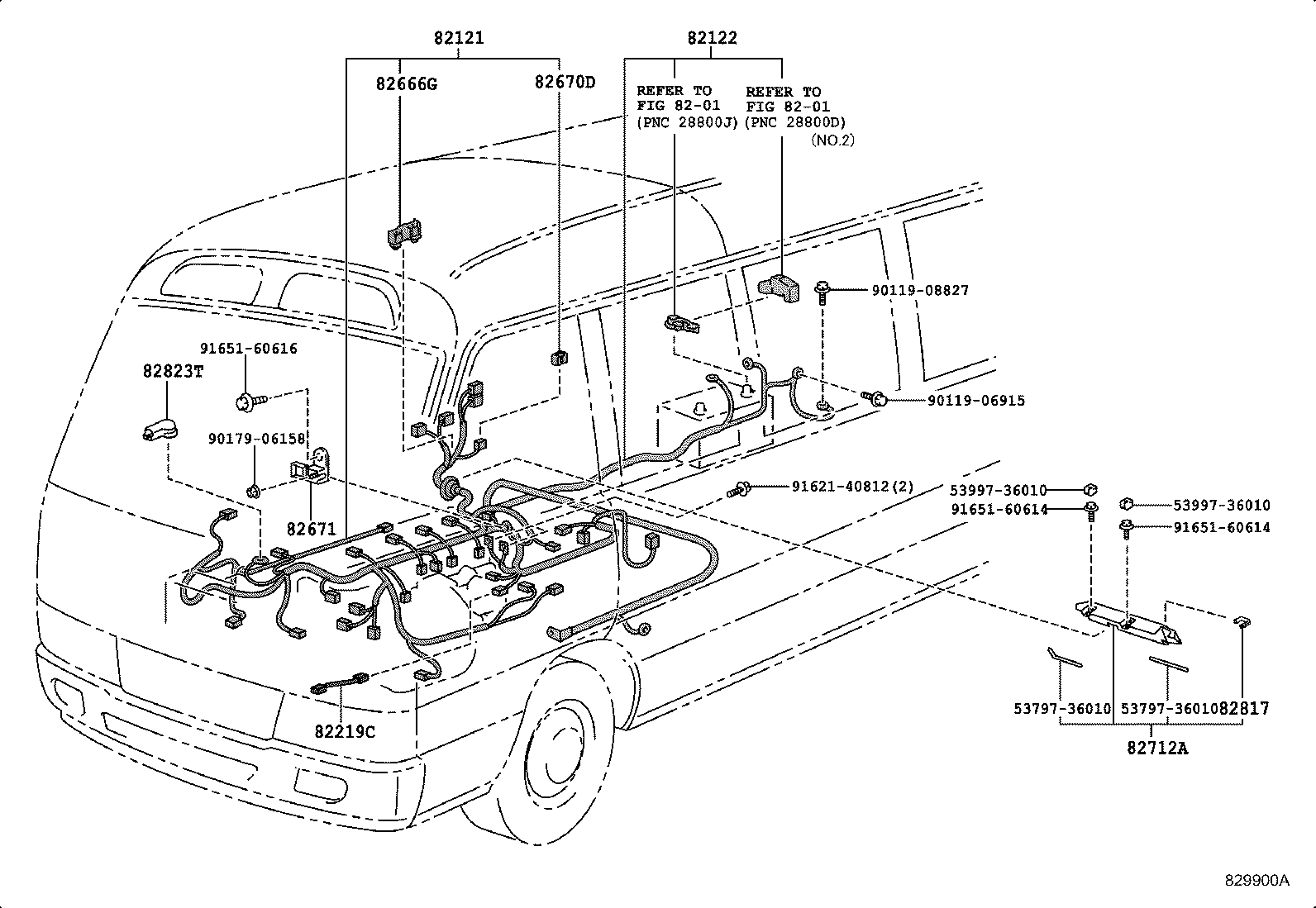

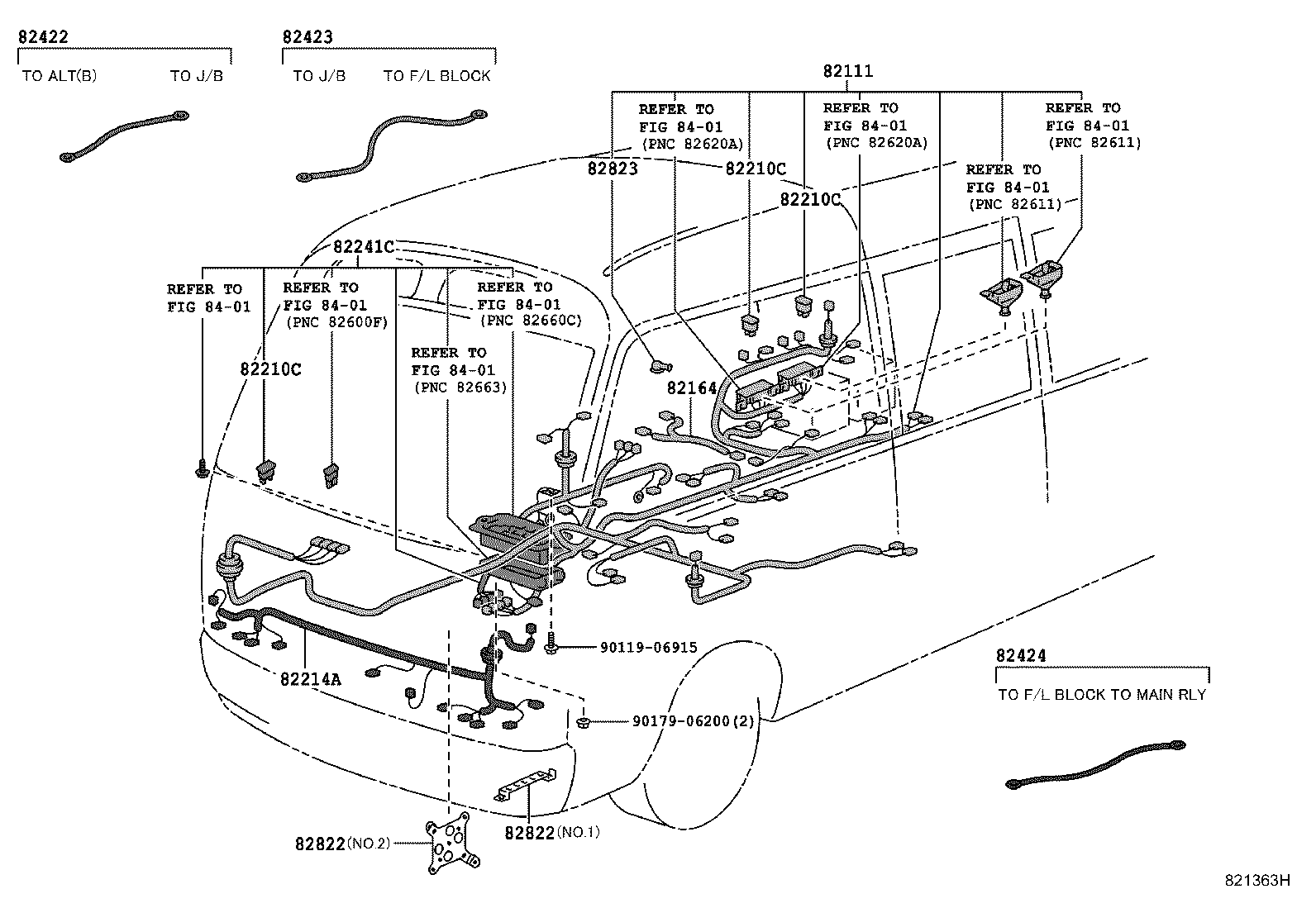

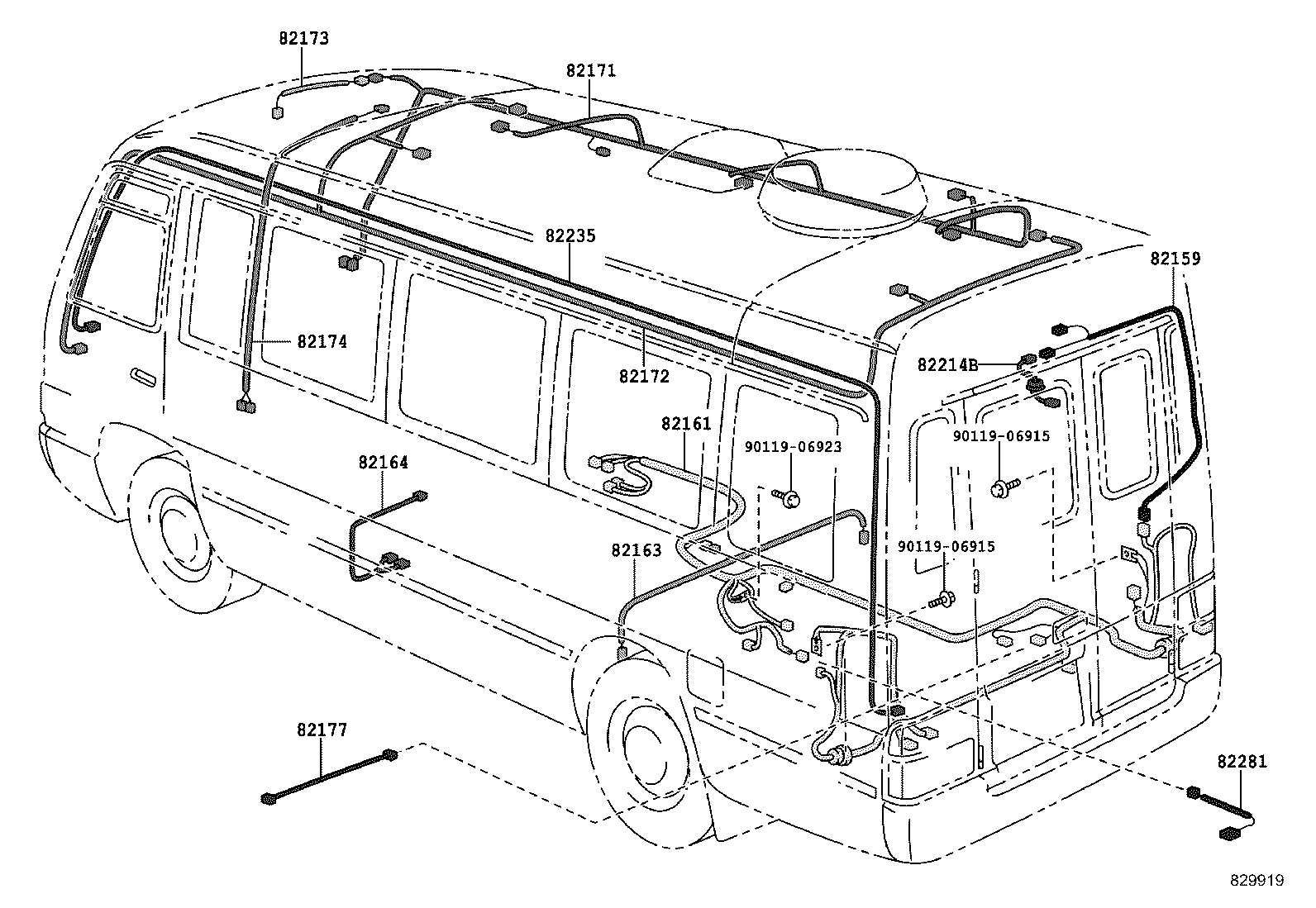

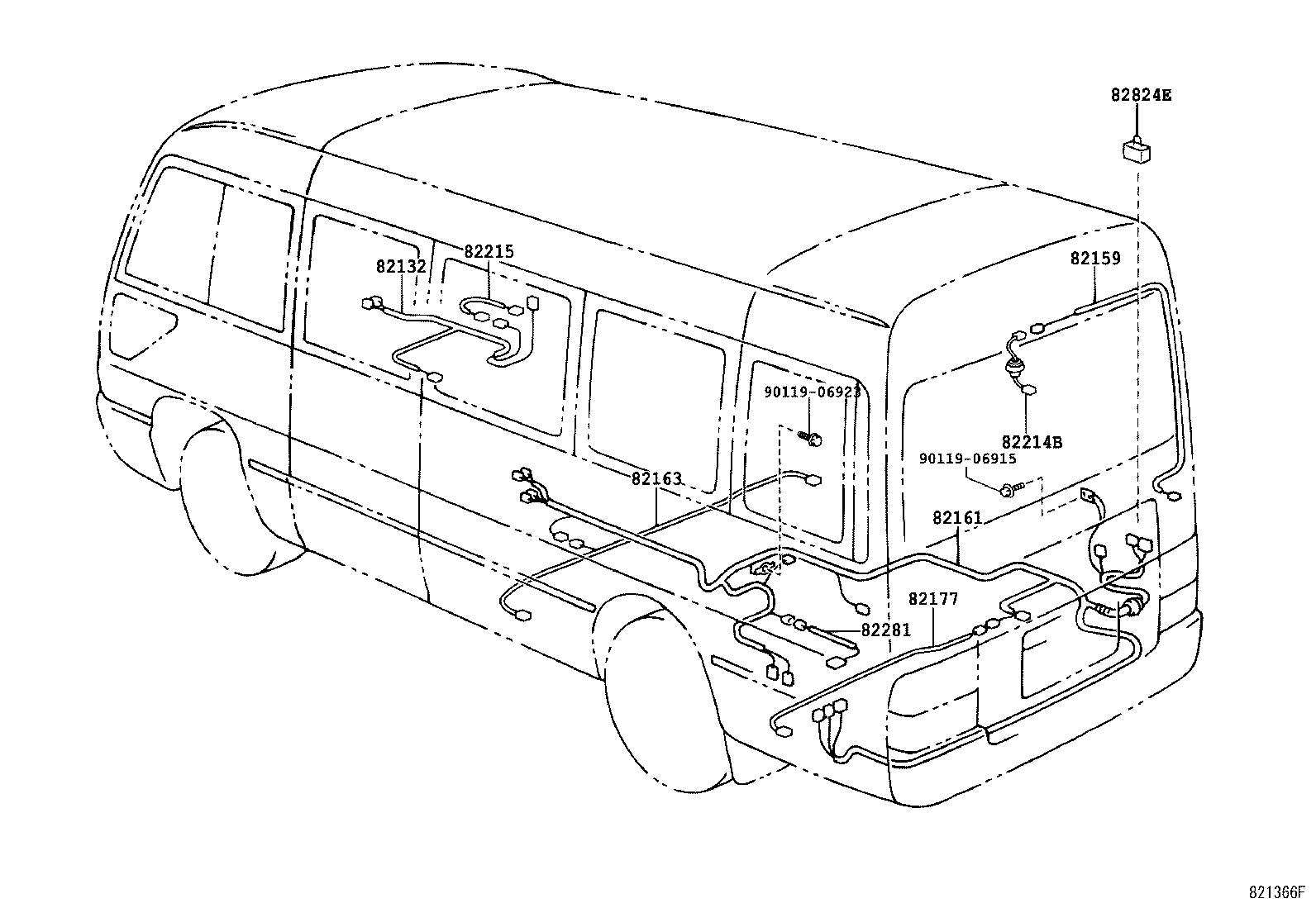

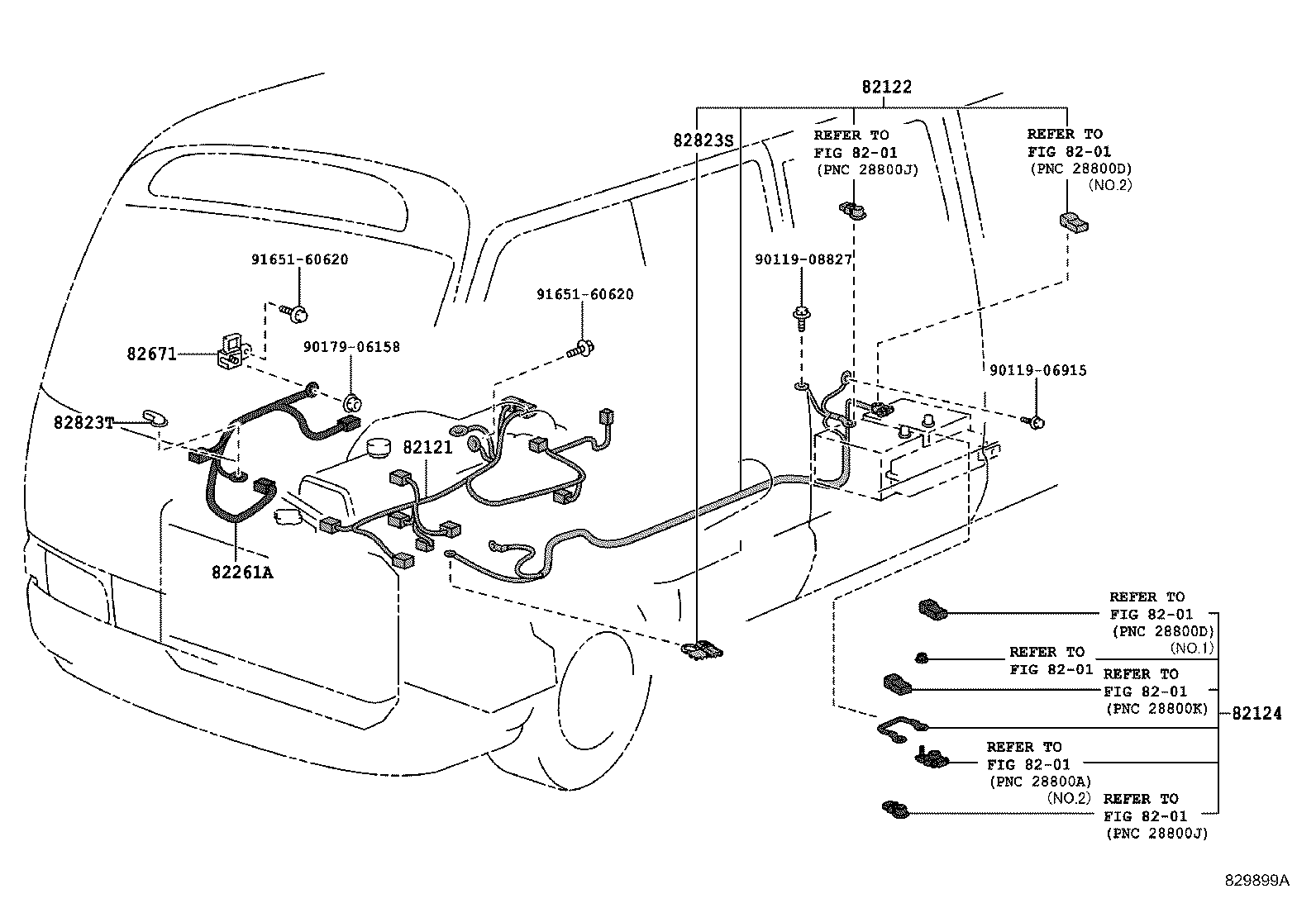

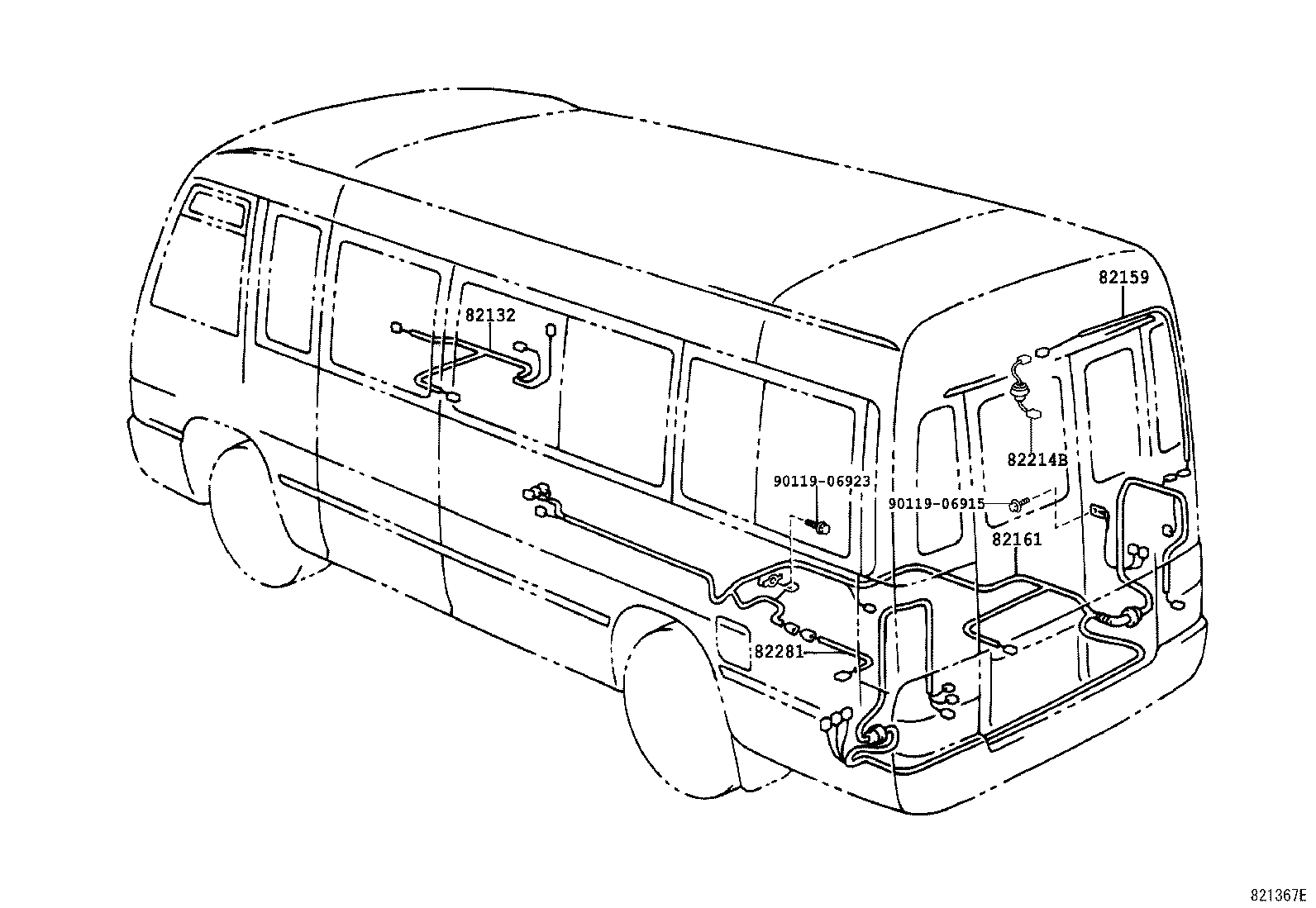

Figure 821352I 821352I 1993-01 → 1999-07 Figure 821352I 821352I 1999-07 → 2006-08 Figure 821363H 821363H 1993-09 → 1999-07 Figure 821363H 821363H 1999-07 → 2006-08 Figure 821817G 821817G 1999-07 → 2001-08 Figure 821816Q 821816Q 1999-07 → 2015-01 Figure 823572G 823572G 1999-07 → 2015-01 Figure 823572G 823572G 2001-08 → 2015-01 Figure 829895A 829895A 2015-01 → — Figure 829894A 829894A 2015-01 → — Figure 821353I 821353I 1993-01 → 2015-01 Figure 821364G 821364G 1993-09 → 2007-08 Figure 822993D 822993D 2001-08 → 2015-01 Figure 825063A 825063A 2006-08 → 2009-08 Figure 825584C 825584C 2007-08 → 2015-01 Figure 826599A 826599A 2009-08 → 2013-11 Figure 827119B 827119B 2009-08 → 2013-11 Figure 827119B 827119B 2013-11 → 2015-01 Figure 829898A 829898A 2015-01 → — Figure 829896A 829896A 2015-01 → — Figure 829899A 829899A 2015-01 → — Figure 829900A 829900A 2015-01 → — Figure 829901A 829901A 2015-01 → — Figure 821730I 821730I 1993-01 → 2004-08 Figure 821365M 821365M 1993-09 → 2004-08 Figure 824079F 824079F 2004-08 → 2007-08 Figure 825585B 825585B 2007-08 → 2015-01 Figure 824080G 824080G 2004-08 → 2015-01 Figure 829904 829904 2015-01 → — Figure 829905 829905 2015-01 → — Figure 821366F 821366F 1993-01 → 2015-01 Figure 821367E 821367E 1993-01 → 2015-01 Figure 829909 829909 2015-01 → — Figure 821174K 821174K 1993-01 → 2015-01 Figure 821368K 821368K 1993-01 → 2015-01 Figure 829918 829918 2015-01 → — Figure 829919 829919 2015-01 → — Figure 829916 829916 2015-01 → — Figure 829917 829917 2015-01 → — Figure 821722I 821722I 1993-01 → — Figure 821369K 821369K 1993-01 → — Figure 821370G 821370G 1993-01 → — Figure 821371D 821371D 1993-01 → — Figure 821786O 821786O 1993-01 → — Figure 821171L 821171L 1993-01 → — Figure 829920 829920 2015-01 → — Figure 821784B 821784B 1993-09 → — Figure 825586 825586 2001-08 → — Figure 825586 825586 2007-08 → — Figure 821735A 821735A 1993-01 → — Figure 823414C 823414C 1993-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82001G Cable, Bond, NO.4

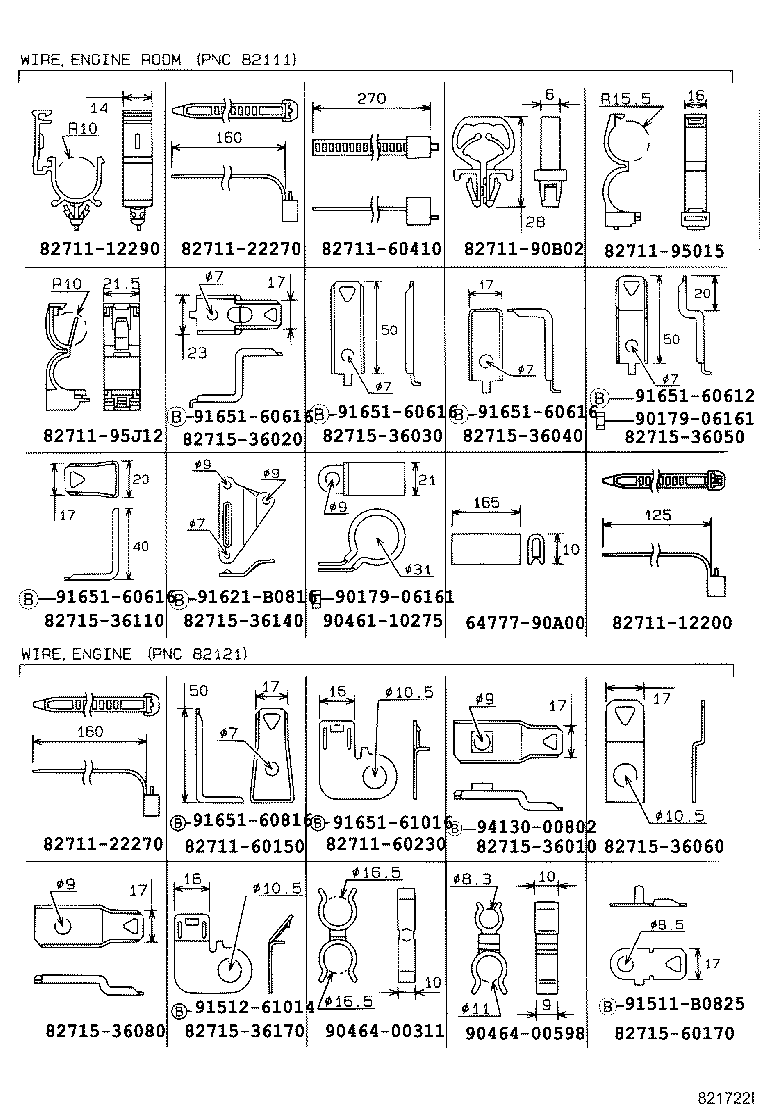

82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2

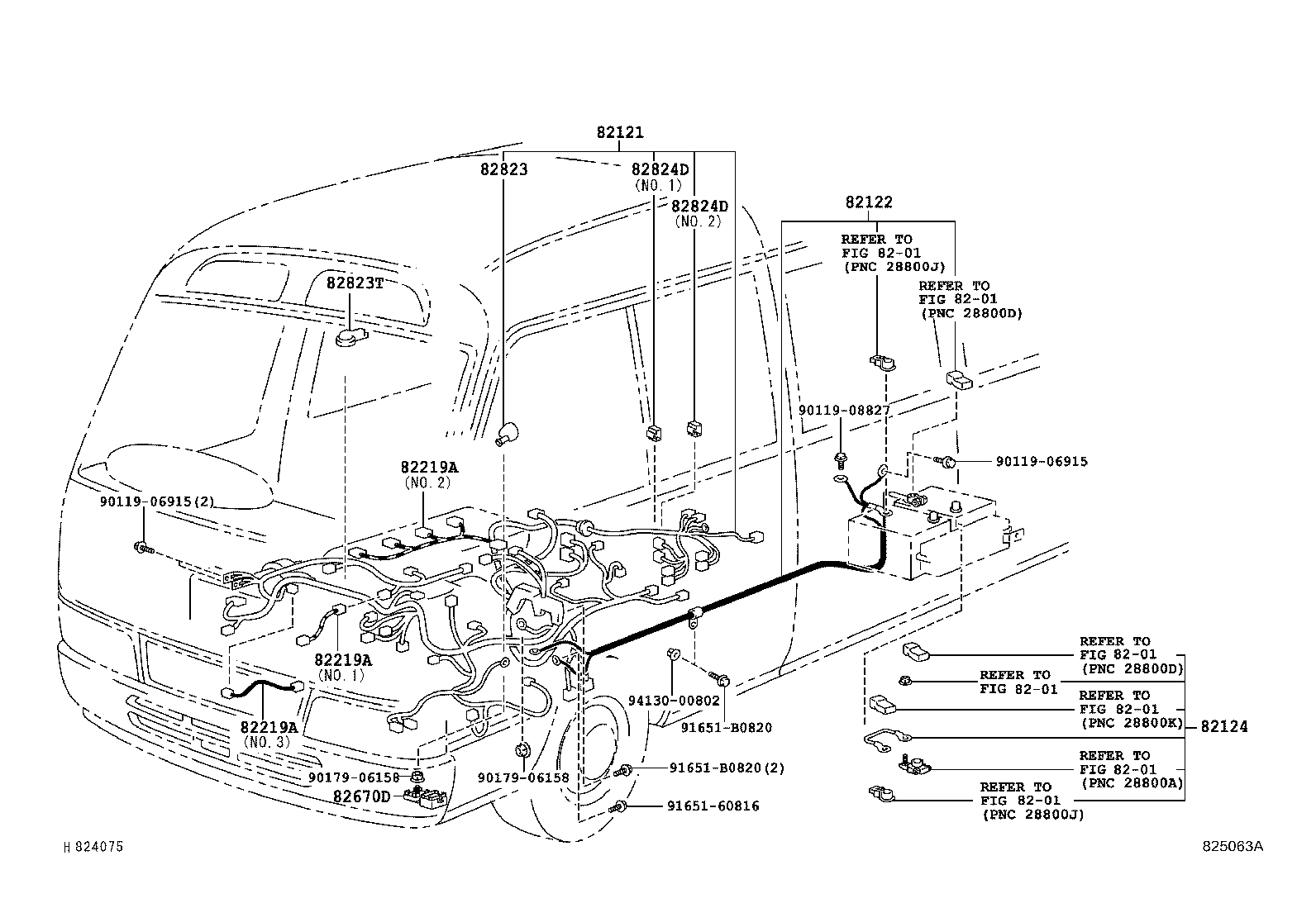

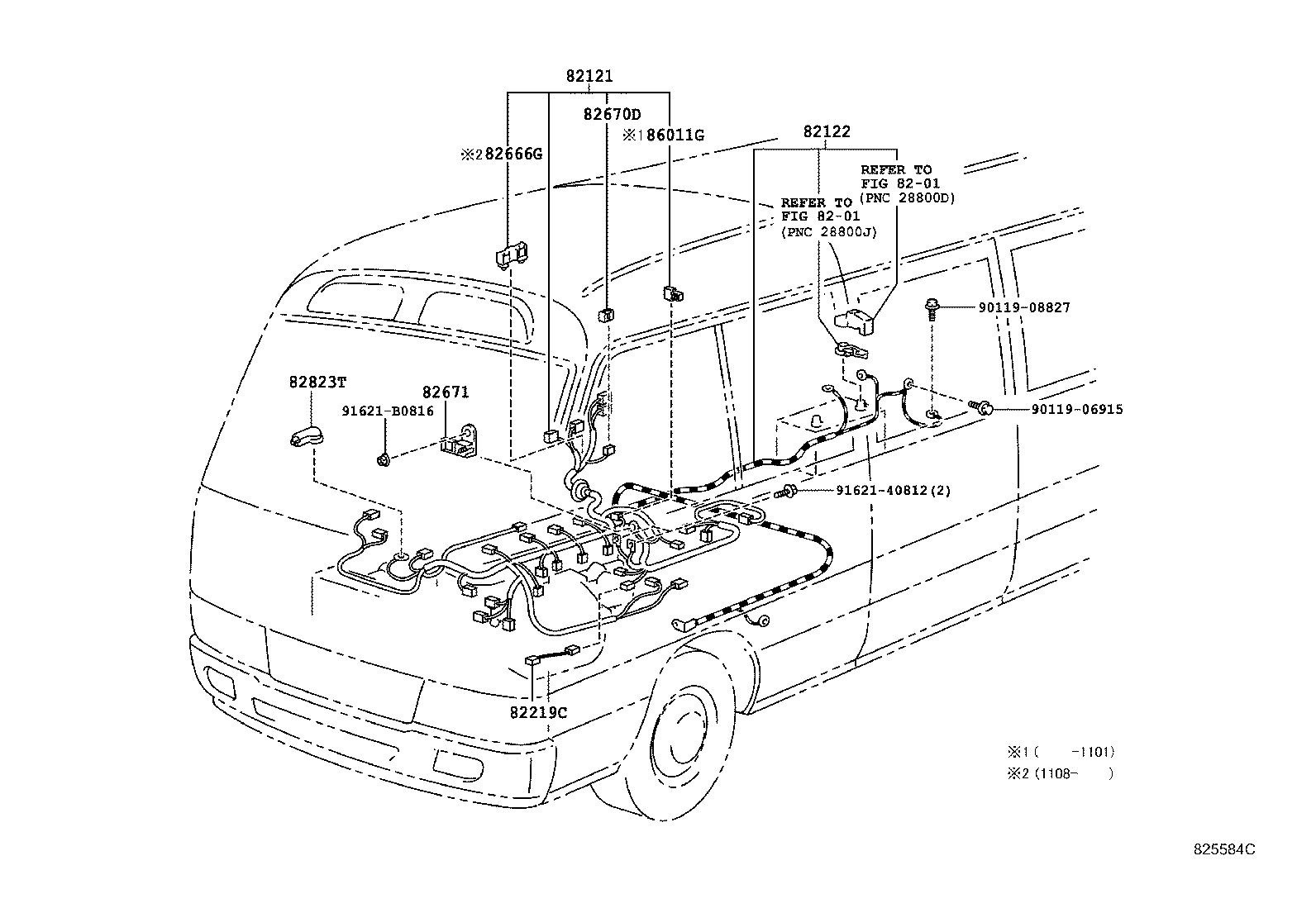

82121 Wire, Engine

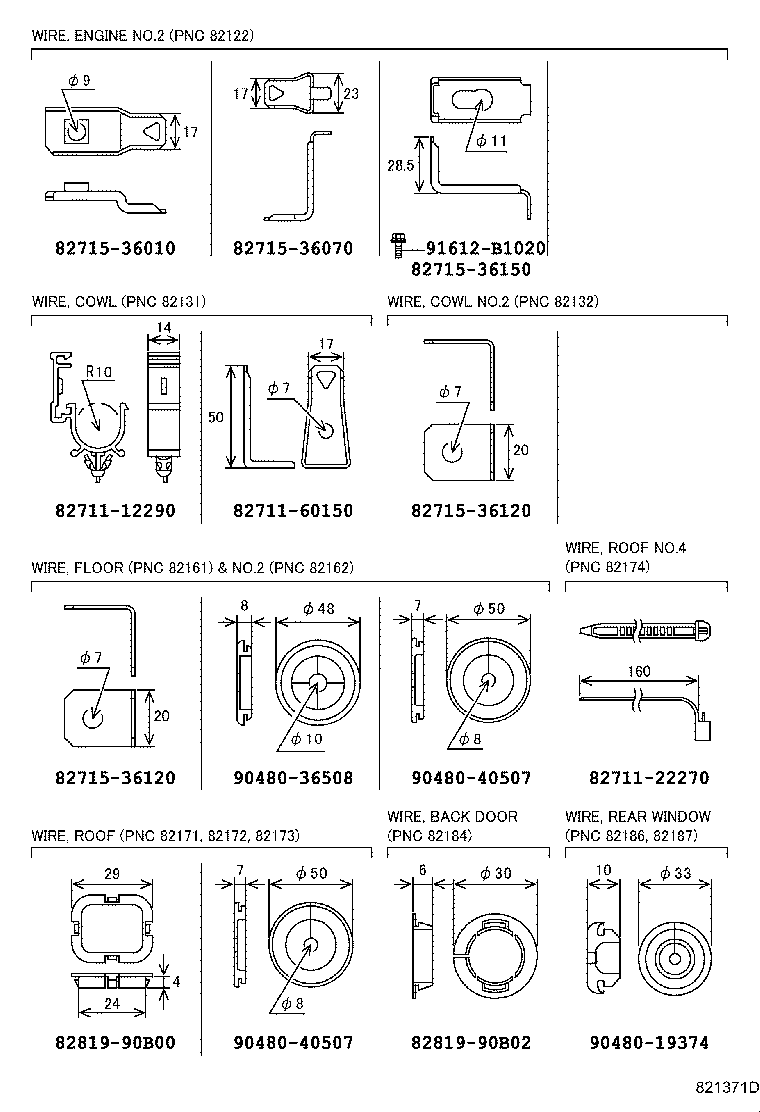

82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82124A Wire, Engine, NO.5
82131 Wire, Cowl
82132 Wire, Cowl, NO.2

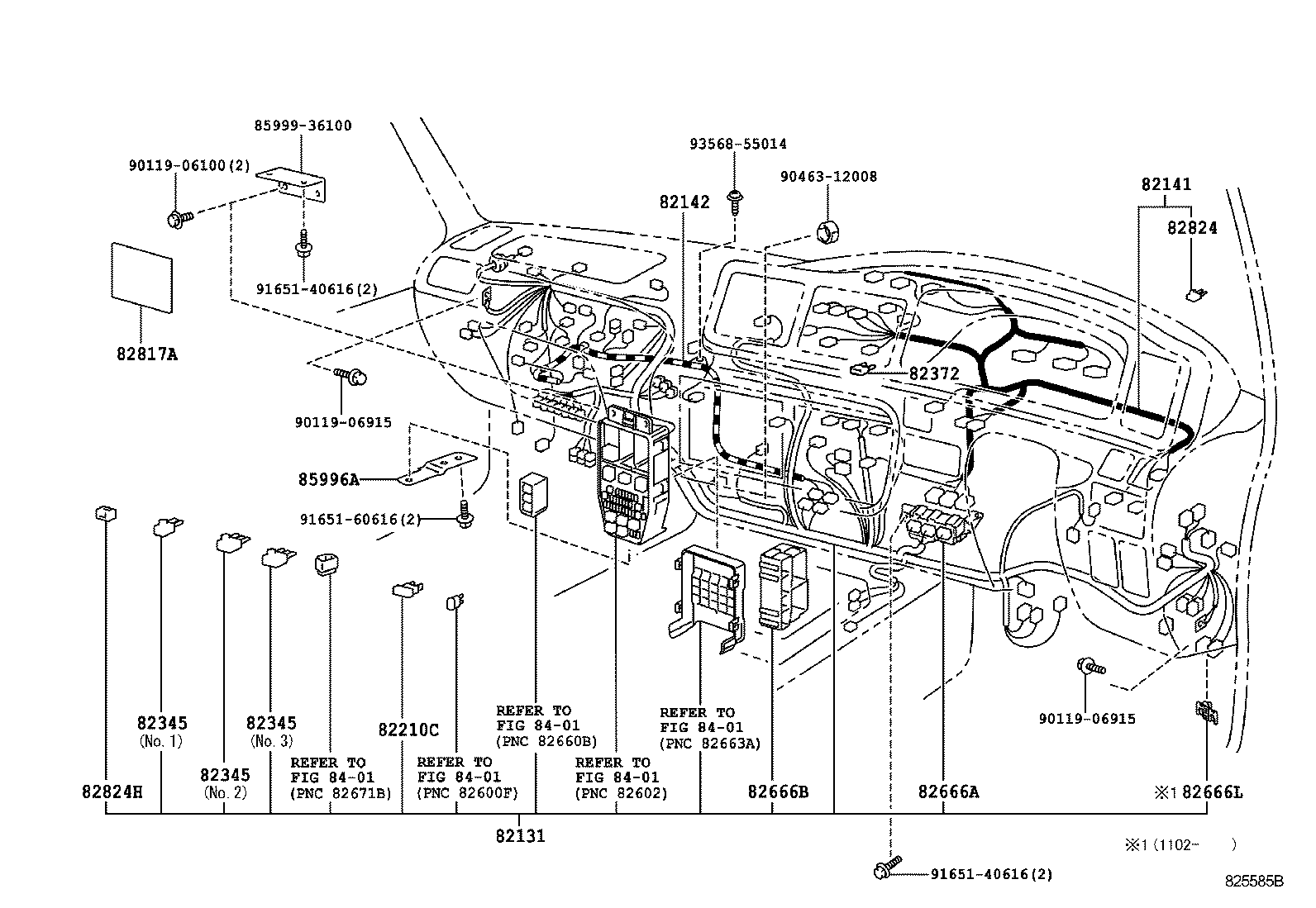

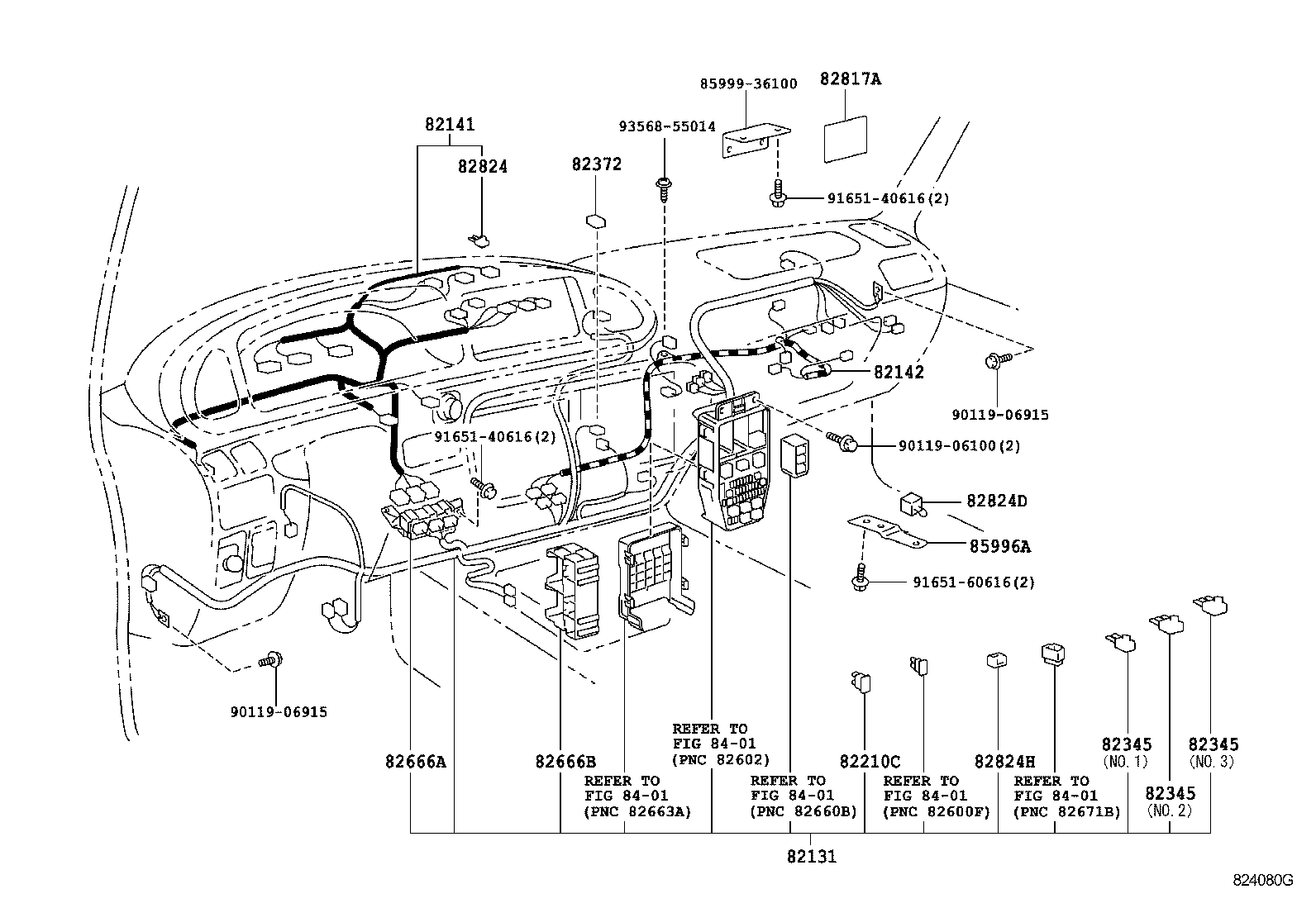

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82149 Wire, Pillar, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82159 Wire, Pillar, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82169 Wire Frame, NO.3

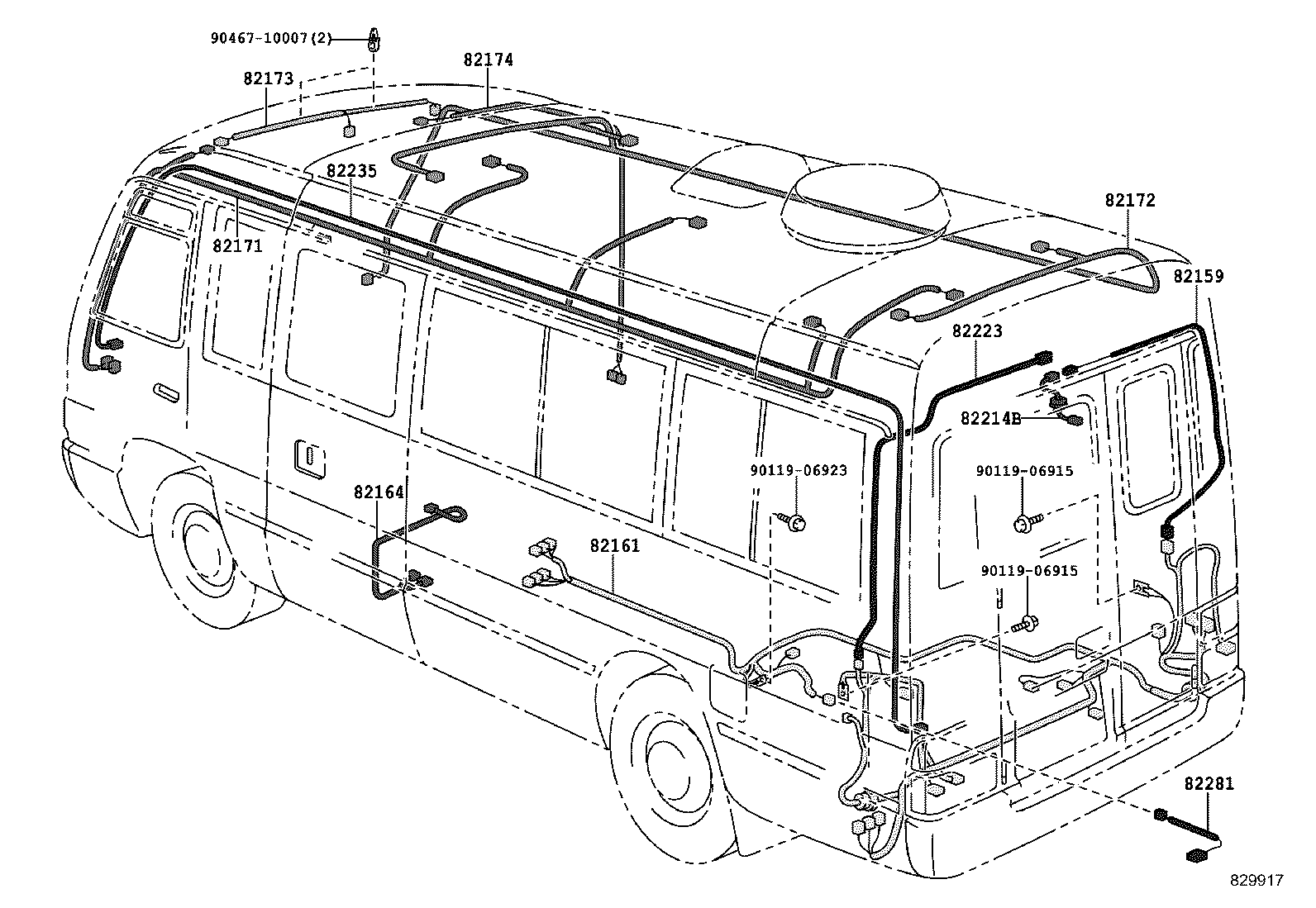

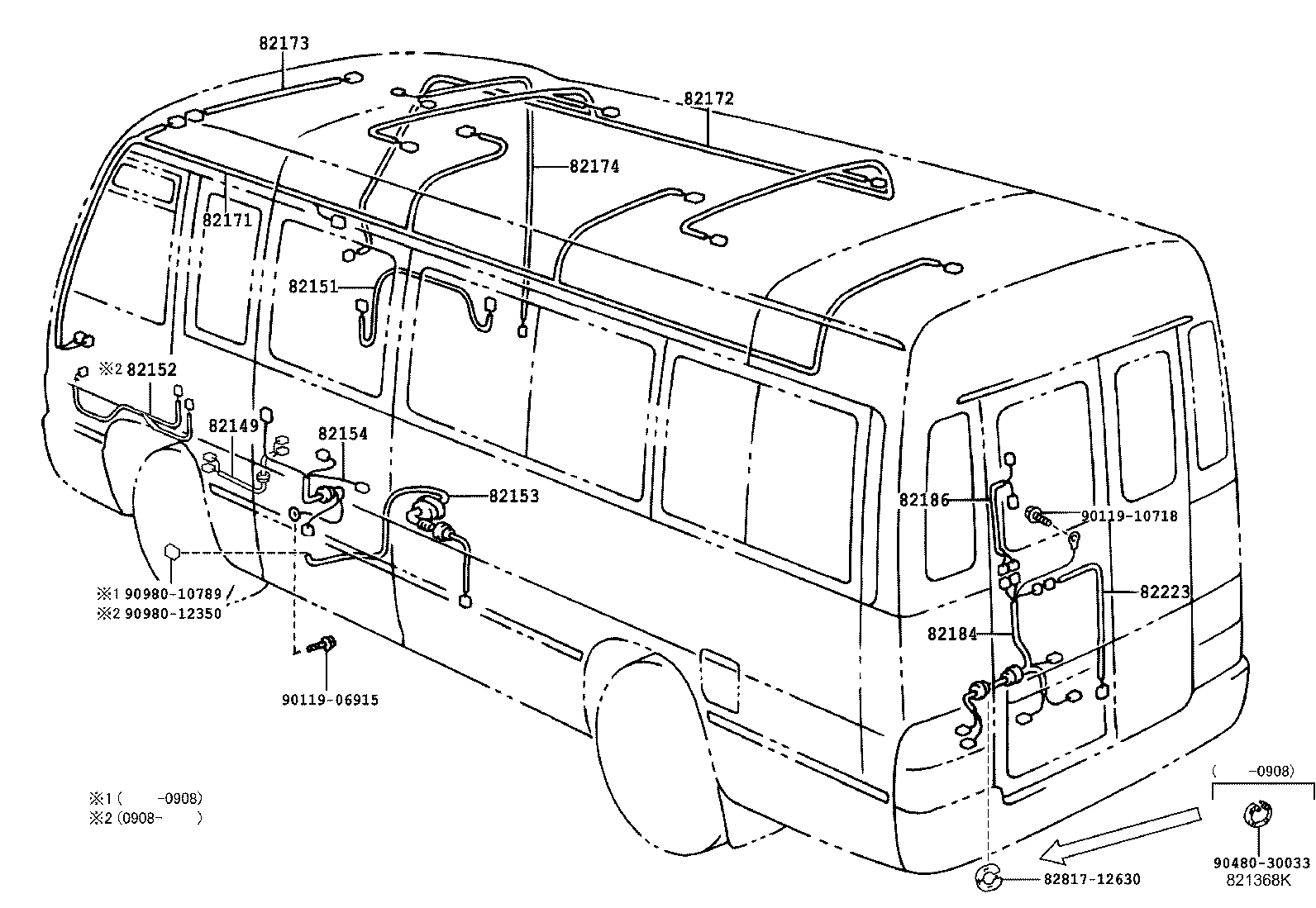

82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82174 Wire, Roof, NO.4
82177 Wire, Rear Body
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82214A Wire, Lamp
82214B Wire, Lamp, Rear
82215 Wire, Parking Brake Lamp Switch
82219A Wire, Sensor
82219C Wire, Sensor
82219G Wire, Sensor
82221 Wire, Oil Pressure Switch
82223 Wire, Switch
82235 Wire, Room
82241C Wire, Relay
82261A Wire, Alternator
82281 Wire, Gage
82345 Diode
82372 Wire, Radio Installation
82422 Wire, Alternator Sub, NO.1
82423 Wire, Alternator Sub, NO.2
82424 Wire, Alternator Sub, NO.3
82627A Wire, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82670 Block Assy, Junction, NO.1
82670D Block Assy, Junction,NO.2
82671 Block, Junction
82712A Support, Wiring Harness
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817N Protector, Wiring Harness, NO.13
82822 Bracket,Connector Block
82822A Bracket, Connector Block
82822B Bracket, Connector Block
82823 Cap, Terminal, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal

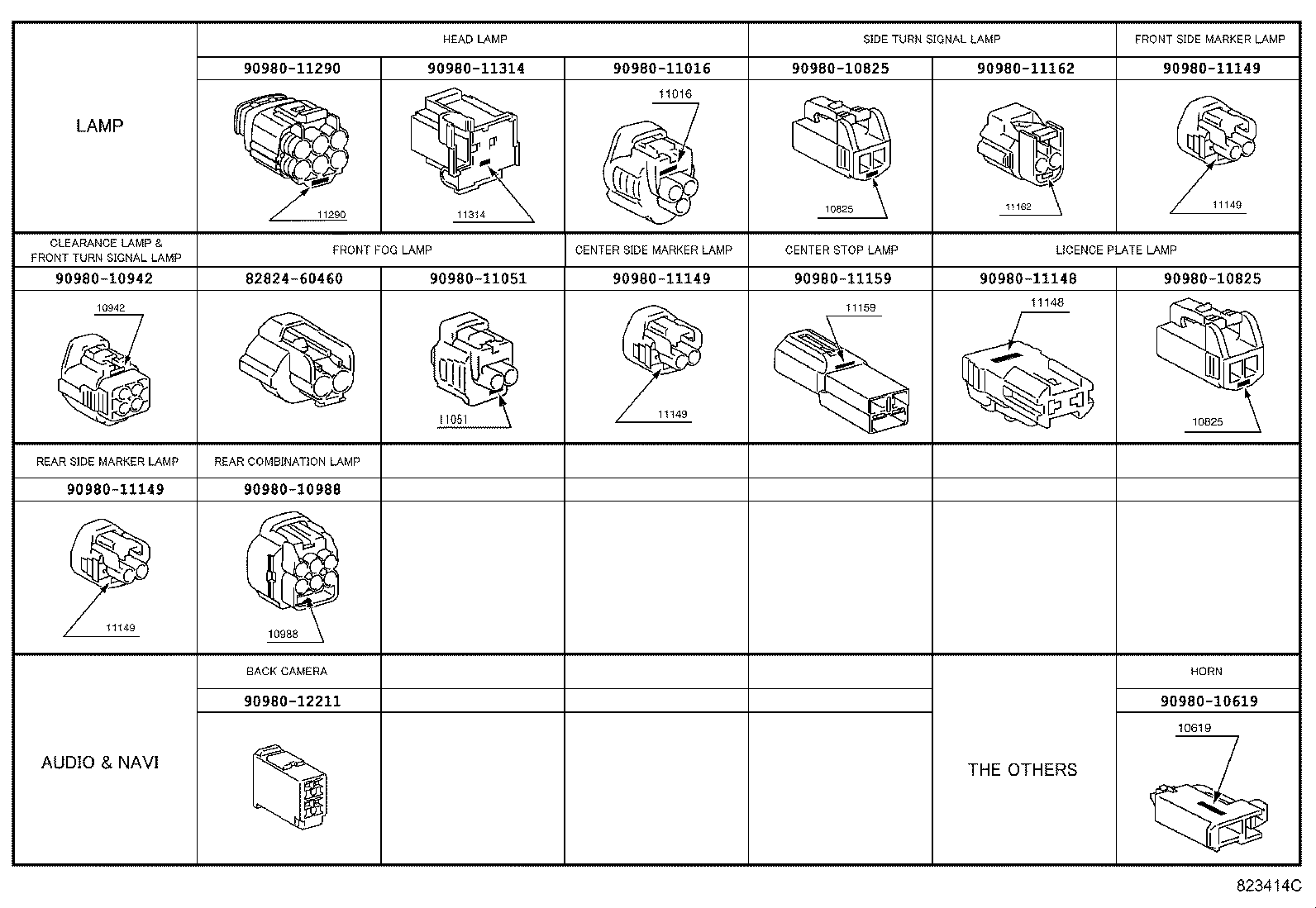

82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
82824M Connector, Wiring Harness
82824N Connector, Wiring Harness
85996A Bracket, Relay, NO.2
86011G Condenser
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
