Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe
Discontinued model
Data version 2016-12
Meter
27 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

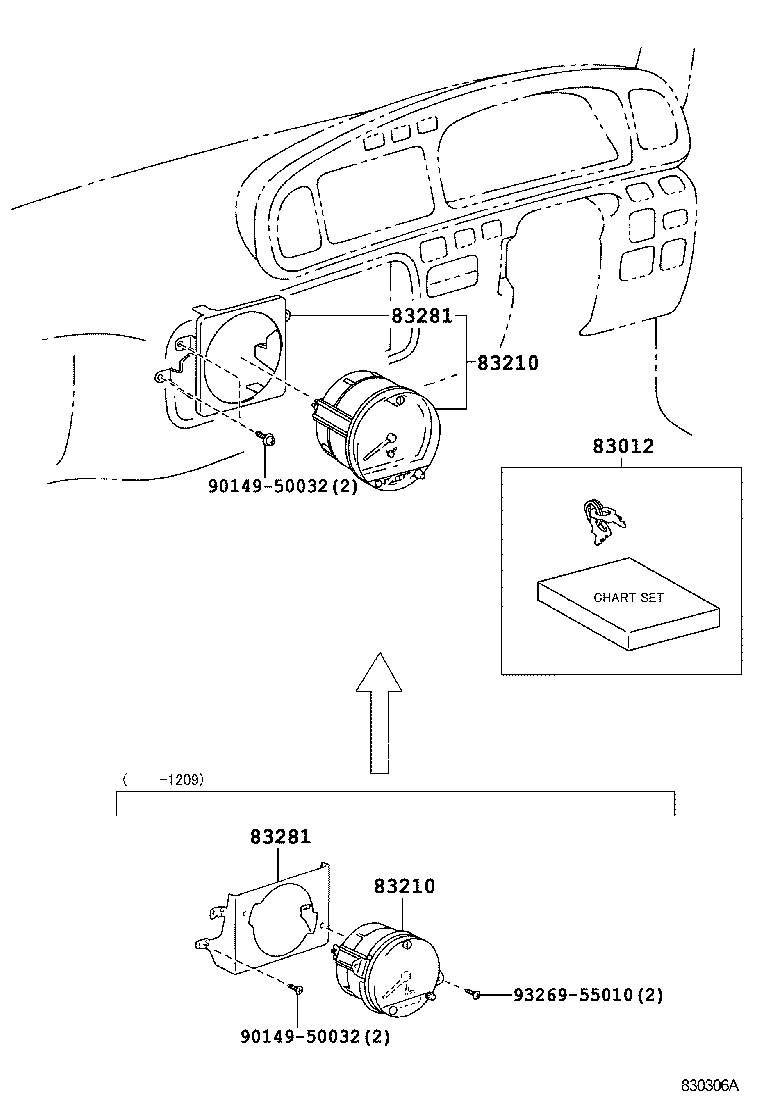

| 83012 | Sheet Set, Tachograph Chart |

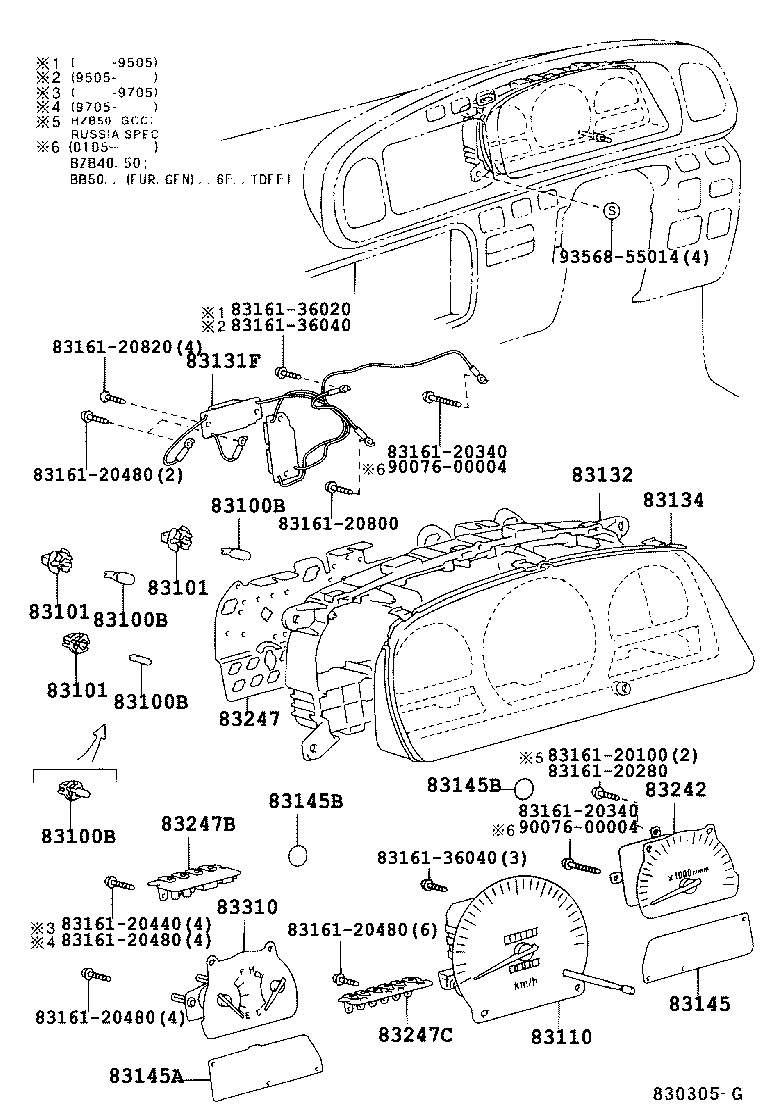

| 83100 | Meter Assy, Combination |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83131F | Droper Assy, Meter |
| 83132 | Case, Combination Meter |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138G | Glass, Combination Meter |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |

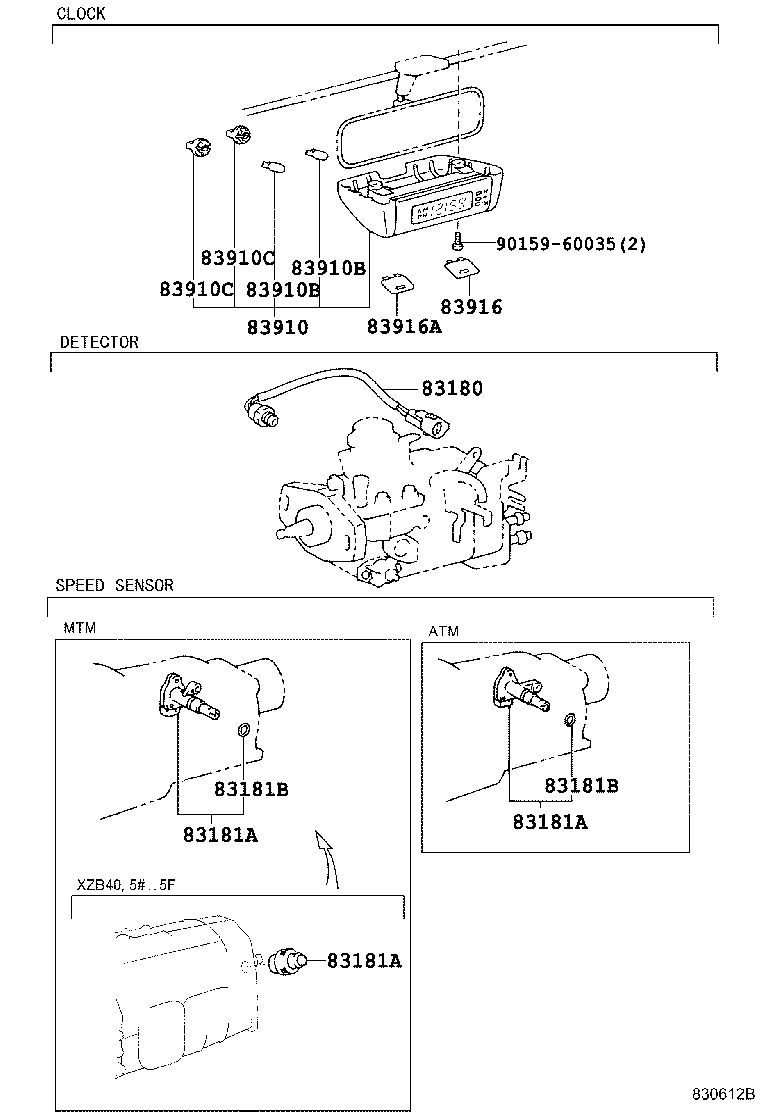

| 83180 | Detector Assy, Revolution |
| 83181A | Sensor, Speedometer |
| 83181B | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83210 | Tachograph Assy |
| 83242 | Tachometer Assy, Engine |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83247C | Plate, Mater Circuit, NO.3 |
| 83281 | Bracket, Tachograph, NO.1 |
| 83310 | Gage Assy, Fuel Receiver |
| 83910 | Clock Assy |
| 83910B | Bulb, Clock Indicator |
| 83910C | Socket Sub-assy, Clock Bulb |
| 83916 | Clip, Clock, NO.1 |
| 83916A | Clip, Clock, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
